Page 1
EmberCeptor PC
Automatic Power Down
ECEU/US-PC
ENERGY EFFICIENCY TECHNOLOGIES
User Manual
Page 2
2
Important
Please retain your User Manual
for future use.
In the event that you need some assistance with your
EmberCeptor, please email us at [email protected]
Alternatively, visit us on our website at embertec.com/emberceptor
Page 3
3
Contents
Embertec Recommends p4
Safety First
Your EmberCeptor PC™ p6
What is EmberCeptor PC™ p8
Using your EmberCeptor PC™? p9
Standby Power Down p12
Care and Maintenance p14
Troubleshooting Guide p15
Disposal/Recycling p16
Warranty Details p19
Page 4
4
IMPORTANT: Please retain
your User Manual for
future use.
At Embertec, we believe that safe performance is the rst priority in any
consumer product, so that you, our valued customer can condently use
and trust our products. We ask that any electrical appliance that you use
be operated in a sensible fashion with due care and attention placed on
the following important operating instructions.
Important Safeguards For Your EmberCeptor PC™
Carefully read all instructions before •
operating the EmberCeptor PC™
for the rst time and save for future
reference.
To protect against electric shock, do •
no immerse the EmberCeptor PC™ in
water or any other liquid.
This EmberCeptor PC™ is intended for •
household and commercial use only,
not for industrial use.
Disconnect from the power point •
before cleaning and when the
EmberCeptor PC™ is not in use.
Do not plug this EmberCeptor PC™ •
into another device.
Do not insert needles or any other •
metal objects into the device’s outlets.
Avoid moisture, extreme •
temperatures, shock and vibration.
This device • does not convert
voltage. Do not connect country
or travel power adapters into the
EmberCeptor™. Your connected
equipment must comply with the
below electrical requirements:
EmberCeptor™ PC Series Specications
Part Number ECUKPC
Electrical
Operating Voltage (AC)
(+10% -6%)
220-230
Mains Frequency (Hz)
50
Output Current (Amps)
13A
ECUSPC
120
60
15A
Disconnection Type
Control Pollution Degree
Rated Impulse Voltage
ECEUPC
220-230
50
16A
UK US EU
Type 1B
2
1500V
Standards and Compliance
RoHS, WEEE, CE, ETL
Compliant
Embertec Recommends Safety First
Page 5
5
Connected plugs must be kept clean •
and free from defect.
Suitable for indoor use only.•
Ensure the device is securely plugged •
into the wall socket to avoid the
device slipping out. Ensure cords
plugged into the device remain
tangle free.
Important Safeguards For All
Electrical Appliances
The EmberCeptor PC™ is not intended •
for use by persons (including
children) with reduced physical,
sensory or mental capabilities, or lack
of experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
Children should be supervised to •
ensure that they do not play with the
EmberCeptor PC™.
It is recommended to regularly •
inspect the EmberCeptor PC™.
To avoid a hazard do not use the
EmberCeptor PC™ if it becomes
damaged in any way
This EmberCeptor PC™ is for •
household and commercial use only,
not for industrial use. Do not use this
EmberCeptor PC™ for anything other
than its intended use. Do not use in
moving vehicles or boats. Do not use
outdoors. Misuse may cause injury.
Embertec is not responsible for •
special, incidental, or consequential
damages or loss of components, or
data; loss of operating instructions;
or intentional misuse of the product.
Damages and loss include, and not
limited to: lost business; business
downtime; component/ equipment
replacement and reconguration; or
retrieval of lost data.
The apparatus shall not be exposed •
to dripping or splashing and that no
objects lled with liquids, such as
vases, shall be placed on the apparatus
An apparatus with CLASS 1 •
construction shall be connected to
MAINS socket outlet with a protective
earthing connection
The MAINS plug is used as the •
disconnect device, the disconnect
device shall remain readily operable;
The socket-outlet shall be installed •
near the equipment and shall be
easily accessible
Page 6
6

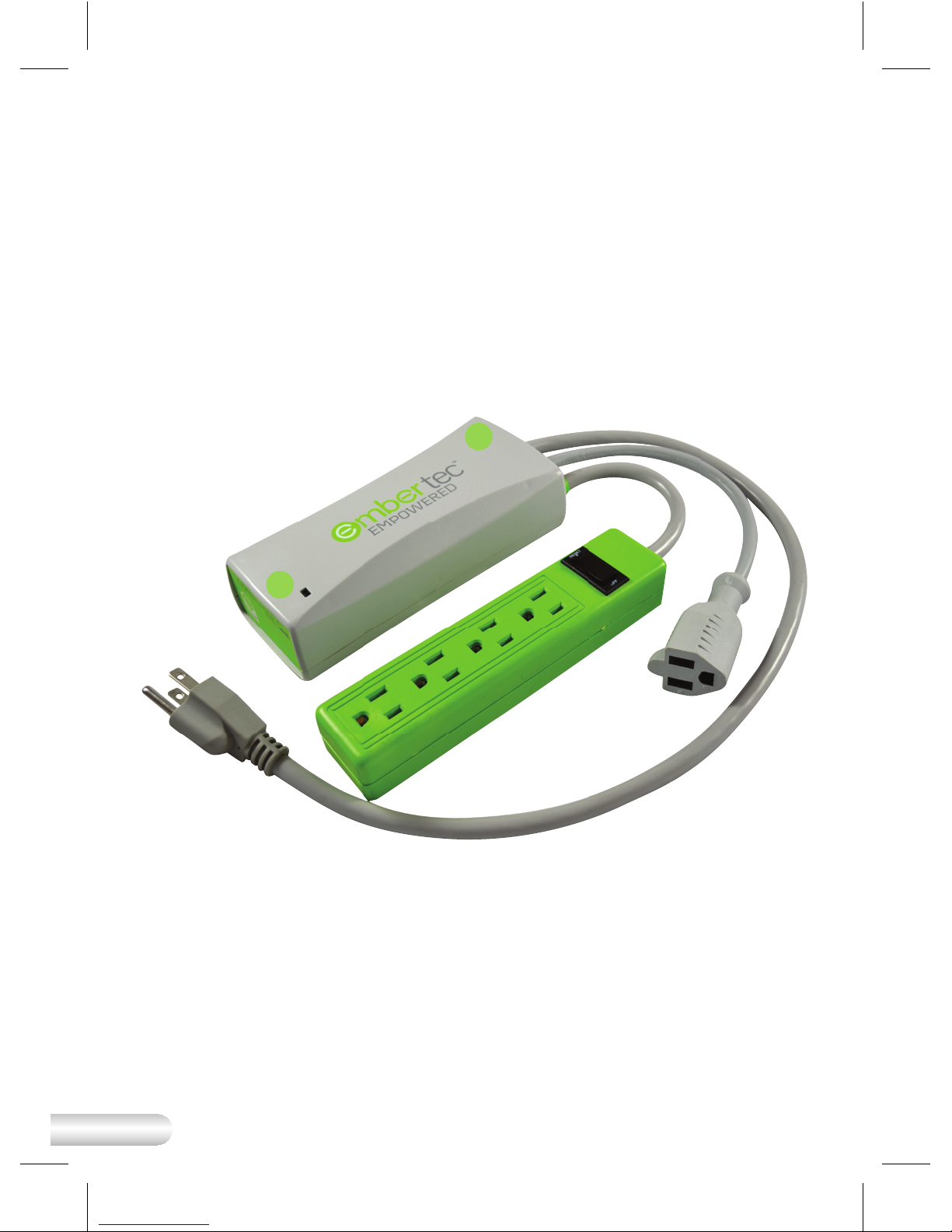

Your EmberCeptor PC™
EmberCeptor PC1.
Monitoring light2.
Not Shown
• Overloadprotectioncircuit
breaker re-set button
1
2
Page 7
7
The ‘Computer Only’ socket (grey) is •
recommended for use with a laptop
or desktop computer. This will ensure
that constant computer power is not
interrupted or removed at any time
to avoid damage to your computer
hardware or data les.
The ‘Power Saver’ socket (green) is •
recommended for peripheral devices
that can be switched o automatically
when the computer is not in use (e.g.
monitors, printers, speakers, external
hard drives and lamps). These devices
will be switched o automatically
to save energy when the computer
enters sleep, hibernate, standby or
o modes.
LED monitoring light indicates power, •
monitoring and event status, as
well as the operational state of the
EmberCeptor PC™.
Overload protection circuit breaker •
re-set button. (Not shown)
German and European general •
purpose outlets.
Speci cations
Surge protection provided to •
EmberCeptor PC™ outlets, providing
assurance that your home o ce
equipment and computer equipment
are protected against dangerous
power surges from your electricity
source. Total surge protection up
to 375J / 4500 Amps. In the event
of a major power surge, electrical
overload or wall outlet failure, the
EmberCeptor PC™ will remove power
to both sockets to further protect your
connected equipment.
Australian designed and engineered.•
Page 8
8
What is the EmberCeptor PC™?
The EmberCeptor PC™ automatically
switches o power to peripherals
connected to the power saving socket
when the computer switches o or goes
into sleep mode.
Equipment is re-powered by simply
reactivating your computer.
The EmberCeptor PC™ connects to
existing power boards and works with
all computer equipment regardless of
brand or age.
NOTE: It is not guaranteed to work
accurately for laptops with old or
damaged batteries.
What Power is Wasted?
Many of today’s appliances for the
home and oce continue to use
power, even when the appliance is
turned o. Appliances that are left on
unintentionally or are in sleep mode,
waste even more power.
Automatic Power Down
EmberCeptor PC™ eliminates standby
power consumed by computer and oce
equipment that has been left on or has
entered sleep mode.
Page 9
9
Before First Use
Remove any packaging and promotional
material from the EmberCeptor PC™
device.
Setting Up the
EmberCeptor PC™
To maximise your energy saving,
please ensure your computer’s power
management settings are active so
the computer enters sleep, standby
or hibernate modes. Normally this
function is found in a menu in a PC,
called ‘Power Options’.
In an iMac, ‘Energy Saver’ is used to
tell the computer when to go to sleep.
Other option is to send your Mac to
sleep, close the lid on your portable Mac
or press the on/o button once on your
desktop Mac.
Connect your computer power plug
into the socket marked ‘Computer Only’.
NOTE: Only one computer is to
be connected to the ‘Computer
Only’ socket.
Identify the equipment that is used with
the computer, such as monitors, printers,
speakers, external hard drives and lamps,
and plug them into the socket marked
‘Power Saver’.
NOTE: Where there is more than
one device that needs to be
connected, any power board,
powerstrip, trailing socket or surge
board may be connected to the
‘Power Saver’ socket.
Using Your EmberCeptor PC™
NOTE: Devices that are connected
to the ‘Power Saver’ socket will be
automatically switched o during
the computer’s power saving cycle.
Connect the equipment that needs to
remain turned on, such as the internet
modem / router, fax machine, to another
free socket on the wall outlet.
Plug the EmberCeptor PC™ into a
220V-230V wall socket in Europe, or into
a 120V wall socket in US, and turn the
power point on at the wall (if the wall
outlet has a switch).
NOTE: Only equipment connected
to the EmberCeptor PC™ will be
protected against surge.
NOTE: If the power management
settings are not active on the
computer, the peripherals
connected to the EmberCeptor PC™
‘Power Saver’ socket will only be
turned o when the computer is
manually shut down.
Page 10
10
Using Your EmberCeptor PC™ continued
POWER SAVER
Wireless Modem
Monitor Speakers Printer Lamp
Computer
or Lap Top
COMPUTER ONLY
Page 11
11
The LED monitoring light on the
EmberCeptor PC™ will now light up
for 3 seconds to indicate detection of
connected equipment. This also indicates
the EmberCeptor PC™ is monitoring
your power consumption and providing
power to the ‘Power Saver’ socket and
then will switch o.
Your PC system is now ready for normal use.
Led Monitoring Light Status
The LED light on the EmberCeptor PC™
is ON whenever power has been applied
to the Power Saver socket, and OFF when
power has been removed.
Page 12
12
Once the Computer enters standby,
hibernate / sleep or o mode, the
EmberCeptor PC™ will detect this and
begin the standby power down mode.
During this time, the EmberCeptor PC™
will monitor the power consumption to
ensure the computer is no longer being
used. After approximately 60 seconds of
inactivity from the user, the peripheral
appliances connected to the ‘Power
Saver’ socket will be switched o.
NOTE: When using Laptops and
Notebooks: the EmberCeptor PC™
may need additional time to detect
battery charging and condition
status in order to determine
whether peripherals should be on
or o.
NOTE: It is not guaranteed to work
accurately for laptops with old or
damaged batteries.
Turning the Computer
And Components o
After Connecting the
EmberCeptor PC™
Simply turn your equipment o in the
normal way.
Once the computer has been switched
o, the EmberCeptor PC™ will remove
power from the ‘Power Saver’ socket after
a delay of approximately 60 seconds.
Reactivating the Computer,
Peripherals and Equipment
To reactivate your computer,
peripherals and equipment, simply
press the spacebar, move the mouse,
or momentary press the computer
power button on your computer. The
EmberCeptor PC™ will switch on the
peripherals connected to the ‘Power
Saver’ socket within 5 seconds.
This will apply power to all components
ready for use. You can continue using
your computer and components in the
normal way.
To maximise your energy saving,
please ensure your computer’s power
management settings are active so the
computer enters sleep, standby
or hibernate modes. Normally this
function is found in a menu item called
‘Power Options’.
NOTE: The EmberCeptor PC™ will
switch o all peripherals when the
computer enters sleep, standby,
hibernate or o modes. If any
program is working or activity is
detected, all peripherals will remain
on (even when the screen saver is
already on).
Standby Power Down
Page 13
13
The EmberCeptor PC™ is tted with a
safety device that switches o the device
in the event of overloading. Should the
device stop working, turn o and unplug
all units, and reset the safety protection
button on the device before attempting
to restart the device. If the device fails
to operate or the safety device switches
o again, ccontact Embertec by email
at [email protected]
Alternatively, visit us on our website
at embertec.com/emberceptor
Overload Protection
Page 14
14
To clean the outside of the EmberCeptor
PC™ device, rst switch o and remove
the device from the power point. Then
wipe the exterior with a soft, damp cloth.
Never use an abrasive cleaner.
When not in use, store the EmberCeptor
PC™ (preferably in its original box) in a
cool, clean and dry location.
Care and Maintenance
Page 15
15
To Check
The EmberCeptor PC™ is not
receiving power.
The EmberCeptor PC™ is not
powering down my peripheral
appliances.
This may be caused by older
laptops where the batteries are
continuously recharging.
The EmberCeptor PC™ has
stopped working.
If the power board has a power switch, •
ensure it is turned on.
Ensure the equipment is plugged into the •
‘Power Saver’ socket, not to the ‘Computer
Only’ socket.
To maximise your energy saving, please •
ensure your computer’s power management
settings are active so the computer enters
sleep, standby or hibernate modes. Normally
this function is found in a menu item called
‘Power Options’.
Unplug all the appliances connected into •
the EmberCeptor PC™ device and then
unplug the device from the wall socket.
Then reconnect everything again.
Problem
Troubleshooting Guide
Page 16
16
Disposal/Recycling
To protect the environment, the
EmberCeptor PC™ should be recycled,
or disposed of safely at the end of its life.
Please return the EmberCeptor PC™ to
a recycling centre for safe recycling or
disposal.
http://uk.simsrecycling.com/contactsand-locations/european-recyclingcentres
NOTE: EmberCeptor complies
with WEEE and RoHS regulations
that restricts the use of certain
hazardous substances in Electrical
and Electronic Equipment (EEE) and
aim to reduce the amount of Waste
EEE and improve recovery and
recycling rates.
Page 17
17

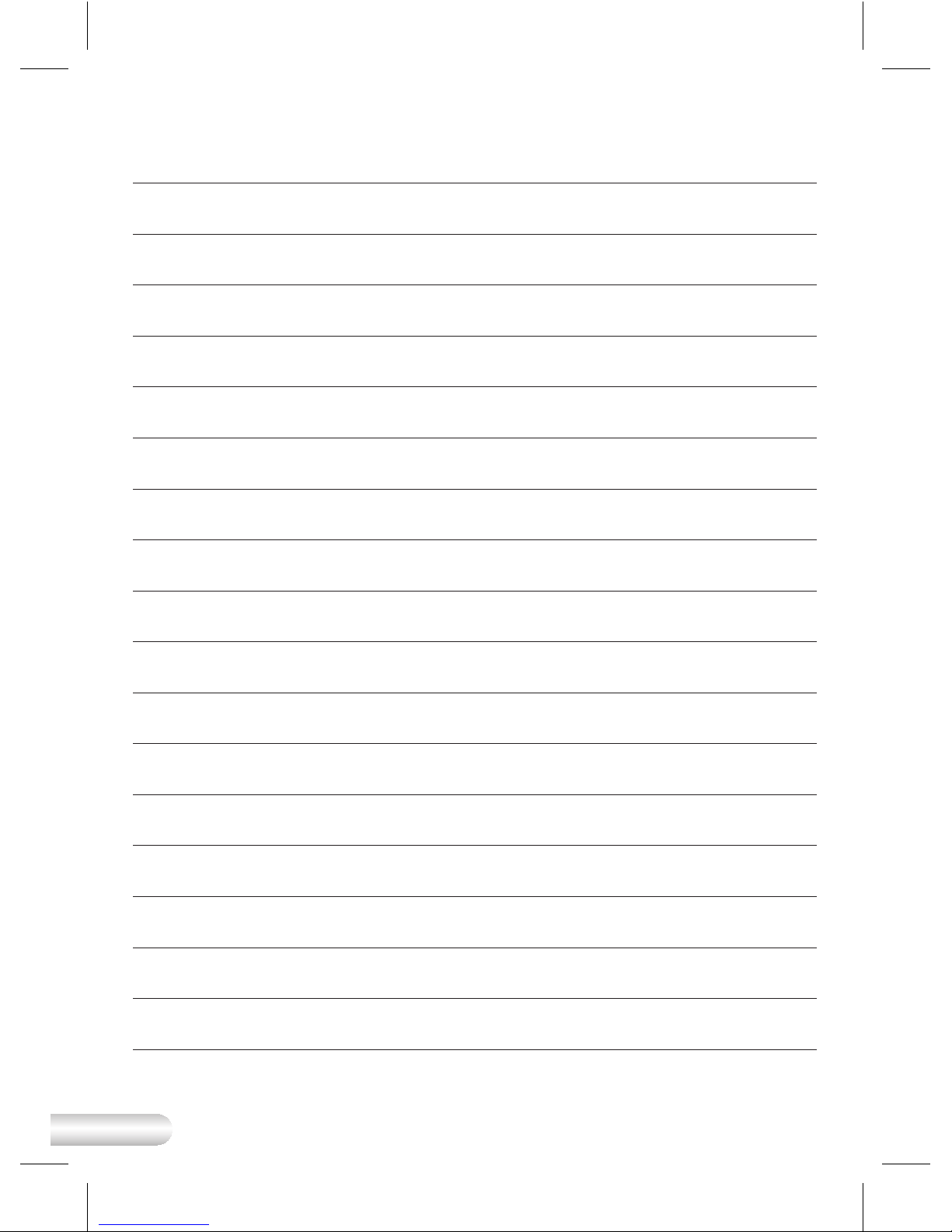

Notes
Page 18
18
Notes
Page 19
19
In Australia, this EmberCeptor
Replacement Warranty does not aect
the mandatory statutory rights implied
under the Trade Practices Act 1974
and other similar State and Territory
legislation relating to the appliance. It
applies in addition to the conditions and
warranties implied by that legislation.
This EmberCeptor Replacement Warranty
is valid only in the country of purchase,
but other statutory warranties may still
apply.
This Warranty card and the purchase
receipt for this product are to be retained
as proof of purchase and must be
presented if making a claim under the
Embertec Replacement Warranty. Please
note that under any applicable statutory
warranty you are not required to produce
these documents, but may be required to
provide a proof of purchase.
Embertec warrants the purchaser against
defects in workmanship and material
for a period of 12 months domestic use
from the date of purchase (or 3 months
commercial use).
The Embertec Replacement Warranty
does not apply to any defect,
deterioration, loss, injury or damage
occasioned by, or as a result of, misuse
or abuse, negligent handling or if the
product has been used other than in
accordance with the instructions.
Embertec 12 Month Replacement Warranty
The Embertec Replacement Warranty
excludes breakables such as glass and
ceramic items, consumable items and
normal wear and tear.
This EmberCeptor Replacement Warranty
is void if there is evidence of the product
being tampered with by unauthorised
persons.
If the product includes one or a number
of accessories only the defective
accessory or product will be replaced.
Subject to your statutory rights, in
the event of Embertec choosing to
replace the appliance, the EmberCeptor
Replacement Warranty will expire at the
original date, i.e. 12 months from the
original date of purchase.
In the event that you need some
assistance with your EmberCeptor, please
email us at [email protected]
Alternatively, visit us on our website at
embertec.com/emberceptor
This EmberCeptor is supplied by Embertec Pty Ltd.
Embertec Pty Ltd is responsible for any warranty
obligations as dened below.
Page 20
Embertec 12 Month Replacement Warranty
Your Purchase Record (Please Complete)
Date Of Purchase ________________________________________
Model Number __________________________________________
Serial Number ___________________________________________
Purchased From _________________________________________
Attach a copy of the purchase receipt here.
(Please don’t return purchase record until you are making a claim)
For further assistance please contact us on
Embertec
229 Greenhill Road,
Dulwich, SA 5065, Australia
Website: embertec.com/emberceptor
E-mail: [email protected]
Due to continual improvement in design or otherwise, the product you purchase
may dier slightly from the illustration in this book. Issue B10
ENERGY EFFICIENCY TECHNOLOGIES
Loading...
