Replacement Parts
List
EmberGlo® Steamer Model ES5PBS
Tap Water Operation
Designed to Operate
Without Distilled Water
Push Button Operation Steamer with Water Pan
Installation and Service Manual - 8449-96
Date Code - ES5PBS fi st constructed October, 2007
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0515
tel 773.604.8700
fax 773.604.4070
web www.emberglo.com
e-mail sales@emberglo.com
Items listed are replacement parts for the current Model ES5PBS Tap Water Steamer
and its components.
• EmberGlo Steamers do not require a separate hood for vapor produced during
operation according to the Uniform Mechanical Codes per the International
Conference of Building Offi cials Code.
AVOID ERROR IN PARTS SELECTION. When ordering use complete EmberGlo Part Number
and Description. Furnish Model Number, Bill of Material Number and Serial Number (if available)
from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are subject to change without notice.
413
Quality Designed for Proven Performance
8472 99
Printed in USA
ES5PBS Exploded View
1
2
3
4
37
36
35
34
33
32
5
6A
6B
7
8
9
31
10
30
11
29
28
12
110/120V
60 Hz 32w
Mod CP 6H
P/N 8452-49
13
27
14
38
39
e
24
40
23
25A
26
25B
15
16
17
18
22
19
20
2
EmberGlo A Division of Midco International Inc
8472 99
ES5PBS Parts List
Item Part # Description Qty Item Part # Description Qty
1 1420-80 Lid Assembly 1
2 1435-00 Lid Handle Replacement Kit 1
3 5608-50 Food Pan Grid 1
4 1401-90 ES5 Food Pan 1
5 1401-21 Control Box Cover - ES5PBS 1
6A 1401-61 ES5 Generator - 220V, 1500W 1
6B 1401-64 ES5 Generator - 120V, 1500W 1
7 1401-30 ES5 Bulb Clamp 1
8 1409-00 Stiffener 1
9 8451-89 Plug Button HS51156-K1110 2
10 1400-40 Shell Weldment 1
11 1403-70 ES5 Power Cord-120V 1
12 5616-90 Strain Relief 1
13 1401-10 Rear Bottom 1
14 1407-10 Water Pan Shell Weldment 1
15 1406-50 Water Pan Slide Weldment 1
16 5661-80 Aluminum Leg 4
17 8450-25 Socket Tip 4
18 1407-70 Leg Channel 1
19 1402-10 Water Pan 1
20 1411-00 Water Pan Baffl e Set 1
21 8445-01 Cover Knob 1
22 1408-90 Water Pan Front 1
23 1416-00 Dip Tube Assembly 1
24 8483-14 1/8″ x 1/4″ Straight Connector 1
25A 1417-40 Front Bottom 1
25B 1417-41 Front Bottom-220V 1
26 8484-76 Shorty Bush B-500-375 2
27 8425-08 Thermostat 1
28 1435-12 Pump Replacement Kit 1
29 1409-60 Tube Clip 1
30 1402-70 Water Inlet Assembly 1
31 1411-20 Water Nozzle with Spring 1
32 1415-80 Water Tube Assembly 1
33 8483-37 1/8F X 1/4T Comp EL 1
34 8483-15 1/8″ Brass Street EL 1
35 1417-00 Pump Bracket 1
36 8483-36 1/8 Brass EL 1
37 8423-22 Push Button Switch 1
38 1417-22 Switch Panel - ES5PBS 1
39 5622-00 Name Plate 1
40 8423-15 On/Off Rocker Switch 1
Not Shown
1410-50 Insulation Kit (Sides, Back, Front & Bottom) 1
1411-60 ES5PBS Wire Set (Less Power Cord) 1
1412-41 Thermal Fuse Kit With Instructions 1
1420-00 Spring Bar 2
1420-40 ES5 Hinge Spring 2
1421-45 Back Hinge Kit (Less Spring Bar & Spring) 1
8451-74 Strainer 1
Accessories - Not Shown
5608-70 Three in 1 Basket Kit w/ Handle
5682-60 Tortilla Rack
5608-72 1/2 Size Basket w/ Handle
5608-73 Two of 1/4 Size Basket w/ Handle
8450-62 Steam Generator Cleaning Brush
2070610 Egg Poacher 4 Cup
2070615 Egg Poacher 6 Cup

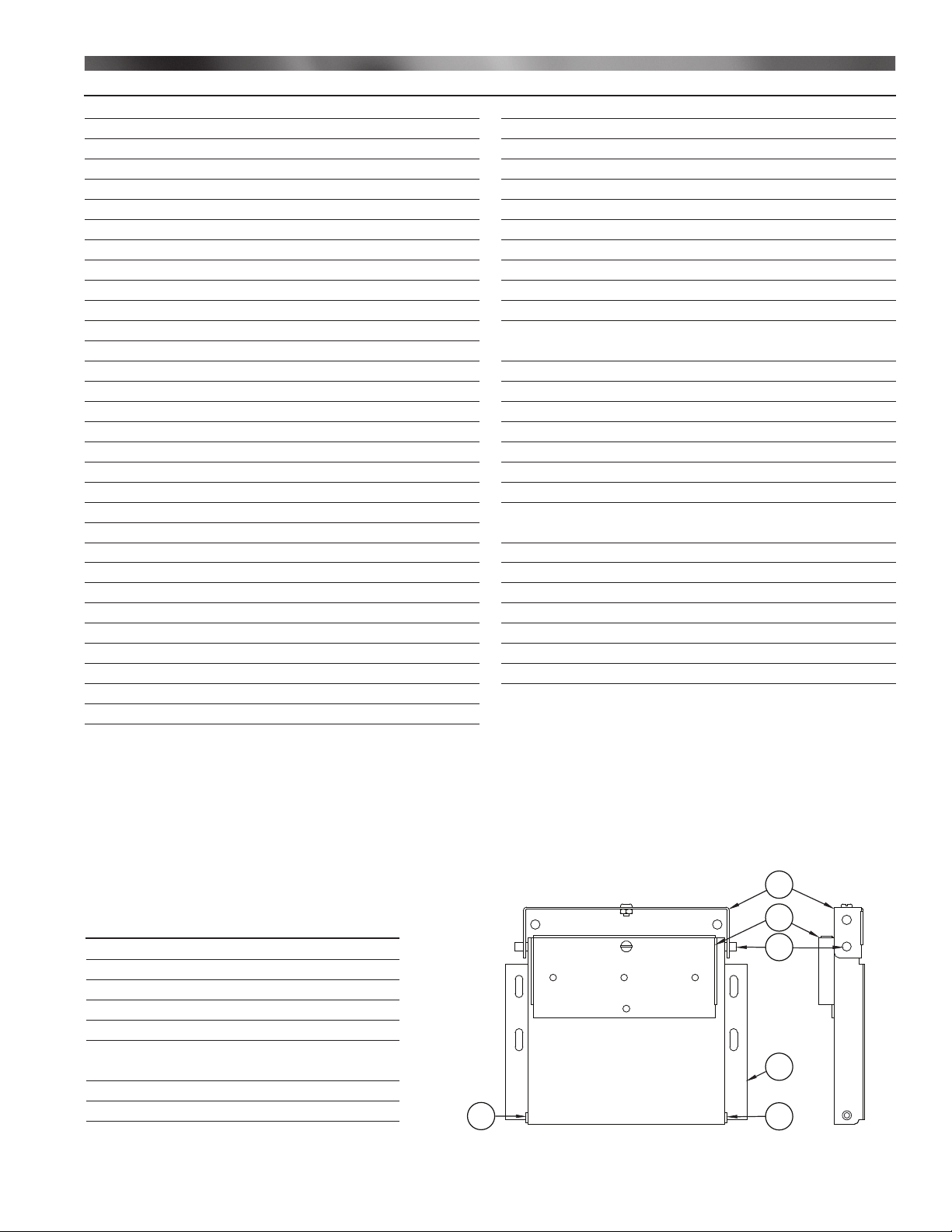

ADJUSTABLE HINGE FOR 2-POSITION LID OPENING (60° OR 90° OPEN)
First construction January 29, 1990 (date code 0590). Steamers built before this date featured a 90° opening lid. Replacement parts for the early
construction are no longer available. When replacing order Part Number 1421-45 ADJUSTABLE HINGE RETROFIT KIT.
1
Part # or Description Qty
Item #
1 Adjustable Upper Hinge 1
2 Lid Stop Rivetment 1
3 Upper Hinge Bar 1
4 Adjustable Lower Hinge 1
5 5/16″ x 3/16″ O-Ring 2
Not Shown - (Sold Separately)
1420-00 Spring bar 2
1420-40 ES5 Hinge Spring 2
8472 99
5
EmberGlo A Division of Midco International Inc
2
3
4
5
3
4
toll free: 866 705 0515 - tel: 773.604.8700 - fax: 773.604.4070 - web: www.emberglo.com - e-mail: sales@emberglo.com
EmberGlo - A Division of Midco International - 4140 West Victoria Street - Chicago, Illinois 60646
Rev 413
8472 99
Printed in USA
