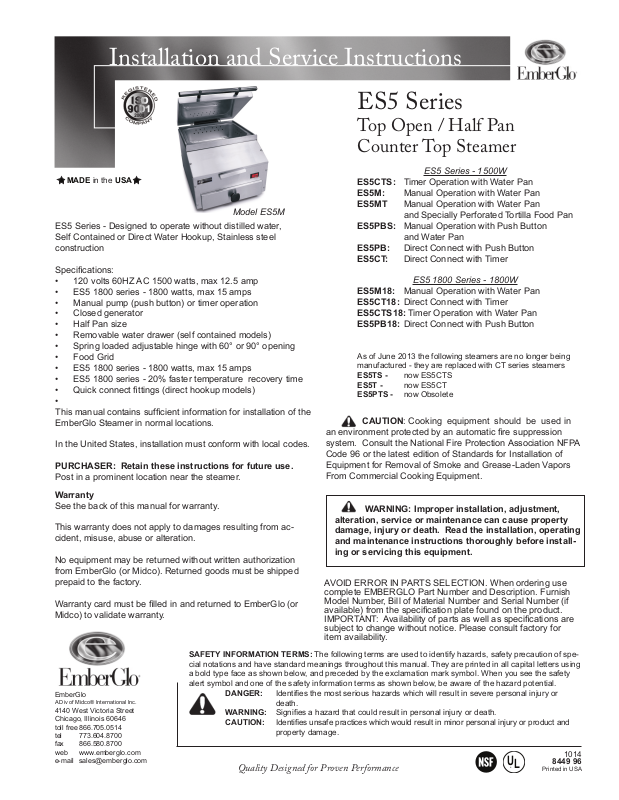

EmberGlo ES5 User Manual

Installation and Service Instructions

ES5 Series

Top Open / Half Pan
Counter Top Steamer

MADE in the USA

Model ES5M

ES5 Series - Designed to operate without distilled water,
Self Contained or Direct Water Hookup, Stainless steel
construction

Specifi cations:

• 120 volts 60HZ AC 1500 watts, max 12.5 amp

• ES5 1800 series - 1800 watts, max 15 amps

• Manual pump (push button) or timer operation

• Closed generator

• Half Pan size

• Removable water drawer (self contained models)

• Spring loaded adjustable hinge with 60° or 90° opening

• Food Grid

• ES5 1800 series - 1800 watts, max 15 amps

• ES5 1800 series - 20% faster temperature recovery time

• Quick connect fi ttings (direct hookup models)

•
This manual contains suffi cient information for installation of the
EmberGlo Steamer in normal locations.

In the United States, installation must conform with local codes.

PURCHASER: Retain these instructions for future use.
Post in a prominent location near the steamer.

ES5 Series - 1500W

ES5CTS: Timer Operation with Water Pan
ES5M: Manual Operation with Water Pan
ES5MT Manual Operation with Water Pan

and Specially Perforated Tortilla Food Pan
ES5PBS: Manual Operation with Push Button
and Water Pan

ES5PB: Direct Connect with Push Button
ES5CT: Direct Connect with Timer

ES5 1800 Series - 1800W

ES5M18: Manual Operation with Water Pan
ES5CT18: Direct Connect with Timer
ES5CTS18: Timer Operation with Water Pan
ES5PB18: Direct Connect with Push Button

As of June 2013 the following steamers are no longer being
manufactured - they are replaced with CT series steamers

ES5TS - now ES5CTS
ES5T - now ES5CT
ES5PTS - now Obsolete

CAUTION: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.

Warranty

See the back of this manual for warranty.

This warranty does not apply to damages resulting from ac­cident, misuse, abuse or alteration.

No equipment may be returned without written authorization
from EmberGlo (or Midco). Returned goods must be shipped
prepaid to the factory.

Warranty card must be fi lled in and returned to EmberGlo (or
Midco) to validate warranty.

SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of spe­cial notations and have standard meanings throughout this manual. They are printed in all capital letters using
a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the safety
alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.

EmberGlo

A Div of Midco® International Inc.

4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel [phone]
fax [phone]
web www.emberglo.com
e-mail [e-mail]

DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.

Quality Designed for Proven Performance

WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before install­ing or servicing this equipment.

AVOID ERROR IN PARTS SELECTION. When ordering use
complete EMBERGLO Part Number and Description. Furnish
Model Number, Bill of Material Number and Serial Number (if
available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are
subject to change without notice. Please consult factory for
item availability.

1014

U

®

L

8449 96

Printed in USA

ES5 Series - Installation

Installation

MADE in the USA

Operation

In the United States, wiring must conform to local codes, or in the absence of local codes, to the
National Electrical code ANSI/NFPA No. 70-latest edition. In Canada, wiring must conform to
local codes, or in the absence of local codes, to Canadian Electrical Code Part 1, CSA Standard

C22.1.

1. All ES5 Models: Locate on level surface and plug power cord into 120 volt, single phase
60 Hz. grounded outlet.

2. ES5M, ES5MT, ES5CTS & ES5PBS: Fill water pan by pulling water pan out to stop
position and fi ll with cold water to top of baffl es, then close drawer.

3. ES5PB & ES5CT: Connect water hose assembly to water supply system. The supply end has
1/8″ female pipe fi tting and should be attached down stream to a shut-off valve. Steamer end
of hose has a quick connect fi tting which snaps onto mating fi tting on steamer. This fi tting has
an automatic shut-off valve that allows steamer to be disconnected without shutting off water
supply. After connecting, turn on water and check for leaks.

4. EmberGlo Steamers do not require a separate hood for vapor produced during operation
according to the Uniform Mechanical Codes per the International Conference of Building
Offi cials Code. And there are no requirements in NSF Standard 4 (2006e) for steamers

to have ventilation.

__________________________________________

General Instructions for Operation. For operation tips and recommendations see below.

1. Push power switch to ON position (light on) and allow approximately 15-20 minutes to reach
operating temperature.

2. Test to make sure unit will generate steam.

3. Open lid, place food on grid and close lid.

4. ES5M & ES5MT: Rotate press handle until it stops - then release. See Heating and

Cooking
Guide - 8474-75S for suggested number of operations or “shots” (a shot is one press of

pump handle).
ES5PB & ES5PBS: Push round button momentarily for each operation. Do not hold button
more than one second.

Note: After installation, operate several times until the water hose fi lls with water.
ES5CT & ES5CTS: Operate the same as ES5PB above, or follow directions on label on front of
unit which will automatically deliver three shots per minute for time set. At end of cooking
time, READY light will come ON and signal will sound. Turn toggle switch to OFF to silence
signal.

5. Open lid and remove food.

6. For effi ciency and safety purposes, keep lid closed when not in use. This keeps the food pan
hot and reduces condensation in the steam chamber.

7. To shut off, push power switch to OFF position.

IMPORTANT: KEEP LID CLOSED WHEN NOT IN USE. This keeps the food pan hot and reduces
condensation in the steam chamber. When steamer is fi rst installed, or when reconnecting water
hose, operate STEAM button several times to purge air from lines.

General Tips and Recommendations for Operation.

To sustain optimum cooking performance: It is important to maintain the correct amount of steam
generated. Either holding the manual pump (ES5M & ES5MT) or pressing the button (ES5PB or
ES5PBS) too long will fl ood the generator with too much water. On the other hand not holding the
pump (ES5M) or pressing the button (ES5PB & ES5PBS) long enough and not spraying enough
water will not produce enough steam on the generator to properly cook the food in the desired time.

Recommended pumping and button pressing times for proper water levels in the generator:
ES5M & ES5MT - It is recommended that the user pump the handle two to three times every

20 to 30 seconds. If it is pumped more times or if the user does not wait long enough between
pumps, the generator will fl ood. Also, if it is pumped only once every minute there will not be
enough water in the generator to produce the correct amount of steam to sustain optimal
cooking performance.

ES5PB & ES5PBS - It is important to hold the button in for 3 seconds of time. If the button is
held too long, the generator will fl ood. If the button is held too short of a time, not enough water will
be sprayed onto the generator to create enough cooking steam. See below (next paragraph) for
recommendations on how to know this.

2

EmberGlo A Division of Midco International Inc

8449 96

ES5 Series - Maintenance and Service

Recommended Procedure for Understanding the Amount of Steam Generated in both the Manual
and Push Button Types of Steamers:

1. On a cool steamer take the food rack and food pan out of the steamer so that the generator
And water nozzle can be seen.

2. Warm up the unit for 10 to 15 minutes.

3. ES5M & ES5MT - Push the manual lever two to three times
ES5PB & ES5PBS - Push the button long enough to spray water on the generator surface.

4. Watch the water turn into steam. All of the water should evaporate in approximately 20 to
30 seconds.
By pumping the manual lever (ES5M & ES5MT) or pushing the button (ES5PB & ES5PBS) and
watching the time it takes to evaporate the water, the user will learn how to reach the optimal cook­ing results, whether by pushing the button in or pumping the manual lever.
Timer Type of Steamers - (ES5CTS & ES5CT) - this timing is internally set by the manufacturer to
obtain the optimum cooking steam cycle.
__________________________________________

Food Pan and Grid on all models should be removed and washed with a detergent or run through a
dishwasher.
WARNING: Under no circumstances should the entire steamer be run through a

dishwasher. If any of the switches or components get wet they can malfunction. Never try to
use a device that has been wet— replace it.
WARNING: Perform all maintenance when the unit is cool.

Exterior of unit should be wiped with a damp cloth or cleaned with a stainless steel cleaner.
Water Pan on ES5M, ES5MT, ES5CT, ES5CTS, ES5PB & ES5PBS may be removed for cleaning

by pulling out to stop position; lift front of steamer about 3″ to clear pump and pull pan all the way
out. To replace, lift front of steamer about 3″, slide pan in pan track until it is about 2″ from closed
position, then lower steamer front and push pan completely in.
__________________________________________

Installation

Continued

Maintenance

As Required

Generator: The cavity in the generator may accumulate lime and is cleaned by scraping or wire
brushing. Do not remove all of this deposit since a thin coating improves steaming.
Water Nozzle: The water nozzle, the round cap in front center of generator, may be pulled out for
cleaning. Clean small holes and inside of tube with spring clip provided in the tube.
Water Inlet: If the tube through generator is limed, remove plug at bottom and push lime out with a
wire or small rod.

Strainers:

ES5M ES5MT, : Strainer is in bottom of pump. Remove wire ring, then strainer wash and
replace.
ES5CTS & ES5PBS: Strainer is located in front center of bottom. Slip strainer off
Tube, wash and replace.
ES5PB & ES5CT: To wash strainer located in hose:

1. Remove hose.

2. Remove quick connect fi tting.

3. Reverse hose (connect steamer end to supply valve). Drain into sink or bucket.

4. Run water through hose to clean.

5. Return to original connections.
There is a strainer in inlet of solenoid valve that normally does not require cleaning but under
extreme conditions may have to be removed and cleaned.
__________________________________________

DANGER: Before attempting service, unplug power cord.

We recommend any service be done by qualifi ed service personnel. Refer to separate Parts List for
parts identifi cation and assembly guide.

1. All electrical components are contained in enclosure behind switch panel. For access,
remove sloping front and switch panel.

2. ES5M & ES5MT pump is easily removed for service or replacement. Disconnect water line
(under steamer) from pump, open electric enclosure, disconnect linkage and remove two
screws holding pump.

3. To remove ES5CTS & ES5PBS pump:
A. Disconnect electric wires from terminals.
B. Disconnect discharge hose from pump.
C. Remove two screws through bottom of steamer holding pump bracket.
D. Lift pump out.

8449 96

EmberGlo A Division of Midco International Inc

Maintenance

Daily

Service

3
