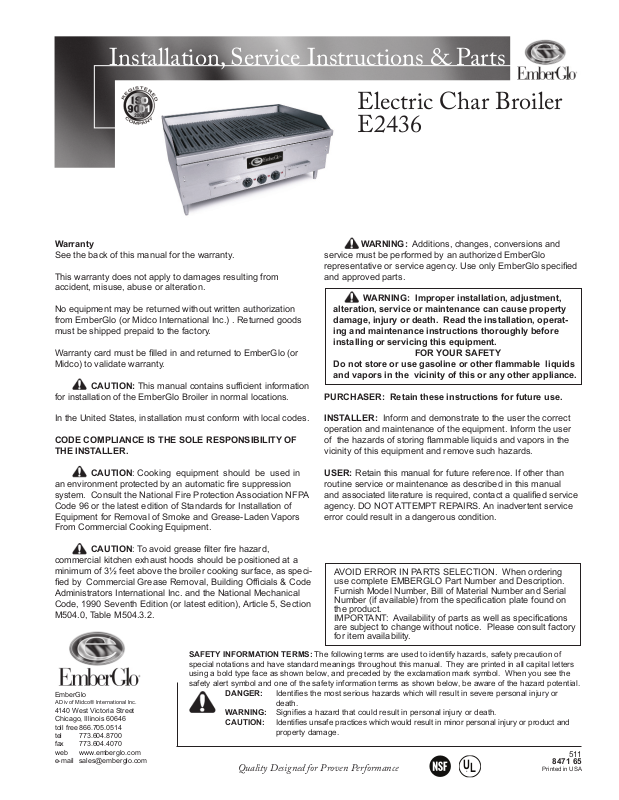

EmberGlo E2436 Service Manual

Installation, Service Instructions & Parts

Electric Char Broiler
E2436

Warranty

See the back of this manual for the warranty.

This warranty does not apply to damages resulting from
accident, misuse, abuse or alteration.

No equipment may be returned without written authorization
from EmberGlo (or Midco International Inc.) . Returned goods
must be shipped prepaid to the factory.

Warranty card must be fi lled in and returned to EmberGlo (or
Midco) to validate warranty.

CAUTION: This manual contains suffi cient information
for installation of the EmberGlo Broiler in normal locations.

In the United States, installation must conform with local codes.

CODE COMPLIANCE IS THE SOLE RESPONSIBILITY OF
THE INSTALLER.

CAUTION: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.

WARNING: Additions, changes, conversions and
service must be performed by an authorized EmberGlo
representative or service agency. Use only EmberGlo specifi ed
and approved parts.

WARNING: Improper installation, adjustment,

alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operat­ing and maintenance instructions thoroughly before
installing or servicing this equipment.

FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable liquids
and vapors in the vicinity of this or any other appliance.

PURCHASER: Retain these instructions for future use.

INSTALLER: Inform and demonstrate to the user the correct

operation and maintenance of the equipment. Inform the user
of the hazards of storing fl ammable liquids and vapors in the
vicinity of this equipment and remove such hazards.

USER: Retain this manual for future reference. If other than
routine service or maintenance as described in this manual
and associated literature is required, contact a qualifi ed service
agency. DO NOT ATTEMPT REPAIRS. An inadvertent service
error could result in a dangerous condition.

CAUTION: To avoid grease fi lter fi re hazard,
commercial kitchen exhaust hoods should be positioned at a
minimum of 3½ feet above the broiler cooking surface, as speci­fi ed by Commercial Grease Removal, Building Offi cials & Code
Administrators International Inc. and the National Mechanical
Code, 1990 Seventh Edition (or latest edition), Article 5, Section
M504.0, Table M504.3.2.

SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of
special notations and have standard meanings throughout this manual. They are printed in all capital letters
using a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the
safety alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.

EmberGlo

A Div of Midco® International Inc.

4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel [phone]
fax [phone]
web www.emberglo.com
e-mail [e-mail]

DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.

Quality Designed for Proven Performance

AVOID ERROR IN PARTS SELECTION. When ordering
use complete EMBERGLO Part Number and Description.
Furnish Model Number, Bill of Material Number and Serial
Number (if available) from the specifi cation plate found on
the product.
IMPORTANT: Availability of parts as well as specifi cations
are subject to change without notice. Please consult factory
for item availability.

511

U

®

L

8471 65

Printed in USA

E2436 - Installation and Maintenance

Installation

Wiring: All units are shipped wired for single phase current.

Ventilation: Do not install broiler closer than 8″ side to back or 5″ back to side walls. LEGS SHIPPED
WITH THE UNIT MUST BE INSTALLED WITH LEG CHANNELS. Minimum leg height, with no block-

age around the bottom of the broiler, must be maintained for proper ventilation.

FAILURE TO INSTALL OR REMOVAL OF THE LEGS IS A VIOLATION OF THE APPROVAL
SEALS AND VOIDS THE MANUFACTURER’S WARRANTY.

- Remove the leg channels and knobs that are packed in the
broiler (located in the hopper front). The leg channels are two
long pieces of U-shaped steel designed to prevent warping of
the broiler frame when the broiler is moved by sliding on its legs.
See Figure 1

- Prop the broiler up and line up the holes in one of the leg
channels over the holes for the weld nuts on the front end of the
broiler.

- Screw two of the legs provided into the weld nuts to attach the
legs and hold the leg channel in place.

- Repeat procedure for the rear legs.

Figure 1 - Leg Placement
All units will reach proper broiling temperature with a switch setting of 5 to 5½. this setting will yield
between 500° and 550°. The unit will reach broiling temperature in approximately 6 to 10 minutes.
Any attempt to broil for long periods of time with the controls above 6 may cause meat to burn.

______________________________________________

FRONT OF BROILER

LEG CHANNEL

LEG

Preventative
Maintenance

Daily Maintenance

NOTE: Always clean the unit starting at the top and working down. Be sure that the grease hopper
and grease pan are in place before you proceed with any cleaning procedure in order to prevent any
scrapping or grease from dropping into the base and onto electrical wiring and terminal blocks.

- With normal use of the broiler, deposits build up on the top and bottom of the grate. In order to as­sure safe operation, these deposits must be cleaned periodically during the day from both the top and
underside of the grill or grate casting.
a. To clear the top of the casting, scrape each groove with the tip of the scraper provided
until the surfaces are clear.
b. To clear the underside of the casting, insert the scraper head through the slots of the
grill and turn the scraper handle parallel to the grooves. Pulling upward, scrape
deposits from the grill underside. Repeat for each groove.
c. Empty grease pan periodically to avoid messy overfl ow.

______________________________________________

- When broiling is fi nished for the day clean as follows:
a. Clean deposits from the top and bottom of the grate as explained above.
b. Empty the hopper, clean and reinsert hopper.
c. Turn unit to “HI” and leave on for approximately 15 minutes. This will char the
remaining grease on the grill casting.
d. Turn off controls. When grill is cool, scrape the underside again and wire brush the
surface to complete cleaning of the grill.
e. Remove and clean the side splash guards and rear trough. Wash the front and rear
wells and wipe along the sides.
f. Wipe the casting with a dry clean cloth -- do not use water or detergent on the castings.
g. Empty and clean the grease pan.

______________________________________________

2
