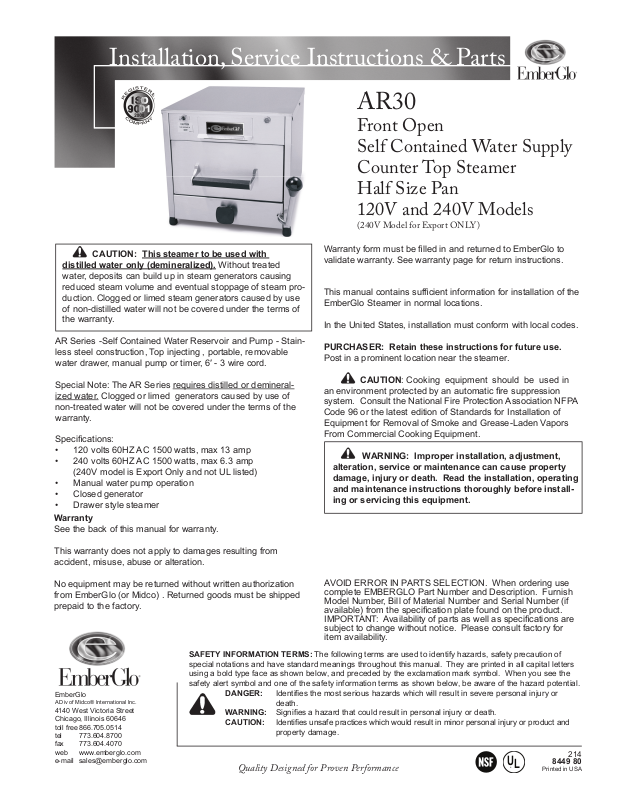

Installation, Service Instructions & Parts
AR30
Front Open
Self Contained Water Supply
Counter Top Steamer
Half Size Pan
120V and 240V Models
(240V Model for Export ONLY)
CAUTION: This steamer to be used with
distilled water only (demineralized). Without treated
water, deposits can build up in steam generators causing
reduced steam volume and eventual stoppage of steam production. Clogged or limed steam generators caused by use
of non-distilled water will not be covered under the terms of
the warranty.
AR Series -Self Contained Water Reservoir and Pump - Stainless steel construction, Top injecting , portable, removable
water drawer, manual pump or timer, 6′ - 3 wire cord.
Special Note: The AR Series requires distilled or demineralized water. Clogged or limed generators caused by use of
non-treated water will not be covered under the terms of the
warranty.
Specifi cations:
• 120 volts 60HZ AC 1500 watts, max 13 amp
• 240 volts 60HZ AC 1500 watts, max 6.3 amp
(240V model is Export Only and not UL listed)
• Manual water pump operation
• Closed generator
• Drawer style steamer
Warranty
See the back of this manual for warranty.
This warranty does not apply to damages resulting from
accident, misuse, abuse or alteration.
Warranty form must be fi lled in and returned to EmberGlo to
validate warranty. See warranty page for return instructions.
This manual contains suffi cient information for installation of the
EmberGlo Steamer in normal locations.
In the United States, installation must conform with local codes.
PURCHASER: Retain these instructions for future use.
Post in a prominent location near the steamer.
CAUTION: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing this equipment.
No equipment may be returned without written authorization
from EmberGlo (or Midco) . Returned goods must be shipped
prepaid to the factory.
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of
special notations and have standard meanings throughout this manual. They are printed in all capital letters
using a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the
safety alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel 773.604.8700
fax 773.604.4070
web www.emberglo.com
e-mail sales@emberglo.com
DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.
Quality Designed for Proven Performance
AVOID ERROR IN PARTS SELECTION. When ordering use
complete EMBERGLO Part Number and Description. Furnish
Model Number, Bill of Material Number and Serial Number (if
available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are
subject to change without notice. Please consult factory for
item availability.
214
U
®
L
8449 80
Printed in USA
AR30 - Installation and Service
Installation
Operation
Maintenance
Daily as Required
1. Position steamer on level surface and plug power cord into 3-hole 120 volt AC grounded
receptacle. If an adapter is used, it must be grounded properly.
2. Pull out water pan and fi ll with distilled (NOT HOT OR BOILING) water to 1/4″ from the top of
the water pan baffl es; then close drawer. Unit is now ready for operation.
3. No Hood Installation Required: According to the Uniform Mechanical Codes per the
International Conference of Building Offi cials Code EmberGlo Steamers do not require a
separate hood for vapor produced during operation. Also, there are no requirements in NSF
Standard 4 (2006e) for steamers to have ventilation.
__________________________________________
1. Move toggle switch to ON position. The pilot indicating light remains on at all times.
Allow 15-20 minutes to reach operating temperature.
2. Open food drawer, place food in pan; close drawer and operate lever as required per cooking
guide.
3. At end of time cycle, open drawer and remove food.
4. Keep drawer closed when not in use.
5. To shut off unit move toggle switch to OFF position.
Caution: Operate lever to the left and return to vertical position. Rapid repeated
operation will over steam the unit. The amount of steaming necessary is determined by the
type and amount of food to be heated. For more than one shot, wait 15 seconds between
shots. A “shot” is one operation of the lever.
__________________________________________
The food pan is removed by lifting up. Clean the inside thoroughly and wipe the outside to remove
any material which might have accumulated.
- To remove the food drawer, pull the drawer out until it stops, release stop located at rear
underside of drawer to unlock, and pull out the frame. Wipe the drawer and frame clean and
return by inserting the drawer slide into the slide of the frame, then push the food pan to the
rear until the lock engages automatically.
__________________________________________
Service
2
DANGER: READ AND UNDERSTAND THIS BULLETIN THOROUGHLY BEFORE
STARTING ANY TROUBLE SHOOTING. AN INADVERTENT SERVICE ERROR COULD RESULT
IN SEVERE PERSONAL INJURY OR DEATH. ONLY A TRAINED EXPERIENCED SERVICE
TECHNICIAN SHOULD ATTEMPT ANY REPAIR PROCEDURE.
Qualifi ed serviced agencies are available at most locations - Refer to EmberGlo listing of AUTHORIZED SERVICE AGENCIES included in Standard Equipment Catalog.
Note: Before attempting service, unplug power cord. For service or examination, all “working parts”
of the steamer are exposed by removing fi rst the cabinet top, then the back. The wiring diagram and
spare cleanout gasket is located on inside of back.
AR30 Wiring for
120/240 VAC Steamer
LEGEND
Symbol Description
E
L1 Blk
G
Gnd
Toggle Switch
Blk
Pilot Light
L2
Wht
Thermostat
Generator
Service to be performed by qualified personnel only
Material: (Outdoor/ Indoor Polyperm)
Terminal Strip
Over Heat
Plug for 240 VAC to be Supplied by Installer
Figure 1. Wiring for AR30 Steamer - 120V and 240V
EmberGlo A Division of Midco International Inc
Protection Fuse
8449 80
AR30 - Service
Electric Switch/Thermostat
The on-off switch should audibly “click” when operated manually. To determine if electrically
operative, a continuity check should be made.
- The thermostat is adjusted at the factory default setting. It is not recommended to re-adjust the
setting. If found defective it is recommended to replace.
Pump System
Operate pump lever and observe length of pump shaft travel. It should travel approximately 5/8″. If
travel is less, check for broken or disengaged pins, links, crank.
- Disconnect brass fi tting at water riser tube and bend tube up slightly so discharging water will
clear front of unit. Operate pump lever; water should shoot out about 15 feet. If water does
not shoot out, remove and inspect inlet tube assembly for leaks. Any air entering tube will break
the suction on the water. Check installation and alignment of dip tube spring as detailed under
next section. If water still doesn’t not shoot out, pump should be replaced.
- A strainer is located in the inlet tube at pump fi tting. Loosen fi tting and remove pump inlet tube.
Dump strainer out of tube and wash under running water, then replace.
Dip Tube and Spring
If the dip tube does not enter the water pan properly it must be replaced. When replacing, the open
end or point of hook must be at the bottom and the eye must be in a vertical plane, like a coin
standing on edge.
Steam Generator
1. To Clean. Remove cabinet top and generator insulation. This will expose a square plate on the
generator, which is removable for cleaning water passages.
- Check the three exposed holes when the clean-out cover is removed. If any of these holes
are clogged, clean them out by hand-twisting a 7/64″ drill for the center hole and a 3/16″
drill for the two side holes.
- After thoroughly cleaning the three holes, plug in power supply and operate lever to steam
unit. THE UNIT MUST BE HOT. Operate several times to blow out any accumulation.
- Replace the clean out cover, using new gasket. With the unit hot, operate lever. The unit
should steam properly. If it does not, and the pump is operative as detailed under PUMP
SYSTEM, the entire generator assembly is probably limed and must be disassembled and
cleaned or replaced.
- To clean generator assembly, separate casting from plate and clean lime from cavity
in casting.
Service
Continued
Caution: Do not damage plate by scratching or polishing the fi nish.
2. Information on use of the overheat label (8451-98)
Caution: To prevent accidental shock, disconnect electrical plug from receptacle
before attempting service.
- An overheat label is located on the clean-out cover of the steam generator. The triangle in
the center of the label, as shown below, is normally gold color. This triangle turns black at
450° F, indicating that the generator has overheated at least once. The operating
temperature of the generator should be between 350° and 400° F. If it is not, the thermostat
should be replaced.
Note: the overheat label will not return to its original gold color once it has turned black. It
should be scraped off and replaced so that
the thermostat can be monitored at all times.
In addition, in the event that the thermostat
has to be replaced, it is important to replace
the label immediately afterwards so that
Overheat Label
CelsiDot
C
232
F
450
someone at a later inspection will not suspect a faulty thermostat.
3. To Remove.
- Disconnect the water riser tube.
- Disconnect electric wiring at the
two terminals.
- Remove 16 hex nuts. Note: Re
move food drawer and hold screws
up to prevent turning.
Figure 2. Steam Generator Overheat Label Placement
- Lift off generator.
8449 80
EmberGlo A Division of Midco International Inc
3
AR30 - Service and Trouble Shooting
Service
Continued
4. To Replace.

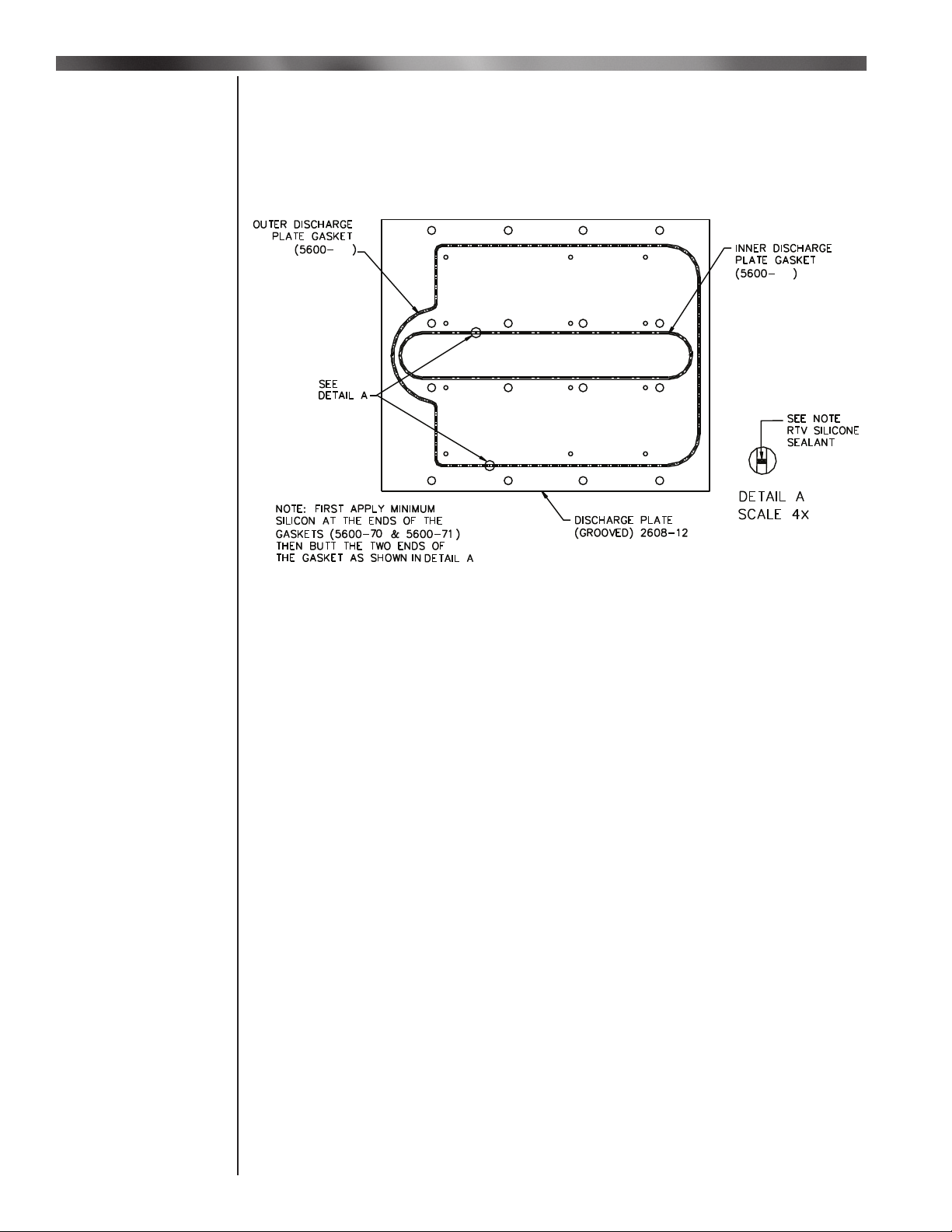

- Install the gaskets in the discharge plate grooves as shown in Figure 3.
- Place discharge plate & gasket assembly on the steamer (gasket facing up towards
generator) so that steam holes line up with the twelve round holes in steam chamber.
- Place the generator (#5655-90) on the above assembly so that mounting holes line up with
the sixteen round holes in the discharge plate. Tape the carriage bolts in place from inside
steam chamber and then tighten the nuts with lock washers. Remove all the tape.
70
71
LG
Trouble
Chart
Figure 3. Generator Casting
__________________________________________
1. Unit will not heat up; light out.
a. No power.
b. Plug out.
c. Loose internal connection.
d. Defective switch.
2. Unit will not heat up; light on.
a. Defective thermostat.
b. Loose heating element connection.
c. Defective generator unit.
d. Defective thermal fuse or open
3. Unit heats up light will not light.
a. Defective light in switch.
b. Loose connection.
4. Unit heats up; does not steam.
a. No water in pan.
b. Defective pump.
c. Cam, pins or linkage broken or disengaged.
d. Leak in inlet tube.
e. Dip tube spring assembly misaligned.
f. Clogged steam generator.
Note: If electrical trouble is other than loose connections, it is recommended that parts be replaced
rather than repaired.
4
EmberGlo A Division of Midco International Inc
8449 80
Heating and Cooking Guide
These suggestions are made only to help the operator get started. Since each location will
have different portions and different requirements, each operator must determine his own
operation habits. Please remember that the steamer conserves its steam in the drawer and
therefore does not often need repeated shots. The main exception is when frozen product
must be defrosted.
If a product is at room temperature or refrigerated, start with 2 shots. This ensures that the
food pan is full of steam.
If a product is frozen, start with 3 shots because condensation on the cold product eliminates
the steam quickly.
Breads Refridgerated Frozen
Bread 1 to 2 shots of steam 2 min
Bagels 1 to 2 min 3 to 4 min
Croissant 15 seconds
Muffi n 1-2 shots of steam
Pastries 1 to 2 min 3 to 4 min
Tamales 5 min 10 min
Tortillas 1 shot of steam 10 seconds
Eggs
Soft Boiled 6 min
Poached 3 min
Scrambled
(dz) 5 min
Meat
Bratwurst 8 min 16 min
Breakfast sausage 8 min 14 min
Chicken breast
Chicken breast
Deli meats 2 to 3 min
Hamburger
Hot dogs 4 min 8 min
Italian sausage 4 min 8 min
(precooked) 10 min 18 min
Ribs
(lg) 15 min 25 to 30 min
(precooked) 5 min 15 min
(precooked) 4 min 4 min
Noodles and Rice
Macaroni
Egg Noodles
Rice
Spaghetti
(2 qt. cooked, 1 pt. water, 2 oz. oil) 5 min
(2 qt. cooked, 1 pt. water, 2 oz. oil) 6 to 7 min
(precooked) 5 min 8 to 10 min
(2 qt. cooked, 1 pt. water) 5 min
Vegetables Refridgerated Frozen
Artichokes 25 to 30 min 50 min
Asparagus 10 min 14 min
Brussels 15 min 18 min
Broccoli 10 min 12 min
Carrots sliced 4 min 8 min
Carrots whole baby
Caulifl ower 12 min 16 min
Corn on the cob 3 min 5 min
Fennel 10 min
Green beans 4 min 8 min
Pea pods 6 min 9 min
Peas 5 min 8 min
Potatoes 8 whole
Potatoes mashed
Squash, Acorn 4
Squash, Zucchini -sliced frozen
Seafood
Large clams 4 min 8 min
King crab 8 min 12 min
Snow crab 6 min 10 min
Fish fi lets 6 min 8 to10 min
Lobster 8 oz Tails 8 min 14 to16 min
Scallops 5 min 8 to10 min
Shrimp 4 min 6 min
Cooking
Instructions
(2 lb) 15 to 20 min
(3 oz each) 20 min
(2 qt) 8 min
(8 oz each) 12 to 20 min
(1b) 10 Min
8449 80
EmberGlo A Division of Midco International Inc
5

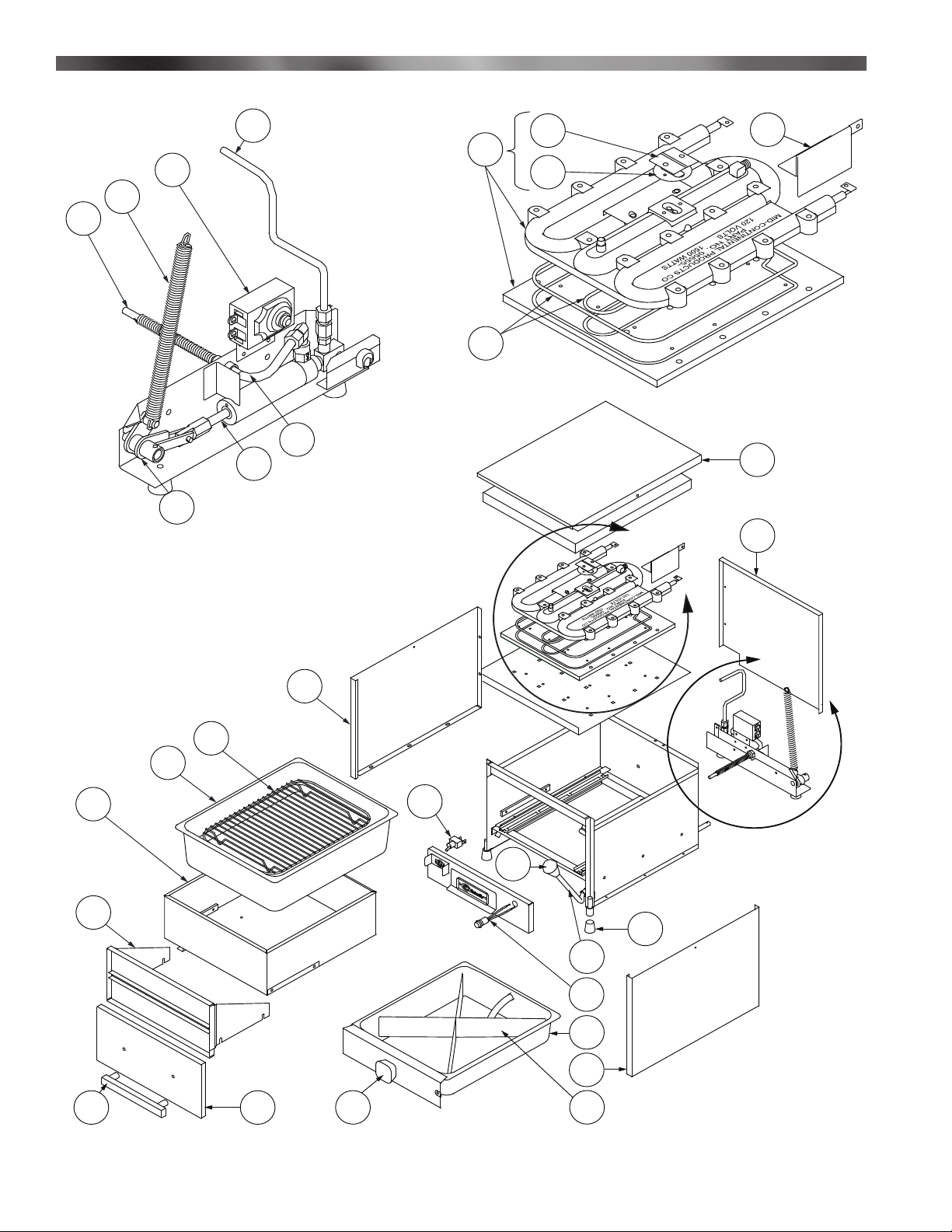

AR30 Exploded View
27
28
29
26
30
25
DETAIL B
24
DETAIL A
3
5
2
4
1
6
A
7
22
21
20
19
18 17
23
16
B
8
9
10
11
12
13
14
15
6
EmberGlo A Division of Midco International Inc
8449 80
AR30 Parts List
Item Part # Description Qty Item Part # Description Qty
1 5600-73 GENERAL GASKET KIT 1
2 2641-00 KIT: DISCHARGE PLATE &
GENERATOR - 120V 1
3 5601-90 CLEAN OUT COVER 1
4 5602-20 CLEAN OUT GASKET 1
5 5661-64 SPRING ANCHOR BRACKET 1
6 5613-00 CABINET TOP 1
7 5660-50 CABINET BACK 1
8 8423-43 ON/OFF TOGGLE SWITCH 1
9 8445-00 BALL KNOB 1
10 8450-25 LEG CUSHION 4
11 5615-02 PUMP HANDLE 1
12 5648-01 PILOT LIGHT ASSEMBLY 1
13 5609-00 WATER PAN 1
14 5660-81 AR30 RIGHT CABINET SIDE 1
15 2619-30 WATER PAN BAFFLE 2
16 8445-01 WATER PAN KNOB 1
17 5660-70 AR30 FOOD DOOR 1
18 8445-04 FOOD DRAWER HANDLE 1
19 5659-20 DOOR LINER/GUSSET 1
20 5658-80 FOOD DRAWER RIVETMENT 1
21 5626-00 FOOD PAN - 4″ 1
22 5608-50 FOOD PAN GRID 1
23 5660-80 AR30 LEFT CABINET SIDE 1
24 5693-10 AR DIP TUBE ASSEMBLY 1
25 5661-01 AR PUMP REPLACEMENT KIT
(INCLUDES: BRACKET, DIP TUBE AND
RISER TUBE ASSEMBLIES) 1
26 5659-65 CRANK REPLACEMENT KIT 1
27 5604-35 DIP TUBE SPRING ASSEMBLY KIT 1
28 2625-30 FOOD STEAMER PUMP SPRING 1
29 8425-08 THERMOSTAT 1
30 5660-90 AR30 RISER TUBE 1
NOT SHOWN
1412-41 THERMAL FUSE REPLACEMENT KIT 1
2618-00 POWER CORD (120V) 1
5655-06 GENERATOR 240V 1
5663-50 PUMP, LINK, AND CAM ASSEMBLY 1
8451-44 STRAINER 1
5627-20 CLEAN OUT GASKET KIT 1
Steamer Accessories - Not Shown
1426-05 Handle (only) (for use with all baskets & racks)
5608-70 Three in 1 Basket Kit w/ Handle
5608-72 1/2 Size Basket w/ Handle
5608-73 Two of 1/4 Size Basket w/ Handle
5682-60 Tortilla Rack (Pita Rack)
8450-62 Steam Generator Cleaning Brush
2070610 Egg Poacher- 6 Cups
2070615 Egg Poacher- 4 Cups
2090400 Demineralizer Kit - hard water softener
Avoid error in parts selection. When ordering, use complete Ember-Glo part number and description. Furnish model number,
bill of material number and date code or serial number from specifi cation plate.
IMPORTANT: Availability of parts as well as specifi cations are subject to change without notice. Please consult factory for item
availability.
8449 80
EmberGlo A Division of Midco International Inc
7
Warranty
Warranty
Midco® International Inc Limited Warranty Policy
Exclusions Terms, Customer Requirements and Instructions
All claims should be fi led through Warranty Central.
Call factory for information (773 604 8700)
Warranty
Only Authorized Service Providers are authorized to provide Warranty service on all EmberGlo
Division of Midco® International Inc., food equipment as described under and Midco® International
Warranty Policy. A list of providers can be found on our web site: www.emberglo.com
Provisions:
In lieu of an implied warranty, all repairs and replacement parts furnished under our Warranty shall
be f.o.b. point of distribution, but the owner must pay the necessary freight, delivery and labor costs
involved when required. Any Federal, State or Local taxes are also extra. This Warranty is effective for
a period of one year from date of installation. EmberGlo
Preparation Equipment manufactured by Midco International, sold under the EmberGlo® trademark,
are guaranteed to be free from defect in material and workmanship under normal use and service for
a period of 1 (one) year after the date of original installation. Midco’s obligation under this Warranty
Policy shall be limited to repairing or replacing, at our option, any part of said equipment which Midco
examination shall disclose to its satisfaction to be thus defective.
Exclusions:
This Warranty Policy does not apply to damages resulting from accident, misuse, abuse or alteration,
nor does it apply to limed steam generators, nor does it apply to any consequential damages. Most
geographical areas require the use of distilled or demineralized water. Tap water is permissible only
with ES Series Steamers. Nor does it apply to Barbriq’s
Midco’s obligation will be the replacement of the product or parts removed.
Terms:
Under the terms of this Warranty Policy, models considered portable (devices with cords and plug
caps such as EmberGlo Steamers) must be taken or returned to the nearest service provider, transportation prepaid, returned transportation collect. Non-portable units with permanent wiring will be
serviced on the customer’s premises. Under these terms, Midco agrees, within the terms of this Warranty period, to make all repairs at no charge by the authorized service provider. Labor and mileage
charges submitted by any other provider not authorized will be the responsibility of the customer.
Customer Requirements:
All charges related to repairs made one (1) year after the date of original installation, during the Warranty period will be the responsibility of the customer. The product registration information is located
on the product I.D. plate.
®
Char Broilers and EmberGlo® Electric Food
®
, briquettes, or rods used in gas broilers.
®
, a
Return Instructions
8
If a part is defective due to workmanship or materials and is removed from the product within the applicable warranty period and returned to Midco in accordance with the following procedure described,
Midco will, at its option, either repair or replace the part.
Call the factory for Instructions on returned goods.
No equipment may be returned without written authorization from MIDCO. Returned goods
must be shipped prepaid to the factory.
WARNING: Improper installation and use of this product could result in personal or
property injury.
TO VALIDATE WARRANTY:
FILL OUT THE FORM ON THE NEXT PAGE
AND RETURN TO EMBERGLO
Mail: EmberGlo
4140 W Victoria Street
Chicago, IL 60646
Fax: 773 604 4070
Email: sales@emberglo.com
EmberGlo A Division of Midco International Inc
8449-80
Warranty
Midco® International Inc Limited Warranty Policy
Exclusions Terms, Customer Requirements and Instructions
Warranty Form
All claims should be fi led through Warranty Central. Call factory for information (773 604 8700)
Fill out form and fax to 773 604 4070 or copy and mail to: EmberGlo
4140 West Victoria Street
Date of Purchase
End User Name
Company Name
Street & Apt. No.
City, State, Zip
Email Address
Web Address
Telephone
Fax
A Division of Midco International
Warranty
Claims
Warranty
Return Form
Gas Broiler Electric Broiler Steamer Accessory
Model Number
Serial Number
Installation Date
Purchased from - Name:
Address
City, State, Zip
toll free: 866 705 0515 - tel: 773.604.8700 - fax: 773.604.4070 - web: www.emberglo.com - e-mail: sales@emberglo.com
EmberGlo A Division of Midco International - 4140 West Victoria Street - Chicago, Illinois 60646
214
8449 80
Printed in USA
Loading...
