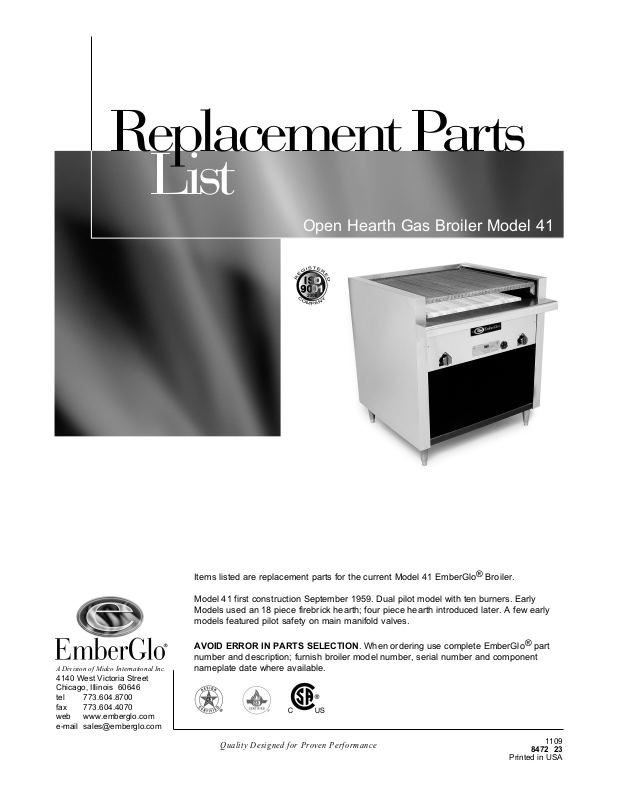

Open Hearth Gas Broiler Model 41

Quality Designed for Proven Performance

1109

8472 23

Printed in USA

Items listed are replacement parts for the current Model 41 EmberGlo®Broiler.

Model 41 first construction September 1959. Dual pilot model with ten burners. Early
Models used an 18 piece firebrick hearth; four piece hearth introduced later. A few early
models featured pilot safety on main manifold valves.

AVOID ERROR IN PARTS SELECTION. When ordering use complete EmberGlo®part
number and description; furnish broiler model number, serial number and component
nameplate date where available.

A Division of Midco International Inc.

4140 West Victoria Street
Chicago, Illinois 60646
tel [phone]
fax [phone]
web www.emberglo.com
e-mail [e-mail]

2

EmberGlo® A Division of Midco International Inc. 4140 West Victoria Street * Chicago, Illinois 60646 1109

tel [phone] * fax [phone] * web www.emberglo.com 8472 23

Printed in USA

Gas Broiler Model 41 Parts List

* Not Shown

* 8423-01 Flaretrol Switch 1
* 8445-03 Pilot Knob 1
* 4581-50 Main Valve Knob 2
* 8416-36 1/2 Regulator - Natural 1
* 8416-35 1/2 Regulator - Propane 1
* 4720-00 Foot weldment counter top model (41C) 4
* 8450-12 Adjustable Leg floor model (41F) 4
* 4842-00 Cooking Grill 1

Optional

4576-20 Rods - 12 per Pack 4 Pcks
4577-01 Briquettes - 20 # per Pack 2 Pcks

Accessories - Not Shown

2070701 FG-3 Fish Grate for Broiler Model 41
1420-39 Gas Broiler Grill Brush - all Models

Item Part # Description Qty Item Part # Description Qty

1 4585-50 8-1/4" L Ceramic Barbriq - 5 Pack 13Pcks
2 4630-02 Marinite 2
3 4585-60 Grate Support - 4 per Pack 4 Pcks
4 4629-20 Front And Back Wall Block Model 31-41 4
5 4838-00 41 Floor Brick (Note 1) 4
6 4717-10 Filler Block Front & Back Model 41 4
7a 4574-42 Stamped Orifice Propane

Model 31-41 # 65 (.035") Drill (Note 3) 10

7b 4574-44 Stamped Orifice Natural

Model 31-41 # 54 (.055") Drill (Note 3) 10
8a 4824-02 41 Right Manifold 1
8b 4824-01 41 Left Manifold 1
9 4518-07 Broiler Pilot Tube Weldment 2
10 4825-03 Valve Stem Extension 2
11 8401-03 1/8" Pilot Gas Valve 1
12 4507-15 Broiler Pilot Burner Weldment 2
13 4507-12 Broiler Burner Weldment 8
14 4802-20 3/8" Ball Valve Assm - Model -41 2
15 4508-10 Burner Tile Model 31-41 6
16 8435-04 Flaretrol Motor 1
17 4569-00 7-1/8" X 1.0" CW Blower Wheel 1

Gas Broiler
Model 41
