Emax EGPS0817WL, EGES0817WL, EGES1330ST, EGES1830ST, EGES1860ST Operating Instructions Manual
...
Operating Instructions
GAS POWERED PISTON COMPRESSORS
EMAX designs and manufactures products for safe operation. However, operators and maintenance persons are
responsibile for maintaining safety. All safety precautions are included to provide a guideline for minimizing the
possibility of accidents and property damage while equipment is in operation.
Keep these instructions for reference.
EMNG000001 0810
EMAX Gas Powered, Piston Compressors
Contents
Model Specification Chart .............. 2
Description ........................ 3
Safety Information ................... 3
Tag Definitions .................... 3
Basic Guidelines ................... 3
Breathable Air .................... 4
Pressurized Components ............. 4
Personal Protective Equipment ......... 4
Inspection ......................... 4
Forklift Safety .................... 4
Lifting Safety ..................... 4
Installation ........................ 5
Area ........................... 5
Piping Safety Steps ................. 5
Piping / Tank Installation ............ 5
Truck Installation .................. 6
Battery Component ................. 6
Page No.
Page No.
Operation ......................... 6
Safety Rules ..................... 6
Start Up ........................ 7
Maintenance ....................... 8
Safety Steps ..................... 8
Belt Adjustment ................... 8
Changing Oil ..................... 8
Safety Valve ..................... 9
Tank ........................... 9
Maintenance Schedule ................. 9
Troubleshooting .................. 10-11
Warranty ......................... 12

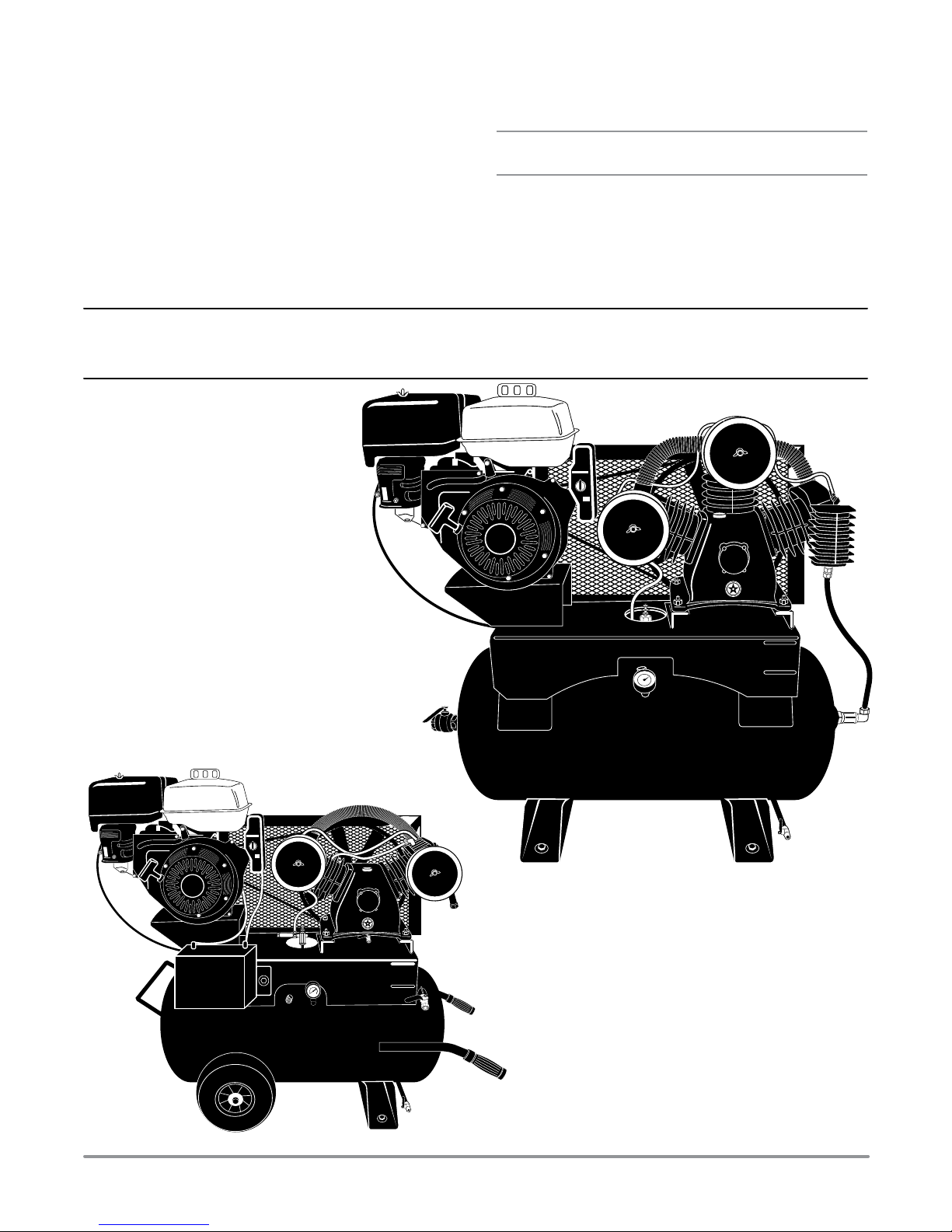

EMAX Gas Powered, Piston Air Compressors
Model EGPS0817WL EGES0817WL EGES1330ST EGES1830ST EGES1860ST EGES2480ST
Description 8 HP HONDA 8 HP 13 HP, 30 GAL. 18 HP, 30 GAL. 18 HP, 60 GAL. 24 HP, 80 GAL.
PORTABLE HONDA HONDA HONDA HONDA HONDA
SCFM 18 @ 150 18 @ 150 24 @ 175 34 @ 175 34 @ 175 52 @ 175
Motor Power 8HP 8HP 13HP 18HP 18HP 24HP
Motor RPM 3200 3200 3200 3200 3200 3200
Tank Size 17 17 30 30 60 80
Pump Model APP2V0732S APP2V0732S APP3Y0732T APP4V1043T APP4V1043T APP3Y2062T
Pump RPM 650 650 820 800 800 640
Outlet Size 3/4” 3/4” 3/4” 3/4” 3/4” 1”
Dimensions
Weight (lbs.) 275 275 395 540 610 870
Shipping Weight 310 310 326 628 703 970
Electric Start No Yes Yes Yes Yes Yes
L•W•H
46”x 21”x 37” 46”x 21”x 37” 51”x 23”x 40” 44”x 23”x 44” 51” x 23”x 50” 72”x 25”x 50”
(inches)
2
Operating Instructions
Description

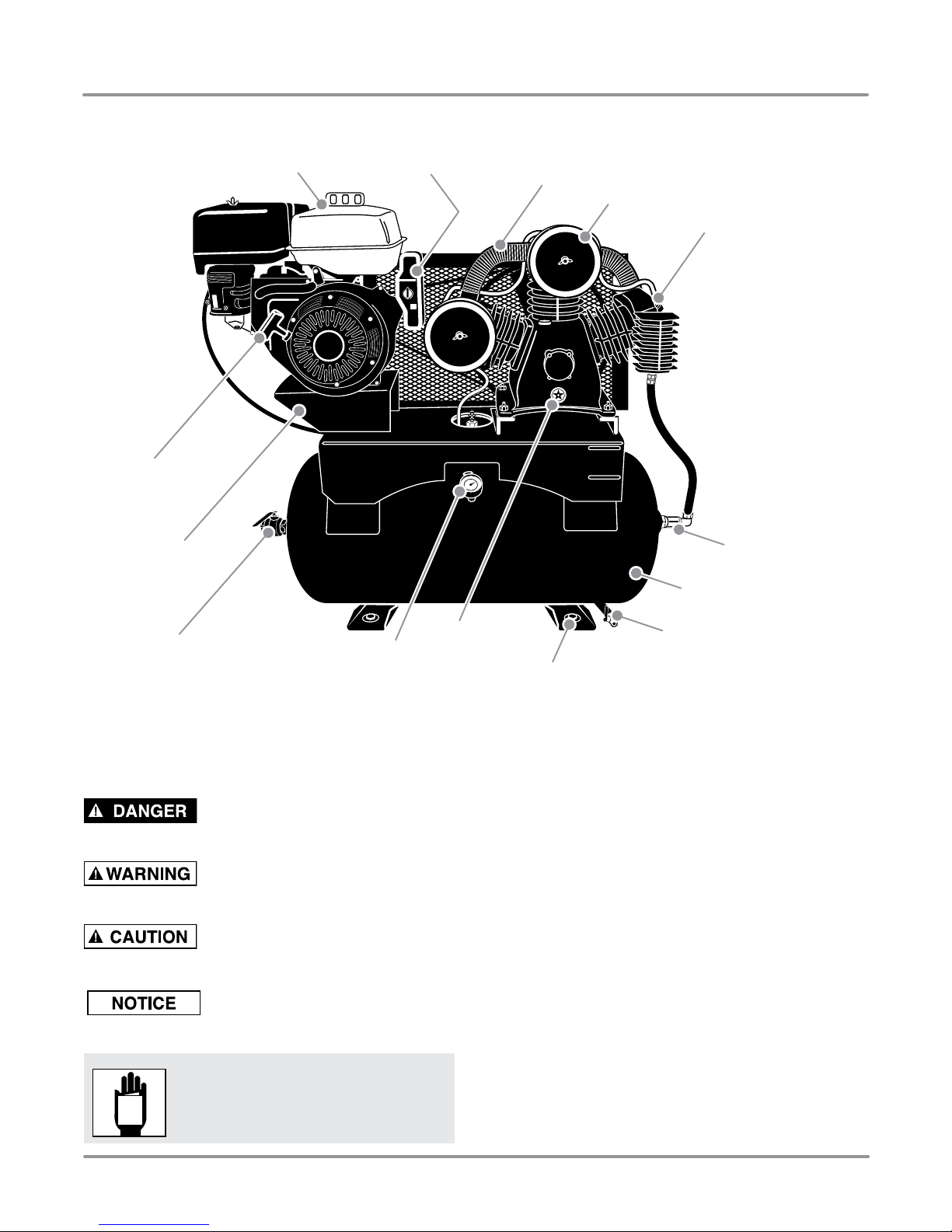

Engine start
pull cord
Raised
motor mounting
plate
Gas tank
Electric start
Unit configuration and appearance varies by model.
Callouts are for general identification.
Intercooler
Air filter
Head unloader valve
Check valve
Air receiver / Tank
Ball valve (Air outlet)
Pressure gauge
Oil site glass
Safety
This manual contains very important information to
know and understand. This is provided for SAFETY
and to PREVENT EQUIPMENT PROBLEMS. To help understand this information, observe the following:
Danger indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious injury.
Warning indicates a potentially
hazardous situation which, if not
avoided, could result in death or serious injury.
Caution indicates a potentially
hazardous situation which, if not
avoided, may result in minor or moderate injury.
Notice indicates important infor-
mation, that if not followed, may
cause damage to equipment.
Read all manuals included with this
product carefully. Be thoroughly
MANUAL
familiar with the controls and the
proper use of the equipment.
Tank drain valve
Tank anchor bolt location (4, typ.)
Basic Guidelines
1. Allow only trained, authorized persons who
have read and understood these operating
instructions to use this compressor. Failure
to follow the instructions, procedures and
safety precautions in this manual can result
in accidents and injuries.
2. NEVER start or operate the compressor under
unsafe conditions. Tag the compressor,
disconnect and lock out all power to it to
prevent accidental start-up until the condition is corrected.
3. Install, use and operate the compressor only
in full compliance with all pertinent OSHA
regulations and all applicable Federal, State
& Local Codes, standards and regulations.
4. NEVER modify the compressor and/or controls
in any way.
5. Keep a first aid kit in a convenient place.
Seek medical assistance promptly in case
of injury. Avoid infection by caring for any
small cuts and burns promptly.
3
EMAX Gas Powered, Piston Compressors
Breathable Air
1. NEVER use air from this compressor for
breathable air except in full compliance with
OSHA Standards 29 CFR 1910 and any other
Federal, State or Local codes or regulations.
Death or serious injury can result
from inhaling compressed air
without using proper safety
equipment. See OSHA standards
on safety equipment.
2. DO NOT use air line anti-icer systems in air
lines supplying respirators or other equipment used to produce breathable air. DO NOT
discharge air from these systems in unventilated or other confined areas.
Pressurized Components
This equipment is supplied with a ASME designed
pressure vessel protected by an ASME rated relief
valve. Pull the ring before each use to make sure
the valve is functional. Refer to figure ___. DO
NOT attempt to open valve while the machine is
under pressure.
Personal Protective Equipment
Be sure all operators and others around the
compressor and its controls comply with all applicable OSHA, Federal, State and Local regulations,
codes and standards relating to personal protective equipment. This includes respiratory protective equipment, protection for the extremities,
protective clothing, protective shields and barriers, electrical protective equipment, and personal
hearing protective equipment.
Inspection
Inspect compressor prior to any
use. Check for external damage
that might have occurred during
transit. Be careful of moving parts
then test pulley by turning it
freely by hand. Report any dam-
age to delivery carrier immediately.
Make sure pallet-mounted
compressors are firmly secured to
the pallet before moving. NEVER attempt to move
a compressor that is not secure as serious injury or
property damage could occur.

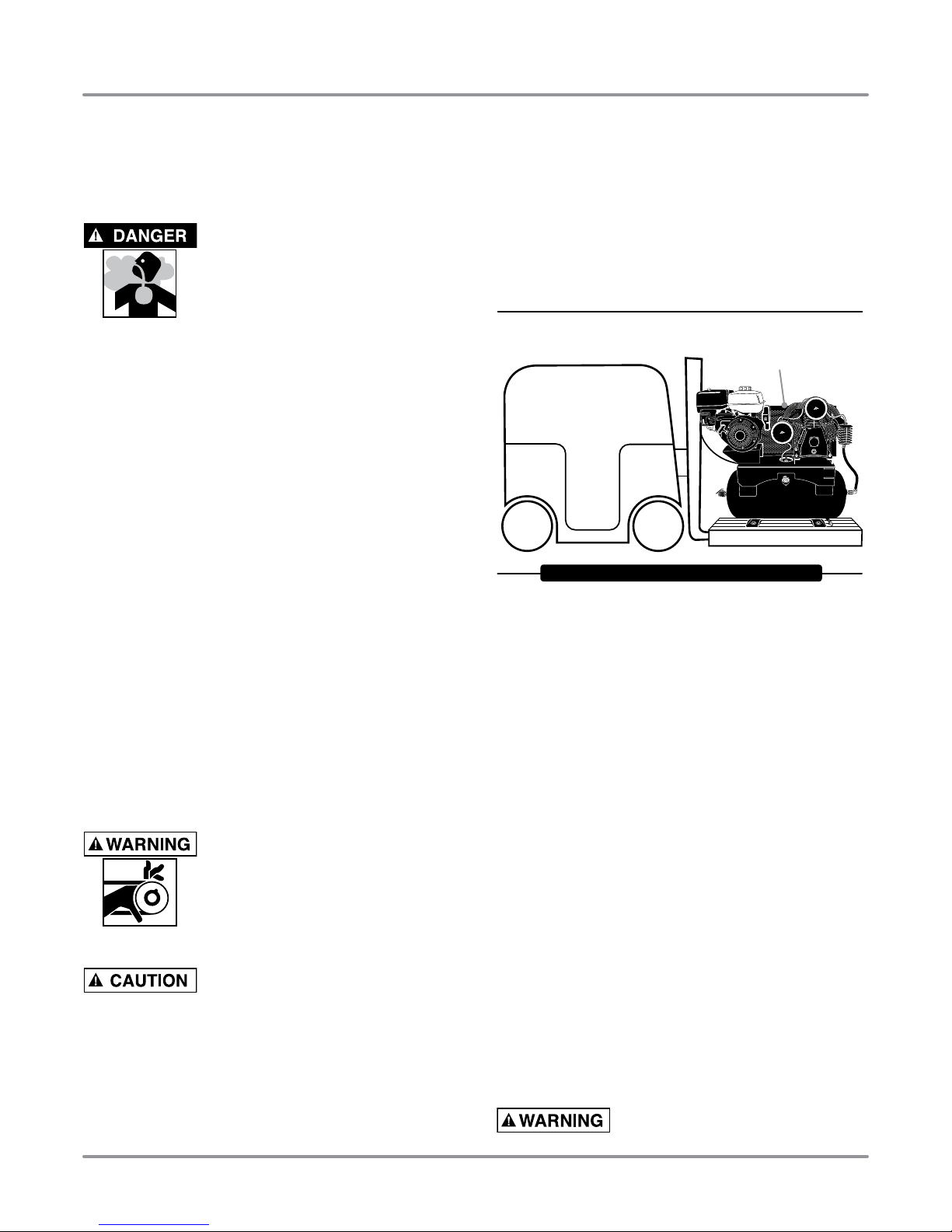

A forklift may be necessary for unloading the EMAX
compressor. Use all forklift safety measures and
require a certified forklift operator. Refer to figure 1
for safe unloading procedure.
Forklift Safety
1. Make sure lift operator stays aware while
moving compressor.
2. Be sure load is secure and well balanced
before moving the compressor.
3. Make sure forks are fully engaged and level
before lifting or moving compressor.
4. Keep load as low as possible and observe
safe operating practices.
Keep unit level and
be careful of top
heavy load
Figure 1: Keep unit level
Lifting Safety
1. Carefully inspect all lifting equipment and make
sure it is in good condition. Rated capacity should
exceed compressor weight. Make sure lifting hook
has a functional safety latch or equivalent and is
properly attached to lifting feature.
2. Make sure lifting points are in good condition and
tighten any loose nuts or bolts before lifting.
3. Use provided lifting feature or appropriate sling. A
sling must be used when moving compressor with a
helicopter or other air-borne equipment. Be sure to
follow OSHA standards 29 CFR 1910 Subpart N.
4. Use guide ropes or equivalent to prevent twisting
or swinging of the compressor while it is in the
air and NEVER attempt to lift in high winds. Keep
compressor as low to the ground as possible.
5. Keep persons away and make sure no one is under
the compressor while it is lifted.
6. Only use lifting features provided for entire compressor package. NEVER use bolts or other hooks on
invididual components to move the compressor.
7. Make sure to put compressor on a level surface that
can support the weight of the compressor and loading equipment.
Do not operate unit if damaged
during shipping, handling or use.
4
Operating Instructions
Damage may result in bursting and cause injury or
property damage.
Installation
Area
1. Install compressor in a clean, dry and well-lit
area. Be sure installation area can maintain
a temperature range between 35˚ - 110˚ F.
If ambient temperature drops
below 32˚F, be sure to protect
safety/relief valves and drain valves from freezing.
NEVER operate compressor with temperatures
below 15˚F or above 125˚F.
2. Allow sufficient space around compressor for
maintenance access and adequate airflow.
Mount unit with pulley towards wall and
leave a minimum of 15 inches of clearance.
3. Use shims to level compressor if installation
area is not flat. This will avoid excessive
vibration and premature pump wear.
DO NOT install compressor in boiler
room, paint spray room, or area
where sandblasting occurs. Make
sure inlet air is away from exhaust
fumes or other toxic, noxious or
corrosive fumes or substances.
4. If acid is used in operating environment
or air is dust laden, pipe intake to outside,
fresh air. Increase pipe size by one size for
every 20 feet of run. Be sure to install protective hood around intake filter.
5. Insulate cold water or other low temperature
pipes that pass overhead to avoid condensation dripping on compressor which could
cause property damage.
Piping
Safety Steps
1. Install appropriate flow-limiting valves as
necessary according to pipe size(s) used and
run lengths. This will reduce pressure in case
of hose failure, per OSHA Standard 29 CFR
1926.302(b)(7).
2. Flow-limiting valves are listed by pipe size
and rated CFM. Select appropriate valves
accordingly, in accordance with the manufacturer’s recommendations.
Piping / Tank Installation
1. Place tank feet
on 1/4” thick rubber pads.
Minimum Pipe Size For Compressed Air Lines
(Pipe size shown in inches)
Length Of Piping System
SCFM 25 ft. 50 ft. 100 ft. 250 ft.
20 3/4 3/4 3/4 1
40 3/4 1 1 1
60 3/4 1 1 1
100 1 1 1 1-1/4
Coalescing
Filter with
Auto Drain
To Shop
Piping
Air Dryer
Ball
Valve
Air Dryer
Air Tank
Water Drain Valve

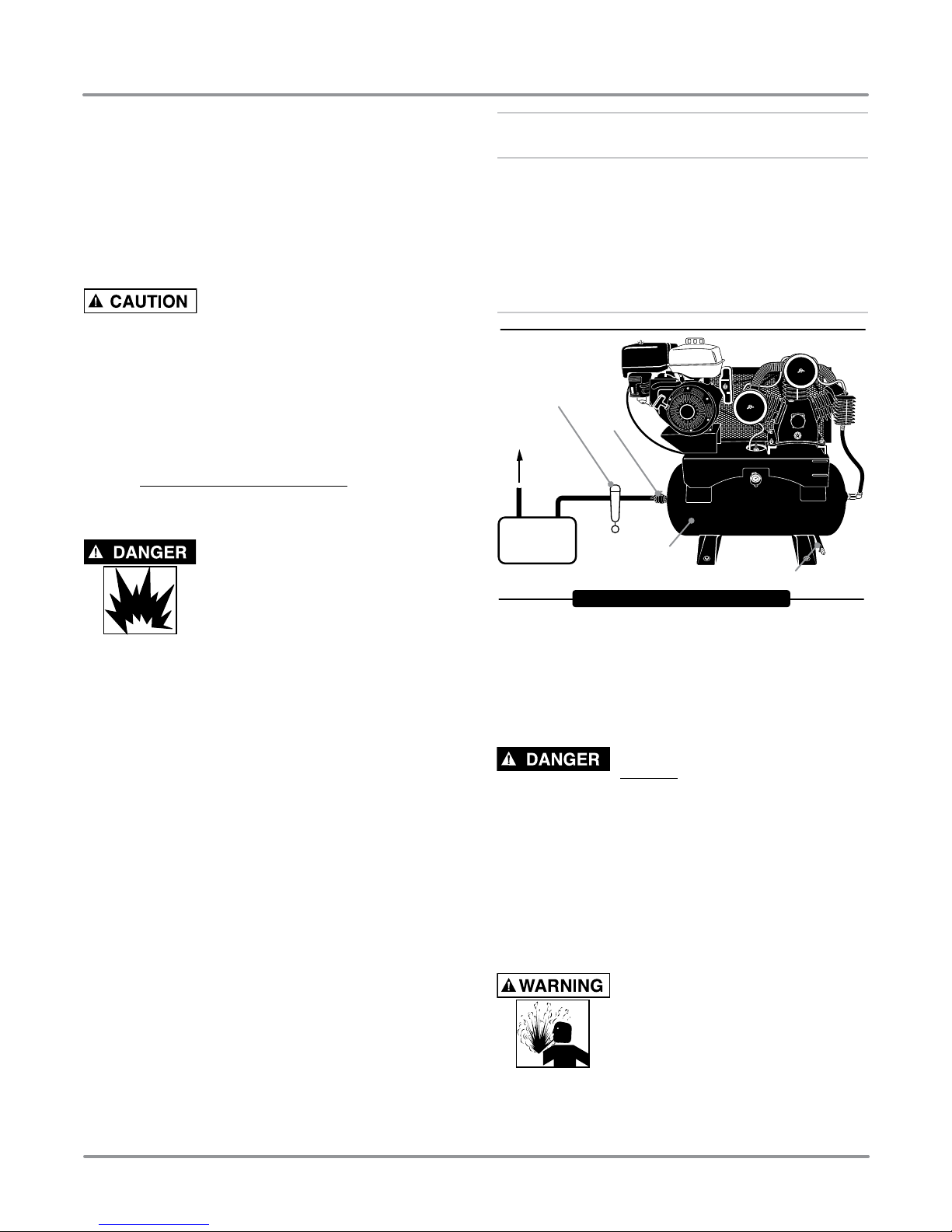

Figure 2: Basic Piping Diagram
Thicker padding will increase vibration and
the possibility of cracking the tank or other
unit damage.
Do not place unit on dirt floor
or uneven surface.
2. Fasten anchor bolts snugly but do not overtighten so normal vibration will not damage unit.
Compressor unit is top heavy and
must be bolted to solid, flat
surface to avoid falling and premature pump wear.
Splash lubrication will not operate properly if unit
is not level.
3. Use a flexible connector between compressor
tank and piping system to minimize noise,
vibration, unit damage, and pump wear.
4. Install appropriate ASME code safety valves
and make sure piping system is equipped with
adequate condensate drains. See figure 2.
Never install a shut-off valve such as
a glove or gate valve, between the
pump discharge and the air tank
unless a safety valve is installed in
the line between valve and pump.
5. Make sure any tube, pipe or hose connected
to the unit can withstand operating temperatures and retain pressure.
5
EMAX Gas Powered, Piston Compressors
Never use plastic (PVC) pipe for
compressed air. Serious injury or
death could result.
6. Never use reducers in discharge piping. Keep all
piping and fittings the same size in the piping
system.
7. For permanent installations of compressed air
systems, determine total length of system and
select correct pipe size. Make sure underground
lines are buried below frost line and avoid areas
where condensation could build up and freeze.
8. Test entire piping system before underground
lines are buried. Be sure to find and repair all
leaks before using compressor.
Never exceed recommended pressure
or speed while operating compressor.
Truck Installation
Compressor can be installed in a truck for convenience and portability. Be sure to follow these additional safety precautions:
1. Bolt compressor to truck bed with 1/4” thick
rubber pads under tank feet. Thicker padding
will increase vibration and the possibility of
cracking the tank or other unit damage.
2. Portable compressors must be secured during
transport and while operating to avoid unit
damage.
If installation is in a box truck or
other enclosed area, be sure to
vent exhaust fumes away from
operating area. Gasoline powered
motors will develop hydro-carbons
which can be fatal if inhaled.
Battery Component
Most EMax compressors are equipped with an electric
starter but require a customer supplied, 12V battery
for operation. Be sure to follow safety steps and use
proper procedures when connecting battery.
Safety Steps
Batteries contain caustic acid.
Use extreme care when handling
to avoid contact with battery
acid. If contact occurs, flush
immediately with water then use
baking soda to neutralize.
1. Wear eye protection at all times when handling battery.
2. Batteries can give off explosive gases. NEVER
smoke or install battery near sparks or other
ignition sources.
NEVER touch both battery terminals
at the same time with hands or any
non-insulated tools. Always follow
proper sequence for connecting and
disconnecting battery.
Connecting Battery
1. Use minimum 10 AWG wire for battery
cables.
2. Connect positive (+) cable to start solenoid
on engine.
3. Connect negative (-) cable to one of the
engine bolts.
4. Connect other end of positive (+) cable to
positive (+) battery terminal.
5. Connect other end of negative (-) cable to
negative (-) battery terminal.
Disconnecting Battery
1. Disconnect negative (-) cable from negative
(-) battery terminal first.
2. Then disconnect positive (+) cable from
positive (+) battery terminal.
Operation
Safety Rules
1. Make sure all operators receive product training, read and understand all instructions.
Keep all flammable, combustible,
poisonous and noxious materials
away from operating area. Make
sure there are no oily rags, trash,
leaves, litter or other combustible
materials in operating area. Keep
suitable, fully charged fire extinguishers nearby
when servicing and operating the compressor.
2. NEVER allow modifications to compressor
structure or controls.
3. Keep all ignition sources away from exposed
electrical parts.
4. Keep all persons clear of compressor during
start-up and operation.
5. NEVER operate the compressor with the fan,
coupling or other guards removed.
6. DO NOT engage in horseplay with air hoses as
death or serious injury may result.
6
7. Make sure to provide adequate ventilation and
use proper lubricant while operating the compressor. If lubricant or other combustible substances
are spilled, clean up immediately.
8. When checking or adding lubricant or when refilling air line anti-icer systems with antifreeze compound, shut off compressor and allow it to cool.
Keep sparks, flames and other ignition sources
away and DO NOT permit smoking in the vicinity.
9. Stop compressor and disconnect power if a hazardous condition arises.
10. Wear snug fitting clothing and confine long hair
when around compressor. Keep all body parts and
clothing away from couplings, flywheel and other
moving parts of the equipment.
Keep all persons away from the
discharge opening of hoses or tools
or other points of compressed air
discharge. If the machine is
installed in an enclosed area, be
sure to vent the relief valve outside
of the structure or to an unoccupied area.
11. DO NOT use air tools that are rated below the
maximum rating of the compressor. Select
air tools, air hoses, pipes, valves, filters and
other fittings accordingly. DO NOT exceed
manufacturer’s rated safe operating pressures
for these items.
12. Make sure all hose connections are adequately secured to prevent tools or hose ends from
being accidentally disconnected.
Thoroughly read and understand
engine owner’s manual. Be sure to
follow manufacturer’s safety
MANUAL
precautions and proper operating
procedures.

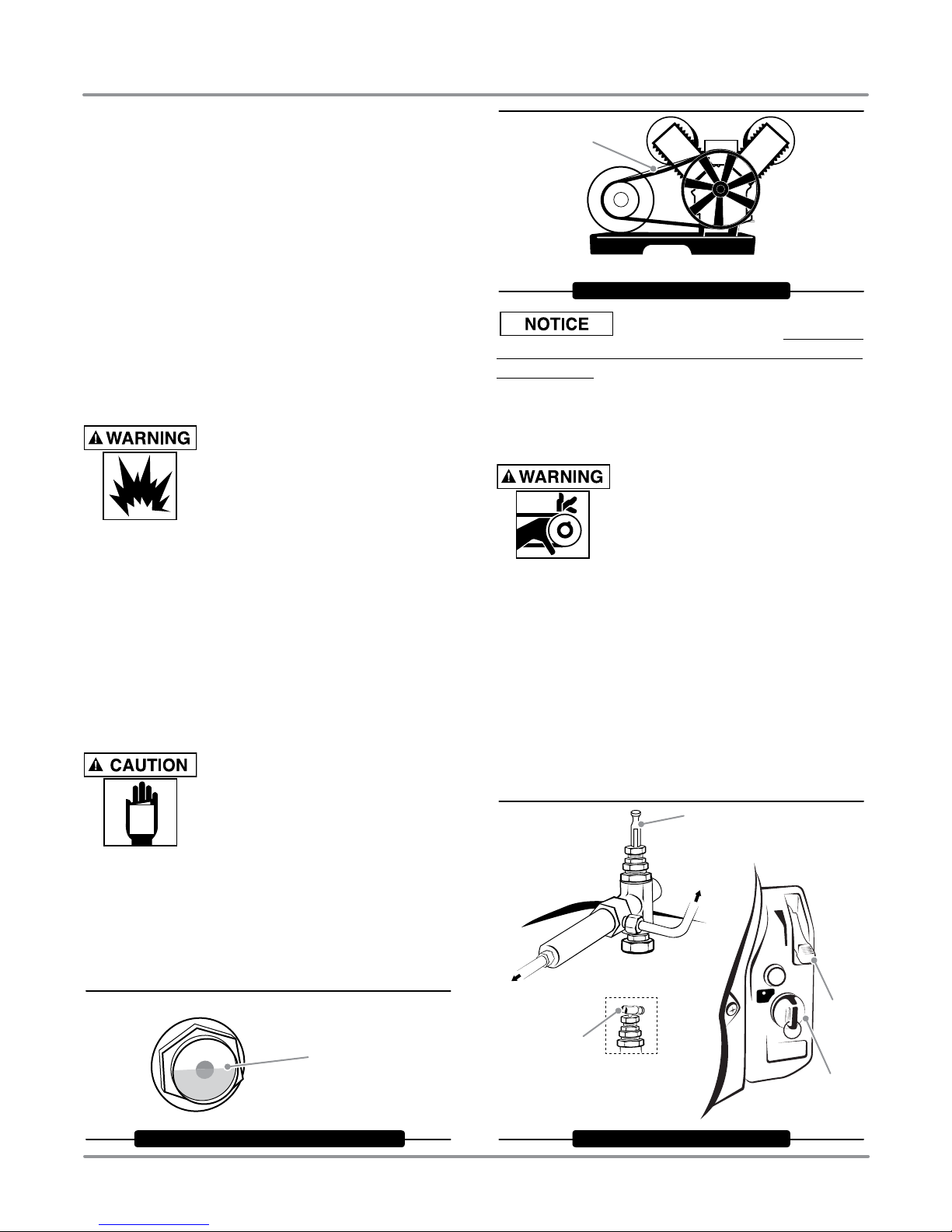

Operating Instructions
1/2” deflection
Figure 4: Proper belt tension
Use only Airbase Industries oil
(PN: APOL03000G1). Use of any
other product will cause product damage and void
the warranty.
2. Check for proper belt tension. There should
be 1/2 inch slack. See maintenance section
if adjustment is necessary. Refer to figure 4.
Always make sure main power is
off before touching belts or other
moving parts of compressor.
3. Make sure no tools are attached to air hose
before starting engine.
4. Pull pressure relief knob to up position to
release head pressure and for easy starting.
Failure to open pressure relief valve will cause
electric start motor to overheat. See figure 5.
5. Turn on gas line valve. (Not supplied on 18 & 24
Hp models because fuel tank is not mounted.)
6. For cold engine start, move choke lever to full
choke position. For engines that are already
warm, place lever in half choke or run position.
Pull relief valve
to up position
Start-Up
1. This unit is shipped with pump break-in oil
and should be ready to operate. Be sure to
check for proper oil level before operating
the compressor. Oil should be in center of
site glass. See figure 3.
Oil level should be to
center of red circle in
site glass
Figure 3: Check proper oil level
To gas
throttle
Put relief valve
back into run
position after
unit is warm
7
To pump
unloaders
Figure 5: Starting Procedure
MAX.
MIN.
ON
START
OFF
Throttle
lever
Turn key to
start engine
EMAX Gas Powered, Piston Compressors
7. Start engine by turning key or with pull start
cord.
If ignition fails to start engine
after 5 seconds, release key and
wait 10 seconds before trying again. Continuously
trying to crank starter can overheat and damage
starter motor.
8. After engine starts, move choke lever to run
position.
9. Allow engine to warm up then turn pressure
relief knob to run position.
10. Keep ball valve open for approximately 20-30
minutes before initial use to allow for pump
break-in period. Be sure to close ball valve for
unit to build pressure for proper operation.
Maintenance
Safety Steps
1. Make sure repairs are done in a clean, dry,
well lighted and ventilated area.
2. Disconnect engine spark plug wire before
performing any maintenance or repairs.
3. When cleaning, use air pressure less than 30
psig (2.1bar). NEVER use flammable solvents
for cleaning purposes. Also use effective chip
guarding and personal protective equipment
per OSHA standard 29 CFR 1910.242 (b).
4. Relieve all internal pressure prior to opening
any line, fitting, hose, valve, drain plug, connection or other component, such as filters
and line oilers, and before refilling optional
air line anti-icer systems with antifreeze
compound.
Compressor components can
Belt Adjustment
Disconnect, tag and lock out power
source then release all pressure from
the system before attempting to
install, service, relocate or perform
ANY maintenance.
become hot during operation.
Avoid bodily contact with hot
liquids, hot surfaces and sharp
edges and corners.
Be sure to relieve all system
pressure then lock out power and
tag compressor to prevent
unexpected movement of the unit.
Inspect belt tension after first 30 hours of operation
then every 30 days.
1. Proper belt tension is determined by pressing
on belt midway between motor pulley and
flywheel. There should be approximately 1/2
inch of deflection. See figure 4, pg. 7.
2. Loosen motor (4) mounting bolts, found
underneath motor mount bracket. Slide
motor in bracket slots as needed for proper
tension. See figure 6. Be sure motor shaft
and pulley are aligned properly with pump
befor tightening motor bolts and restarting unit.
3. Always replace all belts with the same brand,
at the same time. Make sure belts are unimatched. Do not replace belts independently.
4. Do not splash lubricating oil on belts or pulleys when adjusting or replacing belts.
Gas engine
Motor mounting bolts
are underneath bracket
Motor mount
bracket
alignment of motor shaft
bolts before restarting unit.
Figure 6: Move motor for belt adjustment
Be sure to check
and pulley then tighten
Changing Oil
All units are shipped with break-in oil. Change oil
within first 30 hours or 10 days of operation, whichever comes first. DO NOT use automotive type oil.
Use only Airbase Industries oil
(PN: APOL03000G1). Use of any
other product will cause product damage and void
the warranty.
Change oil every 90 days or if oil becomes milky.
High humidity and excessive temperature changes
can cause moisture to form in the pump. This moisture will cause oil to break down and become milky.
Be sure to check oil regularly for proper lubrication.
Make sure to dispose of used parts such as oil and
filters in accordance with all applicable regulations.
8
Safety Valve
NEVER attempt to regulate or
tamper with safety valve. Valve is
sealed and certified by ASME code
and is designed to relieve system
pressure when necessary.
Operating Instructions
Pull ring on
safety valve
before each use.
Check proper operation of safety valve before each
use. Refer to figure 7. If valve does not open manually, replace immediately. Discharge pressure is
generally set at 175 PSI (12.1 bar). DO NOT attempt
to open valve while machine is under pressure.
Tank
Drain daily.
Maintenance Schedule
Daily
Weekly
Monthly
Check oil level
Check for unusual operation. Correct
before damage occurs.
Clean air filter
Change oil (after first 30 hours)
Check and tighten all bolts as required
Check all connections for air leaks
Check belts for proper tension, wear,
and alignment
Figure 7: Safety Valve
Check safety valve
Drain tank and traps
General unit cleaning
Check for unusual operation.
Correct before damage occurs.
Inspect oil for contamination.
Change if necessary.
Check all unloading lines for
leaks. Air leaks in unloader lines
will cause unloaders and pilot
valve to chatter and could cause
short cycling of motor.
Every 3 months
Change oil
Notes
Inspect valve assemblies
9
EMAX Gas Powered, Piston Compressors
Troubleshooting Chart
Problem Possible Causes Resolutions
Engine does not start
Low air pressure
Low/No fuel
Clogged/leaking fuel line
Water in fuel
Unloader valve(s) stuck
Spark plug not operating
Low oil shutdown feature on
gas engine is activated
Compressor pump has run dry
Pilot valve not set properly
Head unloader sticking
Fill gas tank
Check fuel line, clean or replace as needed
Drain fuel tank then refill with fresh fuel
Check for proper operation, repair or replace valves if
necessary.
Change spark plug
Add oil to engine
Add lubricating oil then check for proper operation. Replace pump if necessary.
Use only Airbase Industries oil
(PN: APOL03000G1). Use of any
other product will cause product damage and void
the warranty.
Call EMAX Service or local dealer to adjust valve
Lubricate valve with industrial grade grease
Excessive vibration
Intake or exhaust valves not
functioning properly
Air leak(s) in system
Engine running too slow
Clogged air filter
Application exceeds rated air
output of compressor
Improper compressor mounting
Loose belts or other system
component
Engine running too fast
Repair or replace valves as needed
Use soapy water to locate leaks, replace or tighten
threaded parts
Adjust throttle linkage
Replace air filter
Check CFM requirements, change tool or use compressor
with higher air output
Ensure tank is located on properly sized rubber padding
Adjust belt tension, tighten mounting and/or other bolts
as necessary
Adjust throttle linkage
10
Troubleshooting Chart (continued)
Problem Possible Causes Resolutions
Operating Instructions
Overheating
Excessive use
Head valve(s) not seating
properly
Blown cylinder head gasket(s)
Restriction in head, intercooler
or check valve
Low oil
Dirt in intercooler fins or cylinder
fins
Poor ventilation / ambient
temperature too high
Don’t use it so much man!
Clean or replace
Replace gasket(s)
Clear blockage
Add oil. Ensure oil level is at middle of site glass. See
figure 3, pg. 7.
Use only Airbase Industries oil
(PN: APOL03000G1). Use of any
other product will cause product damage and void
the warranty.
Use low pressure air to blow dirt away from compressor
Increase ventilation around operating area. Ensure compressor has adequate clear space from walls and other
possible obstructions. Ambient temperature should not
exceed 110˚ F.
Notes
11
EMAX Gas Powered, Piston Compressors
Warranty Statement
Emax, INC. (also known as EATON-MAX, Inc. and each of its subsidiaries) makes the following Warranties:
1. THAT EACH ROTARY SCREW AIR COMPRESSOR PUMP TO BE FREE FROM DEFECTS IN MATERIAL, WORKMANSHIP, AND PARTS FOR 10 YEARS ON THE ROTARY SCREW AIR
COMPRESSOR PUMP FROM THE DATE OF PURCHASE. Emax (and each of its subsidiaries) is not responsible for downtime during warranty service. If downtime is necessary, it is the Purchaser’s discretion and obligation (at Purchaser’s expense) to have a redundant UNIT. This warranty applies to rotary screw rotors and bearings. The
electric motor carries a five year warranty and a 2 year warranty on the rest of the compressor unit. The screw compressor MUST have Emax, Inc. Lubricant Synthetic
exclusively, the same which must be purchased from Emax, Inc. (Mixing different brands of oil will void this warranty and cause the rotors to varnish). All air filters,
oil filters, and oil separator filters must be purchased from Emax, Inc. and the screw compressor must have Emax, Inc. Synthetic Rotary Screw oil, purchased exclusively from Emax, or an Emax dealer, for this warranty to apply.
Annual participation in all oil programs are required by original purchaser of the unit outlined by the following:
a) Purchase an oil sample kit for oil analysis by Emax or Emax Dealer.
b) Oil sample kit contains 20 oil sample containers. One (1) oil sample
is to be sent for analysis by an Emax oil analysis laboratory every
six (6) months so oil can be tested twice yearly.
c) Oil samples are obtained by draining ___ ozs. of oil into container
then mailing sample container to laboratory address provided in oil
sample kit.
Failure of original purchaser to comply with any of the above conditions pertaining to oil analysis with void the complete unit warranty.
A full detailed maintenance schedule must be sent to Emax, Inc. once a year with the total service completed quarterly, outlining each air filter, oil filter and oil
change with the total hours on the unit after each maintenance was performed.
Failure to fully comply with this warranty and fully comply with the manual herein will void this warranty.
Exclusions to this warranty also include all normal wear and tear items, including, but not limited to the bearings, rotors, valves, belts, shaft seal and load/unload solenoids.
2. THAT EACH BARE COMPRESSOR PUMP UNIT TO BE FREE FROM DEFECTS IN MATERIAL, WORKMANSHIP, AND PARTS FOR 5 YEARS FOR THE UNIT FROM THE DATE OF
PURCHASE. Emax (and each of its subsidiaries) is not responsible for downtime during warranty service. If downtime is necessary, it is the Purchaser’s discretion and
obligation (at Purchaser’s expense) to have a redundant UNIT. Warranty repairs shall not include freight costs. Purchaser is responsible for returning unit to Emax,
Inc. This pump must have Emax Inc, lubricant Synthetic exclusively, the same which must be purchased from Emax Inc. (Mixing different brands of oils will void the
pump warranty). A service kit must be purchased from Emax or an Emax dealer for this warranty to apply. Service kits contain an air filter and synthetic oil that must
be changed annually. Annual proof of purchase of all oil programs must be maintained by the original purchaser of the compressor pump. If the unit runs out of oil,
this warranty is void. Failure to fully comply with this warranty and fully comply with the manual herein will void this warranty.
Exclusions include: service such as OIL CHANGES, FILTER REPLACEMENTS, GASKET TIGHTENING TO CORRECT OIL SEEPAGE or DRIVE BELT TIGHTENING and VALVE CLEANING and are not covered under warranty.
Warranty shall be void under the following conditions: Failure to routinely change oil and to maintain a clean filter, or exceeding 70% duty cycle resulting in overheat-
ing and excessive wear and tear, or exposing electrical components to rain or water, or installing the unit in a hostile environment such as acid vapors or any caustic or
abrasive matter that may be ingested into the pump, or installing the unit in an enclosed area where lack of cooling ventilation is present, such as in boiler or equipment
rooms where the ambient air exceeds 100˚F.
3. THAT EACH COMPRESSOR UNIT TO BE FREE FROM DEFECTS IN MATERIAL, WORKMANSHIP, AND PARTS FOR 5 YEARS FOR THE COMPRESSOR PUMP AND 2 YEARS ON THE
REMAINDER OF THE UNIT FROM THE DATE OF PURCHASE. The UNIT also carries a 1-year labor warranty. Emax (and each of its subsidiaries) is not responsible for
downtime during warranty service. If downtime is necessary, it is the Purchaser’s discretion and obligation (at Purchaser’s expense) to have a redundant compressor.
Warranty repairs shall not include freight costs. Purchaser is responsible for returning unit to Emax, Inc. This pump MUST have Emax Inc. Lubricant Synthetic exclusively, the same which must be purchased from Emax, Inc. (Mixing different brands of oil will void this warranty). A service kit must be purchased from Emax or an
Emax dealer for this warranty to apply. Service kits contain an air filter and synthetic oil that must be changed annually. Annual proof of purchase of all oil programs
must be maintained by the original purchaser of the compressor unit. If the unit runs out of oil, this warranty is void. Failure to fully comply with this warranty and
fully comply with the manual herein will void this warranty.
Exclusions include: service such as OIL CHANGES, FILTER REPLACEMENTS, GASKET TIGHTENING TO CORRECT OIL SEEPAGE or DRIVE BELT TIGHTENING and VALVE CLEANING and are not covered under warranty.
Warranty shall be void under the following conditions: Failure to routinely change oil and to maintain a clean filter, or exceeding 70% duty cycle resulting in overheat-
ing and excessive wear and tear, or exposing electrical components to rain or water, or installing the unit in a hostile environment such as acid vapors or any caustic or
abrasive matter that may be ingested into the pump, or installing the unit in an enclosed area where lack of cooling ventilation is present, such as in boiler or equipment
rooms where the ambient air exceeds 100˚F.
4. THAT EACH DRYER UNIT TO BE FREE FROM DEFECTS IN MATERIAL, WORKMANSHIP, AND PARTS FOR 5 YEARS on the HEAT EXCHANGER AND 2 YEARS ON THE DRYER UNIT
FROM THE DATE OF PURCHASE. Emax (and each of its subsidiaries) is not responsible for downtime during warranty service. If downtime is necessary, it is the Purchaser’s discretion and obligation (at Purchaser’s expense) to have a redundant DRYER UNIT. Warranty repairs shall not include freight costs. Purchaser is responsible
for returning unit to Emax, Inc. Each DRYER UNIT must have a coalescing filter attached to the intake of the dryer to remove any oil or dirt before air enters the
dryer. Failure to install coalescing filter will void the warranty.
5. GENERAL PROVISIONS: Emax (and each of its subsidiaries) is not responsible for downtime during warranty service. If downtime is necessary, it is the Purchaser’s
discretion and obligation (at Purchaser’s expense) to have a redundant compressor. Warranty repairs shall not include freight costs. If necessary, the Purchaser is
responsible for returning unit and/or applicable part(s) to Emax, Inc.
Exclusions include: service such as OIL CHANGES, FILTER REPLACEMENTS, GASKET TIGHTENING TO CORRECT OIL SEEPAGE or DRIVE BELT TIGHTENING and VALVE CLEANING and are not covered under warranty.
Further Exclusions include failure to fully and completely follow the guidelines set forth in the manual. Of specific note is where a product is used where granite and/
or concrete work is performed or conditions are dusty and the product is required to be housed in a separate room from the adverse conditions where the product has
access to fresh air intake.
Parts used for warranty purposes must be supplied by Emax, Inc. Warranty work will be performed by an approved Emax, Inc. Technician. If any maintenance
(other than routine maintenance) is performed by a non-approved Emax, Inc. Technician, written pre-approval must be obtained from Emax, Inc. to prevent
voiding this Warranty. Failure to fully comply with this warranty and fully comply with the manual herein will void this warranty.
All warranties are nontransferable.
The Oil Purchase Program is effective as of January 1, 2011.
d) The laboratory will perform an oil analysis then email
a report to email address required when oil sample is
provided.
e) Provide annual proof of purchase for oil/filter service kit.
f) Maintain proper oil level in unit at all times. If the unit
runs out of oil, this warranty is void.
12
Loading...
