MSE-159/MSE-156 User Manual
www.emacoustics.co.uk

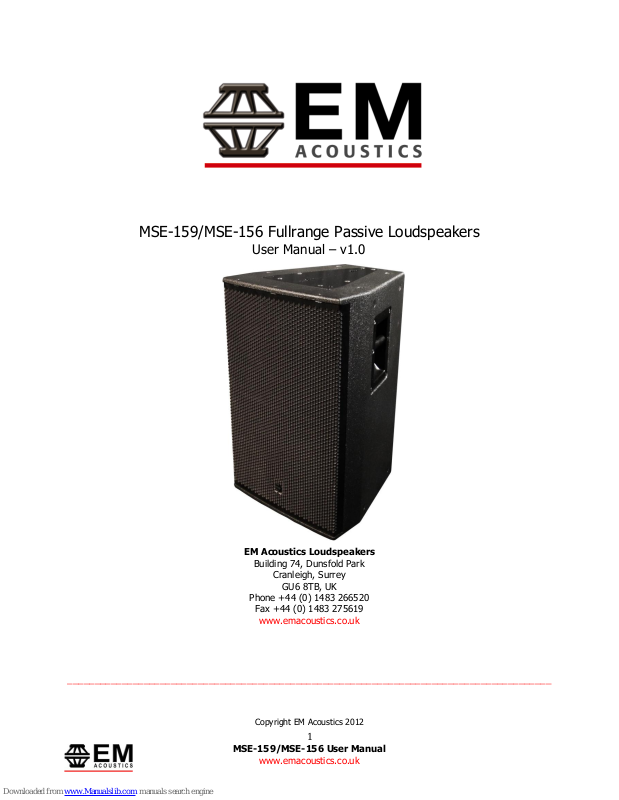

MSE-159/MSE-156 Fullrange Passive Loudspeakers
User Manual – v1.0
EM Acoustics Loudspeakers
Building 74, Dunsfold Park
Cranleigh, Surrey
GU6 8TB, UK
Phone +44 (0) 1483 266520
Fax +44 (0) 1483 275619
www.emacoustics.co.uk
_________________________________________________________________________________________
Copyright EM Acoustics 2012
2
MSE-159/MSE-156 User Manual
www.emacoustics.co.uk
CONTENTS
Introduction
Thank you ...……………………………………………………………………………………………………………………………. 3
Unpacking ……………………………………………………………………………………..……………………………………….. 3
Declaration of Conformity …………………….…………………………………………………………………………………… 3
Product Overview
MSE-159/MSE-156 passive two-way enclosures…………………………………………………………………….……… 4
System Set-up
Safety Considerations………………………………………………………………………………………………………………… 5
Cabling & Amplifier selection ……………………………………………………………………………………………………… 6
Protective DSP Settings ................................................................................................................. 7
Mounting & Rigging Options
Rigging Hardware & Accessories ………………………………………………………………………………………………… 8
Permanent Installations …………………………………………………………………………………………………………….. 8
Flying hardware Use........……………………………….…………………………………………………………………………. 9
Maintenance
MSE-159 Drive Unit Service ……………………………………………………………………………………………………….11
Warranty ……………………………………………………………………………………………………………………………………………. 12
Appendix A – Technical Specifications …………………………………………………………………………………………………… 13
3
MSE-159/MSE-156 User Manual
www.emacoustics.co.uk
INTRODUCTION
Thank you
Thank you for purchasing a product from the acclaimed EMS Series from EM Acoustics. The EMS Series products
have been carefully designed and rigorously tested to ensure years of flawless operation and unprecedented sonic
quality. Flexibility is the key factor with EMS products, and consequently they are at home within a wide variety of
applications from live and portable applications, through to cafes, bars, nightclubs, theatres and conference
centres.
Please ensure that you read this manual carefully before use, and that you keep it to hand should you need it for
further reference. Furthermore, should you have any difficulties please do not hesitate in contacting your EM
Acoustics dealer, or email info@emacoustics.co.uk for further assistance.
Unpacking
Every EM Acoustics product is built to the highest standard and thoroughly tested before it leaves our factory.
After unpacking your loudspeaker, please inspect it carefully for any signs of transit damage. If such damage is
found, please notify the carrier at once to instigate a claim. It is suggested that you retain all packaging for future
re-shipment.
DECLARATION OF CONFORMITY
The products contained within this manual conform to the requirements of the EMC
Directive 89/336/EEC, amended by 92/31/EEC and to the requirements of the Low
Voltage Directive 73/23/EEC amended by 93/68/EEC.
Standards Applied: EMC Emission EN55103-1:1996
Immunity EN55103-2:1996
Electrical Safety EN60065:1993
RECYCLING
This product and its packaging constitute the applicable product according to the WEEE directive.
Please ensure that at the end of the working life of this product, it is disposed of sensibly in
accordance with local and national recycling regulations. The packaging supplied with this product
is recyclable. Please retain all packaging, however if disposing of this packaging please ensure
that you comply with local recycling regulations. These products also all comply to the RoHS
Directive 2002/95/EC.
4
MSE-159/MSE-156 User Manual
www.emacoustics.co.uk
PRODUCT OVERVIEW
MSE-159/MSE-156 fullrange passive loudspeakers
The MSE-159 is a compact, versatile, passive loudspeaker product designed for a wide variety professional sound
reinforcement applications. It features a high-power 15” (381mm) neodymium LF drive unit in a reflex enclosure,
and a 4” diaphragm, 1.4” (36mm) exit neodymium high frequency compression drive unit coupled to a 90° x 60°
rotatable waveguide. These components are matched by an internal passive crossover network for unprecedented
sonic quality from a completely passive enclosure. The MSE-156 is identical in every respect, excluding that the
rotatable waveguide has a 60° x 40° coverage pattern. Sonic performance and character is incredibly consistent
between the two models, allowing easy mixing of the different products within a system.
Due to its discreet size and appearance, the MSE-159 and MSE-156 can be used in a wide variety of professional
audio applications ranging from corporate and theatre use up to medium scale front of house or in-fill/out-fill for
much larger systems. The primary intention for the MSE-159 and MSE-156 were primary loudspeakers for
theatrical sound reinforcement.
As with all EM Acoustics full-range products, no active controller or programmed EQ is required for correct
operation. For demanding applications, a 50Hz, 24dB/octave high pass filter is recommended to increase drive unit
headroom however this is not essential for normal operation – please see page 7 for further information.
The MSE-159 and MSE-156 are supplied as standard in black or white, and is fitted with two Neutrik SpeakONTM
NLT4MP connectors. Custom colours and specific connectors can also be supplied if required – please contact your
local EM Acoustics representative for more details.
To rotate the HF waveguide:
1. Remove the front grille as described in the Maintenance section on Page 10 of this manual.
2. Using a 4mm Allen key, remove the eight countersunk bolts retaining the HF waveguide in place.
3. Lift the waveguide up and rotate to the desired position – the label on the waveguide shows the dispersion
orientation.
4. Reinstate the socket-head bolts and retighten. Avoid over-tightening as this may crack the waveguide.
5. Reinstate the grille as described in the Maintenance section on Page 11.
