eMachines HM50-YK Service Manual

eMachines HM50-YK

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

II

Revision History

Please refer to the table below for the updates made on eMachines HM50-MV/HM50-YK service guides.

Date Chapter Updates

III

Copyright

Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

IV

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current
topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific
actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software
problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of
procedures.

V

Preface

Before using this information and the product it supports, please read the following general informati on.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.

VI

VII

Table of Contents

System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Your Acer Notebook tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

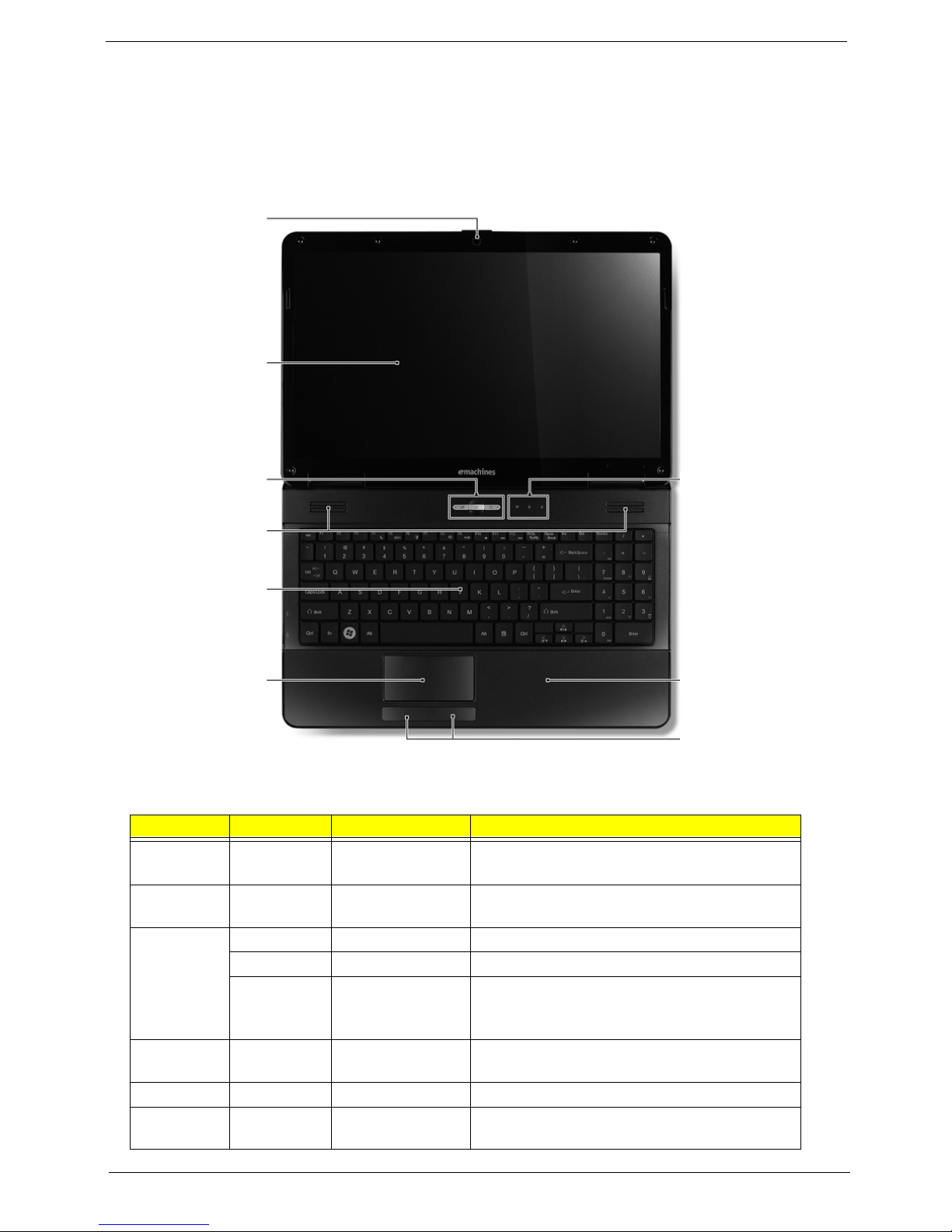

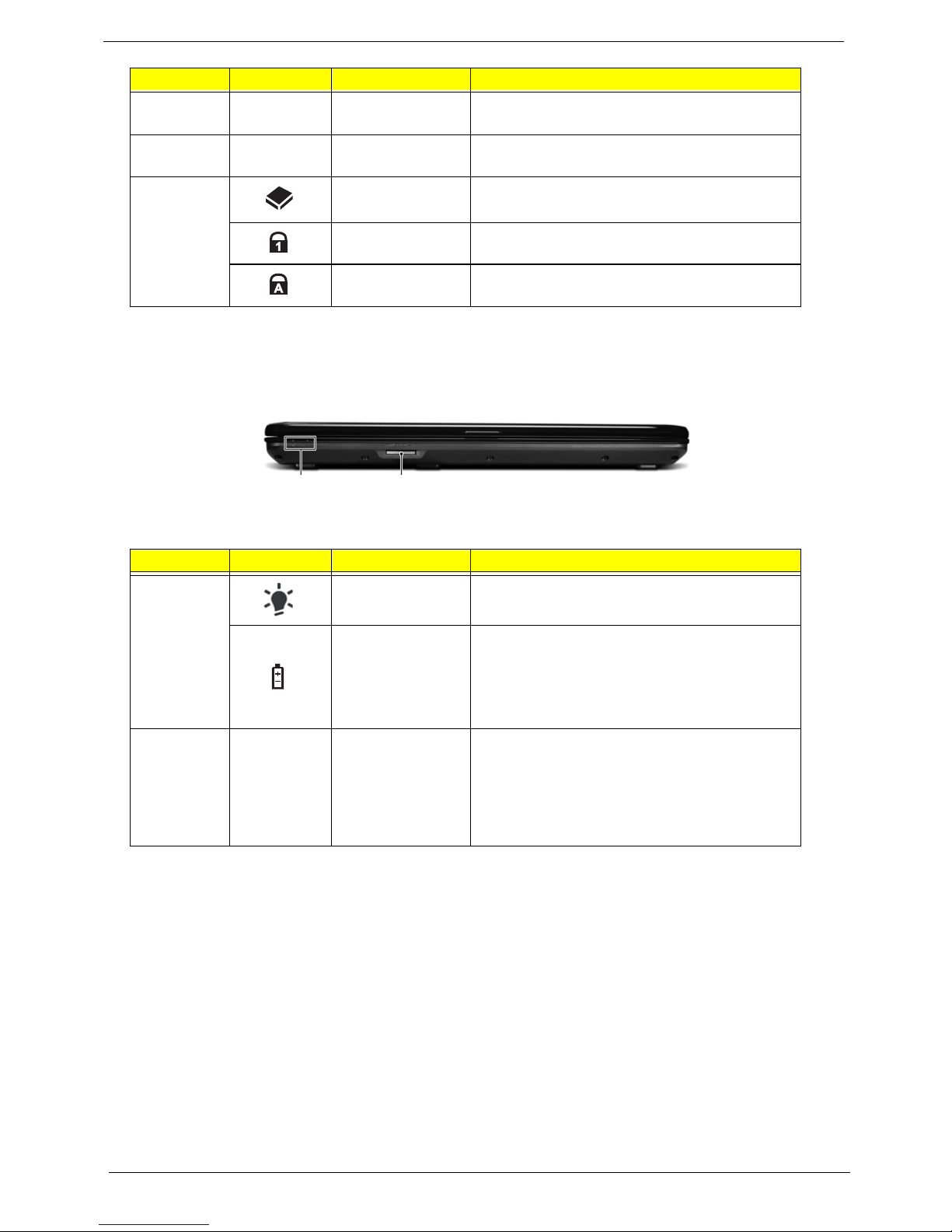

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

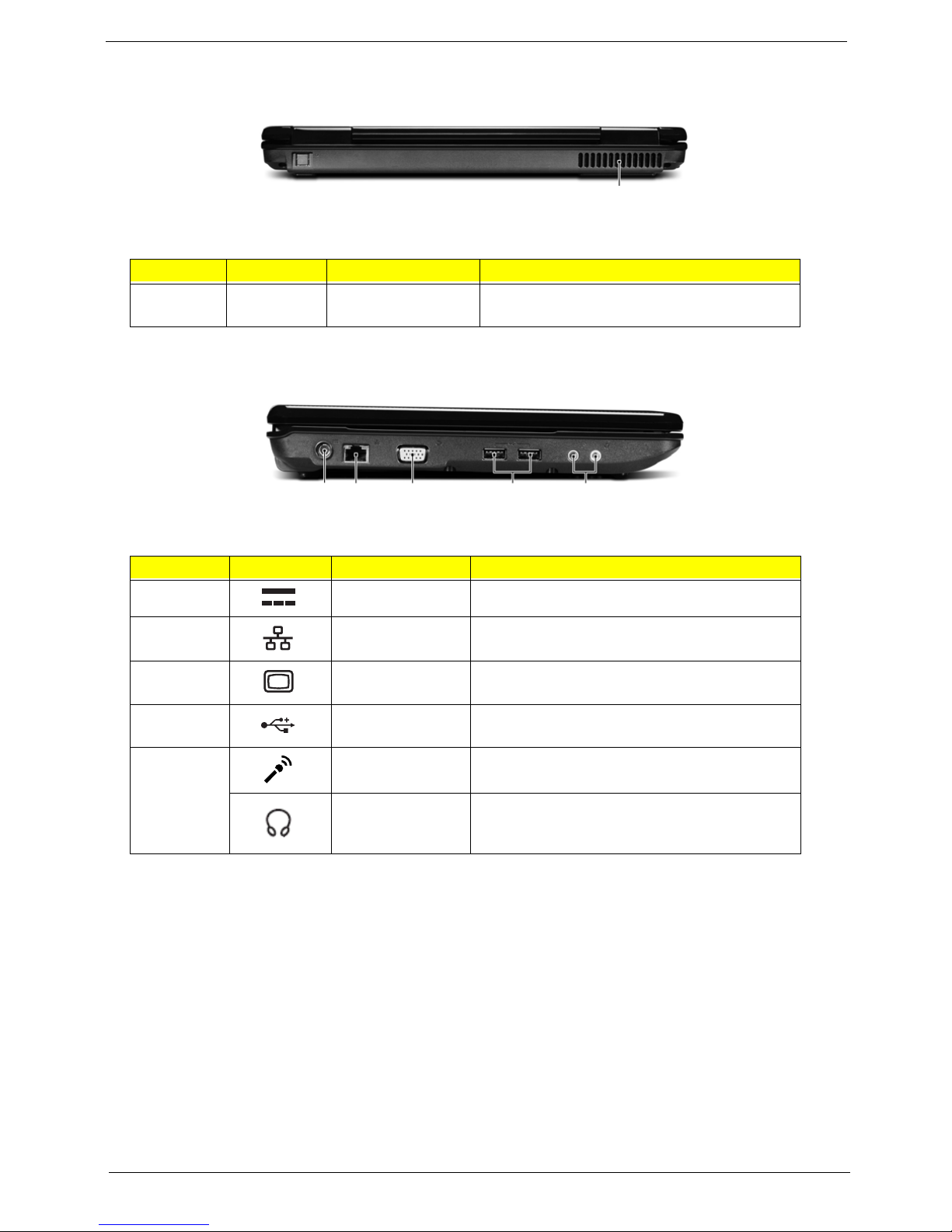

Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

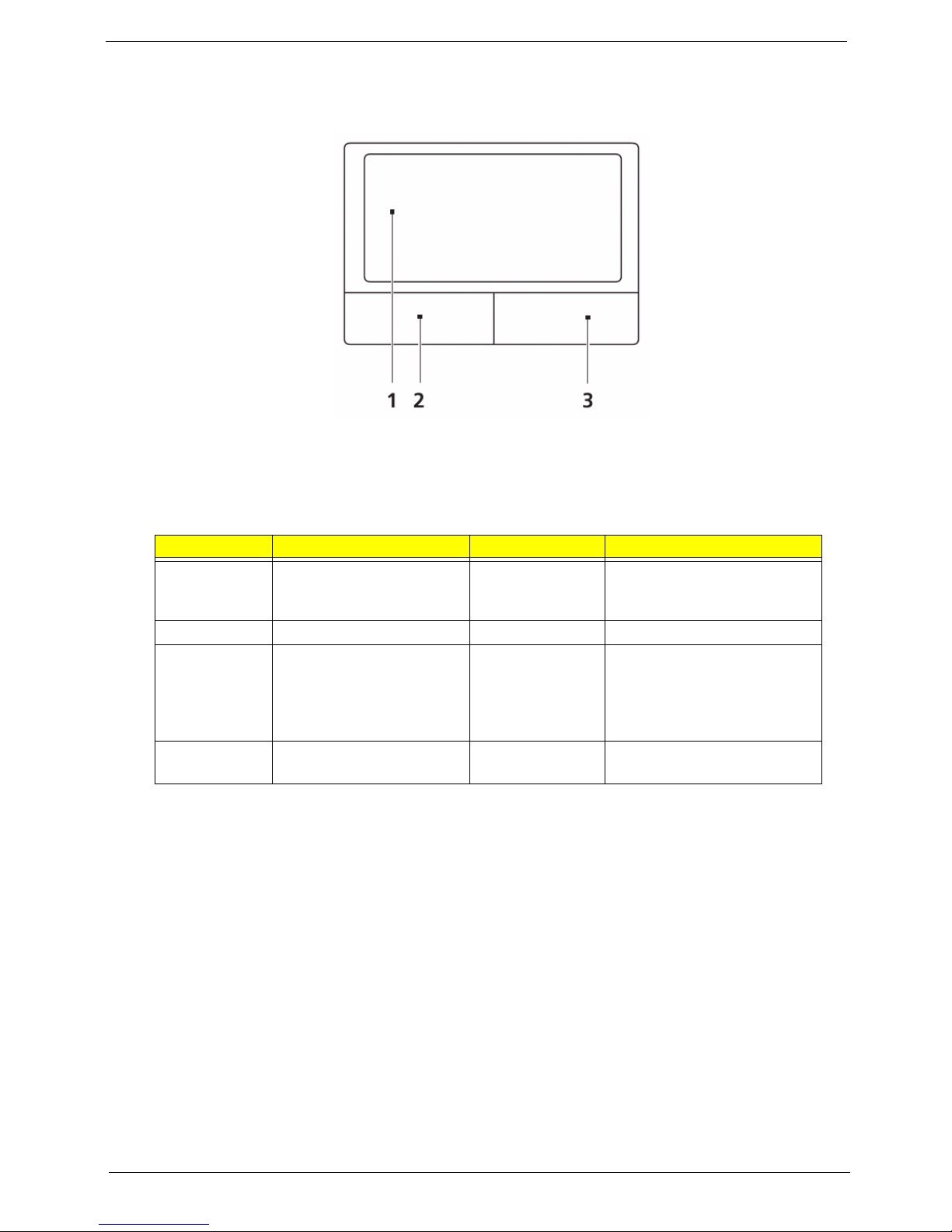

TouchPad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

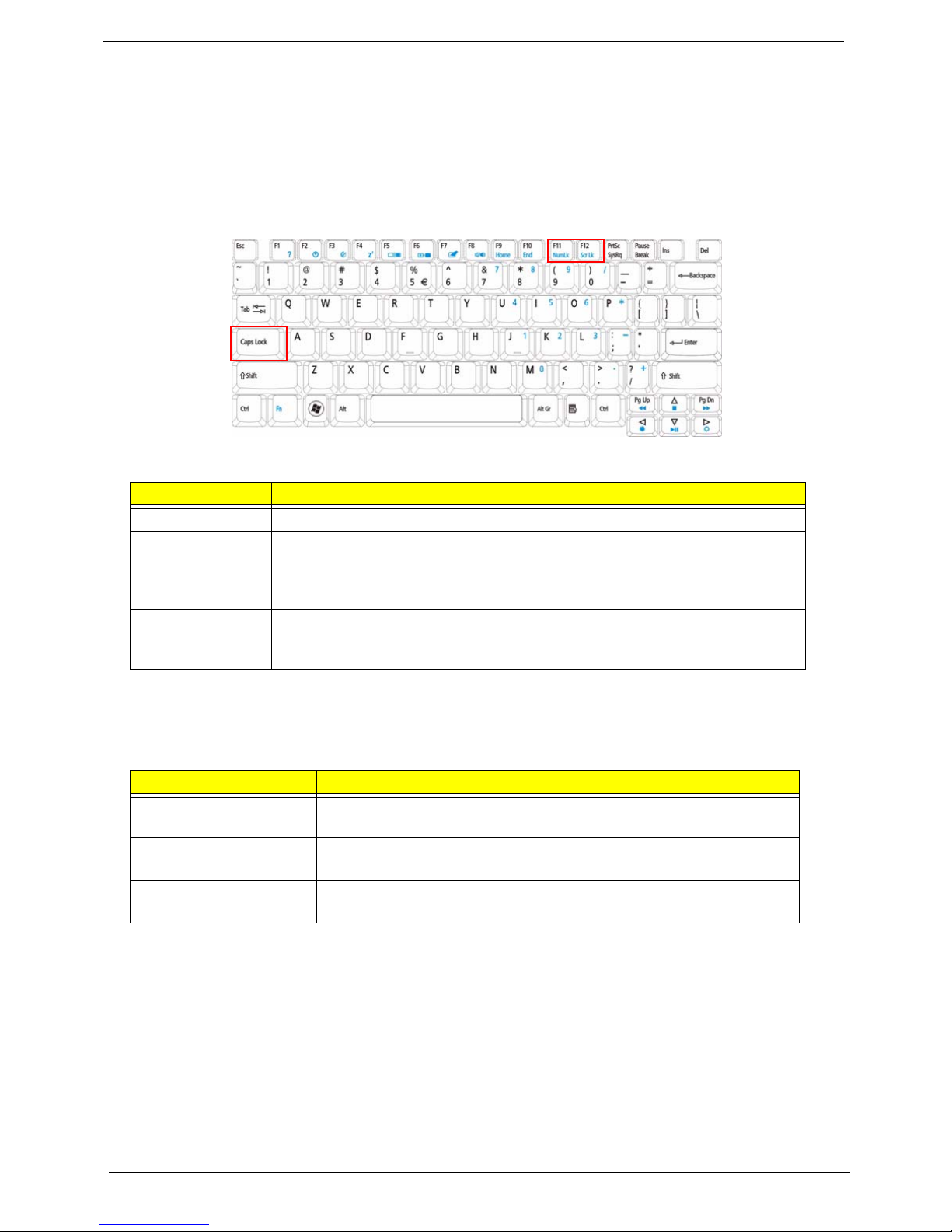

Lock Keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

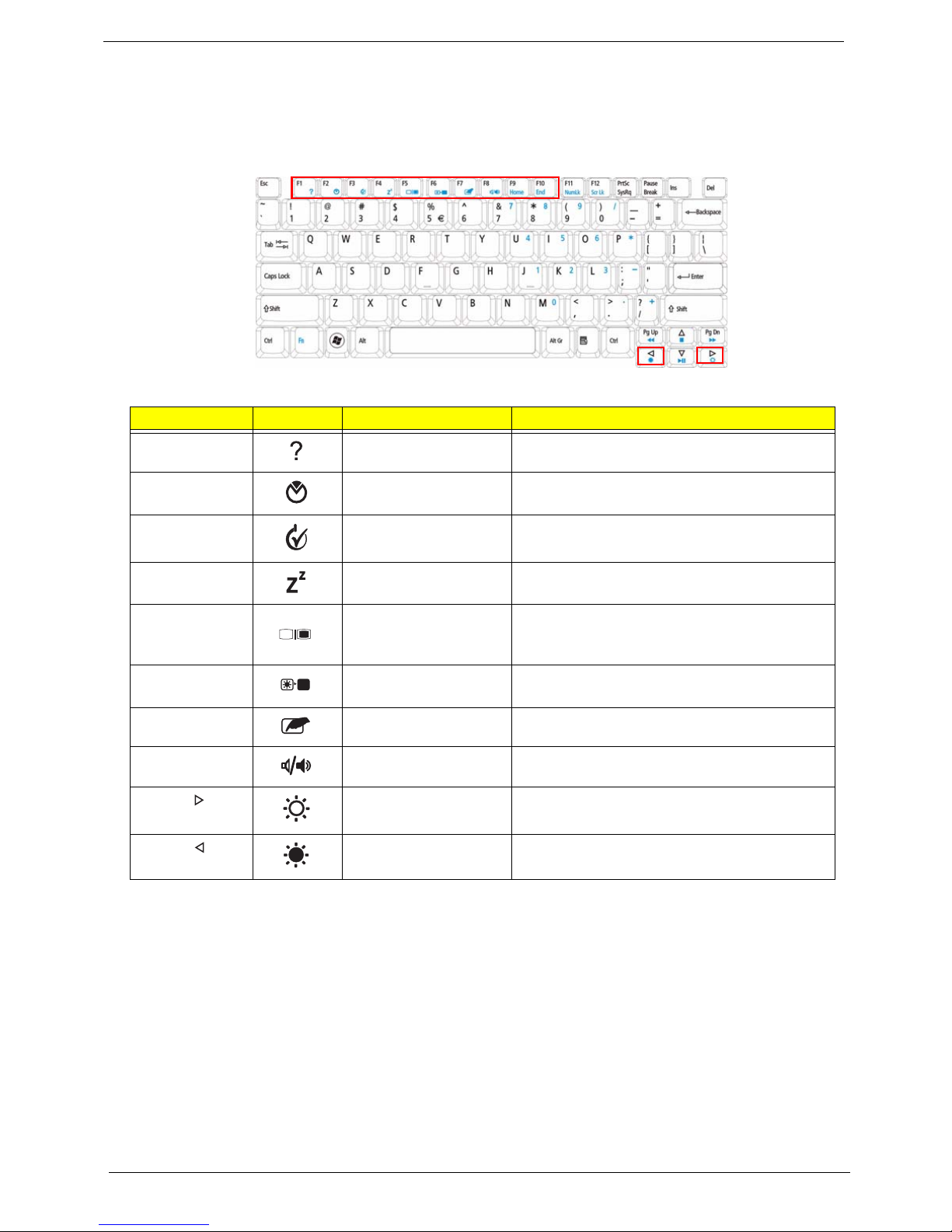

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Special Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Using the System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Acer GridVista (dual-display compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

System Utilities 25

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

HM50-YK AMD BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

BIOS Flash Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

WinFlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Machine Disassembly and Replacement 45

Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Removing the SD Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Removing the Lower Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the DIMM Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Removing the Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

VIII

Table of Contents

Removing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Removing the Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Removing the Left Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Removing the Right Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Removing the TouchPad Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Removing the CPU Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Removing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Removing the LCD Brackets and FPC Cable . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

LCD Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Replacing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Replacing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Replacing the Camera Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Replacing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Main Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Replacing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Replacing the CPU Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Replacing the TouchPad Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Replacing the Right Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Replacing the Left Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Replacing the Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Replacing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Replacing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

Replacing the Switch Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Replacing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Replacing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Replacing the DIMM Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Replacing the ODD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Replacing the Lower Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Replacing the SD Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Troubleshooting 125

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Power On Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

No Display Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Random Loss of BIOS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Built-In Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

TouchPad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Internal Speaker Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

HDD Not Operating Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

ODD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133

Wireless Function Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

IX

Table of Contents

Thermal Unit Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

External Mouse Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Other Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Post Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Jumper and Connector Locations 143

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Clearing Password Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Clear CMOS Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

FRU (Field Replaceable Unit) List 149

eMachines HM50-YK Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Base Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Rear Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152

eMachines HM50-YK FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153

Screw List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Model Definition and Configuration 162
Test Compatible Components 181

Microsoft® Windows® Vista Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .182

Online Support Information 189
Index 191

X

Table of Contents

Chapter 1 1

System Specifications

Features

Below is a brief summary of the computer’s many features:

Operating System

• Genuine Windows® Vista™

Platform

• AMD Athlon64 Dual-Core Processor CPU, S1 socket

• A TI RS690MC/SB600 chipset

System Memory

• Low-latency, high-bandwidth

• 128-bit DDR2 SDRAM controller operating at up to 333 MHz

• On-board memory with up to 2 unbuffered SO-DIMM slots supporting DDR II 667/800.

• Adjustable Maximum 128MB UMA VGA memory shared from North Bridge

• Maximum memory: 2GB per slot; 4GB total

• On-board cache up to 1MB

Display

• 15.6" WXGA, HD 720p, 1366x768

Graphics

• Integrated VGA solution for RS690MC

Storage subsystem

• One 9.5mm, 2.5" HDD (5400 rpm) supported with 160/250/320/500GB and above

• External USB FDD

• 5-in-1 card-reader

Optical Drive

• Fixed type, G-base, SATA interface, Combo/Super-multi DVD-ROM drive

Audio

• Realtek ALC272X-GR for High Definition Audio Codec with Dolby Digital Live

• Internal speakers x2 (2W)

• Mic-in jack

Chapter 1

2 Chapter 1

• Headphone/Line out jack

Dimensions and Weight

• 372.3mm x 246.5mm x 26.8mm/40.6mm with ID

• Weight < than 3100g (15.6" LCD/6-cell battery/super-multi ODD)

Communication

•Wireless

• 802.11b/g/n WLAN/WiMax

• Mini PCIE Wireless LAN module with with mini card slot

• Dual-Band built-in Antenna for Wireless LAN

•LAN

• Atheros AR8132L for 10/100 LAN

• PCI-E 10/100M LAN

• WOL (AC mode S5) support

• Modem

• External USB 2.0 modem

• Support Wake on Ring (S3)

Privacy control

• BIOS user, supervisor, HDD passwords

• Kensington lock slot

Power subsystem

• 65W

• Universal jack for adapter

• Battery: 6-cell AS2009A

Special keys and controls

• EM-7T keyboard

• Supports Application keys for Windows XP/Linux version

• Support for Home key and Application keys for Windows XP/Linux version

• Multi-language support

I/O interface

• VGA port, 15 pins

• DC-IN port for adapter

• RJ-45 Ethernet port for LAN

• 2 USB port

• Headphone out / Line-out

• Microphone-in

• 5-in-1 card Reader

Chapter 1 3

• Kensington Lock (7.5mm)

Environment

• Temperature:

• Operating: 5 °C to 35 °C

• Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%

• Non-operating: 20% to 80%

4 Chapter 1

System Block Diagram

Chapter 1 5

Your Acer Notebook tour

After knowing your computer features, let us show you around your new computer.

Front View

No. Icon Item Description

1 Integrated

webcam

Web camera for video communication
(for selected models).

2 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output.

3 Touchpad toggle Turns the internal touchpad on and off.

Power button Turns the computer on and off.
Wireless LAN

communication
button/indicator

Enables/disables the wireless LAN function.
Indicates the status of wireless LAN
communication.

4 Speaker Left and right speakers deliver stereo audio

output.
5 Keyboard For entering data into your computer.
6 T ouchPad Touch-sensitive pointing device which functions

like a computer mouse.

2

1

3

4

5

6

7

8

9

6 Chapter 1

Closed Front View

NOTE: 1 The front panel indicators are visibl e even when the computer cover is closed

7 Click buttons (left

and right)

The left and right buttons function like the left

and right mouse buttons.
8 Palmrest Comfortable support area for your hands when

you use the computer.
9 HDD Indicates when the hard disk drive is active.

Num Lock Lights up when Num Lock is activated.

Caps Lock Lights up when Caps Lock is activated.

No. Icon Item Description

1

Power

1

Indicates the computer's power status.

Battery

1

Indicates the computer's battery status.

1. Charging: The light shows amber when the

battery is charging.

2. Fully charged: The light shows green when

in AC mode.
2 5-in-1 card

reader

Accepts Secure Digital (SD), MultiMediaCard

(MMC), Memory Stick (MS), Memory Stick

PRO (MS PRO), xDPicture Card (xD).

NOTE: Push to remove/install the card.

Only one card can operate at any
given time.

No. Icon Item Description

1 2

Chapter 1 7

Rear View

Left View

No. Icon Item Description

1 Ventilation slots Enable the computer to stay cool, even after

prolonged use.

No. Icon Item Description

1 DC-in jack Connects to an AC adapter

2 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100-based

network.
2 External display

(VGA) port

Connects to a display device

(e.g. external monitor, LCD projector).
4 USB 2.0 ports Connect to USB 2.0 devices (e.g. USB mouse,

USB camera).
5 Microphone-in

jack

Accepts input from external microphones.

Headphones/
speaker/line-out
jack

Connects to audio line-out devices

(e.g. speakers, headphones).

1

1 2 3 4 5

8 Chapter 1

Right View

Bottom View

No. Item Description

1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access

indicator

Lights up when the optical drive is active.

3 Optical drive eject button Ejects the optical disk from the drive.
4 Emergency eject hole Ejects the optical drive tray when the computer is turned

off.
Note: Insert a paper clip into the emergency eject hole to

eject the optical drive tray when the computer is off.

5 Kensington lock slot Connects to a Kensington-compatible computer security

lock.
Note: Wrap the computer security lock cable around an

immovable object such as a table or handle of a locked
drawer. Insert the lock into the notch and turn the key to
secure the lock. Some keyless models are also available.

No. Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release

latch

Releases the battery for removal.

1 234 5

1
2

3

4

5

6

Chapter 1 9

3 Battery lock Locks the battery in position.
4 Hard disk bay Houses the computer's hard disk (secured with

screws).

5 Memory

compartment

Houses the computer's main memory.

5 Ventilation slots

and cooling fan

Enable the computer to stay cool, even after
prolonged use.

Note: Do not cover or obstruct the fan opening.

No. Icon Item Description

10 Chapter 1

Indicators

The computer has several easy-to-read status indicators. The front panel indicators are visible even when the
computer cover is closed.

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows

green when in AC mode.

Icon Function Description

Power Indicates the computer's power status.

Battery Indicates the computer's battery status.

HDD Indicates when the hard disk drive is active.

Num Lock Lights up when Num Lock is activated.

Caps Lock Lights up when Caps Lock is activated.

Chapter 1 11

TouchPad Basics

The following items show you how to use the TouchPad:

• Move your finger across the TouchPad (1) to move the cursor.

• Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and
execution functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the TouchPad is the same as clicking the left button.

NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to

finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not
increase the TouchPad’s responsiveness.

Function Left Button (2) Right Button (3) Main TouchPad (1)

Execute Quickly click twice. Tap twice (at the same speed

as double-clicking a mouse

button).
Select Click once. Tap once.
Drag Click and hold, then use

finger on the TouchPad to
drag the cursor.

Tap twice (at the same speed

as double-clicking a mouse

button); rest your finger on

the TouchPad on the second

tap and drag the cursor.
Access

context menu

Click once.

12 Chapter 1

Using the Keyboard

The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function
and special keys.

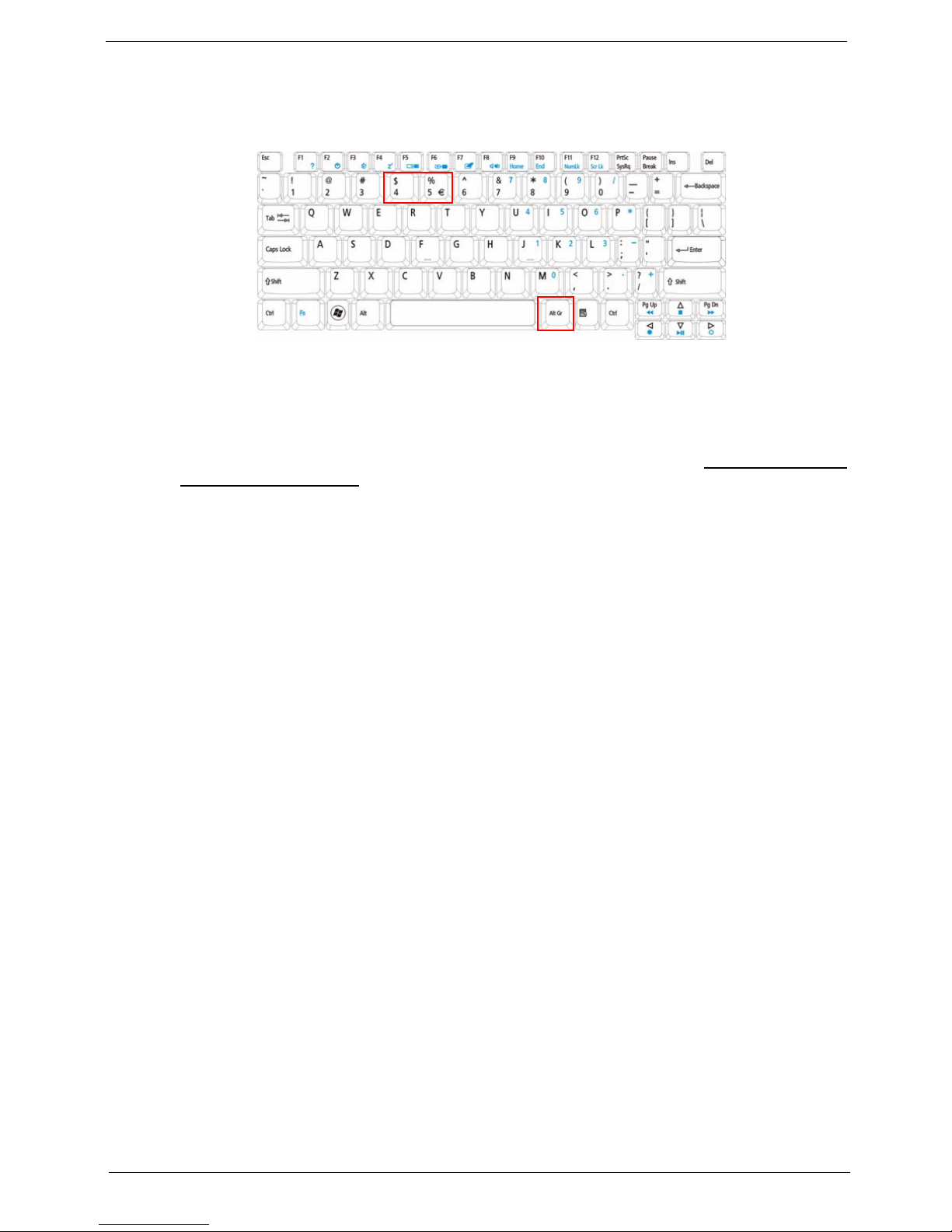

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.

Lock key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock

<Fn> + <F11>

When Num Lock is on, the embedded keypad is in numeric mode. The keys
function as a calculator (complete with the arithmetic operators +, -, *, and /). Use
this mode when you need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.

Scroll Lock <Fn> +

<F12>

When Scroll Lock is on, the screen moves one line up or down when you press
the up or down arrow keys respectively. Scroll Lock does not work with some
applications.

Desired access Num Lock on Num Lock off

Number keys on
embedded keypad

Type numbers in a normal manner.

Cursor-control keys on
embedded keypad

Hold <Shift> while using cursor­control keys.

Hold <Fn> while using cursor­control keys.

Main keyboard keys Hold <Fn> while typing letters on

embedded keypad.

Type the letters in a normal
manner.

Chapter 1 13

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button;

it launches the Start menu. It can also be used with other keys to provide a variety of
functions:

<>: Open or close the Start menu
<> + <D>: Display the desktop
<> + <E>: Open Windows Explore
<> + <F>: Search for a file or folder
<> + <G>: Cycle through Sidebar gadgets
<> + <L>: Lock your computer (if you are connected to a network domain), or

switch users (if you're not connected to a network domain)

<> + <M>: Minimizes all windows
<> + <R>: Open the Run dialog box
<> + <T>: Cycle through programs on the taskbar
<> + <U>: Open Ease of Access Center
<> + <X>: Open Windows Mobility Center
<> + <BREAK>: Display the System Properties dialog box
<> + <SHIFT+M>: Restore minimized windows to the desktop
<> + <TAB>: Cycle th rough programs on the taskbar by using Windows Flip 3-D
<> + <SP ACEBAR>: Bring all gadgets to the front and select Windows Sidebar

<CTRL> +

<> + <F>: Search for computers (if you are on a network)

<CTRL> + <> + <TAB>: Use the arrow keys to cycle through programs on the

taskbar by using Windows Flip 3-D

Note: Depending on your edition of Windows Vista, some shortcuts may not function

as described.

Application
key

This key has the same effect as clicking the right mouse button; it opens the
application's context menu.

14 Chapter 1

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer’s controls like screen
brightness, volume output and the BIOS utility.

To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hotkey Icon Function Description

<Fn> + <F1> Hotkey help Displays help on hotkeys.

<Fn> + <F2> Acer eSettings

Management

Launches Acer eSettings Management in Acer
Empowering Technology.

<Fn> + <F3> Acer ePower

Management

Launches Acer ePower Management in Acer
Empowering Technology.

<Fn> + <F4> Sleep Puts the computer in Sleep mode.

<Fn> + <F5> Display toggle Switches display output between the display

screen, external monitor (if connected) and
both.

<Fn> + <F6> Screen blank Turns the display screen backlight off to save

power. Press any key to return.

<Fn> + <F7> TouchPad toggle Turns the internal TouchPad on an d off.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn> + < > Brightness up Increases the screen brightness.

<Fn> + < > Brightness down Decreases the screen brightness.

Chapter 1 15

Special Key

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your
keyboard.

The Euro symbol

1. Open a text editor or word processor.

2. Hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.
NOTE: Note: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/

typography/faq/faq12.htm for more information.

The US dollar sign

1. Open a text editor or word processor.

2. Hold <Shift> and then press the <4> key at the upper-center of the keyboard.
NOTE: This function varies by the operating system version.

16 Chapter 1

Using the System Utilities

Acer GridVista (dual-display compatible)

NOTE: This feature is only available on certain models.

To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then
select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the
display box and then click the check box Extend my windows desktop onto this monitor. Finally, click
Apply to confirm the new settings and click OK to complete the process.

Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen. To access this function, please go to Start´ All Programs and click on Acer GridVista.
You may choose any one of the four di splay settings indicated below:

Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display
compatible, allowing two displays to be partitioned independently.

Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
AcerGridVista is simple to set up:

1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.

2. Drag and drop each window into the appropriate grid.

3. Enjoy the convenience of a well-organized desktop.

NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's

recommended value.

Chapter 1 17

Hardware Specifications and Configurations

Processor

Processor Specifications

CPU Fan True Value Table

• Throttling 50%: On=99°C, Off=96°C

• OS Shutdown: 105°C

• H/W Shutdown: 110°C

Northbridge

Item Specification

CPU • AMD Athlon64 Dual-Core Process, Cache 1MB, TK42

• AMD Athlon64 Process, 2.2GHz, Cache 256KB, TF38

• AMD Athlon64 Process, 2.0GHz, Cache 256KB, TF36

• AMD Athlon64 Process, 1.6GHz, Cache 512KB, TF20
Type AMD Athlon64 Dual-Core Mobile CPU
Core Logic • ATI RS690MC

• ATI SB600

• ENE KB926 for Keyboard Controller, Battery management Unit.

• Integrated VGA solution for RS690MC
CPU Package Micro uPGA-638 Package
Power 45W
On-die Cache Up to 1MB L2 cache
Front Side Bus 667/800/1066MHz
Thermal IC

Item

CPU

Speed

Cores

Bus

Speed

Mfg

Tech

Cache

Size

Package

Core

Voltage

Acer P/N

AATF20 1.6GHz 1 638 MHz 512K TF20

PGA

KC.ATF02.200

AATF36 2.0GHz 1 638 MHz 256K TF36

PGA

KC.ATF02.360

AATF38 2.2Ghz 1 638 MHz 256K TF38

PGA

KC.ATF02.380

AATK42 1.6GHz 2 638 MHz 65 nm 1M TK42 KC.ATK02.420

Fan On Temp (°C) Fan Speed (rpm) SPL Spec (dBA)

50 3000 28
55 3300 31
60 3700 34
65 4100 37
75 4500 40
80 4500 40

Item Specification

Chipset ATI RS690MC
Package
Features •

18 Chapter 1

Southbridge

BIOS

System Memory

Item Specification

Chipset ATI SB600
Package
Features •

Item Specification

BIOS vendor Phoenix BIOS
BIOS Version V0.1 1T04
BIOS ROM type Flash
Features • Flash ROM 1MB

• Supports ISIPP

• Supports Acer UI

• Supports multi-boot

• Suspend to RAM (S3)/Disk (S4)

• Various hot-keys for system control

• Supports SMBUS 2.0, PCI2.3

• ACPI 2.0 compliance with Intel Speed Step support C1, C2,
C3, C4 and S3, S4 for mobile CPU

• DMI utility for BIOS serial number configurable/asset tag

• Supports PXE

• Supports Y2K solution

• Supports Win Flash Wake on LAN from S3

• Wake on LAN form S4 in AC mode

• System information

Item Specification

Memory controller ATI RS690MC + ATI SB600
Memory size 4GB maximum
DIMM socket number 2
Supports memory size per socket 2GB
Supports maximum memory size 4GB (total)
Supports DIMM type 200-pin +1.8V DDRII
Supports DIMM Speed 667/800 MHz
Supports DIMM voltage 1.8V
Cache Upto 1MB L2 Cache on CPU

Chapter 1 19

Memory Combinations

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various

capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be
reversed.

LAN Interface

Wireless Module 802.11b/g/n

Slot 1 Slot 2 Total Memory

0MB 512MB 512MB
0MB 1024MB 1024MB
0MB 2048MB 2048MB
512MB 512MB 1024MB
512MB 1024MB 1536MB
512MB 2048MB 2560MB
1024MB 0MB 1024MB
1024MB 512MB 1536MB
1024MB 1024MB 2048MB
1024MB 2048MB 3072MB
2048MB 0MB 2048MB
2048MB 512MB 2560MB
2048MB 1024MB 3072MB
2048MB 2048MB 4096MB

Item Specification

LAN Chipset Atheros AR8132L
Package
LAN connector type
LAN connector location
Feature
Interface

Item Specification

Manufacturer
Model
Modem Device •
Interface

20 Chapter 1

Hard Disk Drive Interface

Super-Multi Drive

Item Specification

Vendor & Model
Name

Seagate
ST9500325AS
ST9250315AS

Seagate
ST9320320AS
ST9160310AS

Toshiba
MK3255GSX
MK2555GSX
MK1655GSX

WD
WD5000BEVT
WD3200BEVT
WD2500BEVT
WD1600BEVT

Capacity (MB) 500, 250 320, 160 320, 250, 160 500, 320, 250,

160
Bytes per sector 512 512 512 512
Data heads 4, 2 4, 2 4, 2, 2 4, 4, 3, 2
Drive Format
Disks 2, 1 2 or 1, 1 2, 1, 1 2, 2, 2, 1
Spindle speed

(RPM)

5400 5400 5400 5400

Performance Specifications
Buffer size 8 MB 8 MB 8 MB 8 MB
Interface SATA SATA SATA SATA
Internal transfer

rate (Mbits/sec,
max)

352 395~952

(typical)

850 Mbits/s

maximum

I/O data transfer
rate

(Mbytes/sec
max)

150 300 300 maximum

DC Power Requirements
Voltage

tolerance

5V ±5% 5V ±5% 5V ±5% 5V ±5%

Item Specification

Vendor & model name HLDS GT20N Sony AD7580S
Performance

Specification

With CD Diskette With DVD Diskette With CD Diskette With DVD Diskette

Transfer rate (MB/sec) Sustained:

3,600 KB/s (24x) max.

Sustained:

11.08 Mbytes/s (8x)
max.

Sustained:
1,571 (typical)

Sustained:
10,993 (typical)

Buffer Memory 2 MB
Interface SATA

Chapter 1 21

Audio Interface

Audio Amplifier

Speakers

Applicable disc formats • DVD-ROM:

• 4.7GB (Single Layer)

• 8.5GB (Dual Layer)

• DVD-R:

• 3.95GB (Ver. 1.0: read only)

• 4.7GB (Ver. 2.0 for Authoring: read

only)

• 4.7GB (Ver. 2.1 for General: read &

write)

• (DL) 8.5GB (Ver. 3.0)

• DVD-RW:

• 4.7GB (Ver. 1.2/ Rev 1.0, 2.0, 3.0)

• DVD-RAM: 1.46GB/side, 4.7GB/side (Ver.

2.2)

• DVD+R: 4.7GB (Ver. 1.3)

• (DL) 8.5GB (Ver. 1.1)

• DVD+RW:

• 4.7GB (Vol.1 Ver.1.3)

• CD-ROM Mode-1 data disc

• CD-ROM Mode-2 data disc

• CD-ROM XA, CD-I, Photo-CD Multi-

Session, Video CD

• CD-Audio Disc

• Mixed mode CD-ROM disc (data and

audio)

• CD-Extra

• CD-Text

• CD-R (Conforming to “Orange Book Part

2”: read & write)

• CD-RW (Conforming to “Orange Book Part

3”: read & write)

DVD Read:
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),

DVD-Video, DVD-Audio, SACD (Hybrid),
UDF DVD, DVD-R, DVD-R DL, DVD-R 3.95 GB,

DVD-R Authoring, DVD-R Multi-Border,
DVD-RW, DVD+R, DVD+R DL, DVD+R Multi-

Session, DVD+RW, DVD-RAM V1.0, DVDRAM
V2.0 & 2.1 &2.2.

CD Read:
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2

Form-1 and Mode-2 Form-2, CD-i, CD-i
Bridge, Video-CD (MPEG-1), Karaoke CD, Photo-

CD, Enhanced CD, CD Plus, CD Extra, itrax
CD, CD-Text, UDF CD, CD-R, and CD-RW

DVD Write:
DVD Data & Video

CD Read:
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2

Form-1 and Mode-2 Form-2, CD-i, Video­CD, CD-Text

Loading mechanism Drawer (Solenoid Open)

Tact SW (Open)

Emergency Release (draw open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%

Item Specification

Chipset Realtek ALC272X-GR
Package 48-pin LQFP ‘Green’
Features High Definition Audio Codec with Dolby Digital Live

Item Specification

Model
Package
Features •

Item Specification

Vendor and Model

Item Specification

22 Chapter 1

Microphone

Power and Keyboard Controller

Battery

LCD 15.6”

Dimensions
Weight
Nominal Impedance
Power Rating
Output Sound Pressure

Level
Frequency Range
Distortion

Item Specification

Vendor and Model
Directivity
Current Consumption
S/N Ratio
Frequency

Item Specification

Controller ENE KB926
Package
Features • 99-/100-/103-key keyboard

• Touchpad pointing device
Supply Current
Total number of keypads
Windows logo key
Hotkeys

Item

Specification

6 Cell

Vendor & model name SANYO/SONY/PANASONIC/SIMPLO AS2009A
Battery Type Li-ion
Pack capacity 4400 mAh
Normal Voltage 2.2 Ah
Package configuration 3S2P

Item Specification

Vendor/model name CMO N156B3-L02
Screen Diagonal (mm) 396.2
Display Area (mm) 344.23 x 193.54
Display resolution (pixels) 1366 x 768
Pixel Pitch 0.252
Display Mode Normal (white)

Item Specification

Chapter 1 23

Fan

Card Reader

Typical White Luminance (cd/m2)
(also called Brightness)

220

Contrast Ratio 500:1
Response Time (Optical Rise

Time/Fall Time) msec

8

Input Voltage
Typical Power Consumption

(watt)

5.75

Weight (with inverter) 500
Physical Size (mm) 359.3 x 209.5 x 5.9
Electrical Interface LVDS
Support Color 262K
Viewing Angle (up/down/right/

left)

20/45/45/45°

Temperature Range (°C)
Operating
Storage (shipping)

0 to +50

-20 to +60

Item Specification

Type
Pin number
Speed
Air flow
Power

Item Specification

Part Name RealTek RT5159
Package 5-in-1 card reader
General Features • PCI-E interface

• Push-push type

•Dummy card

Item Specification

24 Chapter 1

Chapter 2 25

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).

Y our computer is already properly configured and optimized, and you do not need to run this utility . However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when “Press <F2> to enter Setup” message is prompted
on the bottom of screen).

Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.

Navigating the BIOS Utility

There are six menu options: Information, Main, Advanced, Security, Boot, and Exit.
Follow these instructions:

• To choose a menu, use the left and right arrow keys.

• To choose an item, use the up and down arrow keys.

• To change the value of a parameter, press F5 or F6.

• A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.

• Press Esc while you are in any of the menu options to go to the Exit menu.

• In any menu, you can load default settings by pressing F9. You can also press F10 to save any
changes made and exit the BIOS Setup Utility.

NOTE: You can chan ge the value of a parameter if it is enclosed in square brackets. Navigation keys for a

particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.

Chapter 2

26 Chapter 2

HM50-YK AMD BIOS

Information

The Information screen displays a summary of your computer hardware information.

NOTE: The screen above is for your reference only. Actual values may differ according to model.
The table below describes the parameters in this screen.

Parameter Description

CPU Type This field shows the CPU type and speed of the system.
CPU Speed This field shows the speed of the CPU.
HDD Model Name This field shows the model name of HDD installed on primary IDE

master.

HDD Serial Number This field displays the serial number of HDD installed on primary IDE

master.

ATAPI Model Name This field shows the model name of the Optical device installed in

the system.
System BIOS Version Displays system BIOS version.
VGA BIOS Version This field displays the VGA firmware version of the system.
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Number Universally Unique Identifier (UUID) is an identifier standard used in

software construction, standardized by the Open Software

Foundation (OSF) as part of the Distributed Computing Environment

(DCE).

PhoenixBIOS Setup Utility

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

AMD Athlon(tm) 64 X2 Dual-Core Processor TK-42
1600 MHz

WDC WD2500BEVT-22ZCCT0 -(PM)
WD-WXHZ08604954
Optiarc DVD RW AD-7580S -(SM)

V0.11T04_C-Build
V010.055.000.050.030632

eMachines E625
eMachines
39353164386665643635001EECE1D377

AMD Athlon(tm) 64 X2 Dual-Core Processor TK-42
1600 MHz

WDC WD2500BEVT-22ZCCT0 -(PM)
WD-WXHZ08604954
Optiarc DVD RW AD-7580S -(SM)

V0.11T04_C-Build
V010.055.000.050.030632

eMachines E625
eMachines
39353164386665643635001EECE1D377

CPU Type
CPU Speed

HDD Model Name:
HDD Serial Number:
ATAPI Model Name:

System BIOS Version:
VGA BIOS Version:

Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name:
UUID:

CPU Type
CPU Speed

HDD Model Name:
HDD Serial Number:
ATAPI Model Name:

System BIOS Version:
VGA BIOS Version:

Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name:
UUID:

F5/F6

Main Boot

Exit

SecurityInformation

Chapter 2 27

Main

The Main screen allows the user to set the system time and date as well as enable and disable boot option
and recovery .

NOTE: The screen above is for your reference only. Actual values may differ.
The table below describes the parameters in this screen.

Parameter Description Format/Option

System Time Sets the system time. The hours are displayed with 24-

hour format.

Format: HH:MM:SS
(hour:minute:second)

System Date Sets the system date. Format MM/DD/YYYY

(month/day/year)

System Memory

This field reports the memory size of the system.

N/A

Extended Memory

This field reports the Extended Memory size.

N/A

Video Memory

This field shows the memory allocated for the video
graphics.

N/A

Quiet Boot Allows startup to skip certain tests while booting,

decreasing the time needed to boot the system.

Option: Enabled or
Disabled

Network Boot Enables, disables the system boot from LAN (remote

server).

Option: Enabled or

Disabled
F12 Boot Menu Enables, disables Boot Menu during POST. Option: Enabled or Enabled
D2D Recovery Enables, disables D2D Recovery function. The function

allows the user to create a hidden partition on hard disc
drive to store operation system and restore the system
to factory defaults.

Option: Enabled or

Disabled

SA TA Mode Control the mode in which the SATA controller should

operate.

Option: AHCI or IDE

PhoenixBIOS Setup Utility

Item Specific Help

<Tab>, <Shift-Tab>, or
<Enter> selects field.

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

[19:10:59]
[12/12/2008]

634 KB
1790 MB
[256MB]

[Enabled]
[Enabled]
[Disabled]
[Enabled]
[IDE AHCI]

[19:10:59]
[12/12/2008]

634 KB
1790 MB
[256MB]

[Enabled]
[Enabled]
[Disabled]
[Enabled]
[IDE AHCI]

System Time:
System Date:

System Memory:
Extended Memory:
Video Memory:

Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATA Mode:

System Time:
System Date:

System Memory:
Extended Memory:
Video Memory:

Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATA Mode:

F5/F6

Main Boot

Exit

SecurityInformation

28 Chapter 2

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget

your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.

Parameter Description Option

Supervisor Password Is Shows the setting of the Supervisor password Clear or Set
User Password Is Shows the setting of the user password. Clear or Set
HDD0 Password S hows the setting of the hard disk password. Clear or Set
Set Supervisor Password Press Enter to set the supervisor password. When set,

this password protects the BIOS Setup Utility from
unauthorized access. The user can not either enter the
Setup menu nor change the value of parameters.

N/A

Set User Password Press Enter to set the user password. When user

password is set, this password protects the BIOS Setup
Utility from unauthorized access. The user can enter
Setup menu only and does not have right to change the
value of parameters.

N/A

Set SATA Port0 HDD
Password

Enter HDD Password. N/A

Password on Boot Defines whether a password is required or not while the

events defined in this group happened. The following
sub-options are all requires the Supervisor password
for changes and should be grayed out if the user
password was used to enter setup.

Disabled or
Enabled

PhoenixBIOS Setup Utility

Item Specific Help

Supervisor Password
controls access to the
setup utility. It can
be used to boot up when
Pawword on boot is
enabled.

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

ClearClear

Supervisor Password Is:Supervisor Password Is:

ClearClear

User Password Is:User Password Is:

[Enter][Enter]

Set Supervisor PasswordSet Supervisor Password

[Enter][Enter]

Set User PasswordSet User Password

F5/F6

Main Boot

Exit

SecurityInformation

HDD0 Password Is:HDD0 Password Is:

ClearClear

[Enter][Enter]

Set SATA Port 0 HDD PasswordSet SATA Port 0 HDD Password

[Disabled][Disabled]

Password on Boot:Password on Boot:

Chapter 2 29

Setting a Password

Follow these steps as you set the user or the supervisor password:

1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Supervisor Password box appears:

2. Type a password in the “Enter New Password” field. The password length can not exceed 8 alphanumeric
characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3. Press Enter. After setti ng the password, the computer sets the User Password parameter to “Set”.

4. If desired, you can opt to enable the Password on boot parameter.

5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:

2. Type the curre nt password in the Enter Current Passw ord field and press Enter.

3. Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4. When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Set Supervisor Password

Enter New Password [ ][ ]

Confirm New Password [ ]

Set Supervisor Password

Enter Current Password [ ][ ]

Enter New Password [ ]

Confirm New Password [ ][ ]

30 Chapter 2

Changing a Password

1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears.

2. Type the curre nt password in the Enter Current Passw ord field and press Enter.

3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password

field.

4. Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.

5. If desired, you can enable the Password on boot parameter.

6. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses Enter.
If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following
message.

Set Supervisor Password

Enter Current Password [ ][ ]

Enter New Password [ ]

Confirm New Password [ ][ ]

Setup Notice

Changes have been saved.

[Continue][Continue]

Setup Warning

Invalid Password.

[Continue][Continue]

Setup Warning

Passwords do not match.

Re-enter password.

[Continue][Continue]

Chapter 2 31

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.

Select Boot Devices to select specific devices to support boot.

PhoenixBIOS Setup Utility

Item Specific Help

Use < > or < > to
select a device, then
press <F6> to move it
up the List, or <F5>
to move it down the
list. Press <Esc> to
escape the menu.

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:

Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:

F5/F6

Main Boot

Exit

SecurityInformation

32 Chapter 2

Exit

The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.

The table below describes the parameters in this screen.

Parameter Description

Exit Saving Changes Exit System Setup and save your changes to CMOS.
Exit Discarding

Changes

Exit utility without saving setup data to CMOS.

Load Setup Default Load default values for all SETUP item.
Discard Changes Load previous values from CMOS for all SETUP items.
Save Changes Save Setup Data to CMOS.

PhoenixBIOS Setup Utility

Item Specific Help

Exit System Setup and
save your changes to
CMOS.

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

[Enter]
[Enter]
[Enter]
[Enter]
[Enter]

[Enter]
[Enter]
[Enter]
[Enter]
[Enter]

Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes

Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes

F5/F6

Main Boot

Exit

SecurityInformation

Chapter 2 33

BIOS Flash Utilities

The BIOS flash memory update is required for the following conditions:

• New versions of system programs

• New features or options

• Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.
NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not

contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not

completely loaded.
Fellow the steps below to run the Phlash.

1. Prepare a bootable diskette.

2. Copy the flash utilities to the bootable diskette.

3. Then boot the system from the bootable diskette. The flash utility has auto-execution function.

34 Chapter 2

DOS Flash Utility

Perform the following steps to use the DOS Flash Utility:

1. Press F2 during boot to enter the Setup Menu.

2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move

USB HDD to position 1.

3. Execute the KAWGxxx.BAT batch file to update BIOS in DOS mode.
The flash process begins as shown.

PhoenixBIOS Setup Utility

Item Specific Help

Use < > or < > to
select a device, then
press <F6> to move it
up the List, or <F5>
to move it down the
list. Press <Esc> to
escape the menu.

F1
Esc

Help
Exit

Select Item
Select Menu

Change Values
Select Sub-Menu

Enter

F9
F10

Setup Defaults
Save and Exit

Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:

Boot priority order:
1: IDE0: WDC WD2500BEVT-22ZCT0-(S1)
2: IDE1: Optiarc DVD RW AD-7580S-(S2)
3: USB FDD:
4: Network boot: MBA v11.0.14 Slot 0B00
5: USB HDD:
6: USB KEY:
7: USB CD/DVD ROM:

F5/F6

Main Boot

Exit

SecurityInformation

Chapter 2 35

4. In flash BIOS, the message Please do not remove AC Power Source displays.

Plug in the AC power to continue.

5. Flash is complete when the message Flash programming complete displays.

WinFlash Utility

Perform the following steps to use the WinFlash Utility:

1. Double-click the WinFlash executable.

2. Click OK to begin the update. WinFlash closes all applications and shuts down the system.
NOTE: Place only one *.wph file with flash32.exe in the same folder when executing this procedure.

36 Chapter 2

Remove HDD/BIOS Password Utilities

This section provides you with details about removing HDD/BIOS password:

Remove HDD Password:

If you key in the wrong HDD password three times, an error is generated.

To reset the HDD password, perform the following steps:

1. An error code is generated for unlocking the HDD. Note down this code.

2. Execute the Unlock6.EXE file to create the unlock code in DOS Mode using the format UnlockHD

[Encode code] with the code noted in the previous step, as follows:

Unlock6 00193

3. Select 2 to obtain the password. This password which can be used for unlocking the HDD.

Password : OGMHNC7

4. Shut down the computer by pressing down the Power button for 4 seconds.

5. Turn on the computer and key in the password to unlock the HDD.

Chapter 2 37

Removing BIOS Passwords:

To clear the User or Supervisor passwords through hardware, open the WLAN door and use a metal
instrument to short the J1 jumper.

Cleaning BIOS Passwords

To clean the User or Supervisor passwords using software utilites, perform the following steps:

1. From a DOS prompt, execute clnpwd.exe

2. Press 1 or 2 to clean the desired password shown on the screen.

38 Chapter 2

The onscreen message determines whether the function is successful or not.

Using Boot Sequence Selector

The Boot Sequence Selector allows the boot order to be changed without accessing the BIOS. To use Boot
Sequence Selector, perform the following steps:

1. Enter into DOS.

2. Execute BS.exe to display the usage screen.

3. Select the desired boot sequence by entering the corresponding sequence. For example, enter BS2 to

change the boot sequence to HDD | CD ROM | LAN | Floppy.

Chapter 2 39

Using DMITools

The DMI (Desktop Management Interface) Tool copies BIOS information to EEPROM to be used in the DMI
pool for hardware management.

When the BIOS displays Verifyin g DMI pool data it is checking that the table correlates with the hardware
before sending to the operating system (Windows, etc.).

To update the DMI Pool, perform the following steps:

1. Boot into DOS.

2. Execute dmitools. The following messages report to screen to confirm completion:

• dmitools /r ==> Read dmi string from bios

• dmitools /wm xxxx ==> Write manufacturer name to eeprom (max. 16 characters)

• dmitools /wp xxxx ==> Write product name to eeprom (max. 16 characters)

• dmitools /ws xxxx ==> Write serial number to eeprom (max. 22 characters)

• dmitools /wu xxxx ==> Write uuid to eeprom

• dmitools /wa xxxx ==> Write asset tag to eeprom (max. 32 characters)

The following examples show the commands and the corresponding output information.

Read DMI Information from Memory

Input:

dmitools /r

Output:

Manufacturer (Type1, Offset04h): Acer
Product Name (Type1, Offset05h): TravelMate xxxxx
Serial Number (Type1, Offset07h): 01234567890123456789
UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Asset Tag (Type3, Offset04h): Acet Asstag

Write Product Name to EEPROM

Input:

dmitools /wp Acer

Write Serial Number to EEPROM

Input:

dmitools /ws 01234567890123456789

4 ). Write UUID to EEPROM ( Create UUID from Intel WFM20.pdf )

Input:

dmitools /wu

5). Write Asset Tag to EEPROM

Input:

dmitools /wa Acet Asstag

NOTE: When using any of the Write options, restart the system to make the new DMI data effective.

40 Chapter 2

Using the LAN MAC EEPROM Utility

You can use the MAC.BAT utility to write the MAC.CFG file to the EEPROM under DOS mode.

1. Use a text editor (for example: Notepad) to open the MAC.CFG file. You can see the MAC.CFG contents

as below:

2. In DOS mode, run the MAC.BAT file to write MAC values to eeprom.

WriteData = ‘001122334455' MAC value
StartAddr=7A MAC address
WriteLeng=6 MAC value length
KeepByte=0 don’t care

Chapter 3 45

Machine Disassembly and Replacement

IMPORTANT: The outside housing and color may vary from the mass produced model.

This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:

• Wrist grounding strap and conductive mat for preventing electrostatic discharge

• Flat screwdriver

• Philips screwdriver

• Plastic flat screwdriver

• Plastic tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the

screws with the corresponding components to avoid mismatch when putting back the components.

Chapter 3

46 Chapter 3

Pre-disassembly Instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug the AC adapter and all power and signal cab les from the system.

3. Place the system on a flat, stable surface.

4. Remove the battery pack.

Disassembly Process

IMPORTANT: The LCD Module cannot be disassembled outside of fa ctory conditions. If any part of the LCD
Module is faulty, such as the camera, antenna or LCD panel, the whole module must be replaced.

The disassembly process is divided into the following stages:

• External module disassembly

• Main unit disassembly

• LCD module disassembly

The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the mainboard, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.

Main Screw List

Screw Quantity Part Number

Chapter 3 47

External Module Disassembly Process

IMPORTANT: The outside housing and color may vary from the mass produced model.

External Modules Disassembly Flowchart

The flowchart below gives you a graphic representation of the external module disassembly sequence and
instructs you on the components that need to be removed during servicing. For example, if you want to remove
the keyboard, you must first remove the switch board.

Screw List

Step Screw Quantity Part No.

Lower Covers M2.5*8 3
ODD Module M2.5*8 1
WLAN Module M2*3 2
HDD Carrier M3*3 4

Disconnect power

and signal cables

from system

Remove

Battery

Turn off system
and peripherals

power

Remove

DIMMs

Remove

WLAN

Remove

HDD

Remove

ODD

Remove

Lower Covers

Remove

Dummy Card

48 Chapter 3

Removing the Battery Pack

1. Turn computer over. Slide the battery lock in the direction shown.

2. Slide and hold the battery release latch to the release position (1), then lift out the battery pack from the main

unit (2).

1

2

Chapter 3 49

Removing the SD Dummy Card

1. Push the SD dummy card all the way in to eject it.

2. Pull it out from the slot.

50 Chapter 3

Removing the Lower Covers

1. See “Removing the Battery Pack” on page 48.

2. Remove the three screws securing the Memory and HDD Covers.

3. Remove the HDD cover as shown.

4. Carefully open the Memory Cover.

Step Size Quantity Screw Type

Lower Covers M2.5*8 3

Memory
Cover

HDD
Cover

Chapter 3 51

Removing the Optical Drive Module

1. See “Removing the Battery Pack” on page 48.

2. Remove the screw securing the ODD module.

3. Insert a suitable tool into the access slot in the battery bay as shown. Gently lever the ODD module out of the

chassis.

4. Pull the optical drive module out from the chassis.

Step Size Quantity Screw Type

ODD Module M2.5*8 1

52 Chapter 3

5. Remove the two screws securing the ODD bracket and remove the ODD bracket from the optical disk drive
module.

6. Remove the ODD bezel by rotating the top edge downward and pulling it clear of the module.

Step Size Quantity Screw Type

ODD Bracket M2*3 2

Chapter 3 53

Removing the DIMM Modules

1. See “Removing the Lower Covers” on page 50.

2. Push out the release latches on both sides of the DIMM socket to release the DIMM module.

3. Remove the DIMM module.

4. Repeat steps for the second DIMM module if present.

54 Chapter 3

Removing the WLAN Module

1. See “Removing the Lower Covers” on page 50.

2. Remove the adhesive tape securing the Antenna cables in place.

3. Disconnect the antenna cables from the WLAN Board.

NOTE: Cable placement is Black to the MAIN terminal (upper) and White to the AUX terminal (lower).

Chapter 3 55

4. Move the antenna away and remove the two screws to release the WLAN Board.

5. Detach the WLAN Board from the WLAN socket.

NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.

Step Size Quantity Screw Type

WLAN Module M2*3 2

56 Chapter 3

Removing the Hard Disk Drive Module

1. See “Removing the Lower Covers” on page 50.

2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface.

3. Lift the HDD Module clear of the HDD bay.

NOTE: To prevent damage to device, avoid pressing down on it or placi ng heavy objects on top of it.

Chapter 3 57

4. Remove the four screws (two each side) securing the hard disk to the carrier.

5. Remove the HDD from the carrier.

Step Size Quantity Screw Type

HDD Carrier M3*3 4

58 Chapter 3

Main Unit Disassembly Process

Main Unit Disassembly Flowchart

Screw List

Step Screw Quantity Part No.

LCD Module M2.5*8 2
LCD Module M2.5*8 4
Upper Cover M2.5*8 11
Upper Cover M2.5*8 9
Power Board M2*3 2
Left Speaker Module M2*3 1
Right Speaker Module M2*3 1
TouchPad Bracket M2*3 2
Mainboard M2.5*4 1
Thermal Module 4
CPU Fan M2*3 3

Remove

Mainboard

Remove

Switch Cover

Remove

Keyboard

Remove

Upper Cover

Remove

LCD Module

Remove

Power Board

Remove External

Modul es before

proceeding

Remove

TouchPad

Bracket

Upper
Cover

Lower
Cover

Remove

Left Speaker

Module

Remove

CPU

Remove

RTC Battery

Remove

Thermal Module

Remove

Right Speaker

Module

Remove

CPU Fan

Chapter 3 59

Removing the Switch Cover

CAUTION: Using metal tools to remove the Switch Cover may cause damage to the outer casing. The use of
plastic tools or fingers is recommended to remove the Switch Cover.

1. See “Removing the Battery Pack” on page 48.

2. Turn the computer over. Press down the / and * keys on the right side of the Keyboard to expose the cutout.

Insert a suitable plastic tool (or finger) and pry the Switch Cover upward, away from the Upper Cover.

3. Work along the Switch Cover toward the left hinge, gently prying up the cover as shown.

4. Lift the Switch Cover clear of the computer.

60 Chapter 3

Removing the Keyboard

1. See “Removing the Switch Cover” on page 59.

2. Pry up the centre of the Keyboard and rotate it upward away from the Upper Cover.

3. Turn the keyboard over on to the TouchPad area to expose the FFC connector.

4. Open the locking latch and disco nnect the FFC from the mainboard.

5. Lift the keyboard clear of the Upper Cover.

Chapter 3 61

Removing the LCD Module

1. See “Removing the Keyboard” on page 60.

2. Turn the computer over. Remove the two securing screws from the bottom of the chassis.

3. Remove the Antenna Cables from the cable channel as sh own. Ensure that the cables are free from all cable

clips.

Step Size Quantity Screw Type

LCD Module M2.5*8 2

62 Chapter 3

4. Stand the computer on the LCD Panel and pull the Antenna cables completely through the chassis.

5. Disconnect the LCD cable from the Mainboard and remove the cable from the cable channel.

6. Remove the white Antenna cable from the cable channe l. Ensure that the cable is completely free of the

retaining clips all the way to the hinge well.

Chapter 3 63

7. Remove the adhesive tape securing the Antenna cable to the Upper Cover.

8. Remove the black Antenna cable from the cable channel as shown. Ensure that the cable is completely free of

the retaining clips all the way to the hinge well.

9. Open the LCD Panel to the full extent to expose the Hinge Covers.

10. Press the left side Hinge Cover inward, as shown, and lift to remove the cover from the chassis.

11. Repeat the process for the right side Hinge Cover.

64 Chapter 3

12. Remove the four securing screws (two each side) from the LCD module.

13. Remove the left and right screw covers from on top of the hinges

14. Lift the LCD Module clear of the Upper Cover.

Step Size Quantity Screw Type

LCD Module M2.5*8 4

Chapter 3 65

Removing the Upper Cover

1. See “Removing the LCD Module” on page 61.

2. Turn the computer over. Remove the eleven screws on the bottom panel.

3. Turn the computer over. Remove the three screw caps at the rear of the Upper Cover as shown.

Step Size Quantity Screw Type

Upper Cover M2.5*8 11

66 Chapter 3

4. Disconnect the following four cables from the Mainboard.

A

B

C

D

Chapter 3 67

NOTE: Avoid pulling on cables directly to prevent damage to the connectors.
NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

5. Disconnect A as shown. 6. Disconnect C as shown.

7. Release the locking latch on B and remove the FFC cable as shown.

8. Release the locking latch on D and remove the FFC cable as shown.

68 Chapter 3

9. Remove the nine screws on the top panel.

10. Starting at the rear left side of the cover , pry apart the Upper and Lower Covers as shown. Work along the back

edge of the casing to the right as shown, then lift the Upper Cover clear of the Lower Cover.

Step Size Quantity Screw Type

Upper Cover M2.5*8 9

Chapter 3 69

Removing the Power Board

1. See “Removing the Upper Cover” on page 65.

2. Locate the Power Board on the Upper Cover as shown.

3. Remove the two screws securing the Power Board to the Upper Cover.

4. Lift the Power Board clear of the Upper Cover as shown.

Step Size Quantity Screw Type

Power Board M2*3 2

70 Chapter 3

Removing the Left Speaker Module

1. See “Removing the Upper Cover” on page 65.

2. Locate the Left Speaker Module on the Upper Cover as shown.

3. Remove the adhesive tape from the Speaker cable.

4. Remove the Speaker cable from the cable channel. Ensure that the cable is free from all cable clips.

Chapter 3 71

5. Remove the single securing screw from the Left Speaker Module.

6. Lift the Speaker clear of the Upper Cover, left side first as shown.

Step Size Quantity Screw Type

Left Speaker
Module

M2*3 1

72 Chapter 3

Removing the Right Speaker Module

1. See “Removing the Upper Cover” on page 65.

2. Locate the Right Speaker Module on the Upper Cover as shown.

3. Turn the Upper Cover over and remove the Right Speaker Module cable from the cable channel. Ensure that

the cable is free from all cable clips.

4. Turn the Upper Cover over and pass the cable through the cover as shown.

Chapter 3 73

5. Remove the single securing screw from the Right Speaker Module.

6. Lift the Speaker clear of the Upper Cover, right side first as shown.

Step Size Quantity Screw Type

Right Speaker
Module

M2*3 1

74 Chapter 3

Removing the TouchPad Bracket

IMPORTANT: The TouchPad Board cannot be removed individually. To replace the TouchPad Board, replace the
entire Upper Cover.

1. See “Removing the Upper Cover” on page 65.

2. Lift the FFC to detach the adhesive securing the cable to the Upper Cover.

3. Release the FFC locking latch and disconnect the TouchPad FFC from the cover.

Chapter 3 75

4. Remove the two screws from TouchPad bracket.

5. Lift the rear edge of the Touc hPad bracket first to clear the securing clips and remove it as shown.

Step Size Quantity Screw Type

TouchPad Bracket M2*3 2

76 Chapter 3

Removing the Mainboard

1. See “Removing the Upper Cover” on page 65.

2. Remove the single securing screw from the Mainboard.

3. Lift the mainboard from the chassis, right edge first, and place it on a clean, dust-free surface.

Step Size Quantity Screw Type

Mainboard M2.5*4 1

Chapter 3 77

Removing the RTC Battery

IMPORTANT:Follow local regulations for disposal of all batteries.
The RTC Battery is soldered to the Mainboard. To replace the battery, solder the new battery to the

connections shown.

78 Chapter 3

Removing the Thermal Module

1. See “Removing the Lower Covers” on page 50.

2. Turn the Mainboard over to access the Thermal Module.

3. Remove the four securing screws (in reverse numerical order from screw 4 to screw 1) from the Thermal

Module.

Step Size Quantity Screw Type

Thermal Module 4

1

2

3

4

Chapter 3 79

4. Using both hands, lift the Thermal Module clear of the Mainboard.

80 Chapter 3

Removing the CPU Fan

1. See “Removing the Thermal Module” on page 78.

2. Disconnect the Fan cable from the Mainboard as shown .

3. Remove the three securing screws from the Fan Module.

Step Size Quantity Screw Type

CPU Fan M2*3 3

Chapter 3 81

4. Lift the CPU Fan clear of the Mainboard as shown.

82 Chapter 3

Removing the CPU

IMPORTANT: The pins on the underside of the CPU are very delicate. If they are damaged, th e CPU may
malfunction. Place the CPU on a clean, dry surface when it is not installed.

1. See “Removing the Thermal Module” on page 78.

2. Using a flat-bladed screw driver, rotate the CPU locking screw 180° counter-clockwise as shown.

3. Lift the CPU clear of the socket as shown.

Chapter 3 83

LCD Module Disassembly Process

LCD Module Disassembly Flowchart

Screw List

Step Screw Quantity Part No.

LCD Bezel M2.5*6 4
LCD Panel M2.5*6 2
LCD Brackets M2*3 6

Remove

LCD Panel

Remove

LCD Bezel

Remove

LCD FPC Cable

Remove LCD

Panel from Main

Unit before
proceeding

Remove

LCD Brackets

Remove

Antennas

Remove

Camera Module

84 Chapter 3

Removing the LCD Bezel

1. See “Removing the LCD Module” on page 61.

2. Remove the two upper and two lower bezel screw caps and screws.

3. Starting from the bottom edge of the bezel, pry the bezel upwards and away from the panel. Work along the

right side toward the top of the bezel, prying the covers apart. Continue along the top edge and down the left
side to remove the bezel.

NOTE: If necessary, use a pry to lift up the outside edges of the bezel.

Step Size Quantity Screw Type

LCD Bezel M2.5*6 4

Chapter 3 85

Removing the Camera Module

1. See “Removing the LCD Bezel” on page 84.

2. Locate the Camera Module at the top of the LCD Module and disconnect the camera cable.

3. Remove the Camera from the module.

86 Chapter 3

Removing the LCD Panel

1. See “Removing the Camera Module” on page 85.

2. Remove the two securing screws from the LCD Panel.

3. Remove the adhesive strip holding the cables in place.

4. Remove the Camera cable cluster from the LCD Module as shown.

Step Size Quantity Screw Type

LCD Panel M2.5*6 2

Chapter 3 87

5. Lift the LCD Panel clear of the module.

88 Chapter 3

Removing the LCD Brackets and FPC Cable

1. See “Removing the LCD Panel” on page 86.

2. Remove the six securing screws (three on each side) fro m the LCD Panel brackets.

3. Remove the LCD brackets by pulling away from the LCD Panel.

Step Size Quantity Screw Type

LCD Brackets M2*3 6

Chapter 3 89

4. Turn the LCD panel over to expose the rear. Lift the adhesive protector and disconnect the cable from the LCD
Panel.

5. Lift the cable as shown to disengage the adhesive strip securing it in place.

6. Lift the FPC cable to disengage the remaining adhesive and remove the cable from the panel.

90 Chapter 3

Removing the Antennas

1. See “Removing the LCD Panel” on page 86.

2. Remove the adhesive strips holding the left antenna cable in place. Ensure the cable is free from obstructions.

3. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips.

4. Remove the adhesive tape securing the left Antenna to the LCD Module.

Chapter 3 91

5. Lift the left Antenna clear of the cover.

6. Remove the adhesive strips holding the right antenna cable in pla c e. Ensure the cable is free from

obstructions.

7. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips.

92 Chapter 3

8. Remove the adhesive tape securing the right Antenna to the LCD Module.

9. Lift the right Antenna clear of the cover.

Chapter 3 93

LCD Module Reassembly Procedure

Replacing the Antennas

1. Replace the right Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated.

2. Replace the adhesive strip to secure the Antenna

in place.

3. Run the cable down the side of the LCD Modul e
using all available clips and adhesive.

4. Run the cable along the cable channel as shown, using all available cable clips.

Locating Pin

Locating Pin

94 Chapter 3

5. Replace the left Antenna as shown. Ensure that the locatin g pins on the Antenn a are correctly seated.

6. Replace the adhesive strip to secure the Antenna

in place.

7. Run the cable down the side of the LCD Modul e
using all available clips and adhesive.

8. Run the cable along the cable channel as shown, using all available cable clips and adhesive.

Locating Pin

Locating Pin
