19” LCD Color Monitor Emachine E19T6W
Service
Service
Service
Horizontal Frequency
31-81 kHz
TABLE OF CONTENTS
Description Page Description Page
Table Of Contents.......…………............................…........1
Revision List.….................................................……......2
Important Safety Notice.……..….........................……......3
1.Monitor Specification..............................………........4
2.LCD Monitor Description…………………………….......5
3.Operation Instruction……………...............……...........6
3.1.General Instructions………..........................…...........6
3.2.Control Button…………….…..............……...............6
3.3.Adjusting the Picture...........................…............7
4.Input/Output Specification............……………............10
4.1.Input Signal Connector............…………................10
4.2.Factory Preset Display Modes.........................12
N
4.3.Panel Specification.....……...……………..................13
5.Block Diagram………...................…………................15
5.1.Software Flow Chart…………………………...........15
5.2.Electrical Block Diagram…………………..….......17
6.Schematic…………………...................................…19
6.1.Main Board.................................................19
6.2. Power Board...……….…....................................24
7.PCB Layout..……………….......................................26
7.1.Main Board……………........................................26
7.2.Power Board….......................................29
7.3.Key Board…………...…….....................................31
8.Maintainability…………….........................................32
8.1.Equipments and Tools Requirement...................32
8.2.Trouble Shooting…………..............................33
9.White-Balance Luminance adjustment………….....39

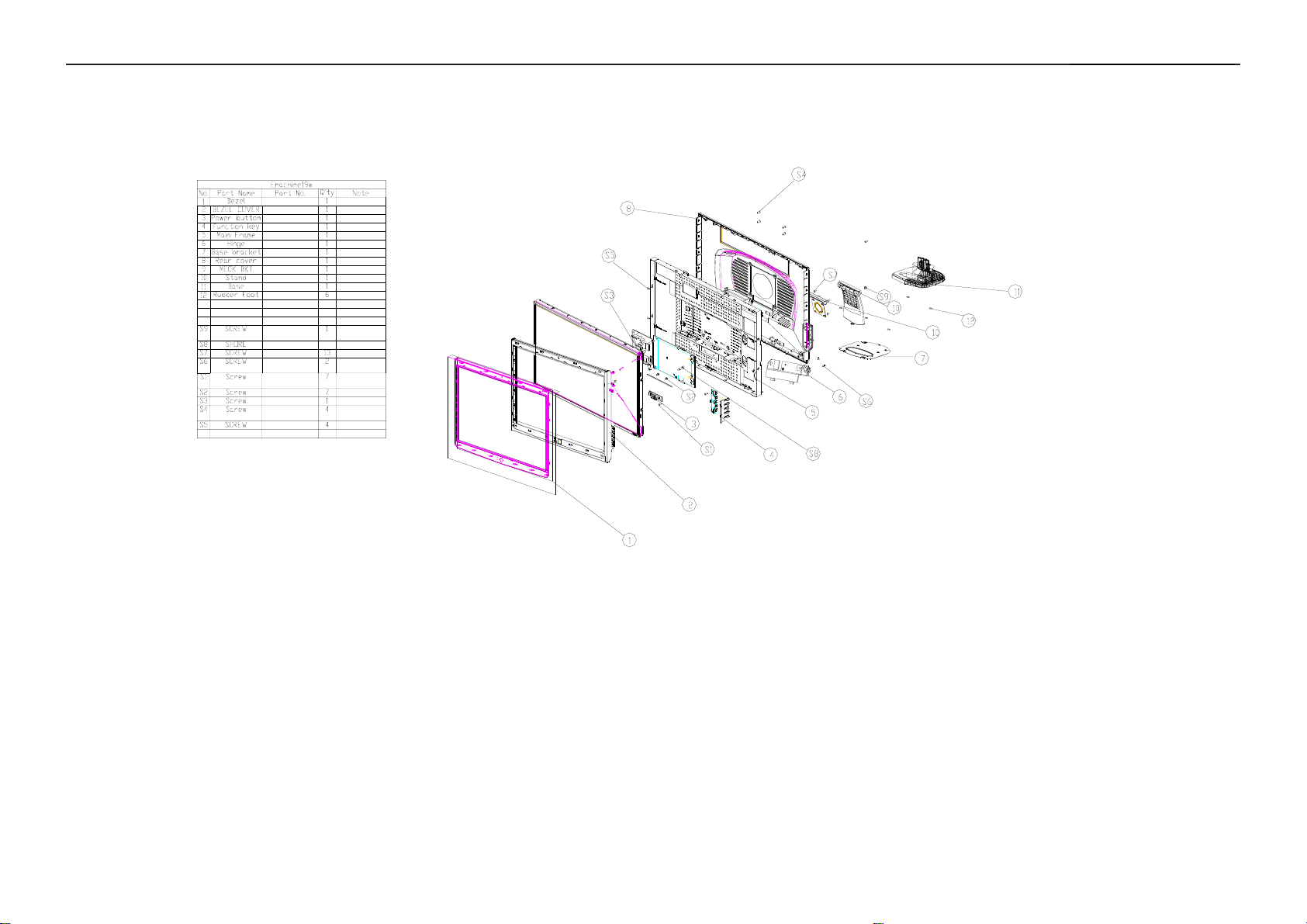

10.Monitor Exploded View……………………….........40
11.BOM List….....................................................41
12. Different Parts List…………………….…………….52
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
Page 2
19” LCD Color Monitor Emachine E19T6W
Revision List
Revision Date Revision History TPV Model
A00 Aug.-15-07 First Version Release T97SMKHKGWGYHC
A01 Aug.-29-07 Add TPV Model in item 12 T97SMKHPGWGYHC
2
Page 3
19” LCD Color Monitor Emachine E19T6W
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
Page 4
19” LCD Color Monitor Emachine E19T6W

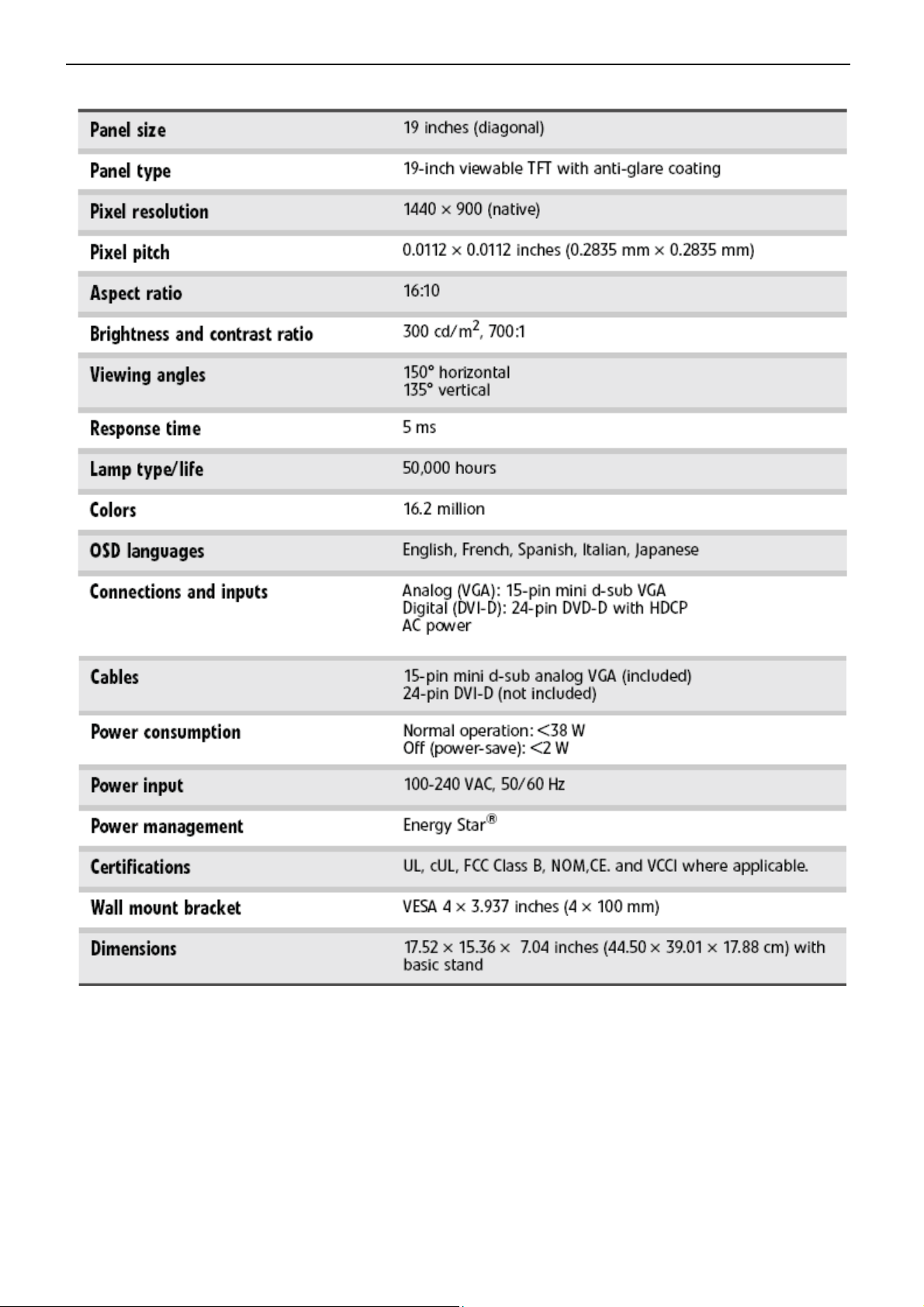

1. Monitor Specifications
4
Page 5
19” LCD Color Monitor Emachine E19T6W
(
)
2. LCD Monitor Description
The LCD monitor will contain a main board, a power board and two key boards which house the flat panel control
logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
Monitor Block Diagram
Power Board
Include: adapter, inverter
AC-IN
100V-240V
CCFL Drive.
Key Board
Flat Panel and
CCFL backlight
Main Board
Key Board
RS232 Connector
For white balance
adjustment in factory
mode
Video signal, DDC
HOST Computer
5
Page 6
19” LCD Color Monitor Emachine E19T6W
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The control buttons are located in the right side of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
-

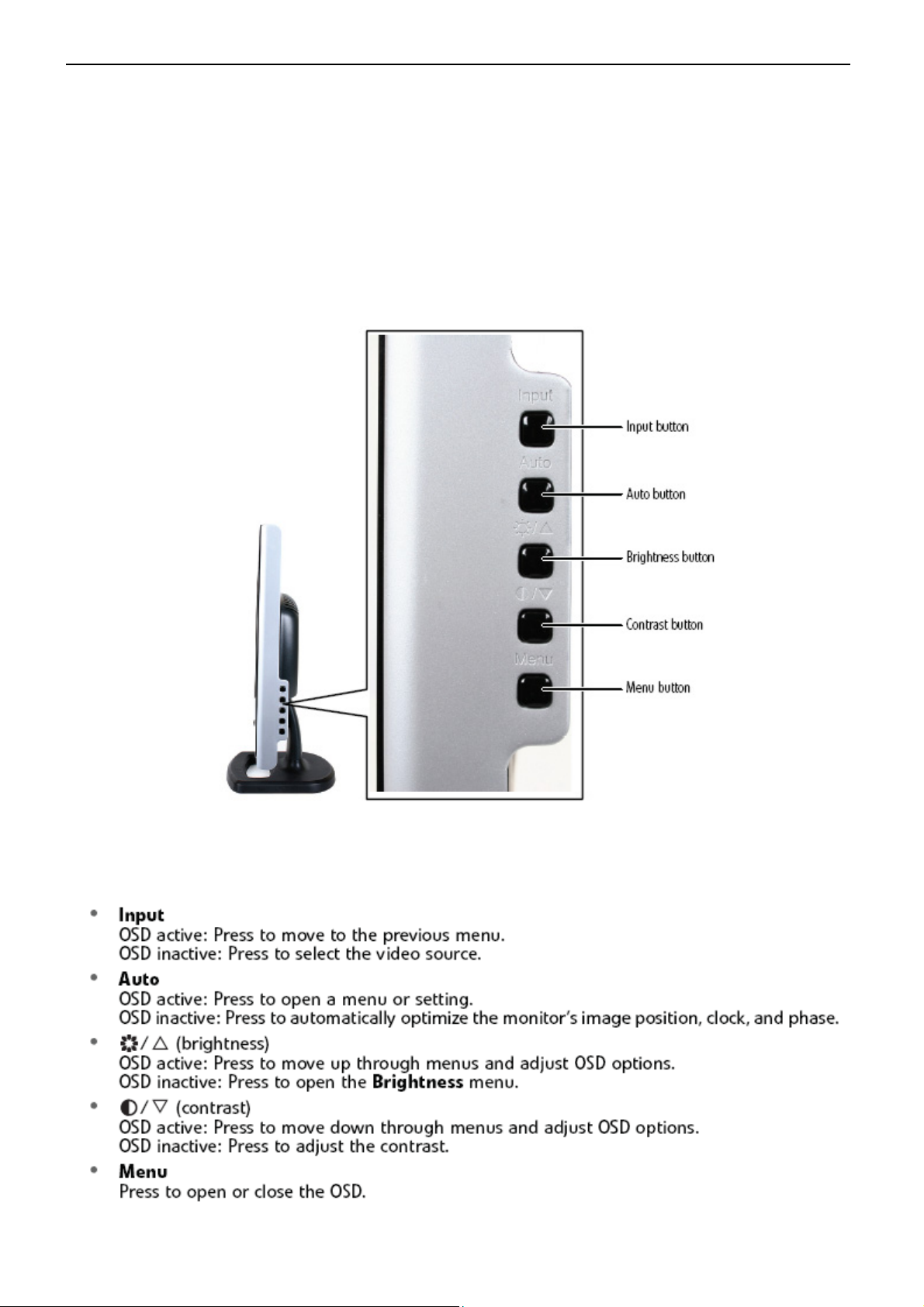

3.2 Control Buttons
6
Page 7
19” LCD Color Monitor Emachine E19T6W

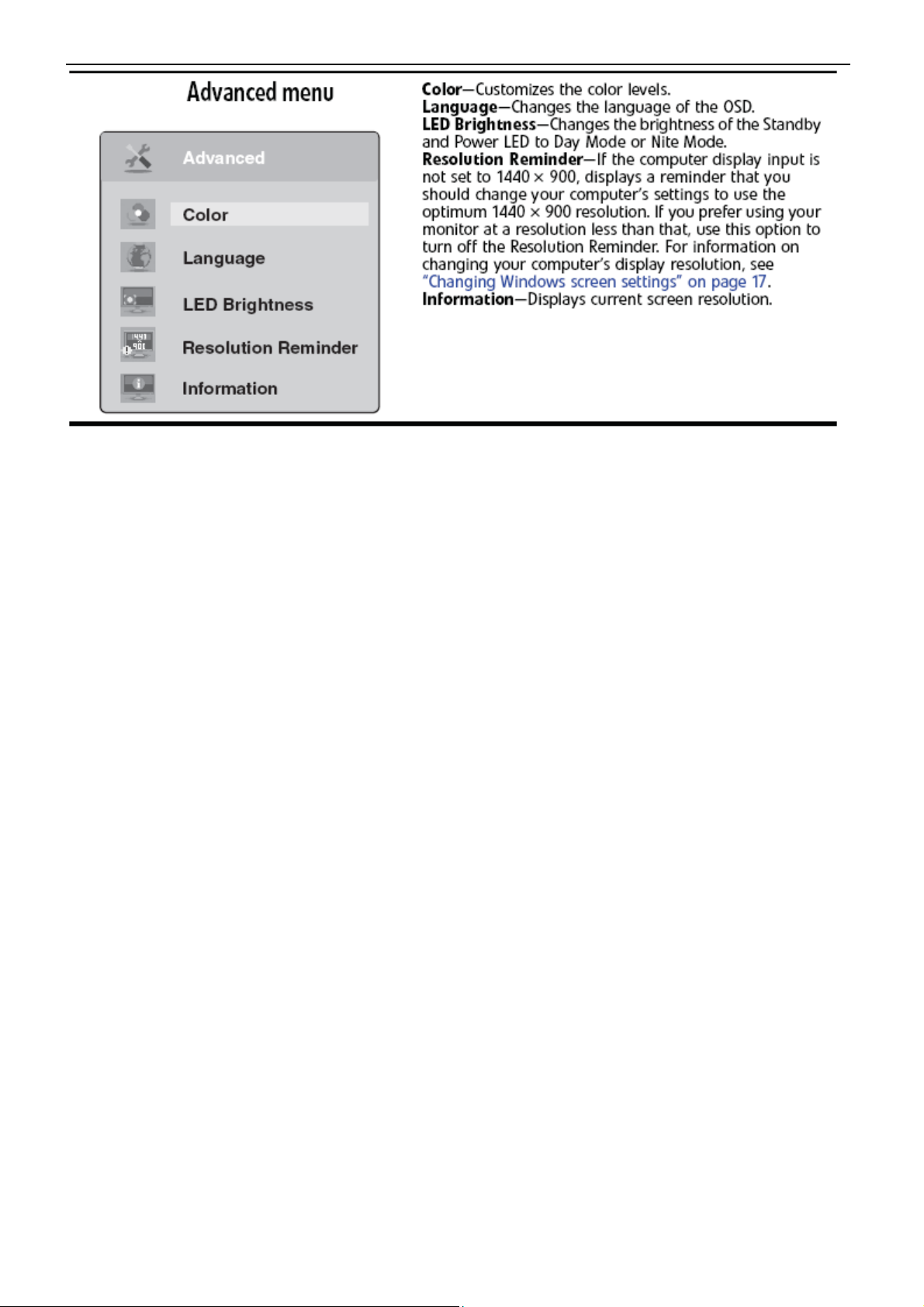

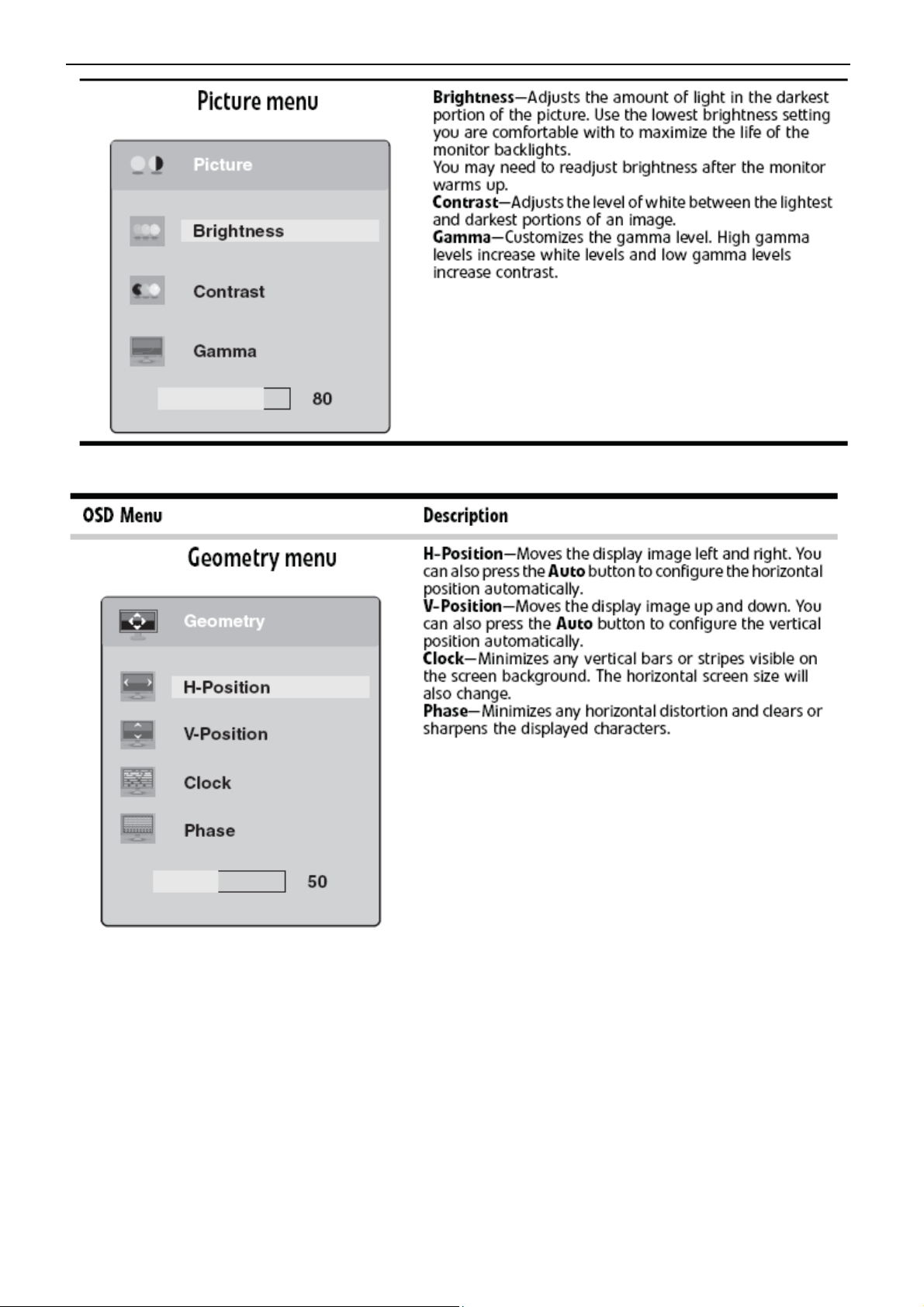

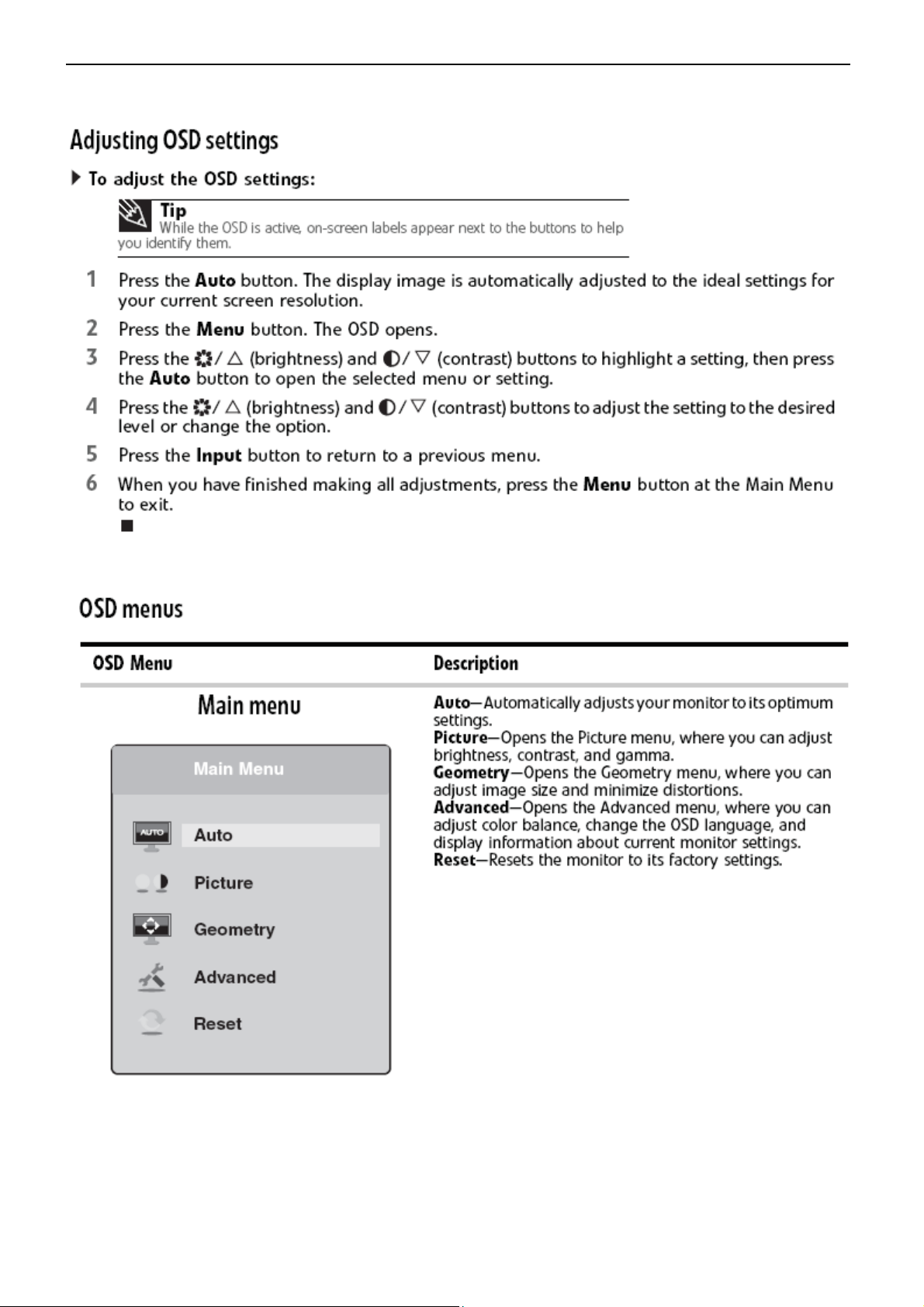

3.3 Adjusting the OSD Menu
Adjusting OSD settings
OSD Menus
7
Page 8
19” LCD Color Monitor Emachine E19T6W
8
Page 9
19” LCD Color Monitor Emachine E19T6W
9
Page 10
19” LCD Color Monitor Emachine E19T6W
4. Input/Output Specification
4.1 Input Signal Connector

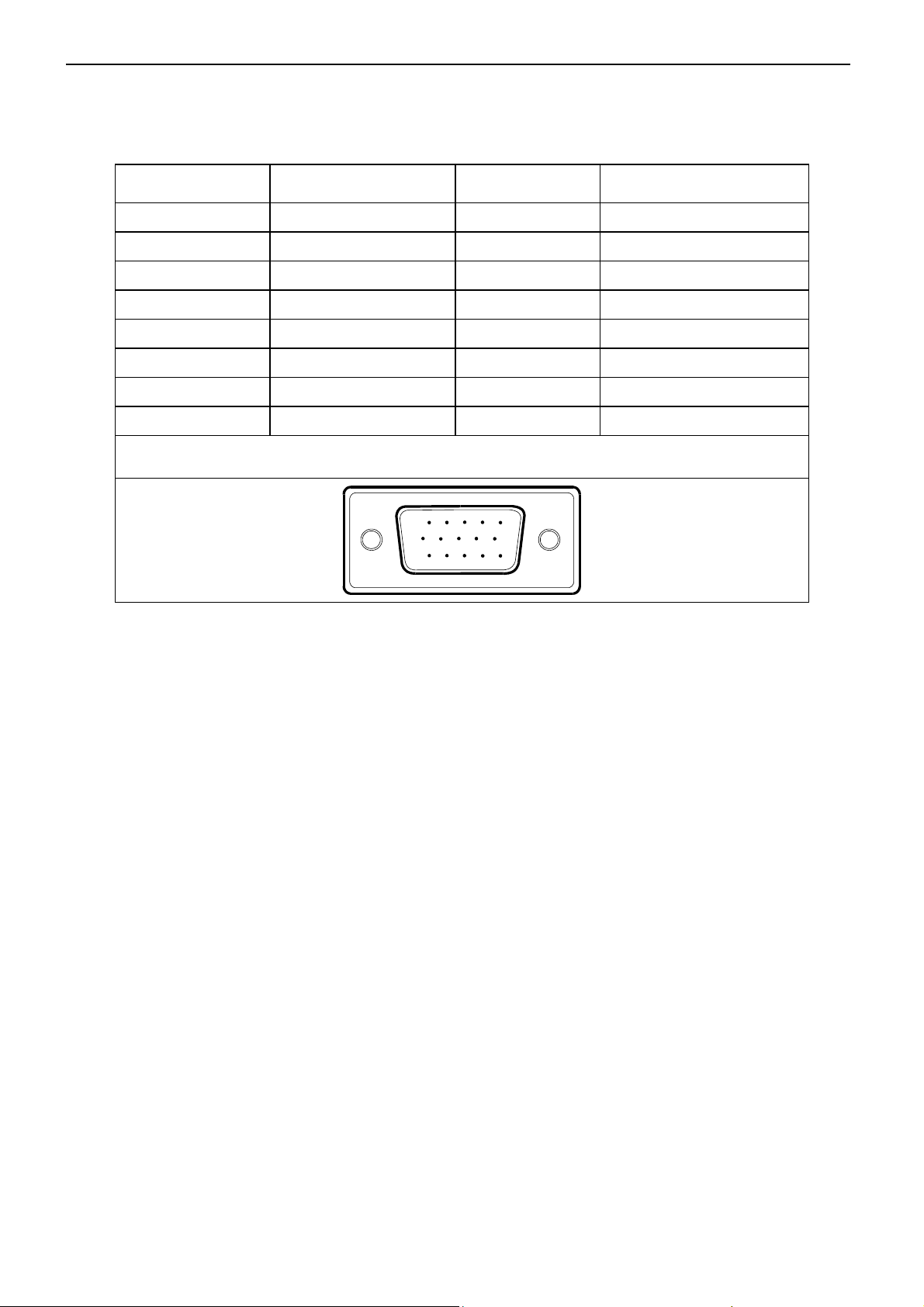

1. D-SUB connector
Pin No. Description Pin No. Description
1.
2.
3.
4.
5.
6.
7.
8.
Red
Green
Blue
GND
Self Test
R-Return
G-Return
B-Return
VGA connector layout
9.
10.
11.
12.
13.
14.
15.
15
6
11 15
10
+ 5V
Sync. GND
GND
DDC-Serial Data
H-Sync
V-Sync
DDC-Serial Clock
10
Page 11
19” LCD Color Monitor Emachine E19T6W
2. DVI-D connector
Pin No. Description Pin No. Description
1.
2.
3. TMDS data 2/4 Shield 17.
4. NA 18.
5. NA 19. TMDS data 0/5 Shield
6. DDC Clock 20. NA
7. DDC Data 21. NA
8. Analog Vertical Sync 22. TMDS Clock Shield
9.
10.
11. TMDS data 1/3 Shield C1 Analog red
12. NA C2 Analog Horizontal Sync
13. NA C3 Analog blue
14.
TMDS data 2－
TMDS data 2＋
TMDS data 1－
TMDS data 1＋
＋5V Power
24 - Pin Color Display Signal Cable
15. GND
16. Hot Plug Detect
TMDS data 0－
TMDS data 0＋
23. TMDS Clock +
24.
C4 Analog Horizontal Sync
TMDS Clock －
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
C1 C2
C3 C4
11
Page 12
19” LCD Color Monitor Emachine E19T6W

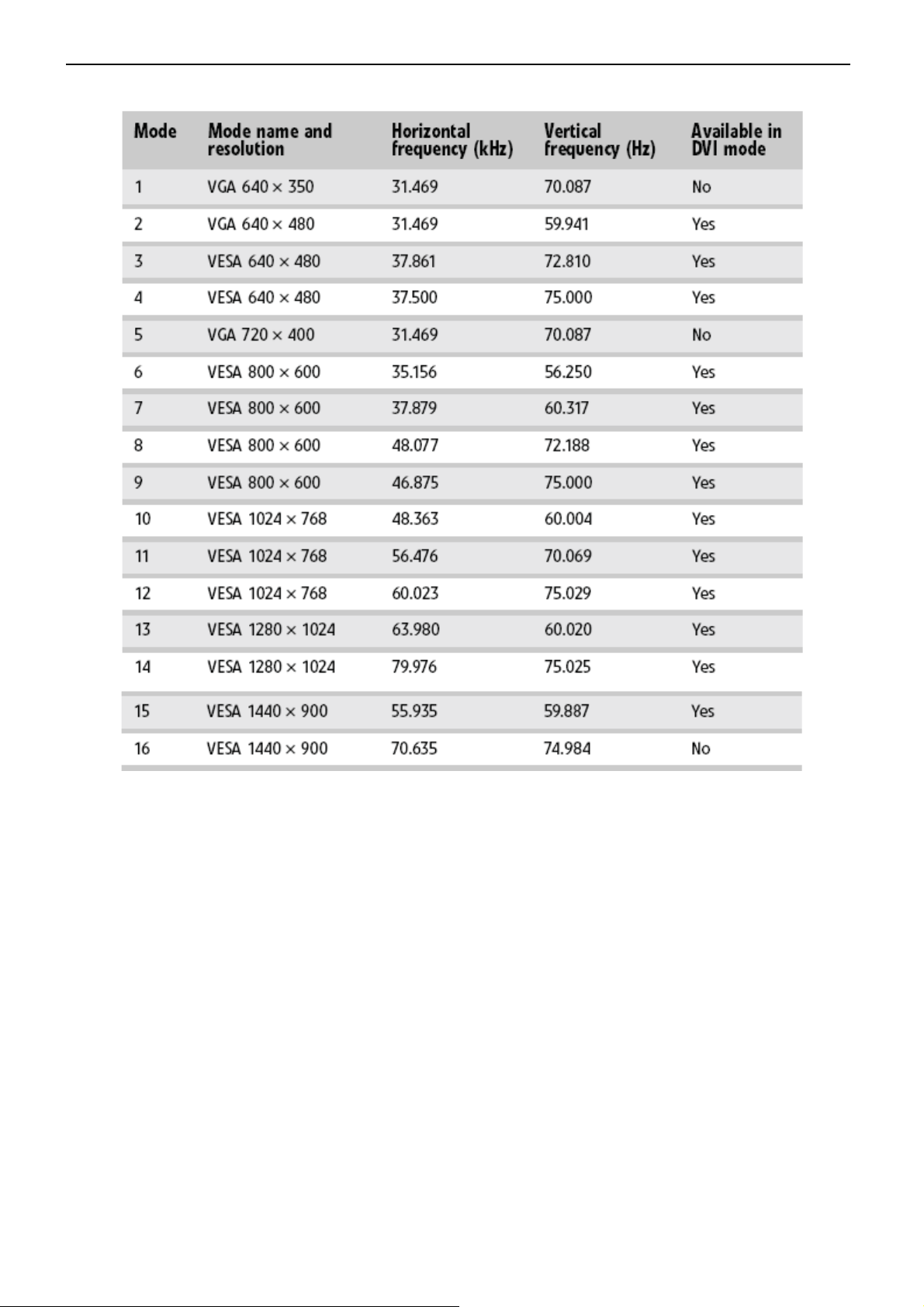

4.2. Factory Preset Display Modes
12
Page 13
19” LCD Color Monitor Emachine E19T6W

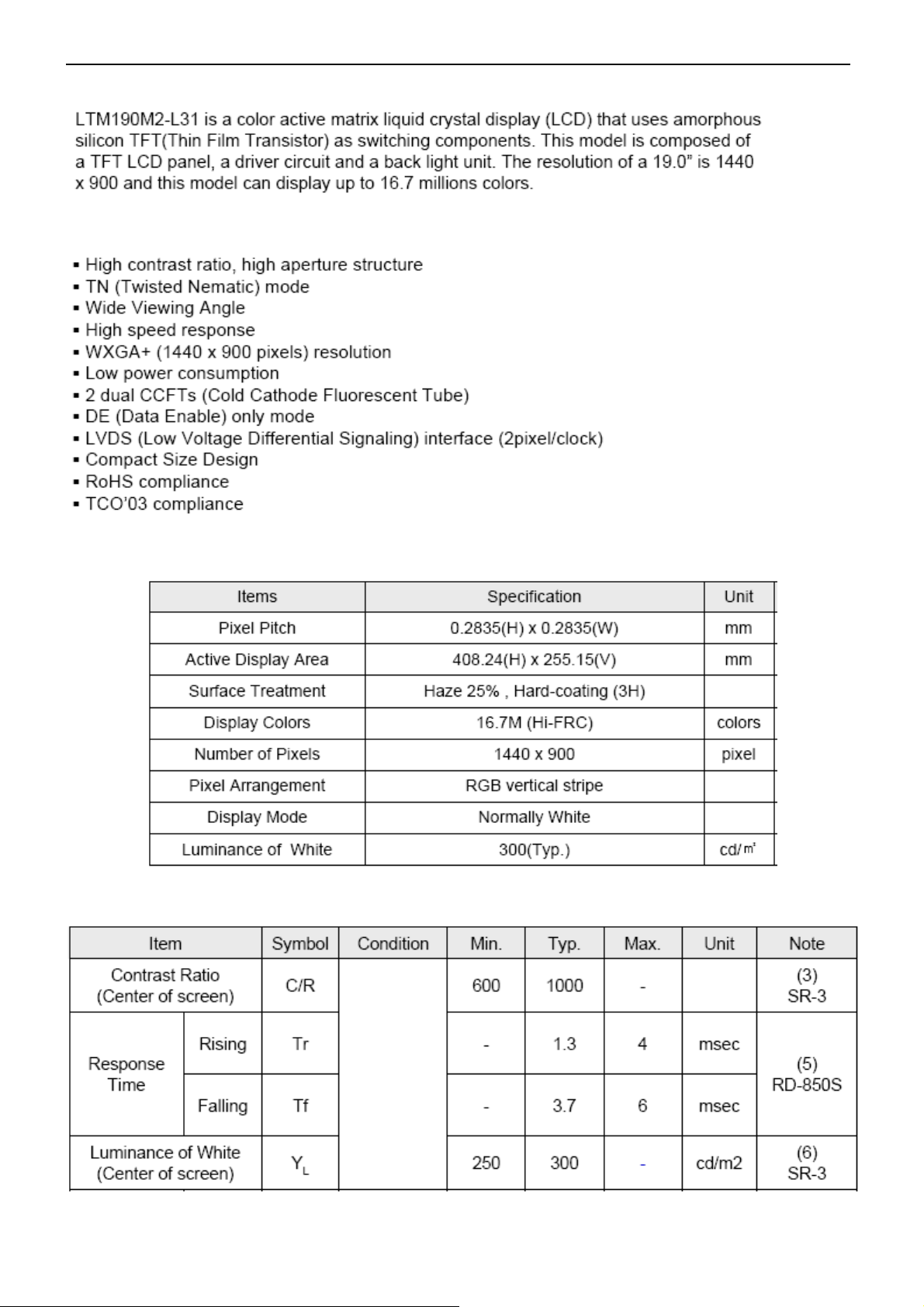

4.3 Panel Specification
4.3.1 Features
4.3.2 Display Characteristics

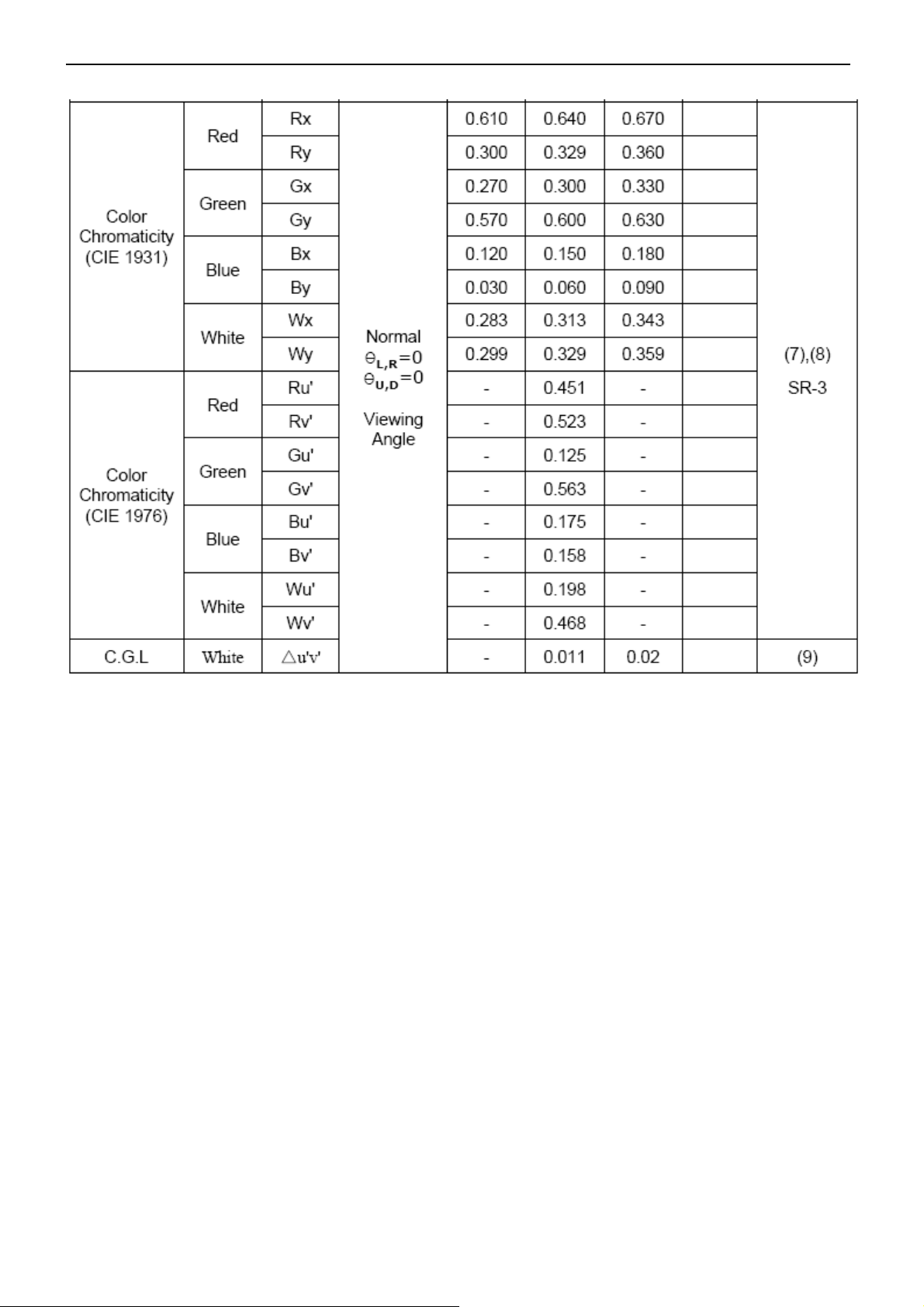

4.3.3 Optical Characteristics
13
Page 14
19” LCD Color Monitor Emachine E19T6W
14
Page 15
19” LCD Color Monitor Emachine E19T6W
5. Block Diagram
5.1 Software Flow Chat
1
2
4
5
Y
6
7
Y
Y
3
N
N
N
8
18
9
10
Y
N
N
12
Y
14
19
N
11
N
13
Y
N
15
Y
17
16
Y
15
Page 16
19” LCD Color Monitor Emachine E19T6W
1) MCU initialize.
2) Is the EPROM blank?
3) Program the EPROM by default values.
4) Get the PWM value of brightness from EPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappear.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
16
Page 17
19” LCD Color Monitor Emachine E19T6W
_

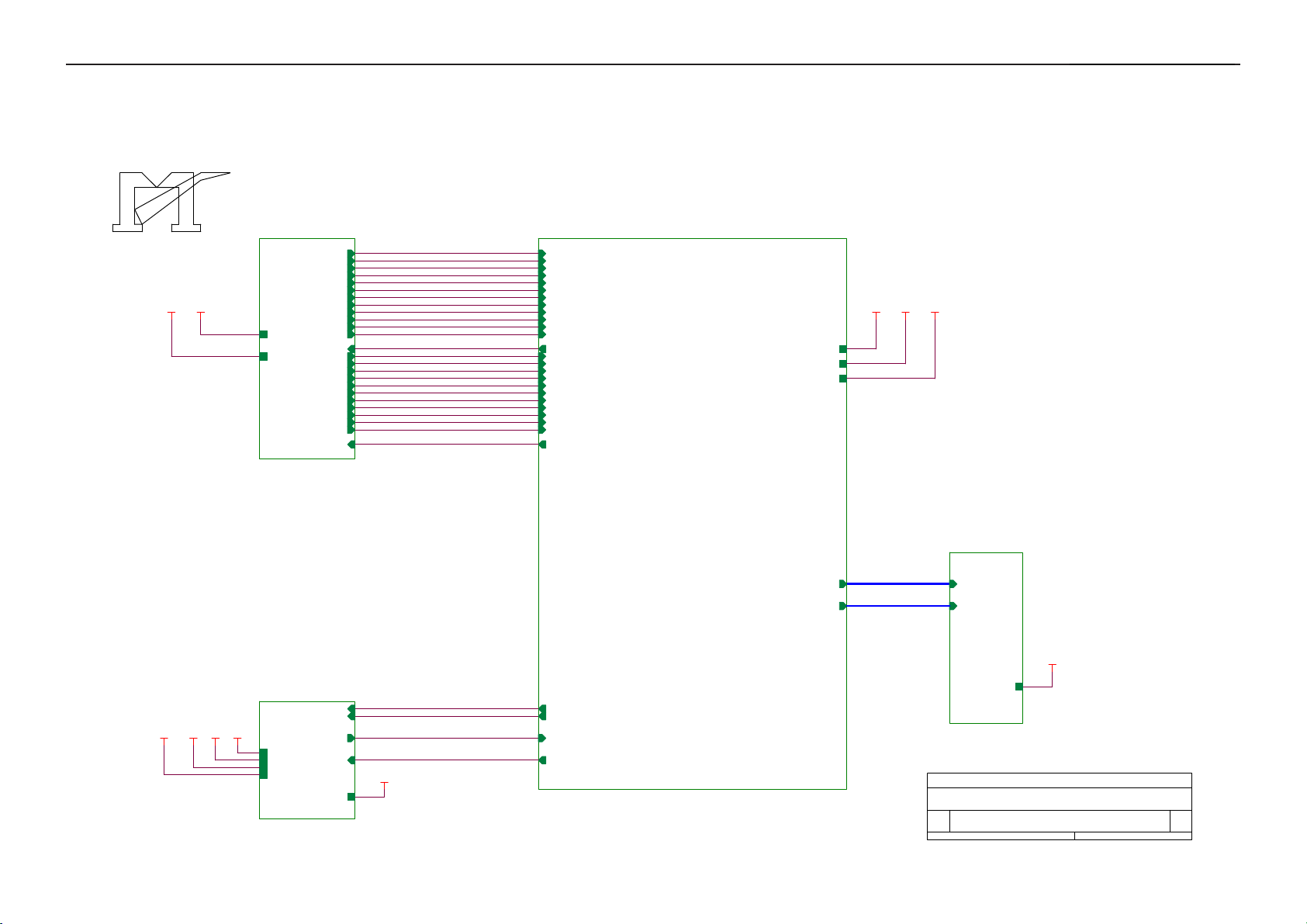

5.2 Electrical Block Diagram
5.2.1 Main Board
Panel Interface
(CN101)
Flash Memory
SST25LF020A
(U402)
SDA
SCL
EEPROM
M24C16
(U403)
Scalar TSUM56AWHK
(Include MCU, ADC, OSD)
(U401)
H sync
D-Sub
VGA_SDA,
V sync
RGB
VGA
SCL
Crystal
14.318MHZ
(X401)
Connector
(CN405)
EEPROM
M24C02
(U404)
D-Data
D-Clock
DVI
Connector
(CN406)
DVI_SDA,
DVI_SCL
EEPROM
M24C02
(U405)
Key Control
Interface
(CN403)
17
Page 18
19” LCD Color Monitor Emachine E19T6W

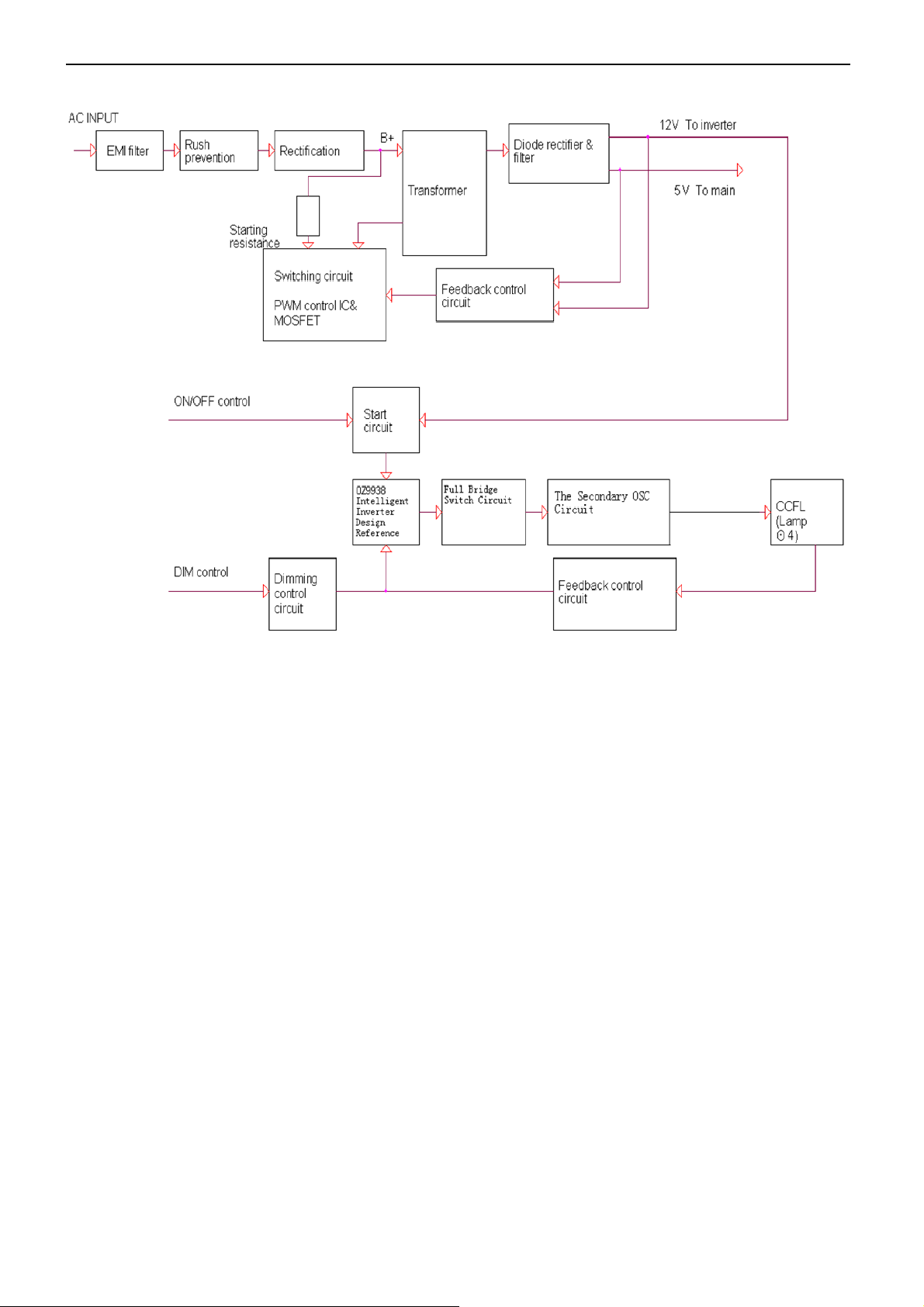

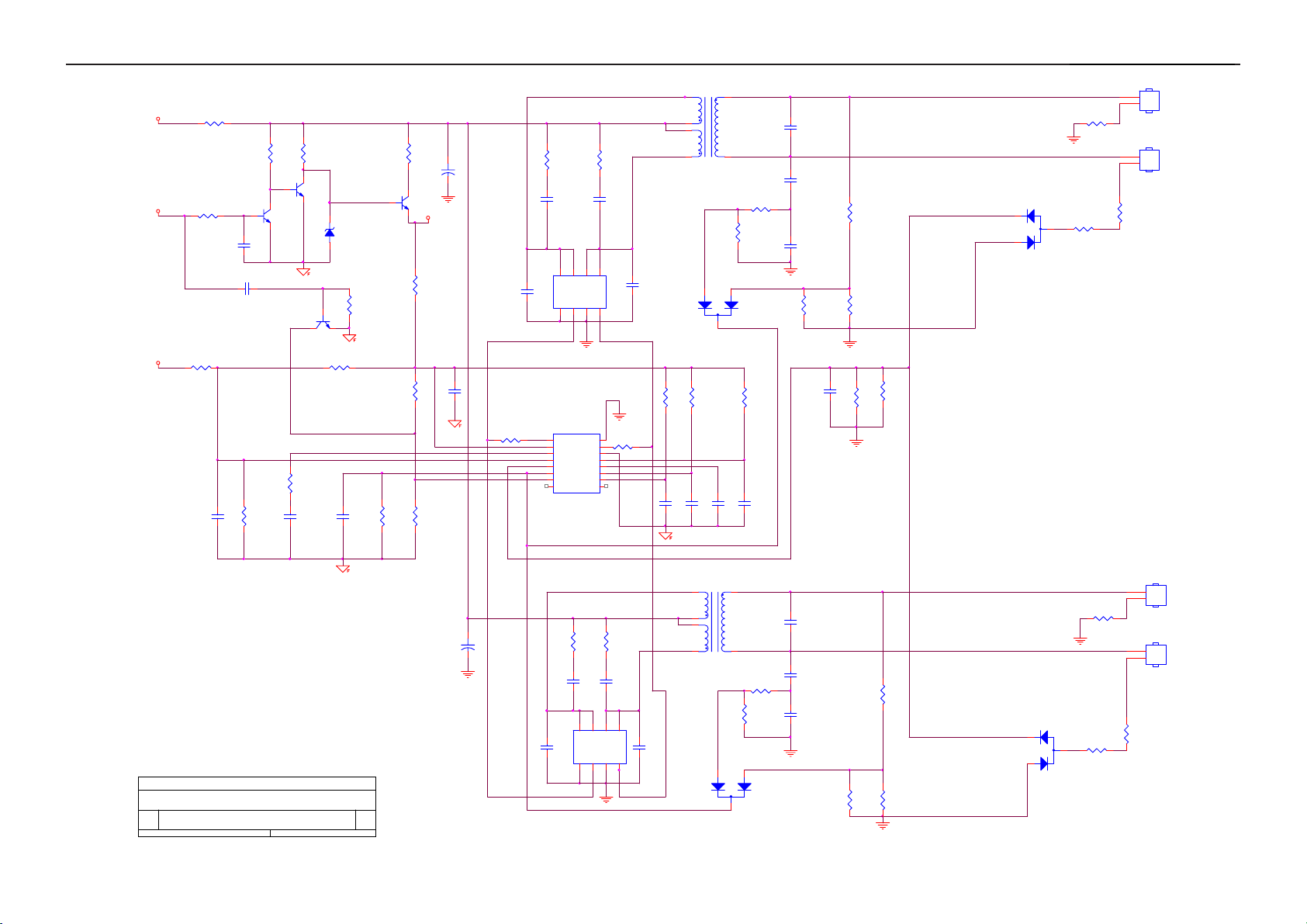

5.2.2 Inverter/Power Board
18
Page 19
19" LCD Color Monitor Emachine E19T6W
6. Schematic

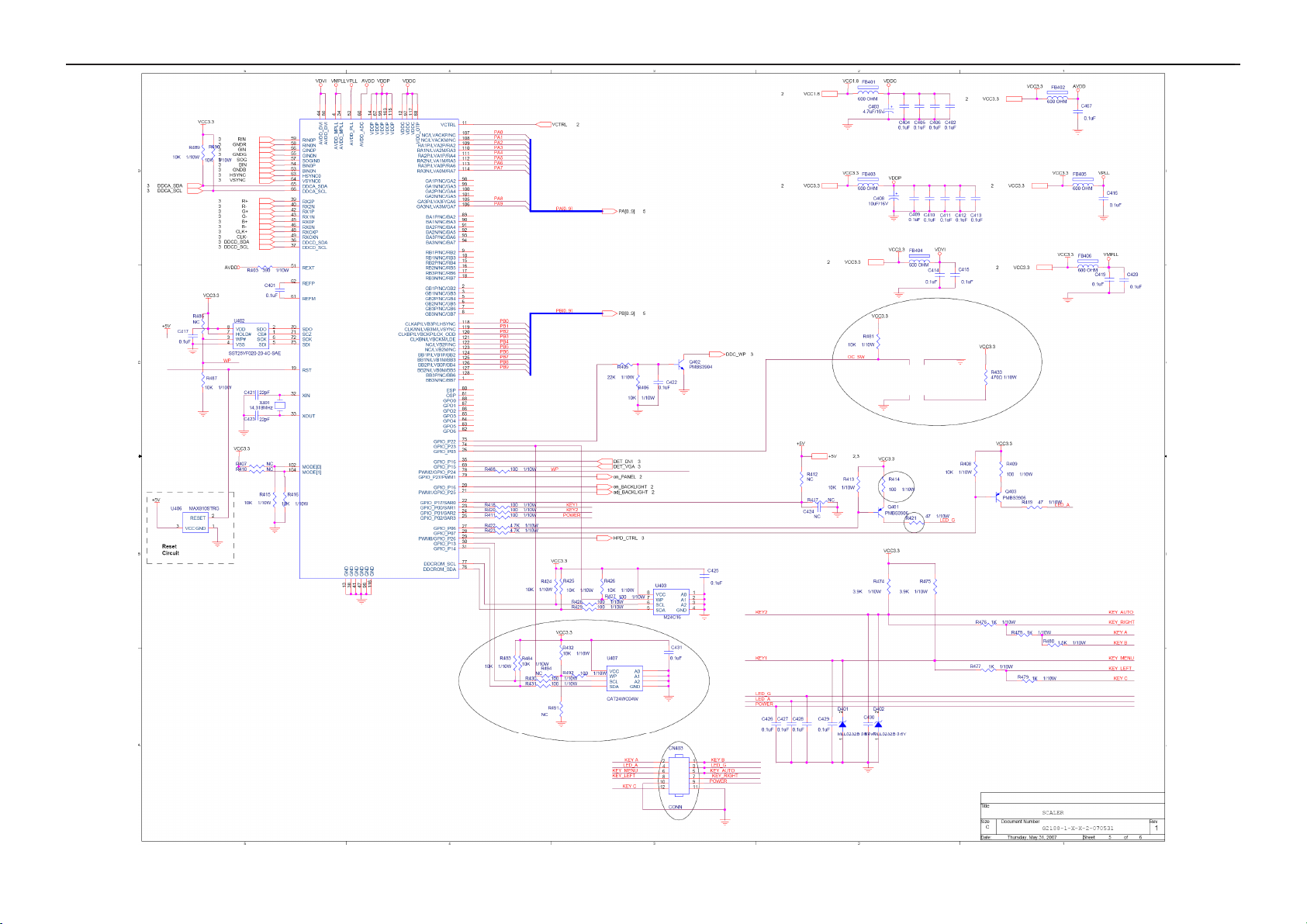

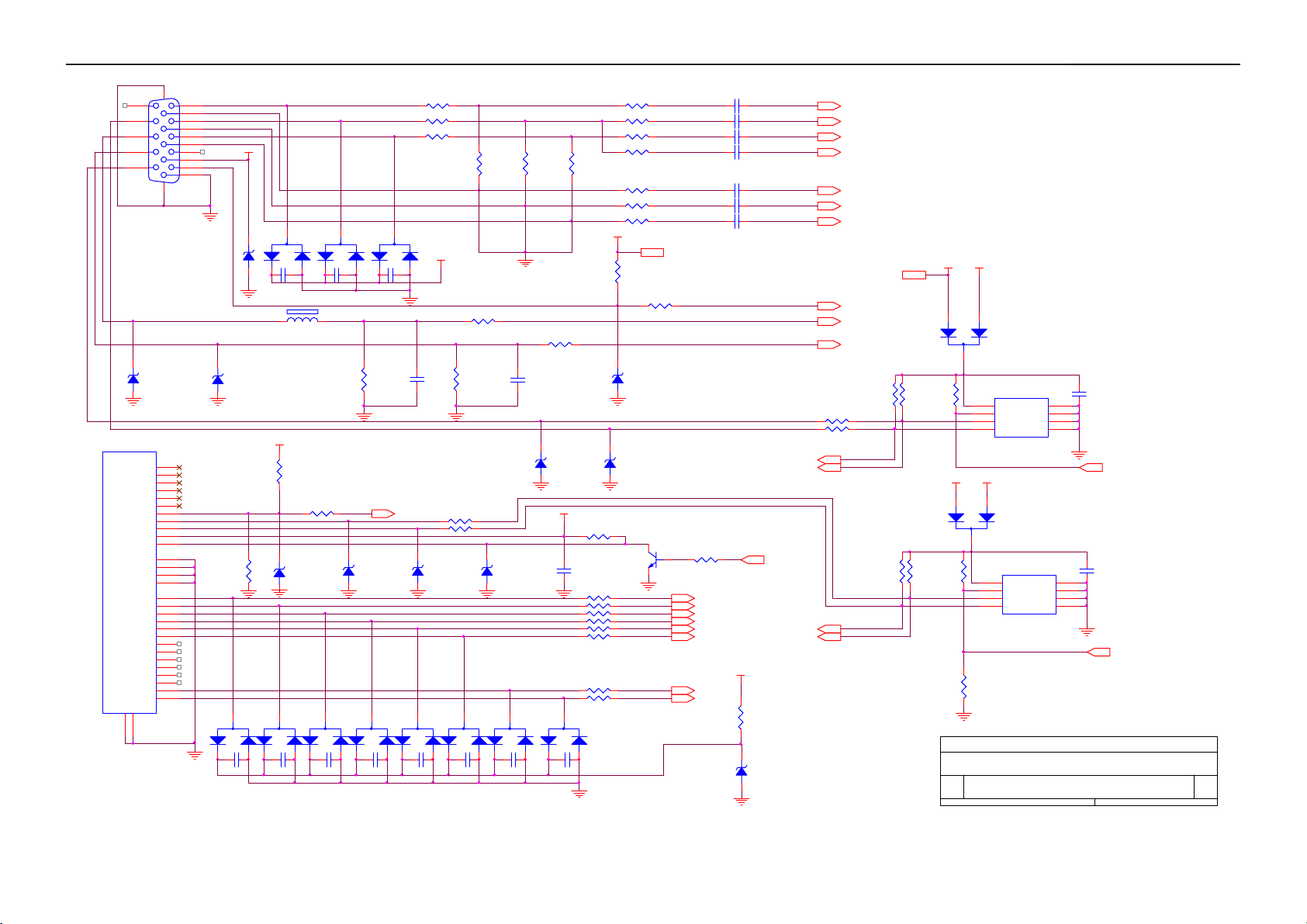

6.1 Main Board
715G2188-1
TSUM56AWHK-1 SCHEMATIC
XGA/SXGA
B3
RIN
GNDR
GIN
GNDG
SOG
BIN
GNDB
+5V+5VA
+5V
+5VA
HSYNC
VSYNC
DDCA_SDA
DDCA_SCL
DET_VGA
DDC_WP
CLK+
CLK-
DDCD_SDA
DDCD_SCL
DET_DVI
HPD_CTR L
R+
RG+
G-
B+
B-
B4
RIN
GNDR
GIN
GNDG
SOG
BIN
GNDB
HSYNC
VSYN C
DDCA_SDA
DDCA_SCL
DET_VGA
DDC_WP
R+
RG+
G-
B+
BCLK+
CLKDDCD_SDA
DDCD_SCL
DET_DVI
HPD_CTRL
3.INP UT
LVDS OUTPUT
VCC3.3
VCC1.8
VCC1. 8
Vcc3. 3
+5V
+5V
VCC3.3
+5VA
B5
PA[0..9]
PB[0..9]
B2
on_BACKLI GHT
on_Panel
+5V
VCC1.8
VCC1.8
+5V
+5VA
VCC3.3
VCTRL
Adj_BACKLI GHT
VLCD
VLCD
on_BACKLIGH T
on_Panel
VCTRL
Adj_BACKLIGHT
4.SCAL ER
2.PO WER
PA[0..9]
PB[0..9]
PA[0..9]
PB[0..9]
VLCD
VLCD
5.PANEL INTERFACE
Titl e
Size Document Number Rev
B
Date: Sheet
Top
G2188-1-X-X-2-061215
26Friday , Decem ber 15, 2006
1
of
19
Page 20
19" LCD Color Monitor Emachine E19T6W

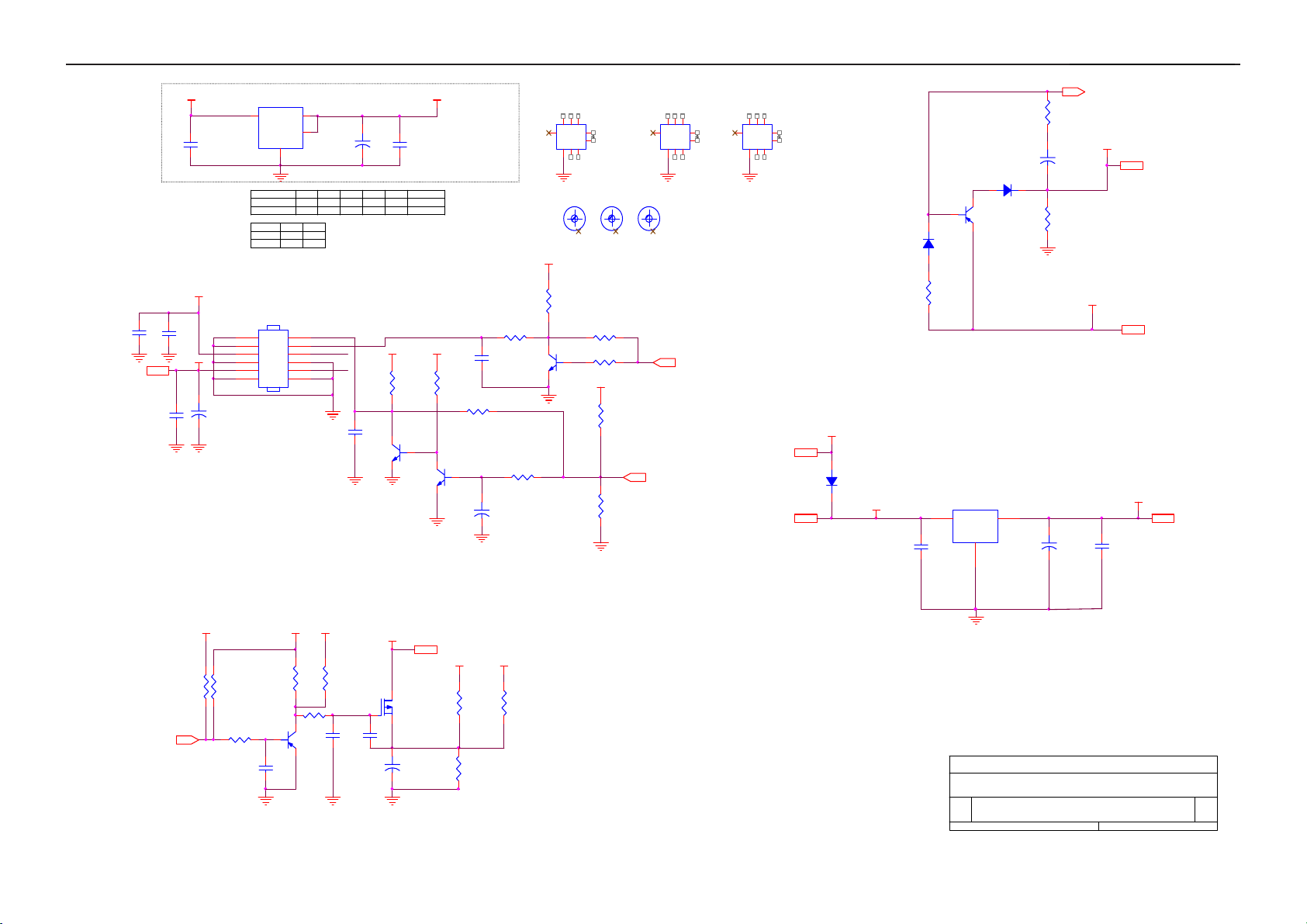

U701
+5V
C701
NC/ 0.1uF
+12V
C706
NC
+5V3,4
C709
0.1uF
C707
NC
+5V
C710
+
100uF/25V
GND
GND
+12V
GND
+5V
GND
SOT-223
NC/ LT1117-18
3 2
VI VO
VO
GND
1
BL_ADJ(DC)
0V ~ 3.3V
0V ~ 5V
R31
BL_ADJ
47
P W M
4K7
D C
CN701
1
3
5
7
9
11
CONN
2
4
6
8
10
12
4
NC/ 100uF/16V
R31
4.7K
4.7K
C32
N.C
1uF
BL_ON
BL_ADJ
+12V
GND
+5V
GND
C703
C51
1UF
1UF
+
R32
0
X
1K 1/10W
C711
NC
R29
X
1K
R708
R33
X
4.7K
+5V
C704
NC/ 0.1uF
Q4
X
MMBT3904
R728
10K 1/10W
Q703
PMBS3904
+3V3
+5V
C708
NC
R710 NC
Q707
PMBS3904
+
R705 0 1/10W
R712 4.7K 1/10W
C719
47uF/16V
H1
678
5
9
678
9
5
4
4
123
TP
123
FTD8
FTD7
FD Mark
FD Mark
+5V
R701
1K 1/10W
32
Q701
1
NC
R706 0 1/10W
R707 NC
+5V
R711
30K 1/10W
R729
10K 1/10W
FTD9
FD Mark
H2
678
9
678
9
5
4
123
TP
123
Adj_BACKLIGH T 4
on_BACKLIGH T 4
H3
5
4
678
5
9
678
9
5
4
4
123
TP
123
+5V3,4
+5VA3,4
D704(SSM12L) Vf=0.38V and If=1A.
So when system power on, the
system loading is about 400mA
SR24
D704
D701
LL4148
Q702
LL4148
R704
100 1/10W
PZT2907A
D702
D703(BAT54) Vf=0.53V (worst cauae) when
+5V
If=100mA. So when system power off, the
system loading is about 32mA, it is
safe.
TO-263
AIC1084-33PM
+5VA
+5VA
C713
0.1uF
U702
3
VI
2
VO
GND
1
R702
51 1/10W
C702
+
4.7uF/ 16V
R703
2K 1/10W
C712
+
100uF/16V
VCTRL 4
VCC1.8
VCC1.8 4
VCC3.3
VCC3.3 4
VCC3.3
VCC3.3 4
C714
0.1uF
(3.3V is about 200mA and 1.8V is
about 200mA), So D35 changed
from 1N4148(or BAT42) to
SSM12L(schottky diode).
+3V3
R717
R716
NC
on_Panel4
10K 1/10W
10K 1/10W
R725 4.7K 1/10W
C718
0.1uF
Q706 3904->3906 for pluse
+5V
R714
+3V3
R715
NC
R723 51K 1/10W
C715
Q706
0.1uF/ NC
PMBS3904
07/21
VLCD
C705
1uF/16V
add c705 for inrush current
Q704
AO3401
+
C717
10uF/16V
VLCD 5
+5V
R727
10K 1/10W
R721
0 1/10W
P.S: The 1N4148 Vf=0.7V~1V can't meet
LDO spec. The BAT42, Vf is OK but the
+3V3
R722
NC
If=200mA(forward current) can not
meet current spec.
Tit le
Size D ocument Number Rev
B
Date: Sheet
POWER
G2188-1-X-X-2-061215
of
36Friday , December 15, 2006
1
20
Page 21
19" LCD Color Monitor Emachine E19T6W
CN405
CN406
SYNC GND
JACK
11
12
13
14
15
VSI
D408
RGB GND
HSYNC
VSYN C
DDC SCL
DDC SDA
+5V
HPD
1/3shield
2/4shield
0/5shield
clk shield
DAT0+
DAT0DAT1+
DAT1DAT2+
DAT2DAT3+
DAT3DAT4+
DAT4DAT5+
DAT5-
clk+
clk-
GND
GND
32
31
1716
DB15
MLL5232B 5.6V
25
R
26
G
27
B
29
28
8
15
6
7
14
16
11
3
19
22
18
17
10
9
2
1
13
12
5
4
21
20
23
24
D404
BAV99
C441 0.1uF
1
R448
2.2K 1/10W
D414
MLL5232B 5.6V
3
C450
2
0.1uF
FB410
FB411
FB412
3
D405
BAV99
2
DET_DVI 4
D420
BAV99
2
1
1
0.1uF
RED+
1
RED-
6
GREEN+
2
GREEN-
7
BLUE+
3
BLUE-
8
4
9
5
10
MLL5232B 5.6V
PC5V
PC5V
VGA_CON
3
D406
C439 0.1uF
2
FB409 120 OHMHSI
D409
MLL5232B 5.6V
+5V
R471
10K 1/10W
SCL_DVI
SDA_DVI
DVI5V
HPD
D426
R472
MLL5232B 5.6V
DAT0+
DAT0DAT1+
DAT1DAT2+ R466 10 1/10W
DAT2-
DCLK+
DCLK-
NC
3
3
D417
BAV99
C447
2
0.1uF
D418
BAV99
C448
2
1
0.1uF
3
D403
BAV99
C440 0.1uF
2
1
R458 100 1/10W
1
3
D419
BAV99
C449
1
2
0.1uF
0 1/10W
0 1/10W
0 1/10W
R438
75 1/10W
ESD_5V
R446 1K 1/10W
R449
C442
2.2K 1/10W
33pF
R455 100 1/10W
R456 100 1/10W
D415
MLL5232B 5.6V
3
3
D421
BAV99
C452
C451
1
2
0.1uF
D422
BAV99
1
R439
75 1/10W
D416
MLL5232B 5.6V
2
0.1uF
75 1/10W
R447 1K 1/10W
C443
220pF
D411
3
D423
BAV99
C453
1
R440
MLL5232B 5.6V
DVI5V
R457
C445
0.1uF
R462 10 1/10W
R463 10 1/10W
R464 10 1/10W
R465 10 1/10W
R467 10 1/10W
R468 10 1/10W
R469 10 1/10W
3
D424
BAV99
C454
1
2
0.1uF
R434 56 1/10W
R435 56 1/10W
R436 56 1/10W
R437 470 1/10W
R441 100 1/10W
R442 100 1/10W
R443 100 1/10W
+5V
10K 1/10W
10K 1/10W
R445 100 1/10W
D410
MLL5232B 5.6V
D412
MLL5232B 5.6V
Q404
PMBS3904
+5V 2, 4
HDCP FUNCTION
R482 4.7K 1/10W
B+ 4
B- 4
G+ 4
G- 4
R+ 4
R- 4
CLK+ 4
CLK- 4
ESD_5V
C432 0.047uF
C433 0.047uF
C434 0.047uF
C435 0.047uF
C436 0.047uF
C437 0.047uF
C438 0.047uF
SCL_VGA
SDA_VGA
+5V
R470
D425
MLL5232B 5.6V
DDCA_SDA4
DDCA_SCL4
HPD_CTRL 4
DDCD_SDA4
DDCD_SCL4
1K 1/10W
RIN 4
GIN 4
BIN 4
SOG 4
GNDR 4
GNDG 4
GNDB 4
DET_VGA 4
HSYNC 4
VSYNC 4
R450
10K 1/10W
R453 100 1/10W
R454 100 1/10W
10K 1/10W
+5VA3,4
R459
+5VAR444
PC5V
1
2
D407
D-BAV70-7-F
3
R452
R451
10K 1/10W
10K 1/10W
R460
10K 1/10W
8
VCC
7
WP
6
SCL
+5VA
DVI5V
1
2
D413
3
R461
8
10K 1/10W
7
6
R473
NC
Tit le
Size Document Number Rev
C
Date: Sheet
BAT54C->BAV70 07/21
U404
1
A0
2
A1
3
A2
45
GNDSDA
M24C02-WMN6TP
D-BAV70-7-F
VCC
WP
SCL
BAT54C->BAV70 07/21
U405
1
A0
2
A1
3
A2
45
GNDSDA
M24C02-WMN6TP
Input
G2188-1-X-X-2-061215
C444
0.1uF
DDC_WP 4
C446
0.1uF
DDC_WP 4
46Friday , Decem ber 15, 2006
1
of
21
Page 22
19" LCD Color Monitor Emachine E19T6W
22
Page 23
19" LCD Color Monitor Emachine E19T6W
PA[0..9]4
PB[0..9]4
PA[0. .9]
PB[0..9]
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PA8
PA9
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
LVACKP
LVACKM
LVA2P
LVA2M
LVA1P
LVA1M
LVA0P
LVA0M
LVA3P
LVA3M
LVB3P
LVB3M
LVBCKP
LVBCKM
LVB2P
LVB2M
LVB1P
LVB1M
LVB0P
LVB0M
LVB0M
LVB1M
LVB2M
LVBCKM
LVB3M
LVA0M
LVA1M
LVA2M
LVACKM
LVA3M
RXO0RXO1RXO2RXOCRXO3RXE0RXE1RXE2RXECRXE3-
VLCD
FB603
120 OHM
1 2
CN101
1
3
5
7
9
11
13
15
17
19
21
23
CONN
VLCD 2
2
4
6
8
10
12
14
16
18
20
22
24
RXO0+
RXO1+
RXO2+
RXOC+
RXO3+
RXE0+
RXE1+
RXE2+
RXEC+
RXE3+
LVB0P
LVB1P
LVB2P
LVBCKP
LVB3P
LVA0P
LVA1P
LVA2P
LVACKP
LVA3P
C501
22uF/ 16V
+
Tit le
07/26
R501
2.2K 1/ 10W
C502
0.1uF/ 16V
PANEL INTERFACE
Size Document Number Rev
A
Dat e: Sheet
G2188-1-X-X-2-061215
1
66Friday , Decem ber 15, 2006
of
23
Page 24
19" LCD Color Monitor Emachine E19T6W

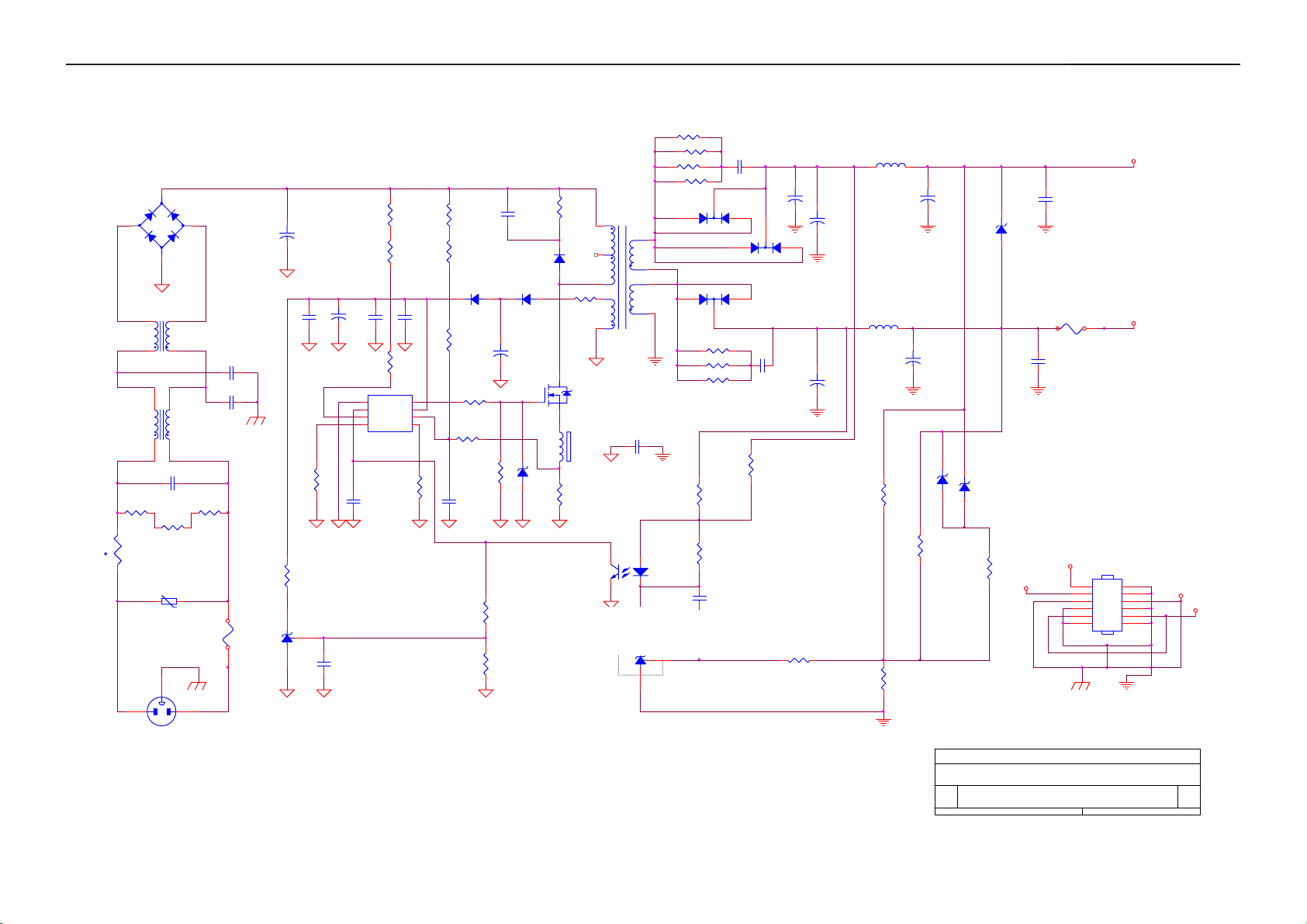

6.2 Power Board
715G1695-1-GW
R939 100 1/ 4W
R935 100 1/ 4W
3
R901
680K 1/4W
12
NR901
NTCR
t
VAR901 varistor
4
1
L902
142
L
3
4
C903 0.47uF
R902
680K 1/4W
3
CN901
C931
2
3
SRF20150C
SP20100
1
2
R936
100 1/4W
R937
100 1/4W
R938
100 1/4W
R927
NC
R926
1K 1/8W
C918
0.1uF/ 25V
R925
2K 1/8W
0.001uF /500V
D902
D904
1
3
3
SRF20150C
C932
R940
470
2
D905
1
0.001uF/500V
470uF/2 5V
R924
1K 1/8W
C904
470uF/25V
+
C908
C909
470uF/25V
+
+
R934 100 1/ 4W
T901
12
8
7
9
C921
1000PF/250VAC
12
IC902
PC123X8YFZOF
IC903
AZ431AZ- AE1
R906 100 1/ 4W
DB901
U4KB80R
2
-+
3
C902
1000PF/2 50VAC
C901
1000PF/2 50VAC
2
L901
4.0MH
1
R903
680K 1/4W
F901
FUSE
12
+
C914
0.1uF/ 25V
R930
100K 1/4W
R911
150 1/4W
IC904
AZ431AZ- AE1
C905
100uF/450V
C923
22uF/50 V
+
C912
0.33uF /25V
R909
430K 1/4W
430K 1/4W
C934
0.1uF
R931
430K 1/4W
IC901
1
GND
OUT
2
COMP
VCC
3
VCC
4 5
RT NC
LD7552BS
R917
10K 1/4W
C917
0.022uF/25V
CS
R910
C933
0.1uF
R907
8
7
6
510K 1/4W
R908
510K 1/4W
D907
FR103
R932
510K 1/4W
R918
10 1/4W
R928
1K 1/4W
10K 1/4W
C919
220pF
R919
C930
0.0015uF/2KV
D906
JUMPER
+
C922
NC
R912
75K 1/8W
R913
100K 1/8W
1
ZD905
NC
R905
100K 2W
D901
FR107
max
R914
3.3 1/4W
2
Q903
STP9NK65ZFP
3
FB901
BEAD
R904
0.47 2W
1
POWER X'FMR
2
3
5
6
43
R920
36KΩ 1/8W
L903
L904
C911
470uF/25V
+
R922
2.4K 1/ 8W
+
C906
470uF/25V
ZD902
RLZ5.1B
R921
3.6K 1/8W
ZD903
PTZ7.5B
7.5B
ZD904
RLZ12B
7.5B
R923
1K 1/8W
DIM
C907
0.1uF/25V
F902
0 OHM 1/4
C910
0.1uF/25V
ONOF
2
4
6
8
10
12
CN902
33L8027-12
+12V
+5V
1
3
5
7
9
11
+12V
+5V
GATEWAY 19W
Titl e
<Title>
Size Document Number Rev
<Doc > A
B
Date: Sheet
PWPC942HW1P
715G1695-1-GW
of
11Thursday , Nov ember 09, 2006
24
Page 25
19" LCD Color Monitor Emachine E19T6W
CN801
1
2
CONN
CN802
1
2
CONN
R842
0 1/8W
+12V
ONOF
DIM
0 1/ 4W
R803
10K 1/4W
R808
680K 1/4W
C803
R801
C801
NC
0.01uF
R802
270K 1/4W
C802
NC
PT801
5
7
POWER X'FMR
3
D802
BAV99
R825
560 1/ 8W
R843
1K 1 /8W
3
4
R804
10K 1/4W
Q802
PMBS3904
Q801
PMBS3904
R812
10K 1/8W
R811
C804
1U5 16V
120K 1/4W
Q804
NC
S
3
G
1
D
2
R809
510K 1/4W
ZD801
RLZ5.6B
R805
470 1/ 4W
R806
NC
R810
C805
2N2 50V
R813
1M 1/4W
470uF/25V
Q803
PMBS3904
1M 1/4W
C811
VCC
R807
22 1/4W
R814
680K 1/4W
+
C814
0.001uF
C806
2.2uF/ 25V
10 1 /4W
R836
R818
22 1/4W
C812
2200pF
Q805
IC801
1
DRV1
2
VDDA

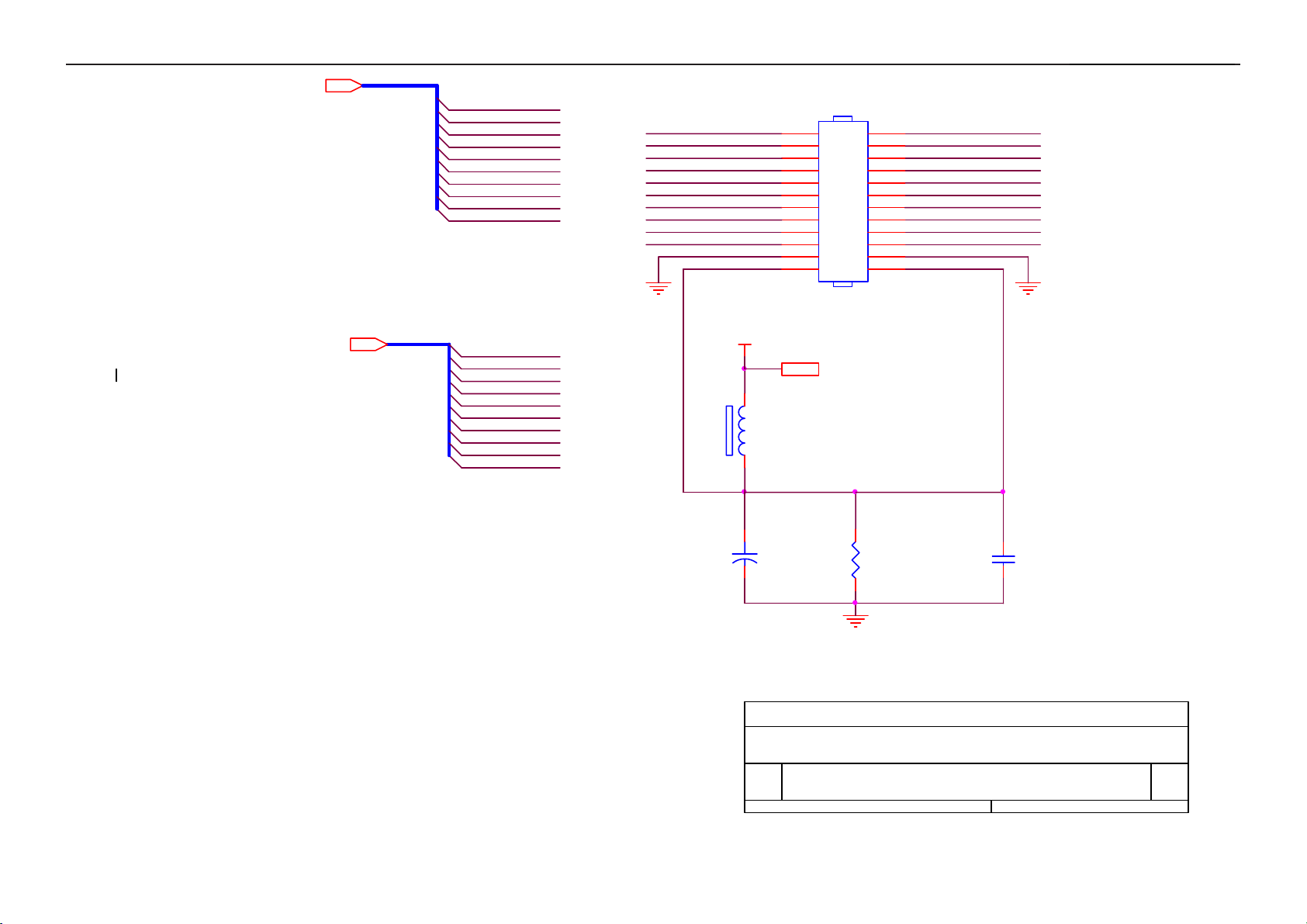

3
TIME R
4
DIM
5
ISEN
6
VSEN
7
OVPT
8 9
NC1 NC2
OZ9938GN
876
DDD
SGS
123
AM9945N-T1-PF
PGND
DRV2
GNDA
SSTCMP
ENA
R819
22 1/ 4W
C813
2200pF
5
D
G
4
R837
16
10 1/ 4W
15
14
13
CT
12
11
LCT
10
1 8
R821
100K 1/8W
2.92
R820
15K 1/8W
C815
0.001uF
X=2.92/2.828+2.36/2.828
R815
100K 1/4W
C807
0.01uF/25V
2.36
1
2
D801
BAV70
3
R817
R816
1M5 1/4W
33K 1/4W
C809
C808
C810
270K OHM 1/8W
0.022uF/ 25V
C816
12pF/3KV
2200+-
C817
2pF/3KV
20.9
C818
220pF
R823
NC
560P 50V
68nF
C819
R822
3M 1/ 2W
R827
3.3K 1/8W
R826
200 1/4W
NC
R838
2
1
PWPC942HW1P
GATEWAY 19W
Titl e
Titl e
<Title>
<Title>
Size Doc ument Numb er R ev
Size Doc ument Numb er R ev
A3
A3
Date: Sheet
Date: Sheet
PWPC942HW1P
<Doc> A
<Doc>
G1695-A-GW-X-1-060705
of
of
11Thursday, N ovember 09, 2006
11Thursday, N ovember 09, 2006
C820
470uF/25V
PT802
5
7
POWER X'FMR
3
R841
1K 1/8W
560 1/8W
3
4
+
R828
22 1/ 4W
C821
0.001uF
Q806
R829
22 1/ 4W
C822
2200pF
876
DDD
SGS
123
AM9945N-T1-PF
1 8
R831
C823
2200pF
5
D
C824
G
0.001uF
4
100K 1/8W
R830
1
2
D803
BAV70
3
C825
10pF/3KV
C826
2pF/3KV
220pF
C827
15K 1/8W
R832
3M 1/2 W
R833
D804
BAV99
2 R835
1
NC
R834
3.3K 1/ 8W
CN803
1
2
CONN
CN804
1
2
CONN
R840
0 1/ 8W
25
Page 26
19" LCD Color Monitor Emachine E19T6W
7. PCB Layout

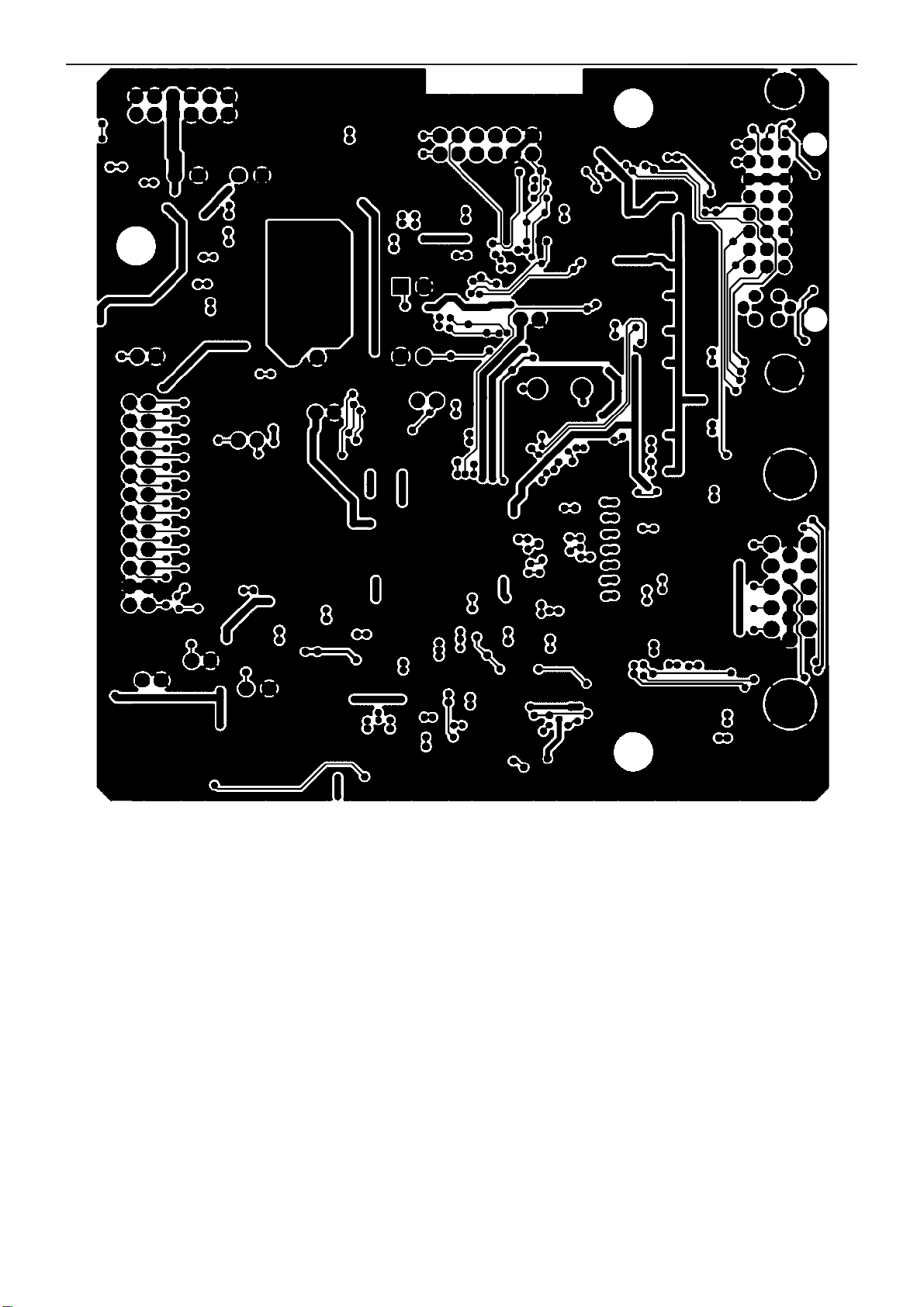

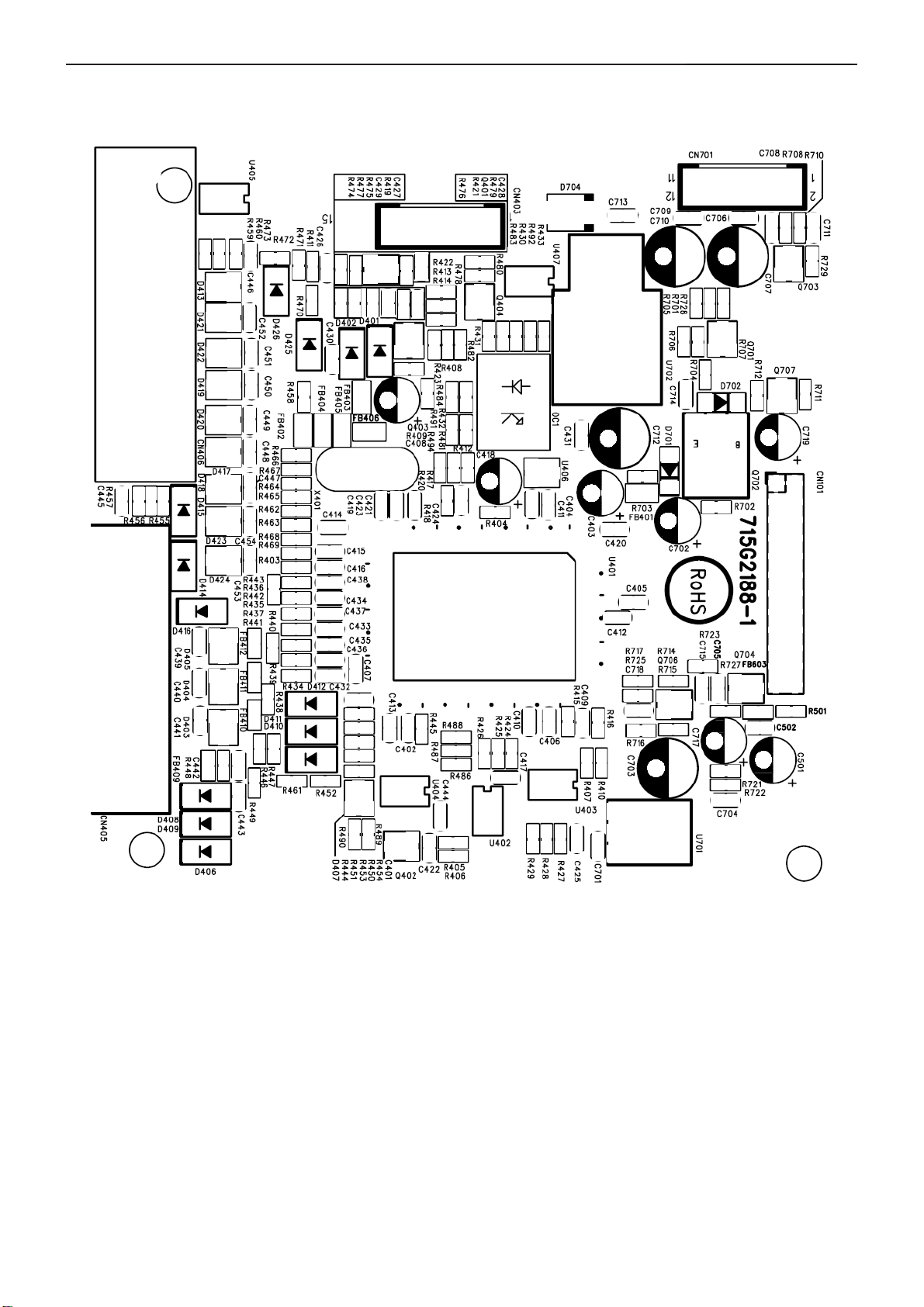

7.1 Main Board

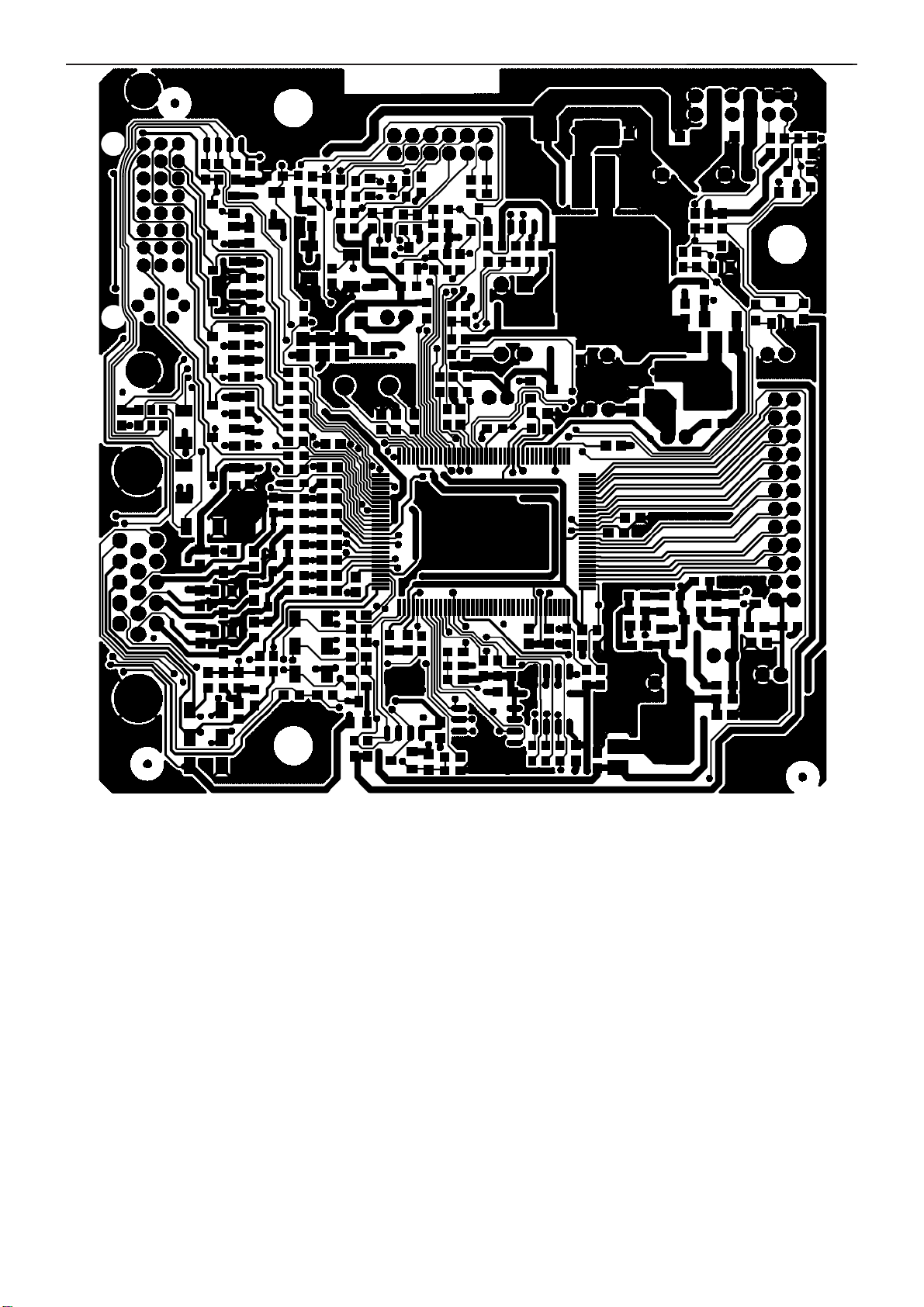

715G2188-1
26
Page 27
19" LCD Color Monitor Emachine E19T6W
27
Page 28
19" LCD Color Monitor Emachine E19T6W
28
Page 29
19" LCD Color Monitor Emachine E19T5W
7.2 Power Board

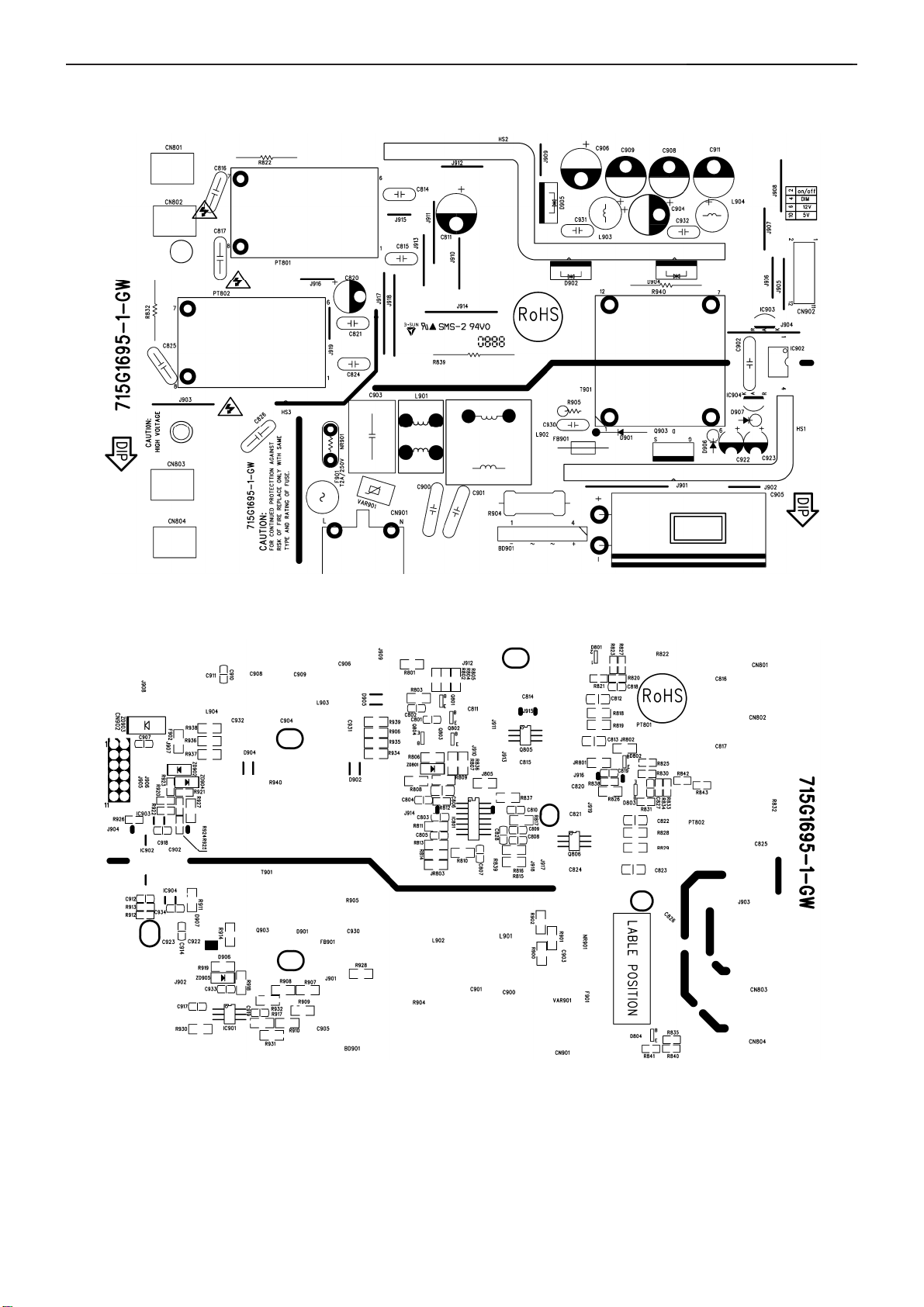

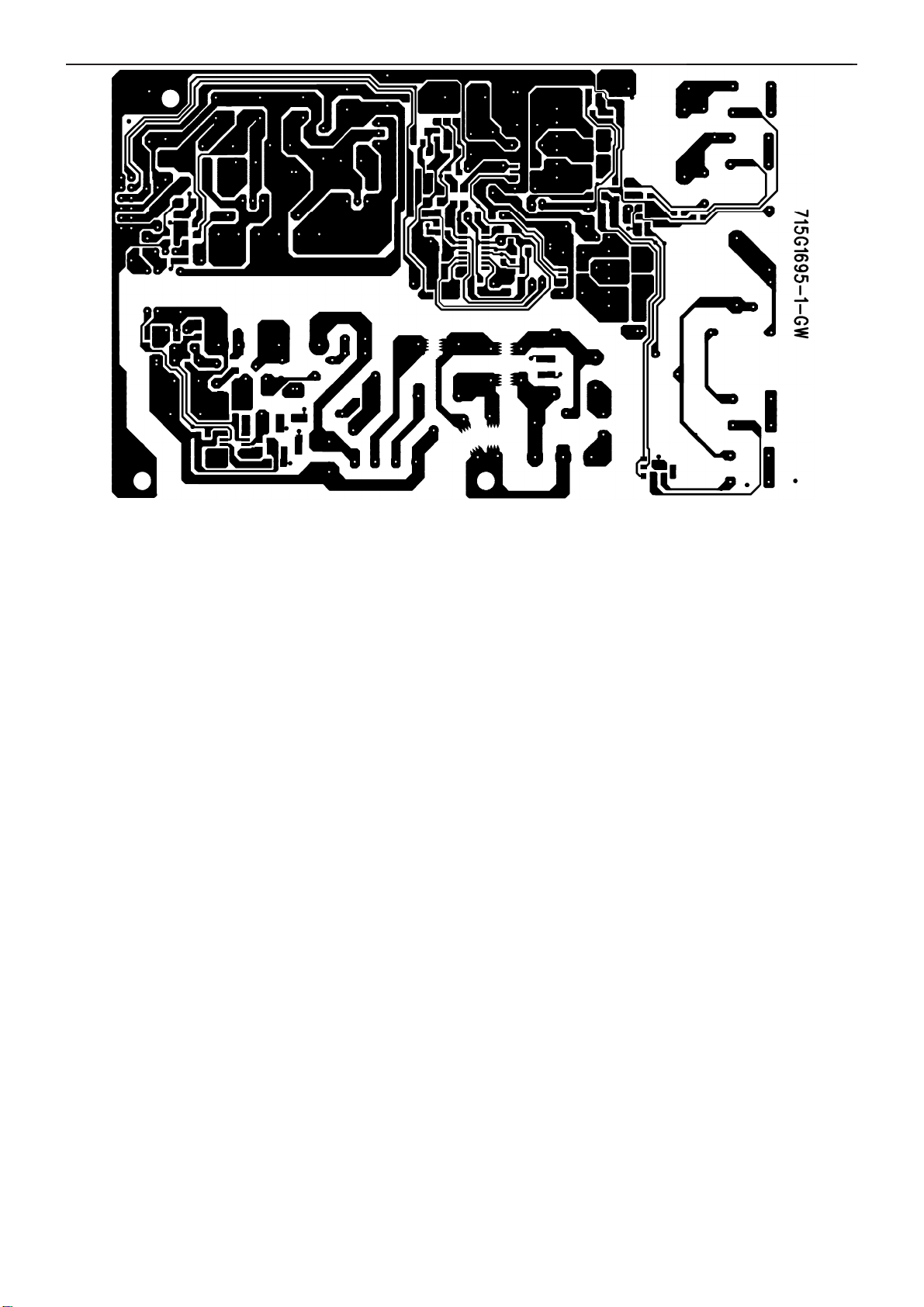

715G1695-1-GW
29
Page 30
19" LCD Color Monitor Emachine E19T5W
30
Page 31
19" LCD Color Monitor Emachine E19T5W
7.3 Key Board

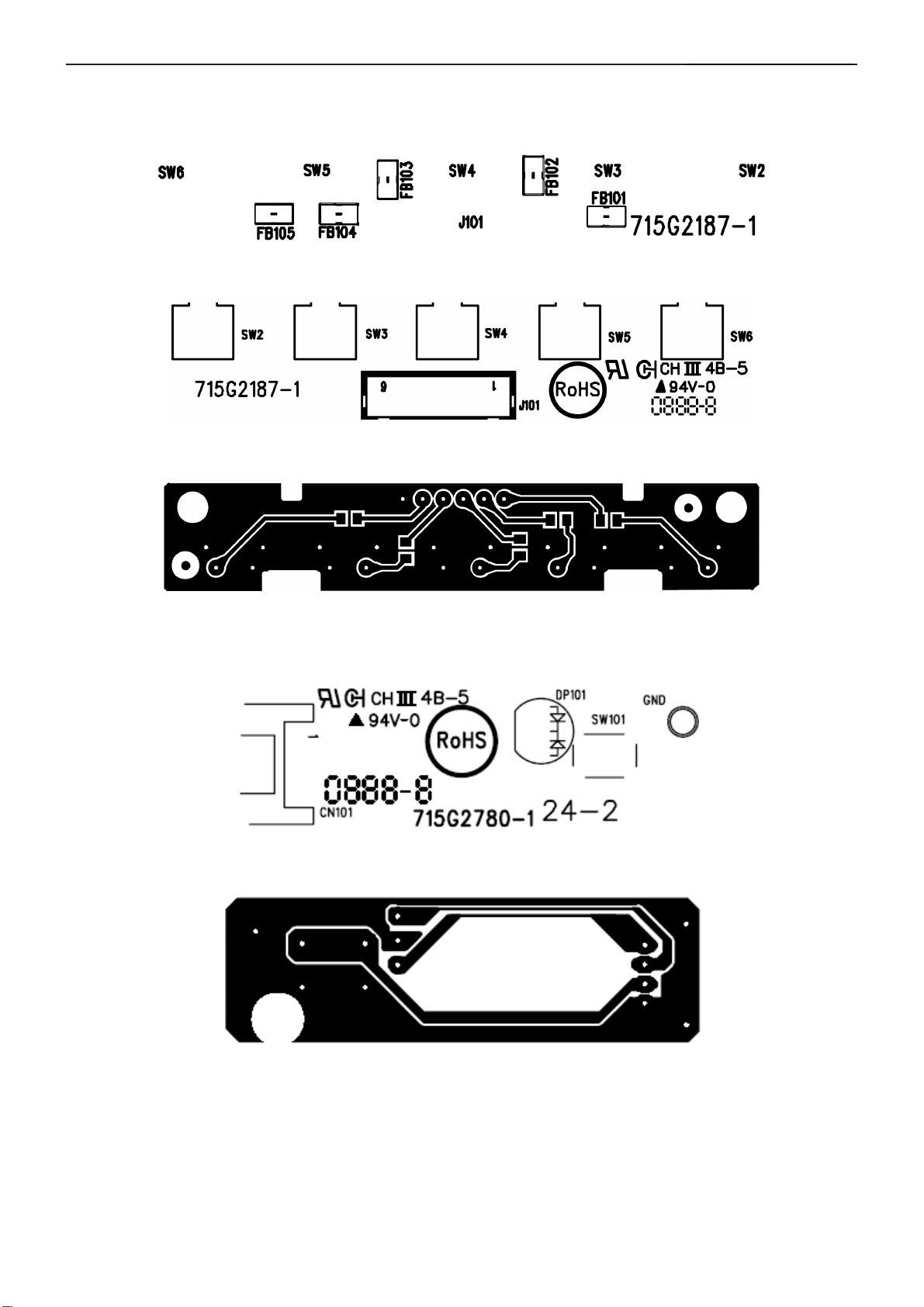

715G2187-1
715G2780-1
31
Page 32
19" LCD Color Monitor Emachine E19T5W
8. Maintainability
8.1 Equipments and Tools Requirement
1. Voltmeter.
2. Oscilloscope.
3. Pattern Generator.
4. DDC Tool with an IBM Compatible Computer.
5. Alignment Tool.
6. LCD Color Analyzer.
7. Service Manual.
8. User Manual.
32
Page 33
19" LCD Color Monitor Emachine E19T5W
8.2 Trouble Shooting
8.2.1 Main Board
No power
No power
Press power key and look
if the picture is normal
NG
Please reinsert and make sure
the AC of 100-240 is normal
OK
NG
Measure
U702 PIN2=3.3V
D701 (-)=1.8V
Reinsert or check the
Adapter/Inverter
section
OK
NG
Check CN701 or replace
U702, D701, D702, Q702
X401 oscillate waveforms
are normal
OK
NG
Replace X401
Replace U401
33
Page 34
19" LCD Color Monitor Emachine E19T5W
(
(2). No Picture
No picture
Measure
U702 PIN2=3.3V
D701
-)=1.8V
OK
NG
Replace U702, D701, D702, Q702
X401 oscillate waveforms are normal
OK
NG
Replace X401
Check if the sync signal from
computer is output and video cable
is connected normally
OK
NG
Input the sync signal of
computer, or change
Replace U401
34
Page 35
19" LCD Color Monitor Emachine E19T5W
p
p
(3). White screen
White screen
Measure Q706 base
is high level?
OK
NG
X401 oscillate
waveform is normal
NG
OK
Replace X401
Check Q706, Q704 is broken
or CN101 solder?
Check reset circuit of
U401 is normal
Check Correspondent
com
onent.
NG
OK
OK
NG
Check Correspondent
com
onent.
Replace Panel
Replace U401
35
Page 36
19" LCD Color Monitor Emachine E19T5W
8.2.2 Power/Inverter Board
(1) No power
Check CN902 pin5, 6 = 12V
NG
Check AC line volt 110V or 220V
Check AC input
OK
NG
Check the voltage of C905 (+)
OK
NG
Check bridge rectified circuit and F901 circuit
Check start voltage for the pin3 of IC901
NG
OK
Check R909, R910 and Change IC901
Check the auxiliary voltage is bigger than
10V and smaller than 20V
OK
NG
1) Check IC901
2) Check IC901 over current protect circuit
Check IC901 pin8 PWM wave
OK
NG
Check IC901
Check Q903, ZD902, ZD903, ZD904, IC902, IC903 and T901
36
Page 37
19" LCD Color Monitor Emachine E19T5W
(2) W / LED, No Backlight
Check CN902 pin5, 6 = 12V
OK
NG
Check adapter or MB
Check ON/OFF signal
OK
NG
Check Interface board
Check IC801 pin2=5V
OK
NG
Change Q802 or Q803
Check IC801 PIN1/15 have the output of square wave at short
OK
NG
Check IC801 PIN5/6
Check Q805, Q806 PIN5, 8= 12V
OK
NG
Check Q805, Q806
Check the output of PT801, PT802
OK
NG
Check PT801, PT802
Check connecter & lamp
37
Page 38
19" LCD Color Monitor Emachine E19T5W
8.2.3 Key Board
OSD is unstable or not working
Is Key Pad Board connecting normally?
N
Connect Key Pad Board
Y
Is Button Switch normally?
N
Replace Button Switch
Y
Is Key Pad Board normally?
N
Replace Key Pad Board
Y
Check Main Board
38
Page 39
19" LCD Color Monitor Emachine E19T5W
9. White-Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM. Channel setting
A. Reference to chroma 7120 user guide
B. Use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the
TEXT description Following is the procedure to do white-balance adjust
2. Setting the color temp. you want
A. MEM.CHANNEL 3 cool (9300 color):
9300 color temp. parameter is x = 283 ±20, y =298 ±20, Y =180 cd/m2 ,
B. MEM.CHANNEL 4 warm (6500 color):
6500 color temp. parameter is x = 313±20, y = 329 ±20, Y =180 cd/m2.
3. Into factory mode of Emachine E19T6W
Turn on power, press the MENU button, pull out the power cord, and then plug the power cord. Then the factory
OSD will be at the left top of the panel.
4. Bias adjustment:
Set the Contrast
to 50; Adjust the Brightness to 80.
5. Gain adjustment:
Move cursor to “-F-” and press MENU key
A. Adjust 9300 color-temperature
1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM. Channel to Channel 3 (with up or down arrow on chroma 7120)
3. The LCD-indicator on chroma 7120 will show x = 283 ±20, y = 298 ±20, Y =180 cd/m2
4. Adjust the RED of color1 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color1 on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE of color1 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust 6500 color-temperature
1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)
2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)
2
3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y = 180 cd/m
4. Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color3 on factory window until chroma 7120 indicator reachedthe value G=100
6. Adjust the BLUE of color3 on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure (item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
C. Turn the Power-button off to quit from factory mode.
39
Page 40
19" LCD Color Monitor Emachine E19T6W
10. Monitor Exploded View
40
Page 41
19" LCD Color Monitor Emachine E19T6W
11. BOM List
T97SMKHKGWGYHC
Location Part No. Description
002G6008 1 SCREW 42A9940007
011G6092 1 FIX BUTTON
011G6095 1 SHORE
037G6045 3 HINGE
040G 581716 3A CARTON LABEL
040G 581915 2A E-MACHINES LOGO LABEL
044G6002786 7A PAPER CAP
044G9003202 CORNER PAPER
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1185 MIDDLE TAPE
052G 1207 A ALUMINIUM TAPE
E089A 089G1738GAA GT D-SUB CABLE
089G602A18N IS POWER CORD
E095 095G8018 30135 HARNESS 30P-24P 150MM
0M1G 130 6120 SCREW M3X6
0M1G1140 6120 SCREW
0M1G1340 10 47 CR3 SCREW
0M1G1730 6120 SCREW
0M1G1740 8120 SCREW FOR STD/MF 42-D000649
0M1G1740 12225 CR3 SCREW
0M1G1830 5120 SCREW
0Q1G 330 8 47 CR3 SCREW
0Q1G 330 8120 SCREW 3X8MM 42-D002093
705GQ734393 19" LCD BEZEL STAND ASS'Y
015G6275 1 MECK BKT
033G6366AAA 1L WIRE CLAMP
034G6321AAA 1B STAND
E095A 095G801412D634 WIRE HARNESS 12P-10P 310MM
0Q1G 130 6120 SCREW (T3X6)
0Q1G 140 6120 SCREW
0Q1G 330 8120 SCREW 3X8MM 42-D002093
A34G0125AAA 1B REAR COVER(19")
KEPC6QEG KEY BOARD
SW2 077G 602 1 CJ TACT SWITCH
SW6 077G 602 1 CJ TACT SWITCH
SW4 077G 602 1 CJ TACT SWITCH
SW5 077G 602 1 CJ TACT SWITCH
SW3 077G 602 1 CJ TACT SWITCH
J101 095G801410X550 WIRE HARNESS
FB103 071G 56Z121 CHIP BEAD
FB102 071G 56Z121 CHIP BEAD
41
Page 42
19" LCD Color Monitor Emachine E19T6W
FB101 071G 56Z121 CHIP BEAD
FB105 071G 56Z121 CHIP BEAD
FB104 071G 56Z121 CHIP BEAD
715G2187 1 KEY BOARD PCB
KEPC7QGW KEY BOARD
CN101 033G3802 4 BH F CONNECTOR
SW101 077G 605 1 CJ TSAB-2
DP101 081G 12 7 GP LED
715G2780 1 KEY BOARD PCB
Q15G0240101 BASE-BKT
Q33G0144 1 1C0100 POWER LENS
Q33G0145BAT 1T0100 LCONTROL BUTTON
Q33G6364AAAA1B 30 POWER LOGO
Q34G0198BAT 1B0130 BEZEL(19")
Q34G0199AAAA1B0100 BEZEL COVER
Q34G0200AAA 1B0133 BASE
E750L 750GLS90M3111N PANEL LTM190M2-L31 800(00R) SEC
A15G0096 1 MAINFRAME(SAMSUNG PANEL)
CBPC7SMKGYQ3P MAIN BOARD
CN701 033G8027 12 WAFER 2*6P 2.0MM R/A
CN403 033G8027 12 WAFER 2*6P 2.0MM R/A
CN101 033G8027 24 CONN W TO B 12P*2 P*2.0 4504-2
040G 457624 1B LABEL-CPU
040G 45762412B CBPC LABEL
C710 067G305L101 4 100UF +-20% 25V
C403 067G309V479 3 4.7UF +-20% 16V
C702 067G309V479 3 4.7UF +-20% 16V
CN405 088G 35315F H D-SUB 15PIN
CN406 088G 35424F N
X401 093G 22 53 CRYSTAL 14.318MHZHC-49US
U401 056G 562146 IC TSUM56AWHK-LF-1 PQFP-128
U702 056G 563 7 IC AIC1084-33PMTR-R AIC
U406 056G 643 5A MAX810 STRG
U405 056G1133 34 M24C02-WMN6TP
U404 056G1133 34 M24C02-WMN6TP
U403 056G1133 56 M24C16-WMN6TP
U402 056G1133 81 SST25LF020A-33-4C-SAE
U407 056G1133524 AT
Q402 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q706 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q702 057G 417 17 T PZT2907A
DVI 24PIN CONN F 附螺丝
IC AT24C04N-10SU-2.7 4K EEPROM/SO-8
ATME
42
Page 43
19" LCD Color Monitor Emachine E19T6W
Q704 057G 763 1 A03401 SOT23 BY AOS(A1)
R721 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R706 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R705 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
FB412 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
FB411 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
FB410 061G0603000 RST CHIPR 0 OHM +-5% 1/10W
R462 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R463 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R464 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R465 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R466 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R467 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R468 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R469 061G0603100 RST CHIPR 10 OHM +-5% 1/10W
R409 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R411 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R414 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R418 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R420 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R429 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R430 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R431 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R441 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R442 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R443 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R445 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R453 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R454 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R455 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R456 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R458 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R488 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R492 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R704 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R446 061G0603102 RST CHIP 1K 1/10W 5%
R447 061G0603102 RST CHIP 1K 1/10W 5%
R470 061G0603102 RST CHIP 1K 1/10W 5%
R476 061G0603102 RST CHIP 1K 1/10W 5%
R477 061G0603102 RST CHIP 1K 1/10W 5%
R478 061G0603102 RST CHIP 1K 1/10W 5%
R479 061G0603102 RST CHIP 1K 1/10W 5%
R701 061G0603102 RST CHIP 1K 1/10W 5%
R708 061G0603102 RST CHIP 1K 1/10W 5%
43
Page 44
19" LCD Color Monitor Emachine E19T6W
R451 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R415 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R424 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R444 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R450 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R452 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R729 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R727 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R714 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R490 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R489 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R487 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R457 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R459 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R460 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R461 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R471 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R481 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R483 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R484 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R480 061G0603152 RST CHIPR 1.5 KOHM +-5% 1/10W
R703 061G0603202 RST CHIPR 2 KOHM +-5% 1/10W
R448 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R449 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R501 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R405 061G0603223 RST CHIPR 22 KOHM +-5% 1/10W
R711 061G0603303 RST CHIPR 30 KOHM +-5% 1/10W
R403 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W
R475 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W
R474 061G0603392 RST CHIPR 3.9 KOHM +-5% 1/10W
R421 061G0603470 RST CHIPR 47 OHM +-5% 1/10W
R419 061G0603470 RST CHIPR 47 OHM +-5% 1/10W
R437 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R433 061G0603471 RST CHIPR 470 OHM +-5% 1/10W
R725 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R712 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R482 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
44
Page 45
19" LCD Color Monitor Emachine E19T6W
R423 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R422 061G0603472 RST CHIPR 4.7KOHM +-5% 1/10W
R702 061G0603510 RST CHIPR 51 OHM +-5% 1/10W
R723 061G0603513 RST CHIPR 51 KOHM +-5% 1/10W
R434 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R435 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R436 061G0603560 RST CHIPR 56 OHM +-5% 1/10W
R438 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R439 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
R440 061G0603750 RST CHIPR 75 OHM +-5% 1/10W
C502 065G0603104 12 CER2 0603 X7R 16V 100N P
C448 065G0603104 32 CHIP 0.1UF 50V X7R
C449 065G0603104 32 CHIP 0.1UF 50V X7R
C413 065G0603104 32 CHIP 0.1UF 50V X7R
C414 065G0603104 32 CHIP 0.1UF 50V X7R
C415 065G0603104 32 CHIP 0.1UF 50V X7R
C416 065G0603104 32 CHIP 0.1UF 50V X7R
C417 065G0603104 32 CHIP 0.1UF 50V X7R
C419 065G0603104 32 CHIP 0.1UF 50V X7R
C420 065G0603104 32 CHIP 0.1UF 50V X7R
C422 065G0603104 32 CHIP 0.1UF 50V X7R
C425 065G0603104 32 CHIP 0.1UF 50V X7R
C426 065G0603104 32 CHIP 0.1UF 50V X7R
C444 065G0603104 32 CHIP 0.1UF 50V X7R
C441 065G0603104 32 CHIP 0.1UF 50V X7R
C440 065G0603104 32 CHIP 0.1UF 50V X7R
C439 065G0603104 32 CHIP 0.1UF 50V X7R
C431 065G0603104 32 CHIP 0.1UF 50V X7R
C430 065G0603104 32 CHIP 0.1UF 50V X7R
C429 065G0603104 32 CHIP 0.1UF 50V X7R
C428 065G0603104 32 CHIP 0.1UF 50V X7R
C427 065G0603104 32 CHIP 0.1UF 50V X7R
C454 065G0603104 32 CHIP 0.1UF 50V X7R
C709 065G0603104 32 CHIP 0.1UF 50V X7R
C713 065G0603104 32 CHIP 0.1UF 50V X7R
C714 065G0603104 32 CHIP 0.1UF 50V X7R
C718 065G0603104 32 CHIP 0.1UF 50V X7R
C450 065G0603104 32 CHIP 0.1UF 50V X7R
C451 065G0603104 32 CHIP 0.1UF 50V X7R
C452 065G0603104 32 CHIP 0.1UF 50V X7R
C453 065G0603104 32 CHIP 0.1UF 50V X7R
C445 065G0603104 32 CHIP 0.1UF 50V X7R
C446 065G0603104 32 CHIP 0.1UF 50V X7R
C447 065G0603104 32 CHIP 0.1UF 50V X7R
C401 065G0603104 32 CHIP 0.1UF 50V X7R
C402 065G0603104 32 CHIP 0.1UF 50V X7R
45
Page 46
19" LCD Color Monitor Emachine E19T6W
C404 065G0603104 32 CHIP 0.1UF 50V X7R
C405 065G0603104 32 CHIP 0.1UF 50V X7R
C406 065G0603104 32 CHIP 0.1UF 50V X7R
C407 065G0603104 32 CHIP 0.1UF 50V X7R
C409 065G0603104 32 CHIP 0.1UF 50V X7R
C410 065G0603104 32 CHIP 0.1UF 50V X7R
C411 065G0603104 32 CHIP 0.1UF 50V X7R
C412 065G0603104 32 CHIP 0.1UF 50V X7R
C705 065G0603105 12 CHIP 1UF 16VX7R 0603
C421 065G0603220 31 CER1 0603 NP0 50V 22P PM
C423 065G0603220 31 CER1 0603 NP0 50V 22P PM
C443 065G0603221 31 CER1 0603 NP0 50V 220P P
C442 065G0603330 31 CER1 0603 NP0 50V 33P PM
C432 065G0603473 32 CHIP 0.047UF 50V X7R
C433 065G0603473 32 CHIP 0.047UF 50V X7R
C434 065G0603473 32 CHIP 0.047UF 50V X7R
C435 065G0603473 32 CHIP 0.047UF 50V X7R
C436 065G0603473 32 CHIP 0.047UF 50V X7R
C437 065G0603473 32 CHIP 0.047UF 50V X7R
C438 065G0603473 32 CHIP 0.047UF 50V X7R
U407 070GHDCP500HDC HDCP CODE
FB406 071G 56Z601 CHIP BEAD 600 OHM 0805
FB405 071G 56Z601 CHIP BEAD 600 OHM 0805
FB404 071G 56Z601 CHIP BEAD 600 OHM 0805
FB403 071G 56Z601 CHIP BEAD 600 OHM 0805
FB402 071G 56Z601 CHIP BEAD 600 OHM 0805
FB401 071G 56Z601 CHIP BEAD 600 OHM 0805
FB603 071G 59B121 TB160808B
FB409 071G 59C121 B FCM1608C-121T03 SMD
D401 093G 39147SEM ZMM5V6ST
D402 093G 39147SEM ZMM5V6ST
D406 093G 39147SEM ZMM5V6ST
D408 093G 39147SEM ZMM5V6ST
D409 093G 39147SEM ZMM5V6ST
D410 093G 39147SEM ZMM5V6ST
D411 093G 39147SEM ZMM5V6ST
D412 093G 39147SEM ZMM5V6ST
D414 093G 39147SEM ZMM5V6ST
D415 093G 39147SEM ZMM5V6ST
D416 093G 39147SEM ZMM5V6ST
D425 093G 39147SEM ZMM5V6ST
D426 093G 39147SEM ZMM5V6ST
D407 093G 64 42 P BAV70 SOT23 BY PAN JIT
D413 093G 64 42 P BAV70 SOT23 BY PAN JIT
D701 093G 6432V LL4148-GSO8
D702 093G 6432V LL4148-GSO8
46
Page 47
19" LCD Color Monitor Emachine E19T6W
D403 093G 6433P BAV99
D418 093G 6433P BAV99
D417 093G 6433P BAV99
D405 093G 6433P BAV99
D404 093G 6433P BAV99
D419 093G 6433P BAV99
D420 093G 6433P BAV99
D421 093G 6433P BAV99
D422 093G 6433P BAV99
D423 093G 6433P BAV99
D424 093G 6433P BAV99
D704 093G2004 2 DIODE SR24
715G2188 1 MAIN BOARD PCB
PWPC942HW2P POWER BOARD
CN801 033G8021 2E U WAFER
CN802 033G8021 2E U WAFER
CN803 033G8021 2E U WAFER
CN804 033G8021 2E U WAFER
040G 45762420A GP CBPC LABEL 25X6MM
051G 6 4503
IC902 056G 139 3B IC PC123Y82FZ0F
R904 061G 2J478 59 0.47 2W
R905 061G152M10458F 100K OHM 5% 2W
C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C825 065G 3J1006ET 10PF,J,3KV,SL
C816 065G 3J1206ET 12PF 5% SL 3KV TDK
C817 065G 3J2096ET 2PF 5% SL 3KV
C826 065G 3J2096ET 2PF 5% SL 3KV
C901 065G306M1022BP 1000PF Y1.CAP
C902 065G306M1022BP 1000PF Y1.CAP
C900 065G306M1022BP 1000PF Y1.CAP
C811 067G215P4714AV
C820 067G215P4714AV
C904 067G215P4714AV
C906 067G215P4714AV
C908 067G215P4714AV
C909 067G215P4714AV
C911 067G215P4714AV
C905 067G215Y10115K
L904 073G 253 91 L CHOKE BY LI TA
L903 073G 253 91 L CHOKE BY LI TA
L901 073L 174 50 HH LINE FITER
PT802 080GL19T 8 H1 XFMR FOR INVERTER DADON
PT801 080GL19T 8 H1 XFMR FOR INVERTER DADON
T901 080GL19T 13 N TRANSFORMER
HS3 090G6276 1 V HEATSINK
RTV 胶
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
CAP 105℃ 470UF M 25V
ELCAP 105℃ 100UF M 450V
47
Page 48
19" LCD Color Monitor Emachine E19T6W
BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON
D907 093G 6038T52T FR103
CN902 095G801412W599 WIRE HARNESS
705G 560 61GTW NR901 ASS'Y
NR901 061G 58050 WT NTC 5 OHM 5A
096G 29 10 H.S. TUBE
705G 780 57 05 Q903 ASS'Y
Q903 057G 724 11 STP9NK65ZFP
0M1T1730 8120 SCREW
Q90G0117 1 HEAT SINK
705G 780 87 20 AC SOCKET ASS'Y
CN901 087G 504501 S AC SOCKET ST-03
CN901 095G 900567 WIRE HARNESS
CN901 096G 29 6 H.S. TUBE
705GQ793029 D904/D905 ASS'Y
D905 093G 60218 SB10100FCT
D904 093G 60257 DIODE SB1060FCT ITO-220AB BY PAN JIT
0M1T1730 8120 SCREW
Q90G0118 1 HEAT SINK
J903 096G 29 1 SHRINK TUBE UL/CSA
IC901 056G 379 52 LD7552BS
IC801 056G 608 10 IC OZ9938GN-B SOIC-16
Q803 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q802 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q801 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q806 057G 600 55 P5506 HVG SO-8
Q805 057G 600 55 P5506 HVG SO-8
R842 061G0805000 0 OHM 1/10W
R840 061G0805000 0 OHM 1/10W
R913 061G0805100 3F RST CHIPR 100KOHM +-1% 1/8W
R841 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R843 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R923 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R924 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R926 061G0805102 RST CHIPR 1KOHM +-5% 1/8W
R812 061G0805103 10 KOHM 1/10W
R821 061G0805104 RST CHIP 100K 1/8W 5%
R831 061G0805104 RST CHIP 100K 1/8W 5%
R820 061G0805153 RST CHIPR 15KOHM +-5% 1/8W
R830 061G0805153 RST CHIPR 15KOHM +-5% 1/8W
R925 061G0805202 RST CHIP 2K 1/8W 5%
R922 061G0805240 1F RST CHIPR 2.4KOHM +-1% 1/8W
C808 061G0805274 RST CHIPR 270 KOHM +-5% 1/8W
R827 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W
R834 061G0805332 RST CHIPR 3.3 KOHM +-5% 1/8W
R921 061G0805360 1F RST CHIPR 3.6KOHM +-1% 1/8W
48
Page 49
19" LCD Color Monitor Emachine E19T6W
R920 061G0805363 RST CHIPR 36 KOHM +-5% 1/8W
R835 061G0805561 560 0805
R825 061G0805561 560 0805
R912 061G0805750 2F RST CHIPR 75 KOHM +-1% 1/8W
F902 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
J805 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR801 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
JR802 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
R801 061G1206000 RST CHIPR 0 OHM +-5% 1/4W
R836 061G1206100 RST CHIP 10R 1/4W 5%
R837 061G1206100 RST CHIP 10R 1/4W 5%
R918 061G1206100 RST CHIP 10R 1/4W 5%
R930 061G1206100 3F RST CHIPR 100 KOHM +-1% 1/4W
R939 061G1206101 100 1206
R938 061G1206101 100 1206
R937 061G1206101 100 1206
R936 061G1206101 100 1206
R935 061G1206101 100 1206
R934 061G1206101 100 1206
R906 061G1206101 100 1206
R928 061G1206102 RST CHIPR 1 KOHM +-5% 1/4W
R803 061G1206103 RST CHIPR 10 KOHM +-5% 1/4W
R804 061G1206103 RST CHIPR 10 KOHM +-5% 1/4W
R919 061G1206103 RST CHIPR 10 KOHM +-5% 1/4W
R808 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R815 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W
R810 061G1206105 1M 1206
R813 061G1206105 1M 1206
R911 061G1206151 RST CHIPR 150 OHM +-5% 1/4W
R816 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W
R826 061G1206201 RST CHIPR 200 OHM +-5% 1/4W
R807 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R818 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R819 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R828 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R829 061G1206220 RST CHIPR 22 OHM +-5% 1/4W
R802 061G1206274 RST CHIPR 270 KOHM +-5% 1/4W
R817 061G1206330 2F RST CHIPR 33 KOHM +-1% 1/4W
R914 061G1206339 3.3 1206
R931 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R910 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R909 061G1206434 RST CHIPR 430 KOHM +-5% 1/4W
R805 061G1206471 470 1206
R932 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W
R908 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W
R907 061G1206514 RST CHIPR 510 KOHM +-5% 1/4W
49
Page 50
19" LCD Color Monitor Emachine E19T6W
R902 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
R901 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
R900 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
R814 061G1206684 RST CHIPR 680 KOHM +-5% 1/4W
C807 065G0805103 22 CHIP 0.01UF 25V X7R 0805
C910 065G0805104 22 0.1UF +-10% 25V X7R 080
C907 065G0805104 22 0.1UF +-10% 25V X7R 080
C914 065G0805104 22 0.1UF +-10% 25V X7R 080
C918 065G0805104 22 0.1UF +-10% 25V X7R 080
C934 065G0805104 22 0.1UF +-10% 25V X7R 080
C933 065G0805104 32 CHIP 0.1U 50V X7R
C804 065G0805155 A2 1.5 UF 10V
C919 065G0805221 21 220PF 25V 5%
C818 065G0805221 21 220PF 25V 5%
C827 065G0805221 21 220PF 25V 5%
C805 065G0805222 31 0805 2200PF
C809 065G0805223 22 CHIP 0.022UF 25V X7R 080
C917 065G0805223 22 CHIP 0.022UF 25V X7R 080
C912 065G0805334 22 0.33UF+-10% 25V X7R 0805
C810 065G080556131G MLCC 0805 560PF G 50V NPO
C819 065G0805683 22 68NF X7R 25V
C812 065G1206222 32 2.2N/50V
C813 065G1206222 32 2.2N/50V
C822 065G1206222 32 2.2N/50V
C823 065G1206222 32 2.2N/50V
C806 065G1206225 22 2.2UF 25V X7R 1206
D803 093G 64 42 P BAV70 SOT23 BY PAN JIT
D801 093G 64 42 P BAV70 SOT23 BY PAN JIT
D802 093G 6433P BAV99
D804 093G 6433P BAV99
ZD904 093G 39GA26 T ZENER DIODE RLZ5.1B SEMTECH
ZD902 093G 39S 17 T RLZ12B LLDS
ZD801 093G 39S 24 T RLZ 5.6B LLDS
ZD903 093G 39S 38 T PTZ 9.1B
CN901 006G 31500 EYELET
L902 006G 31502 1.5MM RIVET
L901 006G 31502 1.5MM RIVET
T901 006G 31502 1.5MM RIVET
PT802 006G 31502 1.5MM RIVET
PT801 006G 31502 1.5MM RIVET
NR901 006G 31502 1.5MM RIVET
C905 006G 31502 1.5MM RIVET
IC904 056G 158 4 T H431BA
IC903 056G 158 10 T IC AZ431AZ-AE1 TO-92 BY AAC
R940 061G 60247152T 470OHM +-5% 1/6W
R832 061G212Y305 KT MGFR 3M OHM +-5% 1/2W
50
Page 51
19" LCD Color Monitor Emachine E19T6W
R822 061G212Y305 KT MGFR 3M OHM +-5% 1/2W
C930 065G 2K152 1T6921 1.5NF/2KV Y5P +-10%
C814 065G 444102 5T 1000PF 10% 50V CERAMIC
C815 065G 444102 5T 1000PF 10% 50V CERAMIC
C821 065G 444102 5T 1000PF 10% 50V CERAMIC
C824 065G 444102 5T 1000PF 10% 50V CERAMIC
C932 065G517K102 5T 1000PF 10% Y5P 500V
C931 065G517K102 5T 1000PF 10% Y5P 500V
C923 067G 2152207NT GP LOW ESR 22UF+-20% 50V BY CHEMI
FB901 071G 55 29 FERRITE BEAD
F901 084G 56 1 FUSE 2A 250V WICKMANN
D901 093G 6026T52T RECTIFIER DIODE FR107
715G1695 2 GW POWER BOARD PCB
L902 S73G17465VW LINE FILTER ASS'Y
Q05G6063 1 SHEET
Q07G 1 5V40 WOODEN PALLET
Q40G 19N915 1A RATING LABEL
Q40G0001915 4A CARTON LABEL
Q40G000291513A 9004325 LABEL
Q40G000291532A 9007058 SPEC LABEL
Q40G000291533A 9011089R POP LABEL
Q41G780091555A SETUP POSTER(8512496)
Q44G9037 3EPE EPE
Q44G9037915 7A 19W GATEWAY CARTON
Q44G9096101 EPS
Q44G9096201 EPS
Q45G 88606 R PE BAG FOR BASE
Q45G 88609 88 EPE COVER
Q52G6025 13 36 MYLAR
Q52G6025 13 73 MYLAR
Q52G6025 13 79 MYLAR
033F 206 24 DF11-24DS-2C
040G 58162435A LABEL
041G780091513A WARRANTY CARD(8510870)
Q41G900291510A USER GUIDE(8512598)
Q45G 88606 R PE BAG FOR BASE
51
Page 52
19" LCD Color Monitor Emachine E19T6W
12. Different Parts List
Diversity of T97SMKHPGWGYHC compared with T97SMKHKGWGYHC
Location Part No. Description
040G 582680 1A CARTON LABEL
E750L 750GLS90M3111N000W PANEL LTM190M2-L31 800(00R) GTW SEC
Q07G 1 5V40 X WOODEN PALLET
Q40G000291516A L9004528-LABEL
Q40G000291536A POP LABEL 901119R
Q41G780091557A QSG(8512575)
Q44G9037600 1A CARTON
Q41G900291512A MANUAL(8512574)
52
Loading...
