EMAC SBC-675 User Manual

SBC-675

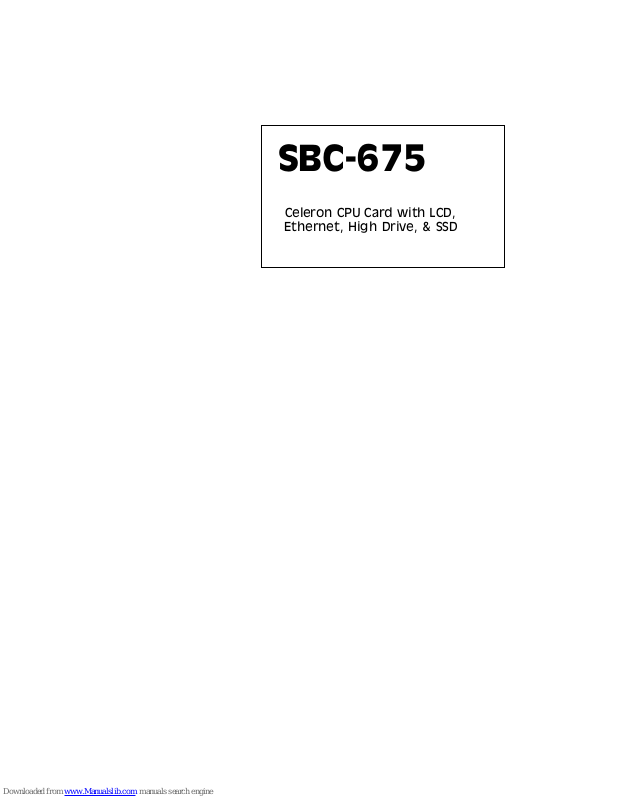

Celeron CPU Card with LCD,

Ethernet, High Drive, & SSD

Copyright Notice

This document is copyrighted, 1999. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer . Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.

Acknowledgements

AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
A ward is a trademark of Award Software International, Inc.
Cyrix is a trademark of Cyrix Corporation.
IBM, PC/A T , PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium II are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.
R TL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and T echnologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated T echnology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA T echnology , Inc.

All other product names or trademarks are properties of their
respective owners.

Part No. 2047675001 SBC-675 2nd Edition

Printed in T aiwan July 1999

A Message to the Customer

Customer Services

Each and every product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name has
come to be known.

Your satisfaction is our primary concern. Here is a guide to
customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully .

Technical Support

W e want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.

So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your products. In fact, most problems
reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installa­tion and operation of any of our products.

Product Warranty

you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
one year from the date of purchase.

This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel autho­rized, or which have been subject to misuse, abuse,
accident or improper installation. assumes no liability
under the terms of this warranty as a consequence of such events.

Because of high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If a product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.

If you think you have a defective product, follow these steps:
1 . Collect all the information about the problem encountered. (For

example, CPU type and speed, products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.

2 . Call your dealer and describe the problem. Please have your

manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer . This
allows us to process your return more quickly.

4 . Carefully pack the defective product, a fully-completed Repair

and Replacement Order Card and a photocopy proof of pur­chase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.

5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.

Packing list

Before you begin installing your card, please make sure that the
following materials have been shipped:

• 1 SBC-675 All-in-One Single Board Computer

• 1 Quick Installation Guide

• 1 Supporting CD-ROM contains the followings:

-- User's Manual (this manual in PDF file)

-- Ethernet drivers and utilities

-- VGA drivers and utilities

-- BIOS files

• 1 Hard disk drive (IDE) interface cable

• 1 Floppy disk drive interface cable

• 1 6-pin mini-DIN dual outlet adapter for keyboard and PS/2
mouse

• 1 mounting bracket contains 1 Parallel port adapter (26 pins) and
COM2 adapter (for RS-232/422/485)

If any of these items are missing or damaged, contact your distribu­tor or sales representative immediately .

Notice

Dear Customer,
Thank you for purchasing the SBC-675 board. This user's

manual is designed to help you to get the most out of the SBC-675,
please read it thoroughl`y before you install and use the board. The
product that you have purchased comes with an two-year limited
warranty, but will not be responsible for misuse of the
product. Therefore, we strongly urge you to first read the manual
before using the product.

To receive the lastest version of the user manual, please visit our
Web site

Contents

Chapter 1: General Information ....................... 1

Introduction ........................................................................... 2

Features.................................................................................. 3

Specifications ......................................................................... 4

Board layout........................................................................... 7

Board dimensions ................................................................. 8

Chapter 2: Installation ....................................... 9

Jumpers and connectors.................................................... 1 0

Locating jumpers ................................................................ 1 2

Locating connectors ........................................................... 1 3

Setting jumpers ................................................................... 1 4

CPU installing and upgrading............................................ 1 5

Installing DRAM (DIMMS).............................................. 1 7

System Memory ......................................................................17

Supplementary information about DIMM ...............................1 7

Memory Installation Precedures .............................................1 7

Cache Memory .................................................................... 1 8

LCD driving voltage select (J1) ....................................... 1 9

Clear CMOS (J5)................................................................ 1 9

CPU frequency ratio select (J4) ....................................... 20

Celeron CPU jumper setting examples ...................................21

LCD clock signal select (J6) ............................................. 2 2

COM2 RS-232/422/485 select (J7, J8) ........................... 2 2

DOC address select (J9) ................................................... 2 3

Power connectors (PWR1, CN17) .................................... 2 4

Power connector (PWR1) ...................................................... 24

CPU fan power connector (CN17).........................................24

Power LED and Keylock (CN1) ....................................... 2 5

IDE hard drive connector (CN2, CN8) ............................ 2 6

Connecting the hard drive .......................................................26

IDE hard drive connectors (CN2, CN8) .......................... 2 7

Floppy drive connector (CN3) .......................................... 28

Connecting the floppy drive.....................................................2 8

Floppy drive connectors (CN3) ...............................................2 9

Hard drive LED (CN4) ....................................................... 3 0

Reset switch (CN5) .............................................................3 0

USB connector (CN6)......................................................... 30

External speaker (CN7) ..................................................... 3 1

Parallel port connector (CN9) ........................................... 3 2

Parallel port IRQ .....................................................................32

Parallel port connector table (CN9) ........................................32

IrDA connector (CN11) ......................................................3 3

Display connectors (CN12, CN10) ................................... 34

VGA display connector (CN12)..............................................34

LCD display connector (CN10) ..............................................35

100Base-Tx Ethernet connector (CN13) ........................ 3 6

Serial ports (CN16, CN14) ................................................ 36

COM2 RS-232/422/485 serial ports (CN14)...........................3 6

Keyboard and PS/2 mouse connector (CN18, CN15) ... 37

DiskOnChip socket (U15) ................................................. 3 8

DiskOnChip (DOC) 2000 Installation ............................. 3 9

Chapter 3: Award BIOS Setup .......................... 41

Starting setup ....................................................................... 4 2

Setup keys ............................................................................ 4 3

Getting help ......................................................................... 4 4

In case of problem...................................................................44

Main setup menu ................................................................ 4 5

Standard CMOS setup ....................................................... 4 7

BIOS features setup ........................................................... 5 4

CHIPSET features setup ................................................... 5 8

Power management setup .................................................. 62

PNP/PCI congfiguration setup .......................................... 6 7

Load BIOS defaults/Load setup defaults ........................ 70

Integrated peripherals setup .............................................7 1

Supervisor/User password setting ................................... 7 4

IDE HDD auto detection ................................................... 76

Save & exit setup ................................................................ 7 7

Chapter 4: Flat Panel/CRT controller Display

Drivers and Utilities ...................... 79

Software drives .................................................................... 80

Hardware configuration ..........................................................80

Necessary prerequisites .......................................................... 81

Before you begin .....................................................................81

Windows 95 .......................................................................... 8 2

Driver installation ....................................................................8 2

Windows 3.51 ....................................................................... 9 0

Driver installation ....................................................................9 0

Windows NT 4.0 .................................................................. 9 1

Driver installation ....................................................................9 1

Chapter 5: Ethernet Software configuration ...

......................................................... 93

Ethernet software configuration ....................................... 9 4

Appendix A: Programming the Watchdog

Timer ............................................. 95

Programming the watchdog timer .................................... 9 6

How to set the watchdog timer ...............................................96

Demo program ........................................................................9 7

Chapter 1 General Information 1

1

General

Information

This chapter gives background informa­tion on the mainboard.

Sections include:

• Board specifications

• Layout and dimensions

CHAPTER

2 SBC-675 User Manual

Introduction

The SBC-675 is an all-in-one Celeron processor based single board
computer (SBC) with a PCI Flat Panel controller, a PCI 100Base-Tx
Ethernet interface. When using an Intel Celeron processor, the
SBC-675 achieves outstanding performance that surpasses any
other SBC in its class. In addition, the onboard SSD interface
supports M-systems DiskOnChip 2000 series, memory capacity
from 2 MB to 144 MB.

Onboard features include two serial ports (one RS-232, one RS-232/
422/485), one multi-mode parallel (ECP/EPP/SPP) port, connector for
two USB (Universal Serial Bus) ports, a floppy drive controller, and
a keyboard/PS/2 mouse interface. The built-in high speed PCI IDE
controller supports Ultra DMA/33 mode. Up to four IDE devices
can be connected, including large hard disks, CD-ROM drives, and
tape backup drives, etc.

The SBC-675 also features power management to minimize power
consumption. It complies with the ACPI standard and supports
three types of power saving features: Doze mode, Standby mode,
and Suspend mode. In addition, the board's watchdog timer can
automatically reset the system or generate an interrupt in case the
system stops due to a program bug or EMI.

Highly integrated SBC

The SBC-675 is a highly integrated SBC that combines video and
network functions on a single computer board. It provides up to
1024 x 768 resolution @ 64K colors with on-chip 2MB SDRAM
display memory . Major onboard devices adopt PCI technology to
achieve outstanding computing performance when used with Intel
Celeron level processors, making the SBC-675 one of the world's
best and most powerful all-in-one Single Board Computers.

Chapter 1 General Information 3

Features

• Supports Intel Celeron CPUs up to 466MHz

• Supports DiskOnChip (SSD) up to 144MB

• C&T 69000 LCD controller supports 36-bit TFT Panels

• 100Base-Tx Fast Ethernet

• Supports H/W status monitoring

• High Drive design to enhance the ISA driving capacity

4 SBC-675 User Manual

Specifications

Standard SBC functions

• CPU: Intel Celeron 300~466MHz (With system bus frequencies of
66/100MHz)

• Bus interface: PCI/ISA bus. PICMG 2.0 standard

• ISA driving capacity: Built-in Address/Data buffer supports driving
capacity up to 64mA

• CPU socket: 370-pin socket

• BIOS: A ward 256KB Flash BIOS

• Chipset: Intel 440BX

• I/O chipset: Winbond W83977TF with fully 16-bit I/O decoded

• Memory : Onboard three 168-pin DIMM sockets support up to
384Mbytes SDRAM

• Enhanced IDE: Supports up to four IDE devices. Supports Ultra DMA/
33 mode with data transfer rate 33MB/Sec.

• FDD interface: Supports up to two floppy disk drives, 5.25" (360KB and

1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB)

• Parallel port: One bi-directional parallel port. Supports SPP , ECP, and
EPP modes

• Serial port: One RS-232 and one RS-232/422/485 serial port. Ports can be
configured as COM1, COM2, COM3, COM4, or disabled individually .
(16C550 equivalent)

• IR interface: Supports one IrDA Tx/Rx header

• KB/Mouse connector : 6-pin mini-DIN connector supports PC/A T
keyboard and PS/2 mouse. Additional 5-pin header supports PC/AT
keyboard for IPC applications

• USB connectors: 5 x 2 header onboard supports dual USB ports

• Battery: Lithium battery for data retention of up to 10 years

Chapter 1 General Information 5

• W atchdog timer: Can generate a system reset, IRQ15, or NMI. Software
selectable time-out interval (2 sec. ~ 255 sec., 1 sec./step)

• DMA: 7 DMA channels (8237 equivalent)

• Interrupt: 15 interrupt levels (8259 equivalent)

• Power management: I/O peripheral devices support power saving and
doze/stanby/suspend modes. APM 1.2 ocmpliant

• H/W status monitoring: W inbond W83781D H/W status monitoring IC
supports power supply voltages, fan speed, and temperatures monitor
ing

Flat Panel/CRT Interface

• Chipset: C&T 69000

• Display memory: Built-in 2MB SDRAM

• Display type: Supports non-interlaced CR T and LCD (TFT, DSTN, and
Mono) displays. Can display both CR T and Flat Panel simultaneously

• Resolution: Up to 1024x768@64K colors

Ethernet Interface

• Chipset: Realtek R TL8139B 100Base-Tx Fast Ethernet controller

• Ethernet interface: Onboard 100Base-Tx RJ-45 connector

SSD Interface

• One 32-pin DIP socket supports M-Systems DiskOnChip 2000 series up
to 144MB

6 SBC-675 User Manual

Mechanical and environmental

• Power supply voltage: +5V (4.75V to 5.25V),

+12V (11.4V to 12.6V)

• T ypical power requirement: +5V @ 4A

• Operating temperature: 32 to 140o F (0 to 60o C)

• Board size: 13.3"(L) x 4.8"(W) (338mm x 122mm)

• W eight: 1.2 lb. (0.5 Kg)

Chapter 1 General Information 7

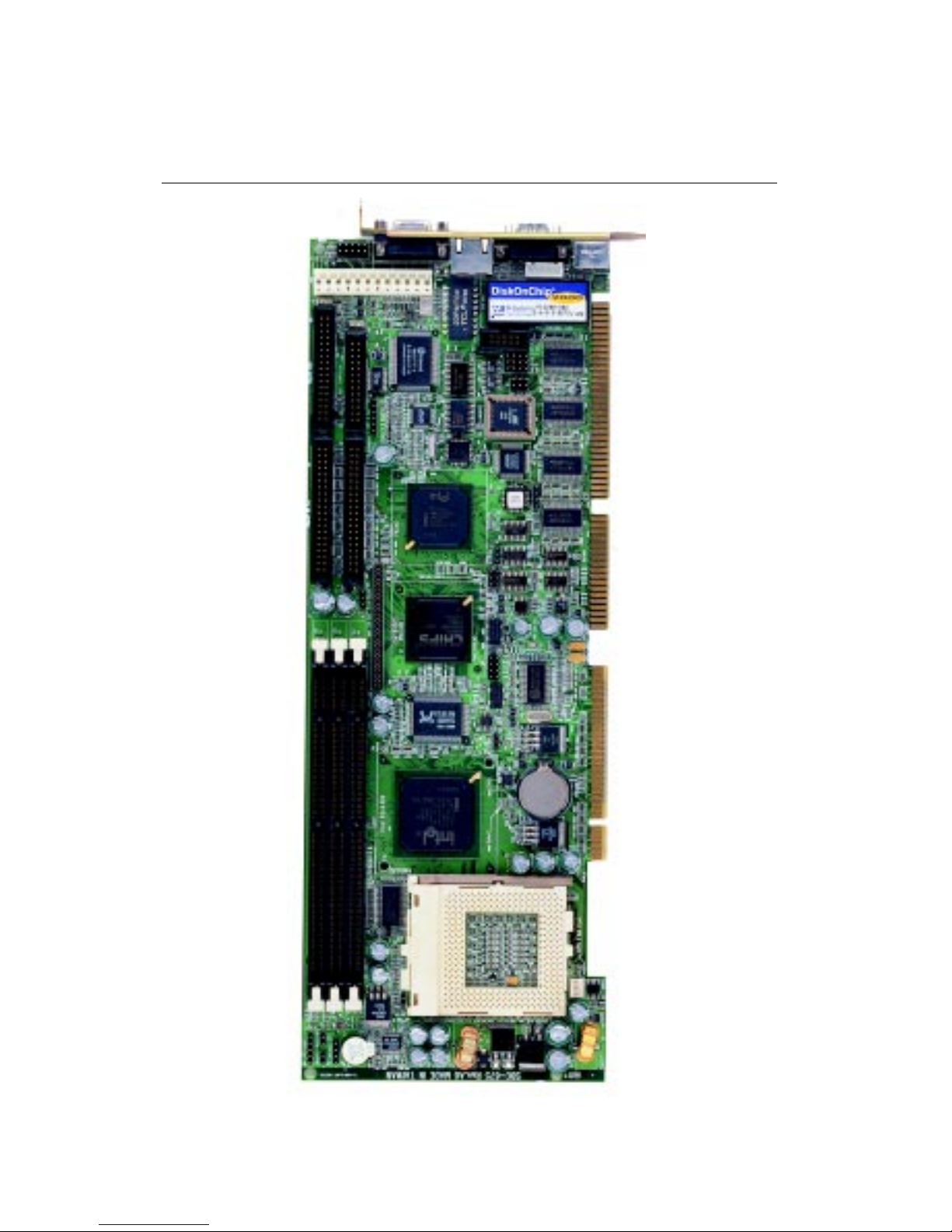

Board layout

8 SBC-675 User Manual

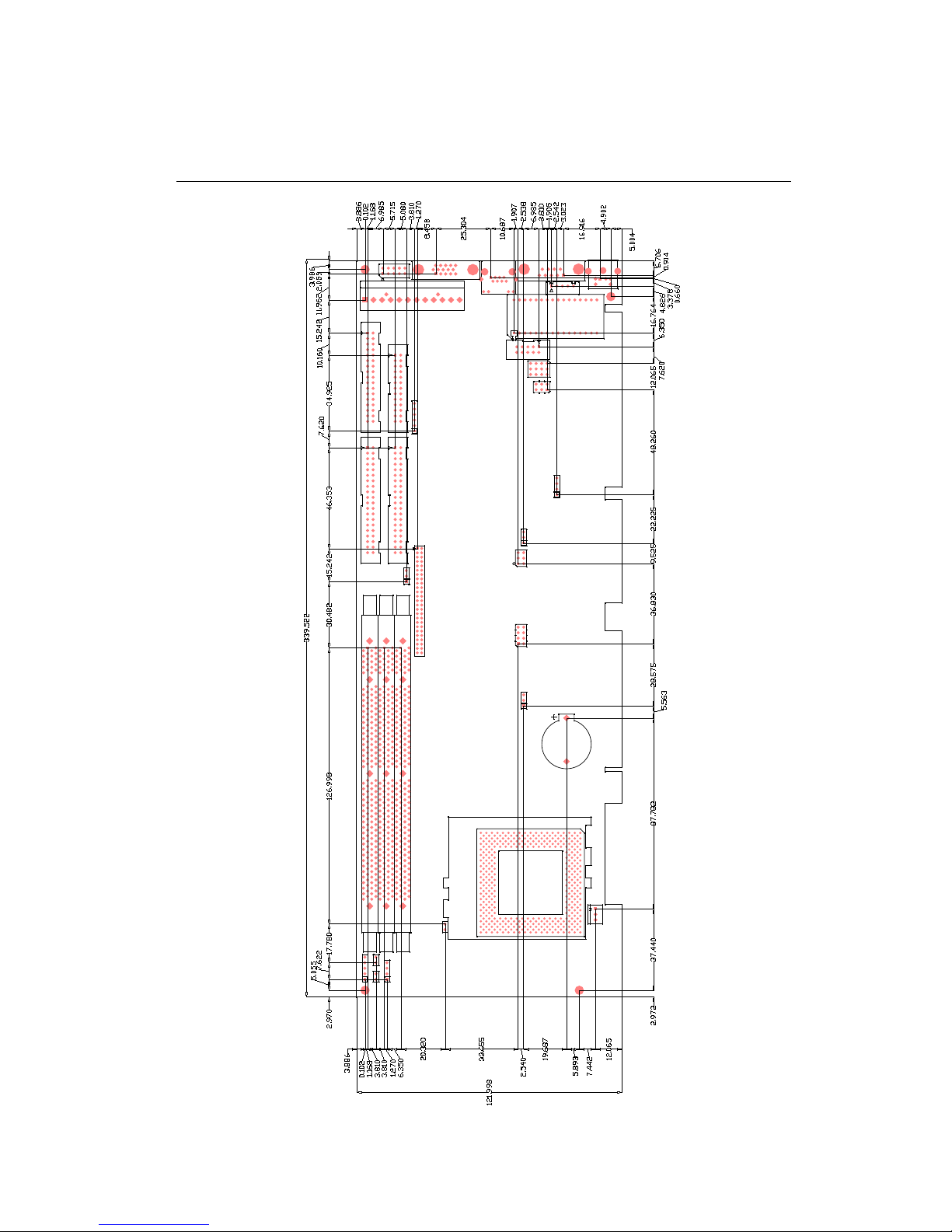

Board dimensions

Chapter 2 Installation 9

2

Installation

This chapter describes how to set up the
main board hardware, including instruc­tions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation proce­dure.

CHAPTER

10 SBC-675 User Manual

Jumpers and connectors

Connectors on the board link it to external devices such as hard
disk drives, a keyboard, or floppy drives. In addition, the board
has a number of jumpers that allow you to configure your system
to suit your application.

The following tables list the function of each of the board's
jumpers and connectors.

Jumpers

Label Function

J1 LCD driving voltage select
J4 CPU frequency ratio select
J5 Clear CMOS
J6 LCD clock signal select
J7 COM2 RS-232/422/485 select
J8 COM2 RS-232/422/485 select
J9 DOC address select

Chapter 2 Installation 11

Connectors

Label Function

CN 1 Power LED and keylock
CN 2 IDE hard drive connector (Primary)
CN 3 Floppy drive connector
CN4 IDE drive LED
CN5 Reset switch
CN 6 USB connector
CN7 External speaker
CN 8 IDE hard drive connector (Secondary)
CN 9 Parallel port connector
CN10 LCD display connector
CN11 IrDA connector
CN12 VGA display connector
CN13 100Base-Tx Ethernet connector
CN14 COM2 RS-232/422/485 serial port

connector
CN15 Internal keyboard connector
CN16 COM1 RS-232 serial port connector
CN17 CPU fan power connector
CN18 Keyboard and PS/2 mouse connector
U15 DiskOnChip socket
PWR1 Power connector

12 SBC-675 User Manual

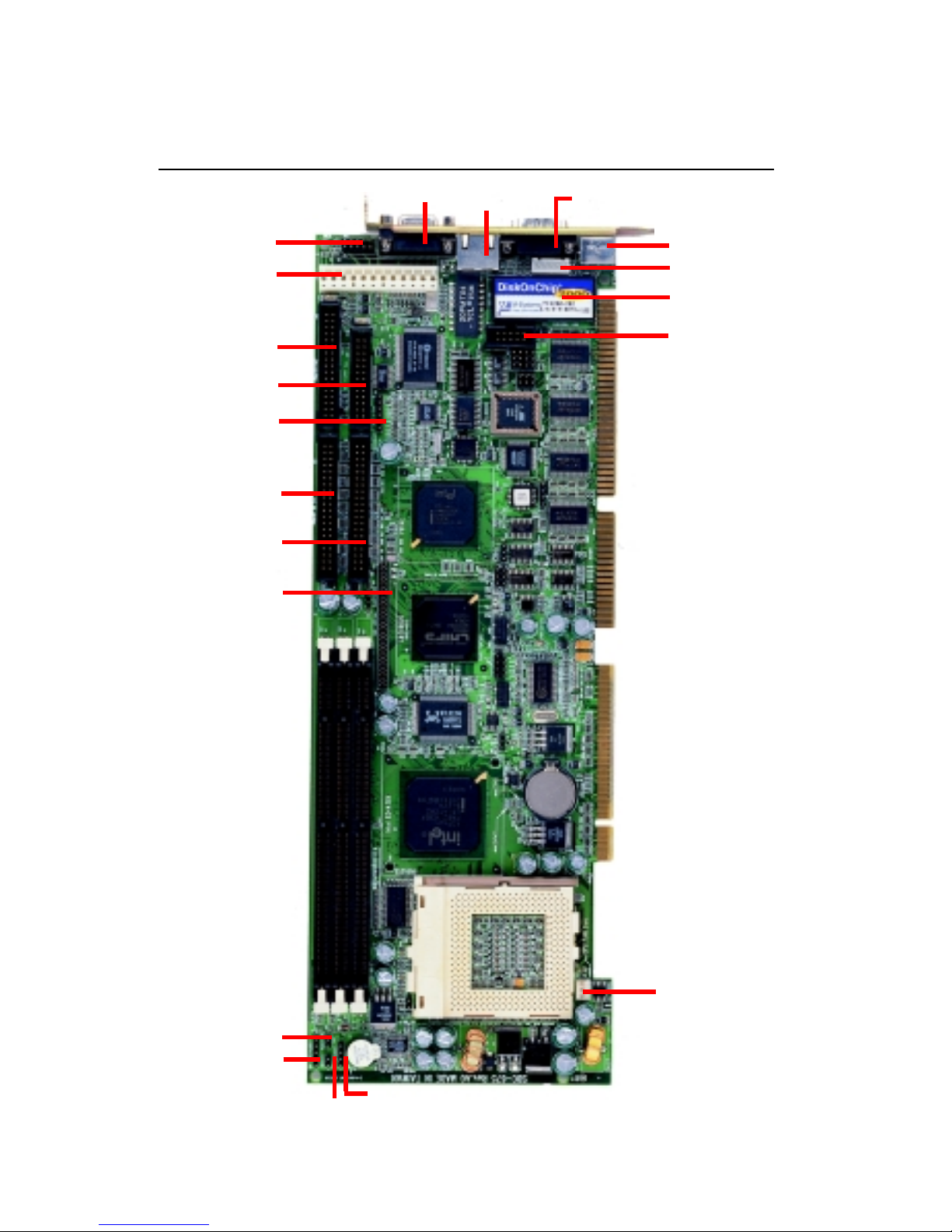

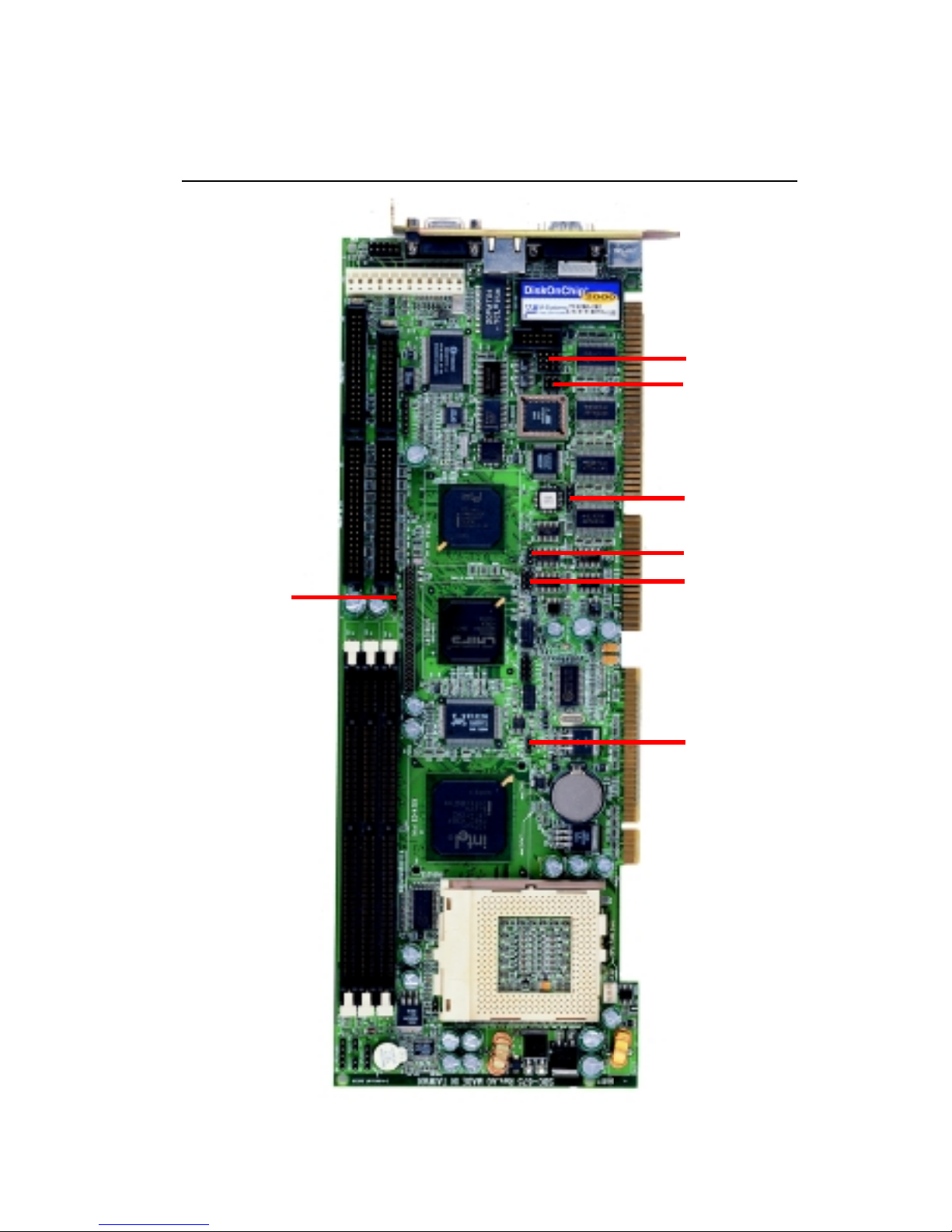

Locating jumpers

J1

J4

J5

J9

J8

J7

J6

Chapter 2 Installation 13

Locating connectors

CN1 1

U15

CN2

CN13

PWR1

CN15

CN18

CN16

CN14

CN9

CN10

CN3

CN6

CN8

CN12

CN1

CN4

CN17

CN5

CN7

14 SBC-675 User Manual

Setting jumpers

You can configure your card to match the needs of your application
by setting jumpers. A jumper is the simplest kind of electric switch.
It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To
“close” a jumper you connect the pins with the clip. To “open” a
jumper you remove the clip. Sometimes a jumper will have three
pins, labeled 1, 2, and 3. In this case you would connect either pins
1 and 2 or 2 and 3.

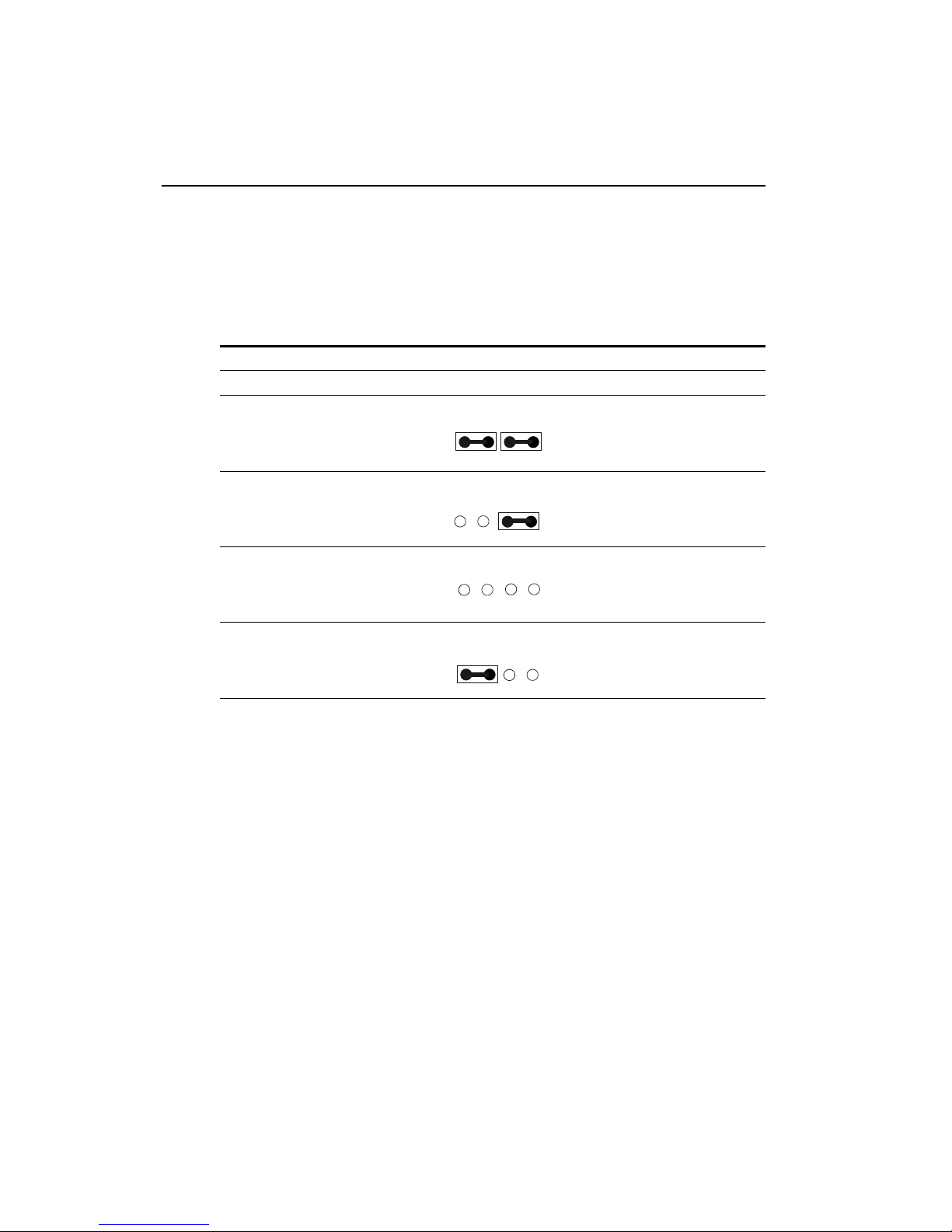

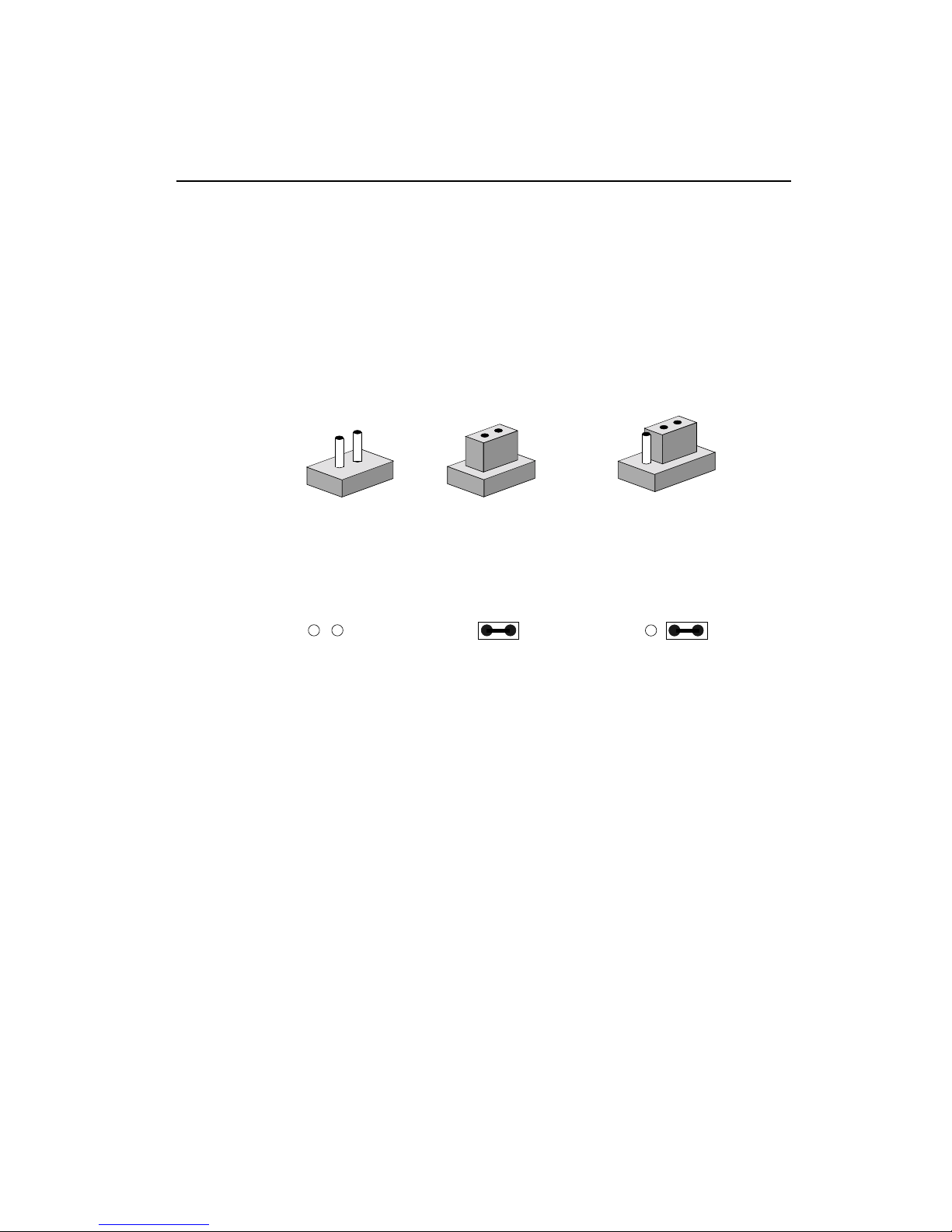

The jumper settings are schematically depicted in this manual as
follows:

A pair of needle-nose pliers may be helpful when working with
jumpers.

If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales representa­tive before you make any changes.

1

3

2

Open Closed Closed 2-3

Open Closed Closed 2-3

1 2 3

Chapter 2 Installation 15

CPU installing and upgrading

Y ou can upgrade to a more powerful Celeron CPU at any time.
Simply remove the old CPU, install the new one, and set the
jumpers for the new CPU speed.

Warning! Always disconnect the power cord from your

chassis when you are working on it. Do not
make connections while the power is on as
sensitive electronic components can be dam­aged by the sudden rush of power. Only experi­enced electronics personnel should open the
system chassis.

Caution! Always ground yourself to remove any static

charge before touching the system board.
Modern electronic devices are very sensitive to
static electric charges. Use a grounding wrist
strap at all times. Place all electronic components
on a static-dissipative surface or in a static­shielded bag when they are not in the chassis.

Instala a CPU in the ZIF socket

SBC-675 Series provides a Zero Insertion Force (ZIP) socket for
easy CPU installation.

1. Make sure the ZIF socket lever is in the upright position. To

raise the lever, pull it out to the side a little and raise it as far as
it will go.

2. Place the CPU in the empty socket. Follow the instructions that

came wth the CPU. If you have no instructions, do the follow­ing: Carefully align the CPU so it is parallel to the socket and
the notch on the corner of the CPU corresponds with the notch
on the inside of the socket. Gently slide the CPU in. It should
insert easily . If it doesn't, pull the lever up a little more.

16 SBC-675 User Manual

3 . Press the lever down. The plate will slide forward. Y ou will feel

some resistance as the pressure starts to secure the CPU in the
socket. This normal and won't damage the CPU.

When the CPU is installed, the lever should snap into place at the
side of the socket.

Note: To remove a CPU, pull the lever out to the side a

little and raise it as far as it will go. Lift out the
CPU chip.

When you install a new CPU, be sure to adjust the board settings,
such as CPU type and CPU clock. Improper settings may damage

the CPU.

Chapter 2 Installation 17

Installing DRAM (DIMMs)

System Memory

The left edge of the SBC-675 contains three sockets for 168-pin
dual inline memory module (DIMM). The socket uses 3.3 V
unbuffered synchronous DRAM (SDRAM). DIMM is available in
capacities of 16, 32, 64, or 128 MB. The socket can be filled in the
DIMM of any size, giving your SBC-675 single board computer
between 16 and 128 MB of memory .

Supplementary information about DIMM

Y our SBC-675 can accept both regular and PC-100 SDRAM DIMM
Module(with or without parity). However, if the Celeron with
100MHz FSB CPU is used. The SBC-675 can only accept PC-100
SDRAM DIMM Module.

Single-sided modules are typically 16 or 64 MB; double-sided
modules are usually 32 or 128 MB.

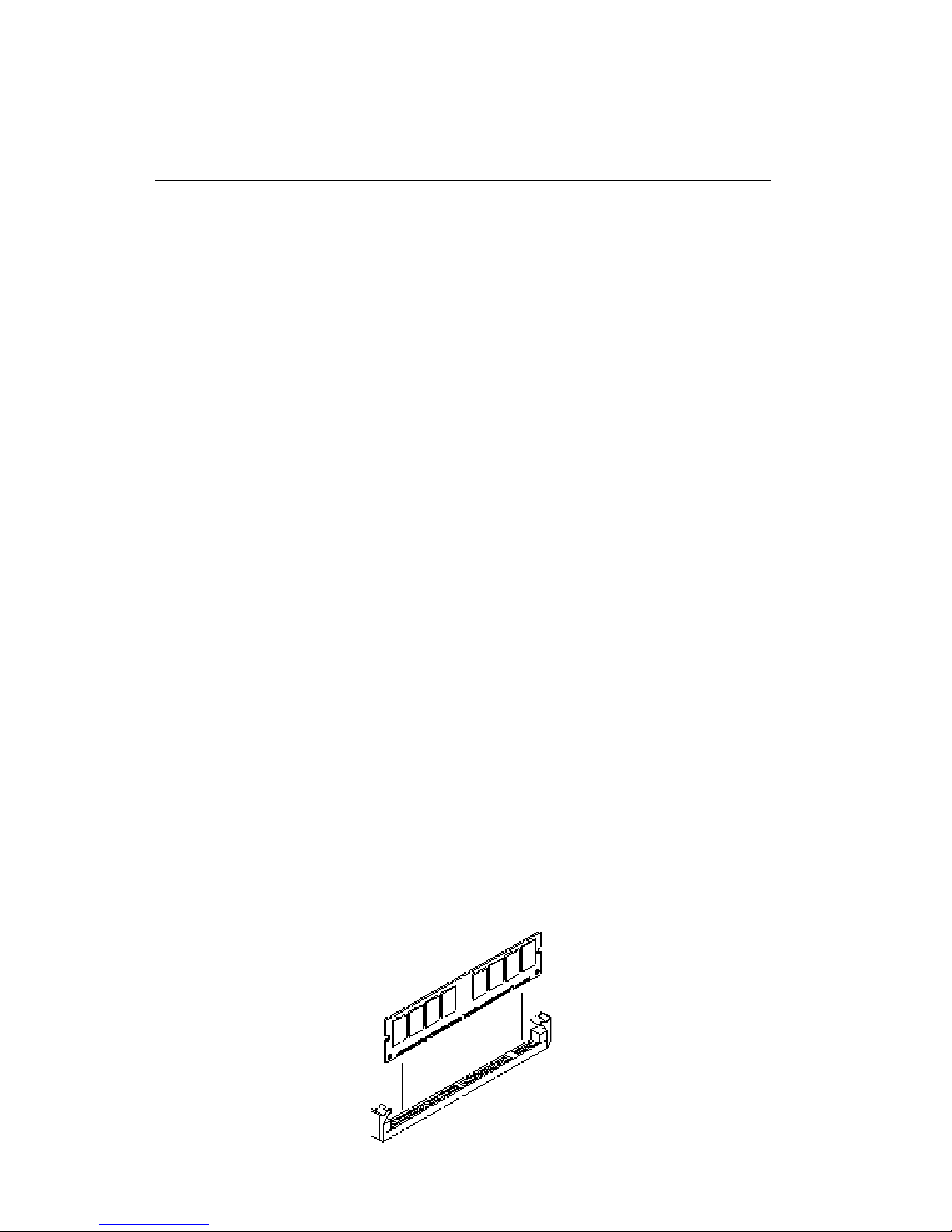

Memory Installation Procedures

T o install DIMM, first make sure the two handles of the DIMM
socket are in the "open" position. i.e. The handles remain outward.
Slowly slide the DIMM module along the plastic guides on both
ends of the socket. Then press the DIMM module right down into
the socket, until you hear a click. This is when the two handles
have automatically locked the memory module into the correct
position of the DIMM socket. (See Figure below) T o take away the
memory module, just push both handles outward, and the memory
module will be ejected by the mechanism in the socket.

18 SBC-675 User Manual

Cache memory

Since the second level cache has been embedded into the Celeron
CPU, you do not have to take care of either SRAM chips or SRAM
modules. The built-in second level cache in the Celeron yields
much higher performance than the external cache memories. The
cache size in the Celeron CPU is either 128 KB.

Chapter 2 Installation 19

J1

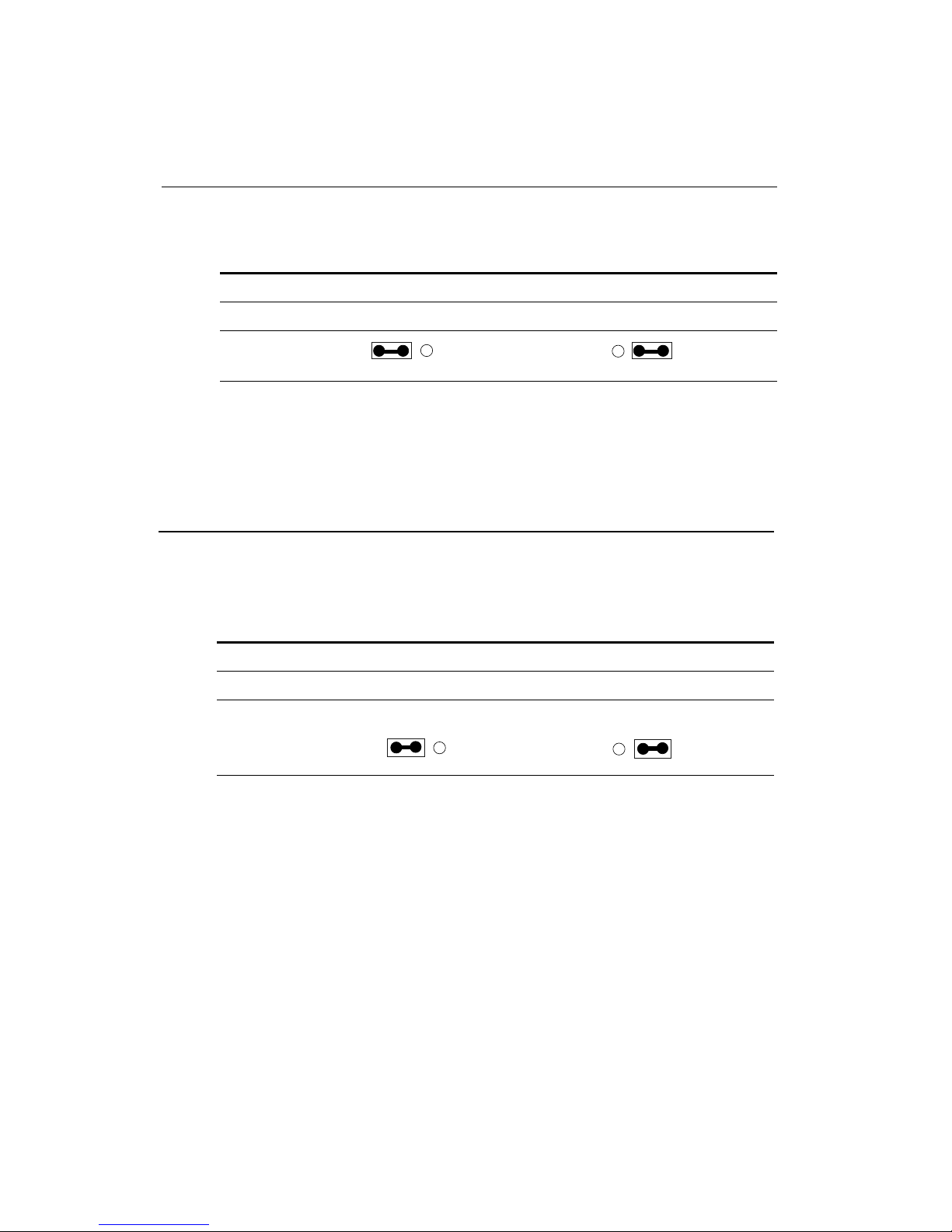

LCD driving voltage select (J1)

You can select the LCD connector CN10 (pin 5 and pin 6) driving
voltage by setting J1. The configurations are as follows:

LCD driving voltage select (J1)

5V 3.3V *

*default

1 2 3

1 2 3

Clear CMOS (J5)

You can use J5 to clear the CMOS data if necessary . To reset the
CMOS data, set J5 to 2-3 closed for just a few seconds, and then
move the jumper back to 1-2 closed.

Clear CMOS (J5)

Protect* Clear CMOS

J5

*default

1 2 3

1 2 3

20 SBC-675 User Manual

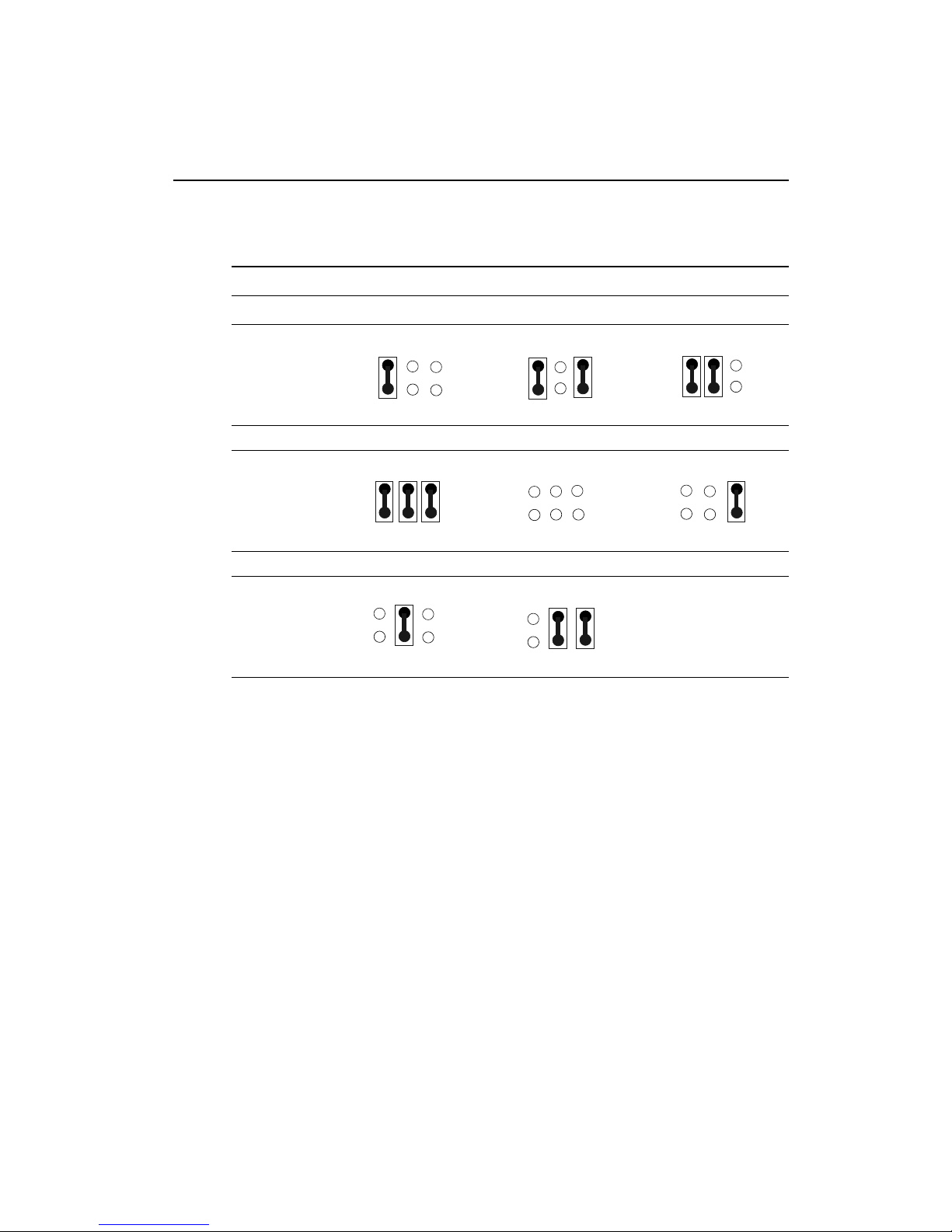

CPU frequency ratio select (J4)

CPU core frequency = CPU frequency ratio (2~5.5) * External bus
clock (66 or 100 MHz)

CPU frequency ratio select (J4)

2x 2.5x 3x

3.5x 4x 4.5x*

5x 5.5x

*default

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

1 3 5

2 4 6

Chapter 2 Installation 21

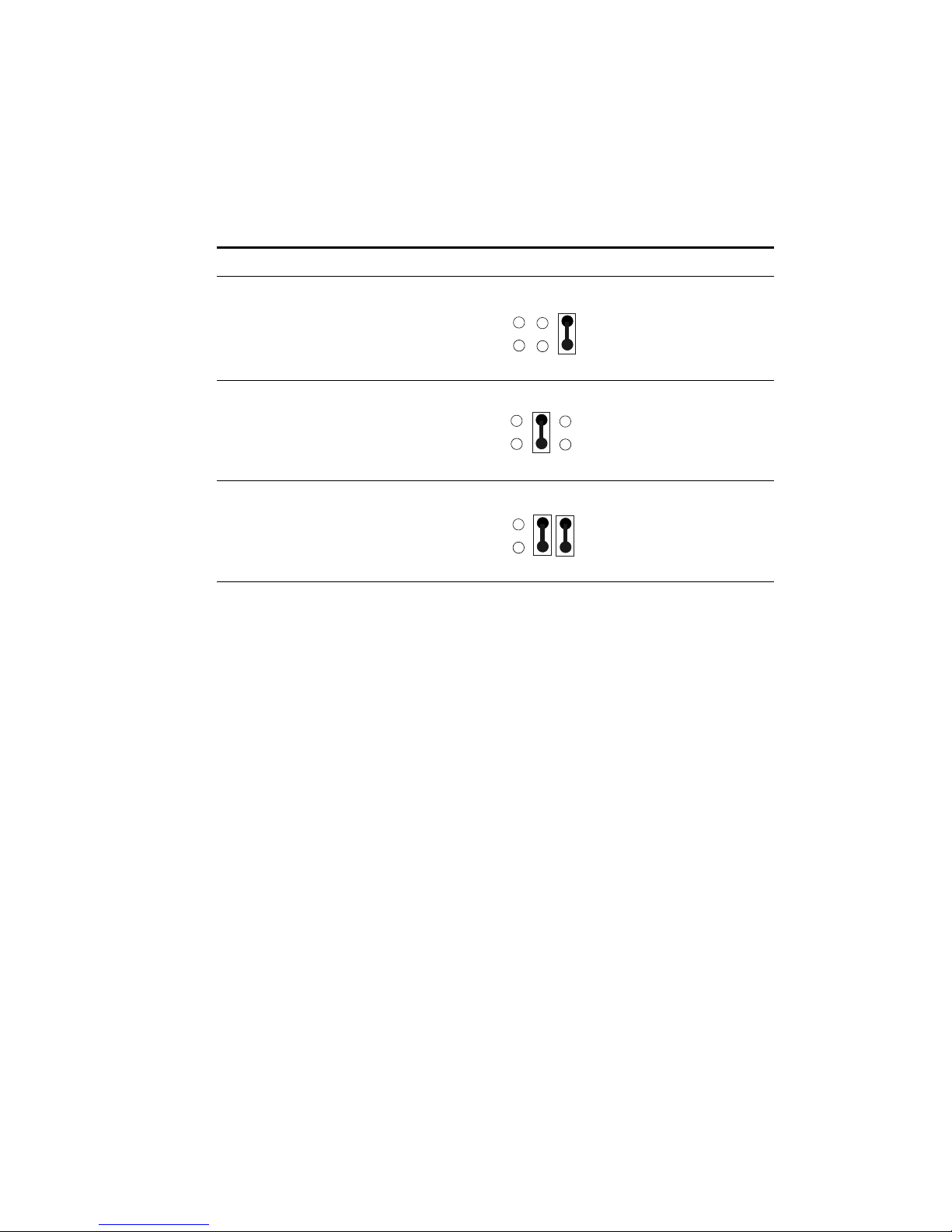

Celeron CPU jumper setting examples

Celeron CPU J4

300MHz

333MHz

366MHz

1 3 5

2 4 6

Note:

Most Celeron CPUs' frequency ratio are pre-locked
within the CPUs. These CPUs run at fixed speed
(frequency) regardless of the configurations listed above.

If the CPU you are using requires higher ratio then 5.5X, it
is most likely pre-locked.

1 3 5

2 4 6

1 3 5

2 4 6

22 SBC-675 User Manual

J6

LCD clock signal select (J6)

You can select the LCD control signal by setting J6. The following
charts show the available option.

LCD clock signal select (J6)

SFCLK-* SHCLK

*default

1 2 3

1 2 3

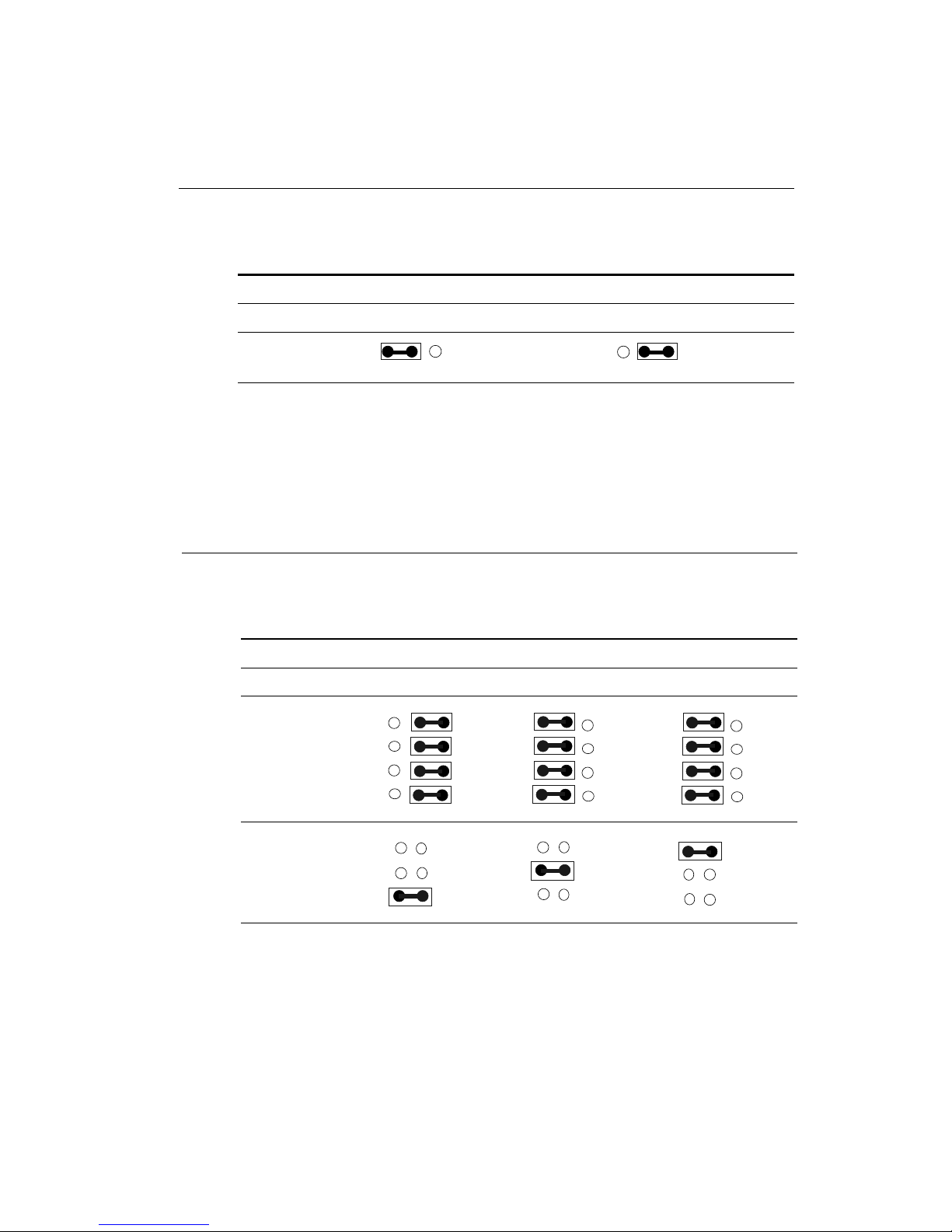

COM2 RS-232/422/485 select (J7, J8)

The SBC-675 COM2 serial port can be selected as RS-232, RS-422,
or RS-485 by setting J7 & J8.

COM2 Select (J7, J8)

RS-232* RS-422 RS-485

J8

J7

*default

12
9
6
3

10
7
4
1

12
9
6
3

10
7
4
1

12
9
6
3

10
7
4
1

5
3
1

6
4
2

5
3
1

6
4
2

5
3
1

6
4
2

Chapter 2 Installation 23

DOC address select (J9)

The DiskOnChip 2000 occupies an 8 Kbyte window in the upper
memory address range of D400 to E000. You should ensure this
does not conflict with any other device's memory address. J9
controls the memory address of the Flash disk.

DiskOnChip 2000 memory address (J9)

Memory address (HEX)

DISABLE

DC00

D400

D800*

* default
These addresses might conflict with the ROM BIOS of other

peripheral boards. Please select the appropriate memory address
to avoid memory conflicts.

1 2 3 4

1 2 3 4

1 2 3 4

1 2 3 4

24 SBC-675 User Manual

Power connectors (PWR1, CN17)

Power connector (PWR1)

The power supply uses 12-pin connector shown below. Make
sure you plug in the right direction.

A T power connector (PWR1)

Pin Signal

1 N.C.
2 +5V
3 +12V
4 -12V
5 GND
6 GND
7 GND
8 GND
9 -5V
10 +5V
11 +5V
12 +5V

CPU fan power connector (CN17)

Plug in the fan cable to the 3-pin fan connector onboard. The fan
connector is marked CN17.

CPU fan power connector (CN17)

Pin Signal

1 Fan speed sense
2 +12V
3 GN D

Chapter 2 Installation 25

Power LED and Keylock (CN1)

You can use an LED to indicate when the CPU card is on. Pin1 of
CN1 supplies the LED’ s power, and Pin3 is the ground.

You can use a switch (or a lock) to disable the keyboard so the PC
will not respond to any input. This is useful if you do not want
anyone to change or stop a running program. Connect the switch
between Pin 4 and 5 of CN1.

Power LED and keylock (CN1)

Pin Function

1 LED power (Vcc)
2 N.C.
3 GND
4 Keyboard lock
5 GND

26 SBC-675 User Manual

IDE hard drive connector (CN2, CN8)

You can attach up to four Enhanced Integrated Device Electronics
hard disk drives to the mainboard's internal controller. The
mainboard's IDE controller uses a PCI local-bus interface. This
advanced interface supports faster data transfer and allows the IDE
hard drive to exceed 528 MB.

Connecting the hard drive

Connecting drives is done in a daisy-chain fashion and requires
one of two cables, depending on the drive size.

Wire number 1 on the cable is normally red or blue, and the other
wires are usually gray .

1. Connect one end of the cable to CN2 or CN8. Make sure that
the red (or blue) wire corresponds to pin 1 on the connector,
which is labeled on the board (on the right side).

2. Plug the other end of the cable to the Enhanced IDE hard drive,
with pin 1 on the cable corresponding to pin 1 on the hard
drives. (see your hard drive's documentation for the location of
the connector).

Connect a second drive as described above.
Unlike floppy drives, IDE hard drives can connect to either end

of the cable. If you install two drives, you will need to set one
as the master and the other one as the slave by using jumpers
on the drives. If you install just one drive, set it as the master .

Chapter 2 Installation 27

IDE hard drive connectors (CN2, CN8)

IDE hard drive connectors (CN2, CN8)

Pin Signal Pin Signal

1 IDE RESET 2 GN D
3DATA 7 4 DATA 8
5DATA 6 6 DATA 9
7DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DA T A 3 12 DAT A 12
13 DA T A 2 14 DAT A 13
15 DA T A 1 16 DAT A 14
17 DA T A 0 18 DAT A 15
19 SIGNAL GND 20 N/C
21 N/C 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 IO CHANNEL READY 28 ALE
29 N/C 30 GND
31 IRQ14 32 I OCS16
33 ADDR 1 34 N /C
35 ADDR 0 36 ADDR 2
37 HARD DISK SELECT 0 38 HARD DISK SELECT 1
39 IDE ACTIVE 40 MGND

28 SBC-675 User Manual

Floppy drive connector (CN3)

You can attach up to two floppy drives to the mainboard control­ler. You can use any combination of 5¼" (360 KB and 1.2 MB)
and/or 3½" (720 KB, 1.44 MB, and 2.88 MB) drives.

A 34-pin daisy-chain drive connector cable is required for a dual­drive system. On one end of the cable is a 34-pin flat-cable
connector. On the other end are two sets of floppy disk drive
connectors. Each set consists of a 34-pin flat-cable connector
(usually used for 3½" drives) and a printed-circuit board connec­tor (usually used for 5¼" drives).

Wire number 1 on the cable is normally red or blue, and the other
wires are usually gray.

Connecting the floppy drive

1 . Plug the 34-pin flat-cable connector into CN3. Make sure that

the red or blue wire corresponds to pin 1 on the connector.

2. Attach the appropriate connector on the other end of the cable
to the floppy drive(s). You can use only one connector in the
set. The set on the end (after the twist in the cable) connects to
the A: drive. The set in the middle connects to the B: drive.

3. If you are connecting a 5¼" floppy drive, line up the slot in the
printed circuit board with the blocked-off part of the cable
connector.

If you are connecting a 3½" floppy drive, you may have trouble
determining which pin is pin number 1. Look for a number
printed on the circuit board indicating pin number 1. Also,

the connector on the floppy drive connector may have a slot.

When the slot is up, pin number 1 should be on the right.

Check the documentation that came with the drive for more

information.

If you desire, connect the B: drive to the connectors in the
middle of the cable as described above.

Chapter 2 Installation 29

Floppy drive connector (CN3)

Floppy drive connector (CN3)

Pin Signal Pin Signal

1 GND 2 DENSITY SELECT
3 GND 4 N/C
5 GND 6 DRIVE TYPE
7 GND 8 IND E X
9 GND 10 MOTOR 0
1 1 GN D 12 DRIVE SELECT 1
13 GND 14 DRIVE SELECT 2
15 GN D 16 MOTOR 1
17 GND 18 DIRECTION
19 GND 20 STEP
21 GN D 22 WRITE DA T A
23 GND 24 WRITE GATE
25 GND 26 TRACK 0
27 GND 28 WRITE PROTECT
29 GND 30 READ DATA
31 GND 32 HEAD DELECT
33 GND 34 DISK CHANGE

30 SBC-675 User Manual

Hard drive LED (CN4)

You can connect an LED to CN4 to indicate when the HDD is
active.

Hard drive LED (CN4)

Pin Function

1 HD-LED+
2 HD-LED-

Reset switch (CN5)

You can connect an external switch to easily reset your computer.
This switch restarts your computer as if you had turned off the
power, then turned it back on.

USB connector (CN6)

The SBC-675 provides two USB (Universal Serial Bus) interfaces,
which give complete plug and play , hot attach/detach for up to 127
external devices. The USB interfaces comply with USB specifica­tion Rev . 1.0, and can be disabled in the system BIOS setup.

USB connector (CN6)

Pin Function Pin Function

1 Vcc 6 Vcc
2 USBDO- 7 USBD1­3 USBDO+ 8 USBD1+
4 GND 9 GND
5 GN D 1 0 N.C.

Chapter 2 Installation 31

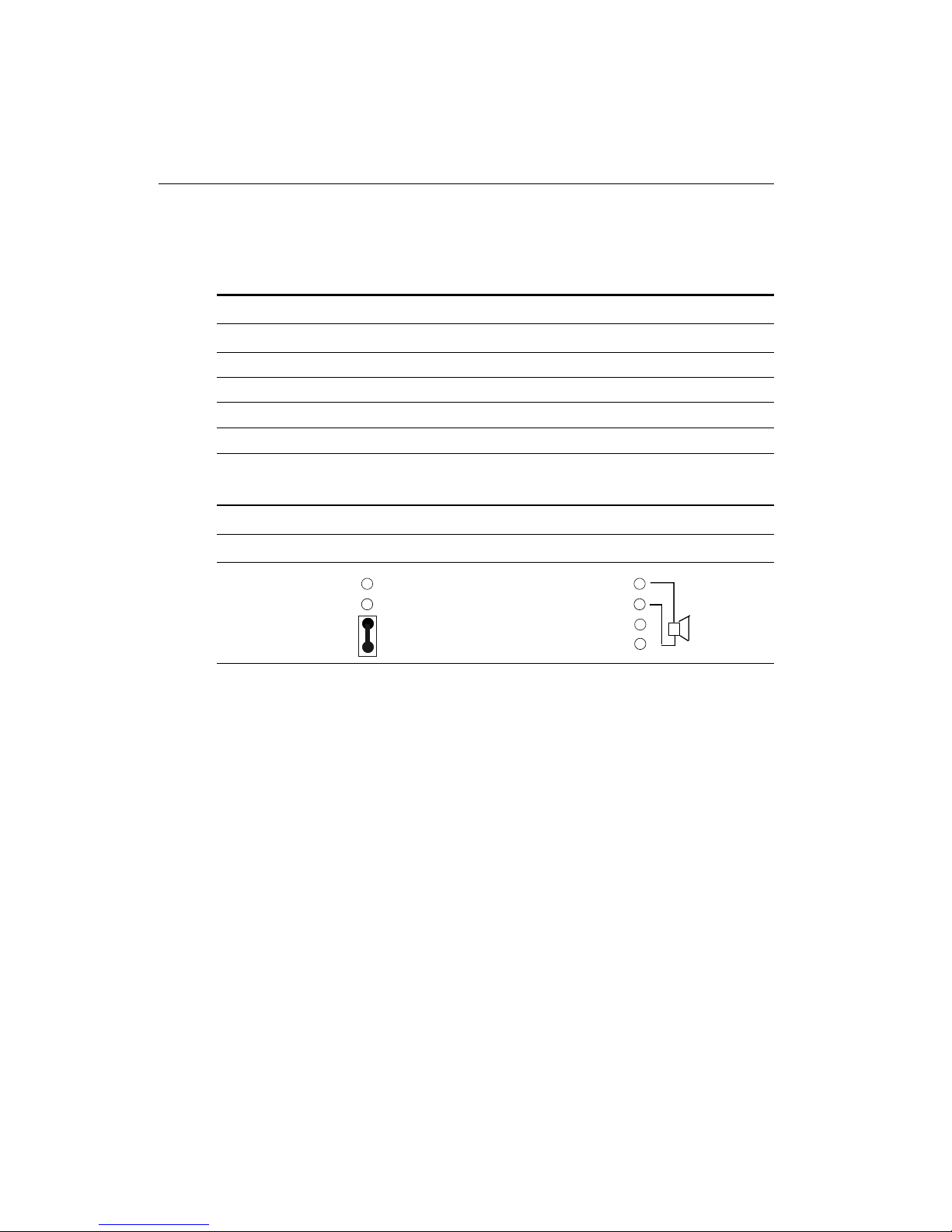

External speaker (CN7)

The CPU card has its own buzzer. You can also connect to the
external speaker on your computer chassis. Pin assignments for
CN7 are shown below:

External speaker (CN7)

Pin Function

1 Vcc (For external speaker use)
2 Speaker- (For external speaker use)
3 Internal Buzzer *
4 Speaker- *

* default

External speaker (CN7)

Internal Buzzer External Speaker

1
2
3
4

1
2
3
4

32 SBC-675 User Manual

Parallel port connector (CN9)

Normally, the parallel port is used to connect the board to a
printer. The mainboard includes an onboard parallel port, accessed
through CN9, a 26-pin flat-cable connector . You need an adapter
cable if you use a traditional DB-25 connector . The cable has a 26­pin connector on one end and a DB-25 connector on the other.

Parallel port IRQ

The mainbaord supports one parallel port. The port is designated
as LPT1 and can be disabled or changed to LPT2 or LPT3 in the
system BIOS setup.

Parallel port connector table (CN9)

Parallel port connector (CN9)

Pin Signal Pin Signal

1 /STROBE 2 \AUTOFD
3 DO 4 ERR
5 D1 6 \INIT
7 D2 8 \SLCTINI
9 D3 10 GND
11 D4 12 GND
13 D5 14 GND
15 D6 16 GND
17 D7 18 GND
19 \ACK 20 GND
21 BUST 22 GND
23 PE 24 GND
25 SLCT 26 N/C

Chapter 2 Installation 33

IrDA connector (CN11)

The IrDA connector (CN11) can be configured to support wireless
infrared module, with this module and application software such
as laplink or Win95 Direct Cable connection, user can transfer files
to or from laptops, notebooks, PDA, and printers. This connector
supports HPSIR (115.2Kbps, 2 meters), ASK-IR (56Kbps) and Fast
IR (4Mbps, 2 meters).

Install infrared module onto IrDA connector and enable infrared
function from BIOS setup. Make sure to have correct orentation
when you plug onto IrDA connector (CN11).

IrDA connector (CN11)

Pin Signal

1 Vcc
2 FIrRx
3 IrRx
4 GND
5 IrTx
6 CIrRx

34 SBC-675 User Manual

Display connectors (CN12, CN10)

The mainboard's PCI SVGA interface can drive conventional CR T
displays and is capable of driving a wide range of flat panel
displays, including electroluminescent (EL), gas plasma, passive
LCD, and active LCD displays. The board has two connectors to
support these displays, one for standard CRT VGA monitors and
one for flat panel displays.

VGA display connector (CN12)

VGA display connector (CN12)

Pin Signal

1 Red video
2 Green video
3 Blue video
4 Not used
5 GND
6 Red return (GND)
7 Green return (GND)
8 Blue return (GND)
9 Key (on pin)
10 Sync return (GND)
11 Monitor ID (not used)
12 Monitor ID
13 Horizontal sync
14 Vertical sync
15 Not used

Chapter 2 Installation 35

LCD display connector (CN10)

CN10 is a 50-pin, dual-in-line header used for flat panel displays.
When the mainboard's power is applied, the control signal is low

until just after the relevant flat panel signals are present.
Configuration of the VGA interface is done completely via the

software utility . You do not have to set any jumpers.

LCD display connector (CN10)

Pin Signal Pin Signal

1 +12 V

DC

2 +12 V

DC

3 GND 4 GND
5 +5 V

DC

6 +5 V

DC

7 ENAVEE 8 GND
9P0 10 P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 P24 34 P25
35 SHF CLK 36 FLM (V SYS)
37 M 38 LP (H SYS)
39 GND 40 ENABKL
41 P26 42 P27
43 P28 44 P29
45 P30 46 P31
47 P32 48 P33
49 P34 50 P35

36 SBC-675 User Manual

100Base-Tx Ethernet connector
(CN13)

This 100Base-Tx Ethernet connector CN13 is a standard RJ-45
connector.

The onboard Realtek R TL8139B fast Ethernet controller supports
10Mb/s and 100 Mb/s N-way auto-negotiation operation.

Serial ports (CN16, CN14)

The SBC-675 offers two serial ports, one RS-232 (CN16) and one
RS-232/422/485 (CN14). These ports allow you to connect them to
serial devices (mouse, printers, etc.).

COM2 RS-232/422/485 serial ports (CN14)

COM2 RS-232/422/485 serial port (CN14)

PIN SIGNAL PIN SIGNAL
COM2 1 DCDB 6 DSRB

(422TXD-/485DATA-)
2 422RXD+ 7 RTSB
3 422TXD+/485DATA+ 8 CTSB
4 DTRB 9 RIB

(422RXD-)

5 GND 10 N.C.

Chapter 2 Installation 37

Keyboard and PS/2 mouse connector
(CN18, CN15)

The mainboard provides a keyboard connector which supports
both a keyboard and a PS/2 style mouse. In most cases, especially
in embedded applications, a keyboard is not used. The standard
PC/AT BIOS will report an error or fail during power-on-self-test
(POST) after a reset if the keyboard is not present. The main­board BIOS Advanced setup menu allows you to select "Present"
or "Absent" under the "System Keyboard" section. This allows
no-keyboard operation in embedded system applications without
the system halting under POST (power-on-self-test).

Keyboard and PS/2 mouse connector (CN18)

Pin Signal

1 KB DAT A
2 MS DA T A
3 GND
4 Vcc
5 KB CLOCK
6 MS CLOCK

Internal keyboard connector (CN15)

Pin Signal

1 KB CLOCK
2 KB DAT A
3 N.C.
4 GND
5 Vcc

38 SBC-675 User Manual

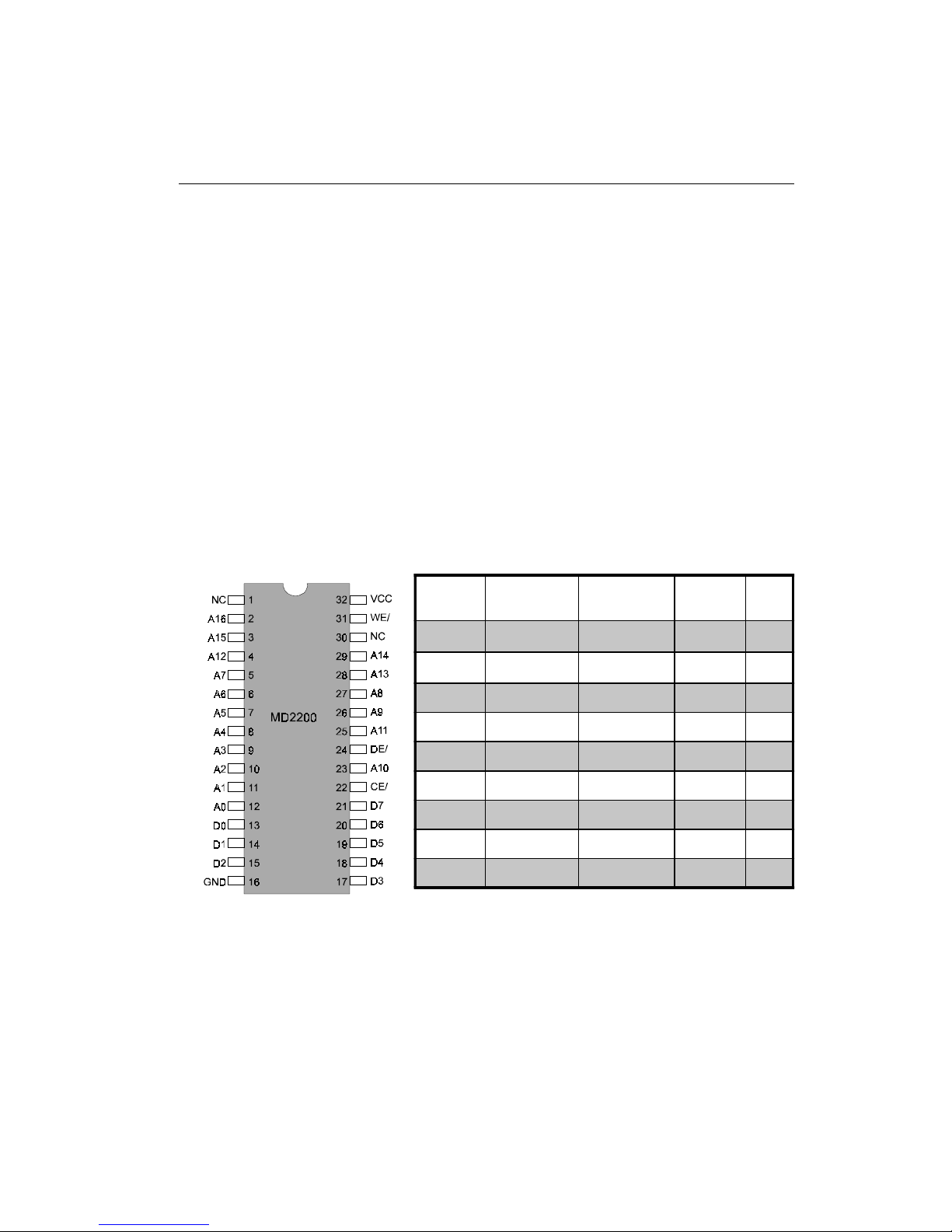

DiskOnChip socket (U15)

The DiskOnChip 2000 family of products provides a single chip
solid-state flash disk in a standard 32-pin DIP package. The
DiskOnChip 2000 is a solid-state disk with no moving parts,
resulting in a significant reduction in power consumption and an
increase in reliability . The DiskOnChip is a small plug and play
Flash disk. It is easy to use. And it saves integration overhead.

The DiskOnChip 2000 family of products is available in capacities
ranging from 2MB up to 144MB, unformatted. In order to manage
the disk, the DiskOnChip 2000 includes the TrueFFS, M-Systems
Flash File System proprietary software. The DiskOnChip 2000
package is pin-to-pin compatible with a standard 32-pin EPROM
device.

Note 1: Pins A13 through A16 are not used
by the MD2200. They are kept for socket
backward compatibility with ED 1100
(DiskOnChip 1000)

Note 2: Pins 1 and 30 are not used by
MD2200

pin
Name

Descr iption Pin Number Direction Note

A0-A12 Address bus 4-12,23,25-27 Inputs

A13-A16 Address bus 2,3,28,29 Inputs 1

D0-D7 Data bus 13- 15,17-21 I/O

CE/ C hip Enable 22 Input

OE/ Output Enable 24 Input

WE/ Write Enable 31 Input

NC Not connected 1.30 2

VCC Power 32

GND Ground 16

OE /

Chapter 2 Installation 39

DiskOnChip (DOC) 2000 Installation

When the DOC is installed correctly , a DOC will work like an HDD
or an FDD. T o install the DOC on the mainboard, follow the
instructions below:

1 . Plug the DOC into the socket. Make sure pin 1 of the DOC is

aligned with pin 1 of the socket.

2. Push the DOC into the socket until it is firmly seated in the
socket.

Caution: the DOC may be permanently damage if it is installed
incorrectly.

3. Set the jumper for the memory address of the DOC.

Note:
The memory shadow function sometimes will create conflicts with

the memory window . Y ou should disable the memory shadow from
the BIOS SETUP if the DOC cannot be accessed.

Configure DOC as a boot device

To configure a DOC as a boot drive, you should copy the operating
system files onto the DOC. The following procedure is an example
of the initialization process.

1 . Install a DOC into your system.

2. Insert a bootable floppy disk in drive A: and boot the system.
3 . At the DOS prompt, type SYS C: to transfer the DOS system

files to the DOC (assuming the DiskOnChip is installed as drive
C:). Reboot the system.

4 . Go to the BIOS Setup Utility by hitting the <DEL> key . Set the

type of Primary Master or C: Drive as Not Installed.

5 . Remove the floppy disk from the drive A: and leave the BIOS

Setup Utility . The system should boot from the DOC.

40 SBC-675 User Manual

Chapter 3 Award BIOS Setup 41

3

Award BIOS Setup

This chapter describes how to configure
the BIOS for the system.

CHAPTER

42 SBC-675 User Manual

Starting setup

The A ward BIOS is immediately activated when you first turn on
the computer. The BIOS reads system configuration information in
CMOS RAM and begins the process of checking out the system
and configuring it through the power-on self test (POST).

When these preliminaries are finished, the BIOS seeks an operating
system on one of the data storage devices (hard drive, floppy
drive, etc.). The BIOS launches the operating system and hands
control of system operations to it.

During POST , you can start the Setup program in one of two ways:

1.By pressing Del immediately after switching the system on, or

2.By pressing Del or pressing Ctrl-Alt-Esc when the following
message appears briefly at the bottom of the screen during POST:

TO ENTER SETUP BEFORE BOOT PRESS DEL KEY

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then
ON or pressing the RESET button on the system case. You may
also restart by simultaneously pressing Ctr-Alt-Del. If you do not
press the keys at the correct time and the system does not boot, an
error message appears and you are again asked to

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

Chapter 3 Award BIOS Setup 43

Setup keys

These keys helps you navigate in Setup:

Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item in the left hand
Right arrow Move to the item in the right hand
Es c Main Menu: Quit and not save changes into

CMOS RAM

Other pages: Exit current page and return to

Main Menu
PgDn/+ Increase the numeric value or make

changes

PgDn/- Decrease the numeric value or make

changes

F1 General help, only for Status Page Setup

Menu and Option Page Setup Menu

F2 Change color from total 16 colors. F2 to

select color forward, Shift-F2 to select color

backward
F3 Calendar, only for Status Page Setup Menu
F4 Reserved
F5 Restore the previous CMOS value from

CMOS, only for Option Page Setup Menu
F6 Load the default CMOS RAM value from

BIOS default table, only for Option Page

Setup Menu
F7 Load the default
F8 Reserved
F9 Reserved
F10 Save all the CMOS changes, only for Main

Menu

44 SBC-675 User Manual

Getting help

Press F1 to pop up a small help window that describes the
appropriate keys to use and the possible selections for the
highlighted item. To exit the Help Window press Esc or the F1
key again.

In Case of Problems

If, after making and saving system changes with Setup, you
discover that your computer no longer is able to boot, the Award-
BIOS supports an override to the CMOS settings that resets your
system to its default configuration.

You can invoke this override by immediately pressing Insert; when
you restart your computer. You can restart by either using the ON/
OFF switch, the RESET button or by pressing Ctrl-Alt-Delete.

The best advice is to alter only settings that you thoroughly
understand. In particular, do not change settings in the Chipset
screen without a good reason. The Chipset defaults have been
carefully chosen by Award Software or your system manufacturer
for the best performance and reliability . Even a seemingly small
change to the Chipset setup may causing the system to become
unstable.

Chapter 3 Award BIOS Setup 45

Main setup Menu

Standard CMOS Options in the original PC AT-compatible

BIOS.

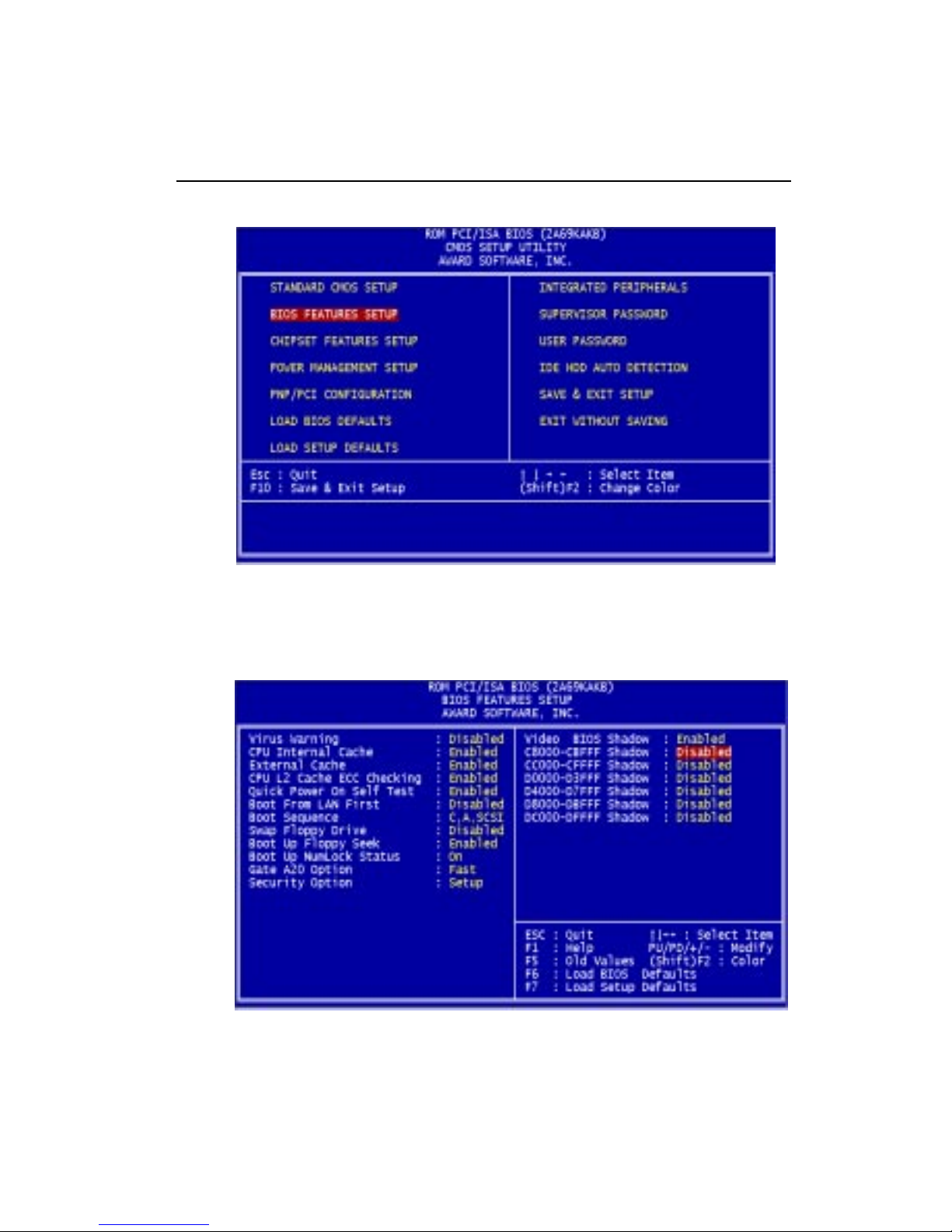

BIOS Features Award Software enhanced BIOS options.

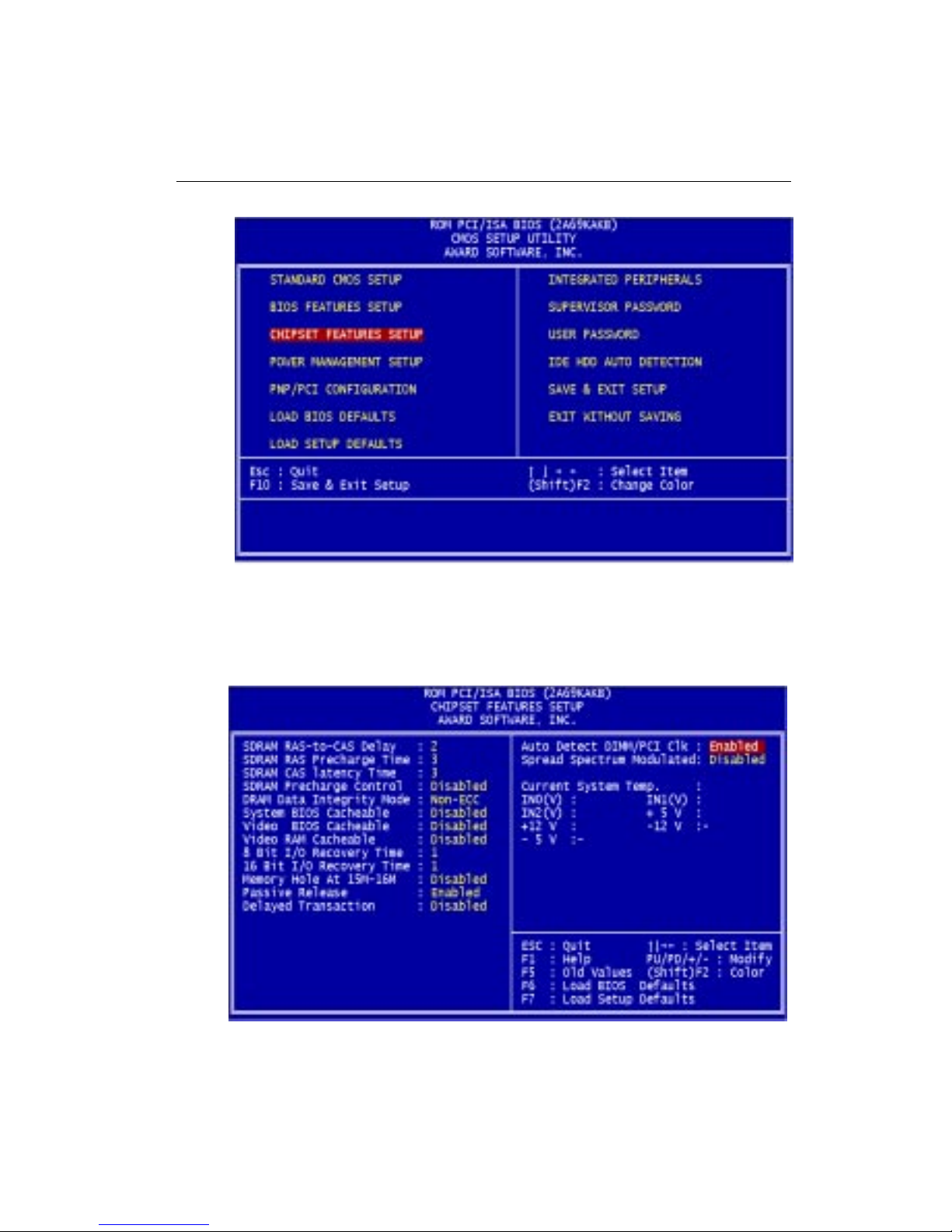

Chipset Features Options specific to your system chipset.

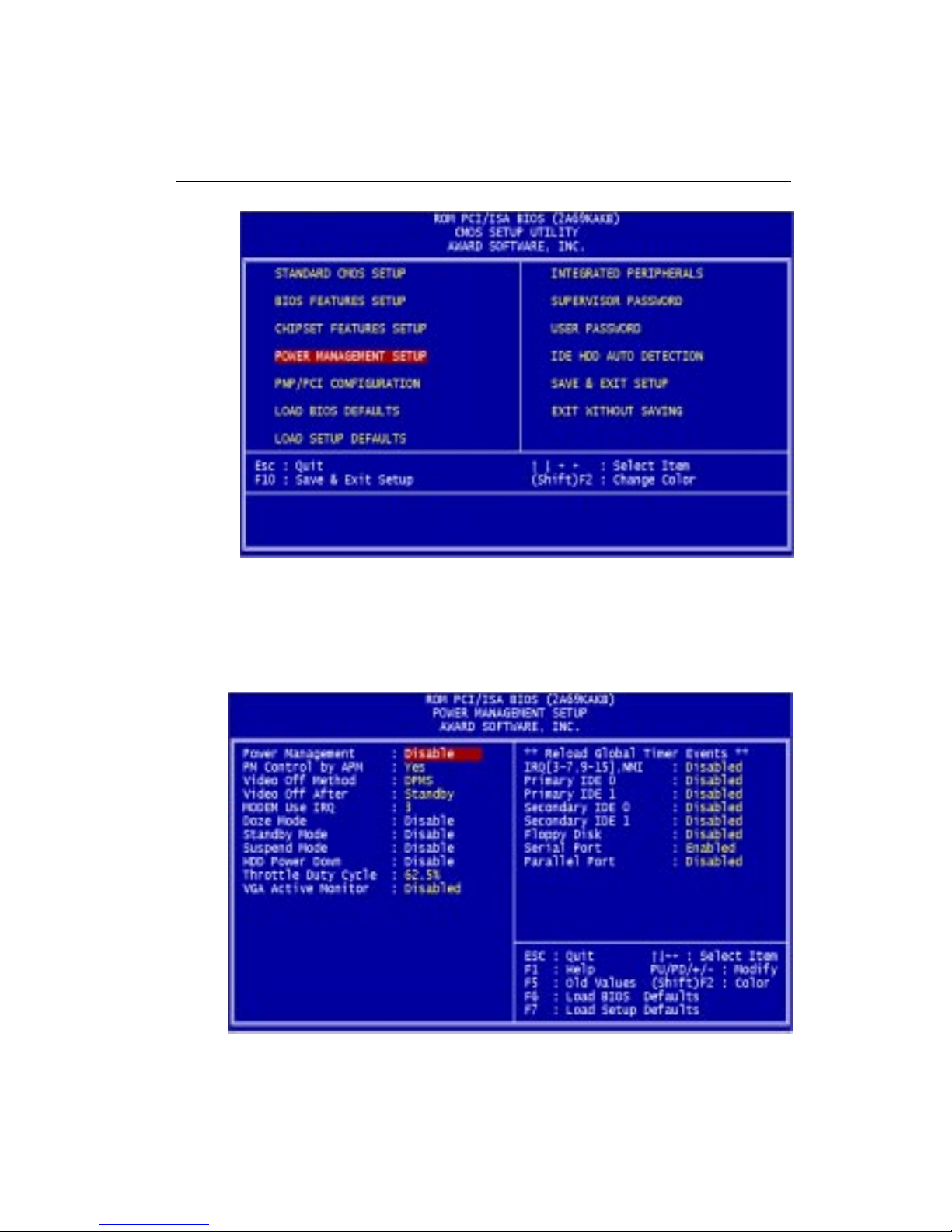

Power Advanced Power Management (APM)

Management options.

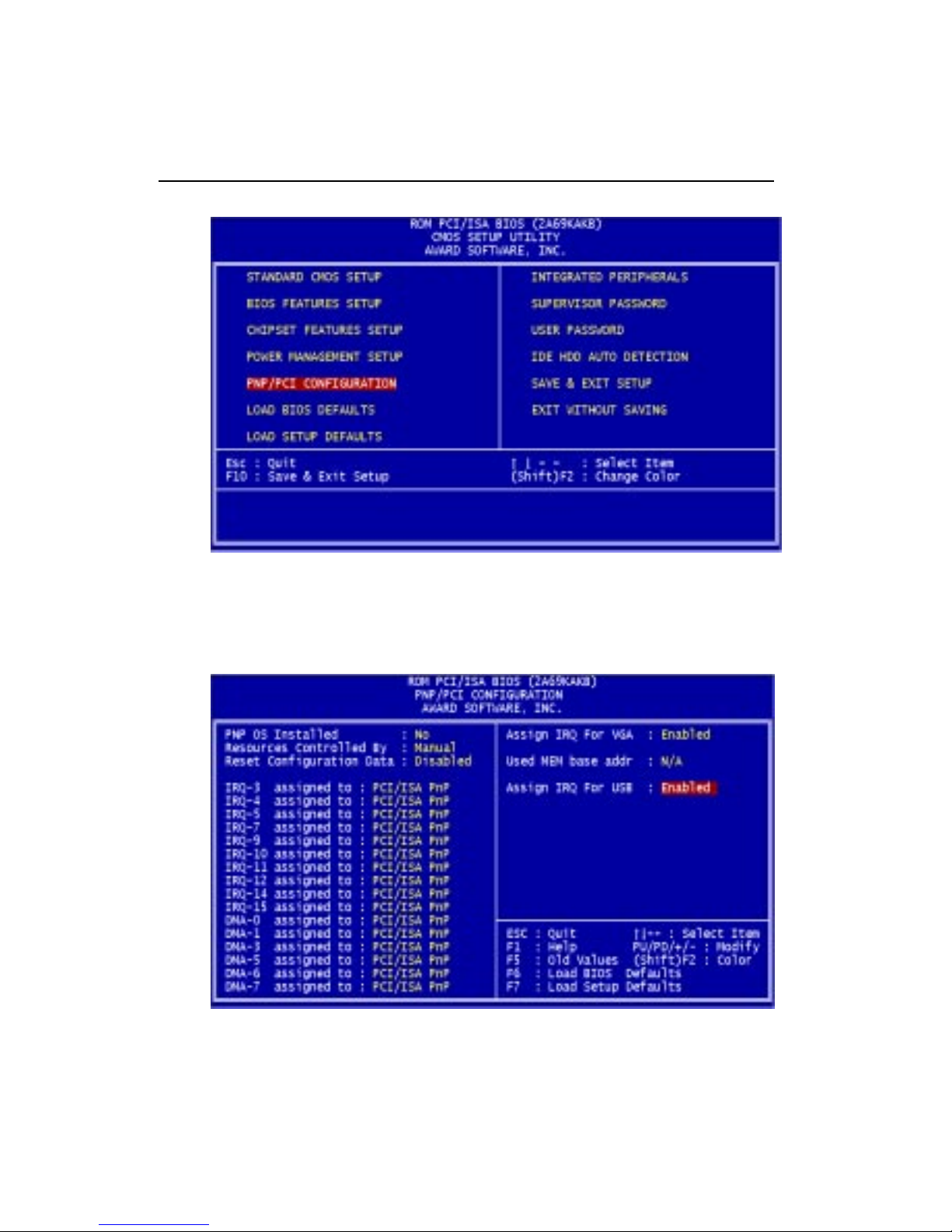

PnP/PCI Plug and Play standard and PCI Local Bus

Configuration configuration options.

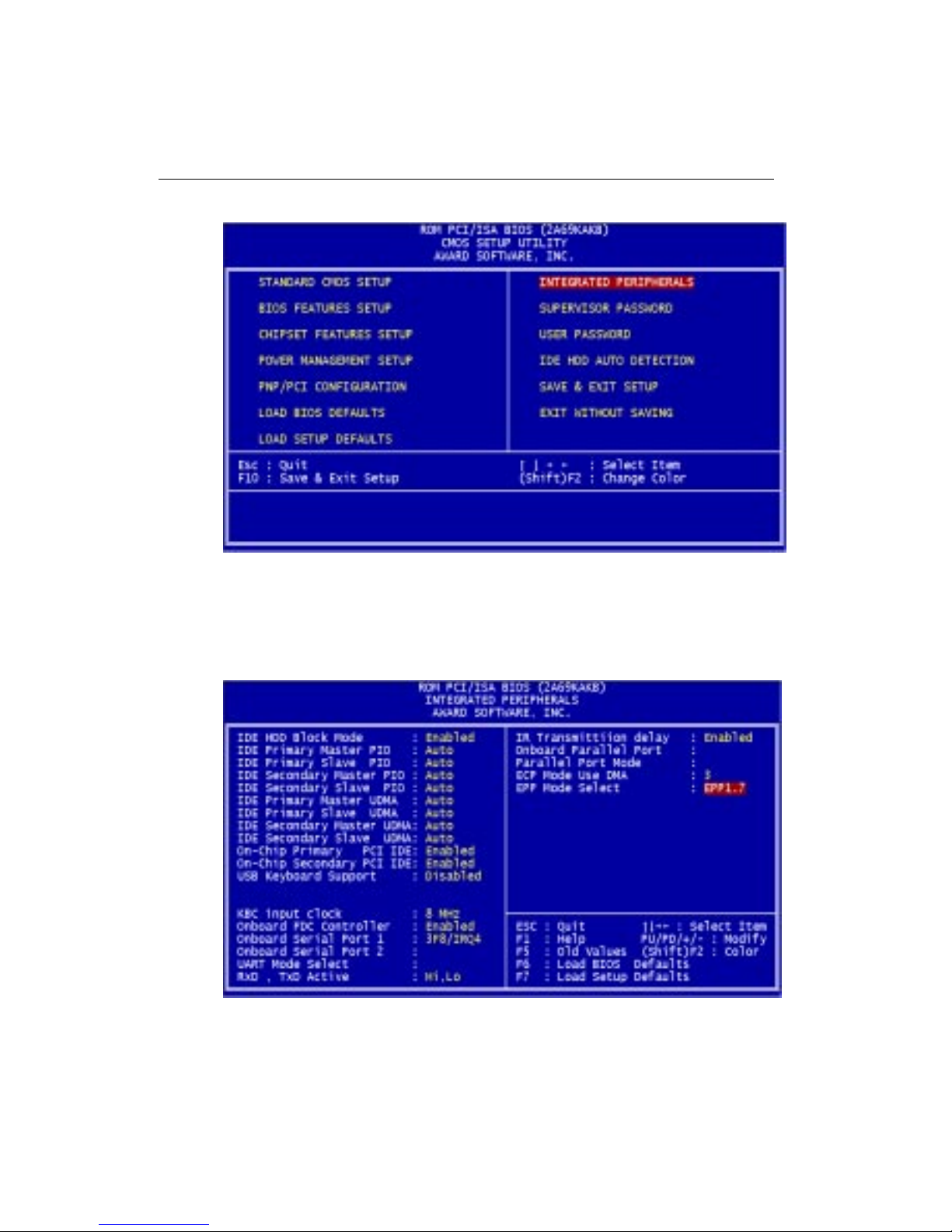

Integrated I/O subsystems that depend on the inte-

Peripherals grated peripherals controller in your

system.

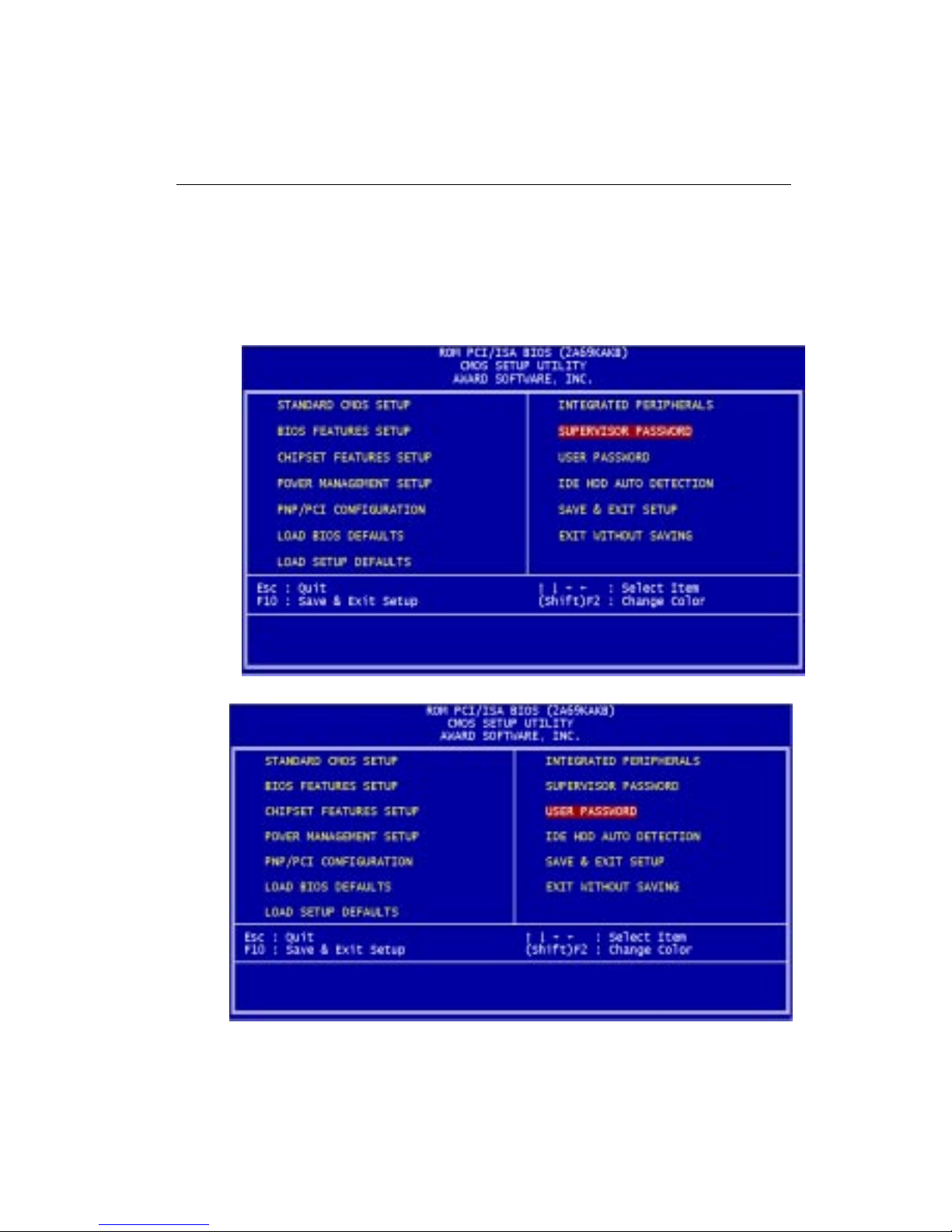

Supervisor/User Change, set, or disable a password. In

Password Setting BIOS versions that allow separate user and

supervisor passwords, only the supervisor

password permits access to Setup. The

user password generally allows only

power-on access.

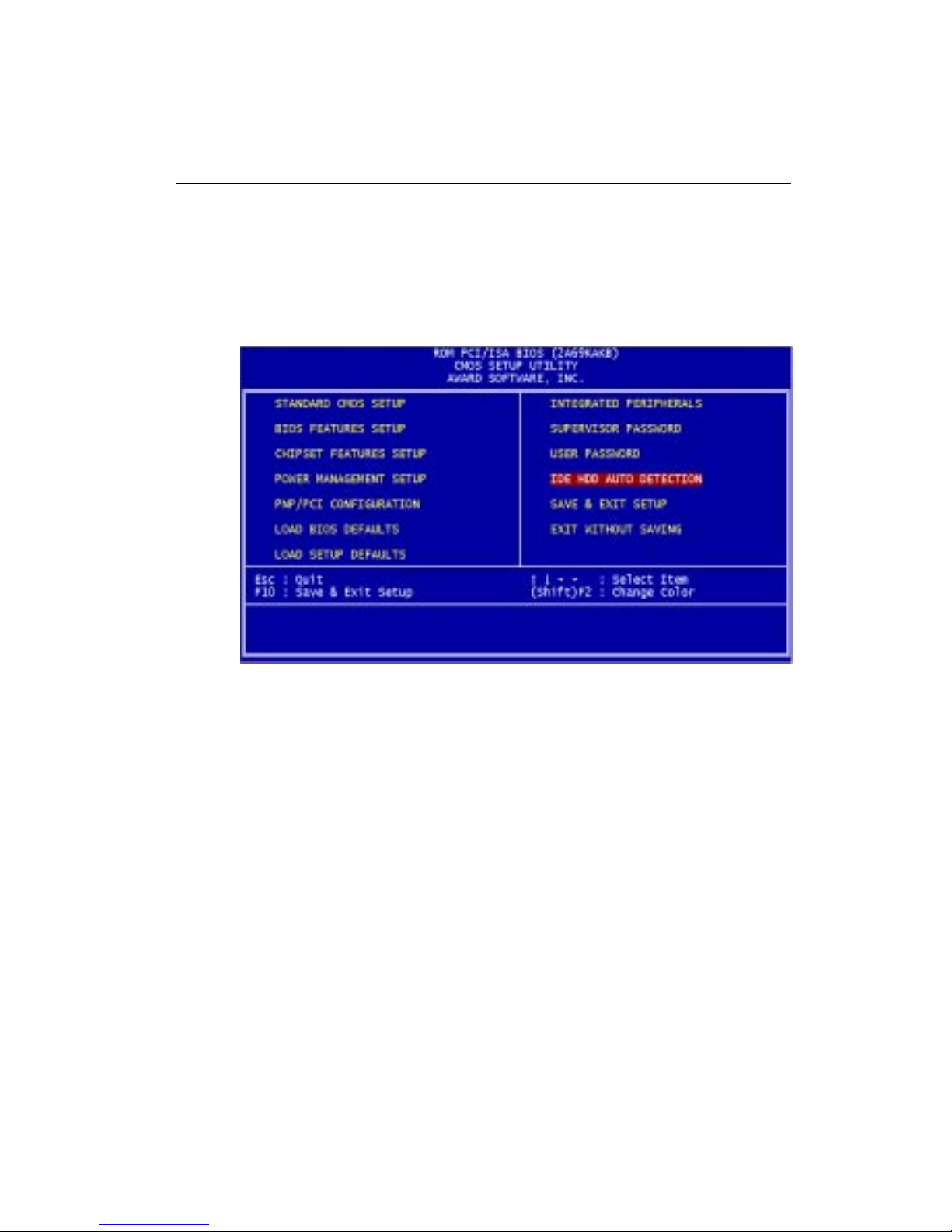

IDE HDD Auto Automatically detect and configure IDE hard

Detection disk parameters.

46 SBC-675 User Manual

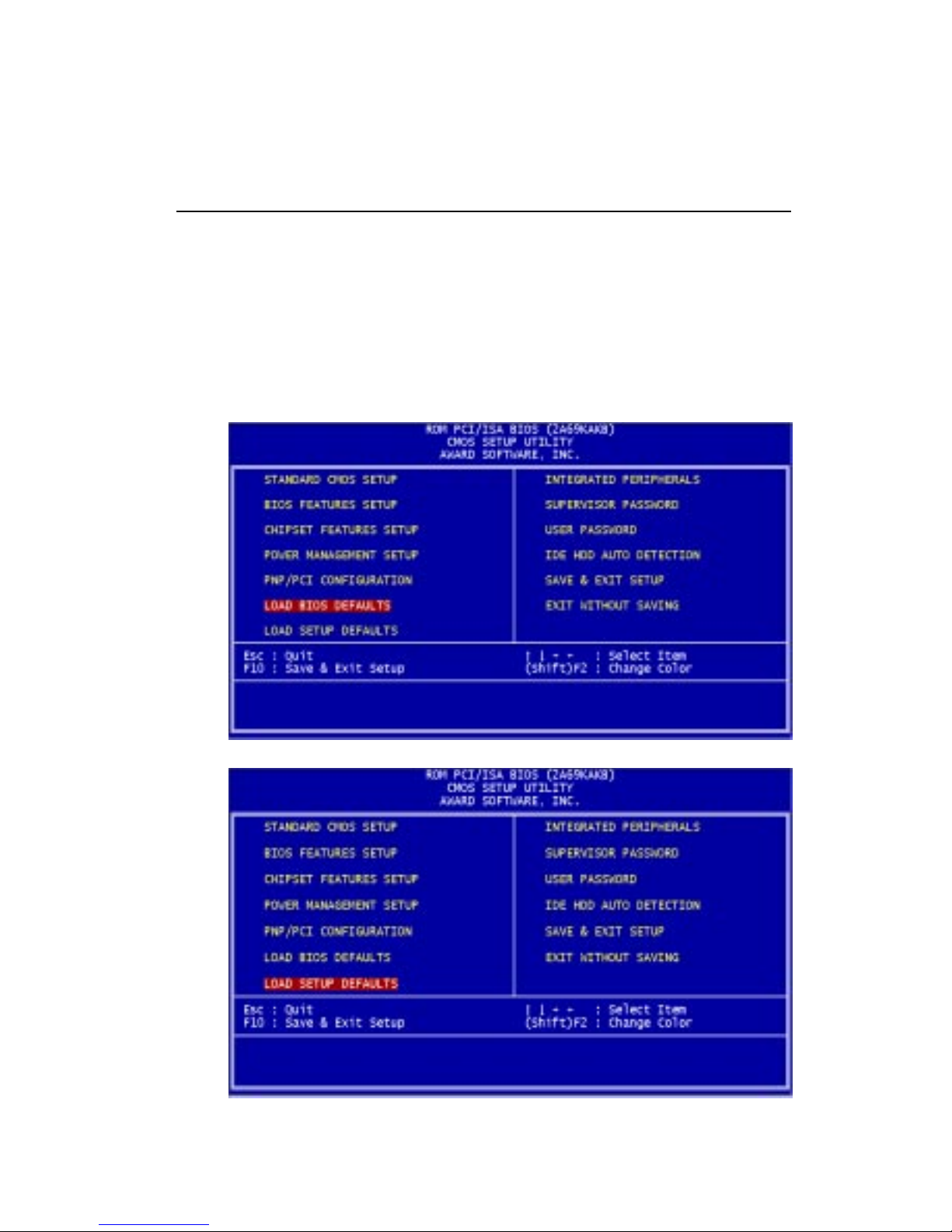

Load BIOS BIOS defaults are factory settings for the
Defaults most stable, minimal-performance system

operations.

Load Setup Setup defaults are factory settings for
Defaults optimal-performance system operations.

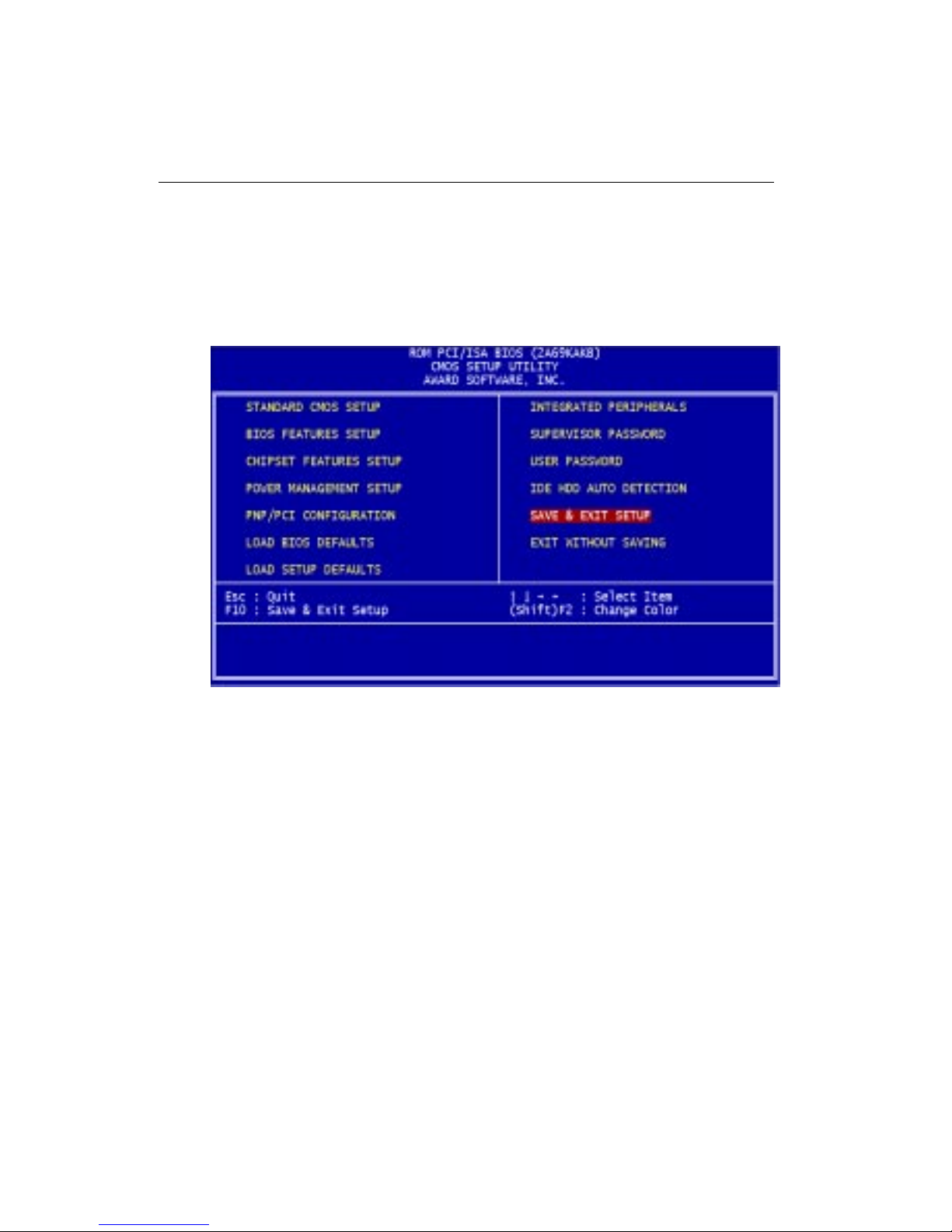

Save & Exit Save settings in nonvolatile CMOS
Setup RAM and exit Setup.

Exit Without Abandon all changes and exit Setup.
Save

Chapter 3 Award BIOS Setup 47

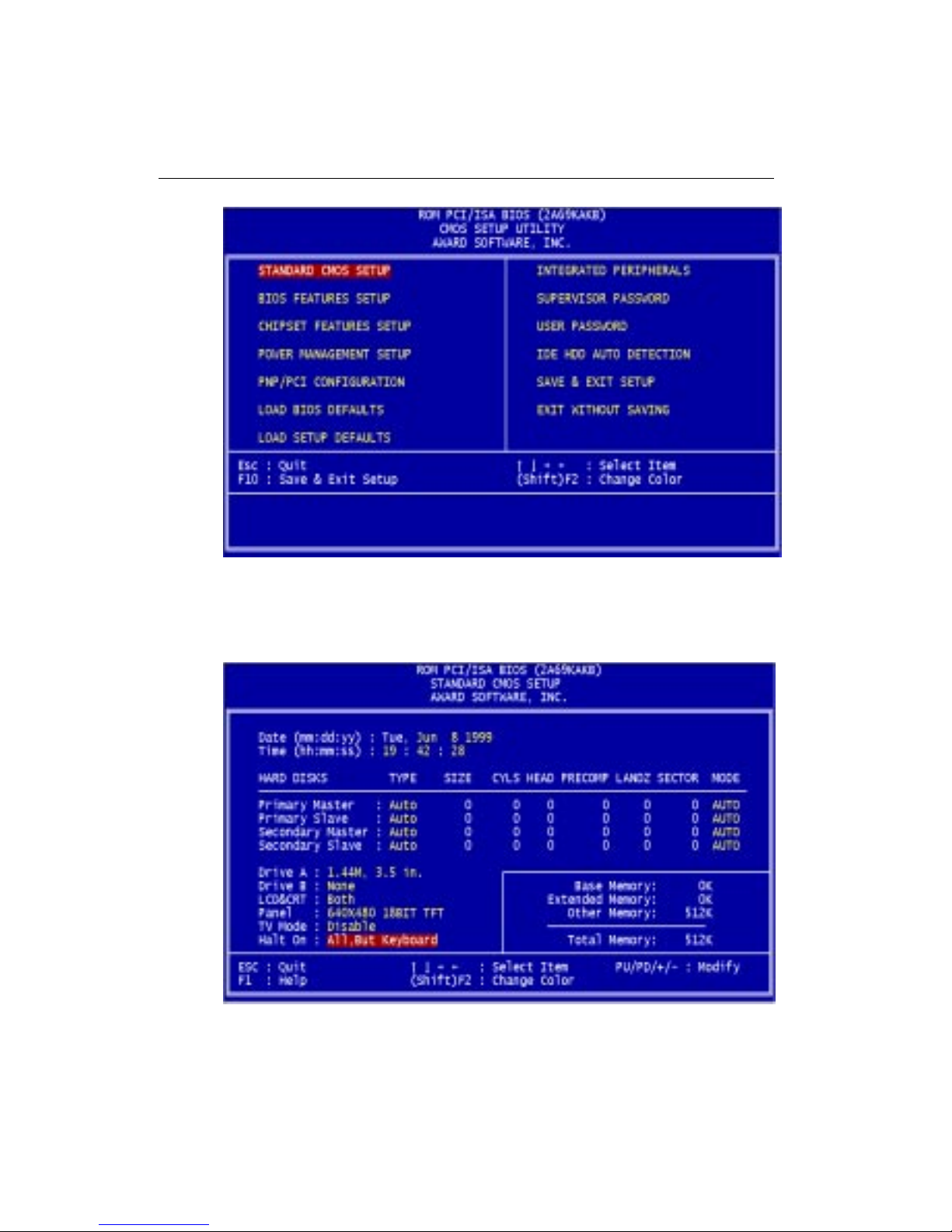

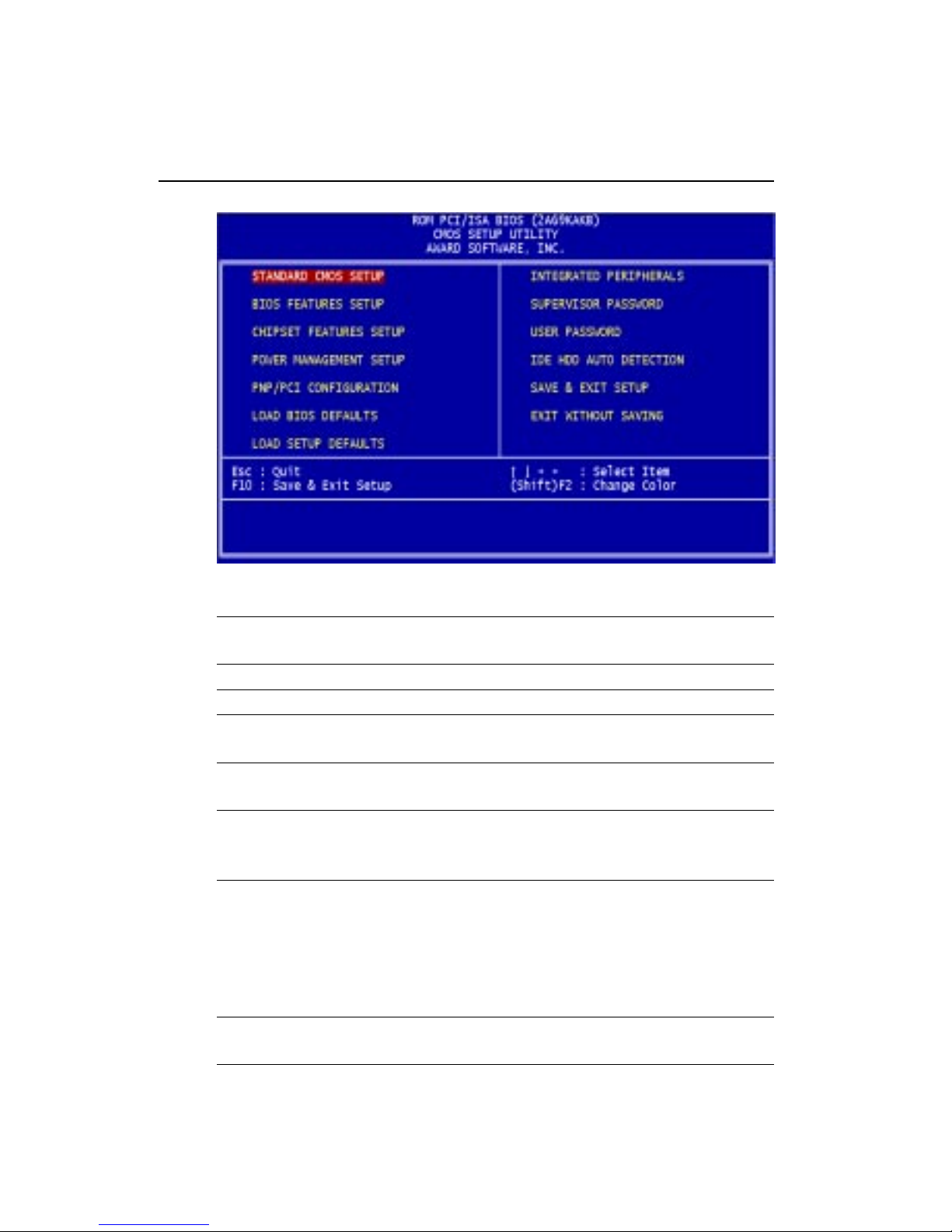

Standard CMOS setup

When you choose the ST ANDARD CMOS SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

48 SBC-675 User Manual

This standard setup menu allows users to configure system
components such as the date, time, hard disk drive, floppy drive,
display , and memory. Online help for each field can be accessed by
pressing F1.

Date and Time Configuration

The BIOS determines the day of the week from the other date
information. This field is for information only .

Press the left or right arrow key to move to the desired field (date,
month, year). Press the PgUp/- or PgDn/+ key to increment the
setting, or type the desired value into the field.

The time format is based on the 24-hour military-time clock. For
example, 1 p.m. is 13:00:00. Press the left or right arrow key to move
to the desired field. Press the PgUp/- or PgDn/+ key to increment
the setting, or type the desired value into the field.

HARD DISKS

The BIOS supports up to four IDE drives. This section does not
show information about other IDE devices, such as a CD-ROM
drive, or about other hard drive types, such as SCSI drives.

NOTE: We recommend that you select type AUTO for all drives.

The BIOS can automatically detect the specifications and optimal
operating mode of almost all IDE hard drives. When you select
type AUTO for a hard drive, the BIOS detects its specifications
during POST, every time the system boots.

If you do not want to select drive type AUTO, other methods of

Chapter 3 Award BIOS Setup 49

selecting the drive type are available:

1.Match the specifications of your installed IDE hard drive(s) with
the preprogrammed values for drive types 1 through 45.

2.Select USER and enter values into each drive parameter field.

3.Use the IDE HDD AUTO DECTECTION function in Setup.
Here is a brief explanation of drive specifications:

•T ype: The BIOS contains a table of pre-defined drive types. Each

defined drive type has a specified number of cylinders,
number of heads, write precompensation factor, landing
zone, and number of sectors. Drives whose specifications
do not accommodate any pre-defined type are classified as
type USER.

•Size: Disk drive capacity (approximate). Note that this size is
usually slightly greater than the size of a formatted disk
given by a disk-checking program.

• Cyls: Number of cylinders

• Head: Number of heads

• Precomp: W rite precompensation cylinder

• Landz: Landing zone

• Sector: Number of sectors

• Mode: Auto, Normal, large, or LBA

- Auto: The BIOS automatically determines the optimal mode.

- Normal: Maximum number of cylinders, heads, and sectors

supported are 1024, 16, and 63.

- Large: For drives that do not support LBA and have more than
1024 cylinders.

50 SBC-675 User Manual

- LBA (Logical Block Addressing): During drive accesses, the
IDE controller transforms the data address described by

sector, head, and cylinder number into a physical block
address, significantly improving data transfer rates. For
drives with greater than 1024 cylinders.

Drive A
Drive B

Select the correct specifications for the diskette drive(s) installed in
the computer .

None No diskette drive installed
360K, 5.25 in 5-1/4 inch PC-type standard drive; 360

kilobyte capacity

1.2M, 5.25 in 5-1/4 inch AT-type high-density drive; 1.2

megabyte capacity

720K, 3.5 in 3-1/2 inch double-sided drive; 720 kilobyte

capacity

1.44M, 3.5 in 3-1/2 inch double-sided drive; 1.44 mega

byte capacity

2.88M, 3.5 in 3-1/2 inch double-sided drive; 2.88 mega

byte capacity

LCD & CRT

This field may appear as an alternative to the V ideo field. Select
your video display device:

LCD Liquid crystal display
CRT Auxiliary monitor
Both Display on both devices

Chapter 3 Award BIOS Setup 51

emandnarBemanledoMtamroF
prahS08X51XLNTSD867x4201
prahSP38146MLONOM084x046
prahSP53C46MLNTSD084x046
prahS04S21MLNTSD006x008

CEN01-33CA8446LN)stib21(TFT084x046

abihsoTA902C01MTLTFT)stib81(084x046

CEN40-62CA0608LNTFT006x008

prahS30x41)stib63(TFT867x4201

Pannel:

This selection item allows user to select LCD BIOS to match the
LCD types. There are eight LCD types available for users to select
as their LCD display modes as below:

52 SBC-675 User Manual

Halt On

During the power-on-self-test (POST), the computer stops if the
BIOS detects a hardware error . Y ou can tell the BIOS to ignore
certain errors during POST and continue the boot-up process.
These are the selections:

• No errors: POST does not stop for any errors.

• All errorsIf: the BIOS detects any non-fatal error , POST stops
and prompts you to take corrective action.

• All, But Keyboard: POST does not stop for a keyboard error, but
stops for all other errors.All, But DiskettePOST does not stop for
diskette drive errors, but stops for all other errors.

• All, But Disk/Key: POST does not stop for a keyboard or disk
error, but stops for all other errors.

Memory

You cannot change any values in the Memory fields; they are only
for your information. The fields show the total installed random
access memory (RAM) and amounts allocated to base memory ,
extended memory , and other (high) memory . RAM is counted in
kilobytes (KB: approximately one thousand bytes) and megabytes
(MB: approximately one million bytes).

RAM is the computer's working memory , where the computer
stores programs and data currently being used, so they are
accessible to the CPU. Modern personal computers may contain up
to 64 MB, 128 MB, or more.

•Base Memory

T ypically 640 KB. Also called conventional memory . The DOS
operating system and conventional applications use this area.

Chapter 3 Award BIOS Setup 53

•Extended Memory

Above the 1-MB boundary . Early IBM personal computers could
not use memory above 1 MB, but current PCs and their software
can use extended memory .

•Other Memory

Between 640 KB and 1 MB; often called High memory . DOS may
load terminate-and-stay-resident (TSR) programs, such as device
drivers, in this area, to free as much conventional memory as
possible for applications. Lines in your CONFIG.SYS file that start
with LOADHIGH load programs into high memory .

54 SBC-675 User Manual

BIOS features setup

By choosing the BIOS FEA TURES SETUP option from the INITIAL
SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 55

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

Virus Warning

When enabled, you receive a warning message if a program
(specifically , a virus) attempts to write to the boot sector or the
partition table of the hard disk drive. You should then run an anti­virus program. Keep in mind that this feature protects only the boot
sector, not the entire hard drive.

NOTE: Many disk diagnostic programs that access the boot
sector table can trigger the virus warning message. If you plan to
run such a program, we recommend that you first disable the virus
warning.

CPU Internal Cache/External Cache

Cache memory is additional memory that is much faster than
conventional DRAM (system memory). CPUs from 486-type and up
contain internal cache memory , and most, but not all, modern PCs
have additional (external) cache memory . When the CPU requests
data, the system transfers the requested data from the main DRAM
into cache memory , for even faster access by the CPU.

The External Cache field may not appear if your system does not
have external cache memory .

CPU L2 Cache ECC Checking

When you select Enabled, memory checking is enable when the
external cache contains ECC SRAMs.

Quick Power On Self T est

Select Enabled to reduce the amount of time required to run the
power-on-self-test (POST). A quick POST skips certain steps. W e
recommend that you normally disable quick POST . Better to find a
problem during POST than lose data during your work.

56 SBC-675 User Manual

Boot Sequence

The original IBM PCs loaded the DOS operating system from drive
A (floppy disk), so IBM PC-compatible systems are designed to
search for an operating system first on drive A, and then on drive C
(hard disk). However, the BIOS now of fers many boot sequence
options.

Swap Floppy Drive

This field is effective only in systems with two floppy drives.
Selecting enabled assigns physical drive B to logical drive A, and
physical drive A to logical drive B.

Boot Up Floppy Seek

When Enabled, the BIOS tests (seeks) floppy drives to determine
whether they have 40 or 80 tracks. Only 360-KB floppy drives have
40 tracks; drives with 720 KB, 1.2 MB, and 1.44 MB capacity all
have 80 tracks. Because very few modern PCs have 40-track floppy
drives, we recommend that you set this field to Disabled to save
time.

Boot Up NumLock Status

T oggle between On or Of f to control the state of the NumLock key
when the system boots. When toggled On, the numeric keypad
generates numbers instead of controlling cursor operations.

Gate A20 Option

Gate A20 refers to the way the system addresses memory above 1
MB (extended memory). When set to Fast, the system chipset
controls Gate A20. When set to Normal, a pin in the keyboard
controller controls Gate A20. Setting Gate A20 to Fast improves
system speed, particularly with OS/2 and Windows.

Security Option

If you have set a password, select whether the password is
required every time the System boots, or only when you enter
Setup.

Chapter 3 Award BIOS Setup 57

Shadow

Software that resides in a read-only memory (ROM) chip on a
device is called firmware. The A wardBIOS permits shadowing of
firmware such as the system BIOS, video BIOS, and similar operat­ing instructions that come with some expansion peripherals, such
as, for example, a SCSI adaptor.

Shadowing copies firmware from ROM into system RAM, where
the CPU can read it through the 16-bit or 32-bit DRAM bus.
Firmware not shadowed must be read by the system through the 8­bit X-bus. Shadowing improves the performance of the system
BIOS and similar ROM firmware for expansion peripherals, but it
also reduces the amount of high memory (640 KB to 1 MB) avail­able for loading device drivers, etc.

Enable shadowing into each section of memory separately . Many
system designers hardwire shadowing of the system BIOS and
eliminate a System BIOS Shadow option.

V ideo BIOS shadows into memory area C0000-C7FFF . The remain­ing areas shown on the BIOS Features Setup screen may be
occupied by other expansion card firmware. If an expansion
peripheral in your system contains ROM-based firmware, you need
to know the address range the ROM occupies to shadow it into the
correct area of RAM.

58 SBC-675 User Manual

CHIPSET features setup

By choosing the CHIPSET FEA TURES SETUP option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 59

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

This section allows you to configure the system based on the
specific features of the installed chipset. This chipset manages bus
speeds and access to system memory resources, such as SDRAM.
It also coordinates communications between the conventional ISA
bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your
system. The only time you might consider making any changes
would be if you discovered that data was being lost while using
your system.

Because of the complexity and technical nature of some of the
options, not all of the options are described here.

SDRAM RAS-to-CAS Delay

This field lets you control the number of DCLKs between a Row
Activate command and a read or write command.

SDRAM RAS Precharge Time

The precharge time is the number of cycles it takes for the RAS to
accumulate its charge before DRAM refresh. If insufficient time is
allowed, refresh may be incomplete and the DRAM may fail to
retain data. This field applies only if synchronous DRAM is
installed in the system.

SDRAM CAS Latency Time

When synchronous DRAM is installed, you can control the
number of CLKs between when the SDRAMs sample a read
command and when the contoller samples read data from the
SDRAMs. Do not reset this field from the default value specified
by the system designer.

60 SBC-675 User Manual

SDRAM Precharge Control

When Enabled, all CPU cycles to SDRAM result in an All Banks
Precharge Command on the SDRAM interface.

DRAM Data Integrity Mode

Select Non-ECC or ECC (error-correcting code), according to the
type of installed DRAM.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at
F0000h-FFFFFh, resulting in better system performance. However,
if any program writes to this memory area, a system error may
result.

Video BIOS Cacheable

Selecting Enabled allows caching of the video BIOS ROM at
C0000h to C7FFFh, resulting in better video performance. However,
if any program writes to this memory area, a system error may
result.

Video RAM Cacheable

Selecting Enabled allows caching of the video memory (RAM) at
A0000h to AFFFFh, resulting in better video performance. Howev­er, if any program writes to this memory area, a memory access error
may result.

8/16 Bit I/O Recovery Time

The I/O recovery mechanism adds bus clock cycles between PCI­originated I/O cycles to the ISA bus. This delay takes place
because the PCI bus is so much faster than the ISA bus.

These two fields let you add recovery time (in bus clock cycles) for
16-bit and 8-bit I/O.

Chapter 3 Award BIOS Setup 61

Memory Hole at 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user informa­tion of peripherals that need to use this area of system memory
usually discusses their memory requirements.

Passive Release

When Enabled, CPU to PCI bus accesses are allowed during
passive release. Otherwise, the arbiter only accepts another PCI
master access to local DRAM.

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance
with PCI specification version 2.1.

Auto Detect DIMM/PCI Clk

When the Auto Detect DIMM/PCI clk enable, the Utility will
automatically detect the DIMM/PCI clock in your system.

Spread Spectrum

When the system clock generator pulses, the extreme values of the
pulse generate excess EMI. Enabling pulse spectrum spread
modulation changes the extreme values from spikes to flat curves,
thus reducing EMI. This benefit may in some cases be outweighed
by problems with timing-critical devices, such as a clock-sensitive
SCSI device

IN0-IN6(V)

These fields display the current voltage of up to seven voltage
input lines, if your computer contains a monitoring system.

62 SBC-675 User Manual

Power management setup

By choosing the POWER MANAGEMENT option from the
INITIAL SETUP SCREEN menu, the screen below is displayed.

Chapter 3 Award BIOS Setup 63

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

Power Management

This option allows you to select the type (or degree) of power
saving for Doze, Standby, and Suspend modes.

This table describes each power management mode:

Max Saving Maximum power savings. Only Available for

SL CPUs. Inactivity period is 1 minute in
each mode.

User Define Set each mode individually. Select time-out

periods in the section for each mode,
below.

Min Saving Minimum power savings. Inactivity period is

1 hour in each mode (except the hard
drive).

64 SBC-675 User Manual

PM Control by APM

If Advanced Power Management (APM) is installed on your
system, selecting Yes gives better power savings.

Video Off Method

Determines the manner in which the monitor is blanked.

V/H SYNC+Blank System turns off vertical and horizontal

synchronization ports and writes blanks to
the video buffer.

DPMS Support Select this option if your monitor supports

the Display Power Management Signaling
(DPMS) standard of the Video Electronics
Standards Association (VESA). Use the
software supplied for your video subsystem
to select video power management values.

Blank Screen System only writes blanks to the video

buffer.

Video Off After

As the system moves from lesser to greater power-saving modes,
select the mode in which you want the monitor to blank.

MODEM Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if
any) on your system. Activity of the selected IRQ always awakens
the system.

Doze Mode

After the selected period of system inactivity , the CPU clock
throttles to a small percentage of its duty cycle — between 10
percent and 25 percent for most chipsets. All other devices still
operate at full speed.

Chapter 3 Award BIOS Setup 65

Standby Mode

After the selected period of system inactivity , the CPU clock stops,
the hard drive enters an idle state, and the L2 cache enters a power­save mode. All other devices still operate at full speed.

Suspend Mode

After the selected period of system inactivity, the chipset enters a
hardware suspend mode, stopping the CPU clock and possibly
causing other system devices to enter power management modes.

HDD Power Down

After the selected period of drive inactivity , any system IDE
devices compatible with the AT A-2 specification or later power
manage themselves, putting themselves into an idle state after the
specified timeout and then waking themselves up when accessed.

Throttle Duty Cycle

When the system enters Doze mode, the CPU clock runs only part
of the time. You may select the percent of time that the clock runs.

VGA Active Monitor

When Enabled, any video activity restarts the global timer for
Standby mode.

66 SBC-675 User Manual

Reload Global Timer Events

When Enabled, an event occurring on each device listed below
restarts the global timer for Standby mode.

IRQ3-7, 9-15, NMI
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
Floppy Disk
Serial Port
Parallel Port

Chapter 3 Award BIOS Setup 67

PNP/PCI configuration setup

By choosing the PNP/PCI CONFIGURA TION SETUP option from
the initial SETUP SCREEN menu, the screen below is displayed.

68 SBC-675 User Manual

The displayed configuration is based on the manufacturer's SETUP
DEF AUL TS settings.

NOTE: This chapter describes all fields offered by Award Software
in this screen. Your system board designer may omit or modify
some fields.

PNP OS Installed

Select Yes if the system operating environment is Plug-and-Play
aware (e.g., Windows 95).

Resources Controlled By

The Plug and Play A wardBIOS can automatically configure all the
boot and Plug and Play-compatible devices. If you select Auto, all
the interrupt request (IRQ) and DMA assignment fields disappear,
as the BIOS automatically assigns them.

Reset Configuration Data

Normally , you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if
you have installed a new add-on and the system reconfiguration
has caused such a serious conflict that the operating system
cannot boot.

IRQ n Assigned to

When resources are controlled manually, assign each system
interrupt as one of the following types, depending on the type of
device using the interrupt:

Legacy ISA Devices compliant with the original PC AT bus
specification, requiring a specific interrupt (such as IRQ4 for serial
port 1).

PCI/ISA PnP Devices compliant with the Plug and Play standard,
whether designed for PCI or ISA bus architecture.

Chapter 3 Award BIOS Setup 69

DMA n Assigned to

When resources are controlled manually, assign each system DMA
channel as one of the following types, depending on the type of
device using the interrupt:

Legacy ISA Devices compliant with the original PC AT bus
specification, requiring a specific DMA channel

PCI/ISA PnP Devices compliant with the Plug and Play standard,
whether designed for PCI or ISA bus architecture.

Assign IRQ for VGA

If you are not using your system's VGA controller, select Disabled
to free the IRQ resource.

Used Mem base addr

Select a base address for the memory area used by any peripheral
that requires high memory .

Assign IRQ for USB

Select Enabled if your system has a USB controller and you have
one or more USB devices connected. If you are not using your
system’s USB controller , select Disabled to free the IRQ resource.

70 SBC-675 User Manual

Load BIOS defaults/Load setup

defaults

LOAD BIOS DEF AUL TS loads the default system values directly
from ROM. The BIOS DEF AUL TS provides the most stable
settings, though they do not provide optimal performance. LOAD
SETUP DEF AUL TS, on the other hand, provides for maximum
system performance. If the stored record created by the setup
utility becomes corrupted (and therefore unusable), BIOS defaults
will load automatically when you turn the system on.

Chapter 3 Award BIOS Setup 71

Integrated peripherals setup

By choosing the INTEGRA TD PERIPHERALS option from the
initial SETUP SCREEN menu, the screen below is displayed.

72 SBC-675 User Manual

The displayed configuration is based on the manufacturer's SETUP
DEF AULSTS settings.

IDE HDD Block Mode

Select Enabled only if your hard drives support block mode.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a
PIO mode (0-4) for each of up to four IDE devices that the internal
PCI IDE interface supports. Modes 0 through 4 provide succes­sively increased performance. In Auto mode, the system automati­cally determines the best mode for each device.

IDE Primary /Secondary Master/Slave UDMA

UDMA (Ultra DMA) is a DMA data transfer protocol that utilizes
ATA commands and the ATA bus to allow DMA commands to
transfer data at a maximum burst rate of 33 MB/s. When you select
Auto in the four IDE UDMA fields (for each of up to four IDE
devices that the internal PCI IDE interface supports), the system
automatically determines the optimal data transfer rate for each IDE
device.

On-Chip PCI IDE Primary/Secondary

The system chipset contains a PCI IDE interface with support for
two IDE channels. Select Enabled to activate the primary and/or
secondary IDE interface. Select Disabled to deactivate this inter­face, if you install a primary and/or secondary add-in IDE interface.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus
(USB) controller and you have a USB keyboard.

Onboard FDC Controller

Chapter 3 Award BIOS Setup 73

Select Enabled if your system has a floppy disk controller (FDC)
installed on the system board and you wish to use it. If you install
an add-in FDC or the system has no floppy drive, select Disabled in
this field.

Onboard Serial Ports (1, 2)

Select a logical COM port address for the first and second serial
ports.

RxD, TxD Active

Consult your IR peripheral documentation to select the correct
setting of the TxD and RxD signals.

ECP Mode Use DMA

Select a DMA channel for the port.

EPP Mode select

Select EPP port type 1.7 or 1.9.

74 SBC-675 User Manual

Supervisor/User password setting

Y ou can set either SUPER VISOR or USER PASSWORD, or both of
them. The difference between the two is that the supervisor
password allows unrestricted access to enter and change the
options of the setup menus, while the user password only allows
entry to the program, but not modify options.

Chapter 3 Award BIOS Setup 75

When you select this function, a message appears at the center of
the screen:

ENTER PASSWORD:

Type the password, up to eight characters, and press Enter. Typing
a password clears any previously entered password from CMOS
memory .

Now the message changes:

CONFIRM PASSWORD:

Again, type the password and press Enter.
To abort the process at any time, press Esc.
In the Security Option item in the BIOS Features Setup screen,

select System or Setup:
System Enter a password each time the system boots and when

ever you enter Setup.

Setup Enter a password when ever you enter Setup.

NOTE: To clear the password, simply press Enter when asked to
enter a password. Then the password function is disabled.

76 SBC-675 User Manual

IDE HDD auto detection

The IDE HDD AUTO DETECTION utility can automatically detect
the IDE hard disk installed in your system. You can use it to self­detect and/or correct the hard disk type configuration. You need to
repeat the setup for each of the IDE combinations:

Chapter 3 Award BIOS Setup 77

Save & exit setup

If you select this option and press <ENTER>, the values entered in
the setup utility will be recorded in the chipset's CMOS memory .
The microprocessor will check this every time you turn your
system on and compare this to what it finds as it checks the
system. This record is required for the system to operate.

78 SBC-675 User Manual

Chapter 4 Driver Installation

79

4

Flat Panel/CRT

Controller Display

Drivers and Utilities

This chapter provides information about:

• Driver types and installation

CHAPTER

80

SBC-675 User Manual

Software drivers

This chapter describes the operation and installation of the display
drivers supplied on the Supporting CD-ROM that are shipped with
your product.

The onboard VGA adapter is based on the CHIPS VGA Flat Panel/CR T
controller and is fully IBM VGA compatible. This controller offers a
large set of extended functions and higher resolutions. If you intend to
use your VGA adapter in standard VGA modes only , you do not need
to install any of these drivers. Since your VGA adapter is fully compat­ible, it does not require any special drivers to operate in standard
modes.

The purpose of the enclosed software drivers is to take advantage of
the extended features of the CHIPS VGA Flat Panel/CR T controller .

Hardware configuration

Some of the high-resolution drivers provided in this package will work
only in certain system configurations. If a driver does not display
correctly , try the following:

1 . Change the display controller to CRT-only mode, rather than flat

panel or simultaneous display mode. Some high-resolution drivers
will display correctly only in CR T mode.

2. If a high-resolution mode is not supported on your system, try
using a lower-resolution mode. For example, 1024 x 768 mode will
not work on some systems, but 800 x 600 mode is supported on
most.

Chapter 4 Driver Installation

81

Necessary prerequisites

The instructions in this manual assume that you understand elementa­ry concepts of MS-DOS and the IBM Personal Computer. Before you
attempt to install any driver or utility , you should:

• Know how to copy files from a CD-ROM to a directory on the hard
disk

• Understand the MS-DOS directory structure

If you are uncertain about any of these concepts, please refer to the
DOS or OS/2 user reference guides for more information before you
proceed with the installation.

Before you begin

Make sure you know the version of the application for which you are
installing drivers. The Supporting CD-ROM contain drivers for several
versions of certain applications. For your driver to operate properly,
you must install the driver for your version of the application program.

82

SBC-675 User Manual

Windows® 95

These drivers are designed to work with MicrosoftÒ WindowsÒ. You
just install these drivers through the WindowsÒ operating system.

Driver installation

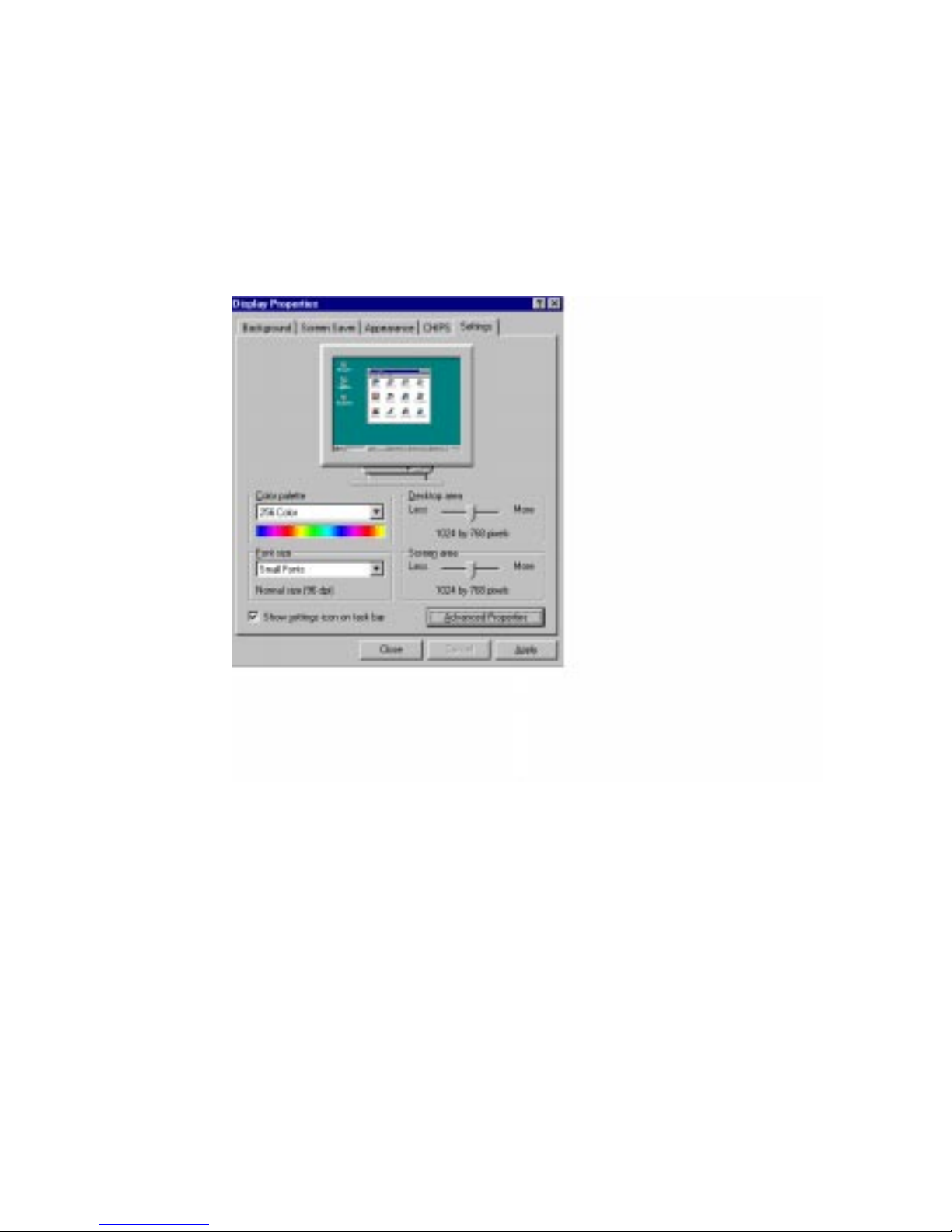

1 . Install WindowsÒ 95 as you normally would for a VGA display .

Click the Start button, go to Settings and click on Control
Panel. Choose the Display icon and double click on the icon. In
the Display Properties window , show as figure 1:

figure 1

Chapter 4 Driver Installation

83

Click the setting buttom, then click the Advanced Properties icon
into the Advanced Display properties windows, show as figure2:

figure 2

84

SBC-675 User Manual

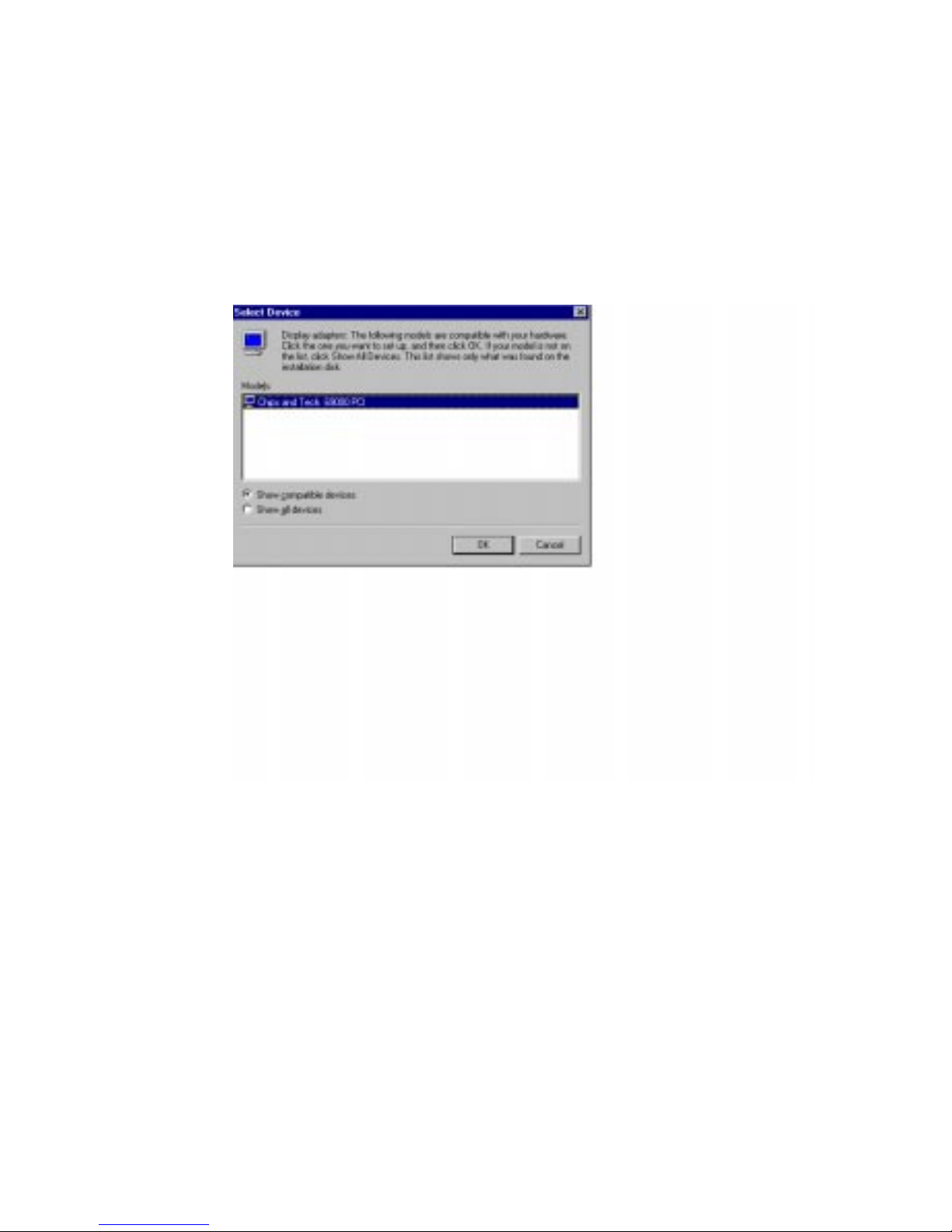

click on Change Display Type. In the Change Display Type
window, click on the Change button under Adapter Type into the
select Device window show as figure(3):This will bring up the
Select Device window.

figure 3

Chapter 4 Driver Installation

85

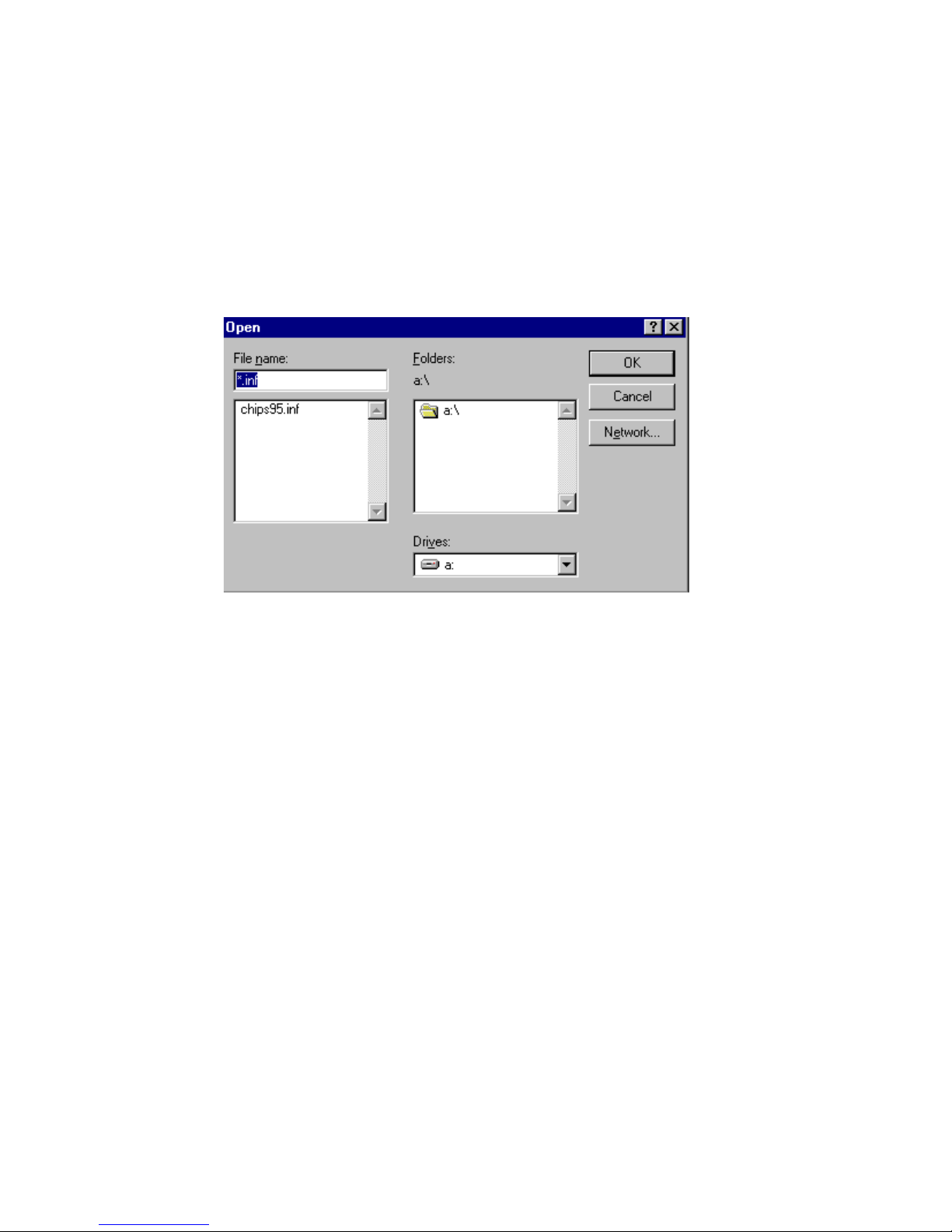

2 . Place the Supporting CD-ROM in your CD-ROM drive.

In the Select Device window , click on Have Disk, Select Browse,
and find the Win95 driver "chips95.inf" in the Supporting CD­ROM with the following path, and then click OK.

cd-rom: \CD-ROM\model name\driver\vga driver\win95\
"cd-rom:": the drive letter of your CD-ROM drive
"model name": the model number of your product

figure 4

86

SBC-675 User Manual

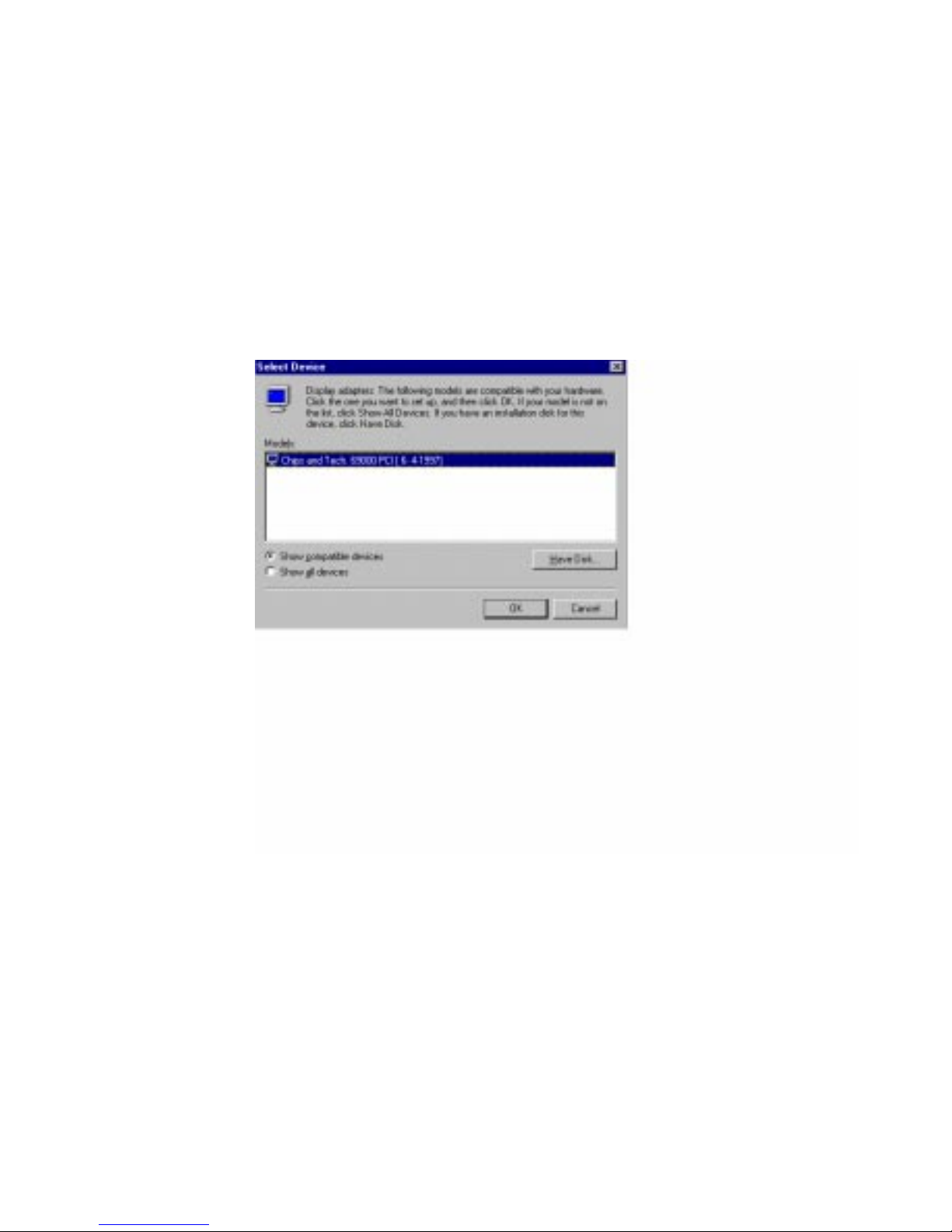

The name of the Chips And Techn "69000 PCI " driver will
appear highlighted in the Models list boxfhow as figure. Click
OK to start the driver installation show as figure 6:

figure 6

Chapter 4 Driver Installation

87

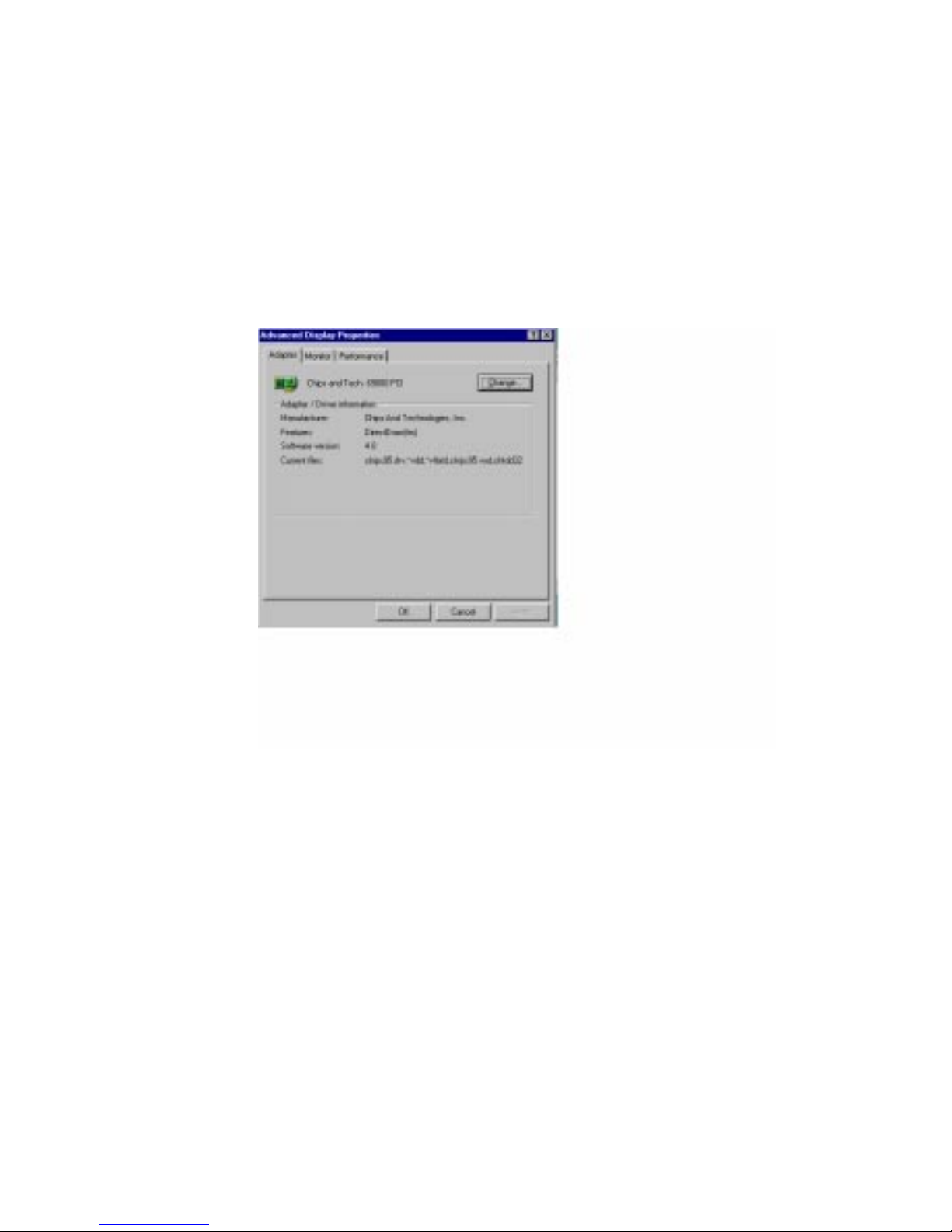

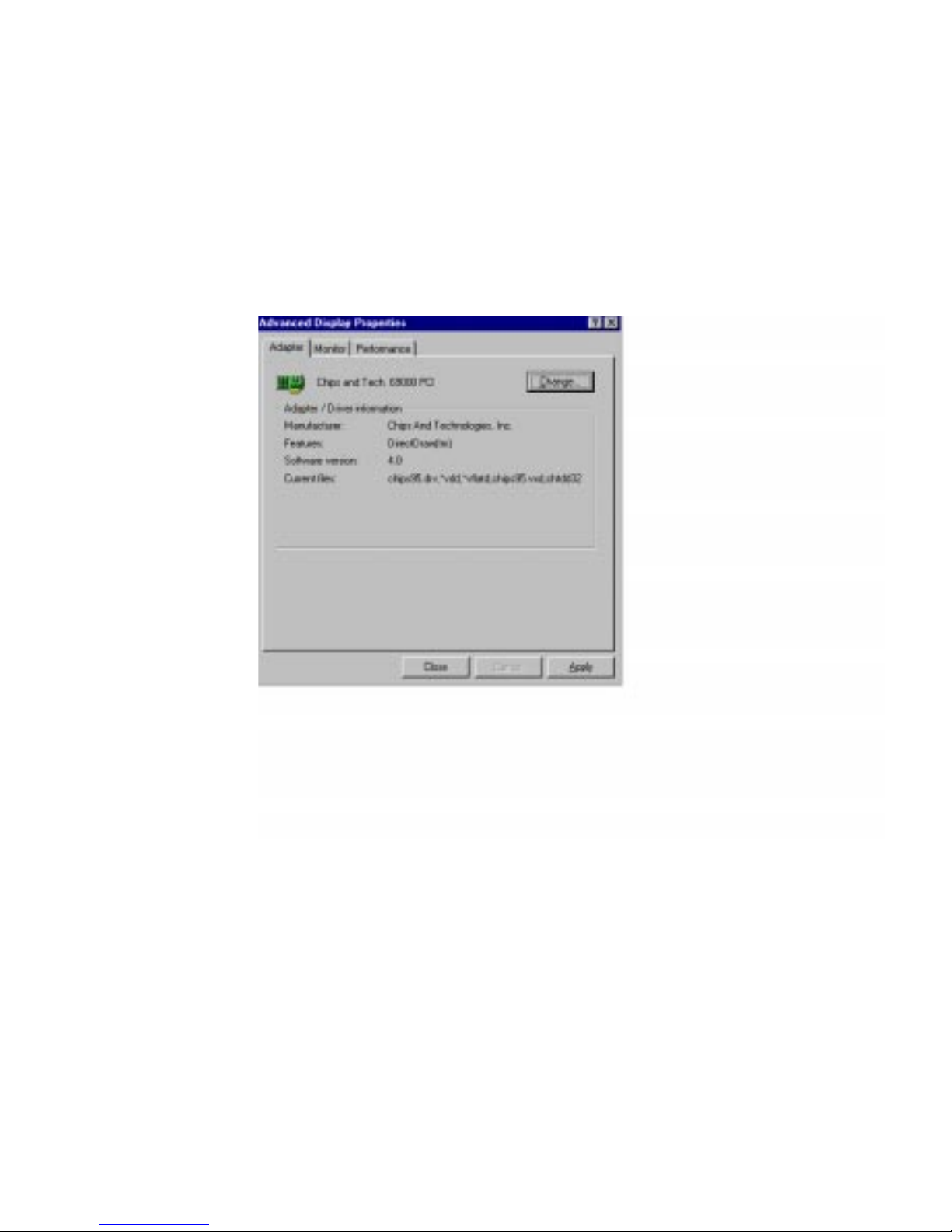

3. Once the installation is complete, the Advanced display Proper-

ties window will reappear. Show as figure (7):

figure 7

88

SBC-675 User Manual

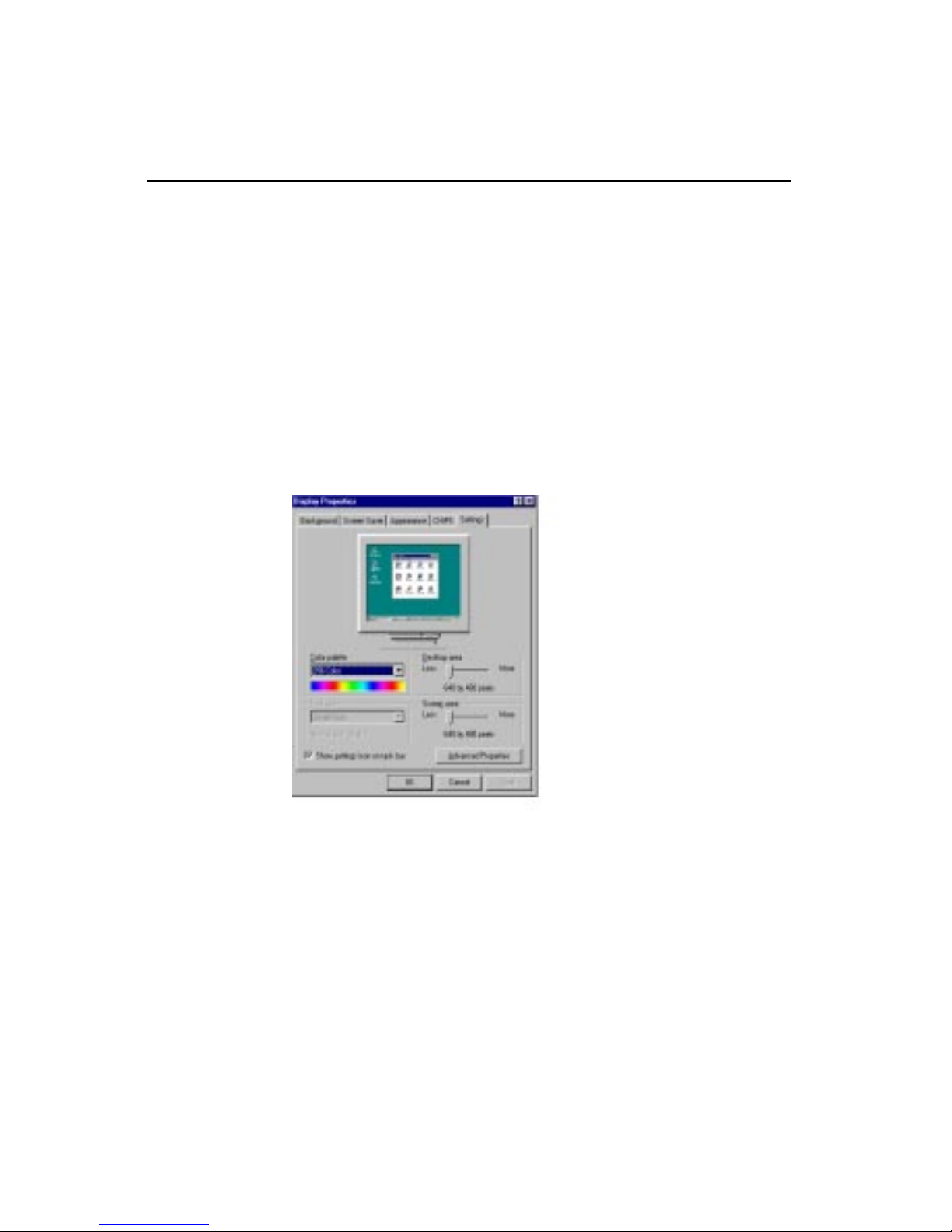

Click on close to close the window. Then the Display Properties
window will reappear . Show as figure (8):

figure 8

Chapter 4 Driver Installation

89

Click on Apply. Restart the system for the new settings to take
effect, show as figure (9):

figure 9
