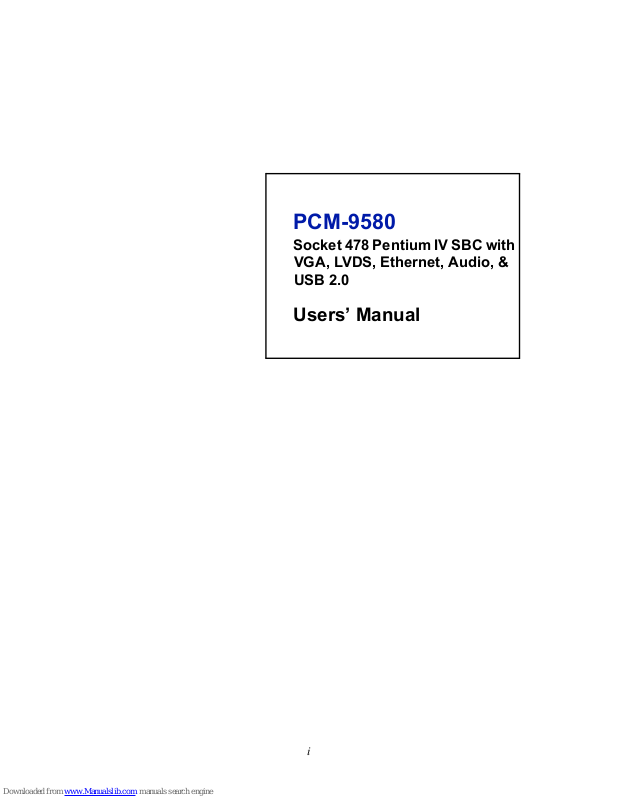

EMAC PCM-9580F-00A1, PCM-9580FG-00A1 User Manual

i

PCM-9580

Socket 478 Pentium IV SBC with
VGA, LVDS, Ethernet, Audio, &
USB 2.0

Users’ Manual

PCM-9580 User’s Manual ii

Copyright

This document is copyrighted, © 2003. All rights are reserved. The orig­inal manufacturer reserves the right to make improvements to the prod­ucts described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmit­ted in any form or by any means without the prior written permission of
the original manufacturer. Information provided in this manual is
intended to be accurate and reliable. However, the original manufacturer
assumes no responsibility for its use, nor for any infringements upon the
rights of third parties that may result from such use.

Acknowledgements

Award is a trademark of Award Software International, Inc.
VIA is a trademark of VIA Technologies, Inc.
IBM, PC/AT, PS/2 and VGA are trademarks of International Business
Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
ESS is a trademark of ESS Technology, Inc.
UMC is a trademark of United Microelectronics Corporation.
SMI is a trademark of Silicon Motion, Inc.
Creative is a trademark of Creative Technology LTD.
CHRONTEL is a trademark of Chrontel Inc.
All other product names or trademarks are properties of their respective
owners.

For more information on this and our other products, please visit
our website at: http://www.emacinc.com

For technical support and service, please visit our support website at:

http://www.emacinc.com/support

This manual is for the PCM-9580.

Part No. 2006958013

4th Edition, Printed May 2004

iii

Packing List

Before you begin installing your card, please make sure that the following
materials have been shipped:

• 1 PCM-9580 all-in-one single board computer

• 1 CD disk for utility and drivers

• 1 startup manual

• 1 Mini Jumper*10 PCS Package (p/n: 9689000002)

If any of these items are missing or damaged, contact your distributor or
sales representative immediately.

Model No. List Description

PCM-9580F-00A1 W/ 100 BASE-T Ethernet

PCM-9580FG-00A1 W/ 1000 BASE-T Ethernet

Caution!

Achtung!

Possible danger of explosion if batteries (if any)
are incorrectly replaced.

Replace only with the same or equivalent type
recommended by the manufacturer.

Dispose of used batteries (if any) according to
the manufacturer's instructions.

PCM-9580 User’s Manual iv

Additional Information and Assistance

1. Visit the distributator web site at www.emacinc.com where you can

find the latest information about the product.

2. Contact your distributor, sales representative, or customer service

center for technical support if you need additional assistance.
Please have the following information ready before you call:

• Product name and serial number

• Description of your peripheral attachments

• Description of your software (operating system, version, application
software, etc.)

• A complete description of the problem

• The exact wording of any error messages

v Table of Contents

Contents

Chapter 1 Introduction ......................................................2

1.1 Introduction ....................................................................... 2

1.1 Highly integrated multimedia SBC................................. 2

1.2 Features ............................................................................. 3

1.3 Specifications .................................................................... 3

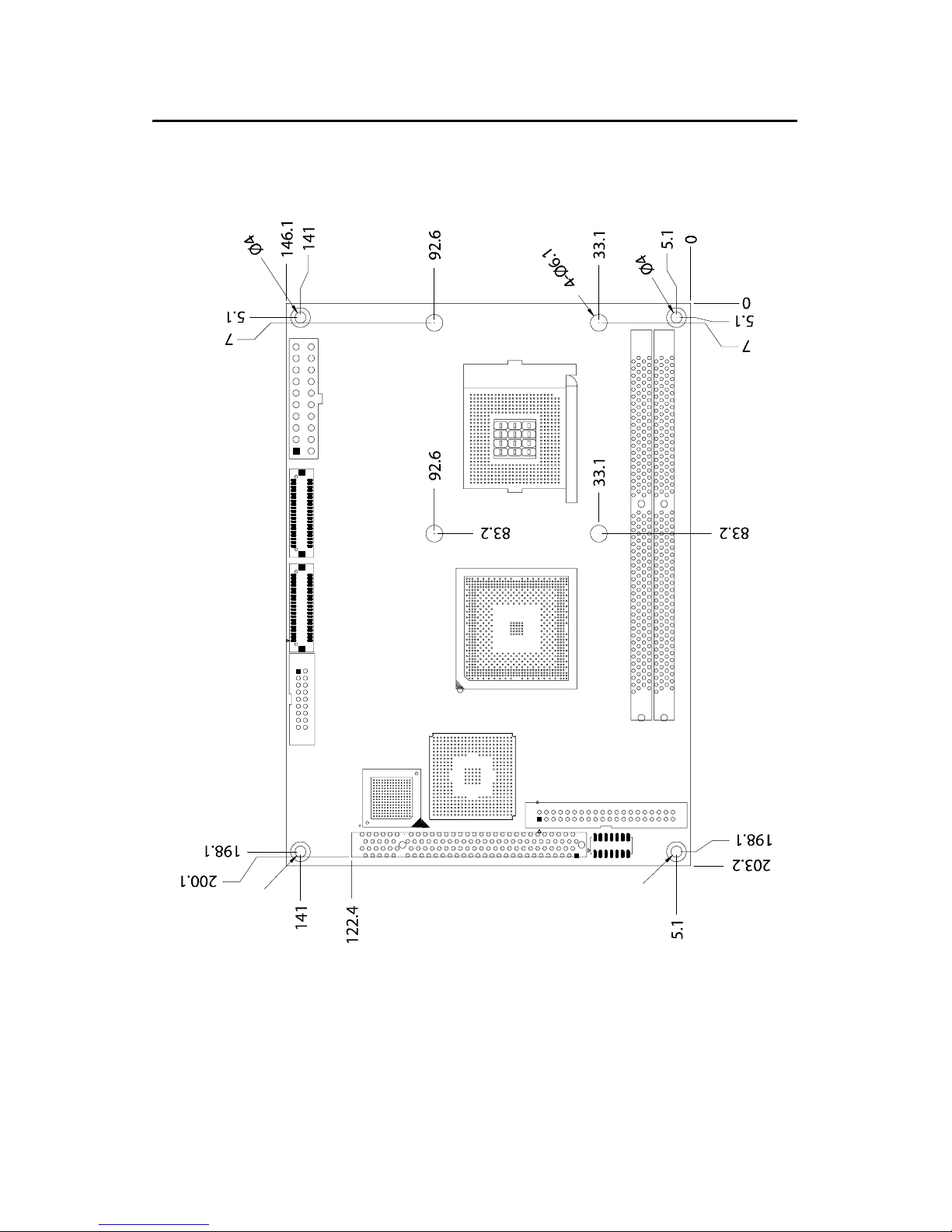

1.4 Board layout: dimensions.................................................. 6

Figure 1.1:Board layout: dimensions.............................. 6

Chapter 2 Installation ........................................................8

2.1 Jumpers.............................................................................. 8

Table 2.1:Jumpers ........................................................... 8

2.2 Connectors......................................................................... 9

Table 2.2:Connectors...................................................... 9

2.3 Locating jumpers and Connectors................................... 10

Figure 2.1:Jumper & Connector (component side) ...... 10

2.4 Setting Jumpers ............................................................... 11

2.5 Clear CMOS (SW1) ........................................................ 12

2.6 Installing DIMMs............................................................ 12

2.7 IDE, CDROM hard drive connector (CN15, CN13)....... 13

2.7.1 Connecting the hard drive............................................. 13

2.8 Solid State Disk............................................................... 13

2.8.1 CompactFlash (CN29) .................................................. 13

2.9 Floppy drive connector (CN12) ...................................... 14

2.9.1 Connecting the floppy drive ......................................... 14

2.10 Parallel port connector (CN11) ....................................... 15

2.11 Keyboard and PS/2 mouse connector (CN17) ................ 15

2.12 Front Panel Connector (CN14) ....................................... 15

2.12.1 Power & HDD LED (pin 1-4 of CN14)........................ 15

2.12.2 Reset switch (pin 13-14 of CN14) ................................ 15

2.13 Power connectors (CN7, CN9, FAN1)............................ 16

2.13.1 ATX power connector, +3.3V, +5V, +12V (CN8)..... 16

2.13.2 ATX power connector, +12 V (CN10) ........................ 16

2.13.3 CPU Fan power supply connector (FAN1)................... 16

2.14 ATX power ON/OFF switch con. pin 11-12 of CN14 .... 16

2.14.1 ATX feature (CN10) & soft power switch (CN14) ...... 16

2.15 Audio PC-97 Link interfaces (CN13) ............................. 16

2.15.1 PCM-231AV................................................................. 17

2.15.2 CD audio input connector (CN3 on the PCM-231AV) 17

2.16 COM port connector (CN9) ............................................ 17

2.17 VGA/LVDS interface connections.................................. 17

PCM-9580 User’s Manual vi

2.17.1 CRT display connector (CN9) ...................................... 17

2.17.2 LVDS LCD panel connector (CN5) ............................. 17

2.17.3 Panel type selection (S1)............................................... 18

2.18 TV-out interface (optional) (CN20) ................................ 18

2.19 Ethernet configuration..................................................... 18

2.19.1 100Base-T connector (CN3, PCM-9580F)................... 19

2.19.2 1000Base-T connector (CN8, PCM-9580FG).............. 19

2.19.3 Network boot ................................................................ 19

2.19.4 LAN controller power select (JP7) ............................... 19

2.20 Watchdog timer configuration ........................................ 20

2.20.1 Watchdog timer action (JP5) ........................................ 20

Table 2.4:Watchdog timer action (JP5) ........................ 20

2.21 USB connectors (CN1, CN23)........................................ 20

2.21.1 Embedded USB interface: ............................................ 21

Table 2.5:Embedded USB Pin Assignment.................. 22

Figure 2.2:Embedded USB Mod. Type I ...................... 23

Figure 2.3:Embedded USB Type II/III Form Factor .... 24

Chapter 3 Software Configuration .................................26

3.1 Introduction ..................................................................... 26

3.2 Connections to Three Standard LCDs............................. 26

3.2.1 LG LM150X06 (1024 x 768 LVDS TFT LCD)........... 26

Table 3.1:Connections to Toshiba LTM10C209A ....... 26

Chapter 4 Award BIOS Setup.........................................30

4.1 System test and initialization........................................... 30

4.1.1 System configuration verification................................. 30

4.2 Award BIOS setup .......................................................... 31

4.2.1 Entering setup .............................................................. 31

Figure 4.1:BIOS setup program initial screen .............. 31

4.2.2 Standard CMOS Features setup .................................... 32

Figure 4.2:CMOS Features setup.................................. 32

4.2.3 Advanced BIOS Features setup .................................... 33

Figure 4.3:Advanced BIOS Features setup................... 33

4.2.4 Advanced Chipset Features setup ................................. 34

Figure 4.4:Advanced Chipset Features setup ............... 34

4.2.5 Integrated Peripherals ................................................... 34

Figure 4.5:Integrated Peripherals.................................. 34

4.2.6 Power Management Setup ............................................ 35

Figure 4.6:Power Management Setup........................... 35

4.2.7 PnP/PCI Configurations................................................ 35

Figure 4.7:PnP/PCI Configurations .............................. 35

4.2.8 PC Health Status ........................................................... 36

Figure 4.8:PC Health Status.......................................... 36

4.2.9 Frequency/Voltage Control........................................... 37

Figure 4.9:Frequency/Voltage Control ......................... 37

vii Table of Contents

4.2.10 Load Optimized Defaults.............................................. 38

4.2.11 Set Password ................................................................. 38

4.2.12 Save & Exit Setup......................................................... 39

4.2.13 Exit Without Saving...................................................... 39

Chapter 5 PCI SVGA Setup ............................................42

5.1 Introduction ..................................................................... 42

5.1.1 Chipset .......................................................................... 42

5.1.2 Display memory............................................................ 42

5.1.3 Display types................................................................. 42

5.1.4 Dual/Simultaneous Display .......................................... 43

Figure 5.1:Selecting Display Settings........................... 43

5.2 Installation of the SVGA Driver ..................................... 44

5.2.1 Installation for Windows 98/2000/XP .......................... 44

5.2.2 Installation for Windows 98/Me ................................... 48

5.2.3 Installation for Windows NT ........................................ 53

5.2.4 Installation for Windows 2000 ..................................... 58

5.2.5 Installation for Windows XP ........................................ 63

5.3 Further Information......................................................... 69

Chapter 6 Audio Setup.....................................................72

6.1 Introduction ..................................................................... 72

6.2 Driver installation............................................................ 72

6.2.1 Before you begin........................................................... 72

Chapter 7 PCI Bus Ethernet Interface...........................80

7.1 Introduction ..................................................................... 80

7.2 Features ........................................................................... 80

7.3 Installation of Ethernet Driver......................................... 80

7.3.1 Installation for Windows 2000 ..................................... 81

7.3.2 Installation for Windows NT ........................................ 85

7.4 Further information ......................................................... 91

Appendix A Programming the Watchdog Timer .............94

A.1 Supported Input Timing Modes ...................................... 94

Appendix B Pin Assignments .............................................98

B.1 CPU Fan Power Connector (FAN 1)............................... 98

B.2 Ethernet 10/100Base-T Connector (CN25)..................... 98

B.3 Ethernet 10/100/1000 BASE-T connector (CN26) ......... 99

B.4 Ethernet LED connector................................................ 100

B.5 ACLink audio connector (CN4) .................................... 100

B.6 ATX Main Power Connector (CN6) ............................. 101

B.7 ATX 12V power connector (CN10).............................. 101

B.14 Embedded USB Connector (CN23) .............................. 107

B.21 GPIO Connector (CN16)............................................... 113

PCM-9580 User’s Manual viii

Appendix C System Assignments ....................................116

C.1 System I/O Ports............................................................ 116

Table C.1:System I/O Ports ........................................ 116

C.2 1st MB memory map..................................................... 117

Table C.2:1st MB memory map ................................. 117

C.3 DMA channel assignments............................................ 117

Table C.3:DMA channel assignments ........................ 117

C.4 Interrupt assignments .................................................... 118

Table C.4:Interrupt assignments ................................. 118

Appendix D Optional Extras ............................................120

D.1 PCM-10586-6000 Cable kit for PCM-9580F............... 120

D.2 PCM-10586-6G00 Cable kit for PCM-9580FG-00A1. 121

D.3 Optional USB cable (CN1 or CN23)............................. 121

D.4 ATX Power Control Cable (CN10)............................... 122

Appendix E Mechanical Drawings...................................124

1 Chapter 1

CHAPTER

1

General Information

This chapter gives background

information on the PCM-9580.

Sections include:

• Introduction

• Features

• Specifications

• Board layout and dimensions

PCM-9580 User’s Manual 2

Chapter 1 Introduction

1.1 Introduction

The PCM-9580 is a Socket 478 Pentium IV single board computer (SBC)
with Gigabit, USB 2.0, 2channel 48-bit LVDS, audio controller, a 4X
AGP SVGA controller, one PCI slot and TV-out function. It supports
Pentium IV up to 3.06 GHz. The PCM-9580’s design is based on the

5.25" form factor that provides support for PCI module expansion. The

5.25" form factor also provides a convenient connector layout for easy
assembly, more efficient cable connections and better overall embedded
system integration. This compact (only 5.75” x 8”) unit offers all the
functions of a single board industrial computer, but still fits in the space
of a 5.25” CD-ROM drive.
On-board features include, four serial ports, one multi-mode parallel
(ECP/EPP/SPP) port, 4 USB (Universal Serial Bus) 1.1/2.0 ports, an
optional floppy drive controller, and a keyboard/PS/2 mouse interface.
The built-in high-speed PCI IDE controller supports both PIO and
UDMA/100 bus master modes. Up to four IDE devices can be con­nected, including large hard disks, CD-ROM drives, and tape backup
drives.
The PCM-9580 features power management to minimize power con­sumption. It complies with the “Green Function” standard and supports
Doze, Standby and Suspend modes. In addition, the board‘s watchdog
timer can automatically reset the system or generate an interrupt if the
system stops due to a program bug or EMI.

Highly integrated multimedia SBC

The PCM-9580 is a highly integrated multimedia SBC that combines
audio, video, and network functions on a single computer board the size
of a 5.25" CD-ROM drive. It provides an AC-97 interface and supports
Line-in,Line-out, and MIC-in via Optional PCM-232 audio module, and
up to 1600 x 1200 resolution @ 16.8 M colors with 8 to 64MB frame
buffer with system memory. Major on-board devices adopt PCI technol­ogy, to achieve outstanding computing performance when used with
Intel® Pentium®IV processors. The PCM-9580 also supports an TV-out
for NTSC/PAL multimedia applications.

3 Chapter 1

1.2 Features

• Socket 478 up to 3.06 Ghz Intel Pentium 4

• Supports Gigabit Ethernet (PCM-9580FG)

• Supports Embedded USB, 4 USB 2.0 ports

• Supports 2-channel 48-bit LVDS interface

• Optional Audio Module

1.3 Specifications

Standard SBC Functions

• CPU: Socket 478 for Intel Celeron/Pentium 4 up to 2.4 GHz

• BIOS: Award 512 KB Flash memory

• System memory: Two 184 pin DIMM sockets, support Non-ECC Dou­ble Data Rate (DDR)128 MB to 2 GB, accepts 256/512/1000 MB
DDR200/266 DRAM.

• 2nd cache memory: 128/256/512 KB on the Celeron/ Pentium4 pro­cessor

• Enhanced IDE interface: Two channels supports up to four EIDE
devices. BIOS auto-detect, PIO Mode 3 or Mode 4, UDMA 33
transfer. Primary IDE support up to UDMA 66/100 mode

• FDD interface: Supports up to two FDDs

• Serial ports: Four serial RS-232 ports

• Parallel port: One parallel port, supports SPP/EPP/ECP mode

• Keyboard/mouse connector: Supports standard PS/2 keyboard and a
PS/2 mouse

• Power management: Supports power saving modes including Normal/
Standby/Suspend modes. APM 1.2 compliant

• Watchdog timer: 255 level timer intervals by Second or Minute

• USB: Four USB 1.1/2.0 compliant host ports

• Expansion: One PCI slot for PCI control board

Solid State Disk

• Supports one 50-pin socket for CFC type I/II

PCM-9580 User’s Manual 4

VGA/LCD Interface

• Chipset: Intel 845GV +Chrontel CH7017

• Frame buffer: Supports 8 MB to 64 MB frame buffer with system
memory

• Interface: 4x AGP VGA/LVDS interface

• Display mode: CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x
768@16bpp, , 1600 x 1200@32bpp (85Hz)

• LVDS: Supports 2 Channel (2 x 24 bit) LVDS interface

TV-out

• Chipset: Chrontel CH7017

• Supports NTSC and PAL TV formats

• Provides S-video outputs via optional TV-out cable (1703050306)

• Supports 640 x 480 and 800 x 600 input resolutions

• Supports Windows® 9x/ME/2000/NT and Windows XP drivers

• Over-scan, under-scan and position adjustable

Ethernet interface

• Chipset:

• Intel 82551ER [Intel 82551QM optional] (PCM-9580F)

• Intel 82540EM (PCM-9580FG)

• Ethernet interface:

• IEEE 802.3u 100BASE-T Fast Ethernet compatible(PCM-9580F)

• IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM­9580FG)

• I/O address switchless setting

• Built-in boot ROM

Audio Function (optional)

• Chipset: Intel 82801DB (ICH4)

• Audio controller: AC’97 ver. 2.0 compliant interface

• Optional PCM-231A support Line-in, Line-out, MIC

Mechanical and Environmental

• Dimensions: (L x W)203 x 146 mm (8" x 5.75")

• Power supply Voltage:+5 V ± 5%, +12 V ± 5%, +3.3 V ± 5%

5 Chapter 1

• Max : 0.4 A @ +5 V, 6.0 A @ +12 V ,12.51 [email protected] V

• (within 5 ms after power on)

• Typical: 0.25 A @ +5 V, 0.145 A @ +12 V, 2.4 A @ +3.3 V

• (with 256 MB DRAM, Pentium 4, 3.06 GHz @ 25 ° C)

• Operating temperature:0 ~ 60° C (32~140° F) with up to 2.4 GHz
Pentium 4 CPU

• Operating Humidity:0% ~ 90% Relative Humidity, noncondensing

• Weight: 0.85 kg (weight of total package)

PCM-9580 User’s Manual 6

1.4 Board layout: dimensions

Figure 1.1: Board layout: dimensions

Ø

4

Ø

4

7 Chapter 2

CHAPTER

2

Installation

This chapter explains the setup proce­dures of PCM-9580 hardware, includ­ing instructions on setting jumpers and
connecting peripherals, switches and
indicators. Be sure to read all safety
precautions before you begin the instal­lation procedure.

PCM-9580 User’s Manual 8

Chapter 2 Installation

2.1 Jumpers

The PCM-9580 has a number of jumpers that allow you to configure your
system to suit your application. The table below lists the functions of the
various jumpers.

Table 2.1: Jumpers

Label Function

JP1 LCD power select

9 Chapter 2

2.2 Connectors

On-board connectors link the PCM-9580 to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the func­tion of each of the board’s connectors.

Table 2.2: Connectors

Label Function

CN1 USB channel 3, 4 connector

CN2 TV-out connector (optional)

CN3 Backlight control connector

CN4 AC97 (Audio) connector

CN5 LVDS connector

CN6 ATX 12 V power connector

CN7 4COM port connector

CN9 CRT display connector

CN10 ATX 12 V power connector

CN11 Parallel port connector

CN12 Floppy drive connector

CN13 IDE hard drive connector (secondary)

CN14 Clear CMOS

CN15 IDE hard drive connector (primary)

CN16 4 bit GPIO connector

CN17 Keyboard and PS/2 mouse connector

CN19 CFC connector

CN23 Embedded USB

CN25 10/100Base-T Ethernet connector (PCM-9580F)

CN26 Gigabit Ethernet connector(PCM-9580FG)

CN27 Gigabit LAN LED connector

Fan2 CPU fan connector

SW1 reset button connector

Fan1 System fan power connector

PCM-9580 User’s Manual 10

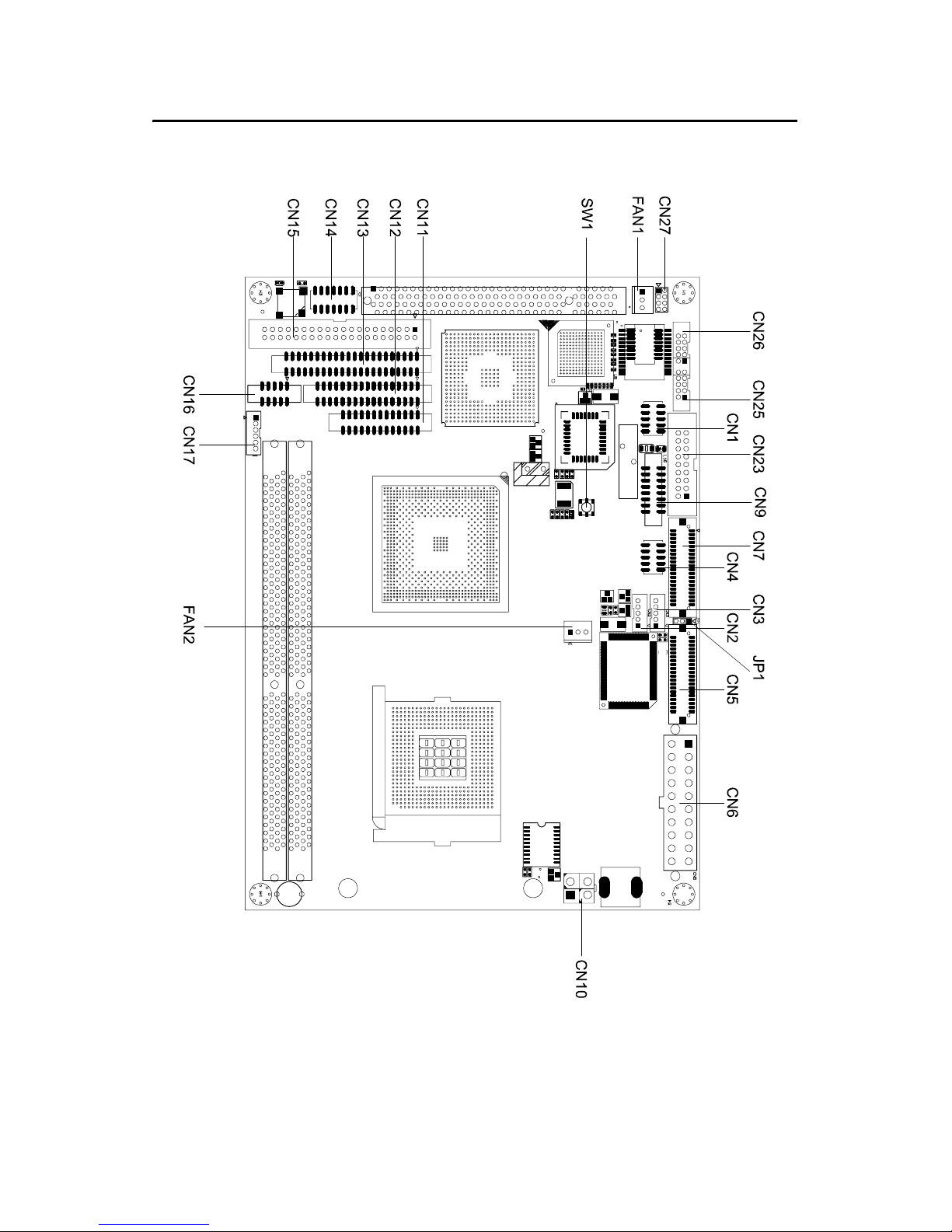

2.3 Locating jumpers and Connectors

Figure 2.1: Jumper & Connector (component side)

11 Chapter 2

2.4 Setting Jumpers

You may configure your card to match the needs of your application by
setting jumpers. A jumper is a metal bridge used to close an electric cir­cuit. It consists of two metal pins and a small metal clip (often protected
by a plastic cover) that slides over the pins to connect them. To “close” a
jumper, you connect the pins with the clip. To “open” a jumper, you
remove the clip. Sometimes a jumper will have three pins, labeled 1, 2
and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

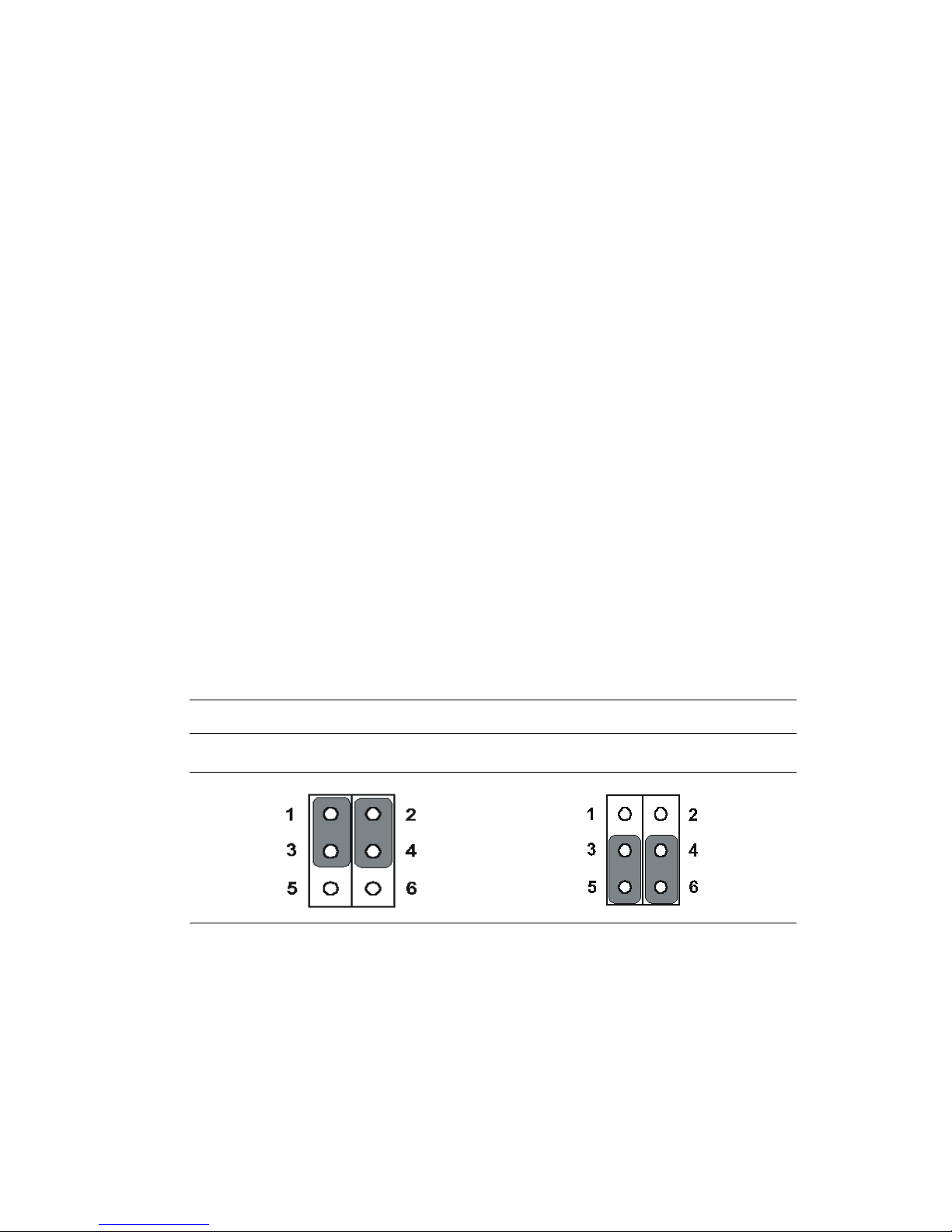

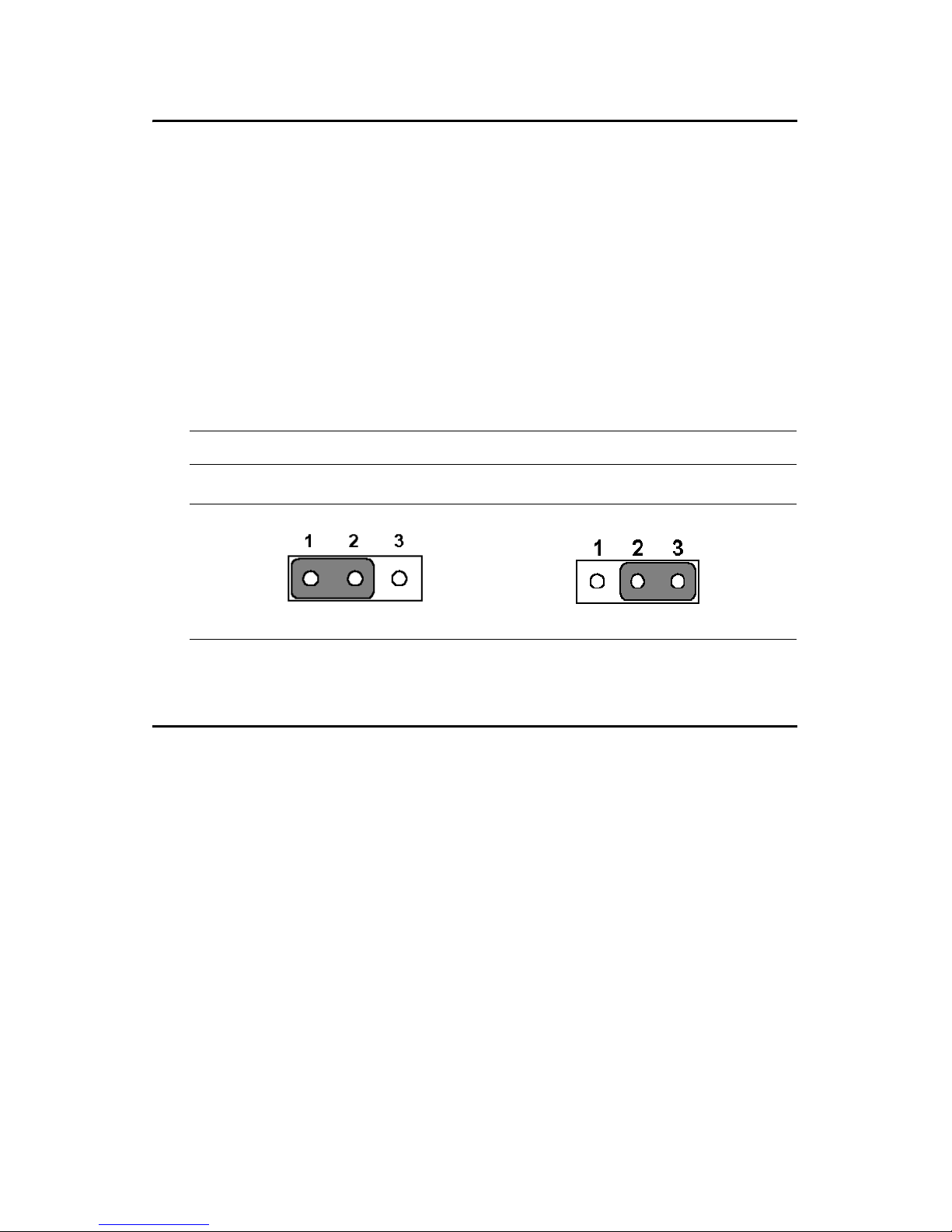

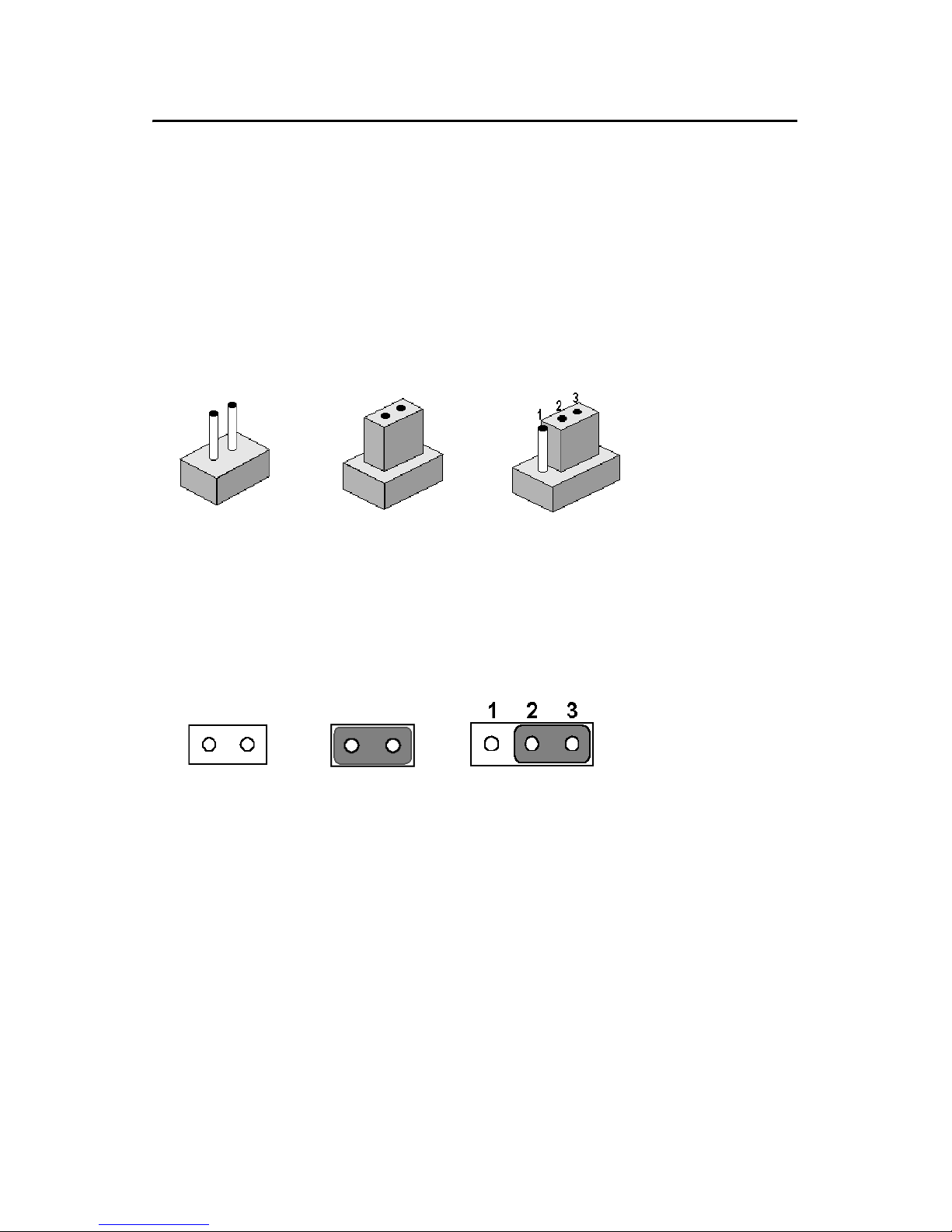

The jumper settings are schematically depicted in this manual as follows:.

A pair of needle-nose pliers may be helpful when working with jumpers.

If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes.

Generally, you simply need a standard cable to make most connections.

open closed closed 2-3

open closed closed 2-3

PCM-9580 User’s Manual 12

2.5 Clear CMOS (SW1)

This jumper is used to erase CMOS data and reset system BIOS informa­tion.

The procedure for clearing CMOS is:

1. Turn off the system.

2. Push SW1

3. Turn on the system. The BIOS is now reset to its default setting

2.6 Installing DIMMs

The procedure for installing DIMMs is described below. Please follow
these steps carefully. The number of pins are different on either side of
the breaks, so the module can only fit in one way. DIMM modules have
different pin contacts on each side, and therefore have a higher pin den­sity.

1. Make sure that the two handles of the DIMM socket are in the

“open” position. i.e. The handles remain leaning outward.

2. Slowly slide the DIMM module along the plastic guides on both

ends of the socket.

3. Press the DIMM module right down into the socket, until you hear

a click. This is when the two handles have automatically locked the
memory module into the correct position of the socket.

To remove the memory module, just push both handles outward, and the
module will be ejected from the socket.

Warning! To avoid damaging the computer, always turn off

the power supply before setting “Clear CMOS.”
Before turning on the power supply, set the
jumper back to “3.0 V Battery On.”

13 Chapter 2

2.7 IDE, CDROM hard drive connector (CN15, CN13)

The PCM-9580 provides 2 IDE channels which you can attach up to four
Enhanced Integrated Device Electronics hard disk drives or CDROM to
the PCM-9580’s internal controller. The PCM-9580's IDE controller uses
a PCI interface. This advanced IDE controller supports faster data trans­fer, PIO mode 3, mode 4 and UDMA/100. The secondary channel sup­ports UDMA/33 only.

2.7.1 Connecting the hard drive

Connecting drives is done in a daisy-chain fashion. It requires one of two
cables (not included in this package), depending on the drive size. 1.8"
and 2.5" drives need a 1 x 44-pin to 2 x 44-pin flat-cable connector. 3.5"
drives use a 1 x 44-pin to 2 x 40-pin connector.

Wire number 1 on the cable is red or blue, and the other wires are gray.

1. Connect one end of the cable to CN15 or CN13. Make sure that the

red (or blue) wire corresponds to pin 1 on the connector, which is
labeled on the board (on the right side).

2. Plug the other end of the cable into the Enhanced IDE hard drive,

with pin 1 on the cable corresponding to pin 1 on the hard drive.
(See your hard drive’s documentation for the location of the con­nector.)

If desired, connect a second drive as described above.

Unlike floppy drives, IDE hard drives can connect to either end of the
cable. If you install two drives, you will need to set one as the master and
one as the slave by using jumpers on the drives. If you install only one
drive, set it as the master.

2.8 Solid State Disk

The PCM-9580 provides a CompactFlash™ card socket and DiskOnChip
socket for Solid state disk solutions.

2.8.1 CompactFlash (CN29)

The CompactFlash card shares a secondary IDE channel which can be
enabled/disabled via the BIOS settings.

PCM-9580 User’s Manual 14

2.9 Floppy drive connector (CN12)

You can attach up to two floppy drives to the PCM-9580’s on-board con­troller. You can use any combination of 5.25” (360 KB and 1.2 MB) and/
or 3.5” (720 KB, 1.44 MB, and 2.88 MB) drives.

A 34-pin daisy-chain drive connector cable is required for a dual-drive
system. On one end of the cable is a 34-pin flat-cable connector. On the
other end are two sets of floppy disk drive connectors. Each set consists
of a 34-pin flat-cable connector (usually used for 3.5” drives) and a
printed-circuit board connector (usually used for 5.25” drives).

2.9.1 Connecting the floppy drive

1. Plug the 34-pin flat-cable connector into CN12. Make sure that the

red wire corresponds to pin one on the connector.

2. Attach the appropriate connector on the other end of the cable to

the floppy drive(s). You can use only one connector in the set. The
set on the end (after the twist in the cable) connects to the A: drive.
The set in the middle connects to the B: drive.

3. If you are connecting a 5.25” floppy drive, line up the slot in the

printed circuit board with the blocked-off part of the cable connec-

tor.
If you are connecting a 3.5” floppy drive, you may have trouble determin­ing which pin is number one. Look for a number printed on the circuit
board indicating pin number one. In addition, the connector on the floppy
drive may have a slot. When the slot is up, pin number one should be on
the right. Check the documentation that came with the drive for more
information.

If you desire, connect the B: drive to the connectors in the middle of the
cable as described above.

In case you need to make your own cable, you can find the pin assign­ments for the board’s connector in Appendix C.

15 Chapter 2

2.10 Parallel port connector (CN11)

Normally, the parallel port is used to connect the card to a printer. The
PCM-9580 includes a multi-mode (ECP/EPP/SPP) parallel port accessed
via CN11 and a 26-pin flat-cable connector. You will need an adapter
cable if you use a traditional DB-25 connector. The adapter cable has a
26-pin connector on one end, and a DB-25 connector on the other.

The parallel port is designated as LPT1, and can be disabled or changed to
LPT2 or LPT3 in the system BIOS setup.

The parallel port interrupt channel is designated to be IRQ7.

You can select ECP/EPP DMA channel via BIOS setup.

2.11 Keyboard and PS/2 mouse connector (CN17)

The PCM-9580 board provides a keyboard connector that supports both a
keyboard and a PS/2 style mouse. In most cases, especially in embedded
applications, a keyboard is not used. If the keyboard is not present, the
standard PC/AT BIOS will report an error or fail during power-on self­test (POST) after a reset. The PCM-9580’s BIOS standard setup menu
allows you to select “All, But Keyboard” under the “Halt On” selection.
This allows no-keyboard operation in embedded system applications,
without the system halting under POST.

2.12 Front Panel Connector (CN14)

Next, you may want to install external switches to monitor and control the
PCM-9580. These features are optional: install them only if you need
them. The Front Panel connector (CN14) is a 14-pin male, dual in-line
header. It provides connections for a hard disk access indicator, LAN
Act., LAN Link, hardware reset, ATX power ON/OFF switch connector,
and power on indicator.

2.12.1 Power & HDD LED (pin 1-4 of CN14)

The HDD LED indicator for hard disk access is an active low signal (24
mA sink rate). Power supply activity LED indicator.

2.12.2 Reset switch (pin 13-14 of CN14)

If you install a reset switch, it should be an open single pole switch.
Momentarily pressing the switch will activate a reset. The switch should
be rated for 10 mA, 5 V.

PCM-9580 User’s Manual 16

2.13 Power connectors (CN7, CN9, FAN1)

2.13.1 ATX power connector, +3.3V, +5V, +12V (CN8)

Supplies main power to the PCM-9580 (+12V, +5V, +3.3V) and to
devices that require.

2.13.2 ATX power connector, +12 V (CN10)

Supplies ATX +12V power to the PCM-9580s Vcore of the CPU

2.13.3 CPU Fan power supply connector (FAN1)

Provides power supply +12V to CPU cooling fan, and fan speed detects
signal input.

2.14 ATX power ON/OFF switch con. pin 11-12 of CN14

2.14.1 ATX feature (CN10) & soft power switch (CN14)

The PCM-9580 can support an advanced soft power switch function, if an
ATX power supply is used. To enable the soft power switch function con­nect the power on/off button to CN14. (A momentary type of button
should be used.)

2.15 Audio PC-97 Link interfaces (CN13)

This connector (CN13) provide AC-link signal to connect to PCM­231AV, which prvides 16-bit CD quality recording and playback as well
as OPL3 compatible FM music. It is supported by all major operating sys­tems and is completely compatible with Sound Blaster Pro. The PCM­9370F also supports full audio function via an optional AC-97 link mod­ule PCM-231AV which also provides TV-out function.

Important

Make sure that the ATX power supply can take
at least a 10 mA load on the 5 V standby lead
(5VSB). If not, you may have difficulty power­ing on your system.

17 Chapter 2

2.15.1 PCM-231AV

The PCM-231AV provides CD audio input connector, microphone in
(mono), line in (stereo) and line out (stereo), standard connector and S­video, composite-video connector for TV-out function on the PCM­2 3 1 AV.

2.15.2 CD audio input connector (CN3 on the PCM­231AV)

All CD-ROM drives can provide analog audio signal output when used as
a music CD player. The CN3 is a connector to input CD audio signals into
the audio controller. The audio cable of your CD-ROM drive is suitable
for connection to CN3 of PCM-231AV

Configuration of the audio interface is done completely via software util­ities.You don't have to set any jumpers. For furhter information, please
refer to Chapter 6 for audio setup details.

2.16 COM port connector (CN9)

The PCM-9580 provides four RS-232 serial ports in one COM port con­nector. The COM port connector is a 40-pin, DF13A-40DP-1.25V
(Hirose Electric Co., Ltd). It provides connections for serial devices (a
mouse, etc.) or a communication network. You can find the pin assign­ments for the COM port connector in Appendix C.

2.17 VGA/LVDS interface connections

The PCM-9580’s AGP SVGA interface can drive conventional CRT dis­plays and is capable of driving a wide range of LVDS flat panel displays.
The board has three connectors to support these displays: one for stan­dard CRT VGA monitors and one for LVDS type LCD panels.

2.17.1 CRT display connector (CN9)

CN9 is a 16-pin, dual-inline header used for conventional CRT displays.
A simple one-to-one adapter can be used to match CN9 to a standard 15­pin D-SUB connector commonly used for VGA.

Pin assignments for CRT display connector CN9 are detailed in Appendix
C.

2.17.2 LVDS LCD panel connector (CN5)

The PCM-9580 uses the Intel 845GV that supports 2 channel (2 x 18 bit)
LVDS LCD panel displays. Users can connect to either an 18-bit or 36-bit
LVDS LCD with CN15.

PCM-9580 User’s Manual 18

2.17.3 Panel type selection (S1)

S1 is an 8 segment DIP switch for DSTN/TFT panel type and resolution
functions.

2.18 TV-out interface (optional) (CN20)

The PCM-9580 board provides optional TV-out via CN20. This consists
of a 5-pin wafer box header. Output supports composite video and S­video connectors via an optional cable kit (p/n: 1103050306). TV-out
generators use both NTSC and PAL formats.

To set up your video interface run the appropriate installation program
located on the utility disk. That’s all there is to it.

2.19 Ethernet configuration

The PCM-9580 is equipped with a high performance 32-bit PCI-bus
Ethernet interface which is fully compliant with IEEE 802.3U 10/
100Mbps CSMA/CD standards. It is supported by all major network
operating systems.

The medium type can be configured via the RSET8139.EXE program
included on the utility disk. (See Chapter 3 for detailed information.)

Table 2.3: S1 Panel Type select

Panel Type Resolution
LVDS** 640 x 480
LVDS** 800 x 600
LVDS* 1024 x 768
LVDS 1280 x 1024
LVDS** 1600 x 1200
LVDS** 2048 x 1536

* Default Setting

** will support in the future

19 Chapter 2

2.19.1 100Base-T connector (CN3, PCM-9580F)

10/100Base-T connects to the PCM-9580F via an adapter cable to a 10­pin polarized header (CN3).

2.19.2 1000Base-T connector (CN8, PCM-9580FG)

10/100/1000 Base-T connects to the PCM-9580FG via an adapter cable
to a 10-pin polarized header (CN8).

2.19.3 Network boot

The Network Boot feature can be utilized by incorporating the Boot
ROM image files for the appropriate network operating system. The Boot
ROM BIOS files are included in the system BIOS, which is on the utility
CD disc.

2.19.4 LAN controller power select (JP7)

Table 2.3: LAN controller power select (JP7)

5 V* Standby 5V

* default setting

Note: PCM-9580 supports Wake-on-LAN. For Wake-

on LAN, JP7 has to be set to the Standby 5 V
position

PCM-9580 User’s Manual 20

2.20 Watchdog timer configuration

An on-board watchdog timer reduces the chance of disruptions which
EMP (electro-magnetic pulse) interference can cause. This is an invalu­able protective device for standalone or unmanned applications. Setup
involves one jumper and running the control software (refer to Appendix
A).

2.20.1 Watchdog timer action (JP5)

When the watchdog timer activates (CPU processing has come to a halt),
it can reset the system or generate an interrupt on IRQ11. This can be set
via setting JP5 as shown below:

2.21 USB connectors (CN1, CN23)

The PCM-9580 board provides up to four USB (Universal Serial Bus)

1.1/2.0 ports. This gives complete Plug and Play, and hot attach/detach
for up to 127 external devices. The USB interfaces comply with USB
specification Rev. 1.1, and are fuse protected.

The PCM-9580FG Support Embedded USB interface which used one 9
x 2-pin header connector for USB 3, 4 (CN23) and one 5 x 2 pin header
connector for USB 1, 2 (CN1). You will need an USB cable if you use a
standard USB connector in CN1 or CN23 (embedded USB). The adapter
cable has a 5 x 2-pin connector on one end and a USB connector on the
other. The Optional USB Cable for CN1 P/N is 1703100260. For Embed­ded USB CN23 P/N is 1700180170. The USB interfaces can be disabled
in the system BIOS setup.

Table 2.4: Watchdog timer action (JP5)

*System reset IRQ 11

* default setting

21 Chapter 2

2.21.1 Embedded USB interface:

Overview

The Embedded USB interface Specification defines an alternate imple­mentation for small form factor USB Module referred to in this specifica­tion as a Embedded USB Module

This specification uses a qualified sub-set of the same signal protocol,
electrical definitions, and configuration definitions as the USB 2.0 Speci­fication.

The primary differences between a standard USB 2.0 and a Embedded
USB Interface are:

• Support more one Vcc +5V signal in the Embedded USB Interface

• Support Vcc 3.3V and OVER CURRENT signal in the Embedded USB

Interface

2.21.1.1 Features and Benefits

• Upgrade ability

Embedded USB Module are removable and upgradeable with available
“new technology” cards.

• Flexibility

A single Mini PCI interface can accommodate various types of com­munications, Flash memory storage, and Industry control I/O devices.

• Serviceability

Mini PCI Cards can be removed and easily serviced if they fail.

• Reliability

Mini PCI Cards will be mass produced and, consequently, of higher
quality than low-volume custom boards.

• Reduced Size

Embedded USB Module are smaller than PCMCIA cards, Small PCI
cards

• High Performance

The USB 2.0 high-performance characteristics which Transfer rate up
to 480Mbps

PCM-9580 User’s Manual 22

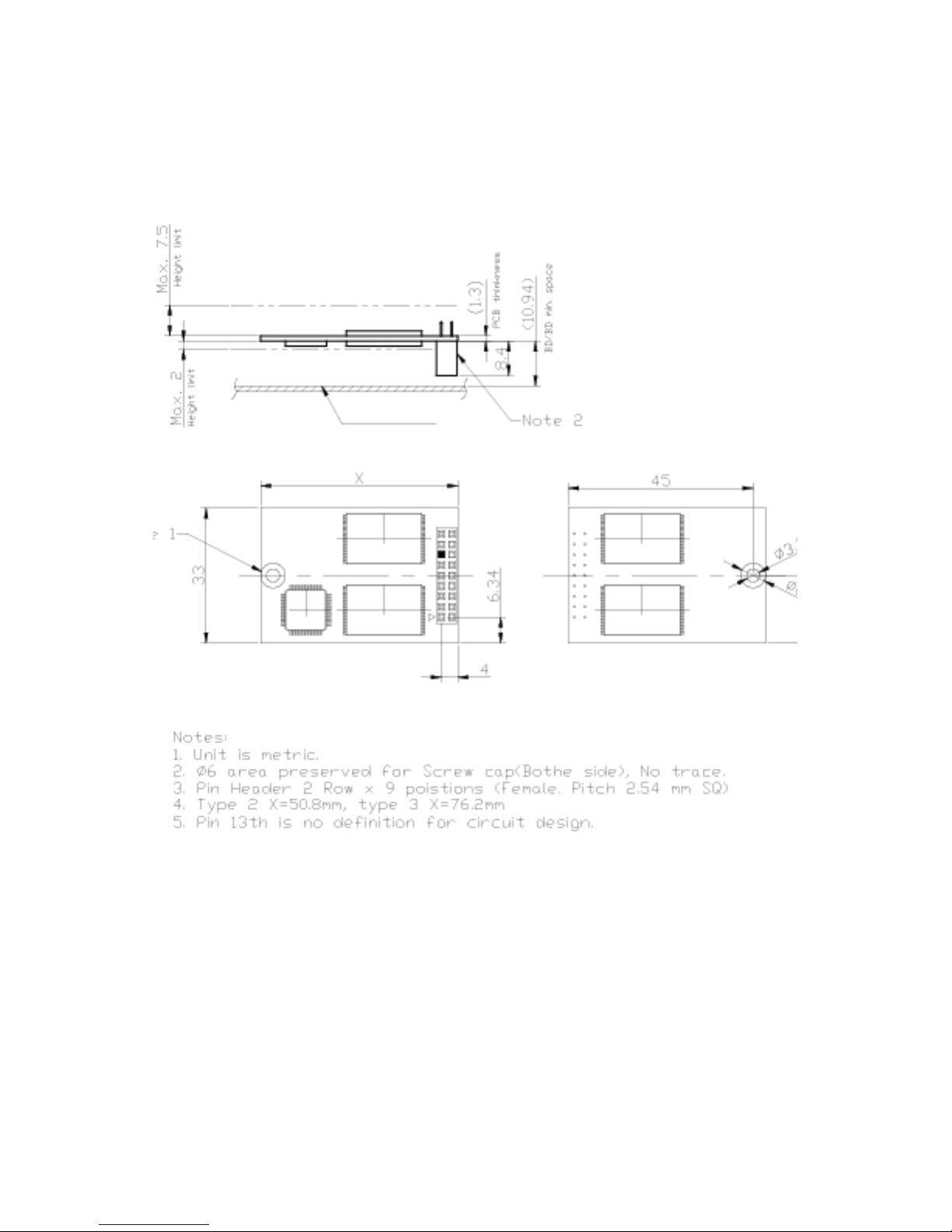

2.21.1.2 Embedded USB Connector dimension and Pin assignment

Embedded USB on board connector is used pitch 2 x 9 Pin header with

2.54mm pin

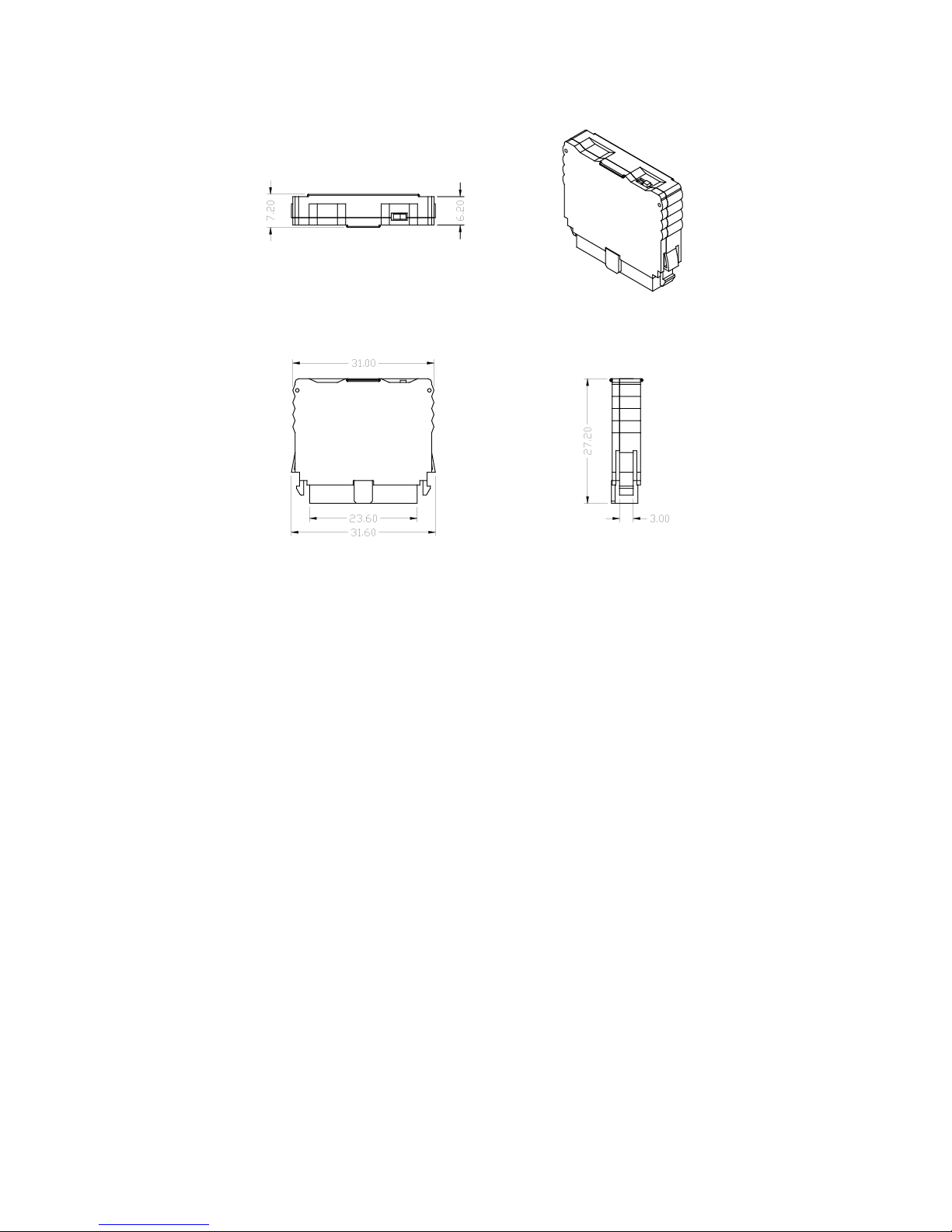

Figure 1-1: Embedded USB Connector Dimension

Pin Assignment

Table 2.5: Embedded USB Pin Assignment

2.21.1.3. Mechanical Specification

I. Overview

The specification defines three form factors: Type I, Type II and Type III
are dual 18-pin connector interfaces; The all of type connector are used
PC standard 2.54mm pin pitch pin header

II. Type I Form Factor

Pin

Signal Pin Signal

1

GND 2 GND

3 GND (USB) 4 GND (USB)

5 Vcc (USB) 6 Vcc (USB)

7 Data 1- 8 Data 2-

9 Data 1+ 10 Data 2+

11 GND (USB) 12 GND (USB)

13 Key 14 N.C/ Over Current.

15 Vcc5V 16 N.C./ Vcc3.3V

17 GND 18 GND

23 Chapter 2

Figure 2.2: Embedded USB Mod. Type I

Note: 1. Type I will support Flash memory module

only

2. Type I is a vertical assembly with mainboard
(SBC)

PCM-9580 User’s Manual 24

III. Type II/III Form Factor

Figure 2.3: Embedded USB Type II/III Form Factor

Notes: 1. Type II/III will support Flash memory Module,

Blue-Tooth Module, Wireless LAN Module,
and Industrial I/O control module

2. Type II/III is Board to Board horizontal

assembly with Mainboard (SBC)

25 Chapter 3

CHAPTER

3

Software Configuration

This chapter details the software con­figuration information. It shows you
how to configure the card to match
your application requirements. The
AWARD System BIOS is covered in
Chapter 4.

Sections include:

• Introduction

• Connections for standard LCDs

• Ethernet interface configuration.

PCM-9580 User’s Manual 26

Chapter 3 Software Configuration

3.1 Introduction

The PCM-9580 system BIOS and custom drivers are located in a 256
Kbyte, Flash ROM device, designated U6. A single Flash chip holds the
system BIOS, VGA BIOS and network Boot ROM image. The display
can be configured via CMOS settings. This method minimizes the num­ber of chips and difficulty of configuration. To set different types of LCD
panels, please choose “panel type” from the “integrated peripherals”
menu in CMOS setup.

3.2 Connections to Three Standard LCDs

The following tables illustrate typical LCD connection pinouts for the
PCM-9580.

3.2.1 LG LM150X06 (1024 x 768 LVDS TFT LCD)

Table 3.1: Connections to Toshiba LTM10C209A

LTM10C209A PCM-9580 CN23

Pin Name Pin Name

1 GND 3 GND

2 CLK 35 SHFCLK

3GND 34GND

4R0 27P18

5R1 28P19

6R2 29P20

7GND 33GND

8R3 30P21

9R4 31P22

10 R5 32 P23

11 GND 34 G ND

12 G0 19 P10

13 G1 20 P11

14 G2 21 P12

27 Chapter 3

15 GND 8 GND

16 G3 22 P13

17 G4 23 P14

18 G5 24 P15

19 GND 8 GND

20 ENAB 37 M/DE

21 GND 4 GND

22 B0 11 P2

23 B1 12 P3

24 B2 13 P4

25 GND 4 GND

26 B3 14 P5

27 B4 15 P6

28 B5 16 P7

29 GND 3 GND

30 VDD 1 +5 V

31 VDD 2 +5 V

Table 3.1: Connections to Toshiba LTM10C209A

PCM-9580 User’s Manual 28

29

Chapter 4 Ducks that Need Love!

4

Award BIOS Setup

This chapter describes how to set BIOS

configuration data.

CHAPTER

PCM-9580 User’s Manual 30

Chapter 4 Award BIOS Setup

4.1 System test and initialization

These routines test and initialize board hardware. If the routines encoun­ter an error during the tests, you will either hear a few short beeps or see
an error message on the screen. There are two kinds of errors: fatal and
non-fatal. The system can usually continue the boot up sequence with
non-fatal errors. Non-fatal error messages usually appear on the screen
along with the following instructions:

press <F1> to RESUME

Write down the message and press the F1 key to continue the bootup
sequence.

4.1.1 System configuration verification

These routines check the current system configuration against the values
stored in the board’s CMOS memory. If they do not match, the program
outputs an error message. You will then need to run the BIOS setup pro­gram to set the configuration information in memory.

There are three situations in which you will need to change the CMOS
settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration informa­tion has been erased.

The PCM-9580 Series' CMOS memory has an integral lithium battery
backup. The battery backup should last ten years in normal service, but
when it finally runs down, you will need to replace the complete unit.

31

4.2 Award BIOS setup

Award’s BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of information is stored
in battery-backed CMOS RAM so that it retains the Setup information
when the power is turned off.

4.2.1 Entering setup

Power on the computer and press <Del> immediately. This will allow you
to enter Setup.

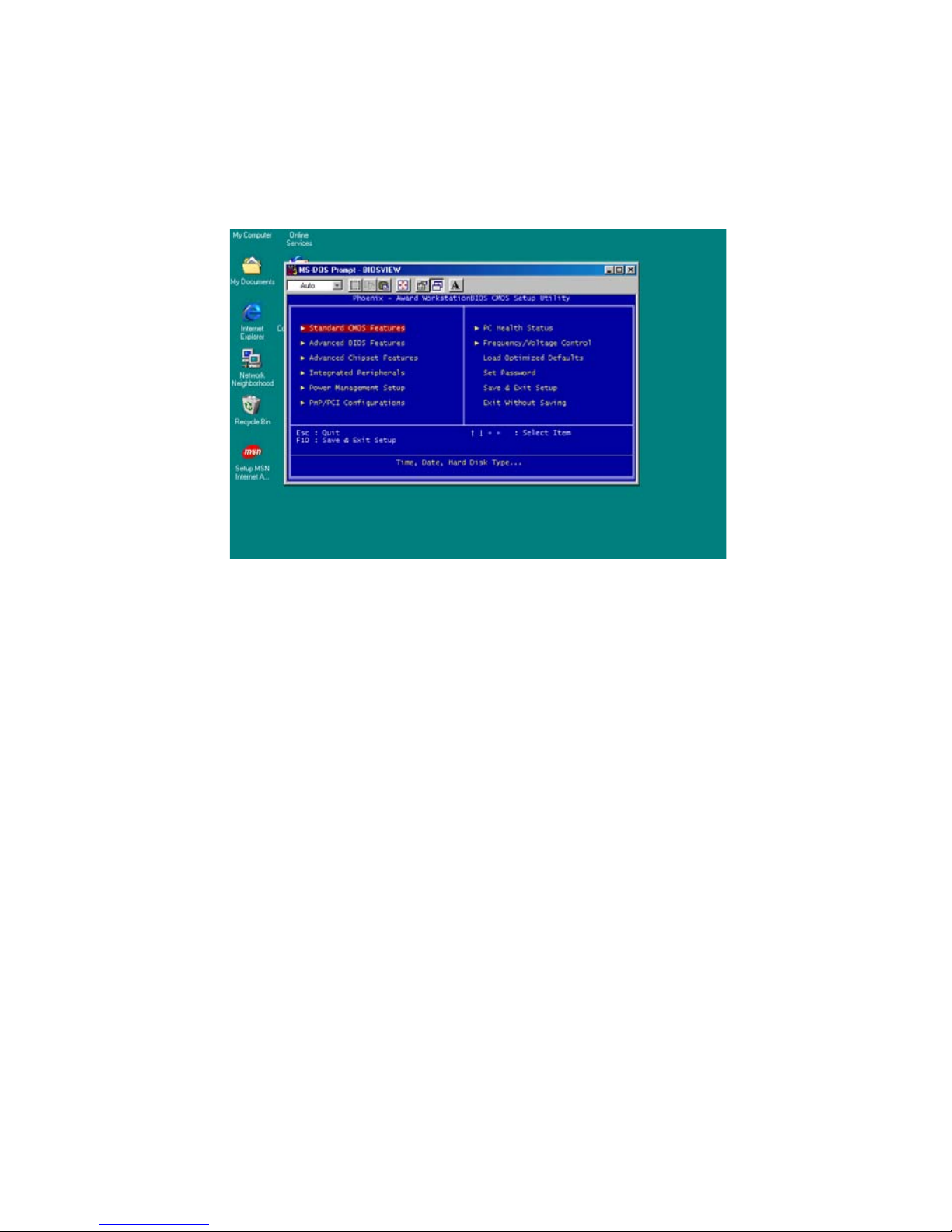

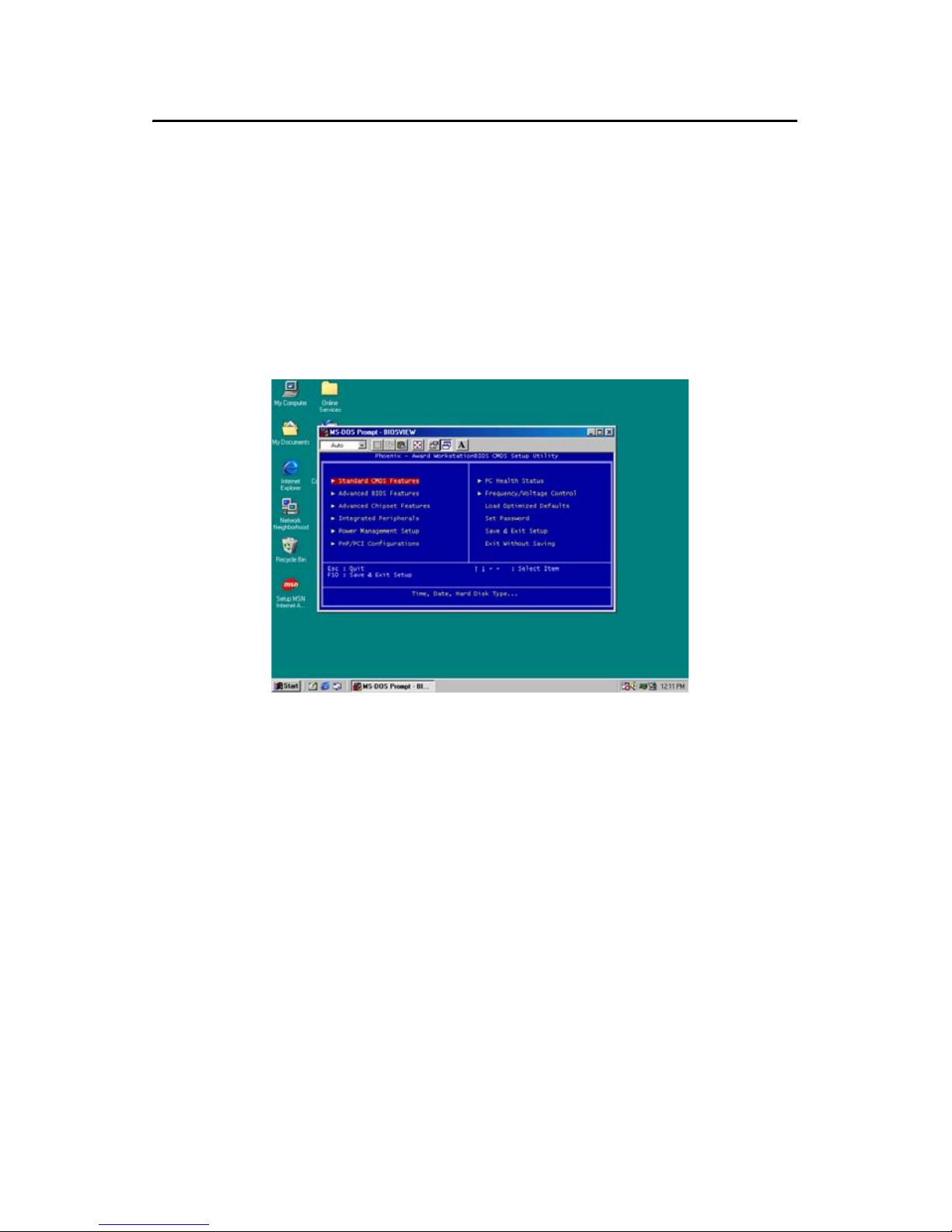

Figure 4.1: BIOS setup program initial screen

PCM-9580 User’s Manual 32

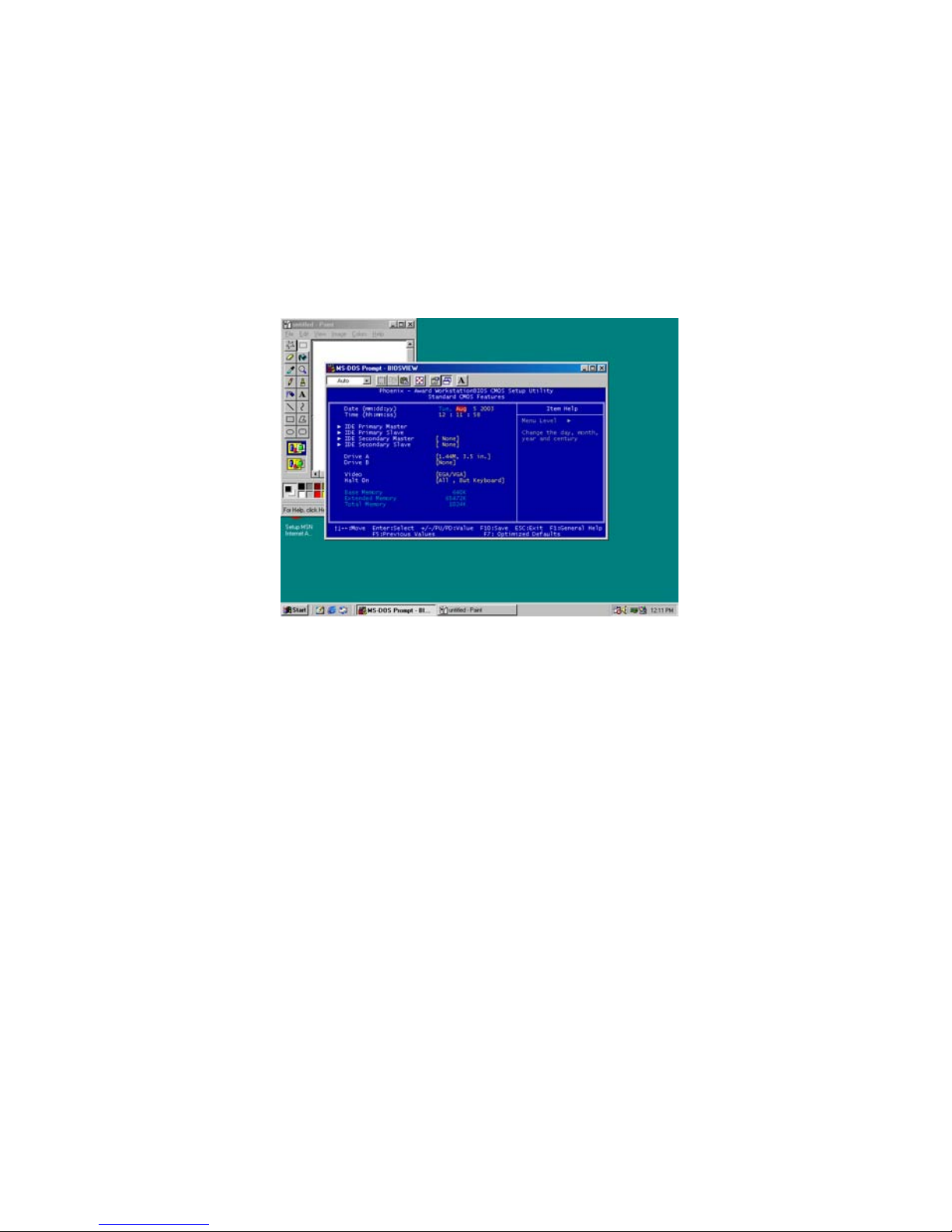

4.2.2 Standard CMOS Features setup

When you choose the Standard CMOS Features option from the Initial
Setup Screen menu, the screen shown below is displayed. This standard
Setup Menu allows users to configure system components such as date,
time, hard disk drive, floppy drive and display. Once a field is high­lighted, on-line help information is displayed in the left bottom of the
Menu screen.

Figure 4.2: CMOS Features setup

33

4.2.3 Advanced BIOS Features setup

By choosing the Advanced BIOS Features Setup option from the Initial
Setup Screen menu, the screen below is displayed. This sample screen
contains the manufacturer’s default values for the PCM-9580 Series.

Figure 4.3: Advanced BIOS Features setup

PCM-9580 User’s Manual 34

4.2.4 Advanced Chipset Features setup

By choosing the Advanced Chipset Features option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9580 Series.

4.2.5 Integrated Peripherals

Choosing the Integrated Peripherals option from the Initial Setup Screen
menu should produce the screen below. Here we see the manufacturer’s
default values for the PCM-9580 Series.

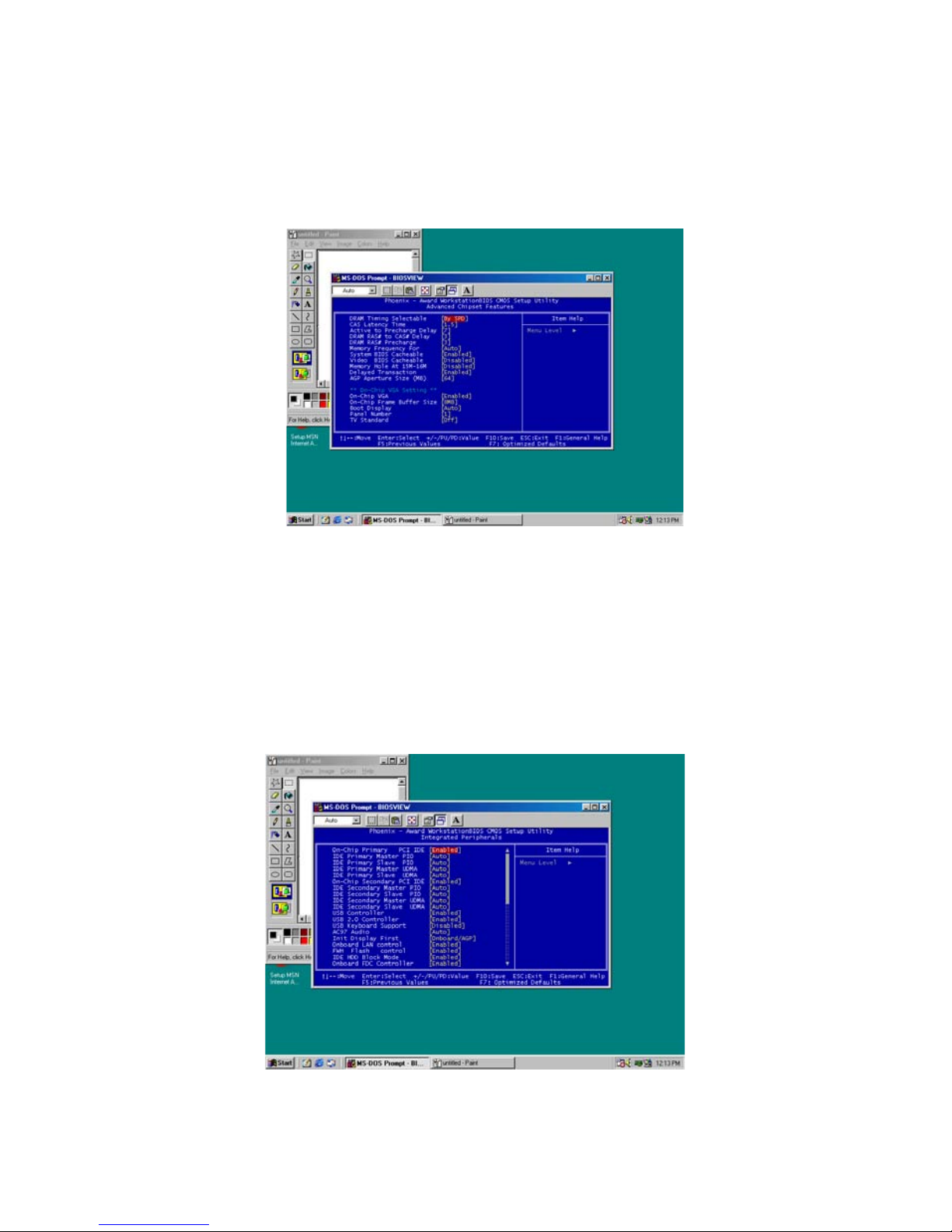

Figure 4.4: Advanced Chipset Features setup

Figure 4.5: Integrated Peripherals

35

4.2.6 Power Management Setup

By choosing the Power Management Setup option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9580 Series.

4.2.7 PnP/PCI Configurations

By choosing the PnP/PCI Configurations option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9580 Series.

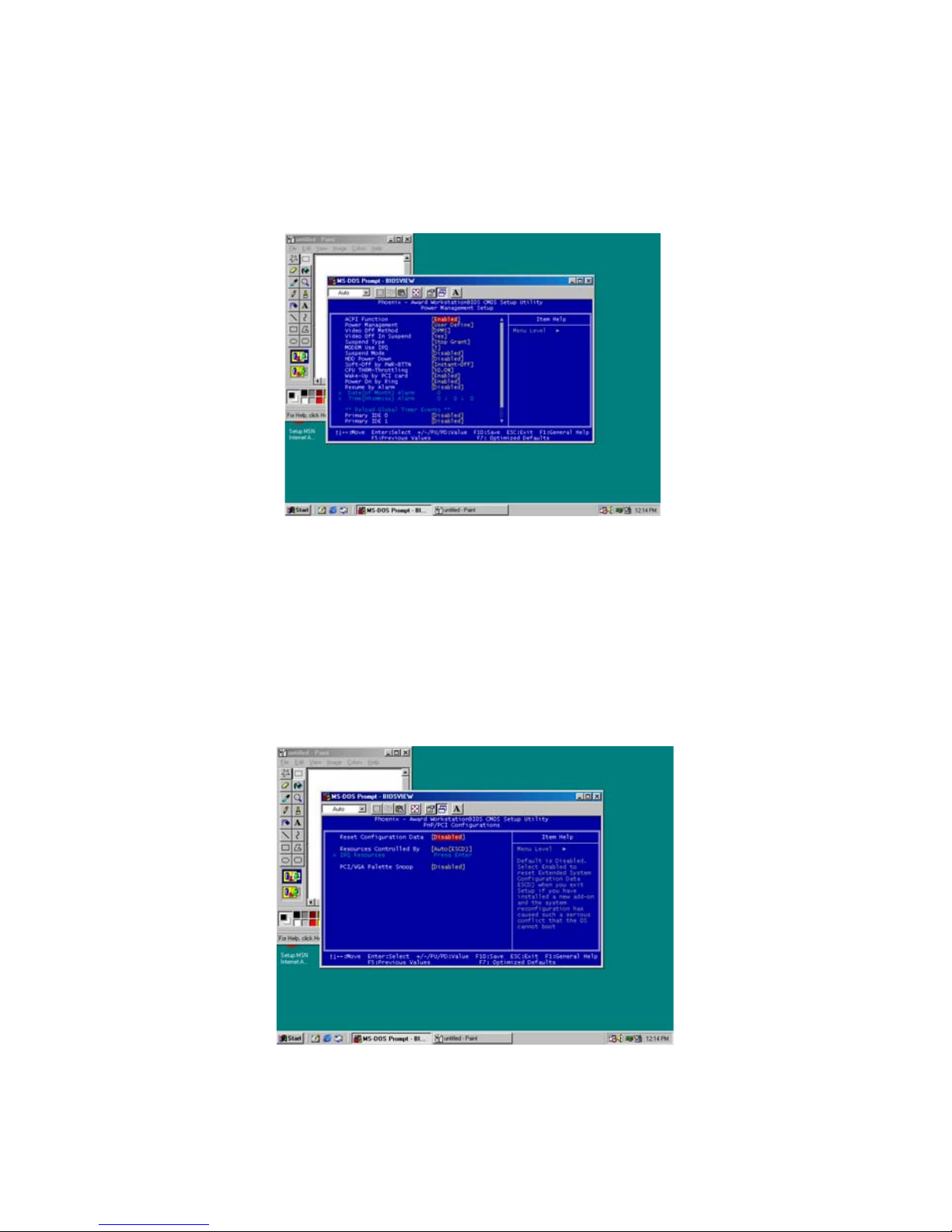

Figure 4.6: Power Management Setup

Figure 4.7: PnP/PCI Configurations

PCM-9580 User’s Manual 36

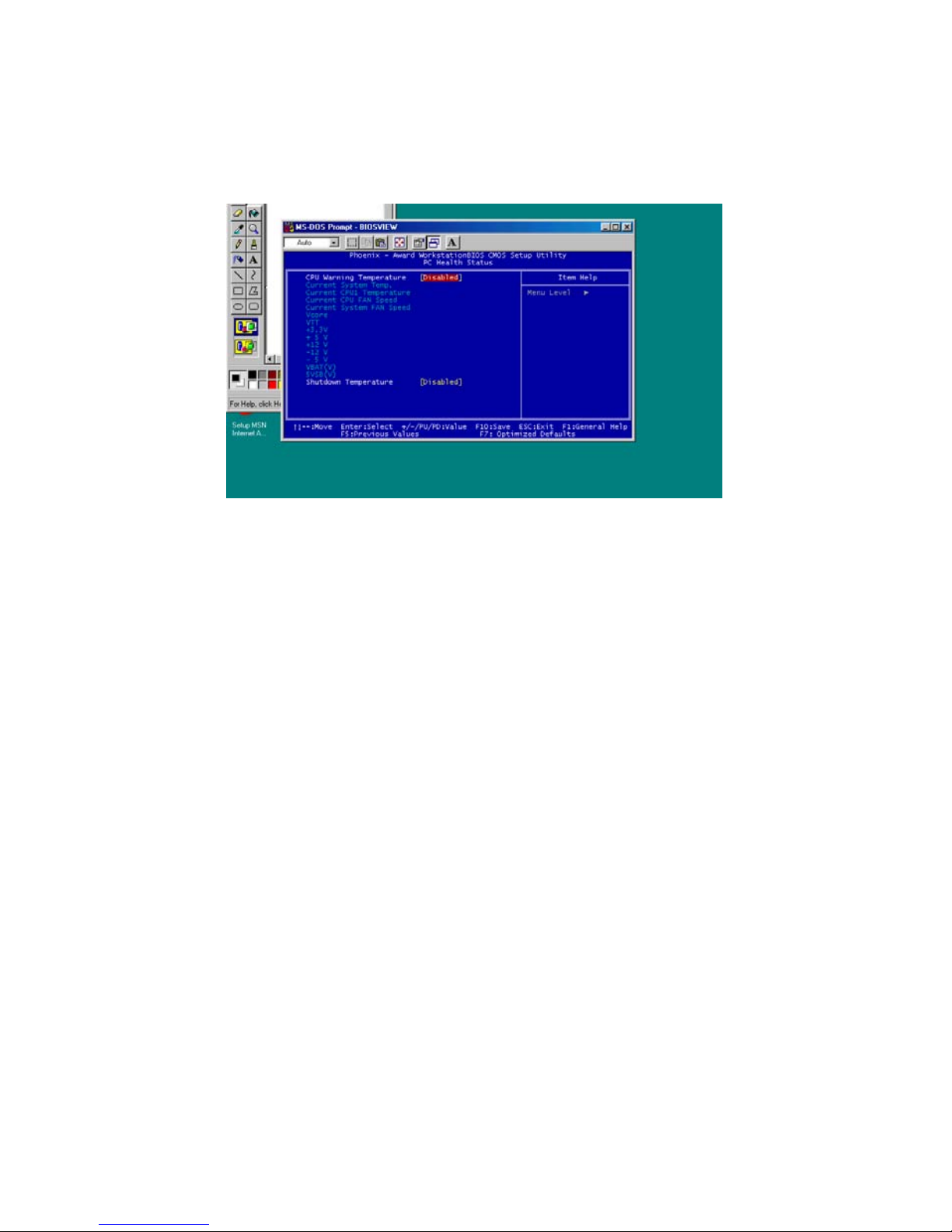

4.2.8 PC Health Status

The PC Health Status option displays information such as CPU and moth­erboard temperatures, fan speeds, and core voltage.

Figure 4.8: PC Health Status

37

4.2.9 Frequency/Voltage Control

By choosing the Frequency/Voltage Control option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9580

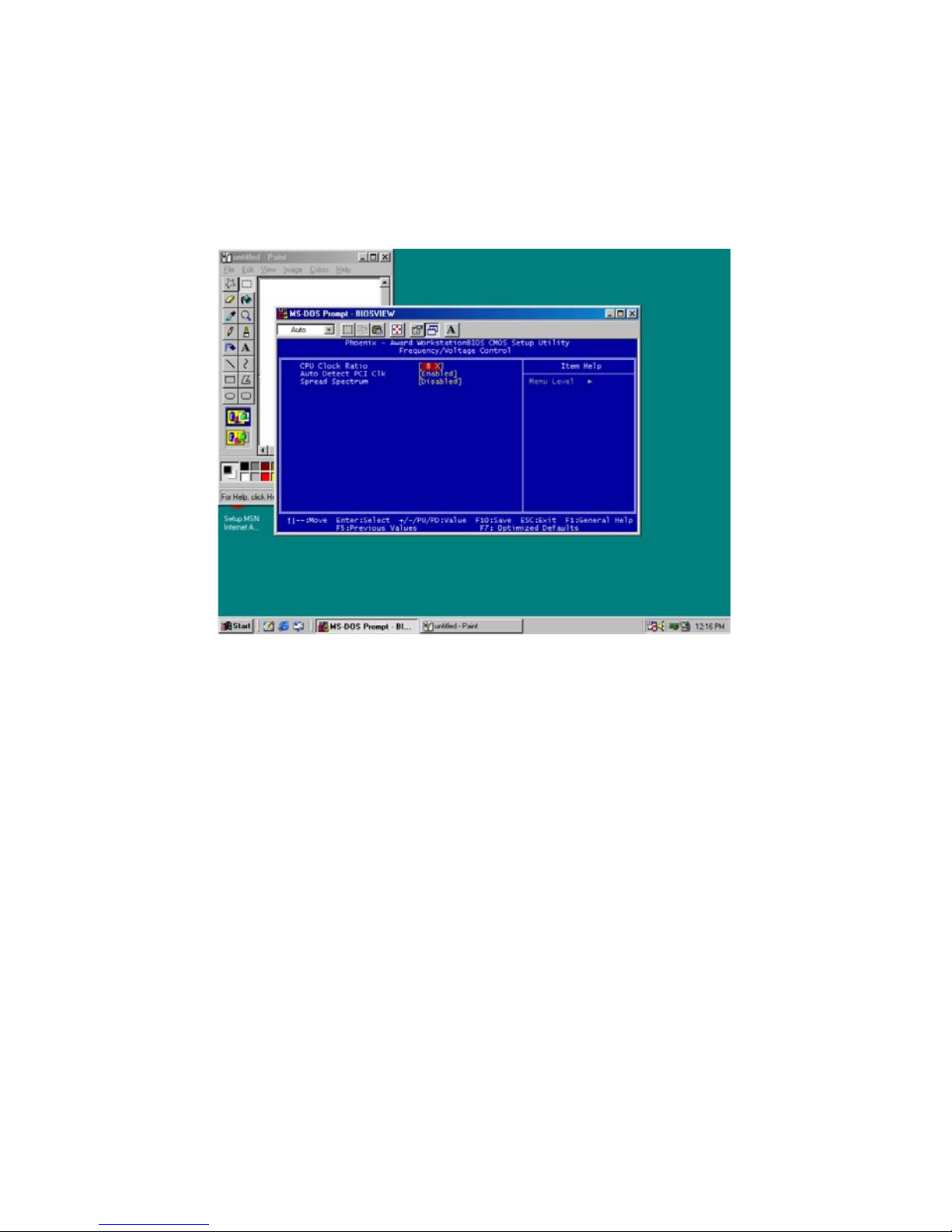

Figure 4.9: Frequency/Voltage Control

Caution Incorrect settings in Frequency/Voltage Control

may damage the system CPU, video adapter,
or other hardware.

PCM-9580 User’s Manual 38

4.2.10 Load Optimized Defaults

Load Optimized Defaults loads the default system values directly from
ROM. If the stored record created by the Setup program should ever
become corrupted (and therefore unusable), these defaults will load auto­matically when you turn the PCM-9580 Series system on.

4.2.11 Set Password

To Establish Password

1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.

2. When you see “Enter Password,” enter the desired password and
press <Enter>.

3. At the “Confirm Password” prompt, retype the desired password,
then press <Enter>.

4. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

To Change Password

1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.

2. When you see “Enter Password,” enter the existing password and
press <Enter>.

3. You will see “Confirm Password.” Type it again, and press
<Enter>.

4. Select Set Password again, and at the “Enter Password” prompt,
enter the new password and press <Enter>.

Note To enable this feature, you should first go to the

Advanced BIOS Features menu, choose the
Security Option, and select either Setup or
System, depending on which aspect you want
password protected. Setup requires a pass­word only to enter Setup. System requires the
password either to enter Setup or to boot the
system.

A password may be at most 8 characters long.

39

5. At the “Confirm Password” prompt, retype the new password, and
press <Enter>.

6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

To Disable Password

1. Choose the Set Password option from the CMOS Setup Utility
main menu and press <Enter>.

2. When you see “Enter Password,” enter the existing password and
press <Enter>.

3. You will see “Confirm Password.” Type it again, and press
<Enter>.

4. Select Set Password again, and at the “Enter Password” prompt,
don’t enter anything; just press <Enter>.

5. At the “Confirm Password” prompt, again don’t type in anything;
just press <Enter>.

6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.

4.2.12 Save & Exit Setup

If you select this option and press <Y> then <Enter>, the values entered
in the setup utilities will be recorded in the chipset’s CMOS memory. The
microprocessor will check this every time you turn your system on and
use the settings to configure the system. This record is required for the
system to operate.

4.2.13 Exit Without Saving

Selecting this option and pressing <Enter> lets you exit the Setup pro­gram without recording any new values or changing old ones.

PCM-9580 User’s Manual 40

41 Chapter 5

CHAPTER

5

PCI SVGA Setup

Introduction

Installation of SVGA drivers

-for Windows 98/2000/XP

-for Windows NT

Further information

PCM-9580 User’s Manual 42

Chapter 5 PCI SVGA Setup

5.1 Introduction

The PCM-9580 has an onboard AGP flat panel/VGA interface. The spec­ifications and features are described as follows:

5.1.1 Chipset

The PCM-9580 uses a Intel 845GV + Chrontel 7017 chipset. for its AGP/
SVGA controller. It supports LVDS LCD displays and conventional ana­log CRT monitors. In addition, it also supports interlaced and non-inter­laced analog monitors (color and monochrome VGA) in high-resolution
modes while maintaining complete IBM VGA compatibility. Digital
monitors (i.e. MDA, CGA, and EGA) are NOT supported. Multiple fre­quency (multisync) monitors are handled as if they were analog monitors.

5.1.2 Display memory

The 845GV chip can support up to 64MB dynamic frame buffer shared
with system memory; the VGA controller can drive CRT displays or
color panel displays with resolutions up to 1280 x 1024@16bpp (60Hz),
1024 x 768@16bpp, , 1600 x 1200@32bpp (85Hz) in CRT Modes,
1600x1200 panels at 60Hz refresh rate IN LVDS Mode.

5.1.3 Display types

CRT and panel displays can be used simultaneously. The PCM-9580 can
be set in one of three configurations: on a CRT, on a flat panel display, or
on both simultaneously. The system is initially set to simultaneous dis­play mode. If you want to enable the CRT display only or the flat panel
display only, please contact VIA Technology Inc., or our sales representa­tive for detailed information.

43 Chapter 5

5.1.4 Dual/Simultaneous Display

The PCM-9580 uses a Intel 845GV + Chrontel 7017 controller that is
capable of providing simultaneous dual view display of the same content
on a flat panel and CRT.

To set up dual view (simultaneus mode) under Windows 9x, Windows
ME, Windows NT/2000/XP, follow these steps:

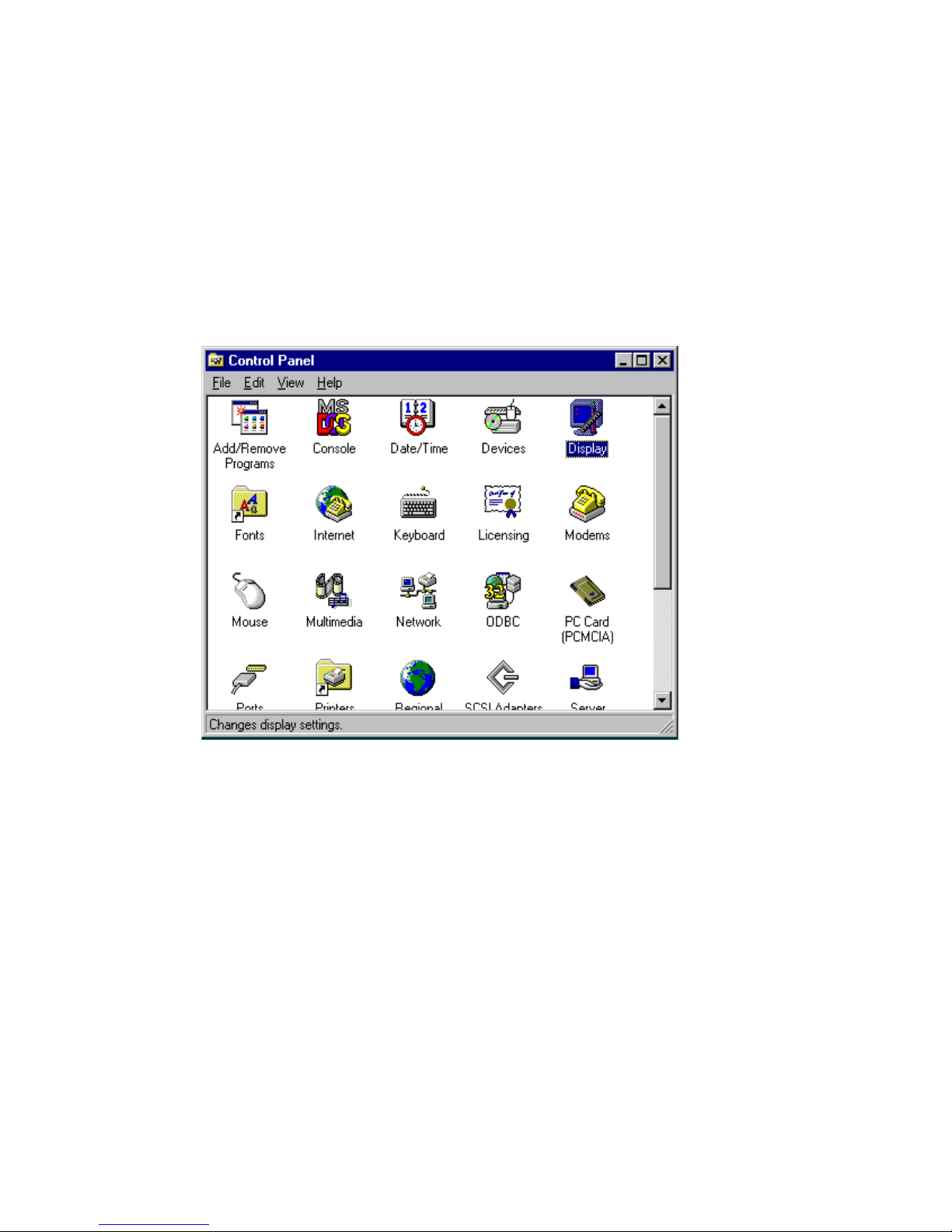

Step 1. Open the Control panel, and select “Display”, “Settings”.

Step 2. Select " CRT+LCD " or " CRT+TV " for dual view

Step 3. Click “OK”.

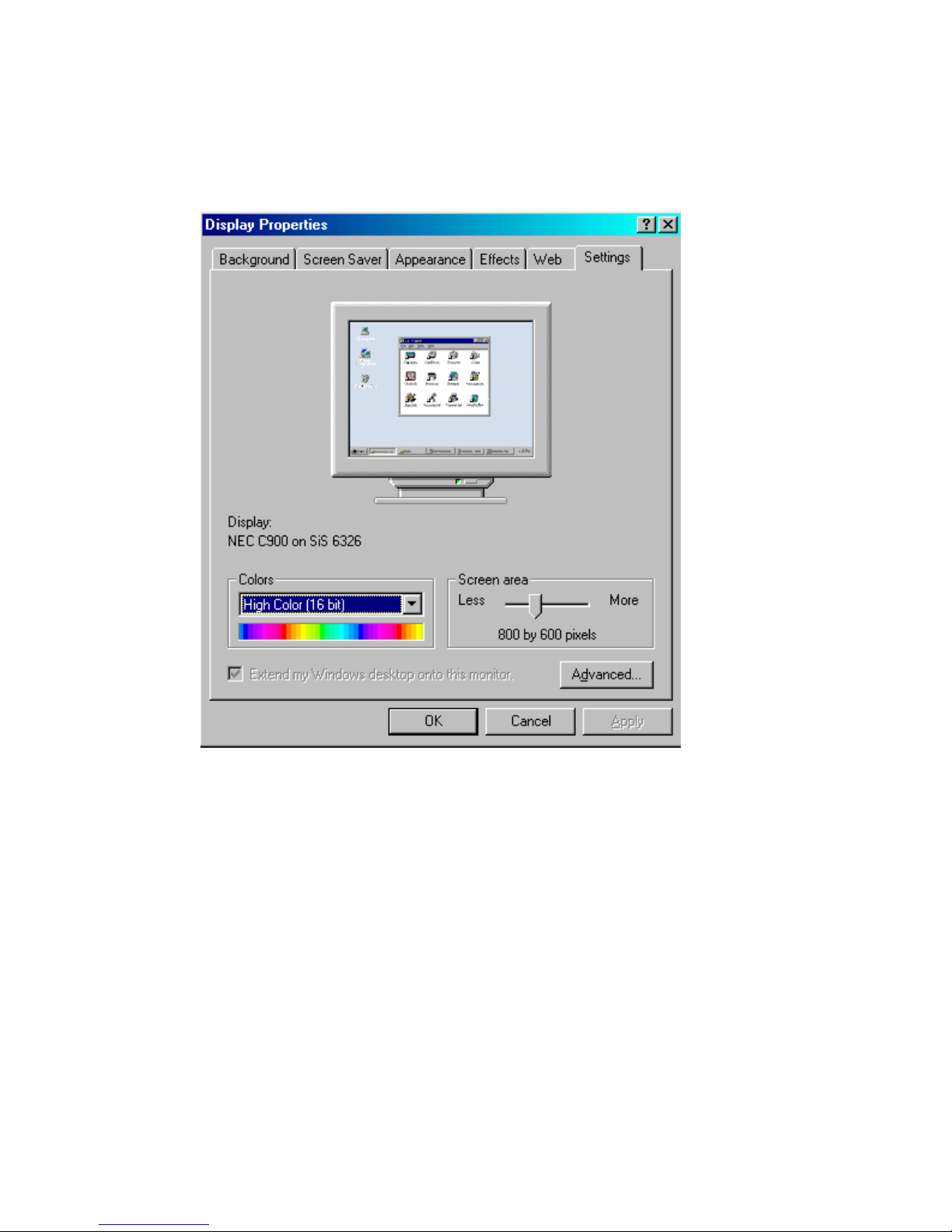

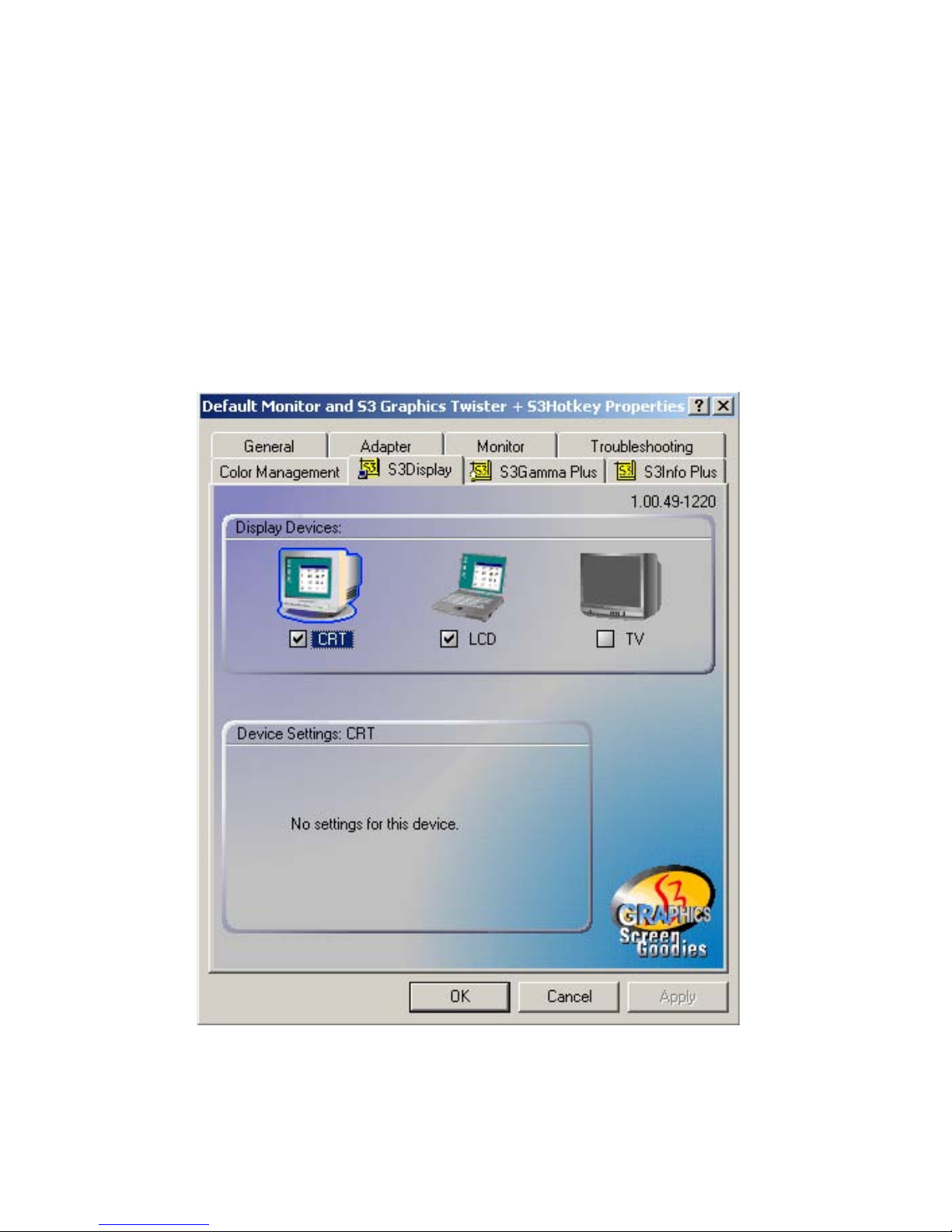

Figure 5.1: Selecting Display Settings

1

PCM-9580 User’s Manual 44

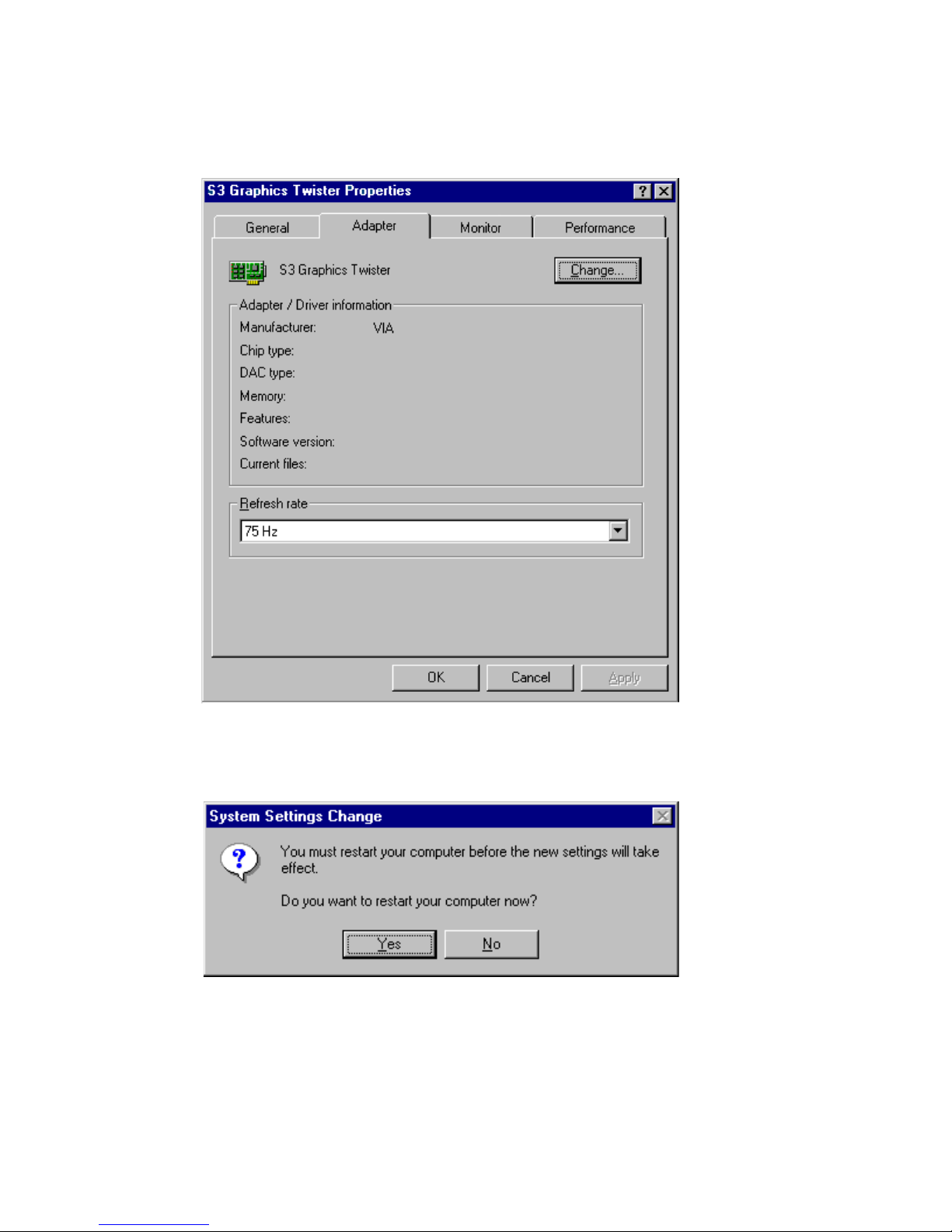

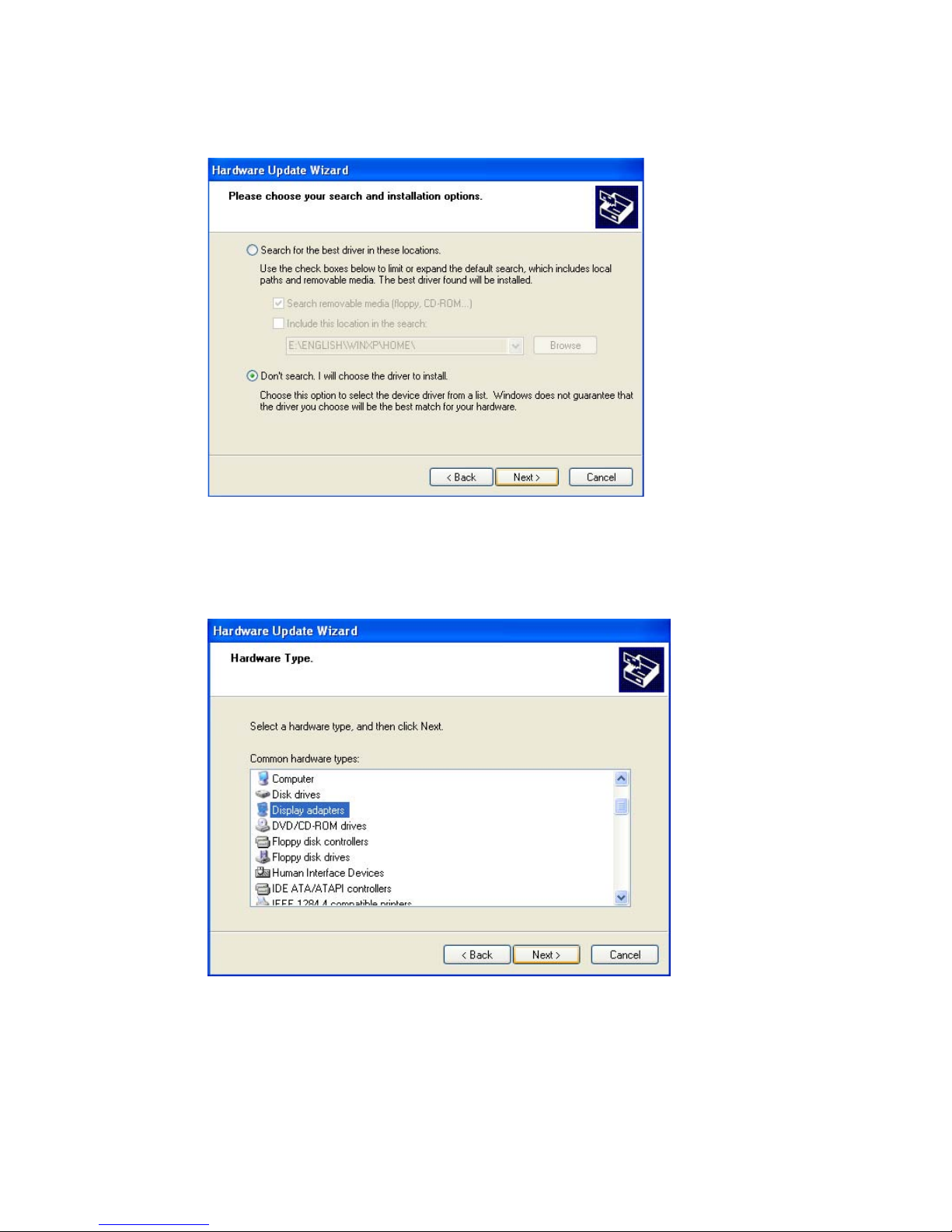

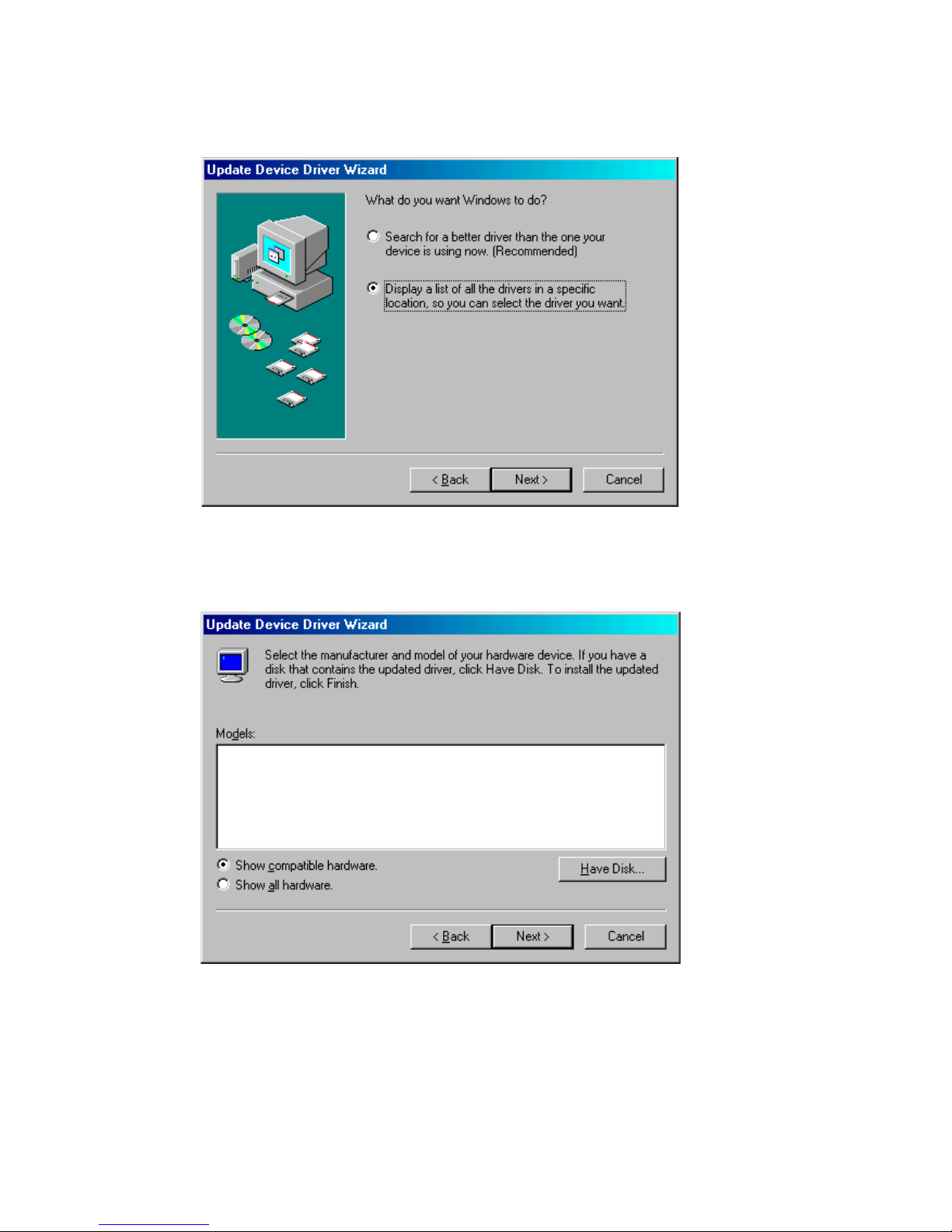

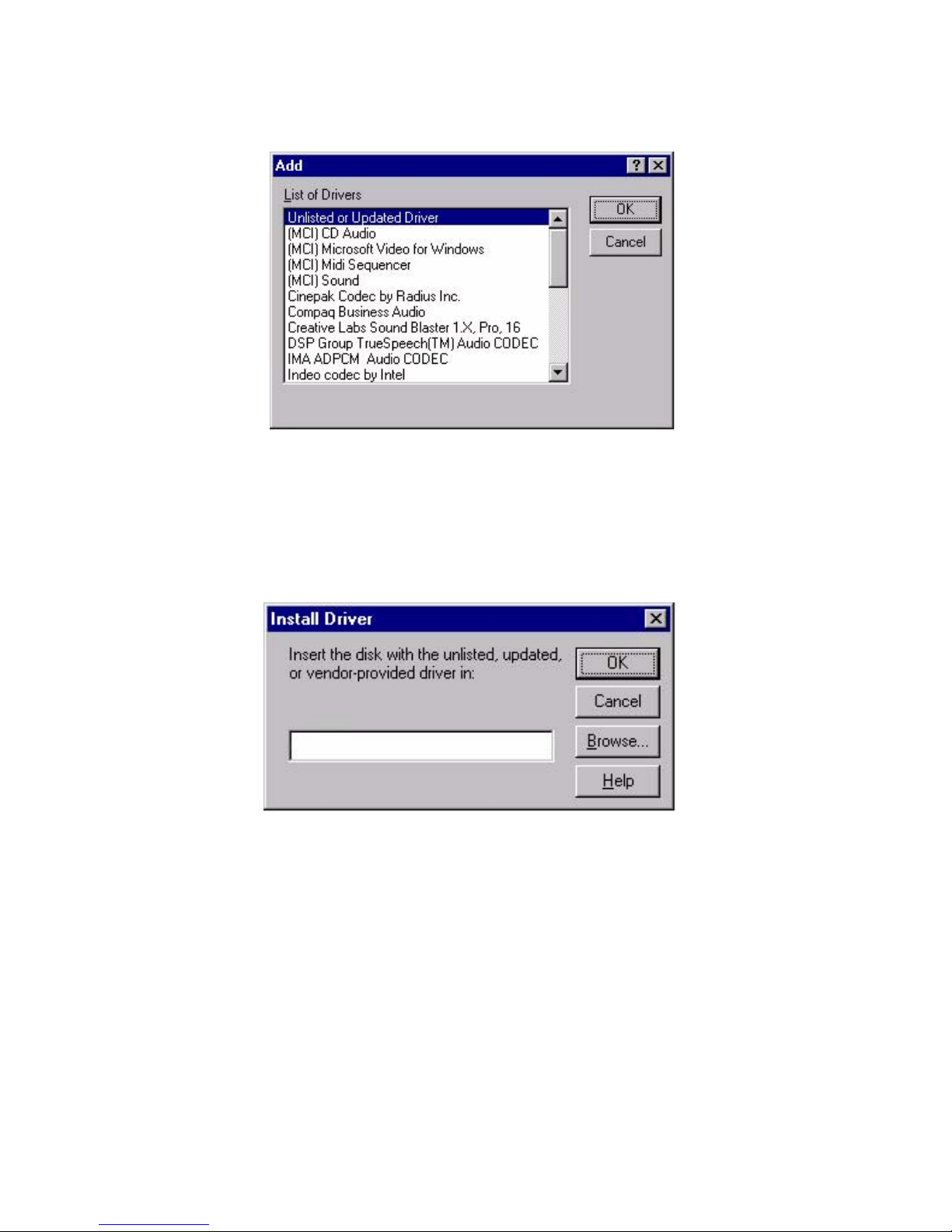

5.2 Installation of the SVGA Driver

Complete the following steps to install the SVGA driver. Follow the pro­cedures in the flow chart that apply to the operating system that you are
using within your PCM-9580.

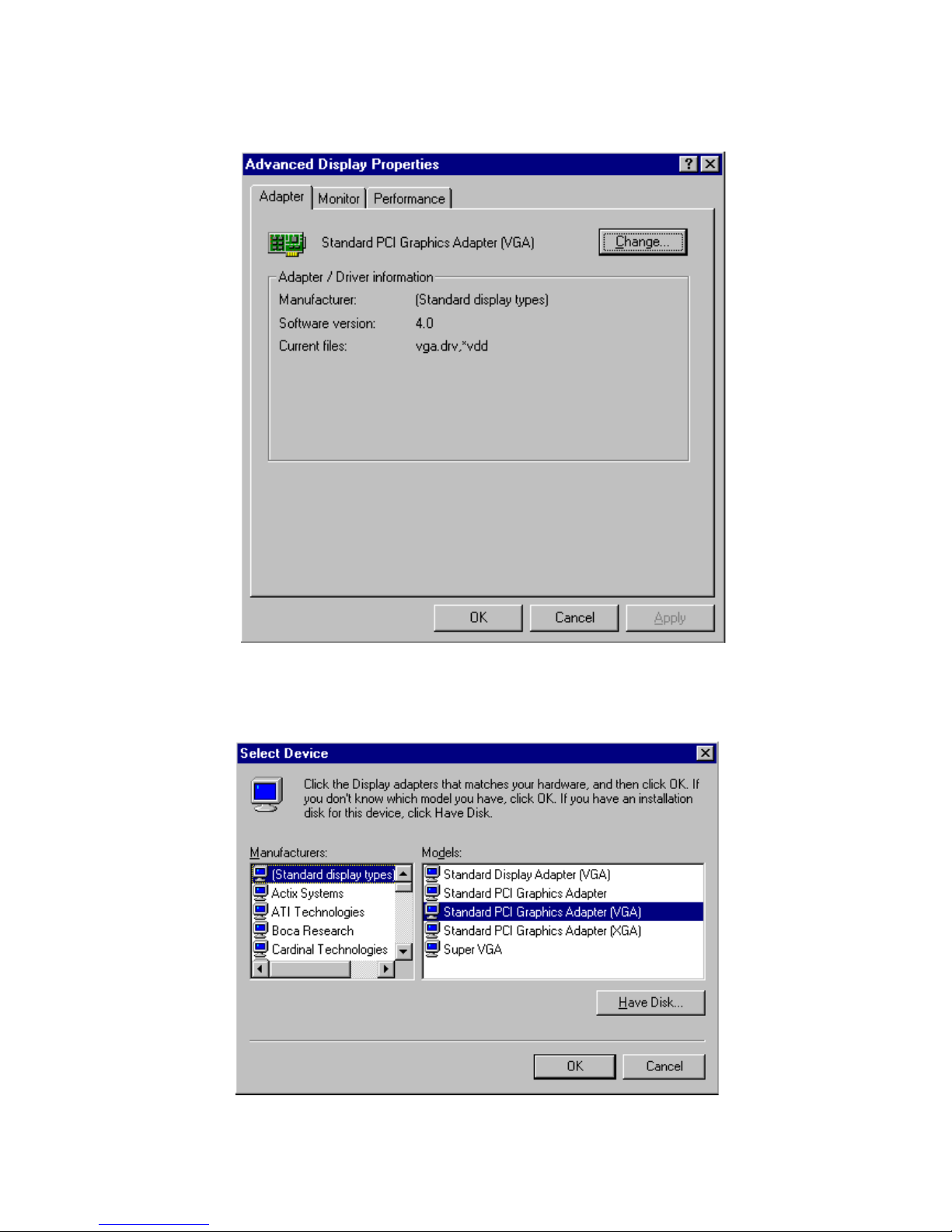

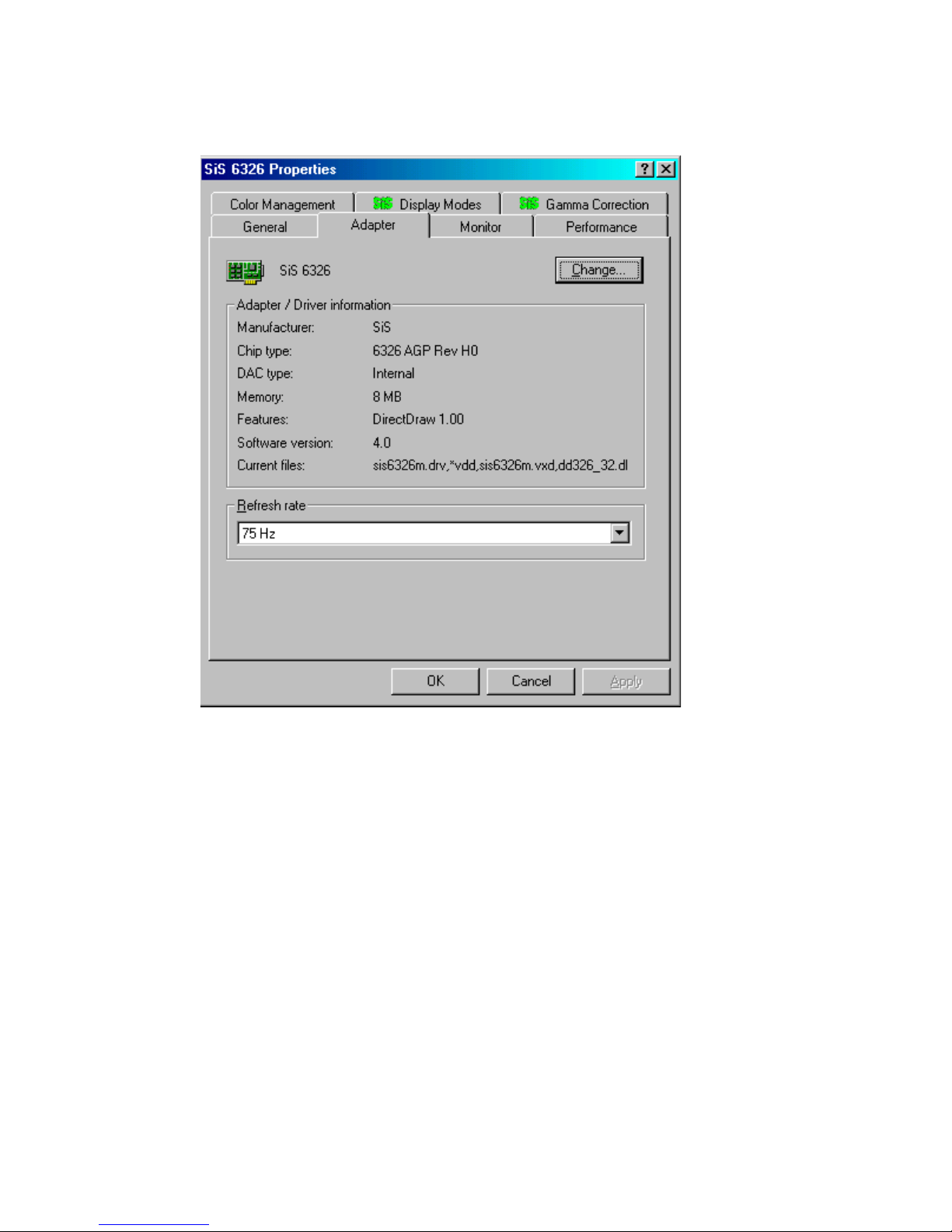

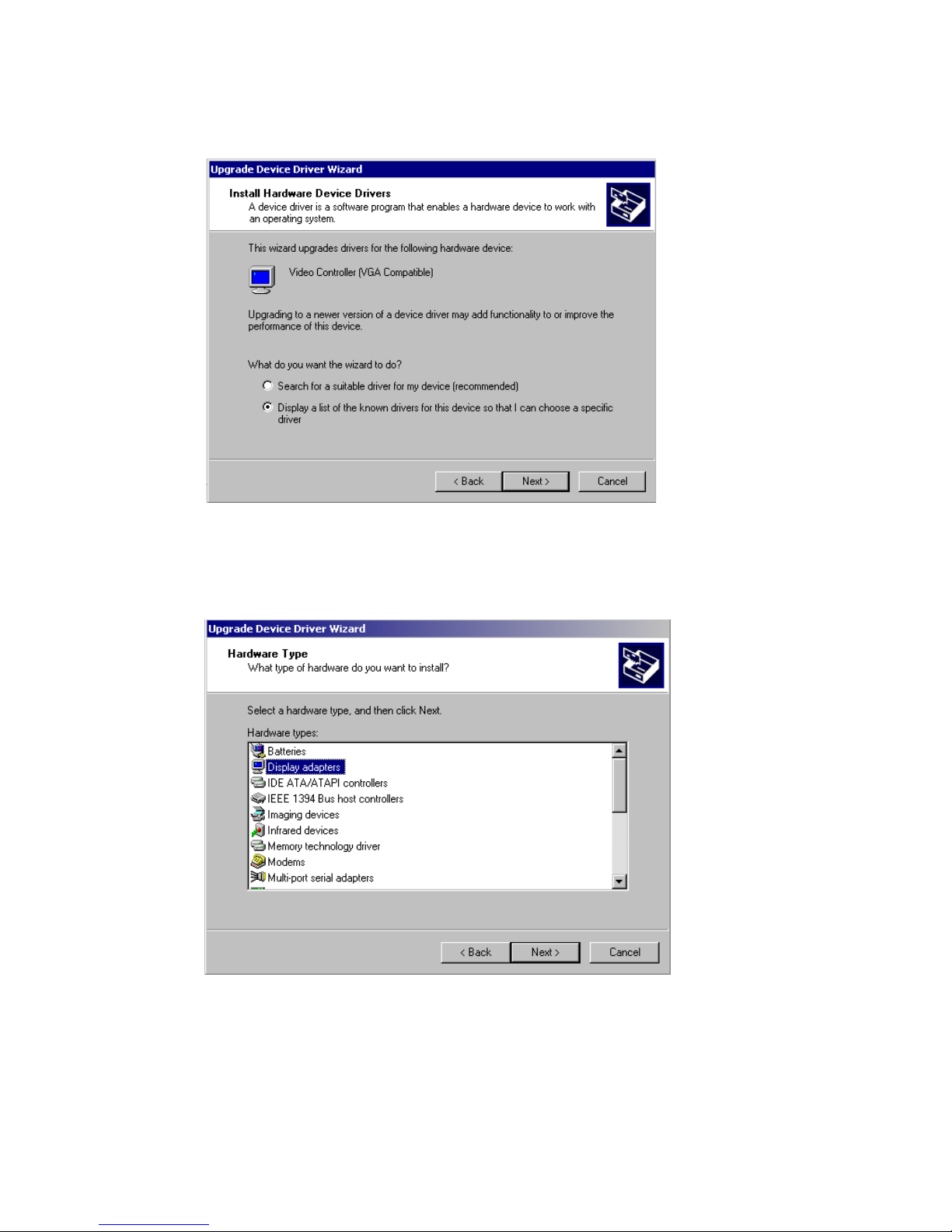

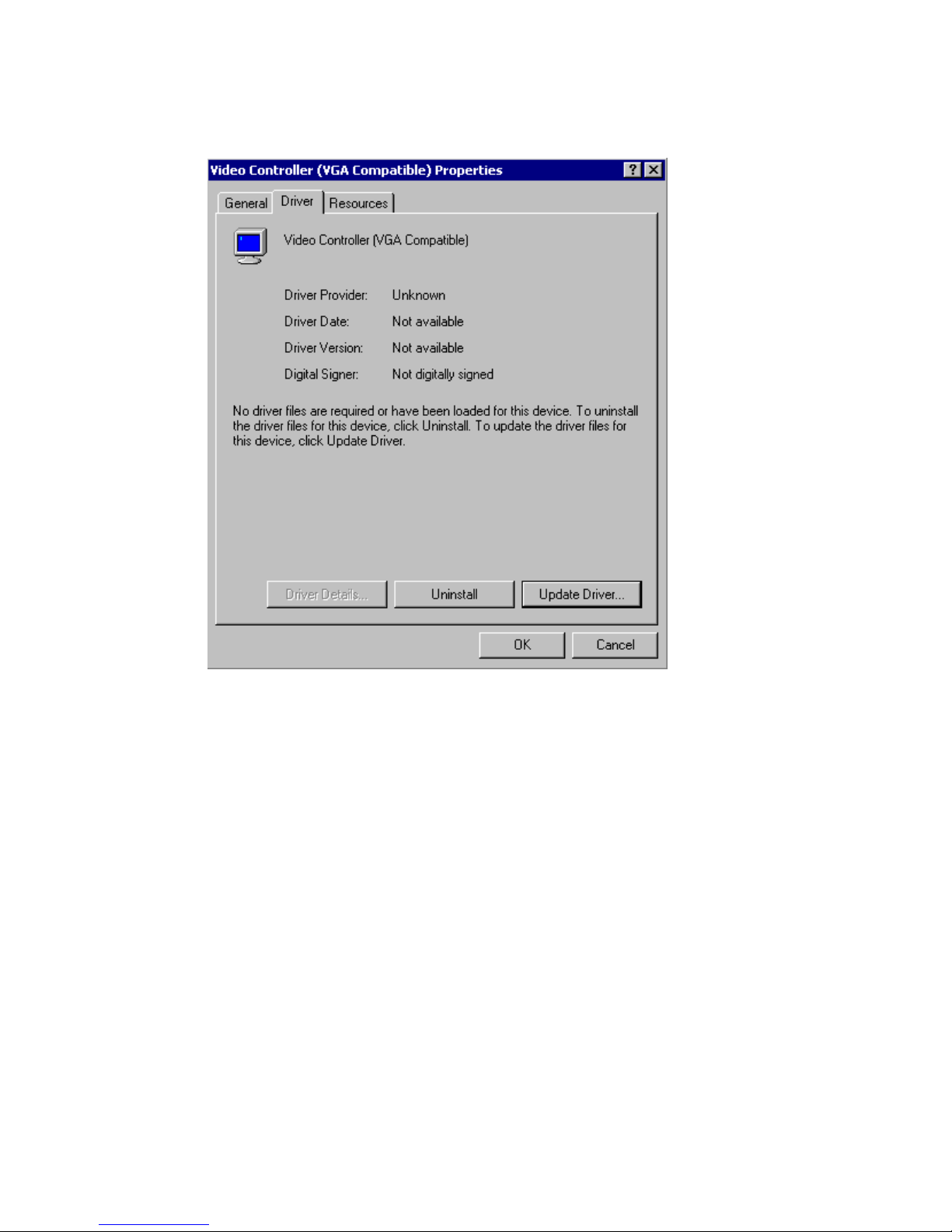

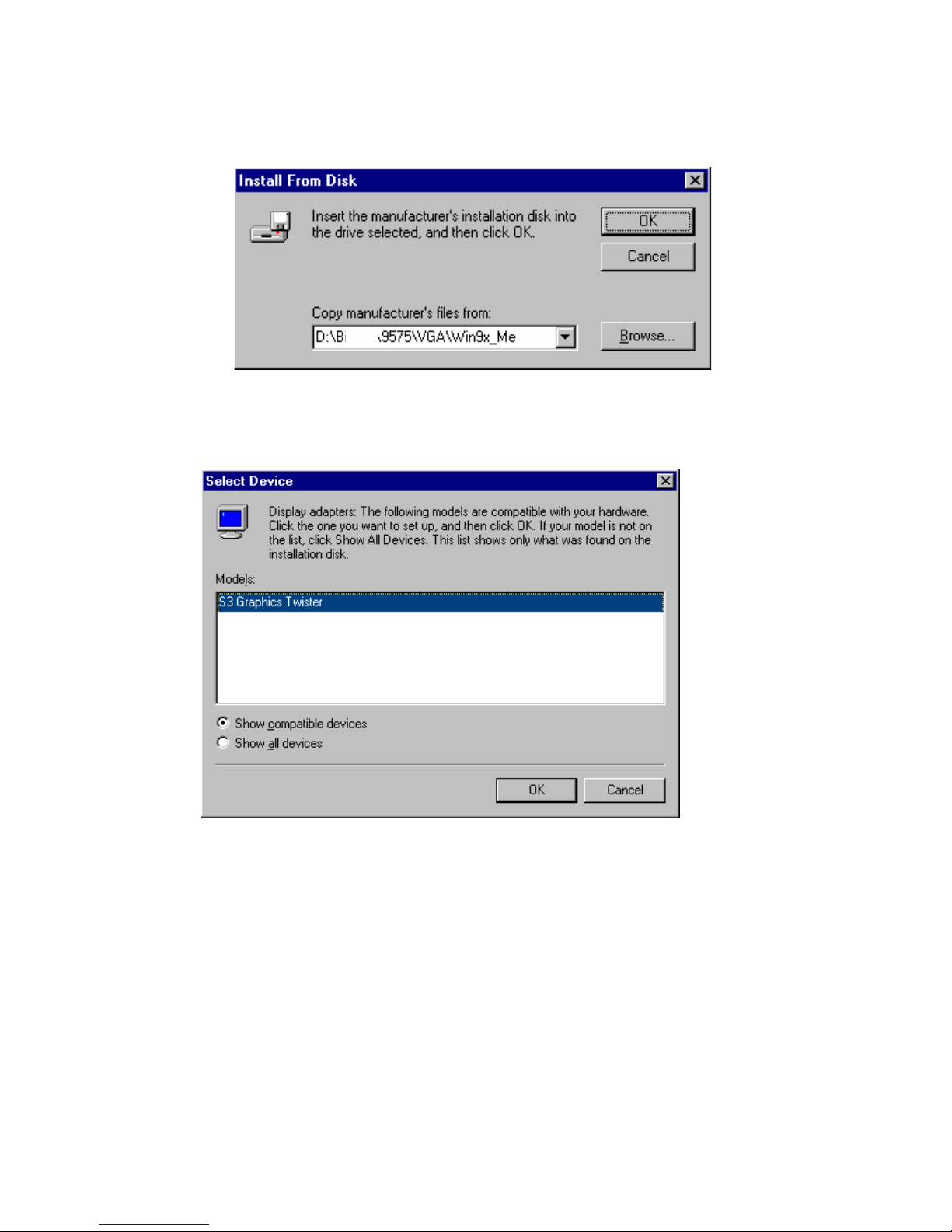

5.2.1 Installation for Windows 98/2000/XP

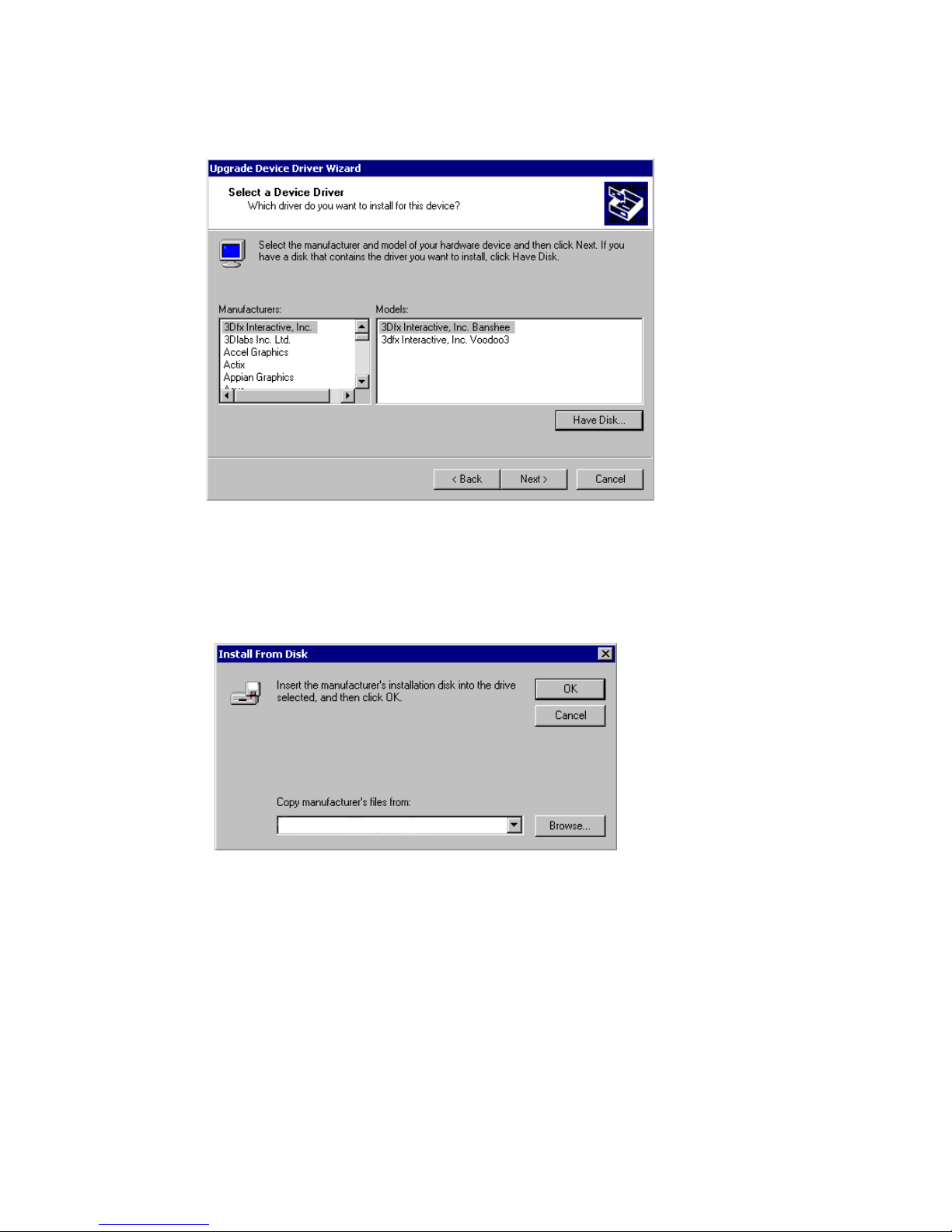

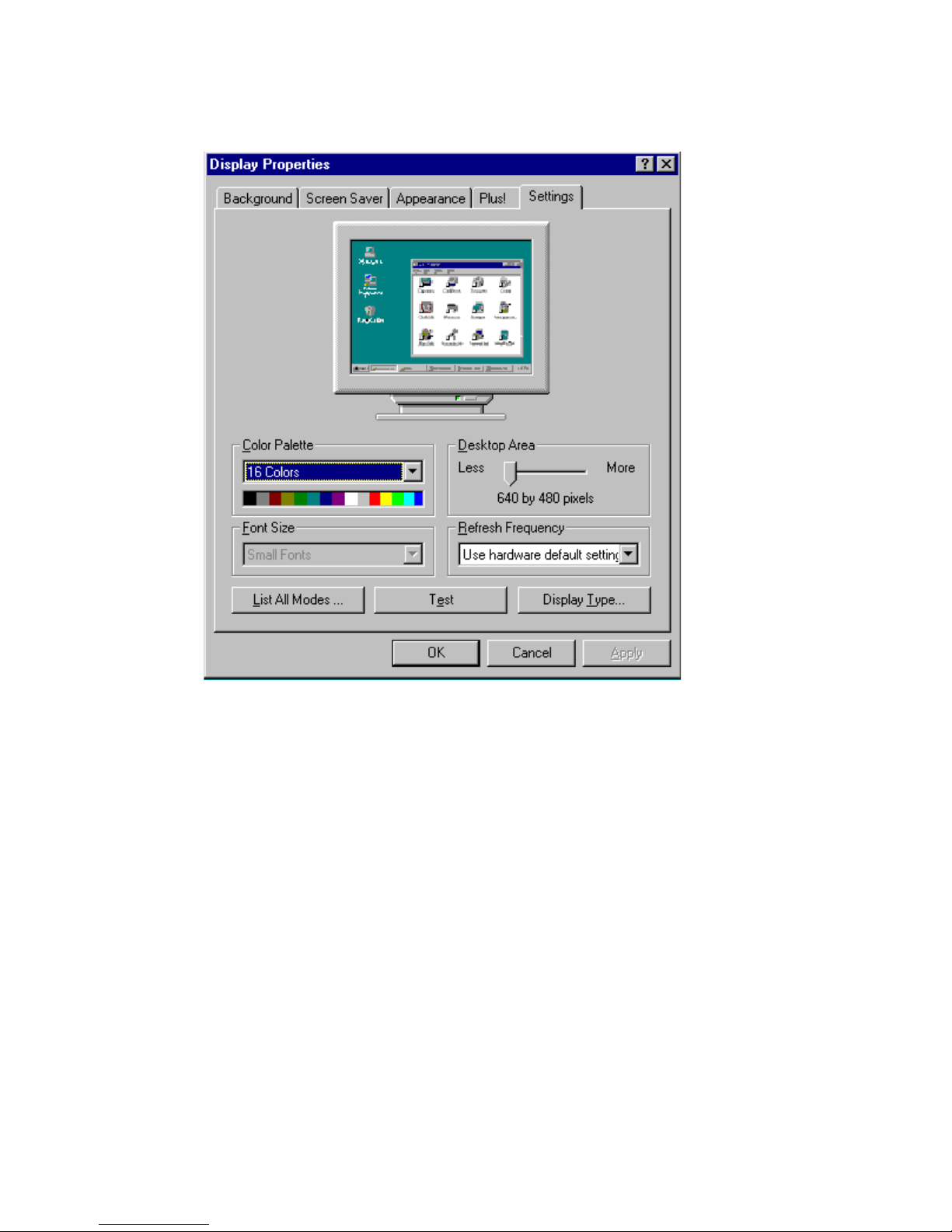

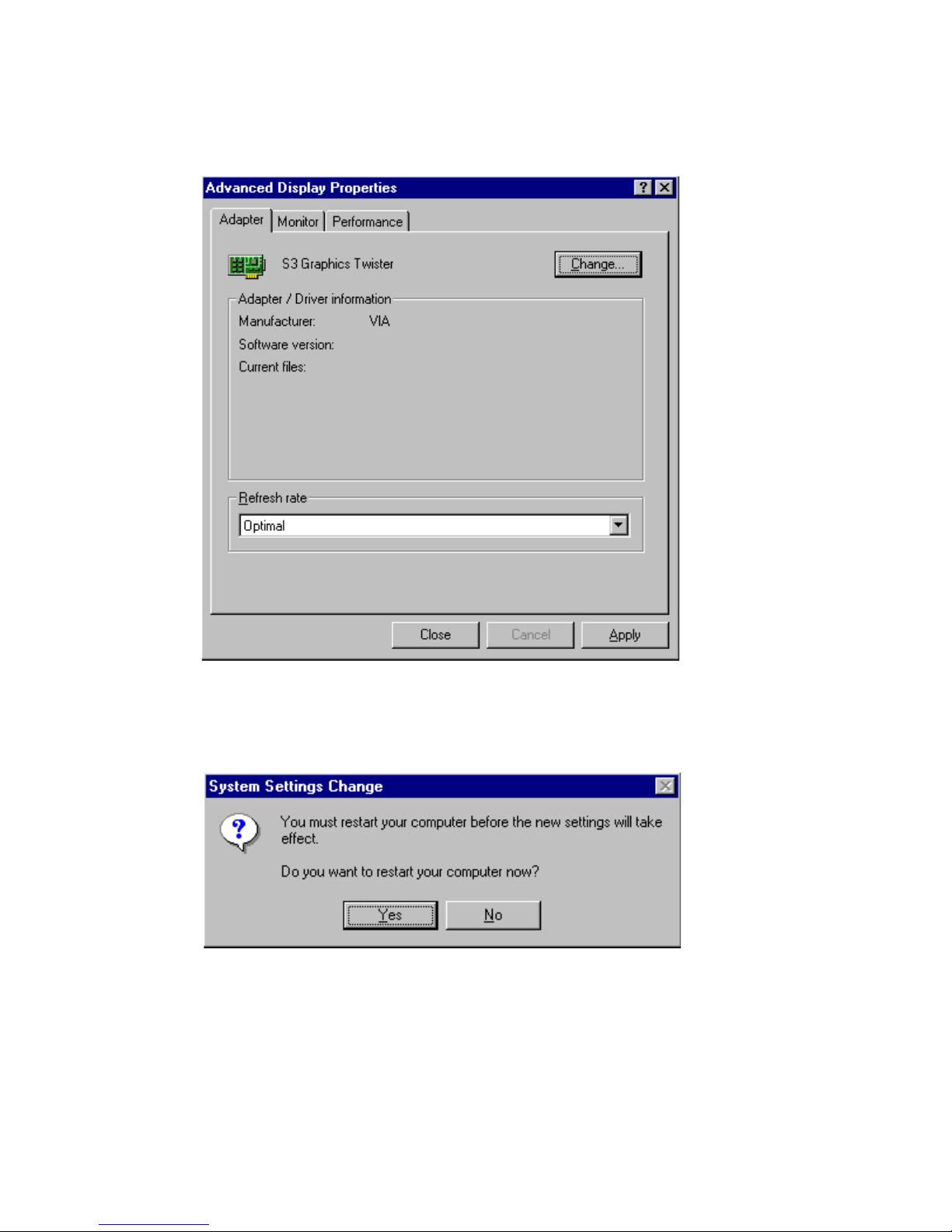

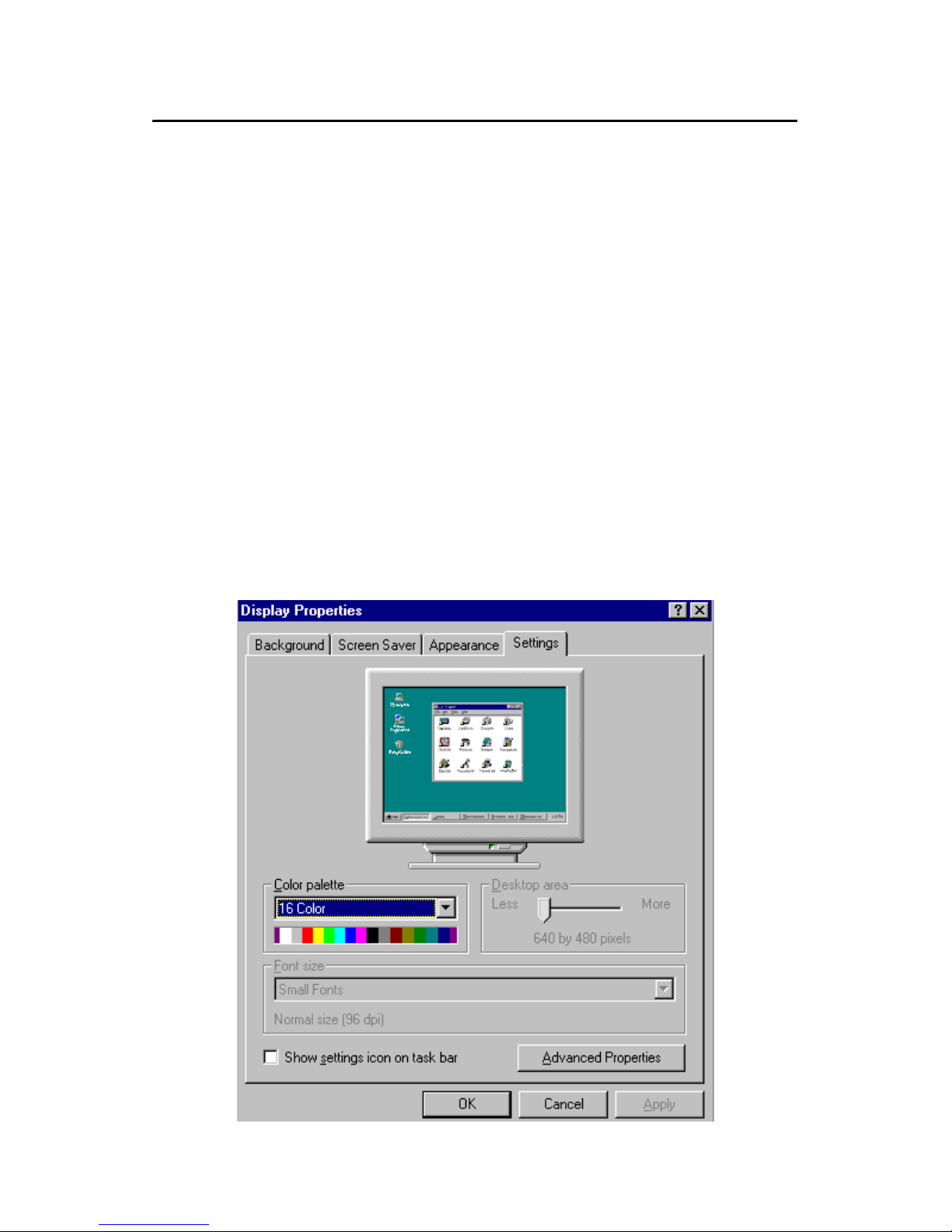

1. Select "Start", "Settings", "Control Panel", "Display", "Settings”,
and "Advanced Properties".

Notes: 1. The windows illustrations in this chapter are

intended as examples only. Please follow the
listed steps, and pay attention to the instruc­tions which appear on your screen.

2. For convenience, the CD-ROM drive is des­ignated as "D" throughout this chapter.

45 Chapter 5

2. Choose the "Adapter" tab, then press the "Change..." button.

3. Press the "Have Disk" button.

PCM-9580 User’s Manual 46

4. Type in the path:

D:\pcm-9580\drivers\VGA\Win9x_Me

5. Select the highlighted item, and click the "OK" button.

9580

47 Chapter 5

6. "S3 GraphicsTwister" appears under the adapter tab. Click the
"Apply" button, then the "OK" button.

7. Press “Yes” to reboot.

PCM-9580 User’s Manual 48

5.2.2 Installation for Windows 98/Me

1. Select "Start", "Settings", "Control Panel", "Display", and "Set­tings," then press the "Advanced..." button.

49 Chapter 5

2. Select “Adapter,” then “Change.”

PCM-9580 User’s Manual 50

3. Press “Next,” then “Display a list....”

4. Press the “Have disk...” button.

51 Chapter 5

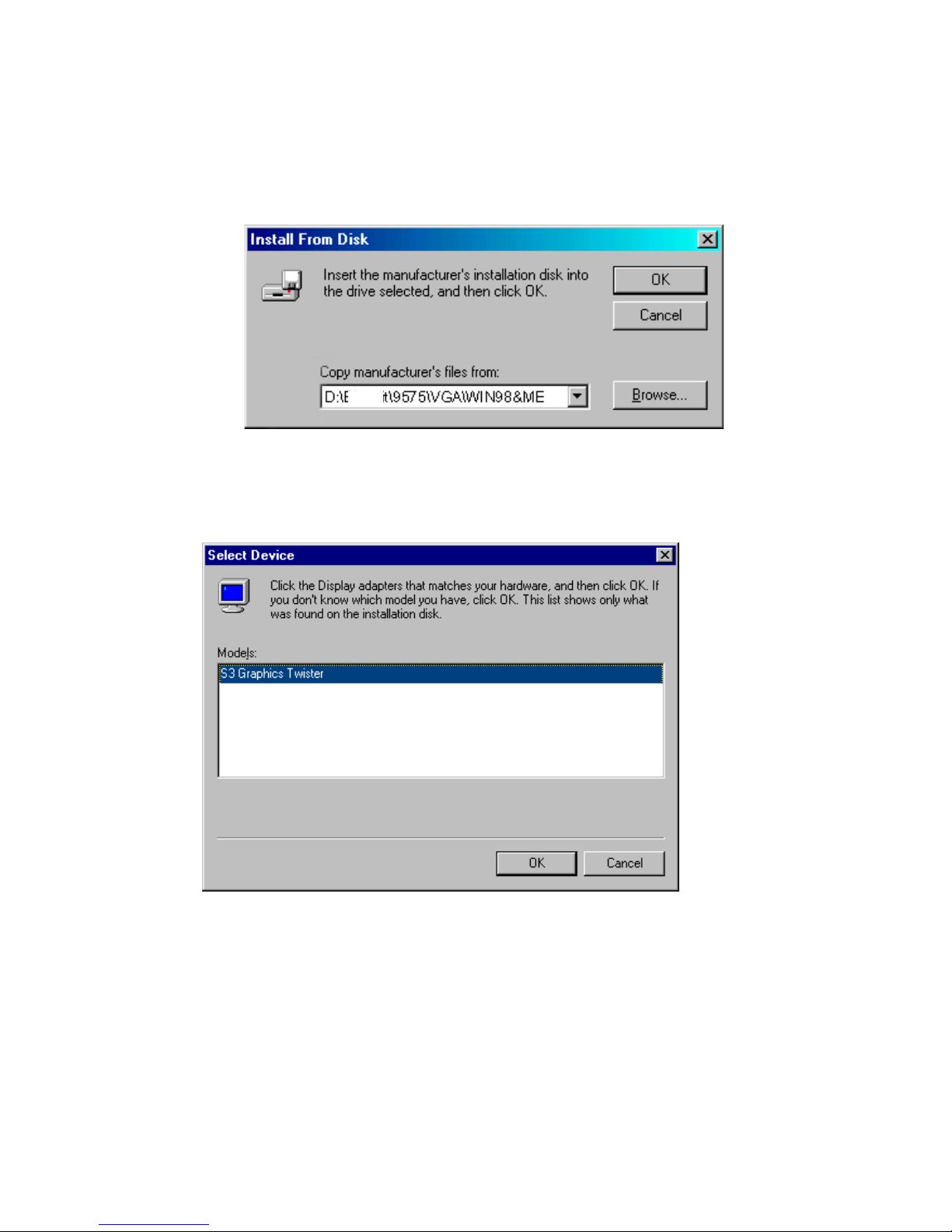

5. Insert the CD into the CD-ROM drive. Type in the path

D:\pcm-9580\drivers\VGA\Win9x_Me

Then press “OK”

6. Select the highlighted item, then click “OK.”

9580

PCM-9580 User’s Manual 52

7. "S3 Graphics Twister"appears under the adapter tab. Click the
"Apply" button.

8. Press “Yes” to reboot.

53 Chapter 5

5.2.3 Installation for Windows NT

1. Select "Start", "Settings", "Control Panel" and double click the
"Display" icon.

Note: Service Pack X (X = 3, 4, 5, 6,...) must be

installed first, before you install the Windows
NT VGA driver.

PCM-9580 User’s Manual 54

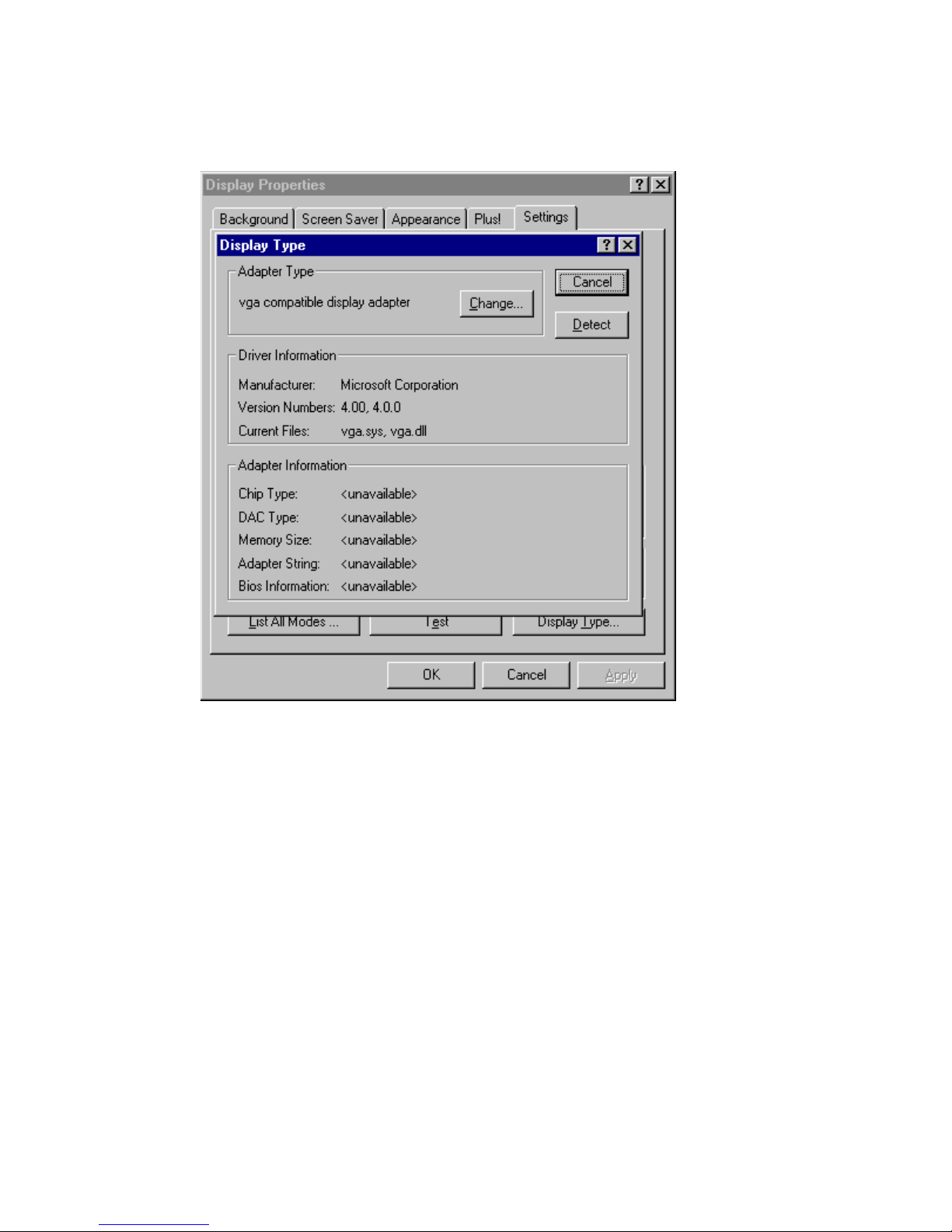

2. Choose the "Settings" tab, and press the "Display Type" button.

55 Chapter 5

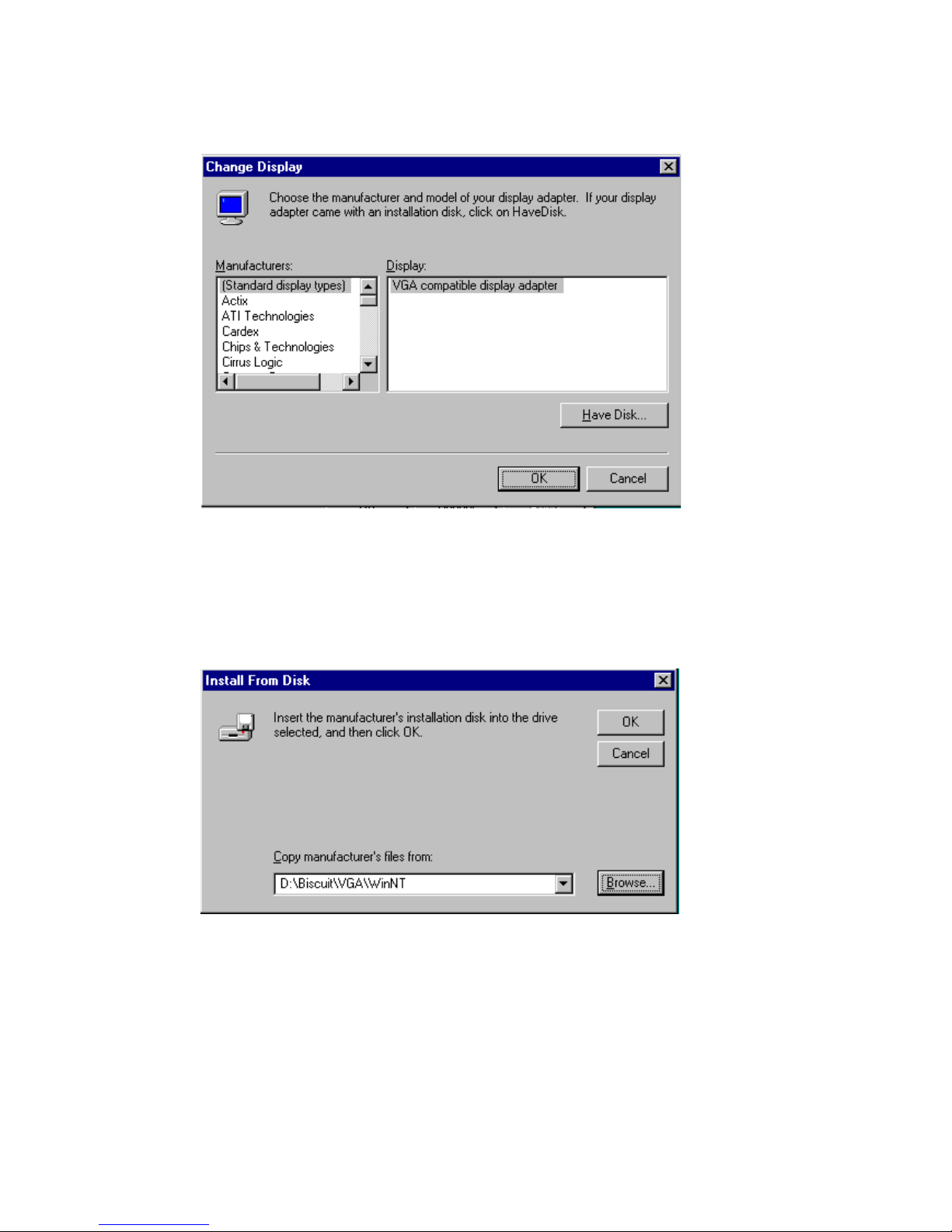

3. Press the "Change..." button.

PCM-9580 User’s Manual 56

4. Click the "Have Disk..." button.

5. Type the path: D:\pcm-9580\drivers\VGA\WinNT

Press the "OK" button.

57 Chapter 5

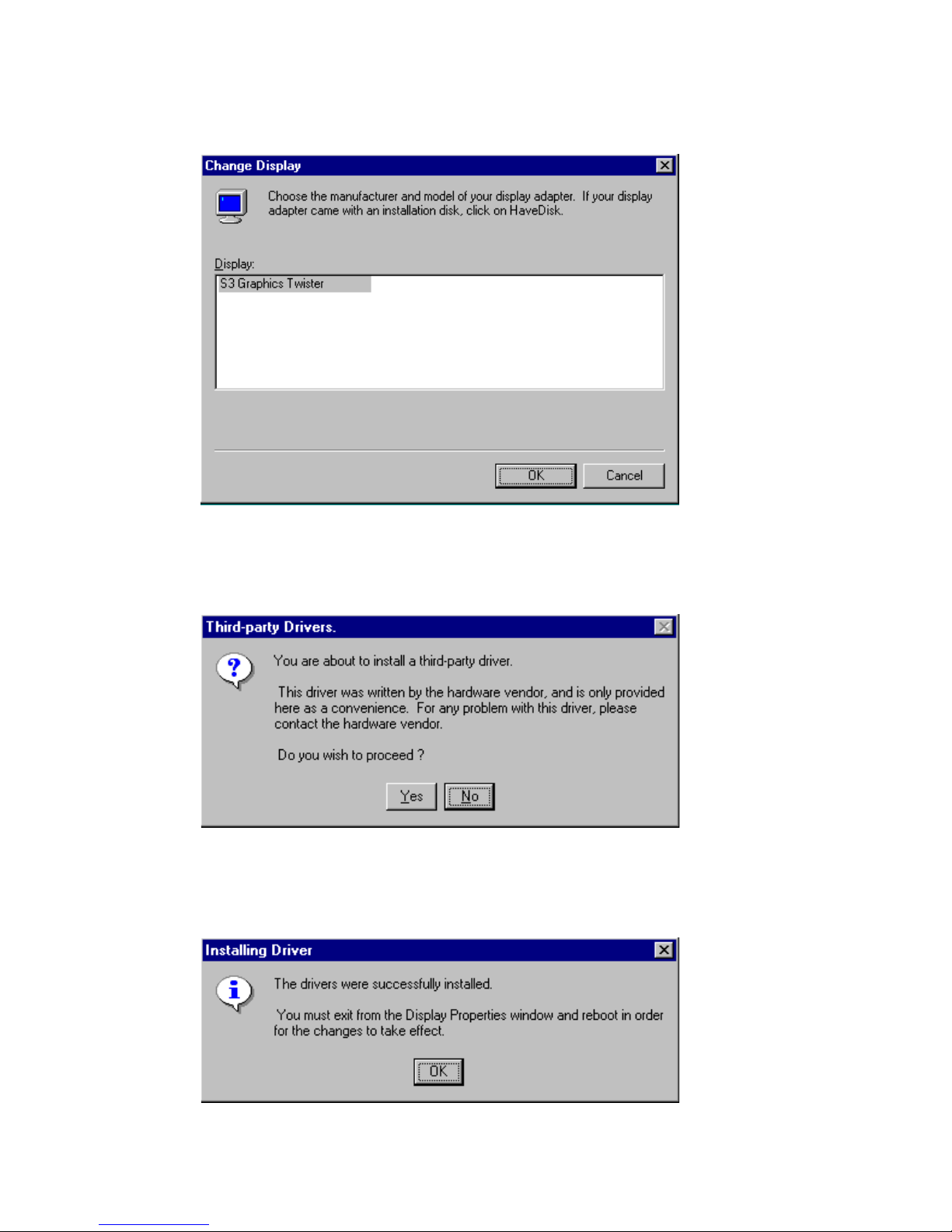

6. Select the highlighted item, and click the "OK" button.

7. Press "Yes" to proceed.

8. Press "OK" to reboot.

PCM-9580 User’s Manual 58

5.2.4 Installation for Windows 2000

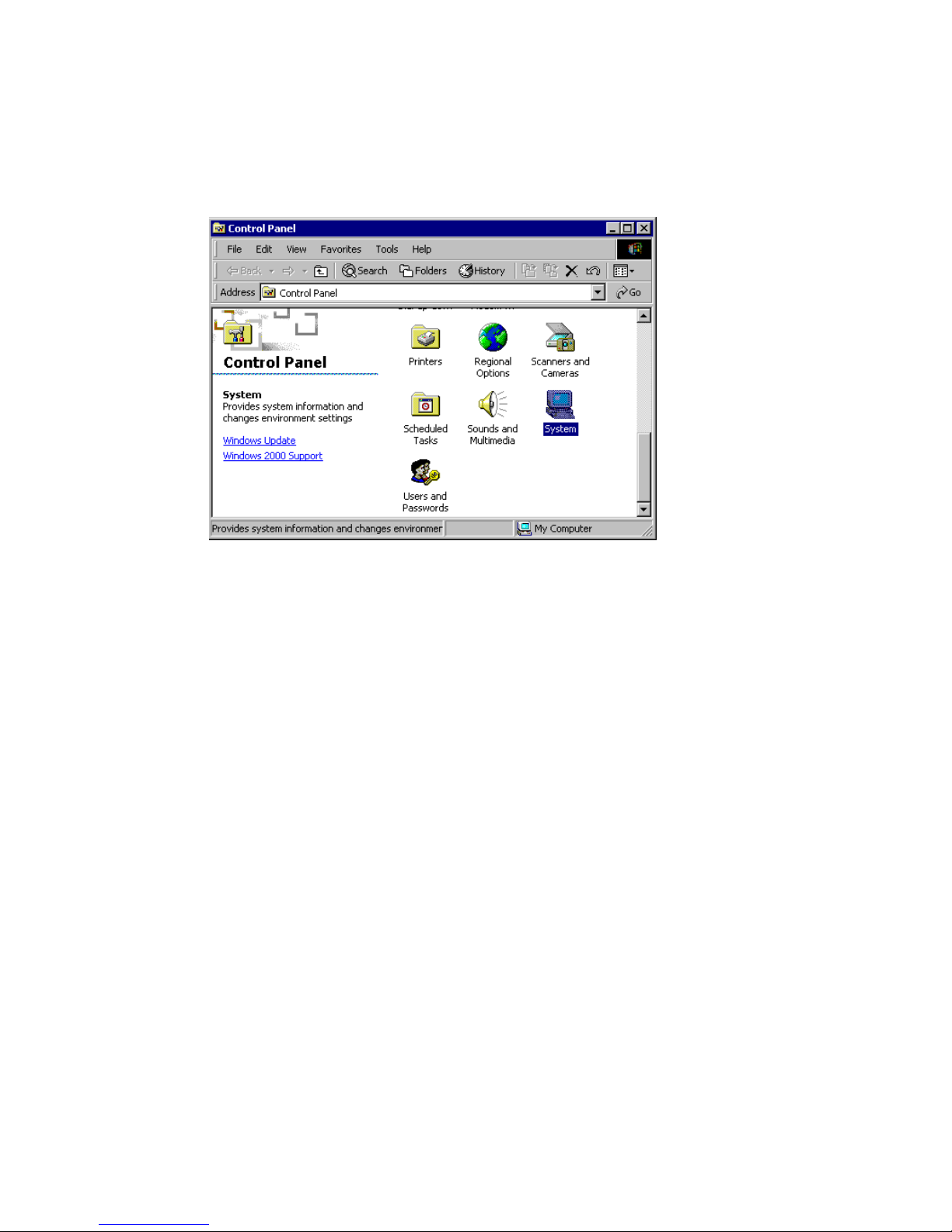

1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.

59 Chapter 5

2. Choose the "Video Controller (VGA Compatible)” button.

PCM-9580 User’s Manual 60

3. Choose the "Drive" button, press “Update Driver...” button.

61 Chapter 5

4. Choose "Display a list of..." , then press “Next” button.

5. Choose “Display adapters”, press “Next” button.

PCM-9580 User’s Manual 62

6. Click the “Have Disk” button.

7. Type the path D:\pcm-9580\drivers\VGA\Win2000 press the “OK” but-

ton.

D:\Biscuit\9580\VGA\WIN2000

63 Chapter 5

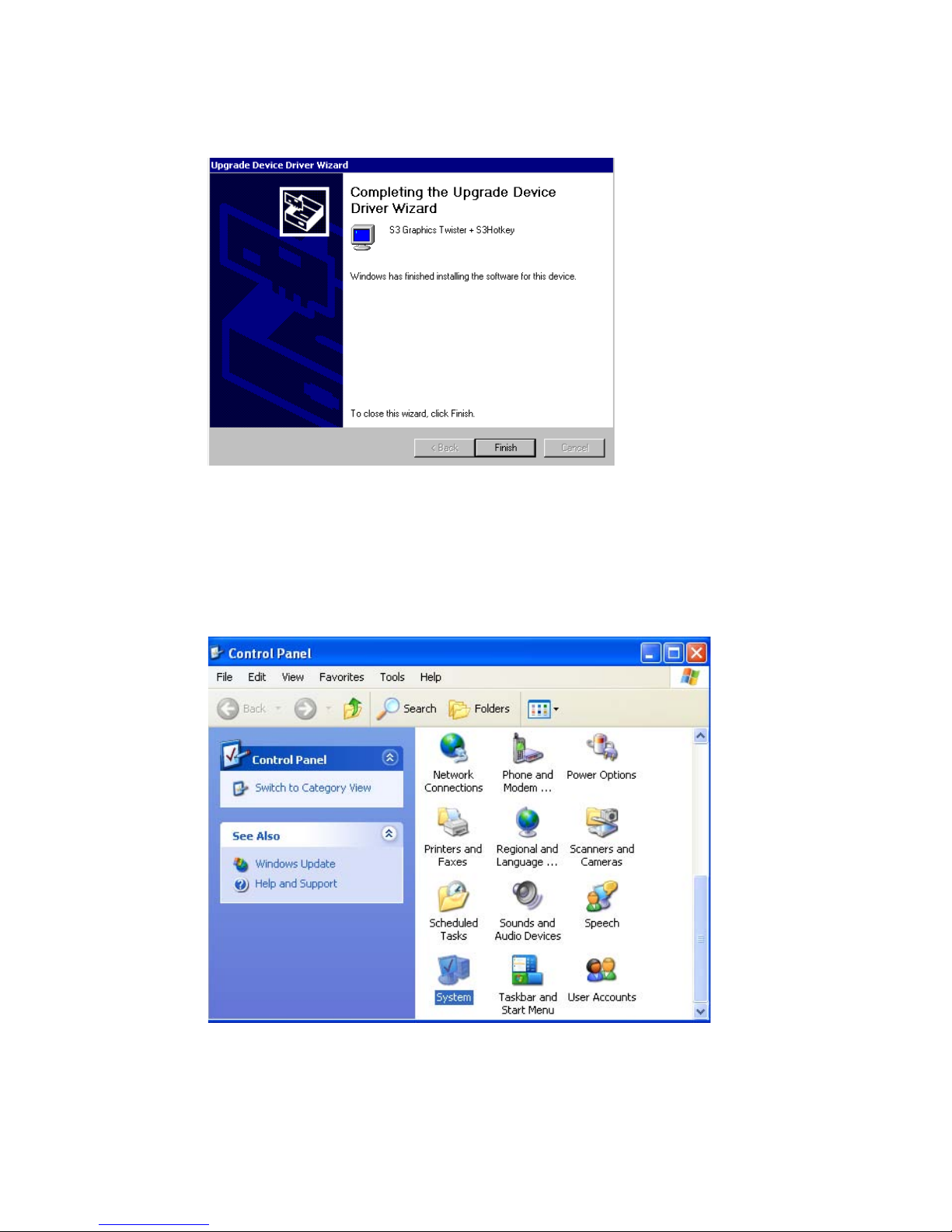

8. Press “Finish" to reboot.

5.2.5 Installation for Windows XP

1. Select "System", "Settings", "Control Panel" and double click the
"system" icon.

PCM-9580 User’s Manual 64

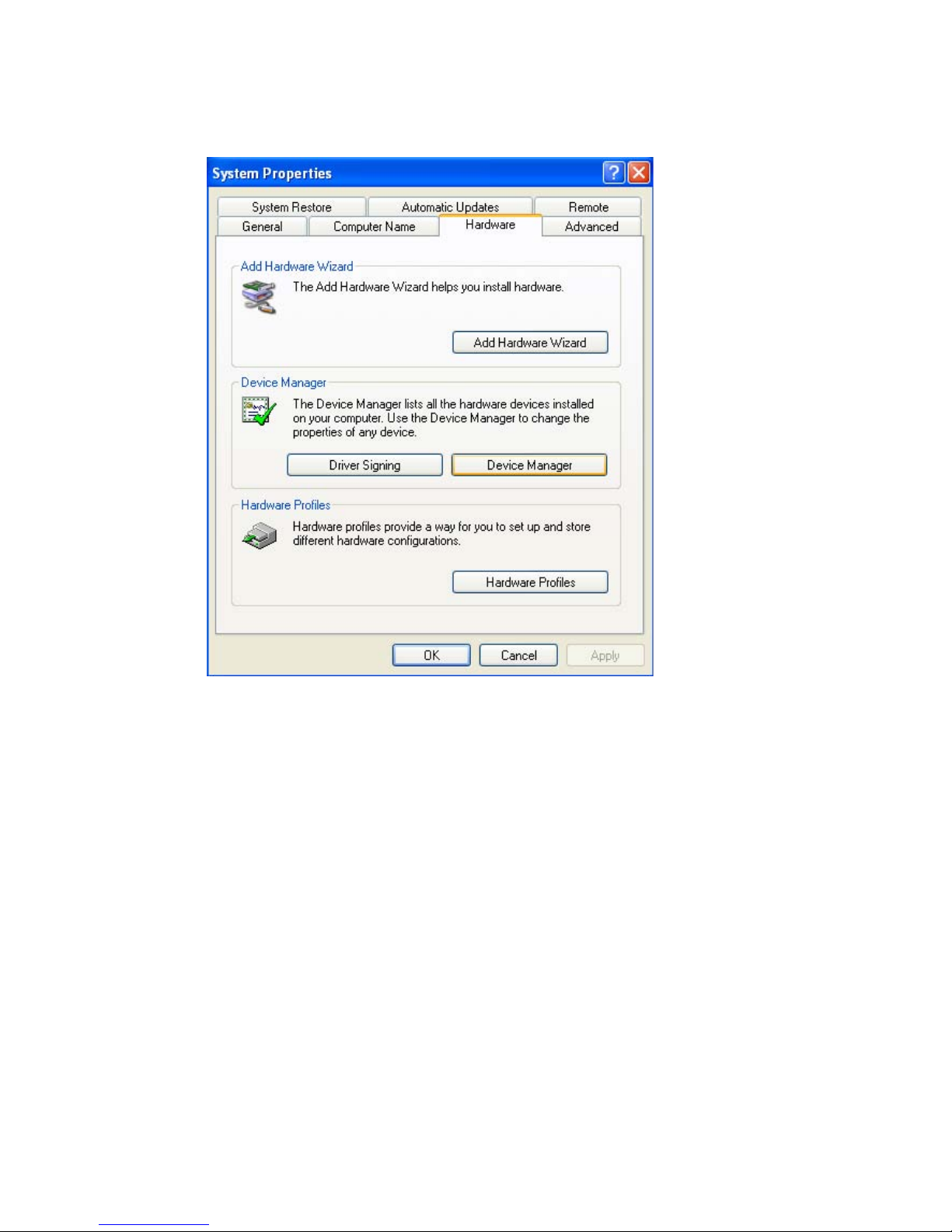

2. Choose “Hardware” and “Device Manager”, press “OK” button.

65 Chapter 5

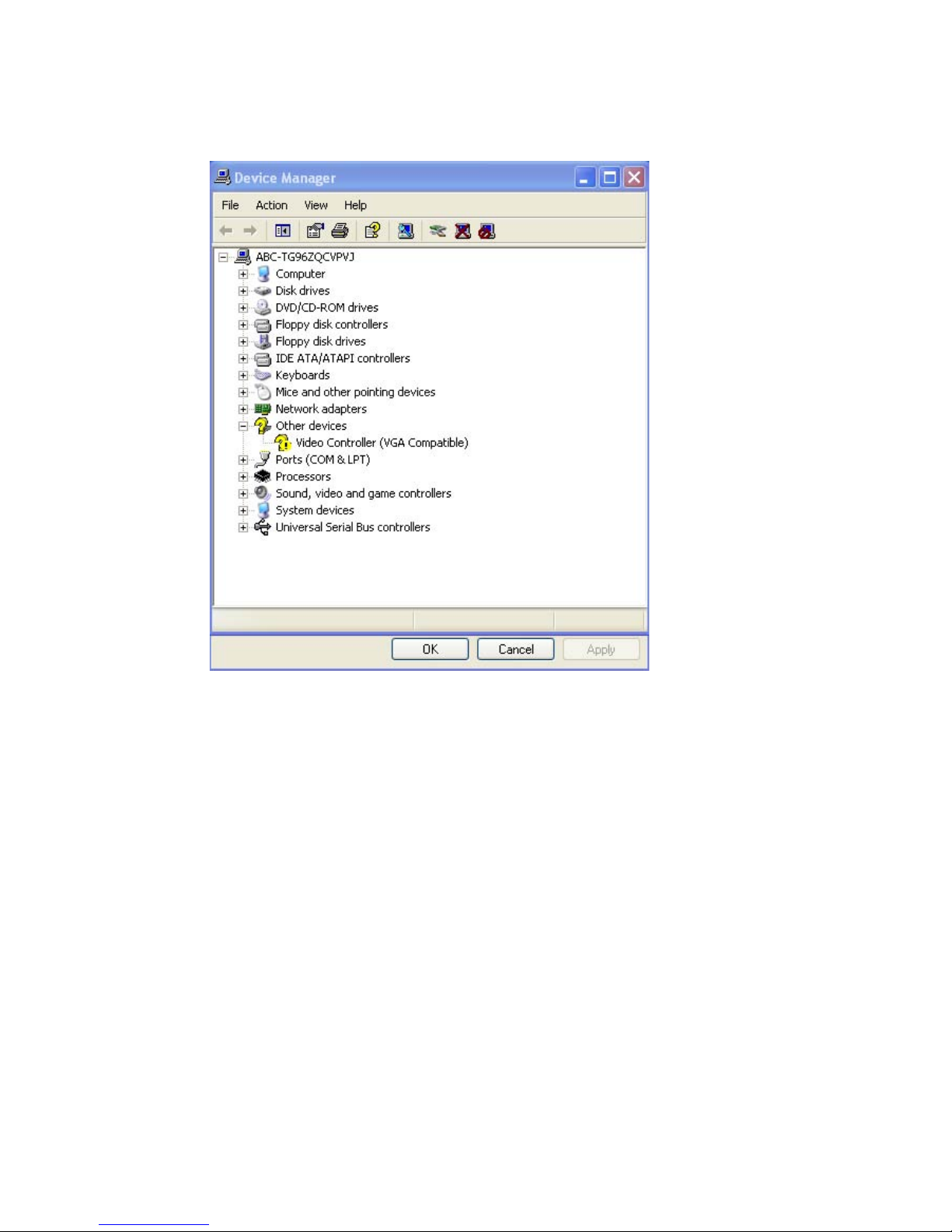

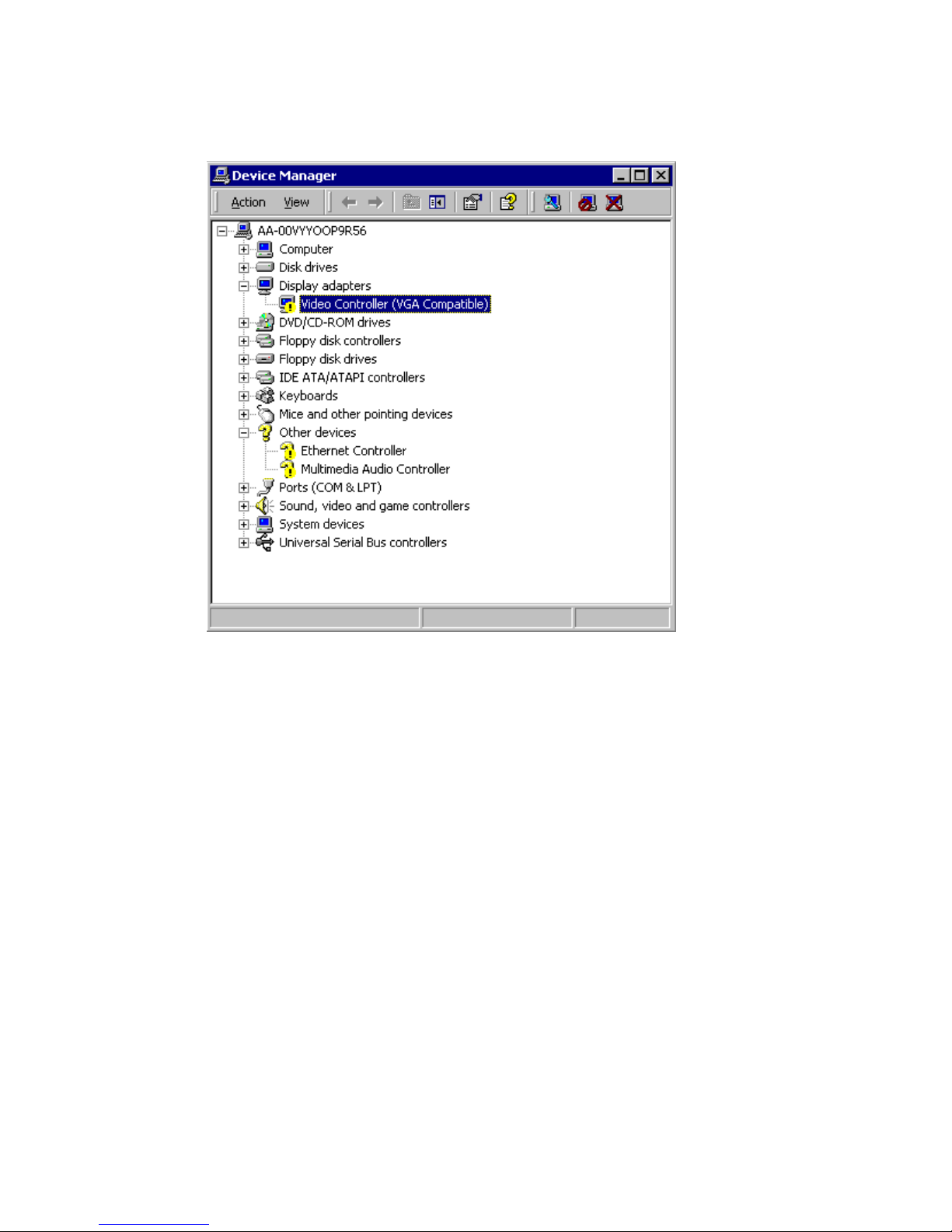

3. Choose “Video Controller (VGA Compatible), press “OK” button.

PCM-9580 User’s Manual 66

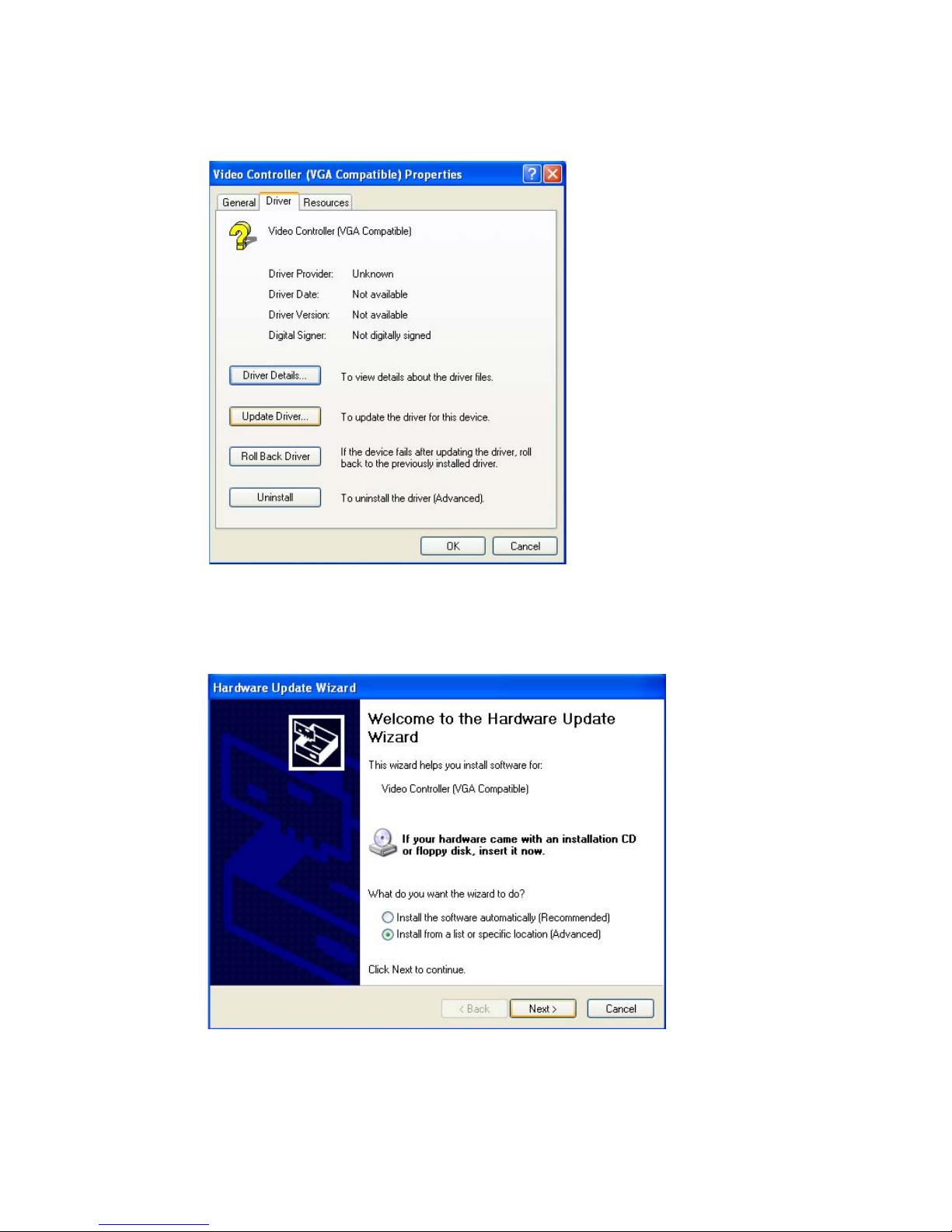

4. Choose "Driver”, “Update Driver”, press “OK” button.

5. Choose “Install from a list.....” , press “Next”.

67 Chapter 5

6. Choose “Don’t search. I will....”, press “Next” button.

7. Choose “Display adapters”, press “Next” button.

PCM-9580 User’s Manual 68

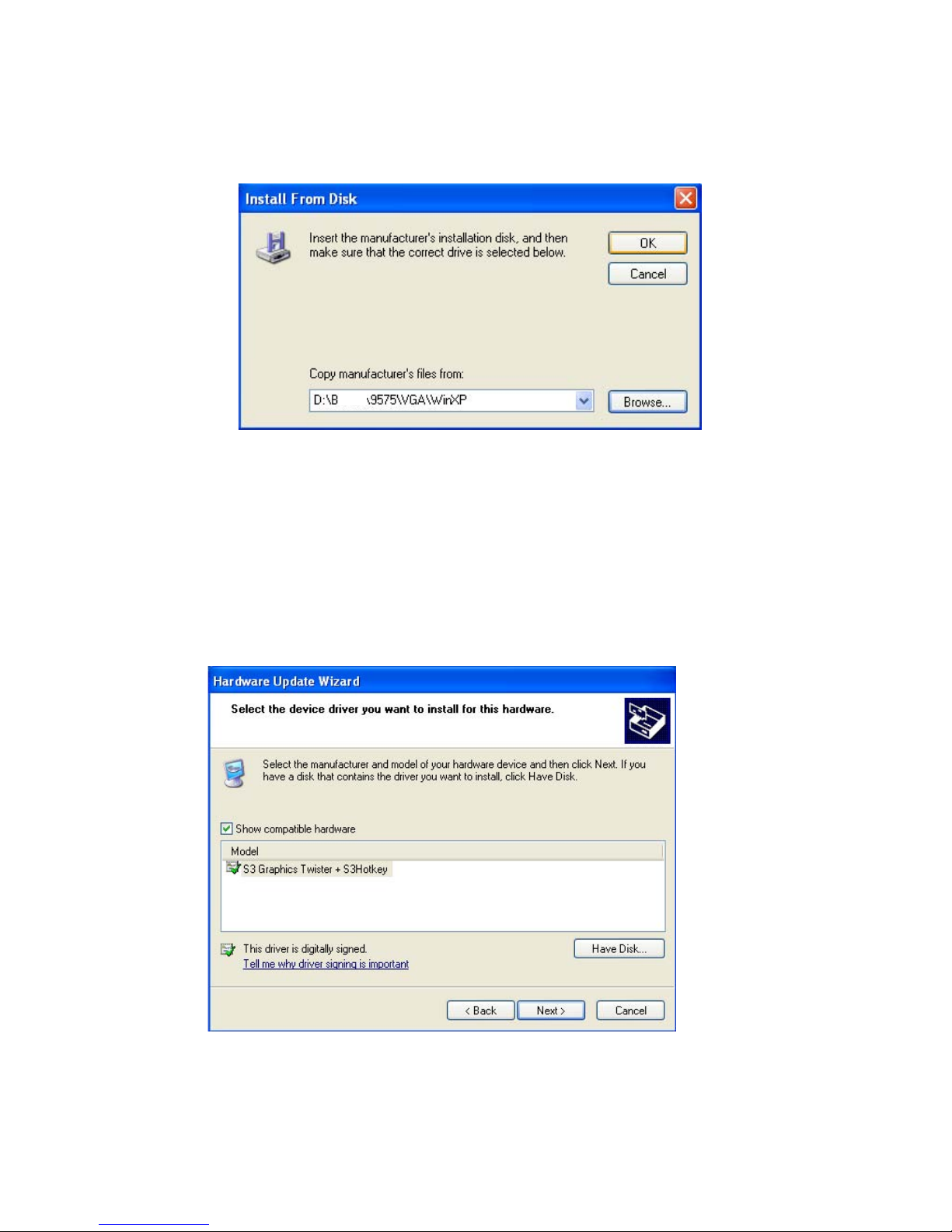

8. Type the path D:\pcm-9580\drivers\VGA\WinXP then press “OK” but-

ton.

9. Choose “S3 Graphics Twister + S3 Hotkey” then press “Next” but­ton.

9580

69 Chapter 5

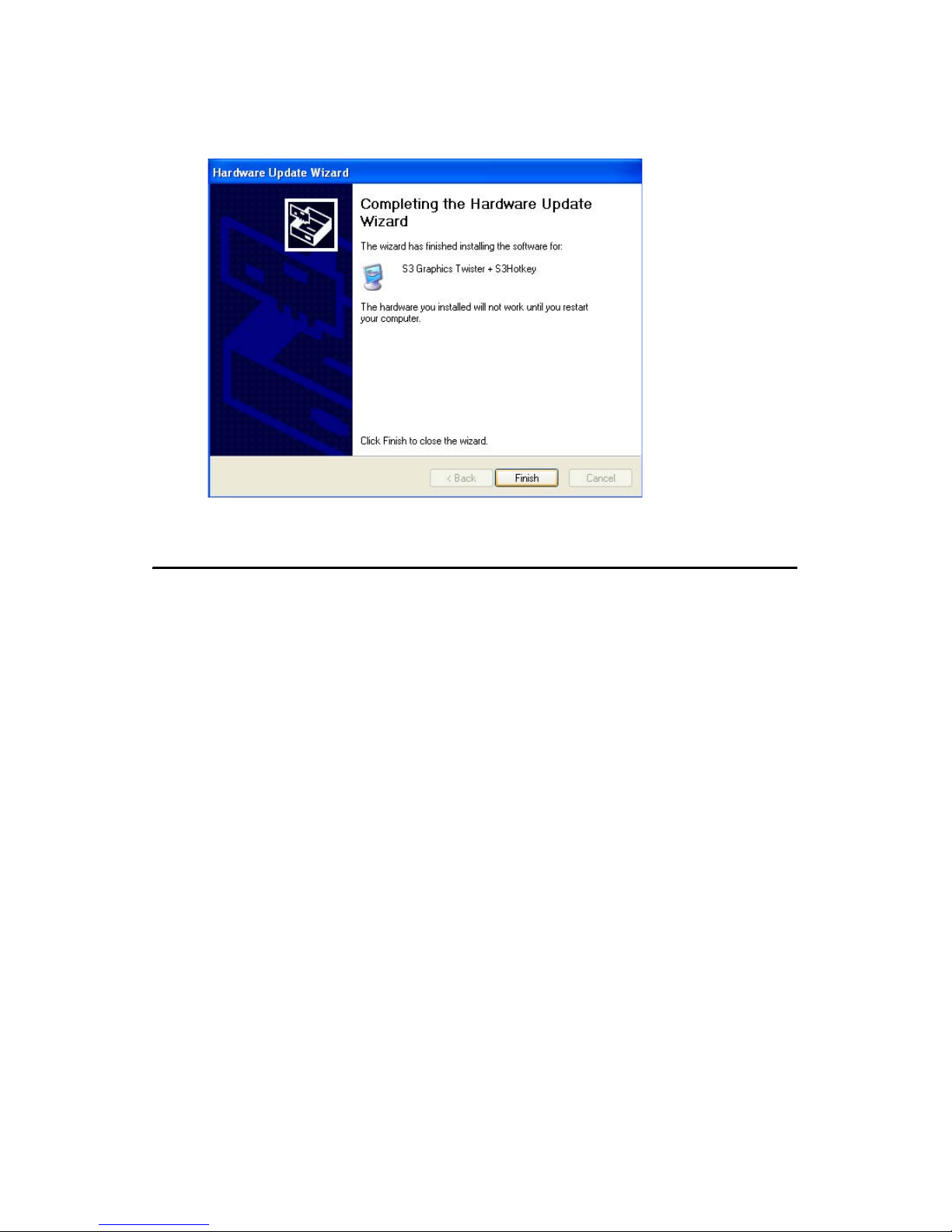

10. Press “Finish" to reboot.

5.3 Further Information

For further information about the AGP/VGA installation in your PCM­9580, including driver updates, troubleshooting guides and FAQ lists,
visit the following web resources:

VIA website: www.via.com.tw

EMAC website: www.emacinc.com

PCM-9580 User’s Manual 70

71 Chapter 6

CHAPTER

6

Audio Setup

The PCM-9580F is equipped with an
audio interface that records and plays
back CD-quality audio. This chapter
provides instructions for installing the
software drivers included on the audio
driver diskettes.

PCM-9580 User’s Manual 72

Chapter 6 Audio Setup

6.1 Introduction

The PCM-9580F can receive audio by connecting with PCM-231AV
(AC97 Link). PCM-231AV provides high-quality stereo sound and FM
music synthesis (ESFM) by using the Realtek ALC201 Audio Codec
from Realtek. The audio interface can record, compress, and play back
voice, sound, and music with built-in mixer control.

6.2 Driver installation

6.2.1 Before you begin

Please read the instructions in this chapter carefully before you attempt
installation. For the hardware installation, first connect CN13 AC link at
PCM-9580F with CN3 at PCM-231AV. The audio drivers for the PCM­231AV board are located on the audio driver CD. Run the supplied
SETUP program to install the drivers; don’t copy the files manually.

Note: 1. Note1: Before trying to install the driver, go to

Chapter 3 to use the "Chipset Software

Installation Utility " first.

2. The files on the software installation diskette
are compressed. Do not attempt to install the
drivers by copying the files manually. You must
use the supplied SETUP program to install the
drivers.

73 Chapter 6

6.2.2 Windows 9x/2000/Me/XP drivers

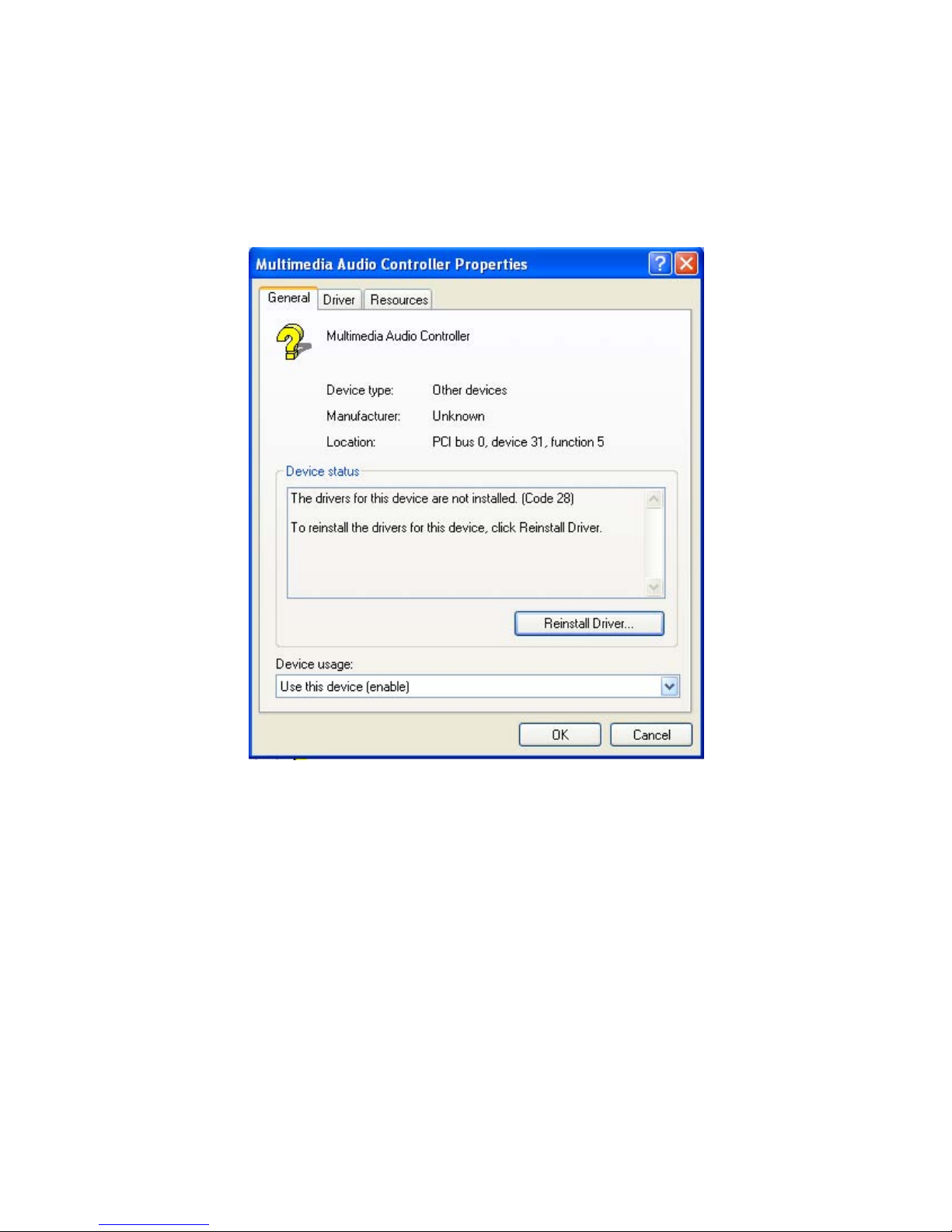

Step 1. Click "Start" and select "Settings". Click "Control Panel" and

double-click Multimedia" icon and press " Reinstall Driver..." to
do audio driver installation..

PCM-9580 User’s Manual 74

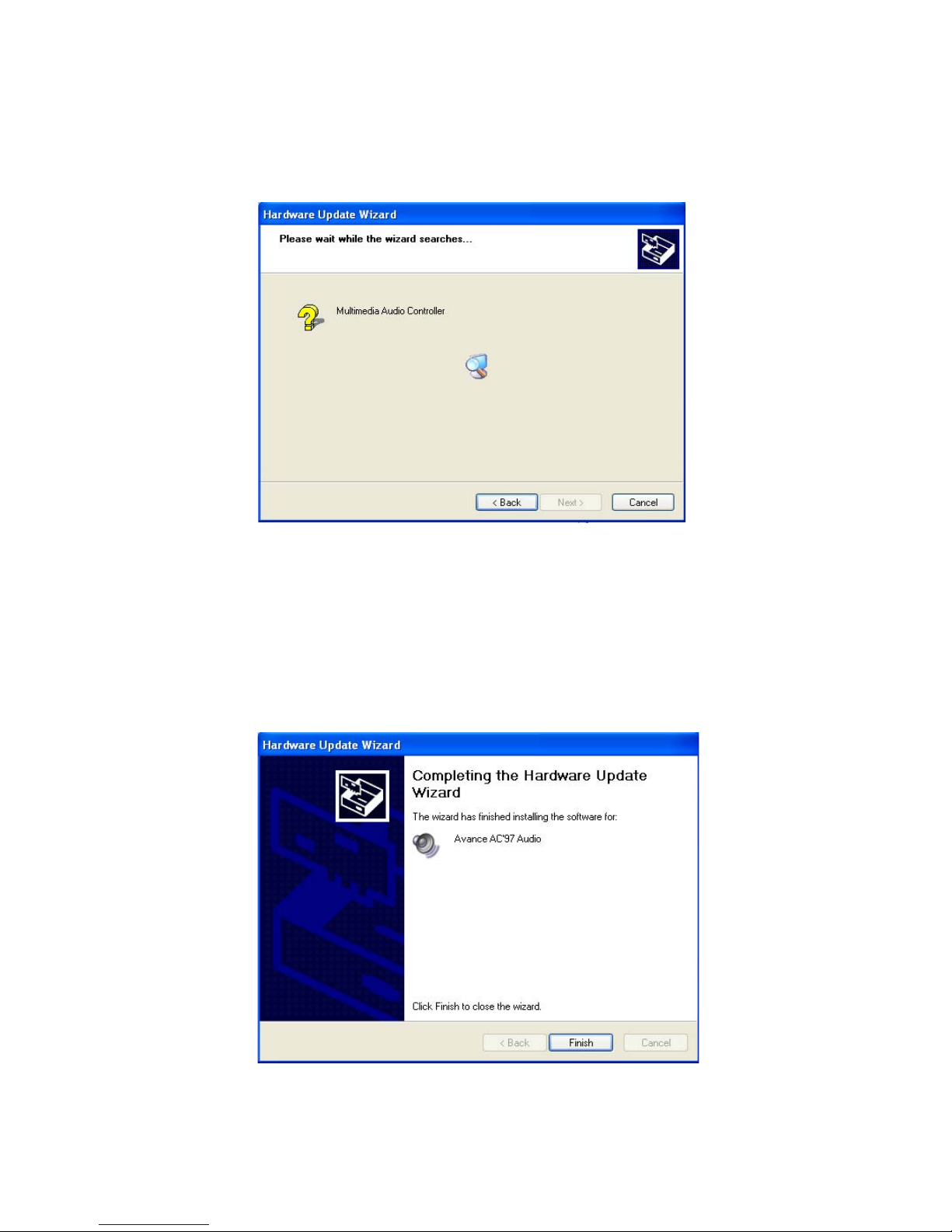

Step 2. In the Hardware Update Wizard window, click "Next".

Step 3. In the following Hardware Update Wizard window, click "Fin-

ish" for Windows to complete audio driver installation.

75 Chapter 6

6.2.3 Windows NT drivers

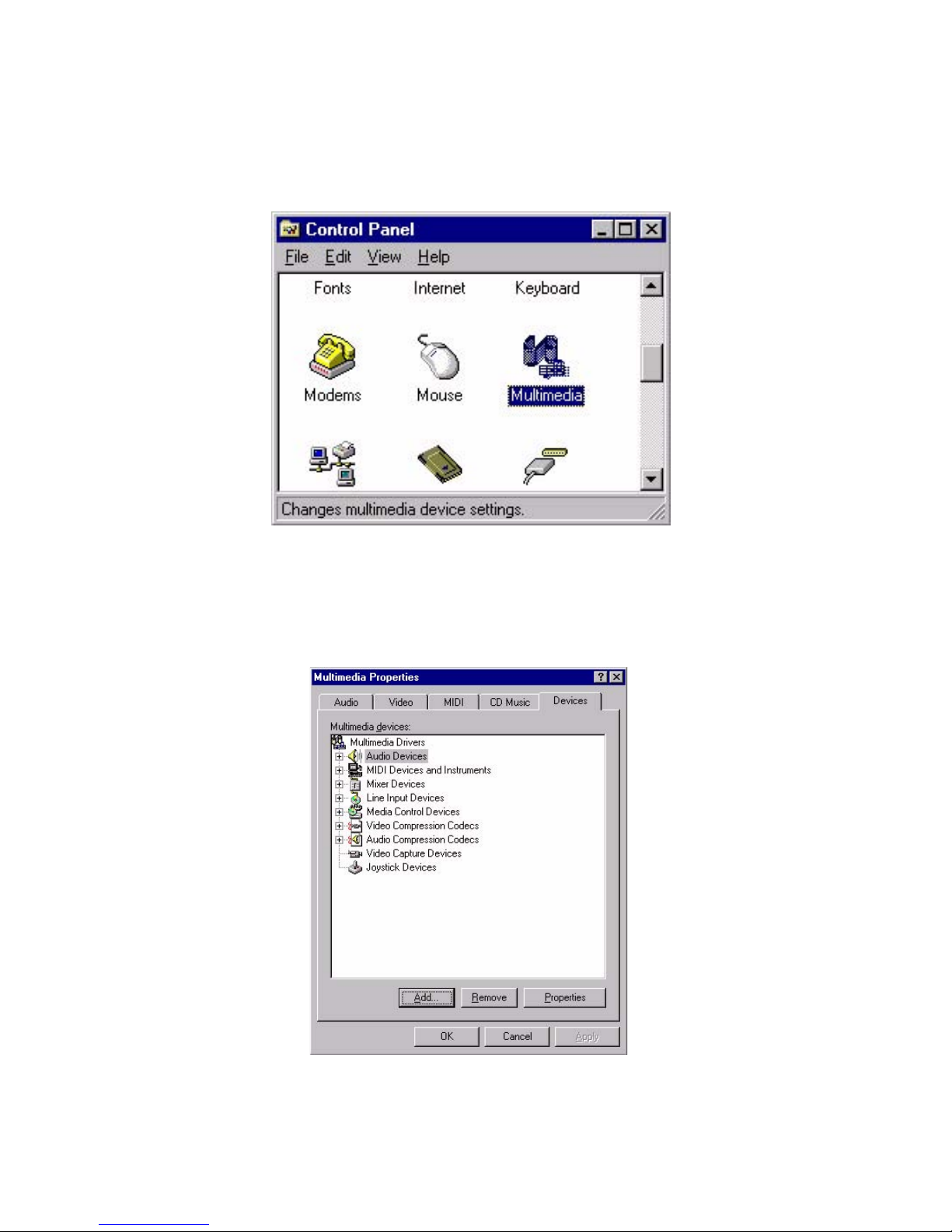

Step 1. Click "Start" and select "Settings". Click "Control Panel" and

double-click "Multimedia".

Step 2. In the Multimedia Properties window, select the "Devices" tab.

Then select the "Audio Devices" item, and click "Add...".

PCM-9580 User’s Manual 76

Step 3. In the Add window, select the "Unlisted..." item and click "OK".

Step 4. When the Install Driver window appears, insert the utility disc

into the CD-ROM drive. Type: D:\Audio\ALC201\WinNT\
Then click "OK".

D:\Audio\ALC201\WinNT\

77 Chapter 6

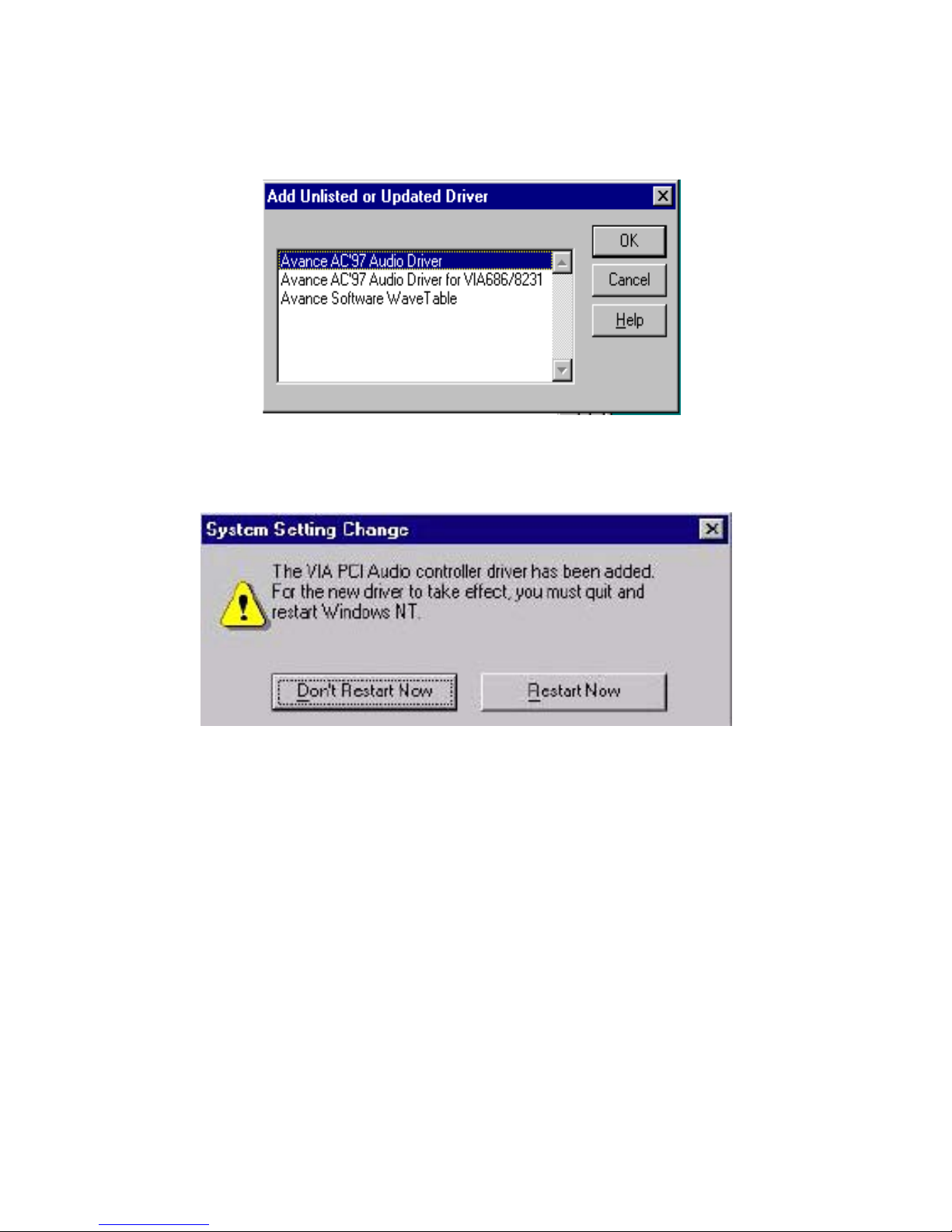

Step 5. In the Add Unlisted or Updated Driver window, select the

"Avance AC'97 Audio Driver" item. Then click "OK".

Step 6. In the System Setting Change window, click "Restart Now".

PCM-9580 User’s Manual 78

79 Chapter 7

CHAPTER

7

LAN Configuration

• Introduction

• Features

• Installation of Ethernet Driver for

- Windows 2000 Drivers Setup Steps

- Windows NT Drivers Setup Steps

-Windows Wake-on-LAN Setup

PCM-9580 User’s Manual 80

Chapter 7 PCI Bus Ethernet Interface

7.1 Introduction

The PCM-9580F is equipped with a high-performance 32-bit Ethernet
chipset which is fully compliant with IEEE 802.3 100 Mbps CSMA/CD
standards. It is supported by major network operating systems. It is also
both 100Base-T and 10Base-T compatible.

7.2 Features

• Intel 82551 10/100Base-T Ethernet LAN controller

• Optional Intel 82540 10/100/1000 Base-T Ethernet LAN controller

• Supports Wake-on-LAN remote control function.

• PCI Bus Master complies with PCI Rev. 2.2

• Complies with 100Base-TX, and 10Base-T applications.

• Single RJ-45 connector gives auto-detection of 10 Mbps or 100 Mbps

network data transfer rates and connected cable types.

• Enhancements on ACPI & APM.

• Complies with PCI Bus Power Management Interface Rev. 1.1,

• ACPI Rev. 2.0, and Device Class Power Management Rev. 1.0.

7.3 Installation of Ethernet Driver

Before installing the Ethernet driver, note the procedures below. You
must know which operating system you are using in your AIMB-340F,
and then refer to the corresponding installation procedure. Then just fol­low the steps described. You will quickly and successfully complete the
installation, even if you are not familiar with instructions for Windows.

.

Note: The windows illustrations in this chapter are

examples only. You must follow the flow chart
instructions and pay attention to the instructions
which then appear on your screen.

81 Chapter 7

7.3.1 Installation for Windows 2000

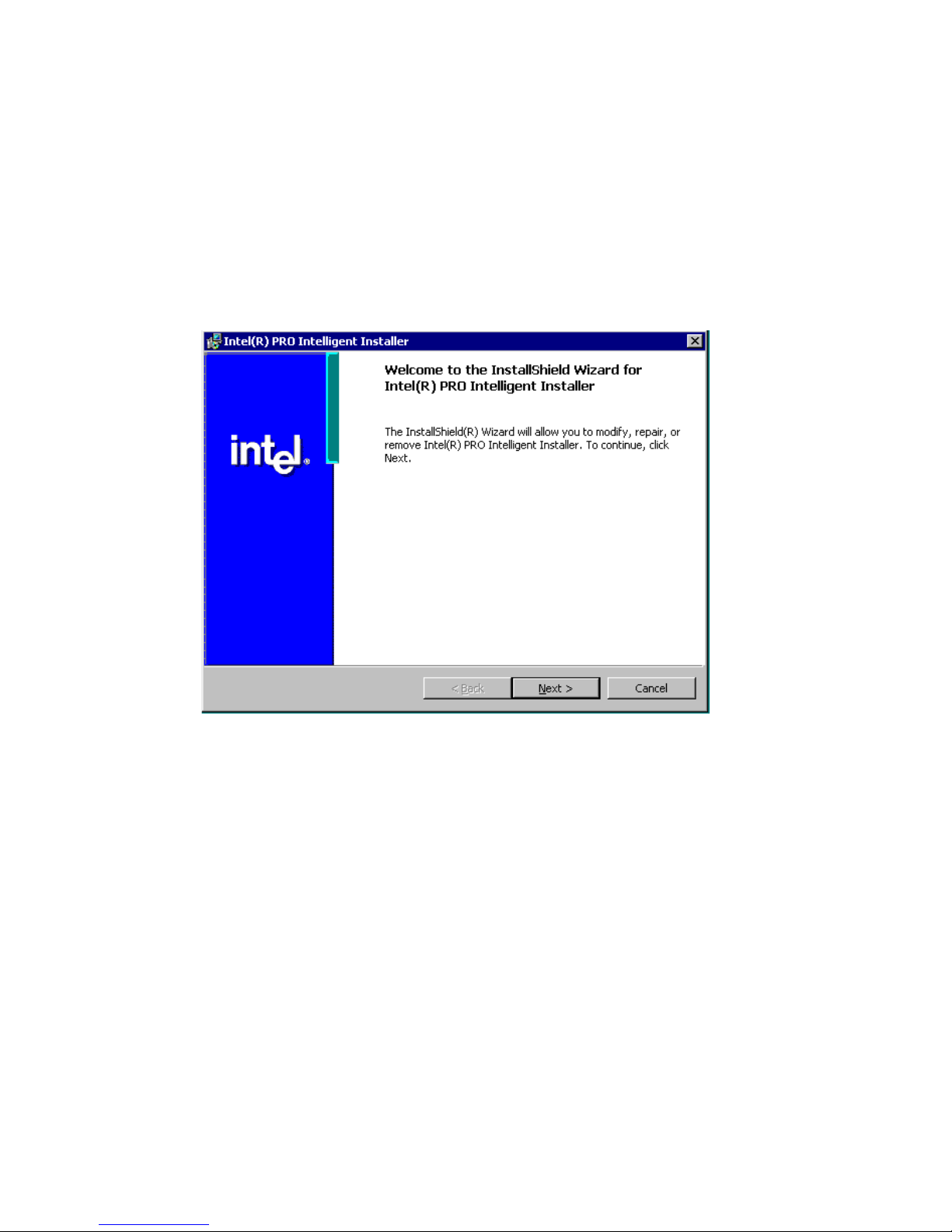

1. Click "Setup" icon in path "D:\LAN\"

Note: The CD-ROM drive is designated as"D" throughout

this section.

PCM-9580 User’s Manual 82

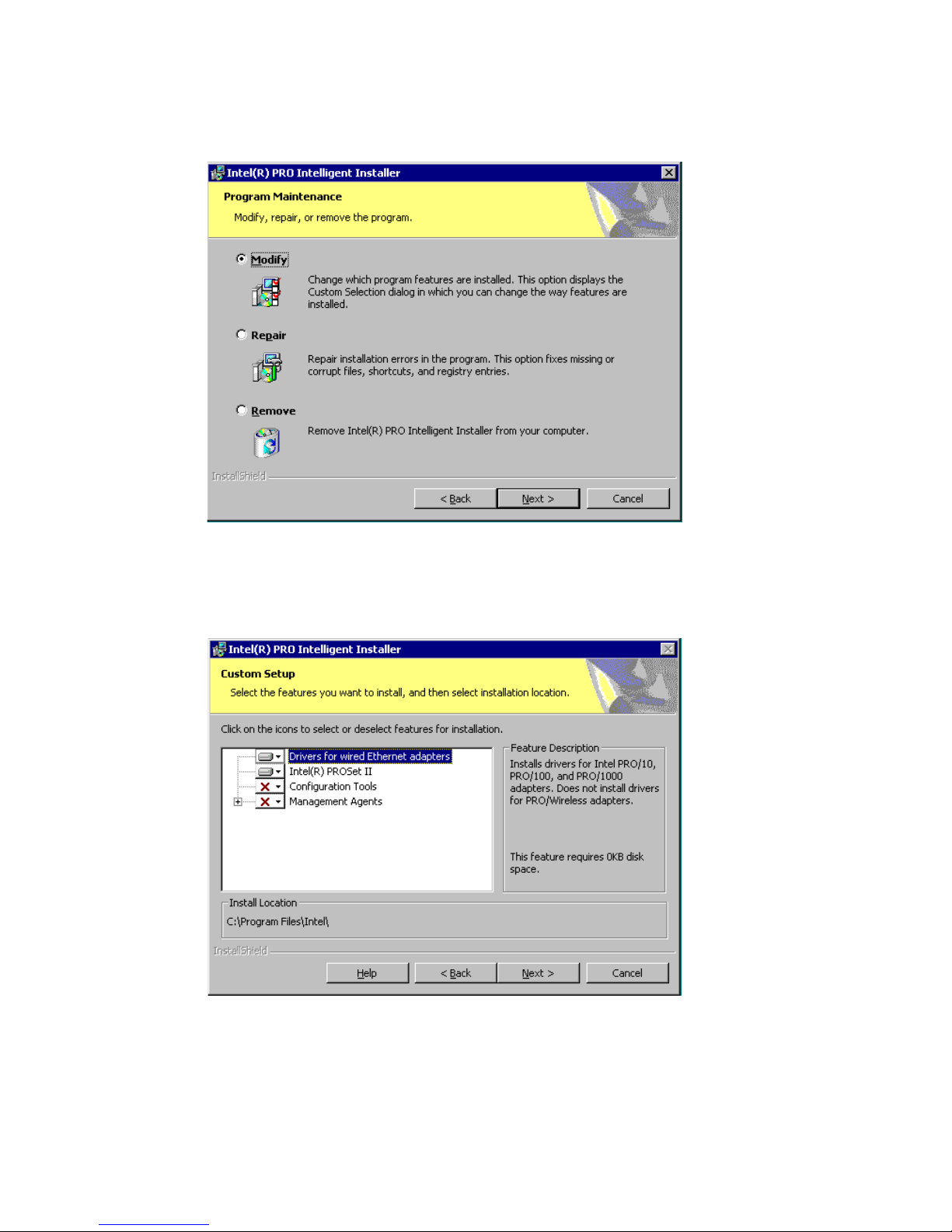

2. Choose "Modify" item and click "Next" to go next step.

3. Highlight "Drivers for wired Ethernet adapters" and click "Next".

83 Chapter 7

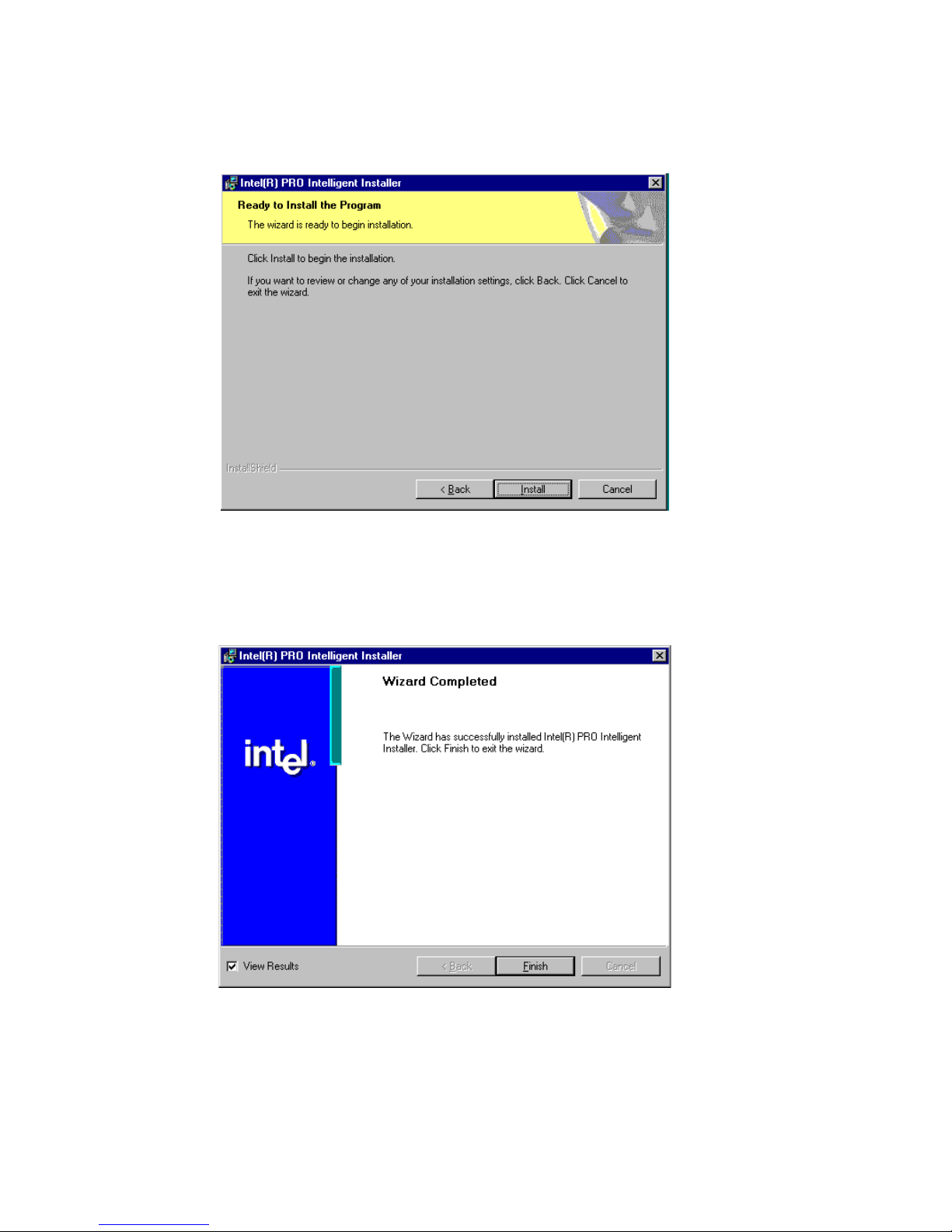

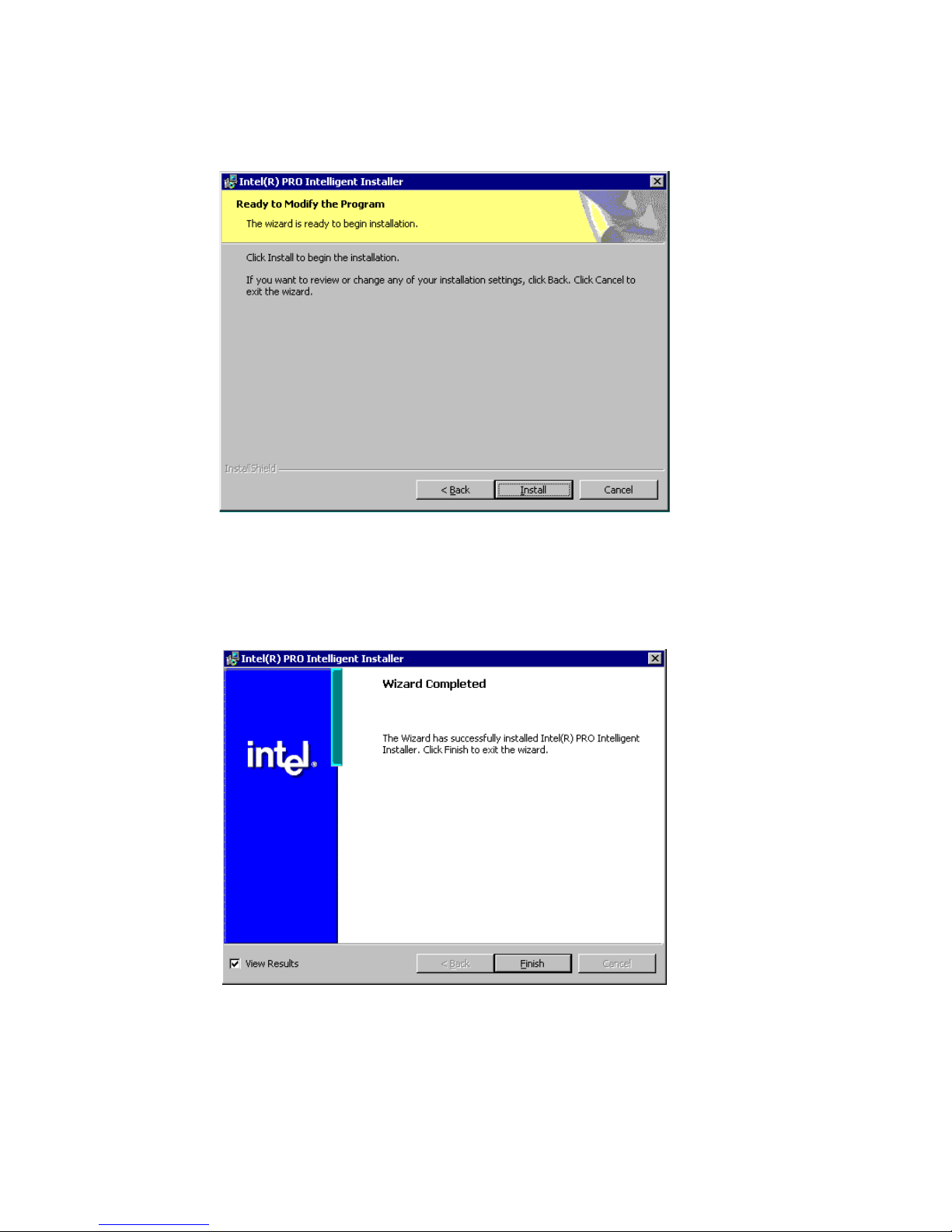

4. Click "Install" to begin the installation.

5. Click "Finish" to exit the wizard.

PCM-9580 User’s Manual 84

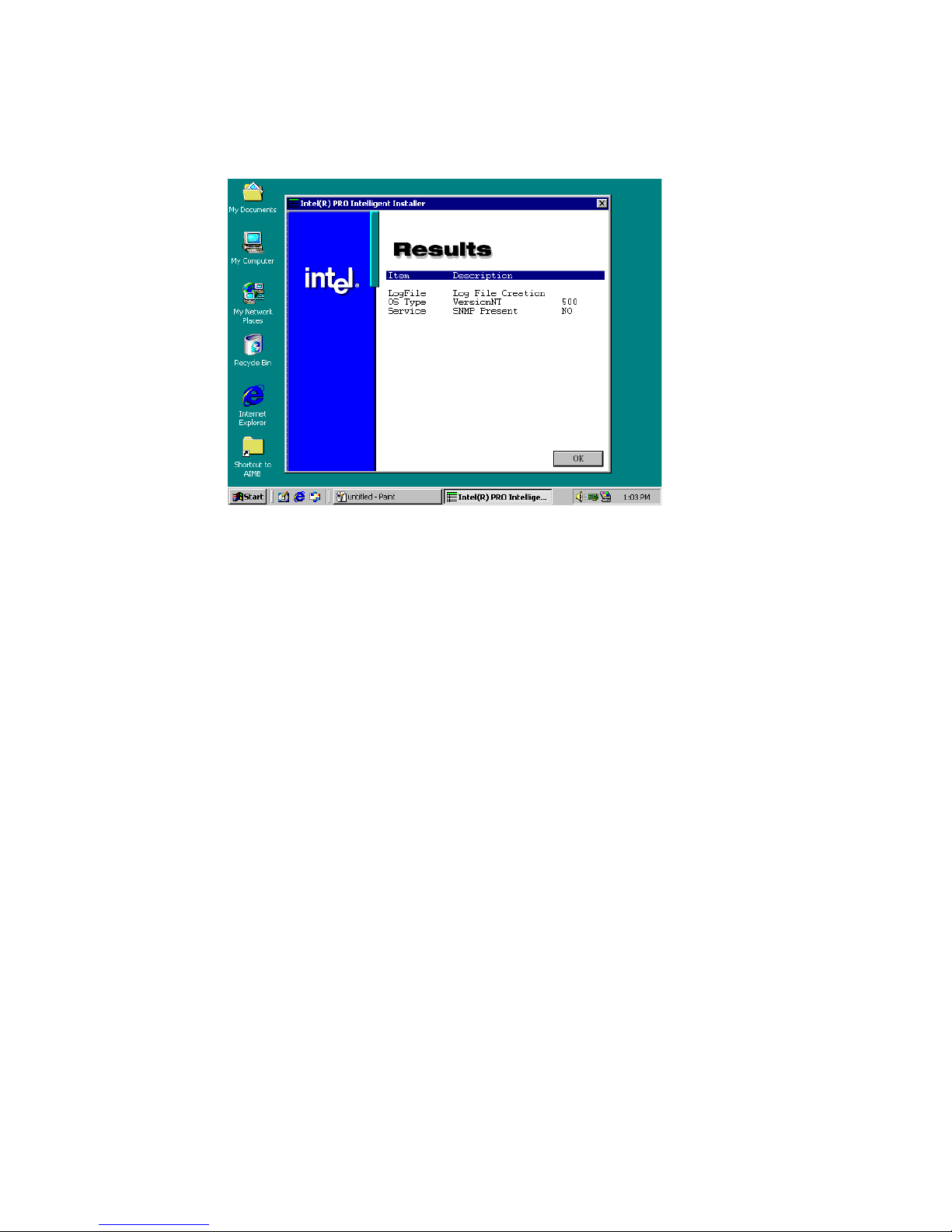

6. Then the Installer will show the result after driver installed.

85 Chapter 7

7.3.2 Installation for Windows NT

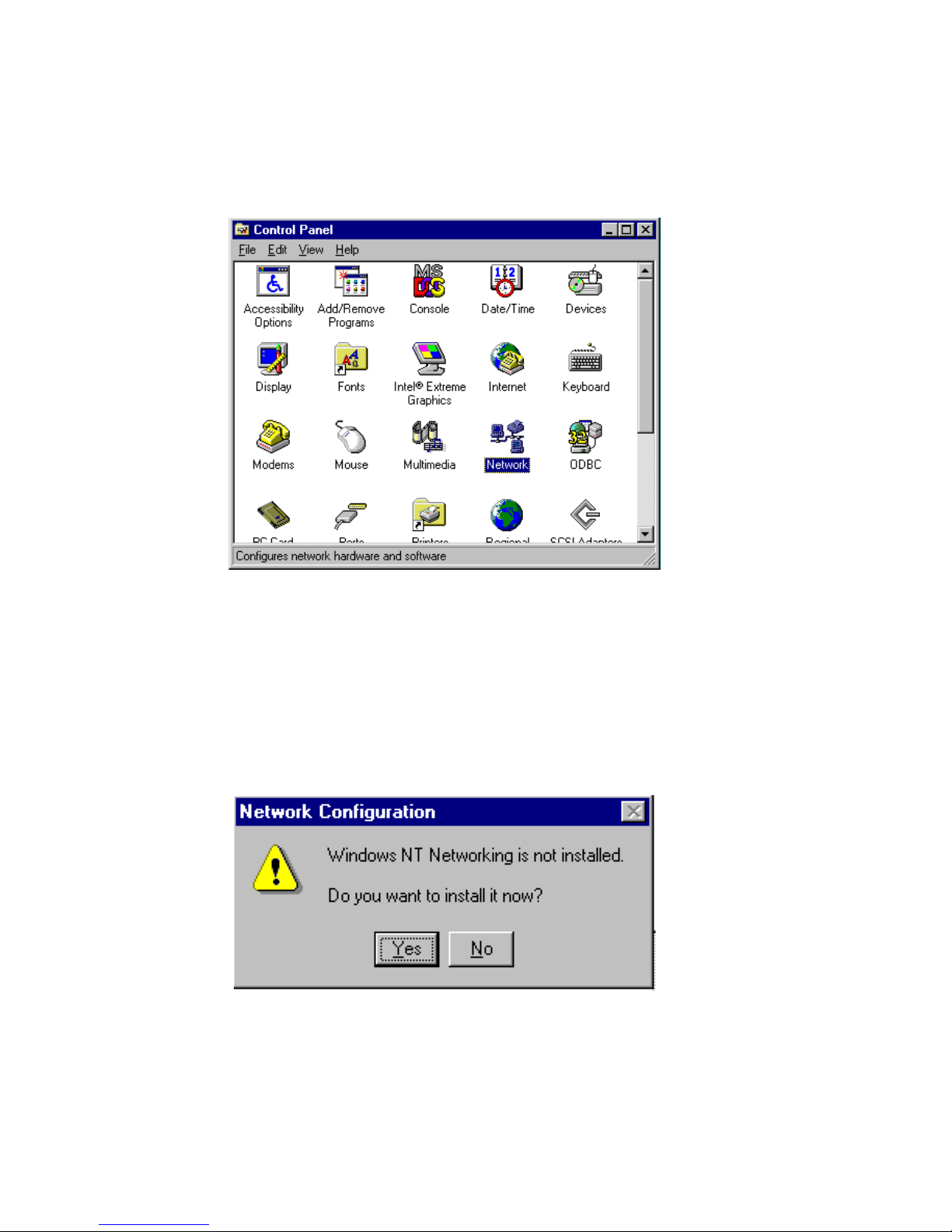

1. Select "Start", "Settings", "Control Panel" and double click "Network"

icon.

2. Then this menu will show on the screen. And click "Yes" to install net-

work driver.

PCM-9580 User’s Manual 86

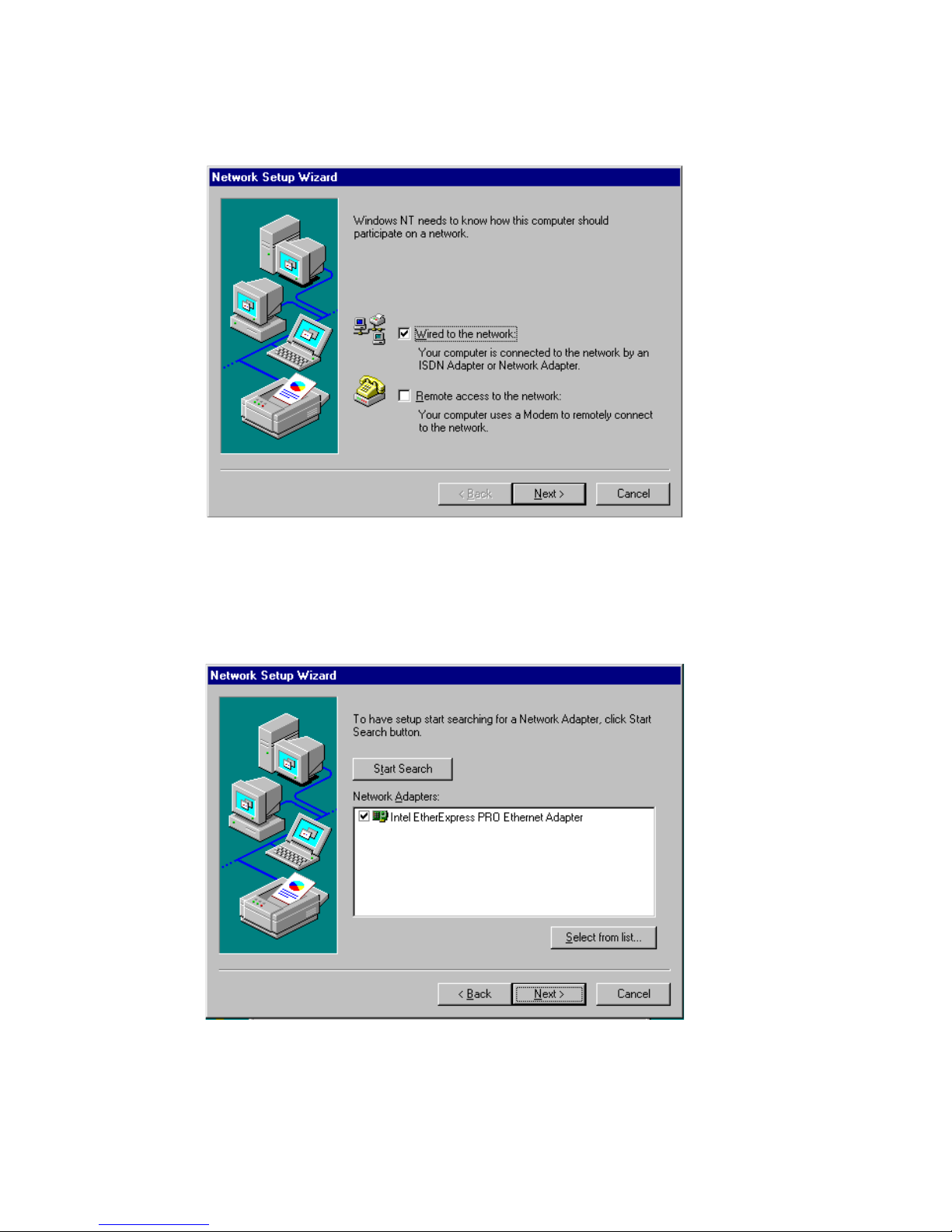

3. Select "Wired to the network" and click "Next"

4. Click "Start Search" to searh a Network Adapter. Then click "Next" to

go next step

87 Chapter 7

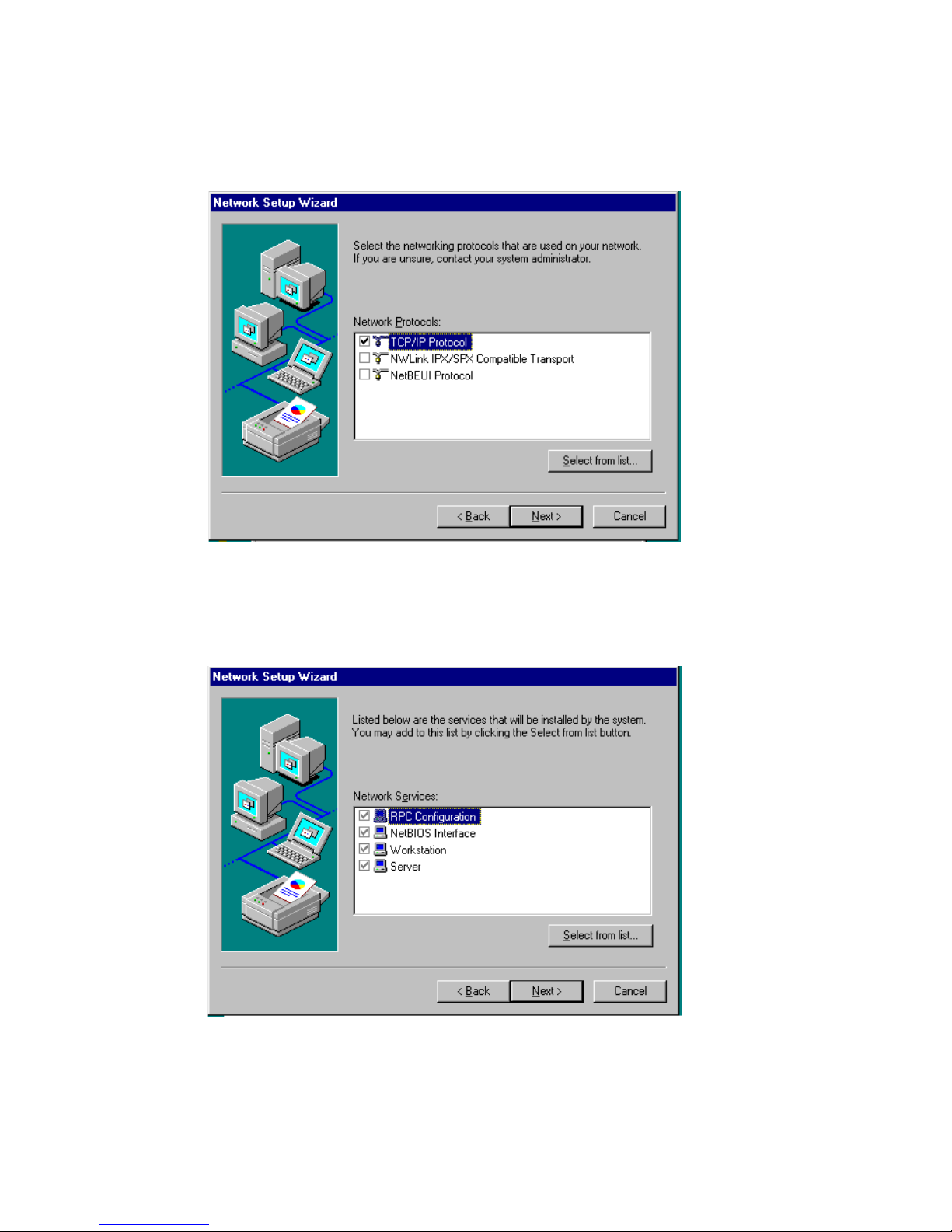

5. Base on current network environment to modify the Network Protocol

then Click "Next"

PCM-9580 User’s Manual 88

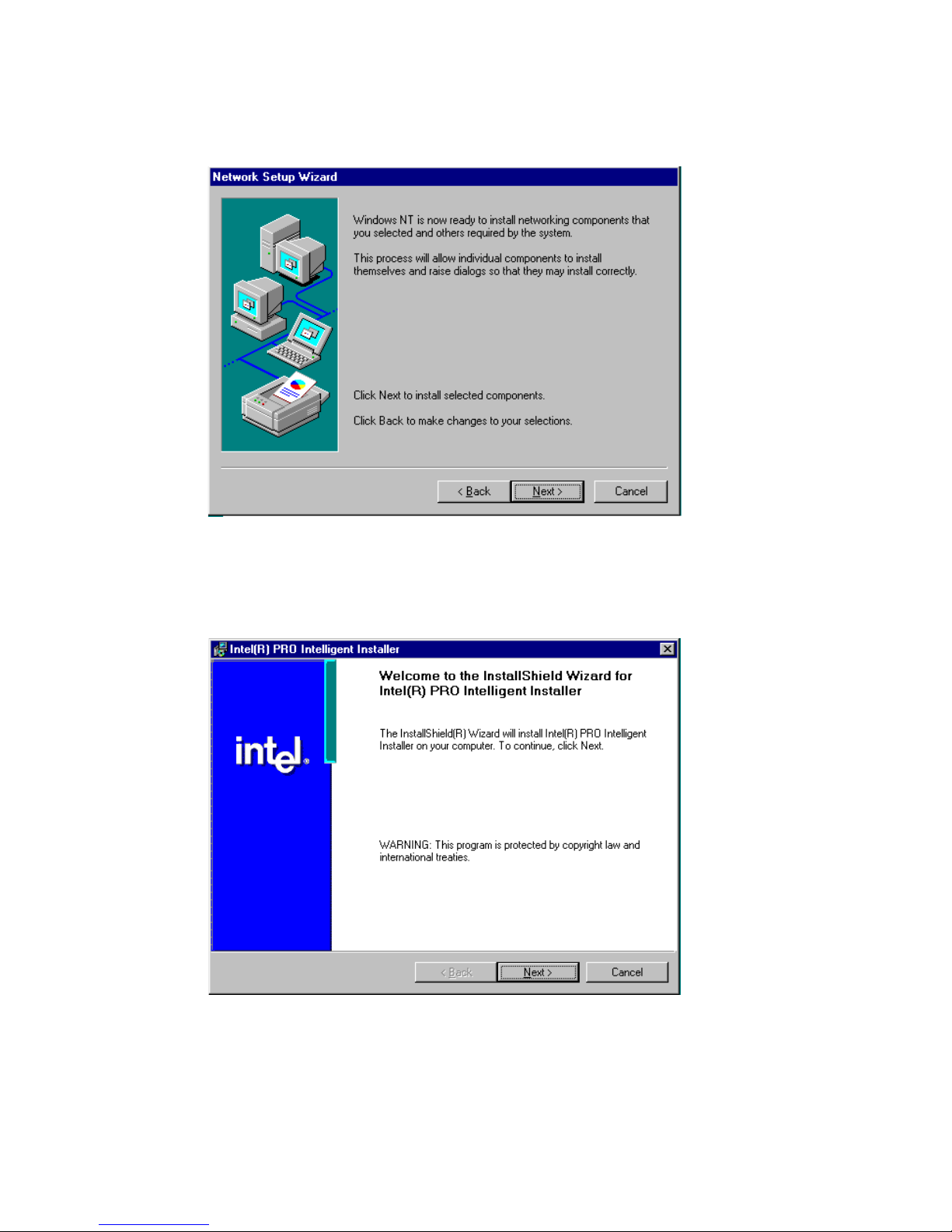

6.Click "Next" to go to next step

7. Click "Next" to install Network Adapter driver.

89 Chapter 7

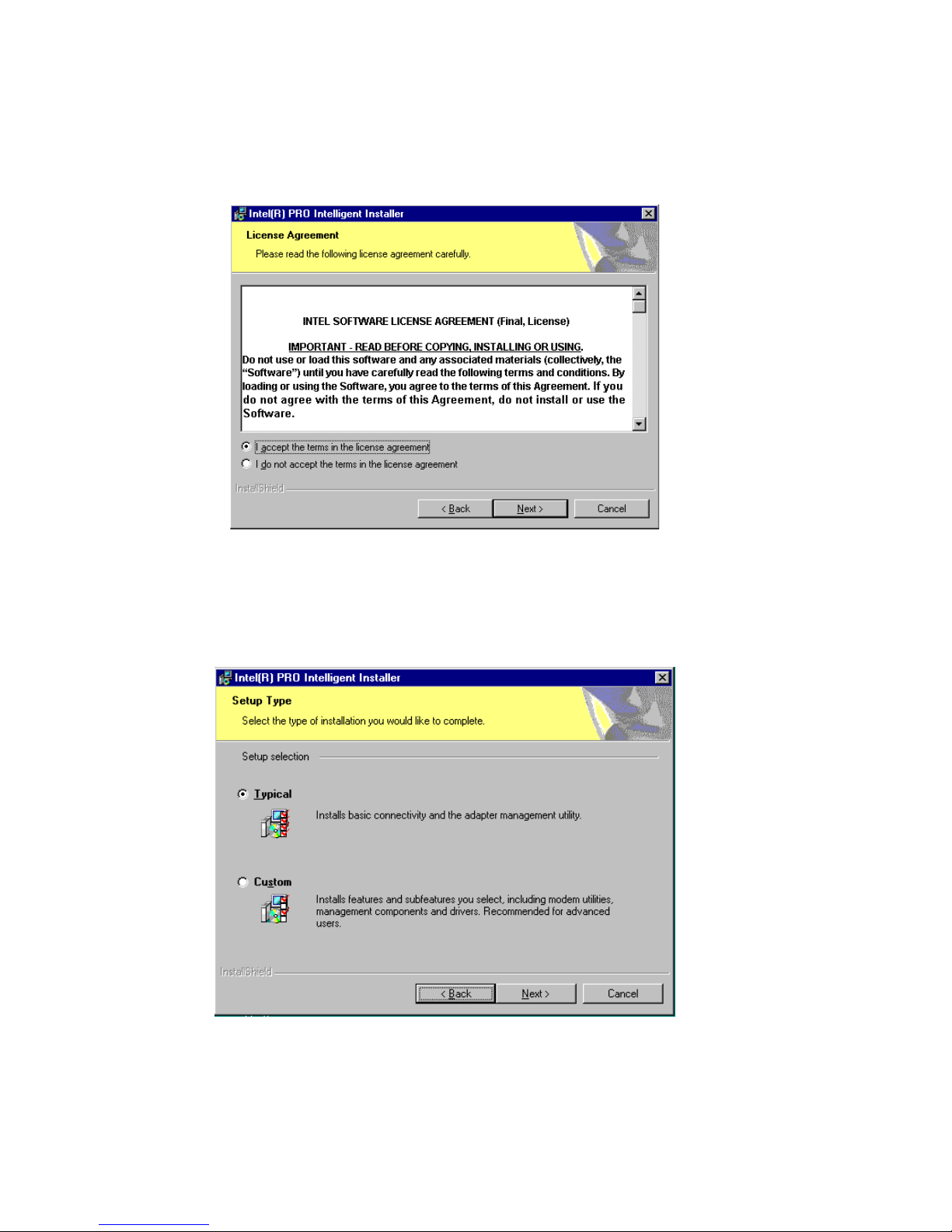

8. Check the Licemse Agreement first then select "I accept the terms in

the license agreement" and click "Next".

9. Select "Typical" and Click "Next".

PCM-9580 User’s Manual 90

10. Click "Install" to start to install driver.

11. Click "Finish" to finish install driver.

91 Chapter 7

7.4 Further information

Realtek website: www.intel.com

EMAC website: www.emacinc.com

PCM-9580 User’s Manual 92
