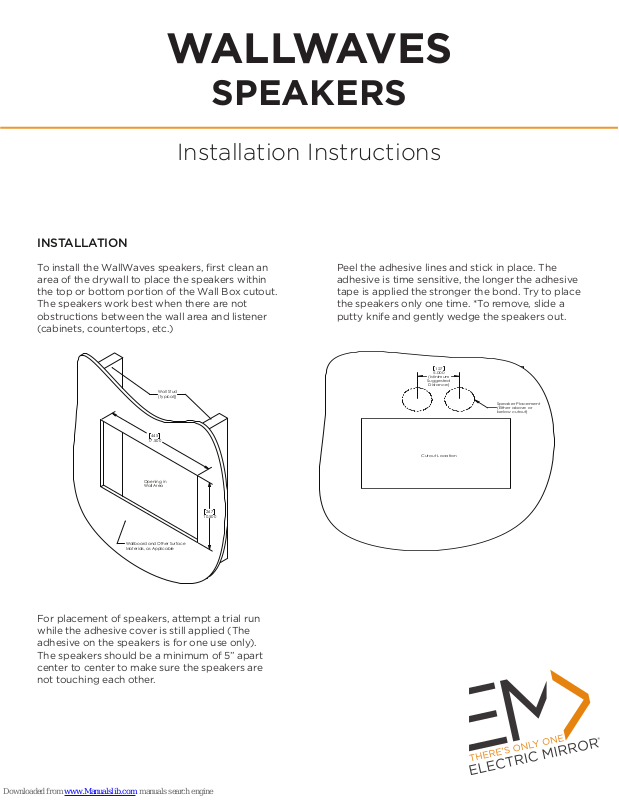

EM WALLWAVES Installation Instructions Manual

INSTALLATION

127

5.000

(Minimum

Suggested

Distance)

Cutout Location

Speaker Placement
(Either above or
below cutout)

WALLWAVES

SPEAKERS

Installation Instructions

To install the WallWaves speakers, first clean an
area of the drywall to place the speakers within
the top or bottom portion of the Wall Box cutout.
The speakers work best when there are not
obstructions between the wall area and listener
(cabinets, countertops, etc.)

Wall Stud
(typical))

445

17.500

Opening in
Wall Area

267

10.500

Wallboard and Other Surface
Materials, as Applicable

Peel the adhesive lines and stick in place. The
adhesive is time sensitive, the longer the adhesive
tape is applied the stronger the bond. Try to place
the speakers only one time. *To remove, slide a
putty knife and gently wedge the speakers out.

For placement of speakers, attempt a trial run
while the adhesive cover is still applied (The
adhesive on the speakers is for one use only).
The speakers should be a minimum of 5” apart
center to center to make sure the speakers are
not touching each other.

TECHNICAL SUPPORT

For support, please use this contact information:

Electric Mirror, Inc.
11831 Beverly Park Road
Building D
Everett, WA 98204 USA
t: 425 776-4946
f: 425 491-8200

WARRANTY

WARRANTY INFORMATION

For warranty information:
visit www.electricmirror.com/warranty/
