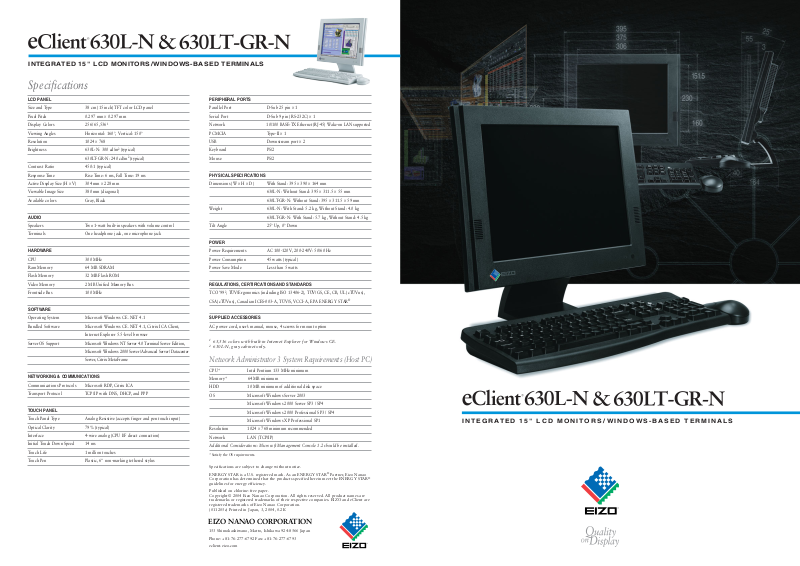

INTEGRATED 15" LCD MONITORS/ WINDOWS-BASED TERMINALS

INTEGRATED 15" LCD MONITORS/WINDOWS-BASED TERMINALS

LCD PANEL

Size and Type 38 cm (15 inch) TFT color LCD panel

Pixel Pitch 0.297 mm × 0.297 mm

Display Colors 256/65,536

Viewing Angles

Resolution 1024 × 768

Brightness 630L-N: 300 cd/m2 (typical)

630LT-GR-N: 240 cd/m2 (typical)

Contrast Ratio 450:1 (typical)

Response Time Rise Time: 6 ms, Fall Time: 19 ms

Active Display Size (H × V) 304 mm × 228 mm

Viewable Image Size 380 mm (diagonal)

Available colors Gray, Black

AUDIO

Speakers Two 1-watt built-in speakers with volume control

Terminals One headphone jack, one microphone jack

HARDWARE

CPU 300 MHz

Ram Memory 64 MB SDRAM

Flash Memory 32 MB Flash ROM

Video Memory 2 MB Unified Memory Bus

Frontside Bus 100 MHz

SOFTWARE

Operating System Microsoft Windows CE .NET 4.1

Bundled Software Microsoft Windows CE .NET 4.1, Citrix ICA Client,

Internet Explorer 5.5-level browser

Server OS Support Microsoft Windows NT Server 4.0 Terminal Server Edition,

Microsoft Windows 2000 Server/Advanced Server/ Datacenter

Server, Citrix MetaFrame

NETWORKING & COMMUNICATIONS

Communications Protocols Microsoft RDP, Citrix ICA

Transport Protocol TCP/IP with DNS, DHCP, and PPP

TOUCH PANEL

Touch Panel Type Analog Resistive (accepts finger and pen touch input)

Optical Clarity 79% (typical)

Interface 4-wire analog (CPU I/F direct connection)

Initial Touch Down Speed 14 ms

Touch Life 1 million touches

Touch Pen Plastic, 6" non-marking tethered stylus

Specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark. As an ENERGY STAR

Partner, Eizo Nanao

Corporation has determined that the products specified herein meet the ENERGY STAR

guidelines for energy efficiency.

Published on chlorine-free paper.

© 2004 Eizo Nanao Corporation. All rights reserved. All product names are trademarks or registered trademarks of their respective companies. EIZO and eClient are registered trademarks of Eizo Nanao Corporation. (011205c) Printed in Japan, 3, 2004, 0.2K

Specifications

PERIPHERAL PORTS

Parallel Port D-Sub 25 pin × 1

Serial Port D-Sub 9 pin (RS-232C) × 1

Network

10/100 BASE-TX Ethernet (RJ-45) Wake-on LAN supported

PCMCIA Type-II × 1

USB Downstream port × 2

Keyboard PS/2

Mouse PS/2

PHYSICAL SPECIFICATIONS

Dimensions (W × H × D) With Stand: 395 × 390 × 164 mm

630L-N: Without Stand: 395 × 311.5 × 55 mm

630LT-GR-N: Without Stand: 395 × 311.5 × 59 mm

Weight 630L-N: With Stand: 5.2 kg, Without Stand: 4.0 kg

630LT-GR-N: With Stand: 5.7 kg, Without Stand: 4.5 kg

Tilt Angle

POWER

Power Requirements AC 100-120V, 200-240V: 50/60 Hz

Power Consumption 45 watts (typical)

Power Save Mode Less than 5 watts

REGULATIONS, CERTIFICATIONS AND STANDARDS

TCO’992, TÜV/Ergonomics (including ISO 13406-2), TÜV/GS, CE, CB, UL (cTÜVus),

CSA(cTÜVus), Canadian ICES-003-A, TÜV/S, VCCI-A, EPA ENERGY STAR

SUPPLIED ACCESSORIES

AC power cord, user’s manual, mouse, 4 screws for mount option

Network Administrator 3 System Requirements (Host PC)

CPU

Intel Pentium 133 MHz minimum

Memory

HDD

64 MB minimum

10 MB minimum of additional disk space

Microsoft Windows Server 2003

Microsoft Windows 2000 Server SP3 / SP4

Microsoft Windows 2000 Professional SP3 / SP4

Microsoft Windows XP Professional SP1

Resolution 1024 × 768 minimum recommended

Network LAN (TCP/IP)

Additional Considerations: Microsoft Management Console 1.2 should be installed.

Satisfy the OS requirements.

153 Shimokashiwano, Matto, Ishikawa 924-8566 Japan

Phone: +81-76-277-6792 Fax: +81-76-277-6793

eclient.eizo.com

25° Up, 0° Down

Horizontal: 160°, Vertical: 150°

630L-N, gray cabinet only.

65,536 colors with built-in Internet Explorer for Windows CE.

EIZO NANAO CORPORATION

VERSATILE CONNECTIONS

The eClient incorporates several ports to enable connection with peripheral equipment. These include dual USB downstream ports, a parallel port for a printer, and a 10/100BASE-TX Ethernet connector for smooth, fast connections with the terminal server. The serial (RS-232C) port accepts peripherals

for a variety of working environments: a modem for accessing the network from remote locations, a barcode scanner for inventory and production control, a credit card reader for use in retail and banking, or an IC card reader for user identification and general network security. Other peripherals, such as a wireless LAN adapter or Hayes AT-compatible modem adapter, can be connected via the unit’s PCMCIA Type II slot.

Built-in PCMCIA

Type II slot provides

LAN/WAN connectivity

and dial-up support.

10/100BASE-TX

Connector

USB

Downstream

Por ts

Serial Port

Parallel Port

Pow er

Connector

PS/2

Connectors

Headphone/Mic

Jacks

The eClient’s all-

integrated design includes

built-in stereo speakers.

NETWORK ADMINISTRATOR

On-site configuration of each individual terminal in a network costs time and money — an element of TCO (Total Cost of Ownership) that is eliminated by EIZO’s Network Administrator 3. This valuable software allows quick, easy management of each eClient in a network directly from the host server. System administrators can use it to configure and update client settings, specify or change client IP addresses, and update firmware. Terminal property settings for one eClient can be saved to the FTP server and applied from there to others. Network Admin-

-istrator also supports Wake-on-LAN, which turns on the power for any eClient and allows off-hours updating and maintenance of terminals, individually or in work groups. Network Administrator 3 will be available for download from eclient.eizo.com free of charge from May 2004.

REGULATORY STANDARDS

The eClient 630L-N complies with the industry’s current ergonomic and energy standards, including TCO’99, TÜV/Ergonomics, the CE Mark, and the EPA Energy Star

Program.

The eClient 630L-N and 630LT-GR-N offer industry-leading standards of flexibility and performance with an all-in-one design and inclusion of the Windows CE 4.1 operating system. As with all previous thin client products from EIZO, the interface with the server is entirely digital and the image quality is consistently clear, bright and stable. Incorporating multiple peripheral ports and builtin stereo speakers, the single-unit design features a slim, compact profile that allows mounting on the desktop, wall or adjustable arm, according to choice. A valuable management option is Network Administrator, an EIZOdeveloped program that allows individual client configuration and maintenance directly from the server.

For the growing number of multi-client installations in administrative, educational, retail, call center and similar work environments, EIZO’s eClient 630L-N and 630LT-GR-N present a high-performance, fully-integrated solution with significant cost and space advantages over cumbersome alternatives which require the WBT and the monitor to be purchased separately.

THE IMAGE OF CLARITY

EIZO’s reputation for providing leading visual display solutions is perfectly exemplified by the eClient. The figures tell a tale unmatched by other WBTs: resolution of 1024 × 768, brightness level of 300 cd/m

and contrast ratio of 450:1, producing brilliantly

sharp, clear, flicker-free

images and helping to

minimize eyestrain. The fast

response time of 25 ms

prevents ghosting when

moving windows across the

screen, while viewing angles of

160

horizontal and 150

°°

vertical keep the image clear

even when seen obliquely.

Backlight brightness levels

can be adjusted by the user.

Advanced WBT Performance with Leading-Edge LCD Technology

THE SPACE ADVANTAGE

Even though the display and WBT are combined in a single unit, the eClient remains remarkably slim and compact — only 395 mm wide

and 164 mm deep — and thus occupies a minimum of desktop space. Alternatively, the panel can be mounted on the wall or an adjustable arm, leaving only the keyboard and mouse on the desk. This valuable space-saving

efficiency is matched by quick, easy

installation: apart from the cord from the built-in power supply unit, connection to the server is via a single Ethernet cable. With no fan or other moving parts, operation is virtually silent.

TOUCHSCREEN ALTERNATIVE

The eClient 630LT-GR-N incorporates a touchscreen for fast, easy data input by finger or pen. This practical alternative is ideal for retail environments, kiosks and factories.

POWER PERFORMANCE

Whatever the task, the eClient is built for fast, powerful operation. Key hardware components include a 300 MHz CPU and 100 MHz frontside bus, 32 MB of flash memory and 64 MB of RAM.

SERVER SUPPORT.

For flexible performance with a wide range of applications, the eClient provides connectivity to Microsoft

Windows® NT™ 4.0 Terminal Server

Edition and Windows 2000 Terminal Services

through Microsoft’s Remote Desktop Protocol (RDP). Additionally, with

Citrix

MetaFrame™, it supports Citrix Independent Computing Architecture (ICA

), delivering extra benefits such as 128-bit security encryption. Also included in the Windows

CE .NET 4.1 operating system is a Microsoft Internet Explorer browser supporting Citrix Nfuse

™

, a combination which gives convenient web-based access to applications on the server.
