xlter 500
Welcome to lter wonderland!
Thank you very much for purchasing the xlter 500 – one of
the quite few true linked stereo EQs in the market.
The xlter 500 gives you the expensive sound of an all class-A
equalizer in a surprisingly aordable package, with a precise
stereo image based on computer-selected, stepped potenti-
ometers and low tolerance lm capacitors.
This EQ is serious about exibility. It oers high and low shelf
bands which can be switched into high and low cut lters with
resonance, two mid peak lters with wide and narrow Q, plus
additional passive LC stages with shielded coils for a glorious
top end.
With its exceptionally open sound, straight transient projec-
tion and solid punch, the xlter is the perfect match for your
xpressor – or any other piece of delicious outboard gear!
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Passive Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Low Shelf/Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
High Shelf/Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Low Mid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
High Mid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Deutsches Handbuch . . . 16 Manuel Français . . . 30
2
Compatibility
The xlter 500 module requires installation into an API 500 se-
ries compatible rack frame (not included). It needs the power
supply and the audio connectors provided by this frame, and
cannot be used for its intended purpose by itself.
The current consumption is 210 milliamperes (105 mA per
slot) at +/- 16 volts DC. This is actually more than some other
500 series modules consume as a result of the class-A design
of the audio path of the xlter 500.
Most API 500 compatible racks meet this requirement with-
out problems, but there might be a limit on how many units
can be installed in a single rack. In case of doubt, please check
with the manufacturer of your specic rack.
Installation
Just follow these easy steps to install the xlter 500 module:
1. Switch your API 500 series compatible rack o and discon-
nect the power cable from mains.
2. Insert the module into two free slots of your rack. Make sure
both PCB connectors match with the rack connectors.
3. Gently push the module in place – do not use any excessive
force!
4. Tighten the front panel with four screws provided by your
rack manufacturer.
5. Connect your XLR audio cables (see page 6 for more info)
and power up your rack.
That should do it. Have lots of fun with your xlter 500!
3
Controls
Gain (Low Shelf)
Boosts or cuts the low frequency range » p. 8
Frequency (Low Shelf)
Sets the frequency for the low shelf lter » p. 8
Gain (Low Mid)
Boosts or cuts the low mid frequency range » p. 10
Frequency (Low Mid)
Sets the center frequency for the low mid peak lter » p. 10
Gain (High Mid)
Boosts or cuts the high mid frequency range » p. 11
4
Frequency (High Mid)
Sets the center frequency for the high mid peak lter » p. 11
Gain (High Shelf)
Boosts or cuts the high frequency range » p. 9
Frequency (High Shelf)
Sets the frequency for the high shelf lter » p. 9
Passive Massage
Activates a special passive LC lter network (LED on) or deacti-
vates this additional xed band (LED o) » p. 7
Low Cut
Switches the low shelf lter (LED o) into a low cut lter with
resonance (LED on) » p. 8
Narrow Q (High Mid)
Changes the Q factor of the high mid lter from a wide curve
(LED o) to a narrow curve (LED on) » p. 11
Narrow Q (Low Mid)
Changes the Q factor of the low mid lter from a wide curve
(LED o) to a narrow curve (LED on) » p. 10
High Cut
Switches the high shelf lter (LED o) into a high cut lter with
resonance (LED on) » p. 9
Hit It!
Activates the xlter 500 (LED on) or deactivates it with a hard-
wire bypass (LED o)
5
Connectors
Audio outputs (+4 dBu)
Pin assignment balanced: 1 ground 2 hot (+) 3 ground
Pin assignment unbalanced: 1 ground 2 hot (+) 3 idle
Audio inputs (+4 dBu)
Pin assignment balanced: 1 ground 2 hot (+) 3 cold (-)
Pin assignment unbalanced: 1 ground 2 hot (+) 3 ground
Mono operation: Connect either input and output 1 or 2 –
both will work identically.
Stereo operation: Connect both inputs and outputs 1 and 2 –
the choice which channel is left and which is right is up to you.
6
Passive Massage
Mmm... The beautiful sheen a passive EQ adds on top of every-
thing. We all love it, we all need it!
Well, here is the good news: In addition to its four exible ac-
tive bands, the xlter 500 features a switchable xed LC lter
for polishing the high frequency range.
The lter mainly consists of a capacitor and a coil per channel,
but unlike the standard shelving designs, it has a slight reso-
nance peak at 12 kHz and starts to fall o at 17 kHz.
This way, the saturation-like storage eect of the shielded
coil focuses on the area around the peak without pushing the
complete high frequency spectrum too much.
7
Low Shelf
Low Cut
8
High Shelf
High Cut
9
Low Mid (Wide Q)
Low Mid (Narrow Q)
10
High Mid (Wide Q)
High Mid (Narrow Q)
11
Technical Details
Frequency response: <10 Hz - 400 kHz (-3.0 dB)
THD+N @ 0 dBu, 20 Hz - 22 kHz: 0.0018 %
THD+N @ +10 dBu, 20 Hz - 22 kHz: 0.005 %
Noise oor, 20 Hz - 20 kHz (A-weighted): -98 dBu
Dynamic range, 20 Hz - 22 kHz: 120 dB
Maximum input level: +21 dBu
Maximum output level: +21 dBu
Input impedance: 10 kOhm
Output impedance: 68 Ohm
CE Conformity
elysia GmbH, Am Panneschopp 18, 41334 Nettetal, Ger-
many, declares with sole responsibility that this product
complies with the following norms and directives:
• 2006/95/EG Low Voltage Directive (formerly 73/23/EWG or
93/68/EWG)
• 89/336/EWG EMC (Electromagnetic Compatibility) Directive
• DIN EN 55103-1 EMC of audio equipment - Emission
• DIN EN 55103-2 EMC of audio equipment - Immunity
This declaration becomes invalid by any unapproved modi-
cation of the device.
Nettetal, 01.05.2013 - Ruben Tilgner & Dominik Klaßen
12

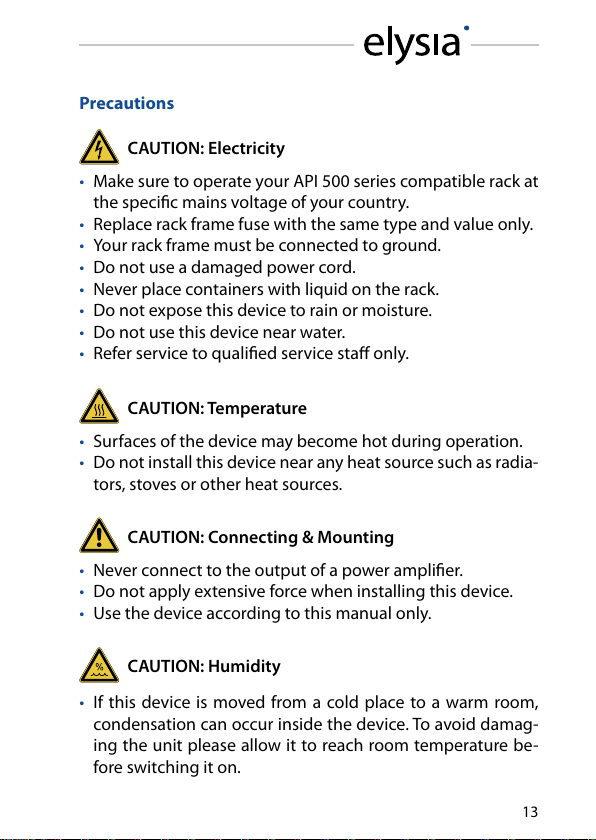

Precautions
CAUTION: Electricity
• Make sure to operate your API 500 series compatible rack at
the specic mains voltage of your country.
• Replace rack frame fuse with the same type and value only.
• Your rack frame must be connected to ground.
• Do not use a damaged power cord.
• Never place containers with liquid on the rack.
• Do not expose this device to rain or moisture.
• Do not use this device near water.
• Refer service to qualied service sta only.
CAUTION: Temperature
• Surfaces of the device may become hot during operation.
• Do not install this device near any heat source such as radia-
tors, stoves or other heat sources.
CAUTION: Connecting & Mounting
• Never connect to the output of a power amplier.
• Do not apply extensive force when installing this device.
• Use the device according to this manual only.
CAUTION: Humidity
• If this device is moved from a cold place to a warm room,
condensation can occur inside the device. To avoid damag-
ing the unit please allow it to reach room temperature be-
fore switching it on.
13

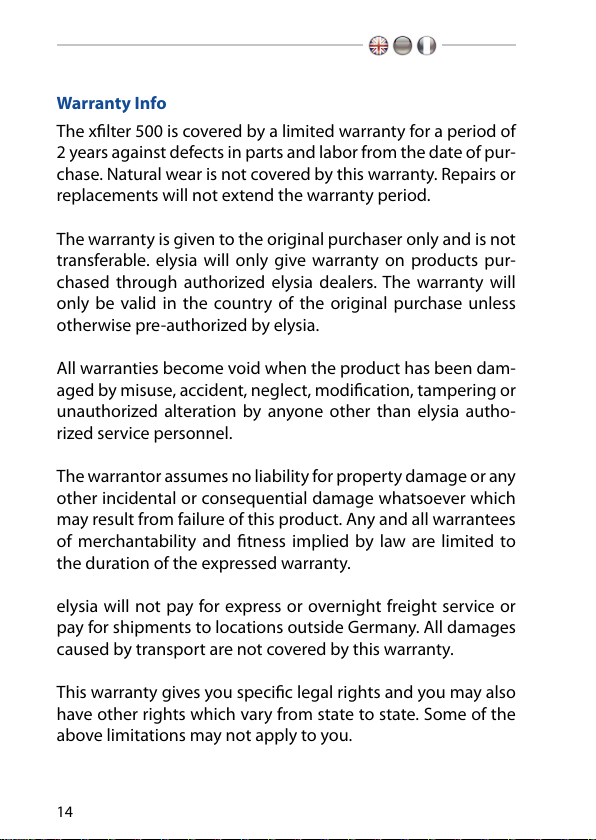

Warranty Info
The xlter 500 is covered by a limited warranty for a period of
2 years against defects in parts and labor from the date of pur-
chase. Natural wear is not covered by this warranty. Repairs or
replacements will not extend the warranty period.
The warranty is given to the original purchaser only and is not
transferable. elysia will only give warranty on products pur-
chased through authorized elysia dealers. The warranty will
only be valid in the country of the original purchase unless
otherwise pre-authorized by elysia.
All warranties become void when the product has been dam-
aged by misuse, accident, neglect, modication, tampering or
unauthorized alteration by anyone other than elysia autho-
rized service personnel.
The warrantor assumes no liability for property damage or any
other incidental or consequential damage whatsoever which
may result from failure of this product. Any and all warrantees
of merchantability and tness implied by law are limited to
the duration of the expressed warranty.
elysia will not pay for express or overnight freight service or
pay for shipments to locations outside Germany. All damages
caused by transport are not covered by this warranty.
This warranty gives you specic legal rights and you may also
have other rights which vary from state to state. Some of the
above limitations may not apply to you.
14
Legal Info
The information in this document is subject to change with-
out further notice and shall not be deemed as an obligation
or warranty of any kind by the manufacturer. No warranties,
express or implied, are made with regard to the quality, suit-
ability or accuracy of this document.
The manufacturer reserves the right to change the contents
of this document and/or the associated products at any time
without the provision of prior notice. The manufacturer shall
not be held liable for damages of any kind arising from the
use, or the inability to use this product or its documentation.
The information in this document is subject to copyright. All
rights, technical changes and errata are reserved. No part of
this manual may be reproduced or transmitted in any form or
for any purpose without the explicitly written permission of
the copyright holders.
elysia and xlter are registered trademarks of elysia GmbH.
Other product and brand names contained in this document
are used for identication purposes only. All registered trade-
marks, product designations or brand names used in this doc-
ument are the property of their respective owners.
This product is manufactured according to
the 2002/95/EC directive. The purpose of this
directive of the European Union is the Restric-
tion of Hazardous Substances (RoHS) in electronic equipment
in order to protect health and nature. Dispose separately!
Version 1.2 © 2014 elysia GmbH
15
elysia GmbH
Am Panneschopp 18
41334 Nettetal
Germany
