Elysee Indra User Manual
User Manual
Bathtub Elysée Indra
User Manual
Bathtub ELYSEE Indra
Table of contents
Preface
Operating precautions
Table of contents
1. General arrangement drawing
2. Dimensions
3. Options et accessories
4. Technical specifications
DESCRIPTIF
COMPLIANCE
SAFETY INSTRUCTIONS AND WARNINGS
COMMISSIONING AND INSTRUCTIONS FOR USE
5. Operating instructions

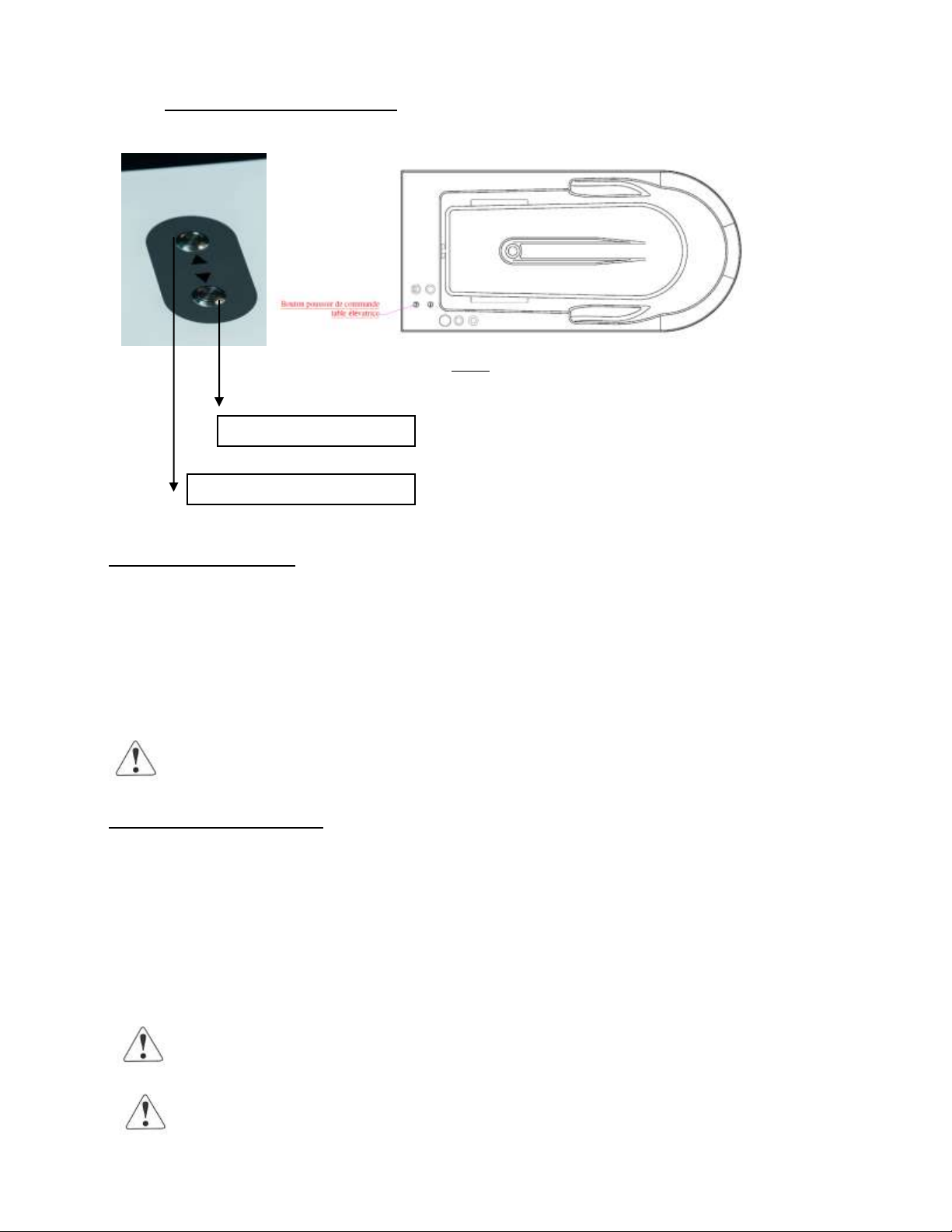

5.1. Pushbutton switch hi/low frame
5.1.1. Rising up the lift table
5.1.2. Moving down the lift table

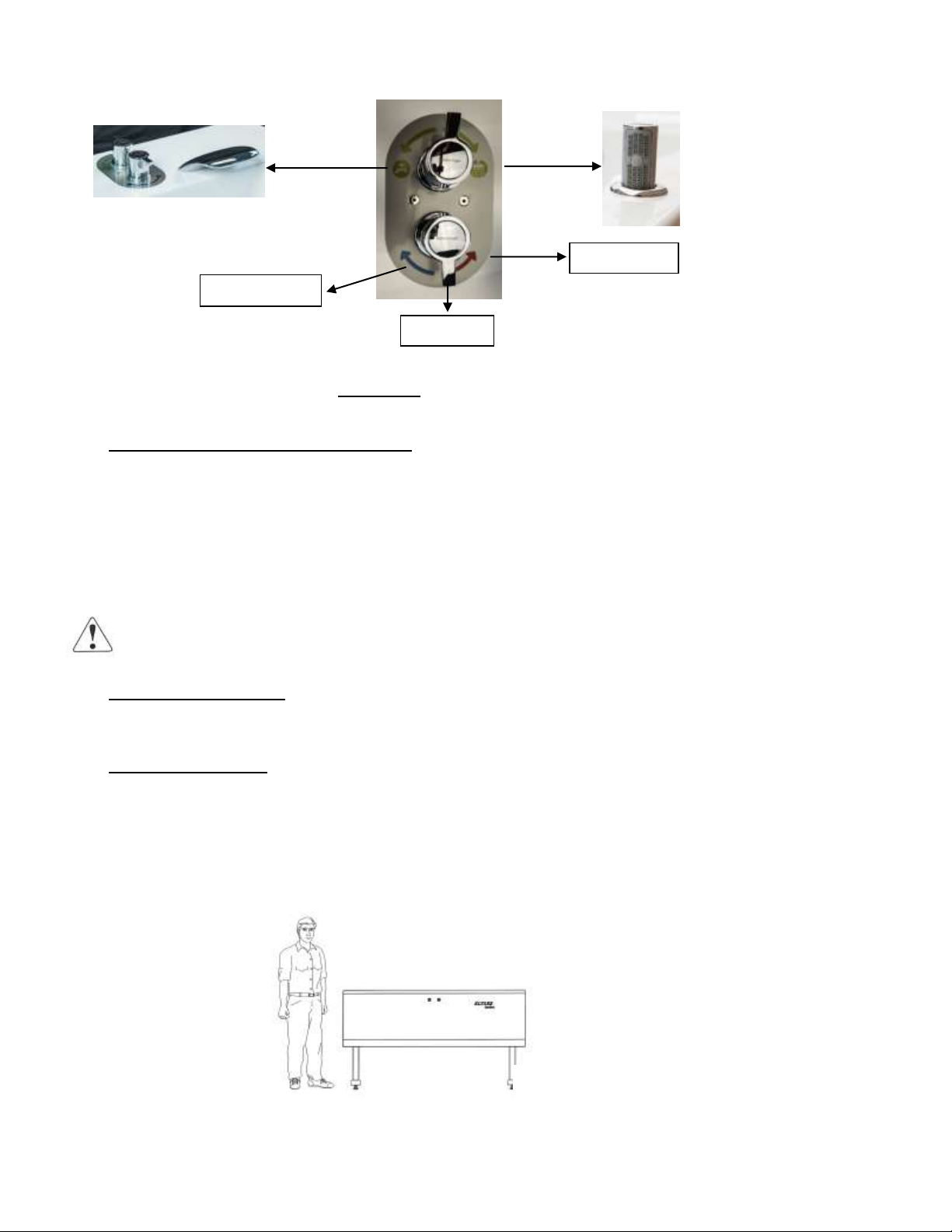

5.2. Bath setup

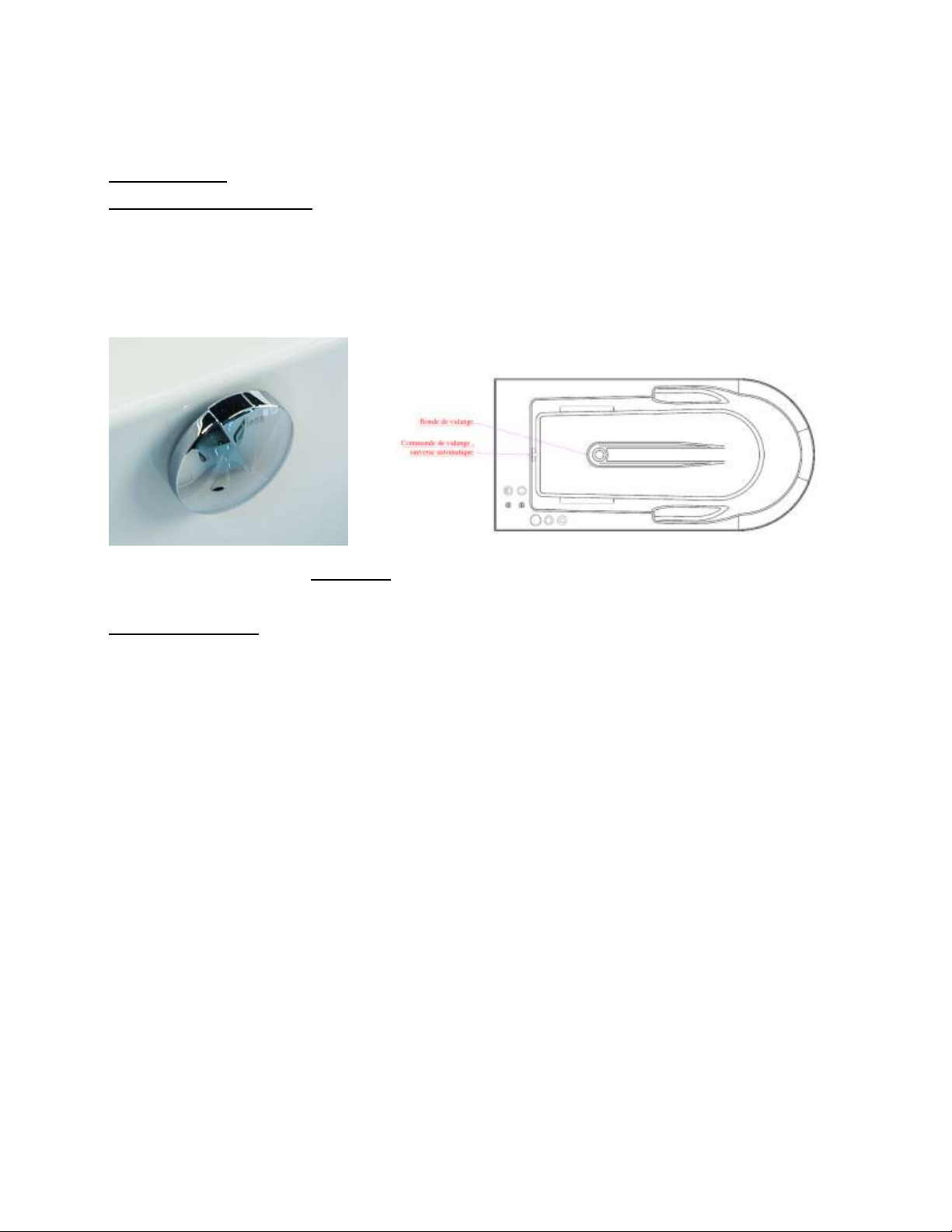

5.2.1. Locking of draining trap
5.2.2. Filling of the tub
5.2.3. Positioning of the patient in the bathtub
5.3. Draining of bathtub
6. Working position
7. Maintenance instructions
8. User manual (to be displayed next to the bathtub)
9. Technical settings instruction
10. Recommendation

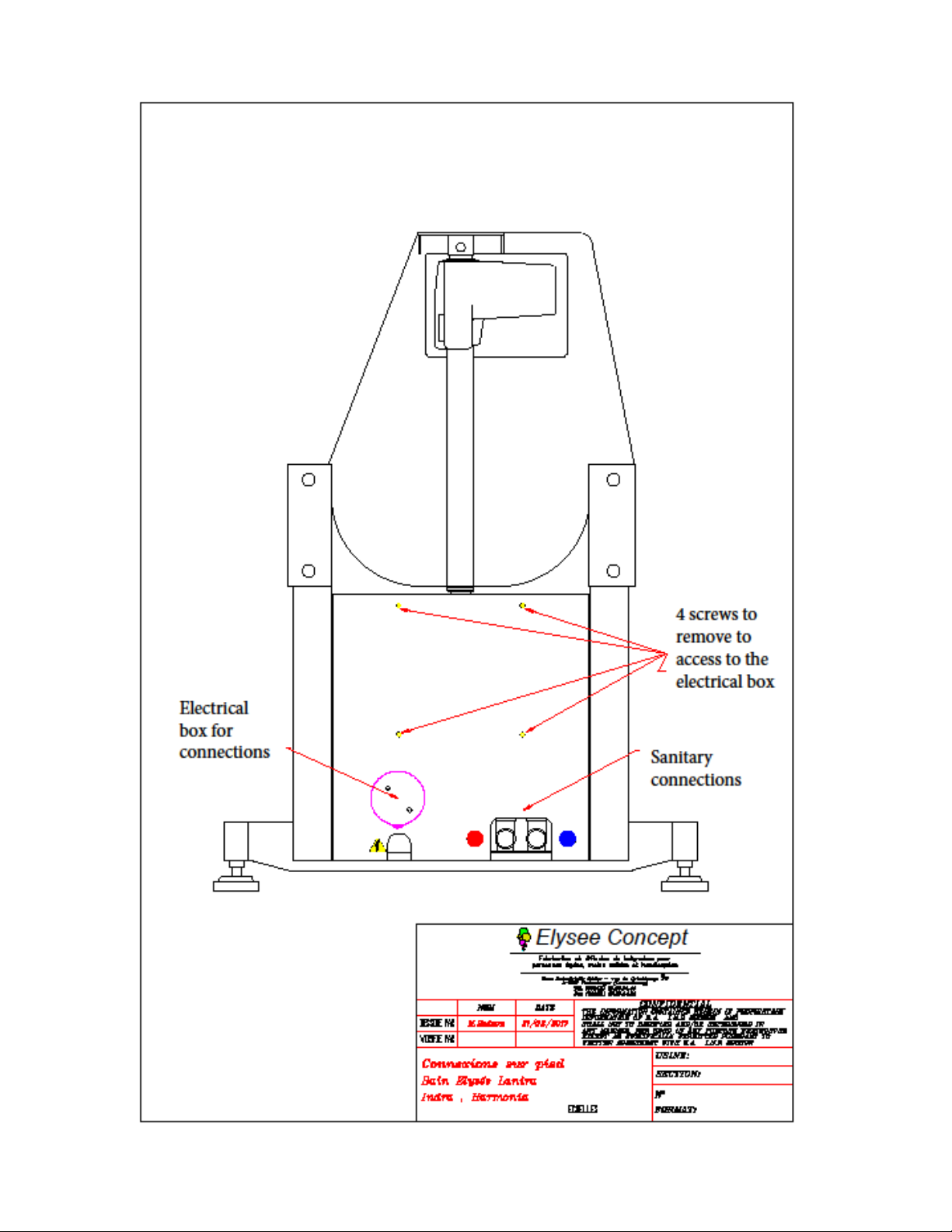

11. Connection plans
jeudi 7 février 2019 - 2
User Manual
Meaning: safety warning. In the event of non-compliance with this directive, the user or operator expose
himself to a risk of injury.
Bathtub ELYSEE Indra
Preface
Thank you for trusting and choosing the products Elysee Concept.
Before using your bathtub, please read entirely this manual. The information contained in this
manual is essential to the proper operation and maintenance of the equipment. It will help you to
best protect your investment and guarantee you a perfect operation of your equipment. Some
information contained in this manual also concerns your safety, they must be read entirely and
fully understood in order to avoid any risk of injury.
If the product has not been used in accordance with the instructions in this manual, Elysée
Concept will not be responsible for any problems.
For further information, please contact the Elysée Concept Sàrl offices. (First page of this
document).
Operating precautions
This equipment is intended to bathe residents, under the supervision of qualified medical staff and
in accordance with the indications defined in the user manual. Any other use could be the source
of dangerous situations. Read the precautions for use before.
jeudi 7 février 2019 - 3
1. General arrangement drawing
Elysée INDRA
1
Aromatherapy container *
4
Height-adjustable chassis control
5
Bathwater temperature display *
6
Tap securing devi ce and pre -filling control *
7
Emptying and overflow opening and closing control
8
Water outlet plug
9
CONCEALED thermostatic locking mixer
10
CONCEALED rinsing shower
11
Insert for Perspex footrests
13
Stainless-steel grips handle
14
Head rest
15
Disinfection station *
16
Soap/essential oils dispenser *
17
Height-adjustable chassis legs
18
Cascade filling
19
Disinfection container *
* Optiona l
2
Starting of hydromassage *
1 push = continuous jet (red LED on)
2 pushes = alternative jet (red LED on-lighting)
3 pushes = stop (LED off)
Starting of Air jet *
1 push—continuous jet (red LED on)
2 pushes = wave effect (red LED on-lighting)
3 pushes : stop (LED off)
Starting of chromotherapy *
1 push = loop light cycle (red LED on)
2 pushes = colour fixing (red LED on-lighting)
3 pushes = stop (LED off)
Starting of PRIMA balneo system * ( Air)
1 push = ON
2 pushes—OFF
Only operates if the minimum water level is reached
20
SNOEZELEN PROGRAMME - CHOOSE THE OPTIONS
1 + 2 + 3 + 20 + 22
3
Semi-automatic disinfection *
- Fill the bath up to the required minimum water
level (balneotherapy le vel )
- Press the control button for 5’’ (LED continuousl y
on)
- To stop, p ress the control (LED off)
Red LED on —> fill the container with disinfectant
Automatic disinfection (Flash) *
- Green LED on when bath is completely empty (10
min. time dela y)
- To activate manually, press the control for 5
seconds ( LED on)
22
Chromotherapy device by multicolour projector *
2 X 7 colour LEDs for PRIMA chromothera py *
21
Water balneotherapy suction strainer *
20
Dream music *
9
Filling
Shower
Hot
water
Cold water
REMINDER—Read the directi ons for use
carefully before use
User Manual
Bathtub ELYSEE Indra
jeudi 7 février 2019 - 4

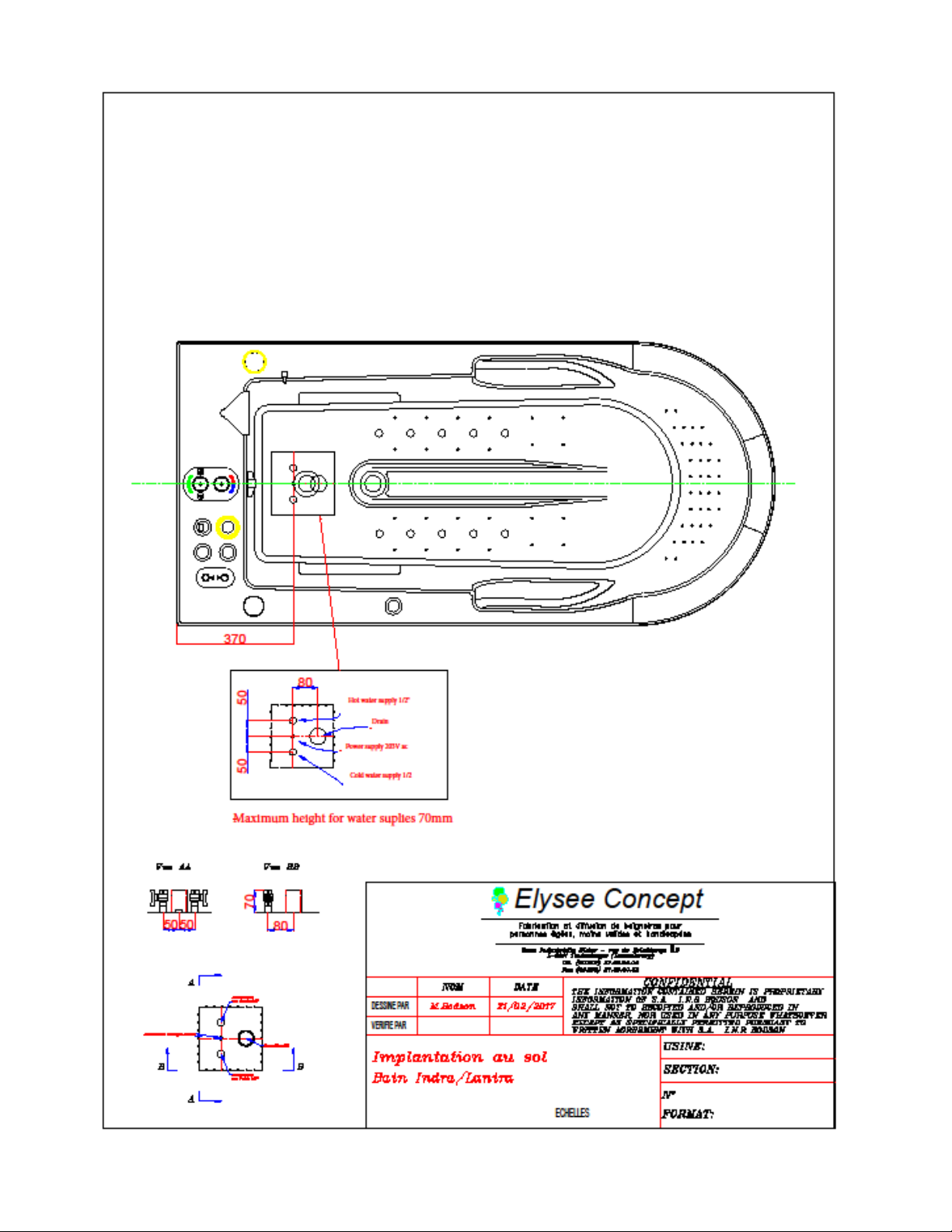

2. Dimensions
User Manual
Bathtub ELYSEE Indra
jeudi 7 février 2019 - 5
User Manual
Ref
Description
2864
Pre-filling system
11222
Pre-filling system with t° display
430
Headrest with suction grip
8672
Fixed headrest
1561
Suction grip with safety - Vitility 50 cm
10442
Suction grip with safety - Roth Mobeli 21 cm
2708
Suction grip with handle
2098
Soap and/or essential oils dispenser
854
Suction table
10804
Transparent Perspex footrest (4 in 1)
Remote control for height-adjustable chassis
BALNEOTHERAPY - OPTIONS
13371
Prima Air balneotherapy & Chromotherpay ( colour light therapy)
Prima Water balneotherapy (with Prima colour therapy) + instant
disinfection
3386
Ely'Lisse + balneotherapy
10423
Ely'Reva balneotherapy + instant disinfection
13082
Ely'Well + instant disinction
10395
Ely'Zen balneotherapy + instant disinfection
Ely'Zen/Reva balneotherapy + semi-automatic disinfection
* Hydromassage with massage hose for Ely'Reva, Ely'Zen and Ely'Zen/Reva
Power Jet balneotherapy + instant disinfection
371
UV disinfection on Ely'Zen and/or Reva balneotherapy system
NATURAL THERAPIES
382
Aromatherapy
12988
Colour therapy with Ely'Lisse balneotherapy and colour pause
10421
Colour therapy with Ely'Reva and Ely'Well balneotherapy and colour pause
374
Colour therapy with balneotherapy - Ely'Zen and Ely'Zen/Reva + colour
pause
378
Colour therapy with colour pause for baths without balneotherapy
Phytotherapy
9872
Dream music
DESIGN- Screen printing
See catalogue
DISINFECTION
13364
Trigger-operated disinfection system (KIWA)
Protective box for disinfection equipment
11109
(Option for article 11108 - only)
Bathtub ELYSEE Indra
3. Options & accessories
jeudi 7 février 2019 - 6
