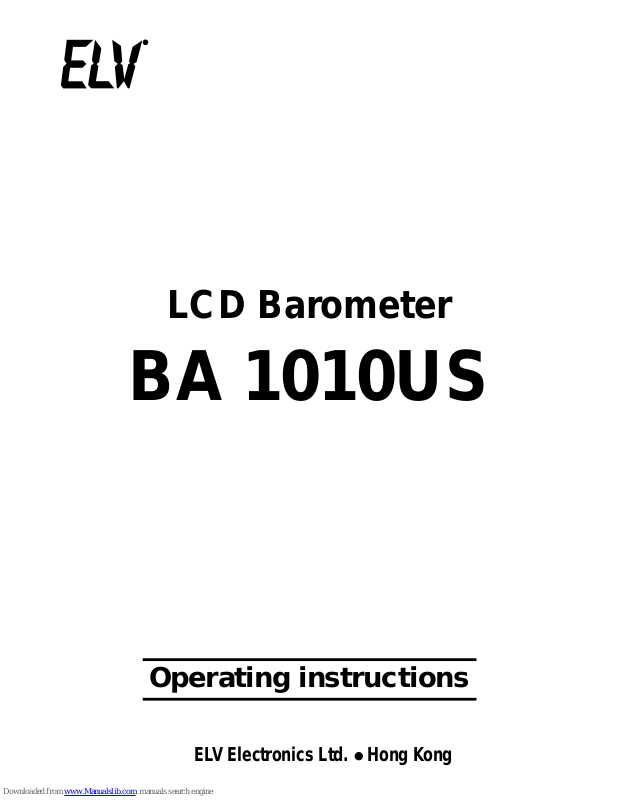

ELV Electronic BA 1010US Operating Instructions Manual

1

LCD Barometer

BA 1010US

Operating instructions

ELV Electronics Ltd. ● Hong Kong

2

1st English edition January 2004
Documentation © 2004 ELV Electronics Limited
All rights reserved. This handbook must not be reproduced in any
form, even in excerpts, or duplicated or processed using electronic,
mechanical or chemical procedures without written permission of the
publisher.
This handbook may contain mistakes and printing errors. The infor­mation in this handbook is regularly checked and corrections made in
the next issue. We accept no liability for technical mistakes, printing
errors, or their consequences.
All trademarks and patents are acknowledged.
Printed in Hong Kong
Modifications due to technical improvements may be made without
prior notification.
56978 Y2004V1.0

3

Contents

1. General, functional features ............................................ 4

2. Safety and maintenance information .............................. 5

3. Commissioning ............................................................... 6

3.1. Inserting the batteries ..................................................... 6

3.2. Indicators ........................................................................ 7

4. Operation ........................................................................ 8

4.1. Initialisation ..................................................................... 8

4.2. Altitude adjustment ......................................................... 8

4.3. Outdoor sensor addressing ............................................ 9

4.4. Indicators and indicator adjustment ............................... 9

4.4.1. Air pressure, forecast, trend ........................................... 9

4.4.2. Temperature, humidity, climate .................................... 10

4.4.3. Sensor selection ........................................................... 10

5. Changing the batteries.................................................. 11

6. Range ............................................................................ 12

7. Technical data............................................................... 13

8. FCC Information............................................................ 14

4

1. General

The BA 1010US LCD Barometer displays the current
air pressure in a round, stylised instrument display as
well as a numerical digit display.
Analoguous to traditional barometers, the electronic dis­play moves in the direction of the current trend when
the housing is tapped.
Also, the trend of the air pr essure development is con­veniently displayed by means of an arrow/symbol dis­play and the local weather forecast is shown by means
of an easy to understand weather symbol.
Additionally, you can choose to display the tempera­ture and relative humidity for indoors or outdoors as
well as a comfort factor based on both temperature and
humidity.

The functional features of the BA 1010US:

- Air pressure display from 300 to 1,100 hPa

- Air pressure trend display

- Weather forecast function via symbols

- Knock-on update of display in direction of trend

- Display of the indoor temperature and humidity
(sensors in the device)
or

- Display of the outdoor temperature and humidity via
radio reception of data using an outdoor radio sensor
(effective up to 100 m unobstructed)

- Climate comfort factor for room climate indicated by
three smilies: dry, agreeable, and humid.

5

Please read the complete instructions thoroughly
before initial operation; these instructions contain
information for the correct use of this device.

Intended use

The BA 1010US LCD Barometer is intended for indoor
use with maximum humidity of 95 % and a temperature
range of -19.9 °C to +70 °C. The manufacturer does not
accept any liability for the consequences of improper
use; all rights under the warranty will be forfeited.

2. Safety and maintenance information

- Do not open the device. It contains no user-service­able parts.

- Operate the display device only indoors and avoid
moisture, dust and direct sunlight.

- Clean the display device using a dry linen cloth; it may
be slightly dampened to remove obstinate soiling. Do
not use solvents for cleaning.

- The device should be kept out of reach of children. It
is not a toy!
