Elumen8 Stage Par 90 Cold White, Stage Par 90 Warm White User Manual

15-

Innovation, Quality, Performance

Stage Par 90 Cold White

Stage Par 90 Warm White

Order Code ELUM010
Order Code ELUM012

User Manual

Please read the instructions carefully before use

1-

14-

13-

7. Troubleshooting

Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:

A. The fixture does not work, no light

1. Check the connection of power and main fuse.

2. Measure the mains voltage on the main connector.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the fixture or the previous one.

4. Try to use another DMX controller.

5. Check if the DMX cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.

1. Wrong DMX address in the fixture. Set the proper address.

D. No response to the sound

1. Make sure the fixture does not receive DMX signal.

2. Check microphone to see if it is good by tapping the microphone.

8. Fixture Cleaning

The cleaning of internal must be carried out periodically to optimize light output. Cleaning
frequency depends on the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.

y Clean with soft cloth using normal glass cleaning fluid.
y Always dry the parts carefully.
y Clean the external optics at least every 20 days. Clean the internal optics at least every

30/60 days.

2-

TABLE OF CONTENTS

1. Safety Instructions

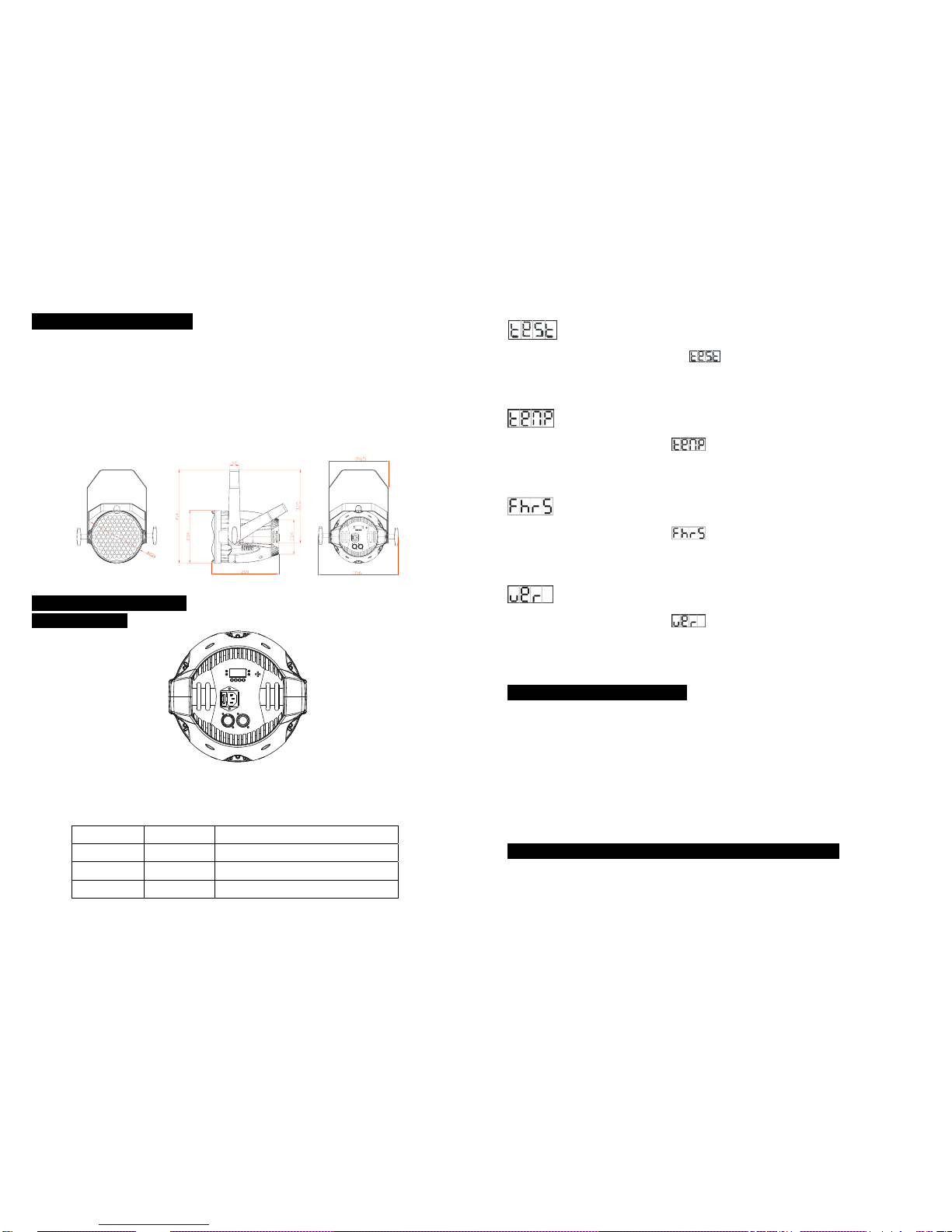

2. Technical Specifications

3. How To Set The Fixture

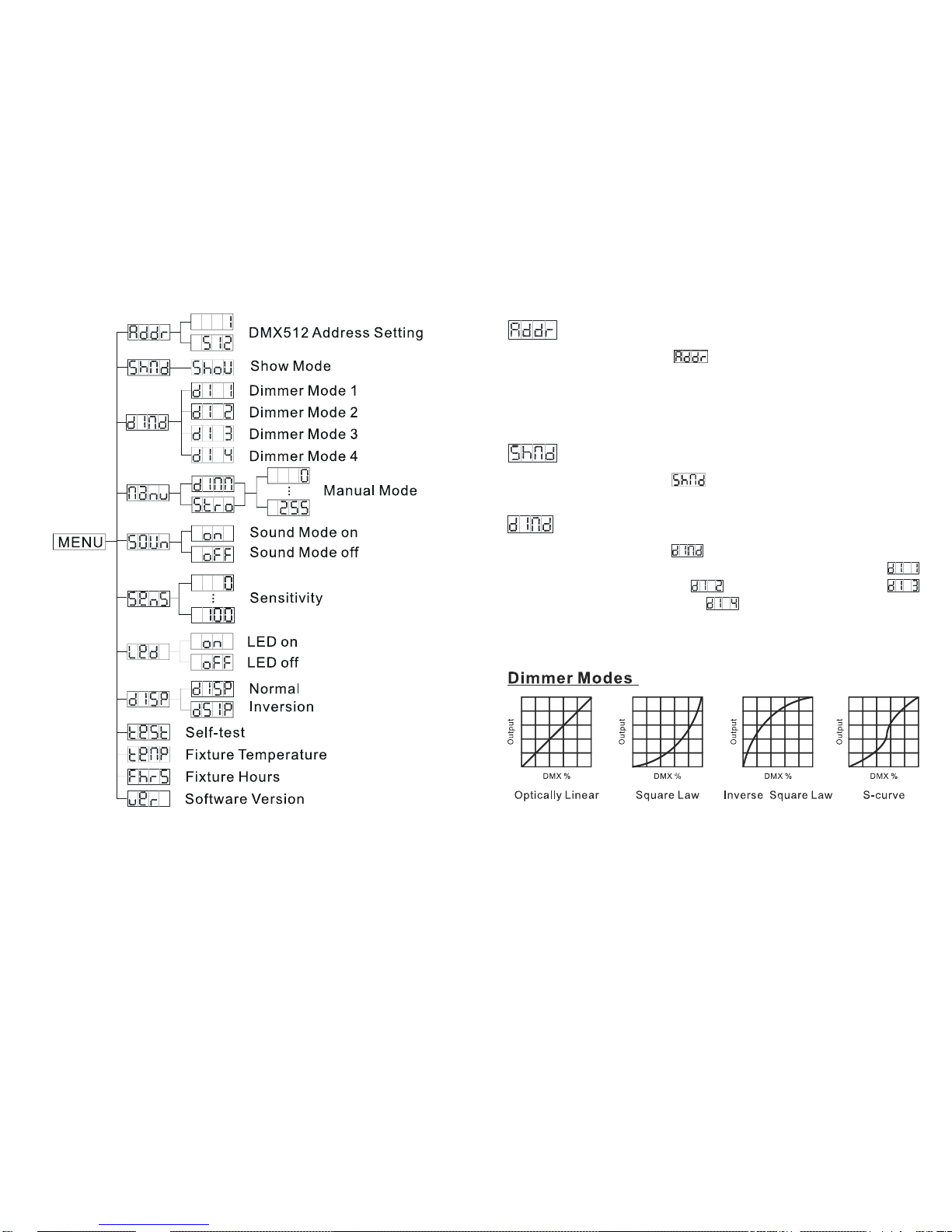

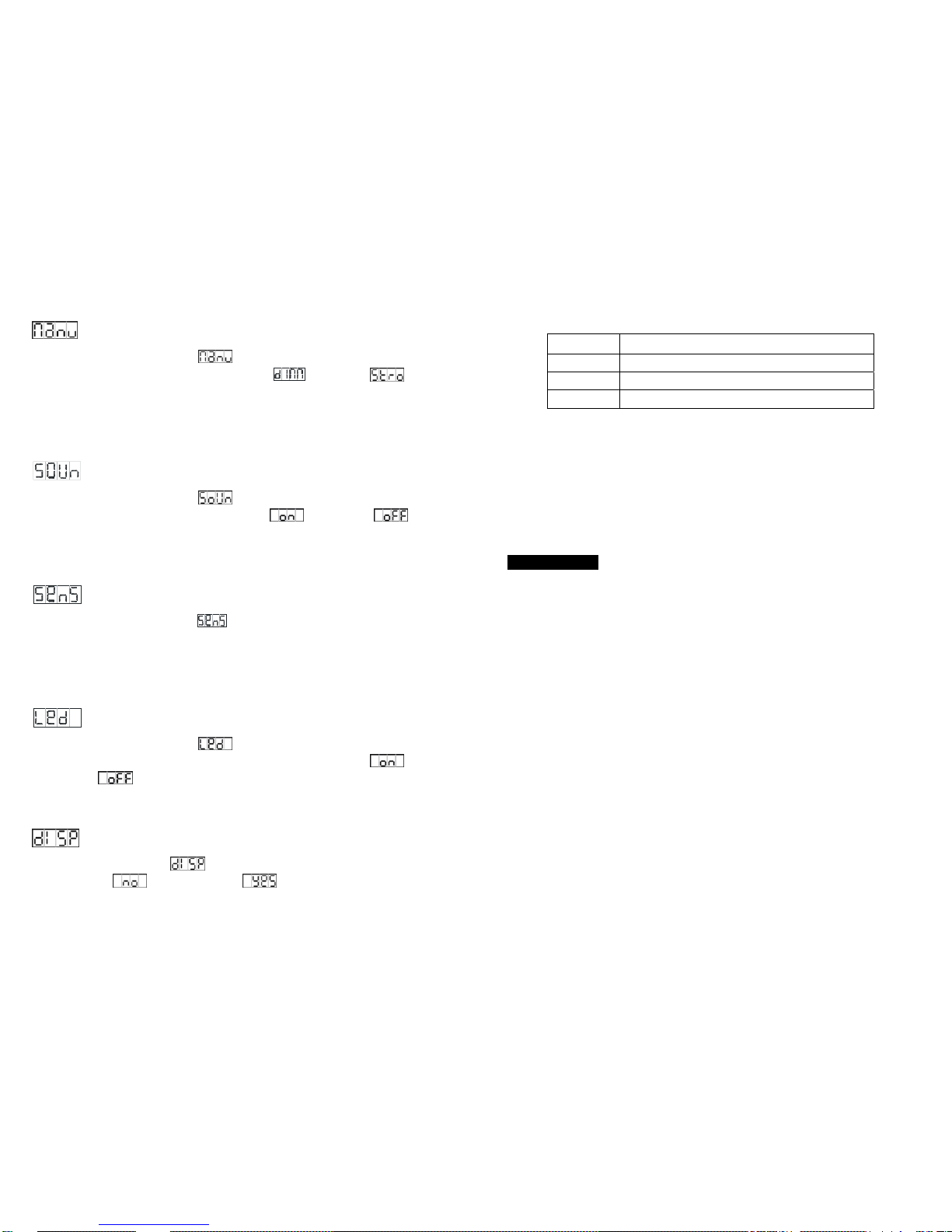

4. How To Control The Fixture

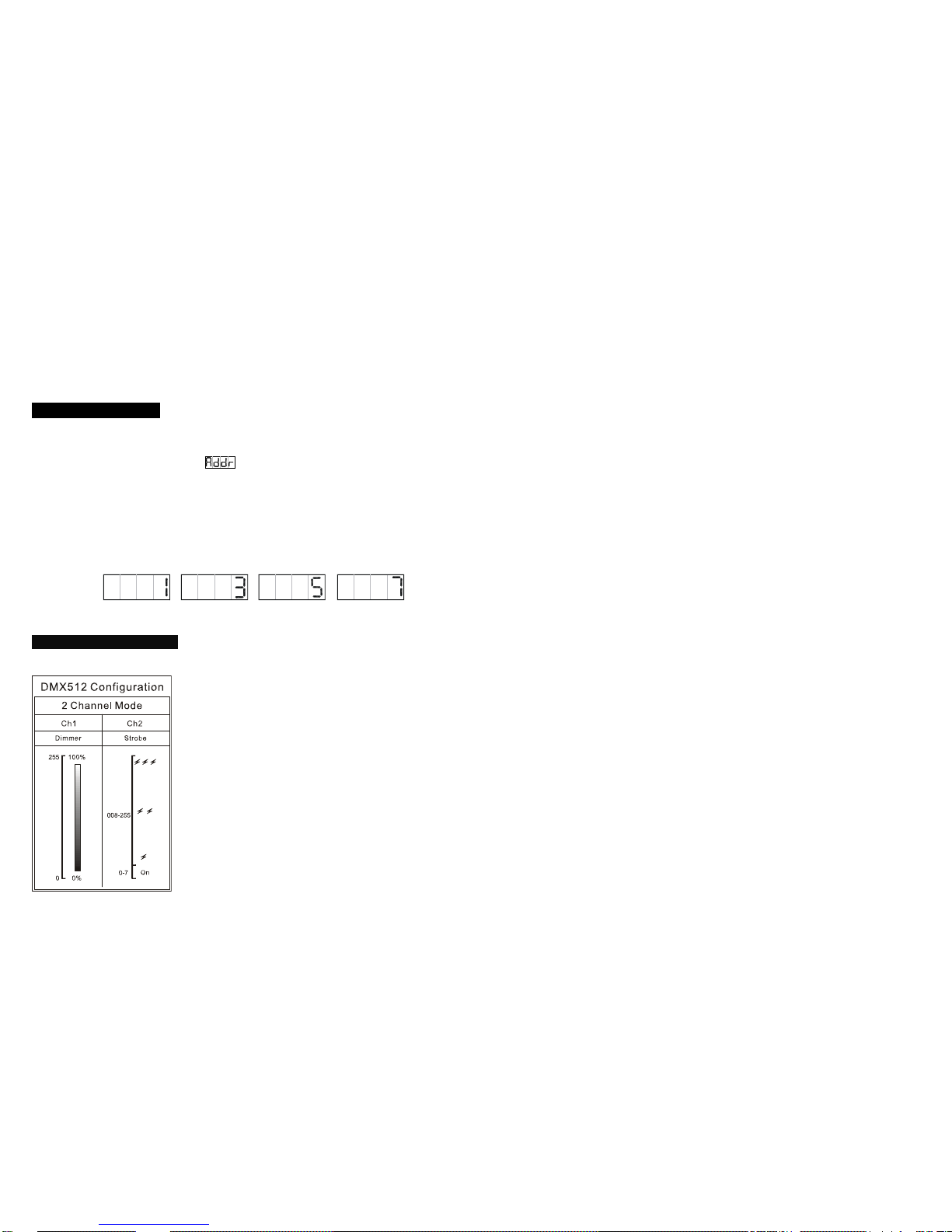

5. DMX 512 Configuration

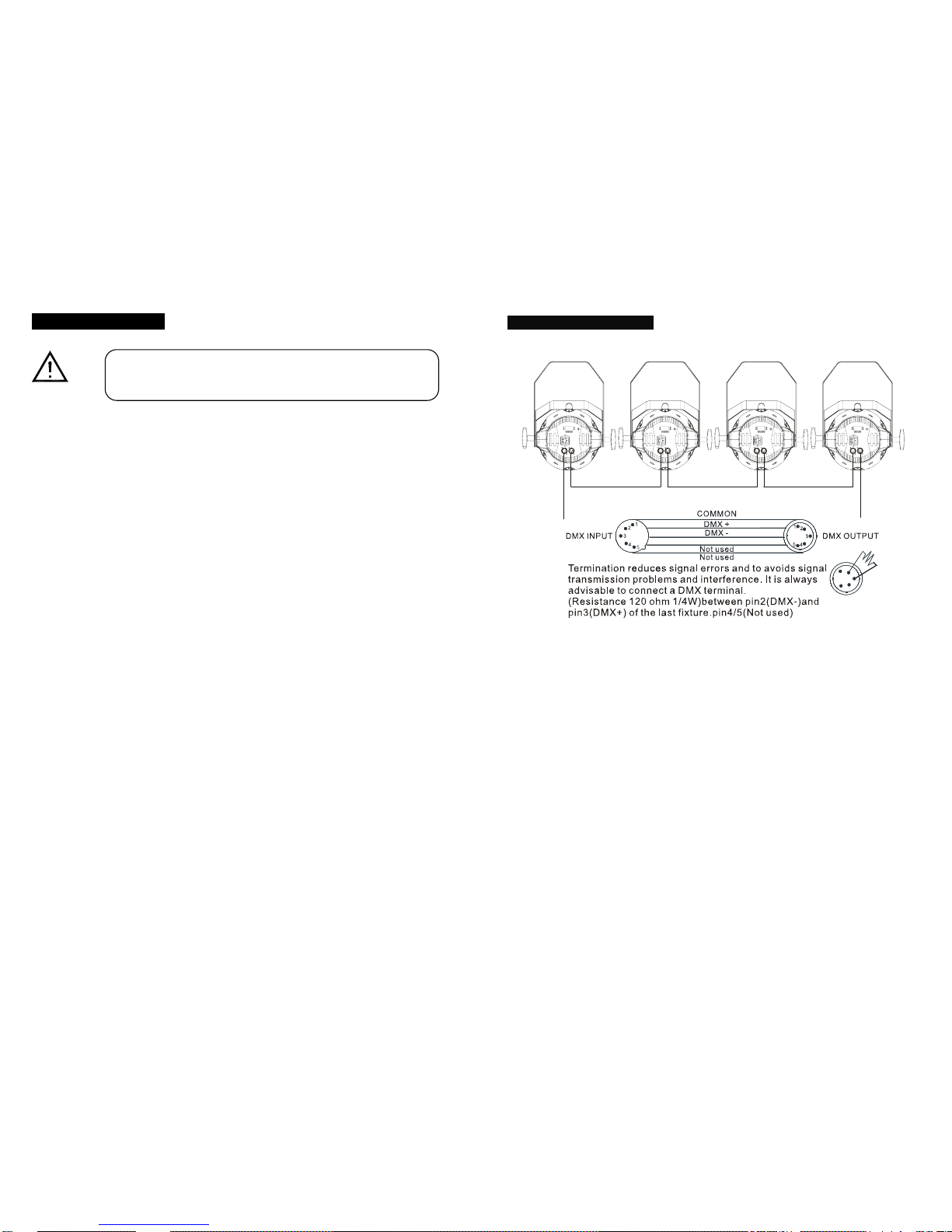

6. DMX 512 Connections

7. Troubleshooting

8. Fixture Cleaning
