TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning
18-
6. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
y Clean with soft cloth using normal glass cleaning fluid.
y Always dry the parts carefully.
y Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the
following specification and bears CE mark in accordance with the
provision of the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4 -3: 2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN60598-1: 2000+ALL: 2000+A12: 2002
Safety of household and similar electrical appliances
Part 1: General requirements
Page 3
17-
Not used.
5. Troubleshooting
Following are a few common problems that may occur during operation. Here are
some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have inte rmittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the D M X cables run near or run alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. Some units don’t respond to the easy controller
1. You ma y have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. W rong DMX address in the unit. Set the proper address.
D. No response to the sound
1. Make sure the unit does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone
E. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
2-
1. Safety Instruction
WARNING
y Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction booklet.
y Unpack and check carefully there is no transportation damage before using the unit.
y Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
y It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
y The unit is for indoor use only. Use only in a dry location.
y The unit must be installed i n a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
y Disconnect main power before replacement or servicing.
y Make sure there is no flammable materials close to the unit while operating as it is fire
hazard.
y Use safety cable when fixes this unit. Don’t han dle the unit by taking its head only, but
always by taking its base.
y Maximum ambient temperatu re is ta: 40℃. Don’t operate it where the temperature is
higher than this.
y Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand during
its operation. Turn off the power and allow about 15 minutes for the unit to cool down
before replacing or serving.
y In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
malfunction. Please contact the nearest authorized technical assistance center. Always
use the same type spare parts.
y Do not touch any wire during operation as high voltage might be causing electric shock.
Warning
y To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
y Do not open the unit within five minutes after switching off.
Please read carefully the instruction, which includes important information
about the installation, usage and maintenance.
Page 4
3-
y The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit
is firmly fixed to avoid vibration and slipping while operating. And make sure that th e
structure to which you are attaching the unit is secure and is able to support a weight of 10
times of the unit’s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out
of the touch of people and has no one pass by or under it.
2. Technical Specification
◇ Extremely small, fast and powerful LED moving beam.
◇ DMX Channels: 12
◇ Pan/Tilt: 630°/200°, speed adjustable
◇ Smooth electronic dimming: 0-100%
◇ Electronic strobe with pulse and random effects
◇ Optional easy controller CA-8 or CA-9 RTX for instant lighting shows at your fingertips
◇ High efficiency, low power consumption
◇ Super compact, low weight
Voltage: 100V~240V, 50/60Hz
Fuse: T 6.3A
Power consumption: 120W
Light source: 3W LED x 36 (R8, G10, B10,W8)
Dimension: 304 x 267 x 167 mm
Weight: 5.7kgs
16-

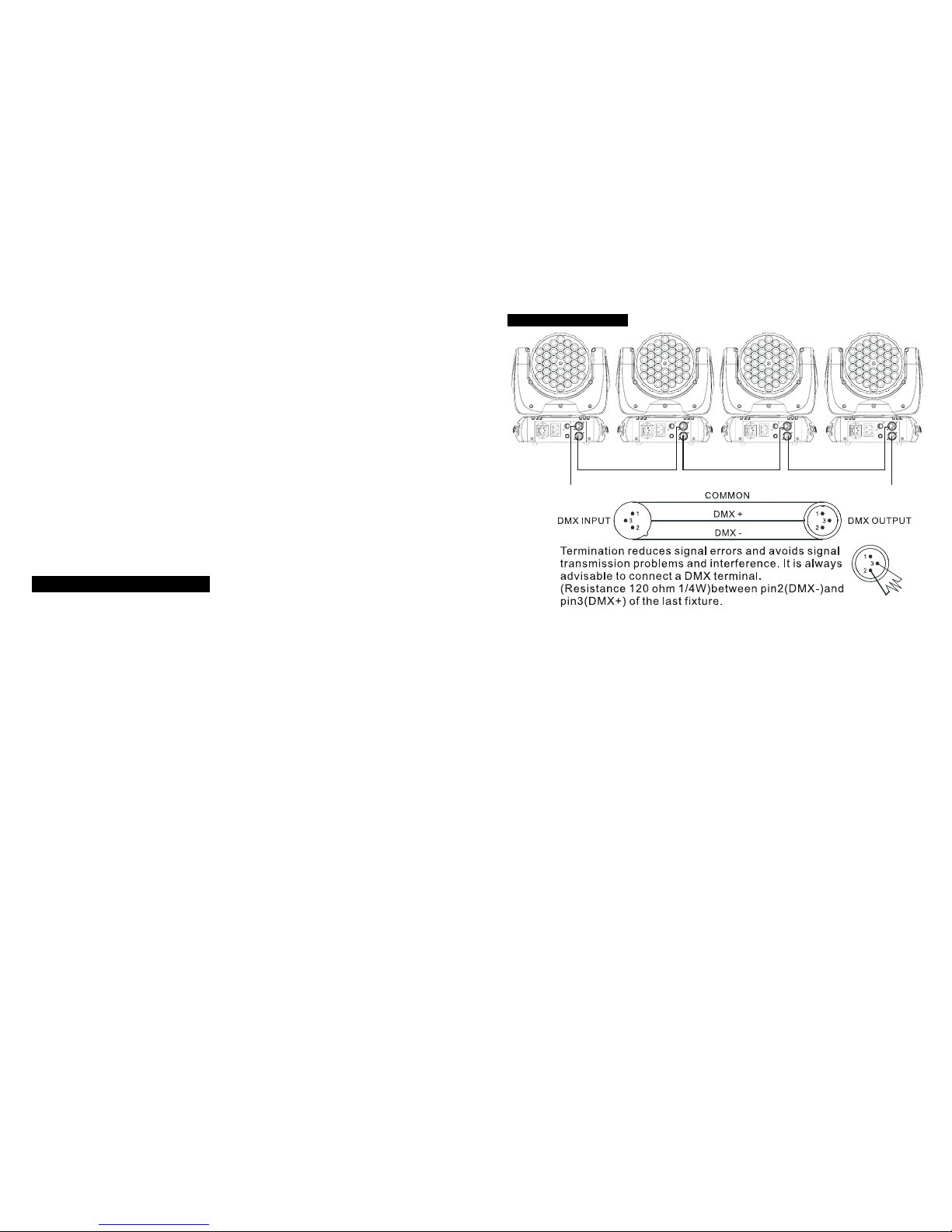

4.5 DMX512 Connection
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin
adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm
1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it
in the DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to
the input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is
a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded
connectors can easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit,
when one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the
controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5:
Page 5
15-
4-

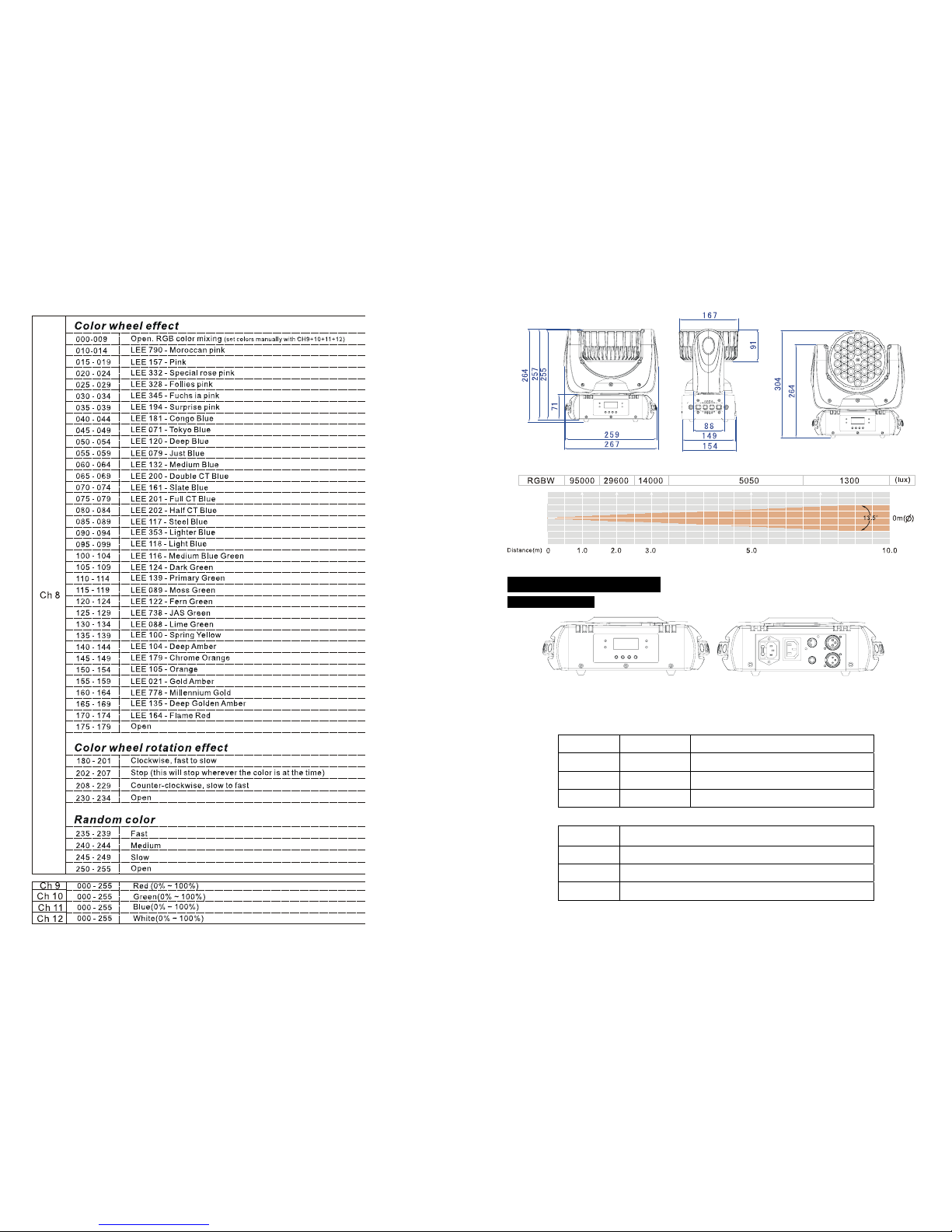

Photometric diagram:
3. How To Set The Unit
3.1 Control panel
Display
To show the various menus and the selected functions
LED
DMX On DMX input present
MASTER On Master Mode
SLAVE On Slave Mode
SOUND Flashing Sound activation
Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Page 6
5-
Only for remote control

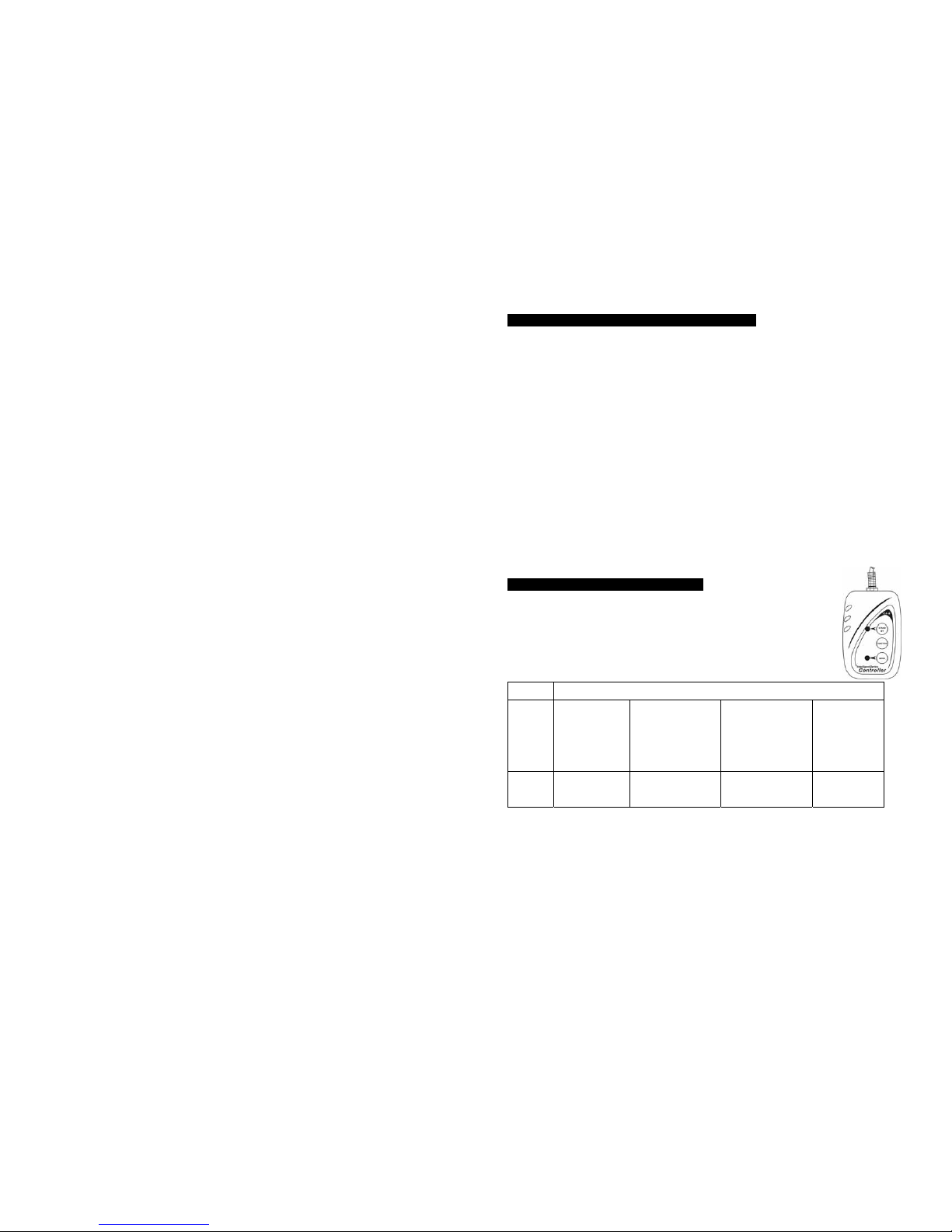

Connecting with CA-8/CA-9/CA-9RTX to control the unit for Stand by, Function and Mode
function.
Mains input
Connect to power supply.
Mains output
Connect to supply power to the next unit.
DMX input/output
For DMX512 link, use 3/5-pin XLR cable to link the unit together.

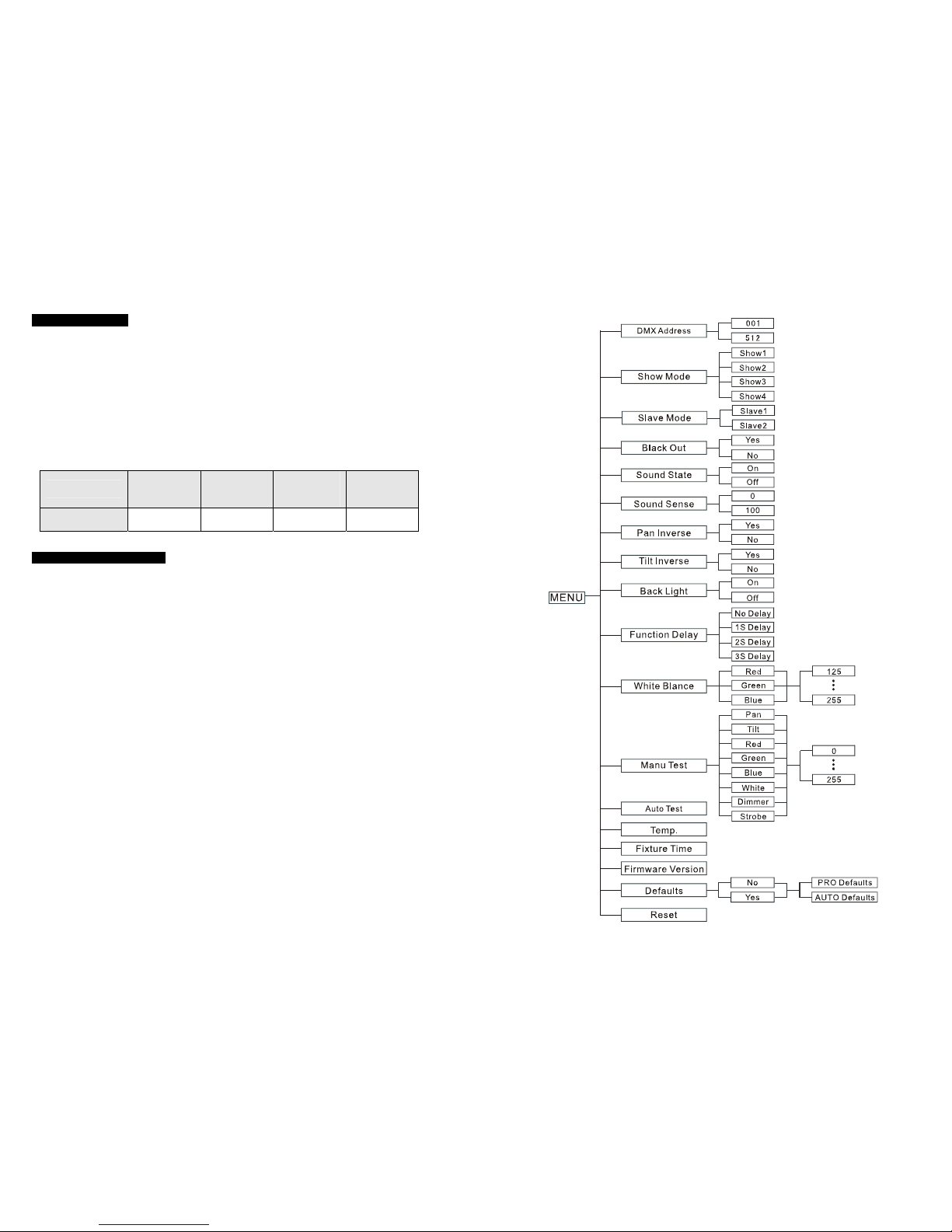

3.2 Main Function
To select any of the given functions, press the MENU button up to when the required one i s
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the
MENU button again.
Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
The main functions are showing below:
14-
Page 7
13-
4.3 DMX Controller
By using a universal DMX controller to control the units, you will need to set DMX address
from 1 to 512 so that the units can receive DMX signal.
Press the MENU button up to when the DMX Address is showing on the display. Pressing
ENTER button and the display will blink. Use DOWN and UP button to change the DMX512
address. Once the address has been selected, press the ENTER button to setup, to go back
to the functions without any change press the MENU button again.
Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units：
Channel mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
12channels 1 13 25 37
4.4 DMX 512 Configuration

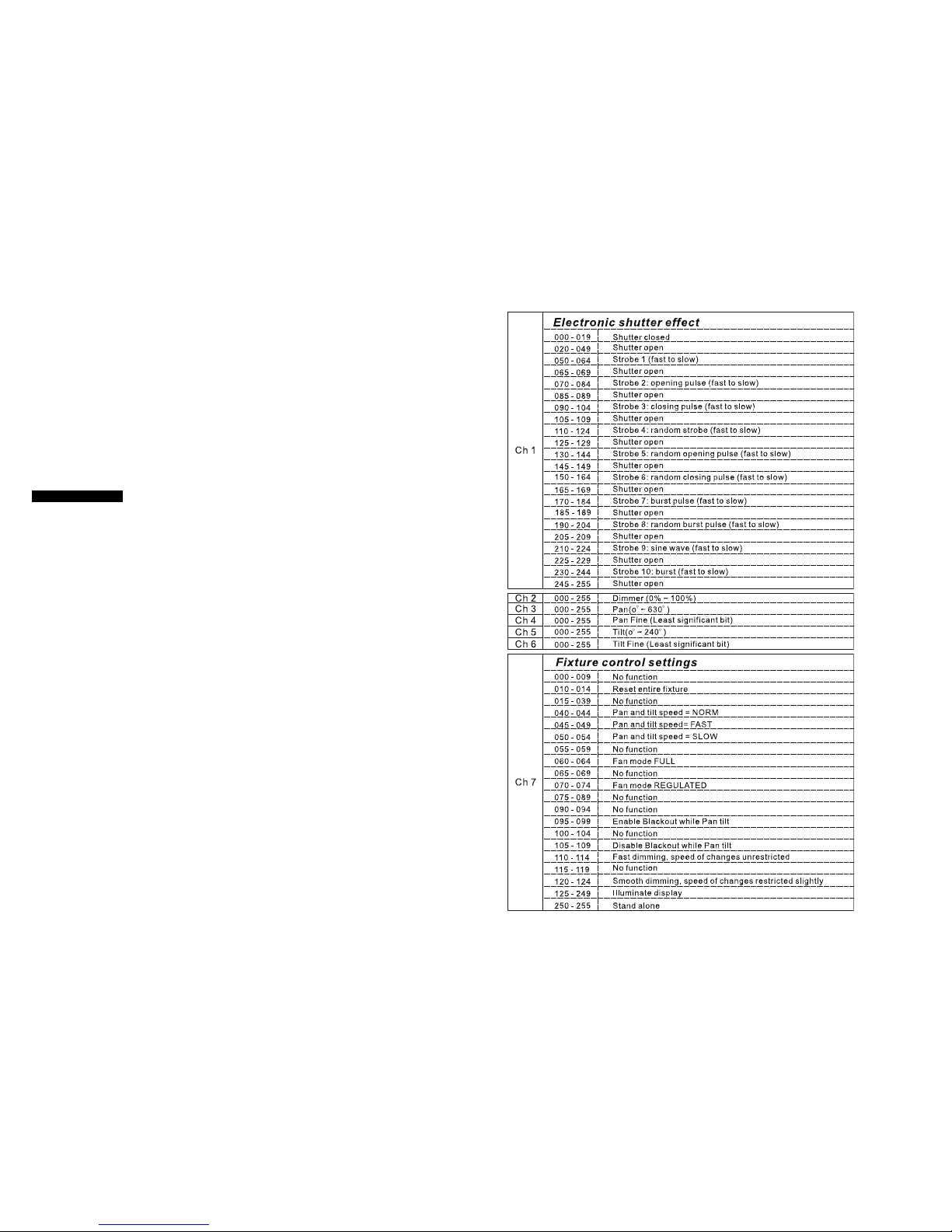

12 channel modes：
6-
Page 8
7-
DMX Address
Select DMX Address, press the ENTER button to confirm, the present address will blink on
the display. Use the UP and DOWN button to adjust the address from 1 to
512. Once the
address has been selected, press the ENTER button to setup, to go back to the functions
without any change press the MENU button again.
Hold and press the MENU button about
one second or wait for one minute to exit the menu mode.
Show Mode
Select Show Mode, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Show 1 or Show 2 or Show 3 or Show
4 mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again.
Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
Slave Mode
Select Slave Mode, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Slave 1 (normal) or Slave 2 (2 light
show) mode. Once the mode has been selected, press the ENTER button to setup, to go
back to the functions without any change press the MENU button again. Hold and press the
MENU button about one second or wait for one minute to exit the menu mode.
Black Out
Select Slave Mode, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Yes (yes blackout) or No (no blackout)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again.
Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
Sound State
Select Sound State, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the On (sound on) or Off (sound off) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any change press the MENU button again. Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
12-
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control the other units to
give an automatic, sound activated, synchronized light show. This function is good when you
want an instant show. You have to set the first unit in master mode Show Mode and select
show 1 or show 2 or show 3 or show 4 mode. Its DMX input jack will have nothing plugged
into it, and Its master LED will be constantly on and sound LED will flash to the music. The
other units will have to set in slave mode and select Slave 1 (normal) or Slave 2 (2 light
show) mode, Their DMX cables plugged into the DMX input jacks (daisy chain) and the
slave led lights will constantly on.
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2 means 2-light show. In
order to create a great light show, you can set Slave 2 on the second unit to get contrast
movement to each other, even if you have two units only.
4.2 Easy Controller (By CA-8/CA-9 RTX)
The easy remote control is used only in master/slave mode. By
connecting to the 1/4” microphone jack (For CA-8) or 5-pin socket (For
CA-9RTX) of the first unit, you will find that the remote controller on the
first unit will control all the other units in Stand by, and Mode selection.
Stand By Blackout the unit
Function 1. Sync. Strobe
2. Async strobe
3. Sound Strobe
Show
1-4
1. Pan index
2. Tilt index
3. Dimmer
Fade Speed
1. Fast
2. Middle
3. Slow
Mode Sound
(LED OFF)
Show
(LED Slow Blinking)
Show
(LED Fast Blinking)
LED ON
Page 9
11-
(Notice: Other settings are NOT changed while choosing Defaults Setting!)
Press the ENTER and the corresponding functions will set to defaults setting, to go back to
the functions without any change press the MENU button again. H old and press the MENU
button about one second or wait for one minute to exit the menu mode.
Reset
Press the MENU button up to when the Reset is blinking on the display. Pressing ENTER
button and all channels of the unit will return to their standard position.

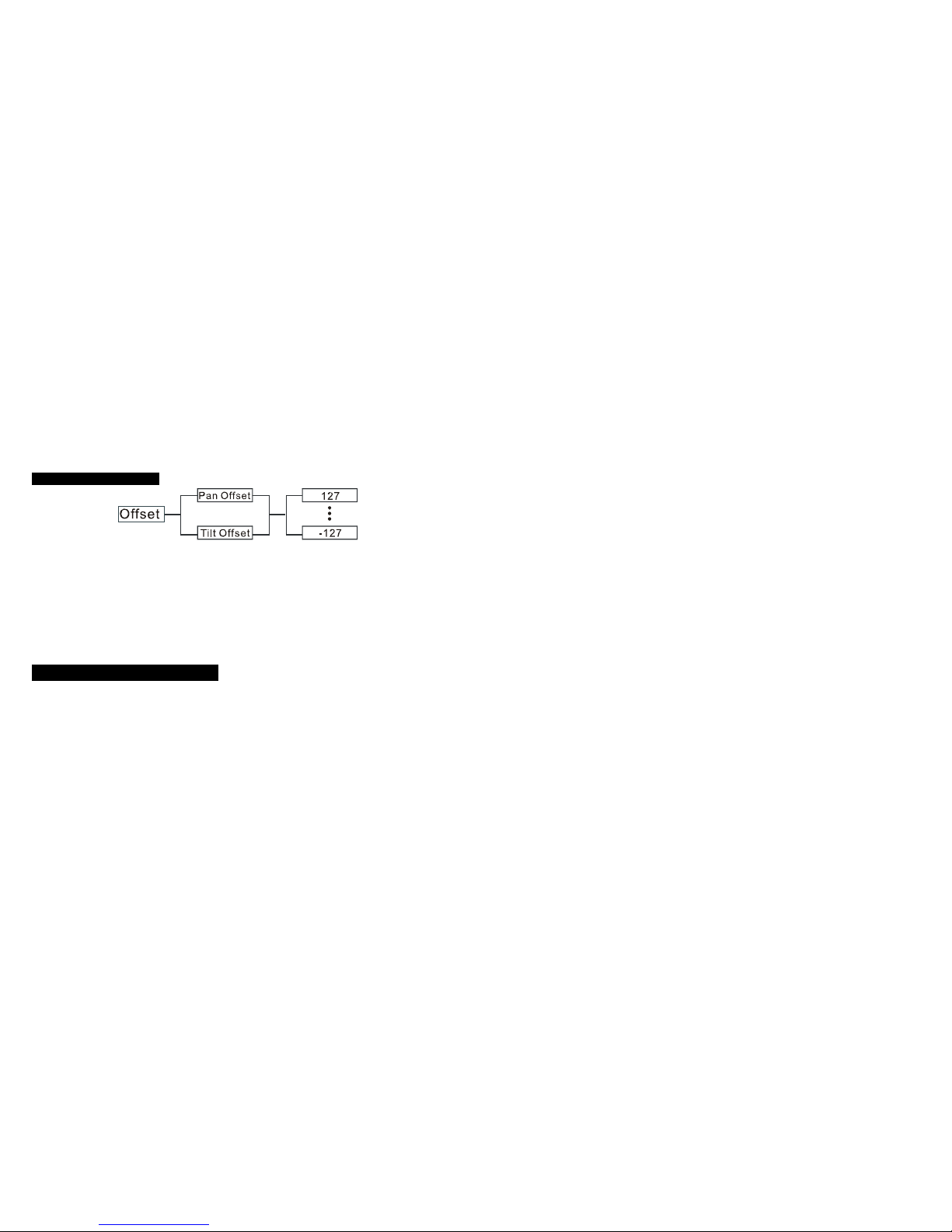

3.3 Home Position Adjust
In the main functions, hold Enter button for at least 3 seconds into offset mode, use DOWN
and UP button up to chose Pan Offset or Tilt Offset, pressing ENTER button and the
display will blink. Use DOWN and UP button to adjust the home position of the Pan, Tilt,
Once the position has been selected, press the ENTER button to setup, to go back to the
functions without any change press the MENU button again.
Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
4. How To Control The Unit
You can operate the unit in three ways:
1. Master/slave built-in preprogram function
2. Easy controller
3. Universal DMX controller
No need to turn the unit off when you change the DMX address, as new DMX address
setting will be effect at once. Every time you turn the unit on, it will show “CM-108” on the
display and move all the motors to their ‘home’ position and you may hear some noises for
about 20 seconds. After that the unit will be ready to receive DMX signal or run the built in
programs.
8-
Sound Sense
Select Sound Sense, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the 0 …100 mode. Once the mode has
been selected, press the ENTER button to setup, to go back to the functions without any
change press the MENU button again. Hold and press the MENU button about one second
or wait for one minute to exit the menu mode.
Pan Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Yes (pan inversion) or No (normal)
mode. Once the mode has been selected, press the ENTER button to setup, to go back to
the functions without any change press the MENU button again. Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
Tilt Inverse
Select Pan Inverse, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Yes (tilt inversion) or No(normal) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any change press the MENU button again.
Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
Back Light
Select Back Light, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the On (Led on) or Off (Led off) mode.
Once the mode has been selected, press the ENTER button to setup, to go back to the
functions without any change press the MENU button again.
Hold and press the MENU
button about one second or wait for one minute to exit the menu mode.
Function Delay
Select Function Delay, press ENTER button to confirm, present mode will blink on the
display. Use DOWN and UP button to select the No Delay or 1S/2S/3S Delay (Wait for 1/2/3
seconds before these Functions of 12CH are activated/deactivated) mode. Once the mode
has been selected, press the ENTER button to setup, to go back to the functions without any
Page 10
9-
change press the MENU button again. Hold and press the MENU button about one second
or wait for one minute to exit the menu mode.
White Balance
Select White Balance, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Red or Green or Blue. Once the mode
has been selected, press the ENTER button to setup, use the DOWN and UP button to
change the value (125~255). Once the mode has been selected, press the ENTER button to
setup, go back to the functions without any change press the MENU button again.
Hold and
press the MENU button about one second or wait for one minute to exit the menu mode.
Manu Test
Select Manu Test, press the ENTER button to confirm, present mode will blink on the
display. Use the DOWN and UP button to select the Pan/ Tilt/ Red/ Green/ Blue/ White/
Dimmer or Strobe. Once the mode has been selected, press the ENTER button to setup,
use the DOWN and UP button to change the value (0~255). Once the mode has been
selected, press the ENTER button to setup, go back to the functions without any change
press the MENU button again.
Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Auto-Test
Press the MENU button up to when the Auto-Test is blinking on the display. Pressing
ENTER button and the unit will run self-test by built-in program. To go back to the functions
press the MENU button again. Hold and press the MENU button about one second or wait
for one minute to exit the menu mode.
Temperature
Press the MENU button up to when the Temperature Test is blinking on the display.
Pressing ENTER button and the display will show the temperature of the unit. To go back to
the functions press the MENU button again.
Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Fixture Time
Press the MENU button up to when the Fixture Time is blinking on the display. Pressing
10-
ENTER button and the display will show the number of working hours of the unit. To go back
to the functions press the MENU button again.
Hold and press the MENU button about one
second or wait for one minute to exit the menu mode.
Firmware Version
Press the MENU button up to when the Firmware version is blinking on the display.
Pressing ENTER button and the display will show the version of software of the unit. To go
back to the functions press the MENU button again.
Hold and press the MENU button about
one second or wait for one minute to exit the menu mode.
Defaults Setting
Press the MENU button to show Defaults on the display. Press the ENTER button and the
display will blink. Use the DOWN and UP button to select the YES or No. Once the Yes has
been selected, press the ENTER button and use the UP and Down button to select the PRO
Defaults or AUTO Defaults.
PRO Defaults: For professional users, detailed explanation as followings:
) Slave Mode Æ Slave 1
)
Black Out Æ Yes
)
Sound State Æ Off
)
Pan Inverse Æ No
)
Tilt Inverse Æ No
)
Back Light Æ Off
)
Function Delay Æ 3S Delay
AUTO Defaults: Mostly automatic mode, for non professional users, detailed
explanation as followings:
)
Slave Mode Æ Slave 1
)
Black Out Æ No
)
Sound State Æ On
)
Pan Inverse Æ No
)
Tilt Inverse Æ No
)
Back Light Æ On
)
Function Delay Æ 3S Delay
Loading...
