Eclipse

LP2344 & TLP2344

User’s Manual

User’s Manual No. 980158-001 Rev. A

FOREWORD

This manual provides installation and operation information for the Eclipse LP2344 and TLP2344 printers, manufactured by Eltron International Incorporated, Simi Valley, California.

TECHNICAL SUPPORT

If for any reason you require product technical support, please contact the Distributor where you purchased your equipment. Iftheycannothelpyou,or at theirdirection, Eltron Technical Support can be reached at:

Eltron International Incorporated Eltron International, Europe

41 Moreland Road Unit 2, Rose Kiln Lane

Simi Valley, CA. 93065 Reading, Berkshire, RG2 OHP England

(800) 344-4003 +44 (0) 1734 752 024

FAX (805) 579-1808 FAX: +44 (0) 1734 752 005

e-mail: eltron@eltron.com

BBS: (805) 579-3445

RETURN MATERIALS AUTHORIZATION

Before returning any equipment toEltron forin warranty orout ofwarranty repair,contact Repair Administration for aReturn MaterialsAuthorization (RMA) number. Repack the equipment in the original packing material and mark the RMA number clearly on the outside. Ship the equipment, freight prepaid, to the address listed below:

Eltron Repair Administration

41 Moreland Road

Simi Valley, CA. 93065

(805) 579-1800

FAX (805) 579-1808

This document contains information proprietary to Eltron International Incorporated. This document and the information contained within is copyrighted by Eltron International Incorporated and may not be duplicated in full or in part by any person without written approval from Eltron. While every effort has been made to keep the information contained within current and accurate as of the date of publication, no guarantee is given or implied that the document is error-free or that it isaccurate with regard toany specification. Eltronreserves the right tomake changes, forthe purpose of product improvement, at any time.

TRADEMARKS

Eclipse, LP2344 and TLP2344are servicemarks andEltron isa trademarkof EltronInternational Incorporated. Windows & MS-DOS are registered trademarks of Microsoft Corp. All other marks are trademarks or registered trademarks of their respective holders.

980158-001 Rev.A

iii

WARRANTY INFORMATION

We Need To Hear From You!

To Establish Your Warranty Period And Provide Access To Technical Support,

Send Us Your Product Registration Card Today!

Eltron warrants themechanism, control electronics and powersupply, under normal useand service, to be free from defects in material and workmanship for a period of twelve (12) months from the date ofpurchase by the end user.Eltron warrants the printhead,under normal use and service, to be free fromdefects in materialand workmanshipfor aperiod ofninety (90)days from thedate of purchase by the end user. Proof of purchase or product registration is required. If proof of purchase or product registrationcannot beestablished, shipmentdate tothe originalbuyer (dealeror distributor) will be be used to establish the warranty period.

Failure to exercise cautionto protect theequipment fromelectrostatic dischargedamage, adverse temperature and humidity conditions or physical abuse may void the warranty. Eltron will, at it’s option, repair or replace the equipment or any parts which are determined to be defective within this warranty period, and which are returned to Eltron F.O.B. factory of origin.

The warranty set forth above is exclusive and no other warranty, whether written or oral, is expressed or implied. Eltron specifically disclaims the implied warranties of merchantability and fitness for a particular purpose.

FCC NOTICE:

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Operation of thisequipment in a residential area islikely to cause harmful interference in whichcase the user will be required to correct the interference at his own expense.

CSA NOTICE:

This equipment does not exceed Class A limits for radio noise emissions for digital apparatus set out in the Radio Interference Regulation of the Canadian Department of Communications. Operation in a residential area may cause unacceptable interference to radio and TV reception requiring the owner or operator to take whatever steps are necessary to correct the interference.

Cet equipment ne depasse pas les limites de Classe A d’emission de bruits radioelectriques pour les appareils numerriques tells que perscrites par le Reglement sur le brouillage redioelectrique etabli par le ministere des Communications du Canada. L’exploitation faite en milieu residentiel peut entrainer le brouillage des receptionsradio et tele,ce qui obligeraitle proprietaire oul’operateur a pendre les dispositions necessaires pour en eliminer les causes.

iv 980158-001 Rev.A

Table Of Contents

Getting Started

Introduction ..........................1

Unpacking Your Printer ....................#

Check List ...........................5

Installation ...........................7

Operation

Controls & Indicators .....................11

Loading Labels or Tags ....................14

Transfer Ribbon Loading ...................23

Label Variations and the Label Sensor.............26

AutoSense Gap Sensor Adjustment ..............27

Cleaning The Print Head ...................28

Appendix A - Trouble Shooting ...............33

Appendix B - Supplies and Accessories ...........42

Appendix C - Windows Printer Driver ............45

980158-001 Rev.A v

vi 980158-001 Rev.A

Getting Started

This section provides information on the installation of the printer and software.

Introduction The Eltron Eclipse LP2344 (direct thermal)

and Eclipse TLP2344 (thermal transfer) printers are rugged 4" wide low priced industrial printers. The Eclipse printers designed for industrial environments, such as, receiving docks, assembly lines, production inspection points. The Eclipse printers produce high quality on-demand printing of labels and tags, with or without bar codes, from any DOS™, Windows™or ASCII based compatible computer.

980158-001 Rev.A 1

Getting Started

Features

• 4 inches per second (ips) print speed helps

increase productivity & efficiency

• Large 8 inch media roll capacity for produc-

tion printing reduces the need for frequent label loading.

• Flash Memory makes firmware updates

seamless.

• Supports over 20 types of bar code symbo-

logies.

• High resolution print head for sharp graph-

ics and text.

980158-001 Rev.A

Getting Started

Unpacking Your

Eclipse Printer

CAUTION

The printer is shipped in a carton and protective bag. Keep all packing material in case you need to move or re-ship the printer. Avoid touching the electrical connectors to prevent electrostatic discharge damage while setting up the printer.

The discharge of electrostatic energy that accumulates on the surface of the human body or other surfaces can damage or destroy the print head or electronic components used in this device.

Damage to the printer interface connector may result from placing the printer on it’s backside during unpacking or handling.

980158-001 Rev.A 3

Getting Started

Swing open the printer’s front door. The door has a magnetic latch for easy access.

Remove the tape retaining the Front Door Insert Cover while holding the Front Door.

Remove Tape

980158-001 Rev.A

Getting Started

Check List Your Eclipse printer kit contains the items listed

below.

• An Eclipse LP2344 or TLP2344 printer.

• Create-A-Label Tools software disk with on-

line documentation.

CREATE-A-LABEL

Tools

• Printer User’s Guide & EPL2 Programming

Manual.

Eclipse

User' Manual

EPL2

Manual

Programmer's

980158-001 Rev.A 5

Getting Started

• Ribbon Rewind Core (TLP2344 only).

Rewind Core

(50mm)

(100mm)

• AC Power Cord

If any items are missing, contact your dealer for replacement parts.

Label and tag supplies can be purchased directly from ELTRON. Refer to Appendix B for complete supplies ordering information.

980158-001 Rev.A

Getting Started

Installation The following sections will guide you through

the installation of the printer and Create-ALabel Tools software.

Step ➊

Attach Power

Figure 1-2

Locating the

Power Switch

Figure 1-1

Power

Switch

Positions

Place the printer in a suitable location that allows easy access to all sides of the printer. The printer should never be operated while resting on it’s side or upside down.

Power Switch

980158-001 Rev.A 7

ONOFF

Check that the printer’s AC power receptacle switch is in the OFF (0) position.

The printer should never be operated in a location where the operator and printer can get wet. Personal injury could result.

Getting Started

Electrical Outlet

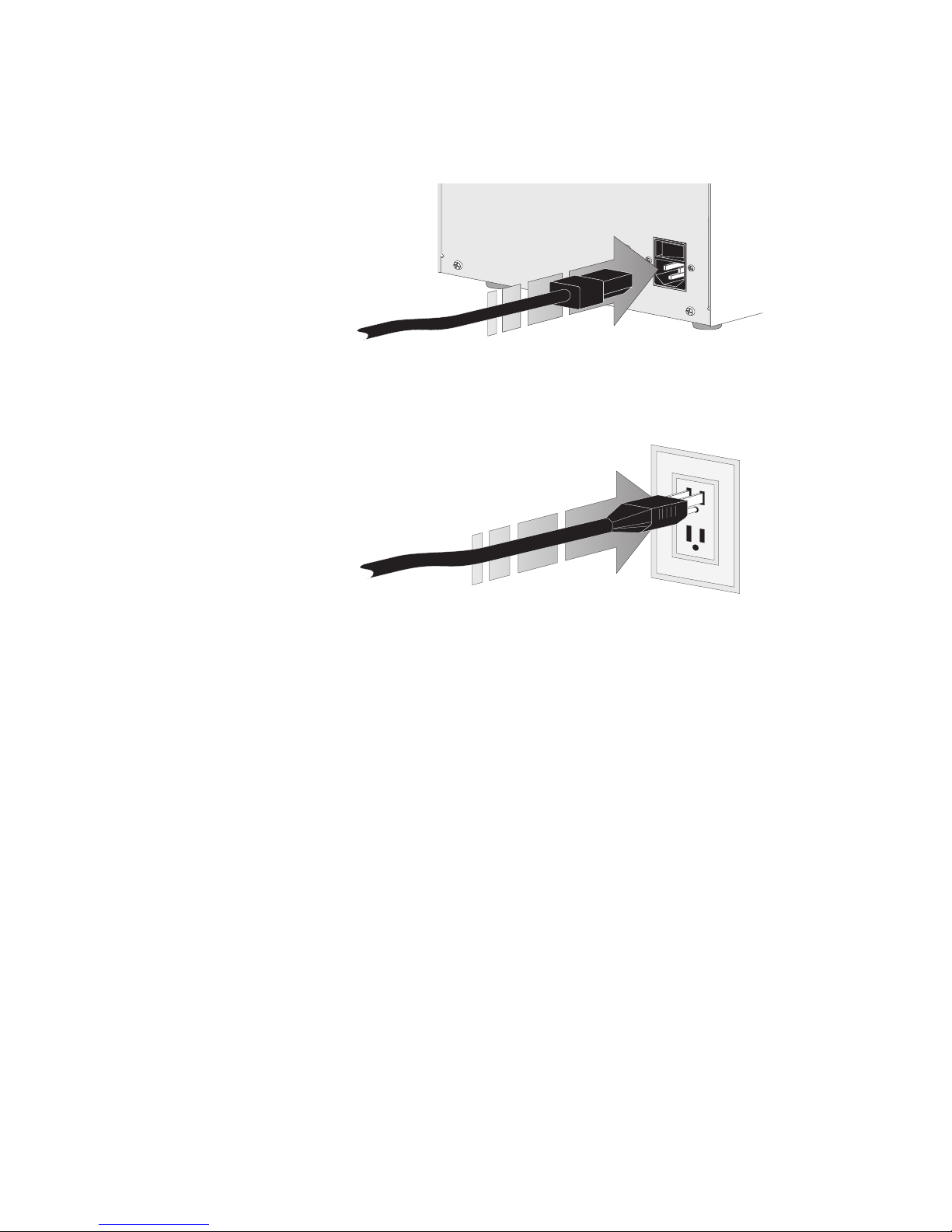

Attach the AC power cord to the AC power receptacle in the rear of the printer.

Figure 1-3

Printer:

Insert

AC Power

Cord

Attach the AC power cord to a grounded (three prong) electrical outlet of the proper voltage.

Figure 1-4

Insert

AC Power

Cord

Verify the required voltage on the printer’s model number label on the backside.

980158-001 Rev.A

Getting Started

Step ➋

Attach Interface

Cable

Figure 1-5

Parallel

Connector

Parallel Interface

Attach a suitable parallel printer cable from the computer to the Centronics interface connector at the back of the printer. Snap the bale lock to the Centronic’s connector to secure the interface cable to the printer.

Figure 1-6

Serial

Connector

Serial Interface

Attach a suitable serial printer cable from the computer to the DB-9 RS-232 Serial interface connector at the back of the printer. For additional information on serial cable wiring, refer to Appendix A - Trouble Shooting.

980158-001 Rev.A 9

Getting Started

Step 3

Applying Power

Step 4

Install

Software

When the power switch is moved to the ON (1) position, the POWER and ERROR Indicators should alternately flash indicating that the printer is out of paper. If the indicators fail to flash and label stock is not loaded, then refer to Appendix A - Trouble Shooting.

Start your computer. After DOS has loaded, insert the Create-A-Label Tools diskette into your floppy disk drive. From the DOS prompt, enter B:INSTALL (or A:INSTALLif you placed the diskette in drive A). Press the Enter key.

Follow the installation instructions on the screen to install the software.

Refer to Section 2 - Operation, for information on loading labels and using your printer.

980158-001 Rev.A

Operation

This section provides information on the operation of the printer.

Controls &

Indicators

All the printer controls and indicators, except for the power switch are on the front panel. There are two (2) indicator lights and three (3) control buttons on the front panel.

Indicator

Lights

Control

Buttons

980158-001 Rev.A 11

Operation

The POWER

SWITCH

The printer’s POWER SWITCH is located on back panel of the printer. Placing this switch in the ON (1) position will apply power to the printer. Place this switch in the OFF (0) position to remove power when you have finished using your printer. See Figure 1-1 in Section 1.

The POWER

Indicator

The POWER indicator light is green when power is on. The POWER indicator light will flash on and off when the PAUSE is enabled.

POWER & PAUSE

Indicator Light

The PAUSE

Button

PAUSE Button

FEED Button

The printing process can be halted by pressing the PAUSE button once. Press the PAUSE button (again) to resume the print process.

980158-001 Rev.A

Operation

The FEED

Button

The CANCEL

Button

ERROR

Indicator Light

The printer is equipped with a label FEED button. The printer will feed a single label each time the FEED button is depressed. This is referred to as aForm Feed. If the FEED button is pressed and held, the printer will feed a single label, stop, feed a single label, stop, and so on until the FEED button is released.

The CANCEL button resets and terminates any print operation in progress.

CANCEL Button

The ERROR

Indicator

POWER & ERROR

Indicators

980158-001 Rev.A 13

The ERROR indicator light is orange when the printer detects a hardware error. See Appendix A for trouble shooting tips.

POWER ERROR Condition Report

On Solid OFF Power On

Flashing OFF Pause Flashing Flashing Ribbon or Labels Out

OFF On Solid Hardware Error

Operation

Loading Labels

or Tags

CAUTION

Your printer can print on continuous direct thermal paper, direct thermal adhesive backed labels or non-adhesive tags. Loading either labels or tags are easy, (the feed direction of tags is different).

Refer to Appendix B for a list of supplies available from ELTRON.

DO NOT TOUCH the printhead or the electronic components under the printhead assembly.

The discharge of electrostatic energy that accumulates on the surface of the human body or other surfaces can damage or destroy the printhead or electronic components used in this device.

CAUTION

Adhesive backed labels that DO NOT lay flat on the backing liner may jam the printer. This can cause the label to peel off the liner. The exposed edges may stick to the label guides and rollers inside the printer. Always use high quality, Eltron approved labels. Supplies can be ordered from ELTRON by calling 1(800)

344-4003.

If you should run out of labels while printing, DO NOT turn the power switch OFF (0) while reloading or data loss may result. The printer will automatically resume printing when a new label roll is loaded.

980158-001 Rev.A

Operation

Label Loading

Step ❶

Figure 2-1

Opening the

Label Roll

Retainer Arm

Open the top (and right side) cover on the printer. Slide the Roll Retainer Guide down to the end of the Label Roll Support.

Roll Retainer Guide

Label Roll

Support

980158-001 Rev.A 15

Operation

Label Loading

Step ➋

Figure 2-2

Opening the

Printhead

Push Lever

Open the Printhead Assembly by pushing the release lever to the right, towards the back of the printer. The printhead assembly will pop open. Releasing the lever allows it to snap back.

(50mm)

(100mm)

Release Lever

(100mm)

(50mm)

980158-001 Rev.A

Operation

Label Loading

Step ➌

Figure 2-3

Label Width

Adjustment Guide

Slide the Label Width Adjustment Tab to the outside stop and rotate up.

(50mm)

(100mm)

Slide

TAB

980158-001 Rev.A 17

Operation

Label Loading

Step ➍

Figure 2-4

Loading the

Label Roll

Slide a roll of labels onto the Label Roll Guide and onto Label Roll Support. Labels feed from the top and towards the front of the printer. Push the roll to the back of the support and slide the Label Roll Guide against the label roll to hold it in place.

Label Roll

Support & Guide

(50mm)

Label Stock

(100mm)

Label Roll

980158-001 Rev.A

Operation

Label Loading

Step ➎

Figure 2-5

Load The Labels

Label Stock

Platen

Thread the label stock through the Label Sensor Assembly and then between the Platen (drive roller) and the Printhead.

Printhead

(50mm)

(100mm)

Label Sensor

Assembly

(50mm)

(100mm)

For easy label stock threading, slide half of label into the side of the Label Sensor Assembly and guide it through the label path.

Bypass Transfer Ribbon Loading Steps for Direct Thermal Printing operations.

980158-001 Rev.A 19

Operation

Label Loading

Step ❻

Figure 2-6

Adjusting the

Guide Arm

Rotate the Label Width Adjustment Tab down and slide it over until it is flush with the label stock. Check the location of the Through Sensor, refer to Appendix A for adjustment information.

0mm)

)

Tab

980158-001 Rev.A

Operation

Label Loading

Step ❼

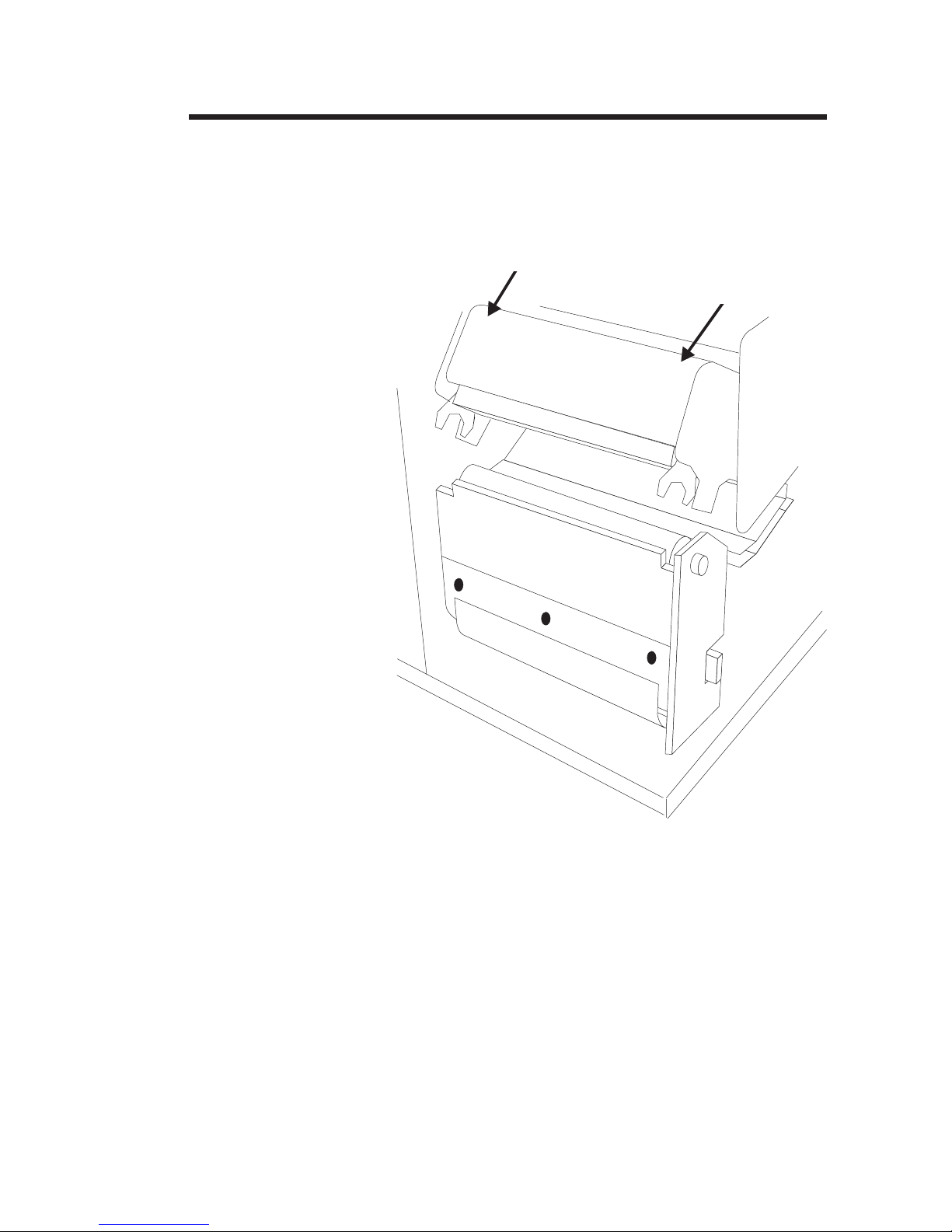

Figure 2-7

Closing the

Printhead

Close the printhead by pressing down on both sides of the front of the printhead assembly.

Press

Here

Press

Here

980158-001 Rev.A 21

Operation

Label Loading

Step ❽

Figure 2-8

Pressure

Control Knob

Adjust the label pressure control knob to match the label stock in use.

Knob

(50mm)

(100mm)

Label Width

Pressure Control

Knob Settings

2" or Less 2"

Greater Than 2" 4"

Step ❾ Press the Feed button once to verify that the la-

bels advance. Close the printer’s front door and top (and side) cover.

The printer is configured for direct thermal printing with the “O” command for the TLP2344 printer. See the EPL2 programmer's manual for details.

The printer is now ready for standard Direct Thermal Printing.

980158-001 Rev.A

Operation

Transfer Ribbon

Step ❶

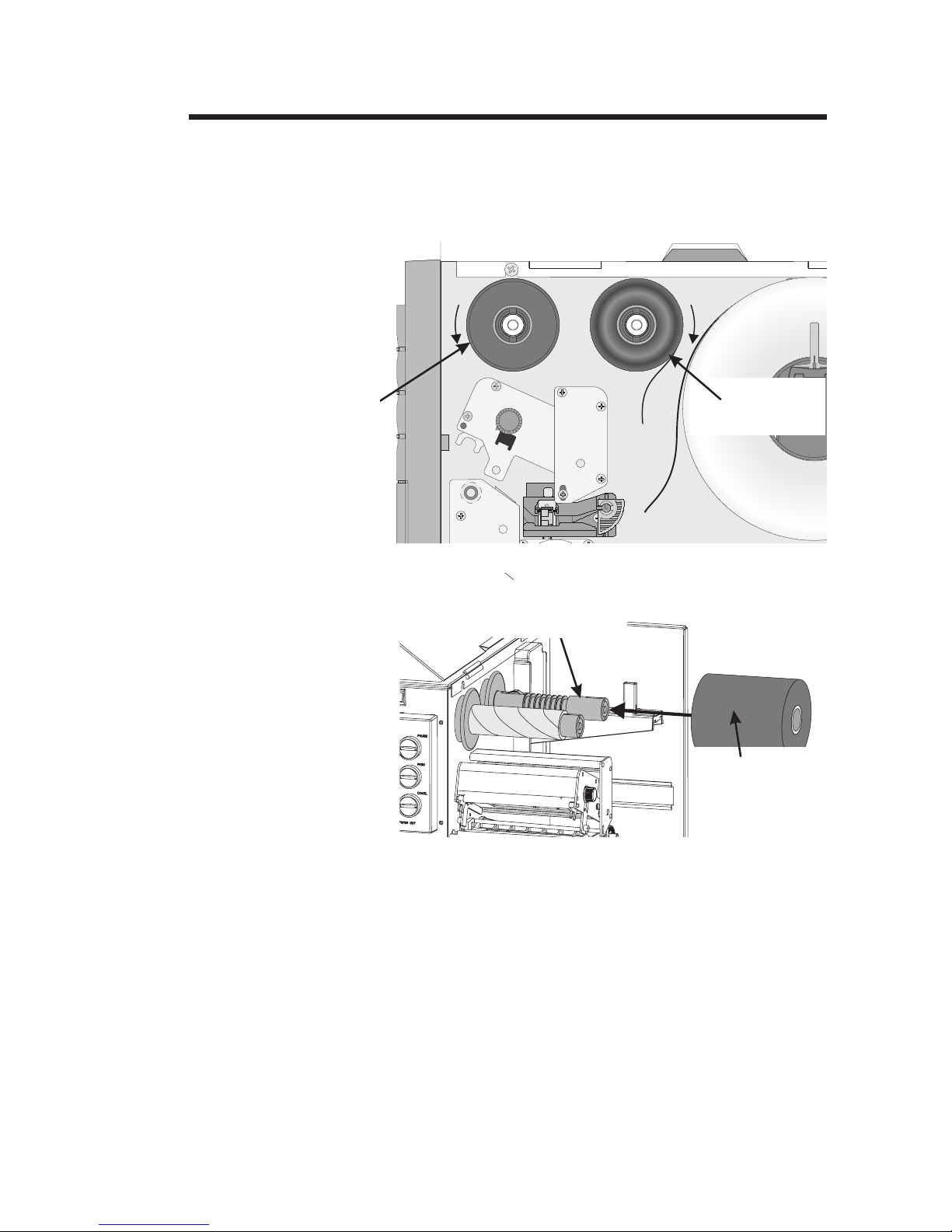

Figure 2-9

Installing

Transfer Ribbon

Ribbon Take-up

Tube

Slide the appropriate thermal transfer ribbon roll onto the Ribbon Supply Tube.

(100mm)

(50mm)

Ribbon

Supply Tube

Ribbon

Supply Tube

Transfer

Ribbon

980158-001 Rev.A 23

Operation

Transfer Ribbon

Step ❷

Figure 2-10

Ribbon

Loading Path

Transfer

Ribbon

Open the printhead assembly. See Figure 2-2.

Thread the transfer ribbon between the Label Sensor Assembly and the Printhead Bracket. Continue threading the ribbon between the Platen (above the labels) and the Printhead.

(50mm)

(100mm)

Printhead

Label

Sensor

Assembly

For easy ribbon threading, slide half of ribbon between the side ofthe Label Sensor Assembly and Printhead Bracket. Guide it from the side of printer through the ribbon path. See Figure 2-5 for a similar process used to load label stock.

980158-001 Rev.A

Operation

Transfer Ribbon

Step ❸

Figure 2-11

Attaching Ribbon

to Rewind Core

Wrap the transfer ribbon from the front of the printhead assembly to the backside of the ribbon take-up tube. Attach the ribbon to the rewind core (fiberboard tube) on the ribbon takeup tube with tape.

Tape

Rewind

Core

980158-001 Rev.A 25

Close the Printhead Assembly, see Figure 2-7. Close the printer’s front door and top.

The printer is configured for thermal transfer printing with the “O” command for the TLP2344 printer. See the EPL2 programmer's manual for details.

The printer is now ready for standard Thermal Transfer Printing.

Operation

Label Variations

and the

Label Sensor

Your printer is equipped with a sensor capable of detecting the gap between labels while they are being printed. This feature depends on the ability of the sensor to “see through” the label liner between labels.

Due to manufacturing differences in label stock, the sensor may have difficulty distinguishing the difference between the labels and the liner. When this occurs, the printer ERROR Indicator (AMBER/ORANGE) will switch on. The printer may stop a label in the middle. If this condition occurs, the AutoSense feature should be activated to adjust the sensitivity of the sensor. Also check to insure the that the command line/programs defined label length matches the label in use.

Windows Users!

Use the Windows Control Panel for Printers to select the label size that matches the labels loaded in the printer. See Appendix C.

980158-001 Rev.A

Operation

AutoSense Gap Sensor Adjustment

Load labels into the printer. Do not use the auto-dispense/peeler mode for this procedure. Press and hold the PAUSE and CANCEL control buttons with the power on. Release the CANCEL button first and then release the PAUSE button.

The printer will start feeding labels automatically. The printer will automatically adjust the gap sensor and measure the label length.

After the sensor has been adjusted, the printer will enter DUMP mode and print the standard information label.

Press the FEED button once to switch the printer back to normal operation. If the Error indicator light (continues) to glow AMBER/ORANGE, refer to Appendix A for troubleshooting information.

980158-001 Rev.A 27

Operation

Cleaning The

Print Head

Step ➊ Open the printhead assembly and remove any

Figure 2-12

Locating the

Printhead

As you use your printer, the printhead may become dirty resulting in poor print quality. Whenever new labels are loaded into the printer, the print head should be cleaned with a Cleaning Pen.

Cleaning Pens (P/N 800105-001) are available directly from ELTRON. Supplies can be ordered from ELTRON by calling 1(800) 344-

4003.

labels loaded in the printer, see Figure 2-2. Hand rewind the labels back onto the roll.

Printhead

Step ➋ Gently rub the Cleaning Pen across the amber

area of the printhead.

Figure 2-13

Printhead

Cleaning

Allow the print head to dry for 1 minute before reloading the labels.

980158-001 Rev.A

Appendix A

Trouble Shooting

This section addresses the most common issues user’s may face with operation and configuration of the printer.

The first trouble shooting reference source is the Common Problems Trouble Shooting table on the following page.

Eltron International also provides a variety of information and user support services:

• Internet:

Web Address: http://www.eltron.com e-mail: techsup@eltron.com

ftp: //ftp.eltron.com

• BBS: (805) 579-3445

The BBS supports data rates up to 28.8 BPS with No Parity, 8 data bits, and 1 stop bit (n,8,1). Communications software should have an ANSI Terminal Mode (not MS Windows Terminal) such as Q-Modem.

• CompuServe e-mail: 102251,1164

• Customer Service: (800) 344-4003

To order printer supplies and accessories. Eltron accepts Mastercard and Visa for phone orders.

• Technical Support: (800) 344-4003

For your assistance and support with Eltron printers and software.

980158-001 Rev.A 29

Common Printing Problems Trouble Shooting Guide

Problem Solution or Reason

POWER indicator does not light GREEN when power switch is turned to the ON (1) position.

With the POWER indicator light GREEN, the printer appears to be working, but nothing is printed.

Printing is faded or poor quality.

1. Check power connections from the printer to the outlet.

1. Verify that the labels are the correct type.

2. Check that the roll is loaded with the direct thermal side facing up.

3. Check that the transfer ribbon is correctly routed and has the ink side out.

1. Clean the print head with cleaning pen.

2. Adjust print speed/darkness in software or with programming.

3. TLP2344 - Verify that the “O”command parameters match the printing mode; direct or thermal transfer printing.

Printing stops and the ERROR indicator lights AMBER/ORANGE.

1. Possible problem with label gap sensor. Perform AutoSense adjustment.

2. Possible problem with label stock. Gap between the bottom of a label and the top of the next label should be at least 1/16". For tags, see Figure A-2. Use onlyEltron approved labels and tags.

3. Possible label jam.

4. Check that the transfer ribbon and label stock are routed correctly.

5. TLP2344 - Ensure that the printer mode matches the method of printing; direct or thermal transfer printing.

6. Possible software problem. Check the printer memory configuration. Refer to the EPL2 Programming manual for the correct data syntax.

30 980158-001 Rev.A

Problem Solution or Reason

Printer cuts (melts) through the transfer ribbon. The ribbon is advancing at the same rate as the label stock.

GREEN and AMBER are

alternately flashing.

1. Verify that the printing heat is set to it’s recommended level. See Printer Media Temperature Settings, Appendix A.

1. Check for Out-of-Media condition or missing labels in the middle of a roll.

2. Check that the ribbon and label stock are correctly routed.

3. Ensure that print mode program settings match the print mode.

980158-001 Rev.A 31

Serial Interface

Communication

Configuration

The printer’s serial port is configured with the “Y” command for the printer. See the EPL2 programmer's manual for details.

The printer’s serial port default configuration is: 9600 baud

8 bit data 1 stop bit No parity

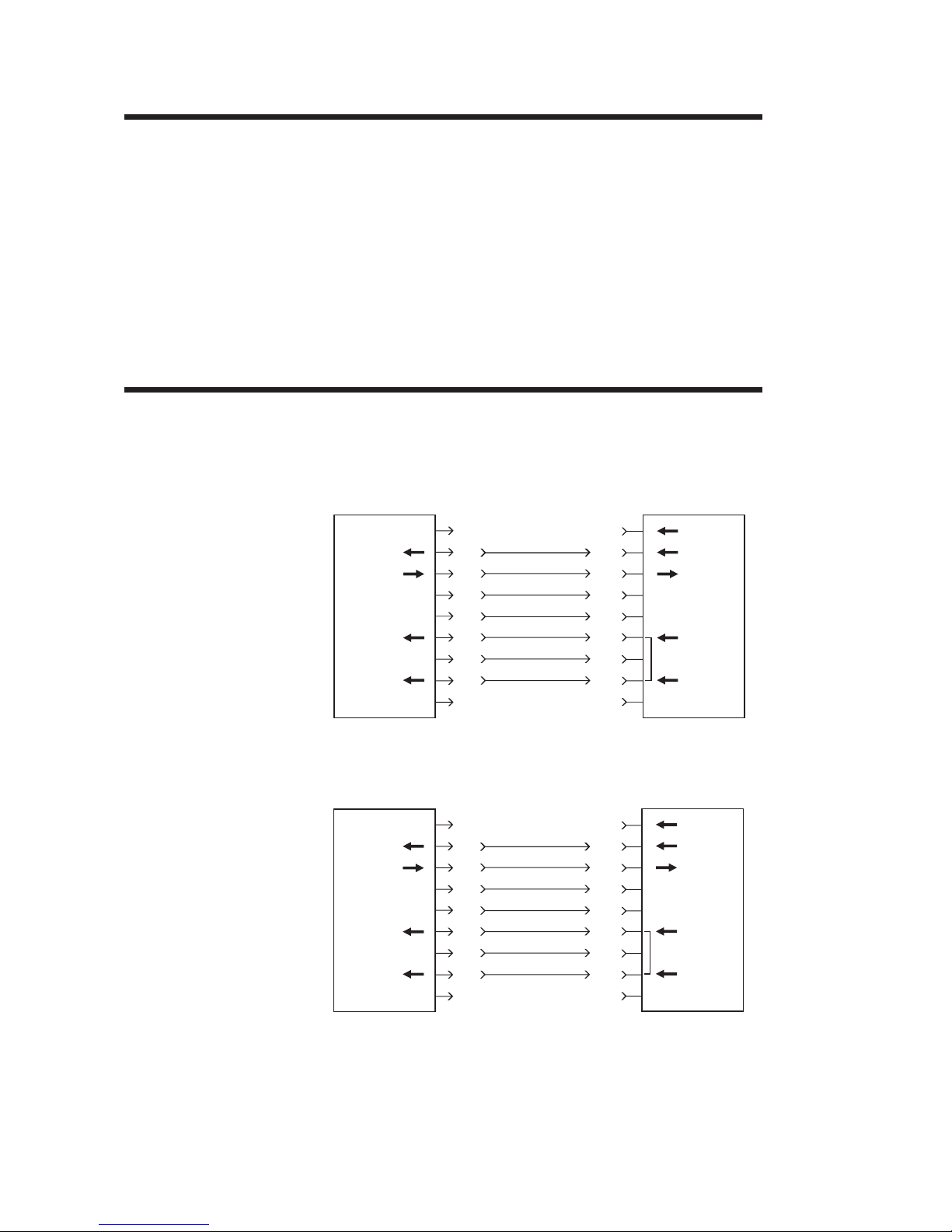

Serial Interface

Cable Wiring

The figure below displays the cable wiring required to use the printer’s serial interface

DB-9

Pin #

N/C

RxD

TxD

DTR

GND

DSR

RTS

CTS

Female DB-9 to Male DB-9

DB-25

Pin #

N/C

RxD

TxD DTR

GND

DSR RTS CTS

DB-9 Pin #

11 22 33 44 55 66 77 88 99

DB-9

Pin #

18 23 32 420 57 66 74 85 922

PrinterHost

+5 Volts*

TxD RxD N/C

GND

RDY

N/C

RDY

N/C

PrinterHost

+5 Volts*

TxD RxD N/C

GND

RDY

N/C

RDY

N/C

Female DB-25 to Male DB-9

*+5 volts at 150 mA for external device (e.g. KDU or scanner)

980158-001 Rev.A

Printer Tag

Sense Through

Hole Position

Figure C-1

Tag Position

Sensing Layout

The printer uses a moveable sensor to detect index holes/notches in tag stock. The sensor position is indicated by the green arrow at the front of the label guide that is visible with the printhead open. The sensor can be moved by squeezing the two locking tabs, located under the label guide, andsliding the sensor in orout. For proper sensing, ensure that the sensor is aligned with the center portion of the index hole/notch.

The following dimensions show the required position of the Sense-Through (“Notch”) hole on tag stock for the printer.

min. max.

Inside Edge

of Tag Stock

Dimension Min. Max. Nominal

Tag Tear-

away

.314 Nominal Sensor Location

A .236" None .512" B .079" .512" .118" C .098" 1.520" N/A

980158-001 Rev.A 33

Printer Media

Temperature

Settings

This table describes the recommended ribbon, media, and heat settings for the printer.

Ribbon

Part No.

800010 Wax

800011

800005 Resin

Ribbon

Type

General

Purpose

Resin

Printer Features

and Options

Heat

Setting

3 5

2 2

10 10

Media

Type

Paper 800622 / 800640

Paper White Polyester Silver Polyester

White Polyester Silver Polyester

Media

Part No.

800622 / 800640 800822 / 800840 800922 / 800940

800822 / 800840 800922 / 800940

The Eclipse LP2344 and TLP2344 printers are part of Eltron’s heavy duty line of industrial printers. The Eclipse has a 4 inch print width, 203 dpi print resolution and up to 256KB user configurable memory. It prints in both direct thermal and thermal transfer mode. The Eclipse prints up to 4 inches per second.

User Features:

• Performs self test and prints out it’s configu-

ration

• Automatic label sensor adjustment

• Easy to use command language

• Label inversion

• Auto label edge detection

• Auto increment and decrement for numeric

and bar code fields

• Line and box drawing features

• Repeat label feature

980158-001 Rev.A

Printing:

• Direct thermal and thermal transfer printing

• Selectable constant print speeds of 2 or 4

inches per second (ips)

• 203 dots per inch (8 dots/mm) print resolu-

tion

• IPHC (Intelligent Print Head Control) for

high quality printing in all orientations

• Maximum print width: 4.09 inch (104mm)

Print Modes:

• Three print modes are included as standard:

• Batch-printing one or more labels with the

labels left on the backing paper

Bar Codes

Standard (One Dimensional) Bar Codes:

• Code 39

• Code 93

• Code 128 UCC

• Code 128, Subsets A, B, and C.

• Codabar

• Interleaved 2 of 5

• UPC-A, UPC-E,2&5digit add-on

• UPC shipping container code

• EAN-13, EAN-8,2&5digit add-on

• POSTNET

• German POSTNET

980158-001 Rev.A 35

Bar Codes

Two Dimensional Bar Codes (Optional):

• PDF417 (TLP \-2046/417 only)

• Maxicode

• Bar codes can be printed in four directions"

0 , 90, 180, and 270 degrees

• Bar code modules (“X” dimension): .005"

(.12mm) to .050" (1.27mm)

Standard Fonts:

• Five alpha-numeric fonts from .049 inches

(1.25mm) to .23 inches (6.0mm) high

• All fonts are expandable vertically and hori-

zontally up to 8x

• Fonts can be printed in four directions: 0 ,

90, 180 , and 270 degrees

• International character sets standard

• Any font or PCX graphic field can be down-

loaded from CREATE-A-LABEL

Media Sensing:

• “See-through” sensor for die-cut labels and

Eltron Eclipse LP2344, Eclipse TLP2344 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
