Eltek Technologies R7121 L1 User Manual

Eltek R7121-L1

User Manual

Default Login Detail

Eltek R7141-L1 Eltek R7111-L1

Analogue Telephone Adapter

Note: default value are different based on different firmware version.

WAN IP Address: DHCP LAN IP Address: http: 192.168.1.1 User Name: admin Password: admin

Table of Contents

TABLE OF CONTENTS ....................................................................................................................... 2

0.1 ABOUT THIS MANUAL 4

0.2 COPYRIGHT DECLARATIONS 4

0.3 TRADEMARKS 4

0.4 SAFETY INSTRUCTIONS 4

0.5 WARRANTY 4

INTRODUCE ..................................................................................................................................... 6

1.1 OVERVIEW 6

1.2 AUDIENCE 6

1.3 ACRONYMS TABLE 6

1.4 INTRODUCTION 6

1.5 FRONT PANEL LED INDICATORS & REAR PANELS 7

1.6 SPECIFICATION 9

INSTALLATION AND SETUP ........................................................................................................... 11

2.1 PACKAGE CONTENT 11

2.2HARDWARE INSTALLATION 11

2.3 QUICK START 15

2.4 WIZARD SETUP 17

NETWORK SETTING ....................................................................................................................... 21

3.1 WAN INTERFACE 21

3.2 LAN INTERFACE 27

3.3 NAT 28

VOIP SETTING (R7121-L1/R7141-L1/R7111-L1) ........................................................................... 30

4.1 SIP SETTING 32

4.2 PHONE 39

4.3 PHONE BOOK 44

4.4 PSTN LINE (R7141-L1 ONLY) 46

SECURITY ....................................................................................................................................... 47

5.1 FIREWALL 47

MAINTENANCE .............................................................................................................................. 50

6.1 SYSTEM 51

6.2 TOOLS 54

6.3 LOG 56

INFORMATION .............................................................................................................................. 58

IVR COMMAND ............................................................................................................................. 59

APPENDIX ...................................................................................................................................... 59

A - FAQ LIST 59 B - SCENARIO APPLICATION SAMPLES 60

Prefaces

0.1 About This Manual

This manual is designed to assist users in using Analogue Telephone Adapter R7121-L1/R7141-L1. Information in this document has been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents. The information contained in this document is subject to change without notice.

0.2 Copyright Declarations

Copyright 2009 Telephony Corporation. All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.

0.3 Trademarks

Products and Corporate names appearing in this manual may or not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without to infringe.

0.4 Safety Instructions

The most careful attention has been devoted to quality standards in the manufacture of the Analogue Telephone Adapter (R7121-L1/R7141-L1). Safety is a major factor in the design of every set. But, safety is your responsibility too.

Use only the required power voltage. Power Input: AC 110V/220V, 1A, 50-60Hz

To reduce the risk of electric shock, do not disassemble this product. Opening or removing covers may

expose the R7121-L1/R7141-L1 to hazardous voltages. Incorrect reassembly can cause electric shock when this product is subsequently used.

Never push objects of any kind into the equipment through housing slots since they may touch

hazardous voltage points or short out parts those could result in a risk of electric shock. Never spill liquid of any kind on the product. If liquid is spilled, please refer to the proper service personnel.

Use only Unshielded Twisted Pair (UTP) Category 5 Ethernet cable to RJ-45 port of the Analogue

Telephone Adapter (R7121-L1/R7141-L1).

0.5 Warranty

We warrant to the original end user (purchaser) that the SA series Analogue Telephone Adapter (R7121-L1/R7141-L1) will be free from any defects in workmanship or materials for a period of one (1) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary to re-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. We shall in no event be held liable for indirect or consequential damages of any kind of character to the purchaser.

To obtain the services of this warranty, contact us for your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by us to the corresponding return address, Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country.

Acronym:

Full Name:

Acronym:

Full Name:

API

Application Interface

CODEC

Coder / Decoder

ADC

Analog to Digital Converter

Direct Current

DAC

Digital to Analog Converter

DHCP

Dynamic Host Configuration Protocol

DDNS

Dynamic Domain Name System

DNS

Domain Name System

DTMF

Dual Tone Multi Frequency

MAC

Media Access Control

FXS

Foreign Exchange Station

NAT

Network Address Translation

WAN

Wide Area Network

PPTP

Point-to-Point Tunneling Protocol

NTP

Network Time Protocol

RTCP

Real-Time Transport Control Protocol (also known as RTP control protocol)

RTP

Real-Time Transport Protocol

SLIC

Subscriber Line Interface Circuit

SIP

Session Initiation Protocol

URI

Uniform Resource Identifier

STUN

Simple Traversal of UDP through NATs

UDP

User DSR-100gram Protocol TCP

Transmission Control Protocol

VoIP

Voice Over Internet Protocol

Introduce

R7121-L1/R7141-L1/R7111-L1 series are the low cost VoIP Solutions. This document describes the

usage of R7121-L1/R7141-L1/R7111-L1 (Analogue Telephone Adapter)

1.1 Overview

An Analogue Telephone Adapter, or R7121-L1/R7141-L1, is a device that allows one to connect a

normal PSTN telephone to the Internet in order to make or place telephone calls.

R7121-L1/R7141-L1 provides a direct analog interface for PSTN, PBX, fax machines, analog telephones,

and other devices that require an analog port.

1.2 Audience

This document is intended for system vendor who are using R7121-L1/R7141-L1 to build an Internet telephony gateway or server application. It is assumed that the reader has the general knowledge of VoIP applications and products.

1.3 Acronyms Table

1.4 Introduction

This Analogue Telephone Adapter (R7121-L1/R7141-L1/R7111-L1) provides a total solution for integrating voice-data network and PSTN.

The R7121-L1 Analogue Telephone Adapter (R7121-L1) support SIP VoIP Protocol.The R7121-L1 Analogue Telephone Adapter (R7121-L1) allows 1~2 lines analog voice and fax communication over a traditional data communications/data networking digital Internet.

Model

FXO Port(PSTN)

FXS Port

WAN Port

LAN Port

RJ-11 port

SIP

R7121-L1

0 2 1 1 2



Model

FXO Port(PSTN)

FXS Port

WAN Port

LAN Port

RJ-11 port

SIP

R7141-L1

1 1 1 1 2



Model

FXO Port(PSTN)

FXS Port

WAN Port

LAN Port

RJ-11 port

SIP

R7121-L1

0 1 1 1 1



The R7141-L1 Analogue Telephone Adapter (R7141-L1) support SIP VoIP Protocol. The R7141-L1

Analogue Telephone Adapter (R7141-L1) allows 1~2 lines analog voice and fax communication over a traditional data communications/data networking digital Internet.

The R7111-L1 Analogue Telephone Adapter (R7111-L1) support SIP VoIP Protocol.The R7111-L1 Analogue Telephone Adapter (R7111-L1) allows 1~2 lines analog voice and fax communication over a traditional data communications/data networking digital Internet.

1.5 Front Panel LED Indicators & Rear Panels

R7121-L1

------------------------------------------------------------------------------------ LED State Description

------------------------------------------------------------------------------------

1. POWER On R7121-L1 is power ON

Off R7121-L1 is power Off

-------------------------------------------------------------------------------------

2. LAN port On LAN is connected successfully

Flashing Data is transmitting Off Ethernet not connected to PC

-------------------------------------------------------------------------------------

3. WAN port On R7121-L1 network connection established

Flashing Data traffic on cable network Off Waiting for network connection

-------------------------------------------------------------------------------------

4. FXS (Phone) Off Telephone Set is On-Hook

Flashing Ring Indication

On Telephone Set is Off-Hook

-------------------------------------------------------------------------------------

R7141-L1

------------------------------------------------------------------------------------ LED State Description

------------------------------------------------------------------------------------

1. POWER On R7141-L1 is power ON

Off R7141-L1 is power Off

-------------------------------------------------------------------------------------

2. LAN port On LAN is connected successfully

Flashing Data is transmitting Off Ethernet not connected to PC

-------------------------------------------------------------------------------------

3. WAN port On R7141-L1network connection established

Flashing Data traffic on cable network Off Waiting for network connection

-------------------------------------------------------------------------------------

4. FXS (Phone) Off Telephone Set is On-Hook

Flashing Ring Indication

On Telephone Set is Off-Hook

-------------------------------------------------------------------------------------

5. FXO (Line) Off Line is On-hook

On Line is In-Use

R7111-L1

------------------------------------------------------------------------------------ LED State Description

------------------------------------------------------------------------------------

1. POWER On R7111-L1 is power ON

Off R7111-L1 is power Off

-------------------------------------------------------------------------------------

2. LAN port On LAN is connected successfully

Flashing Data is transmitting Off Ethernet not connected to PC

-------------------------------------------------------------------------------------

3. WAN port On R7111-L1 network connection established

Flashing Data traffic on cable network Off Waiting for network connection

-------------------------------------------------------------------------------------

4. FXS (Phone) Off Telephone Set is On-Hook

Flashing Ring Indication

On Telephone Set is Off-Hook

1.6 Specification

VoIP Key Features:

Support SIP protocols: SIP Registration and Digest Authentication.

Smart VoIP call Dialing Book: VoIP call Book could provide any application VoIP call to any type

destination (Domain name/IP address, PSTN or PBX) or hunting number setting.

Voice channels status display: This function display each port status like as On-hook, Off-hook, calling

number callee’s number, talk duration, codec.

Telephony Specification:

Voice Codec: G.711(A-law /μ-law), G.729 AB, G.723 (6.3 Kbps / 5.3Kbps), G.726 (16,24,32,40 Kbps).

Call Waiting

Call Forward: Immediate /On Busy Forward / No Answer Forward

Speed Dial

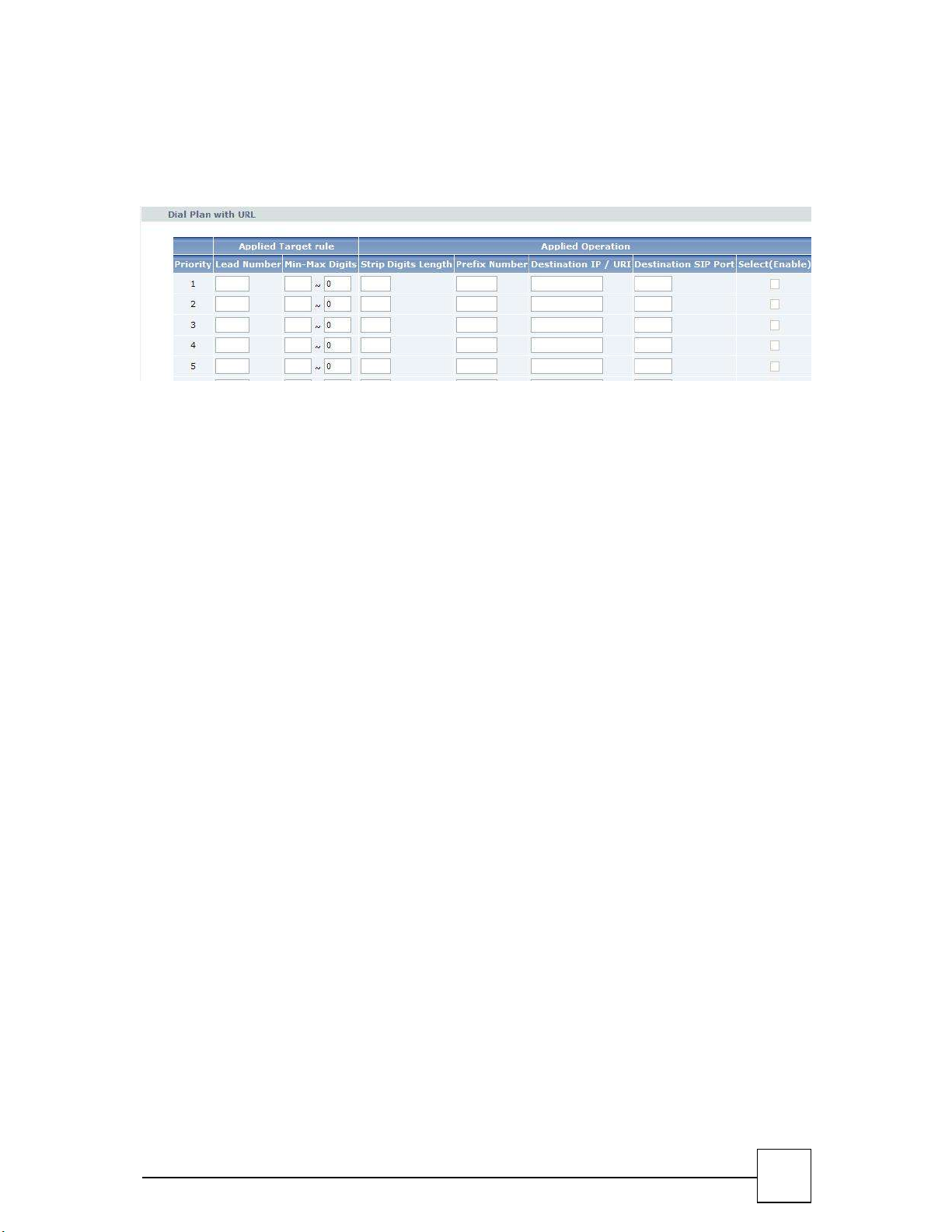

Dial Plan With URL

Multi-Line Appearance

DTMF Relay : PCM/SIP INFO / Out-of-band DTMF Relay (RFC2833)

DND

Hot-Line

Jitter Buffer Control

DNS Server

FAX T.38

Session Timer

MWI (Message Waiting Indicator)

IP Specification:

SIP (RFC 3261) , SDP (RFC 2327), Symmetric RTP,

STUN (RFC3489), ENUM (RFC 2916), RTP Payload for DTMF Digits (RFC2833), Outbound Proxy

Support,

WAN: PPPoE client, DHCP client, Fix IP Address, PPTP/L2TP with WAN (Static、DHCP、PPPoE)

DDNS: DynDNS,TZO

QoS : IP TOS (IP Precedance) / DiffServ / SIP DSCP/RTP DSCP

VLAN

Call Features:

Volume : - 32 db ~ 30 db

VAD (Voice Activity Detection)

Caller ID Generation: DTMF CID / Bellcore CID / ETSI CID / BT CID / NTT CID

Peer to Peer Call by Dial Plan

Different Country Tone Table(Region)

G.168 Echo cancelation

Hook-Flash Timing

Call Transfer

Pulse Dial Detection

Auto Dial

Off-Hook Alarm

Configuration & Management:

Web-based Graphical User Interface

Remote management over the IP Network

Web Base firmware upgrade

Backup and Restore Configuration file

Different Account Login

Back to Factory Default

Time setting

Auto Provision(Auto config /Auto FW updrade)

Ping Test

Security (Firewall ):

IP Filter

MAC Filter

URL Filter

Port Filter

General Specification:

AC power : AC100V-240V, DC12V/1A, 50/60 Hz

Temperature: 0°C ~ 40°C (Operation)

Humidity: up to 90% non-condensing

Emission: FCC Part 15 Class B, CE Mark

RoHS Compliant

Dimension : 115 x 85 x 29 mm

Weight: 165 g

packet contents:

ATA (R7121-L1/ R7141-L1/R7111-L1) RJ-45 AC Power Adapter (1A) CD-Rom(User manual)

X1 X1 X1 X1

Installation and Setup

2.1 Package Content

Please check enclosed product and its accessories before installation. (Refer to the item number). These contents are from pre-released product. The contents for the final product might change a little bit.

Package

2.2Hardware Installation

Port Description: DEMO Model R7121-L1

Item

Port

Description

AC power(DC in 12V)

A power supply cable is inserted

RES(Reset button)

Push this button until 3 seconds, and ATA will be set to factory default configuration.

WAN(Wide Area Network)

Connect to the network with an Ethernet cable. This port allows your ATA to be connected to an Internet Access device, e.g. router, cable modem, ADSL modem, through a networking cable with RJ-45 connectors used on 10BaseT and 100BaseTX networks.

LAN(Local Area Network)

Connect to PC with Ethernet cable. 1 port allows your PC or Switch/Hub to be connected to the ATA through a networking cable with RJ-45 connectors used on 10BaseT and 100BaseTX networks.

FXS(Foreign Exchange Station)

FXS port can be connected to analog telephone sets or Trunk Line of PBX.

PSTN(FXO)

Connect to PBX or CO line with RJ-11(Gray) analog line. FXO port was connected to the extension port of a PBX or directly connected to a PSTN line of carrier.

Port Description: DEMO Model R7141-L1

Port Description: DEMO Model R7111-L1

Installation:

1 Connect the 12V DC IN to the power outlet with power adaptor. 2 Connect FXO to PSTN. 3 Connect FXS to a telephone jack with the RJ-11 analog cable. Connecting to a PC: 1 Connect the Ethernet cable (with RJ-45 connector) to any LAN port. 2 Connect the other end of the Ethernet cable to your PC’s installed network interface card (NIC). Connecting to an External Ethernet Hub or Switch: 1 Connect the Ethernet cable (with RJ-45 connector) to WAN port.

2. Connect the other end of the Ethernet cable to DSL/Cable modem or the external Ethernet hub or switch.

R7121-L1:

R7141-L1:

R7111-L1:

2.3 Quick Start

How to set your network environment?

R7121-L1/R7141-L1 default network environment: For WAN: Wan type: DHCP client For LAN: IP: 192.168.1.1 Subnet mask: 255.255.255.0

How to configure R7121-L1/R7141-L1/R7111-L1?

1. Configure your PC or NB to the same subnet with R7121-L1/R7141-L1/R7111-L1.

2. Use web browser (IE/Firefox) link to url: http://192.168.1.1 (If you connect to LAN port, link to url:

http://192.168.1.1 )

3. Login user name: admin

4. Login password: admin

5. Use this web configuration interface to configure all system functionality; firstly you should change the WAN network environment to yours.

How to use VoIP?

1. Configure SIP user account to register your SIP proxy, use web configuration:

“SIP Settings” -> “Account Setting”

a. Port Phone Number b. Port Authentication User Name c. Port Authentication Password

d. Confirmed Password

2. Configure SIP registrar server and proxy server, use web configuration:

“SIP Settings” -> “Server Setting”

a. Registrar Server Address b. Outbound Proxy Address

3. Make sure R7121-L1/R7141-L1/R7111-L1 has already registered to your proxy, and then you can make a call

2.4 Wizard Setup

Wizard for Quick Setup ATA after finishing the authentication, the Main menu will display 2 parts of configuration, please click “Connection wizard” to enter quick start:

Step 1. Connection wizard

Step 2. Welcome to the VOIP ATA Connection Wizard

Step 3. Time Zone Setup

Time Zone Select : Choose your time zone NTP Server : Select NTP server.

Step 4. WAN Port Type Setup:

For most users, Internet access is the primary application. The ATA support the WAN interface for Internet access and remote access. The following sections will explain more details of WAN Port Internet

access and broadband access setup. When you click “WAN Port Type Setup” from within the Wizard Setup, the following setup page will be show.

Three methods are available for Internet Access:

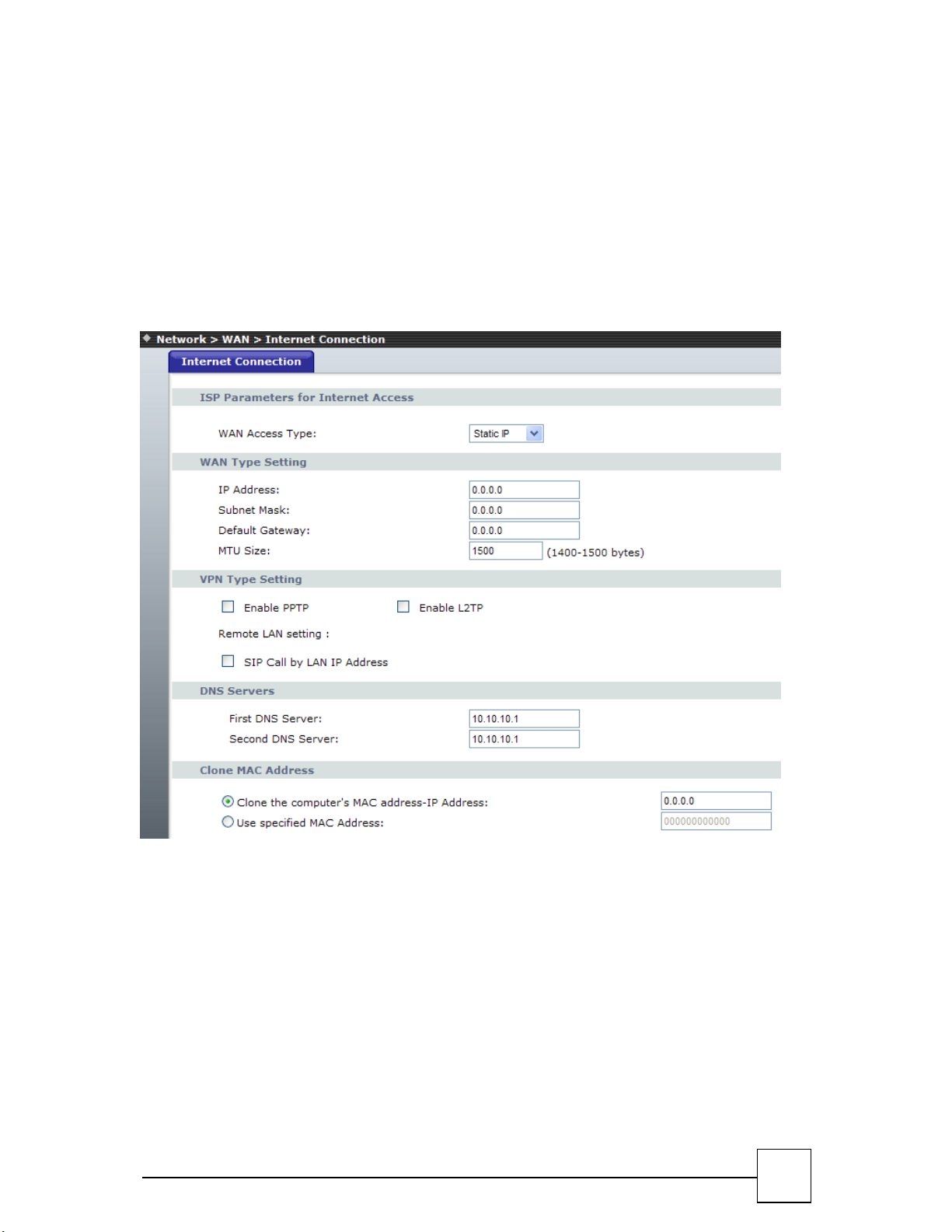

Fixed IP User: If you are a leased line user with a fixed IP address, fill out the following items with the information provided by your ISP.

WAN IP Address: check with your ISP provider

Subnet mask: check with your ISP provider

Default Gateway: check with your ISP provider

DHCP Client (Dynamic IP):

Get WAN IP Address automatically

ADSL Dial-Up User (PPPoE Enable)

Some ISPs provide DSL-based service and use PPPoE to establish communication link with end-users. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you need to select this item.

PPPoE User Name: Enter User Name provided by your ISP

PPPoE Password: Enter Password provided by your ISP.

Confirmation Password: Enter Password to confirm again.

Step 6.Voip Setup

+ 43 hidden pages

Eltek Technologies R7121 L1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
