Eltek V7100 User Manual
VDSL2 Router User’s Guide
1
VDSL2 Router
User’s Manual
VDSL2 Router User’s Guide
2
Table of Contents
1 Introduction .......................................................... 7
Features ................................................................................ 7
Device Requirements ........................................................... 7
Using this Document ............................................................. 8
Notational conventions .................................................. 8
Typographical conventions ............................................ 8
Special messages .......................................................... 8
Getting Support ..................................................................... 8
2 Getting to know the device .................................. 9
Computer / System requirements ........................................ 9
Package Contents ................................................................ 9
For Annex-B VDSL2 Router .......................................... 9
For Annex-A VDSL2 Router .......................................... 9
Installation & Setup ............................................................. 10
LED meanings & activations .............................................. 12
Back Panel Connectors ............................................... 13
3 Computer configurations under
different OS, to obtain IP address
automatically ................................................... 14
4 Utility CD execution ........................................... 27
Connecting the Hardware ................................................... 27
VDSL WAN Configuration (VDSL Line User) .................... 28

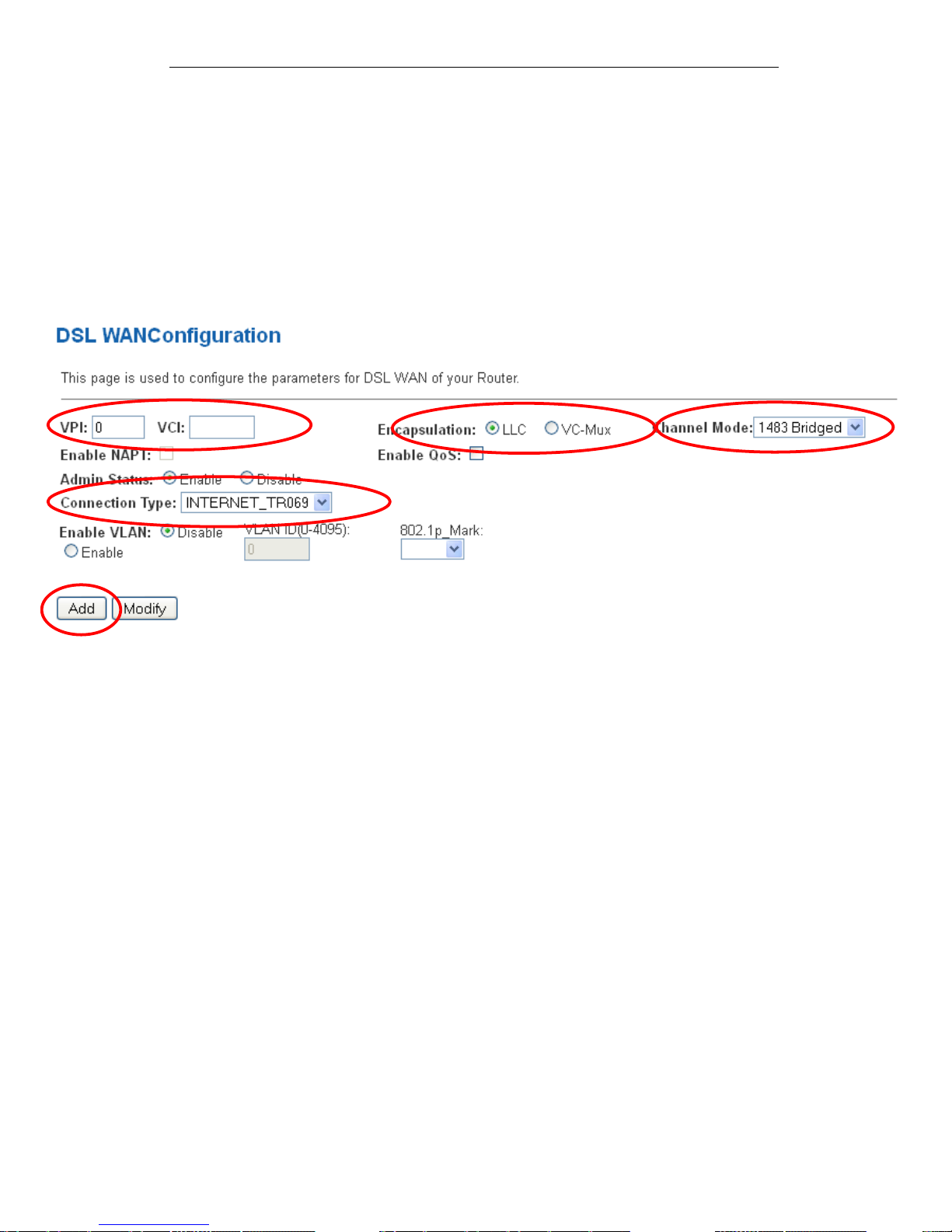

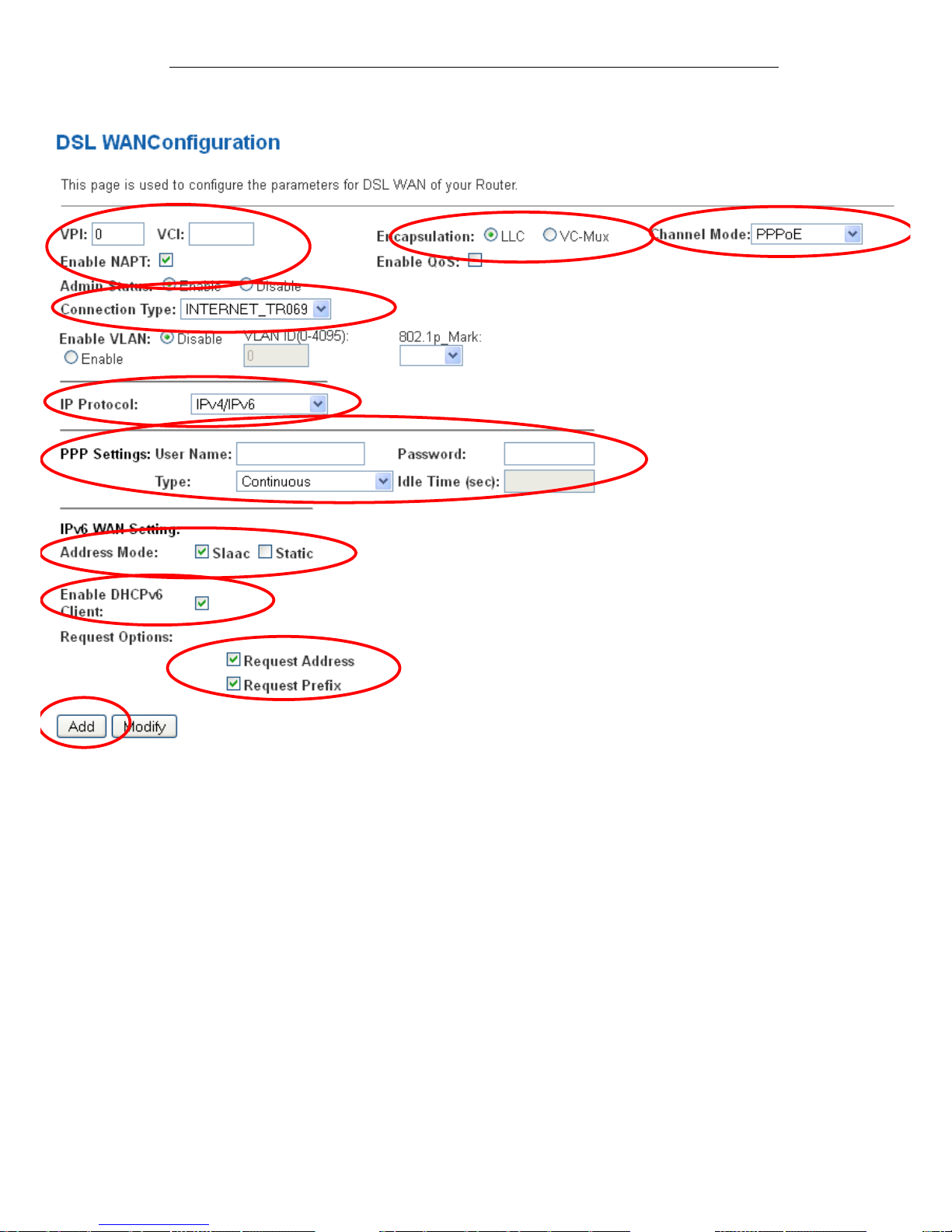

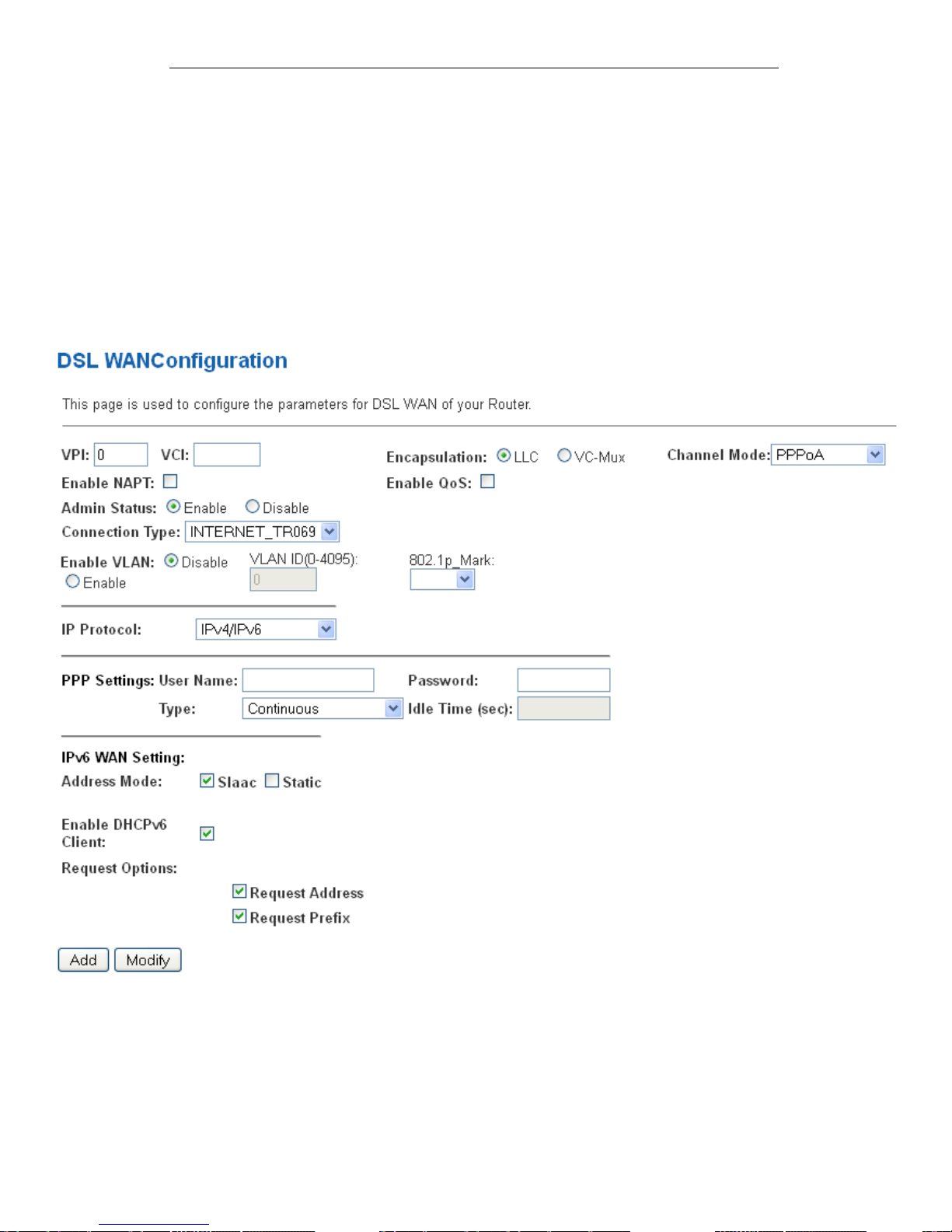

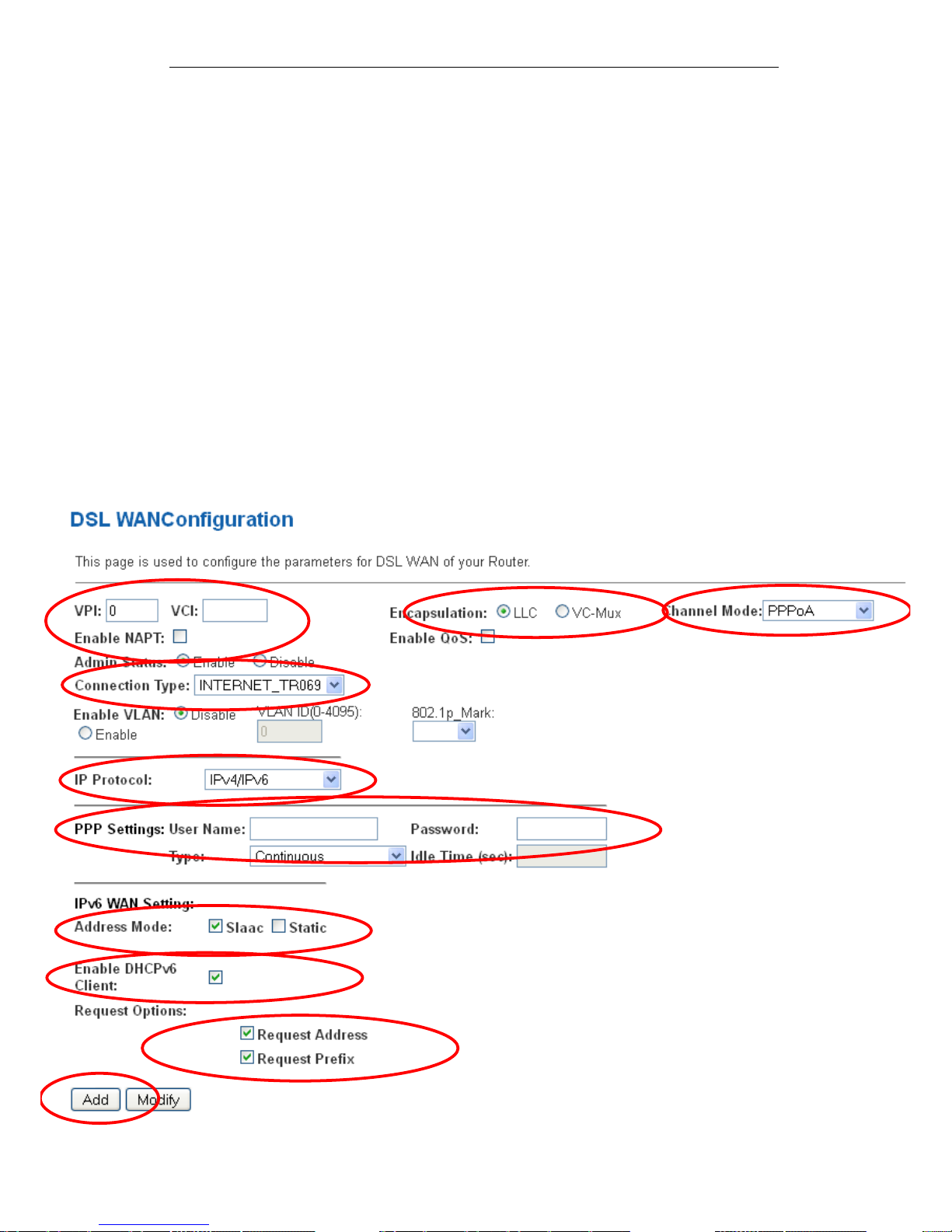

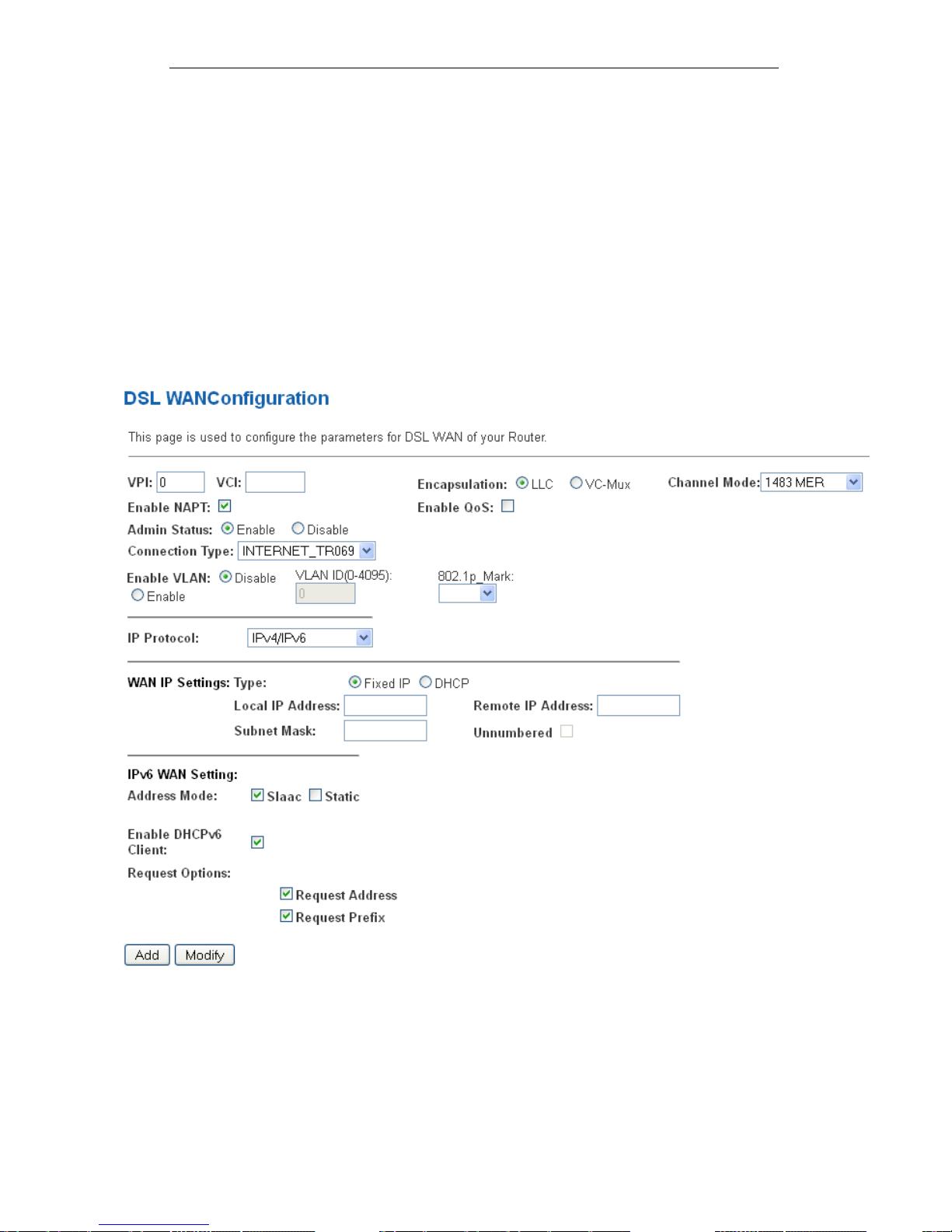

DSL WAN Configuration (ADSL Line User) ....................... 37
5 Getting Started with the Web pages ................. 47
Accessing the Web pages .................................................. 47
Testing your Setup .............................................................. 49
Default device settings ........................................................ 50
6 Overview ........................................................... 53
Internet access settings ...................................................... 54
About VDSL2 Router .......................................................... 54
7 Status ................................................................ 55

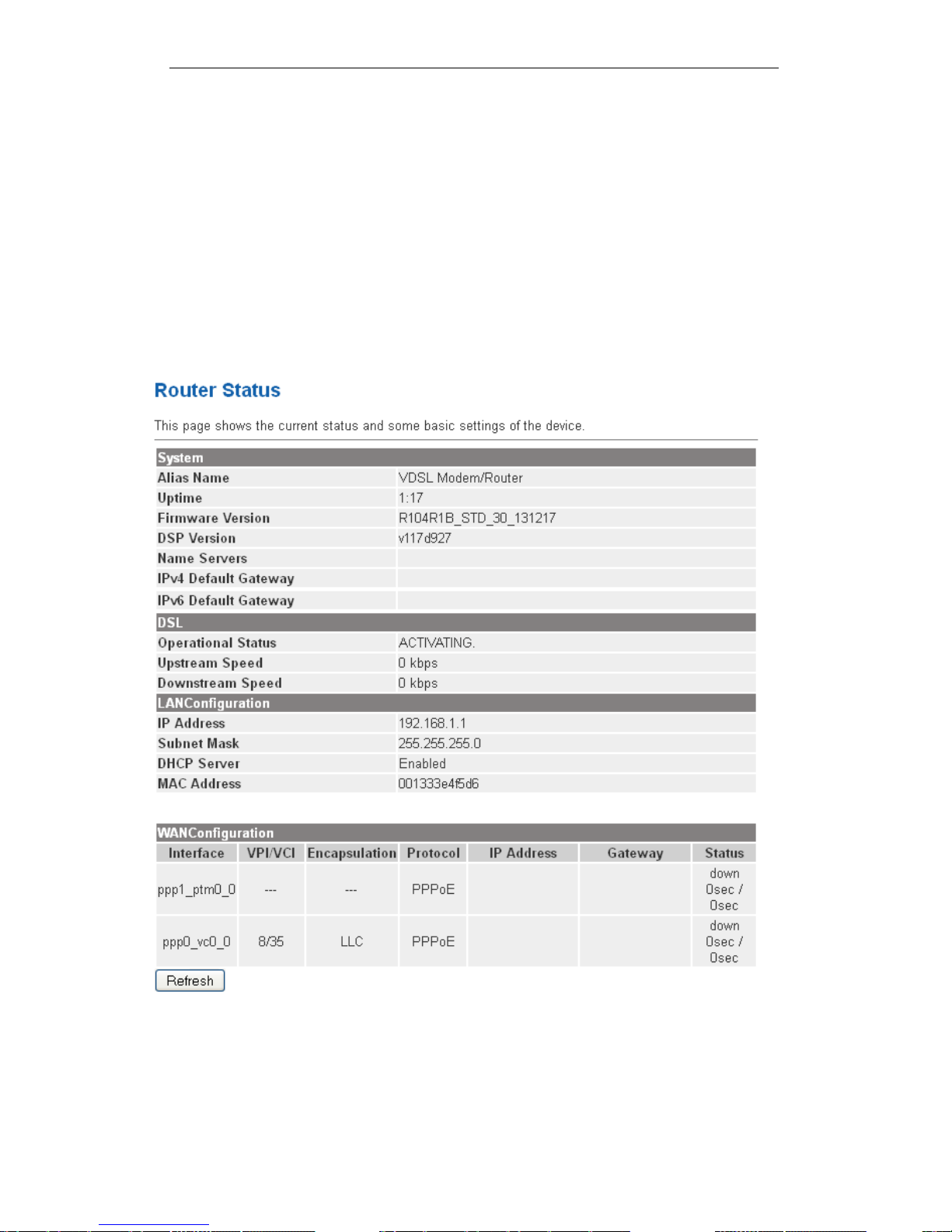

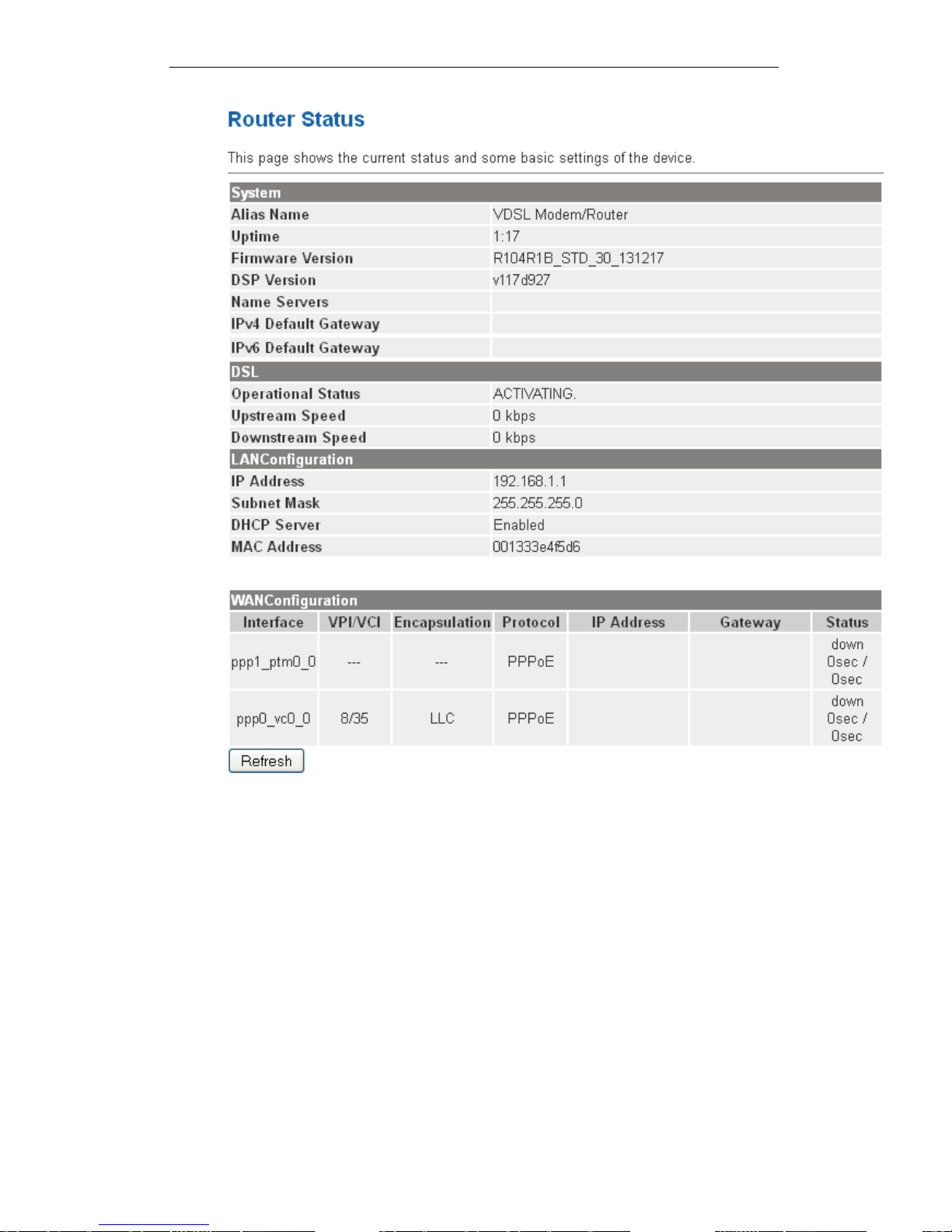

Device Info .......................................................................... 55

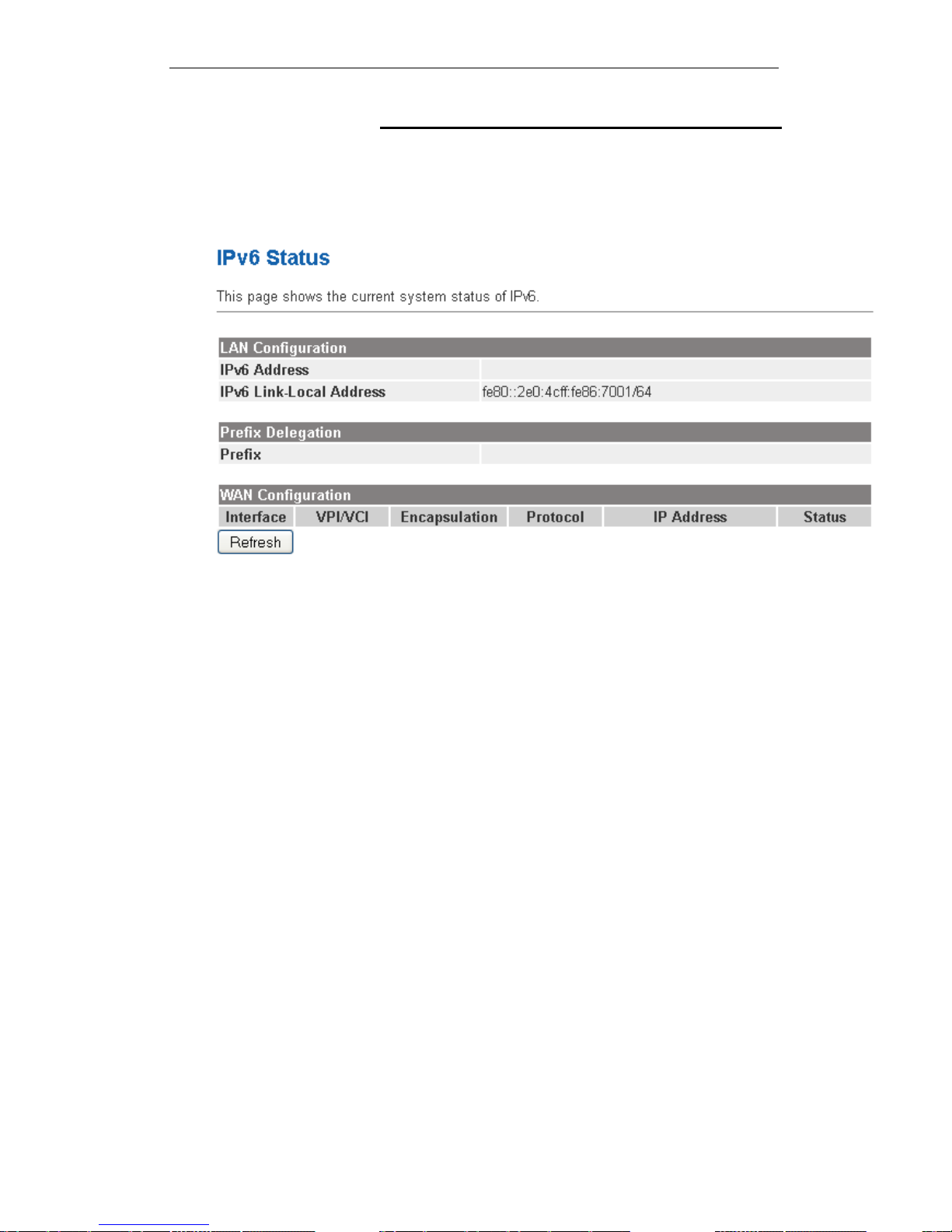

IPv6 ..................................................................................... 56

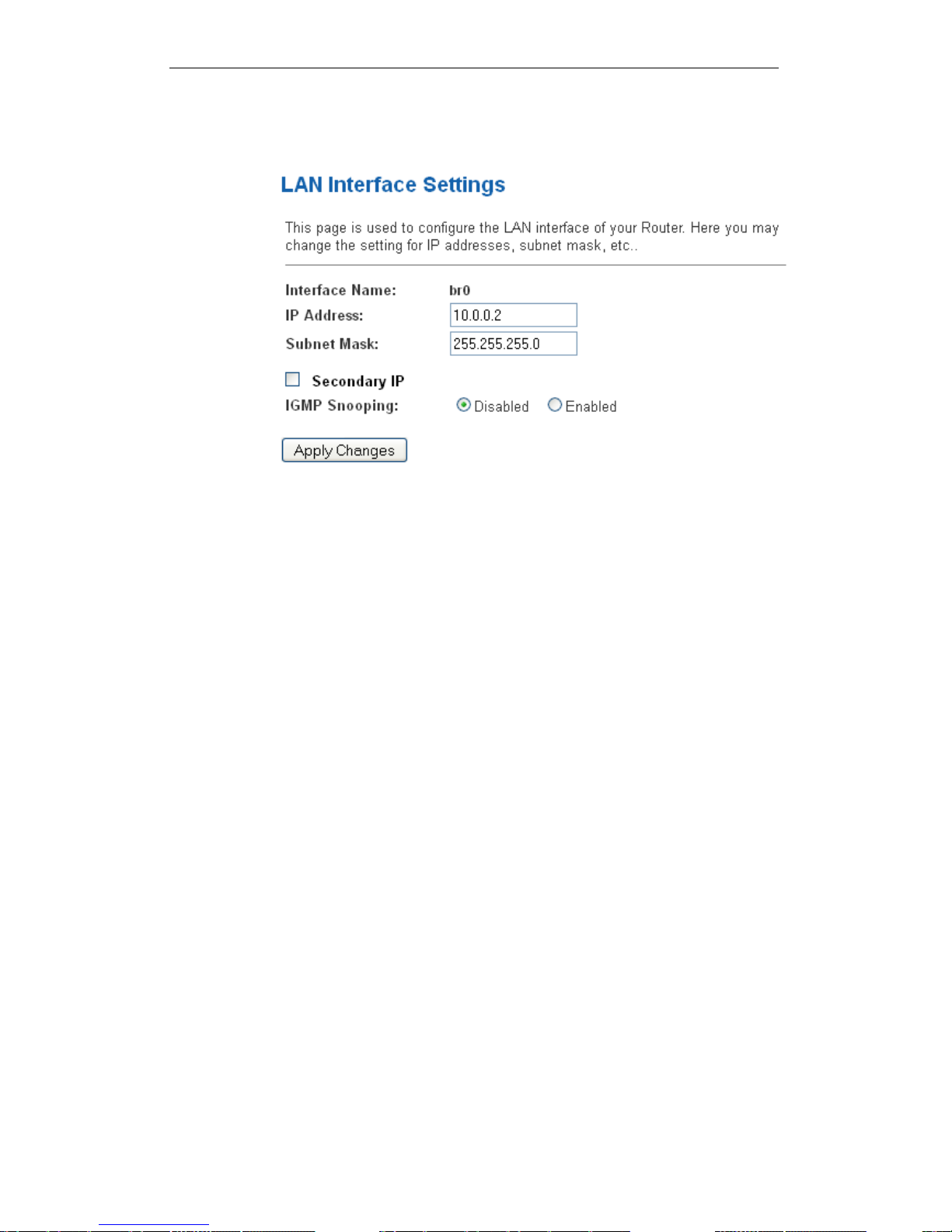

8 Local Network Configuration ............................. 57
Changing the LAN IP address and subnet
mask ................................................................................ 57
VDSL2 Router User’s Guide
3
Adding the Secondary LAN IP address and
subnet mask .................................................................... 59

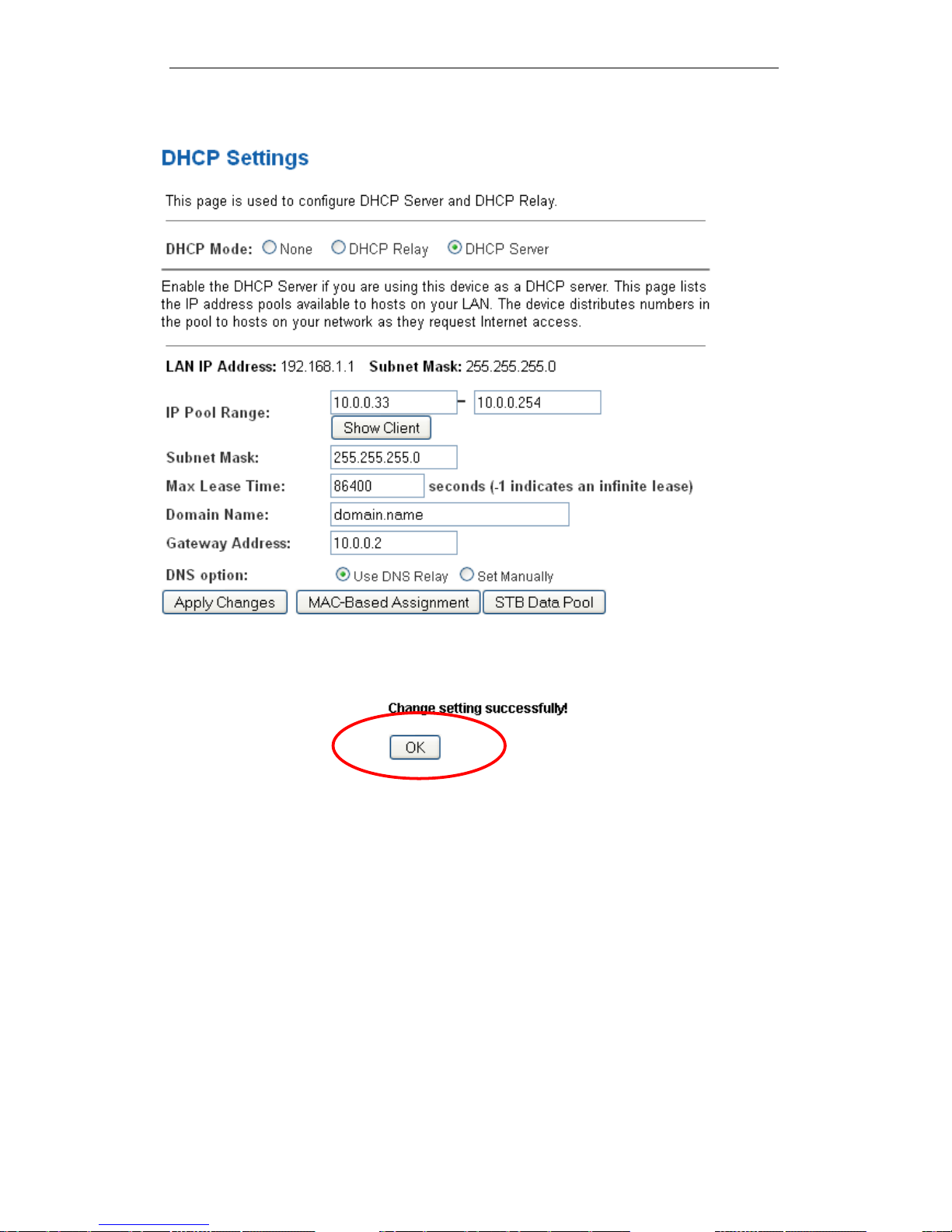

Change IP Pool Range and Subnet mask ......................... 60
9 PTM WAN ......................................................... 62

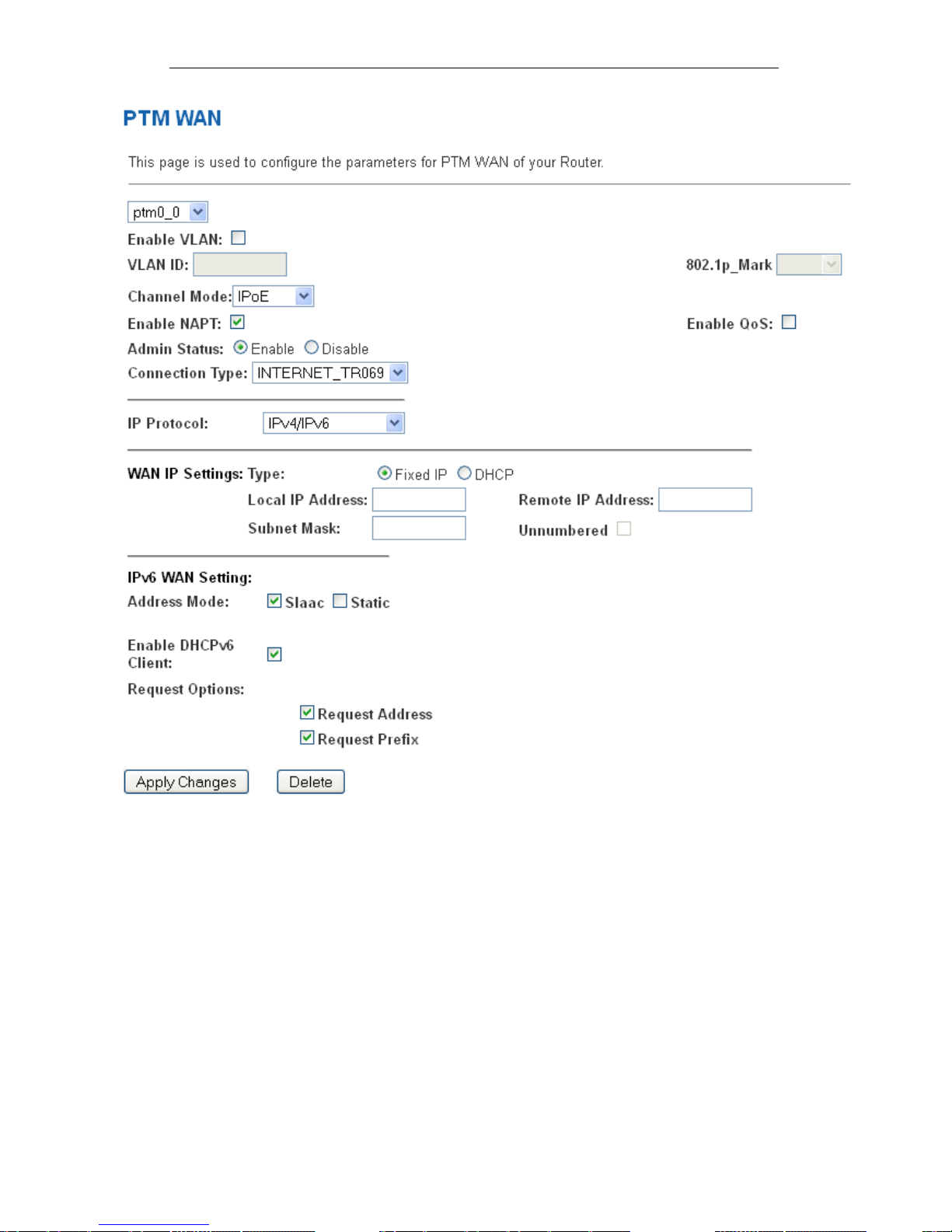

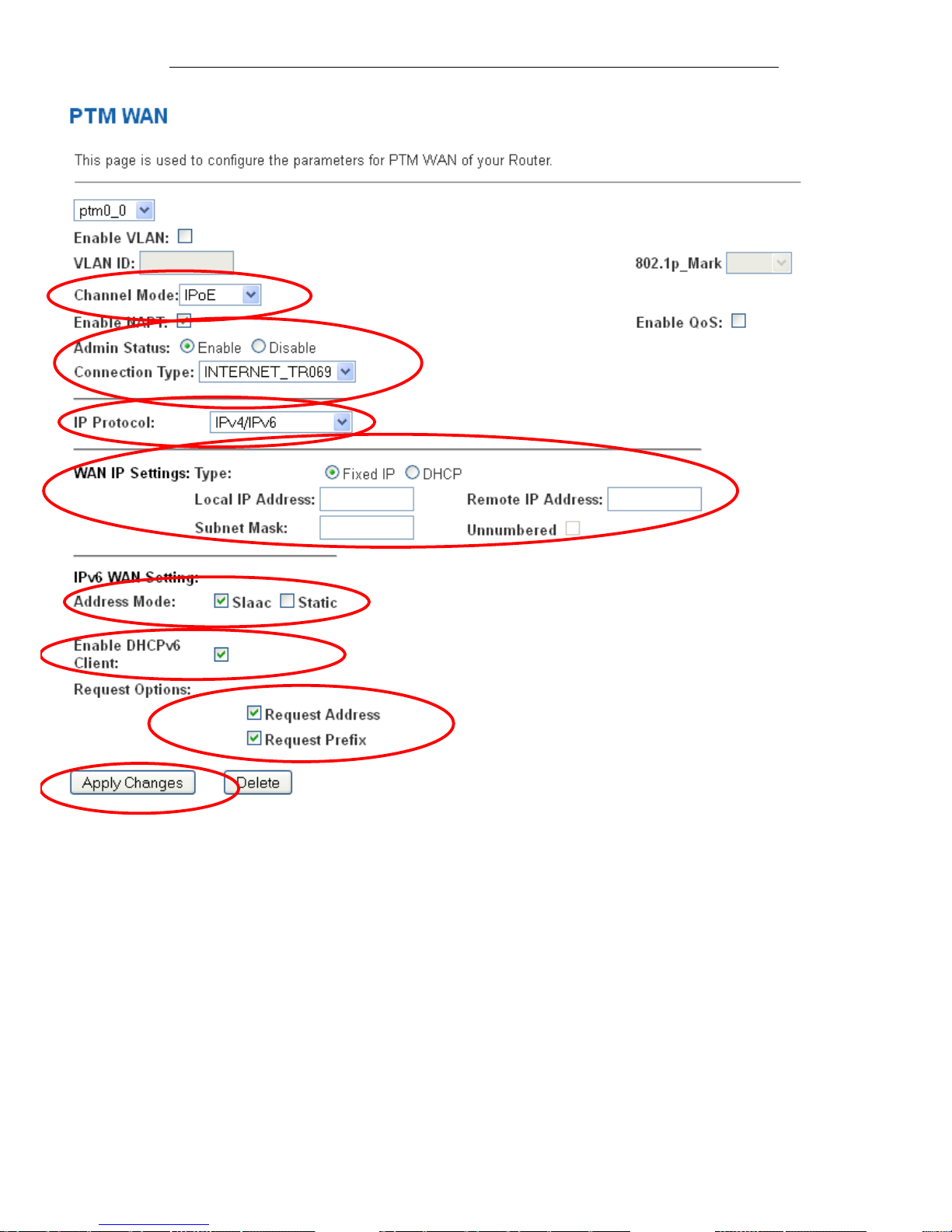

Configuring PTM WAN IPoE Static IP
connection ....................................................................... 65
Configuring PTM WAN IPoE DHCP Client
connection ....................................................................... 69

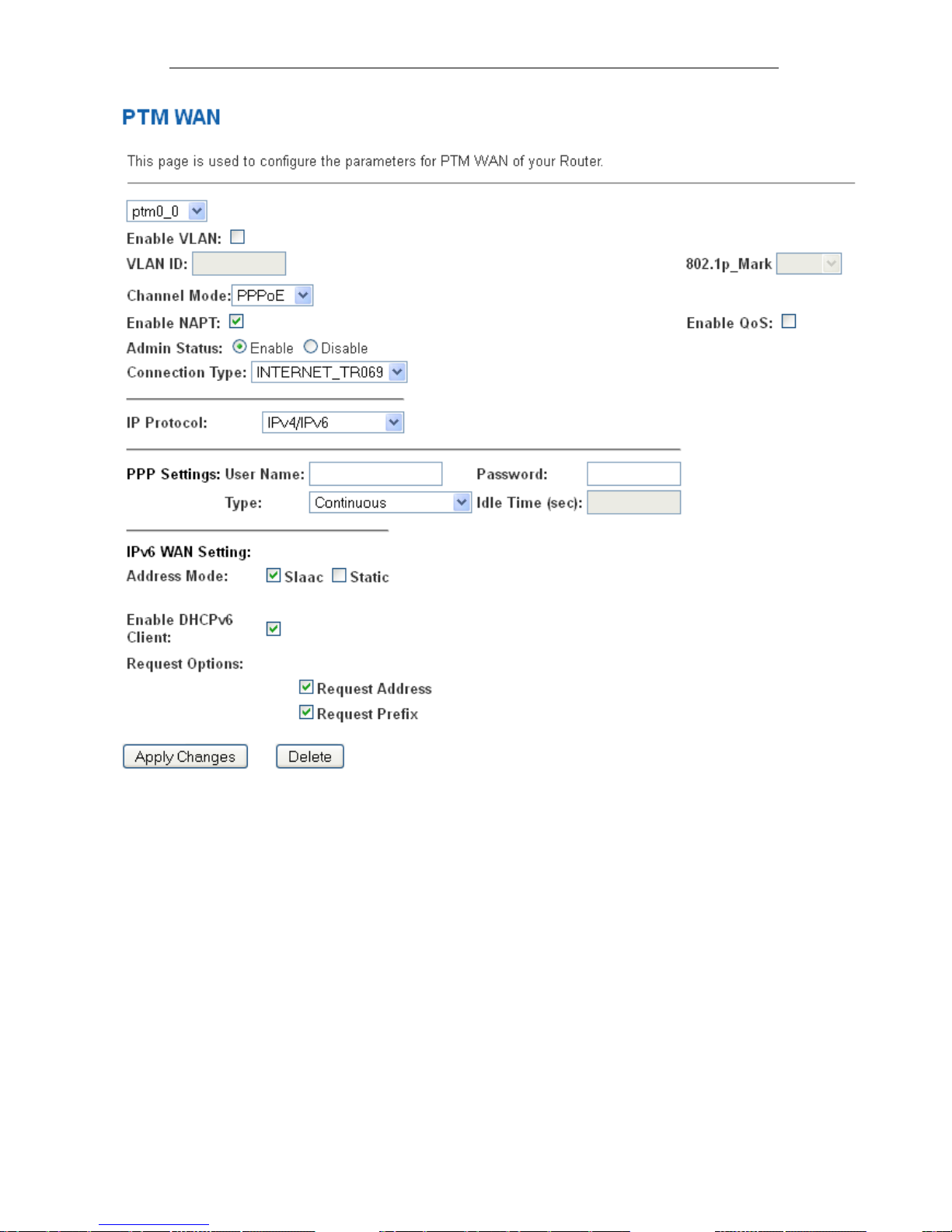

Configuring PTM WAN PPPoE connection ....................... 70
Configuring PTM WAN DS-Lite connection ....................... 72

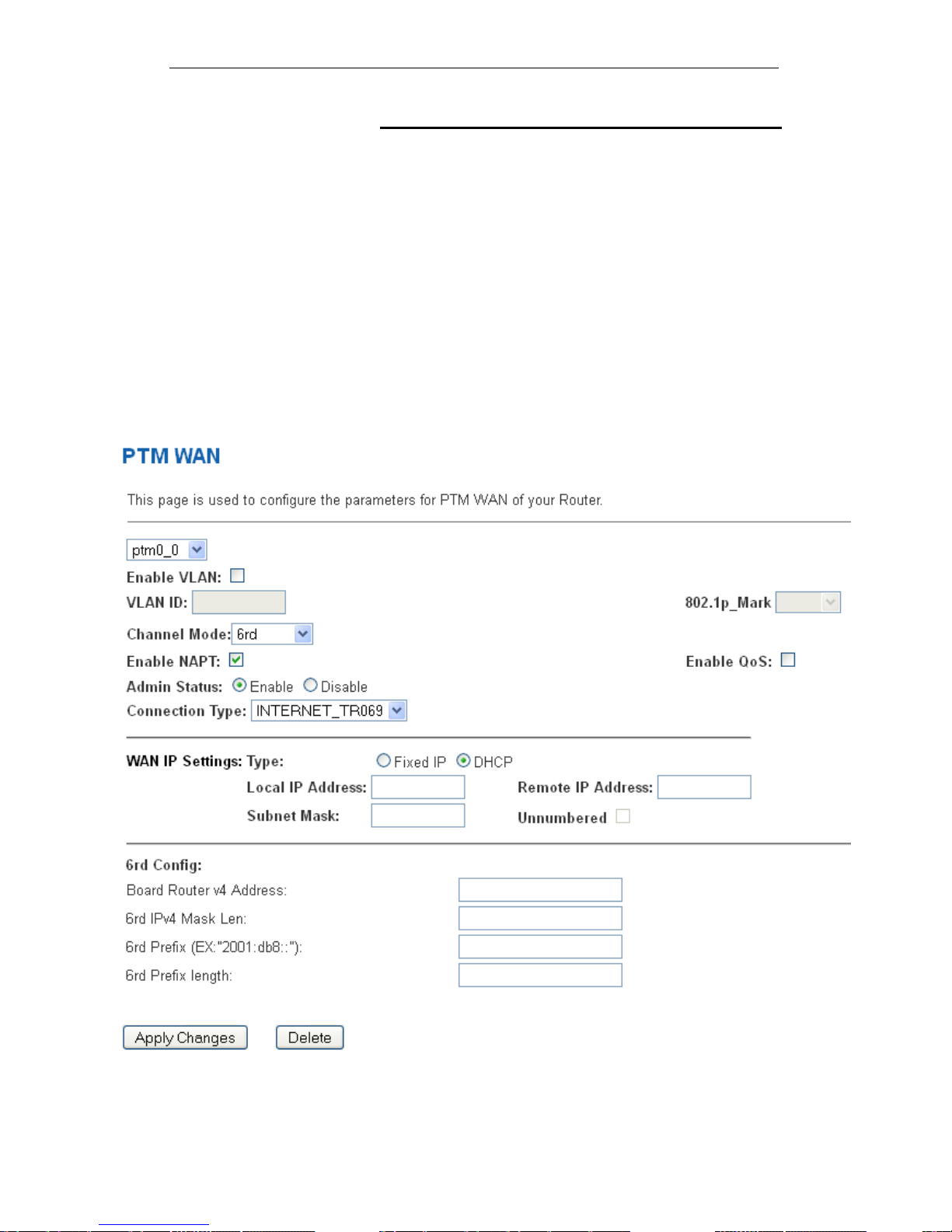

Configuring PTM WAN 6rd connection .............................. 73
10 ATM WAN ......................................................... 74
Types of DSL WAN Internet Access .................................. 75

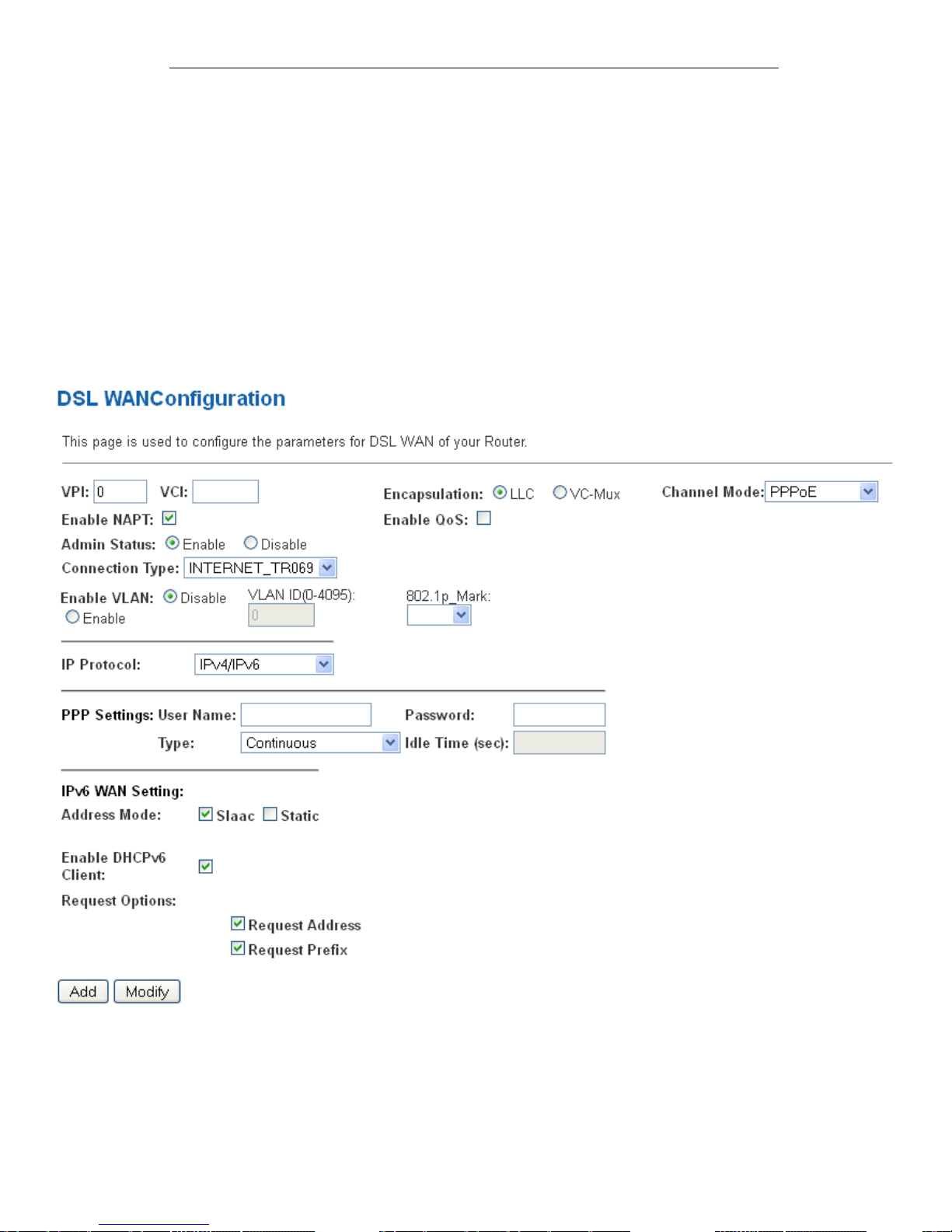

Configuring your PPPoE DSL connection ......................... 7 6
Configuring your PPPoA DSL connection ......................... 7 8

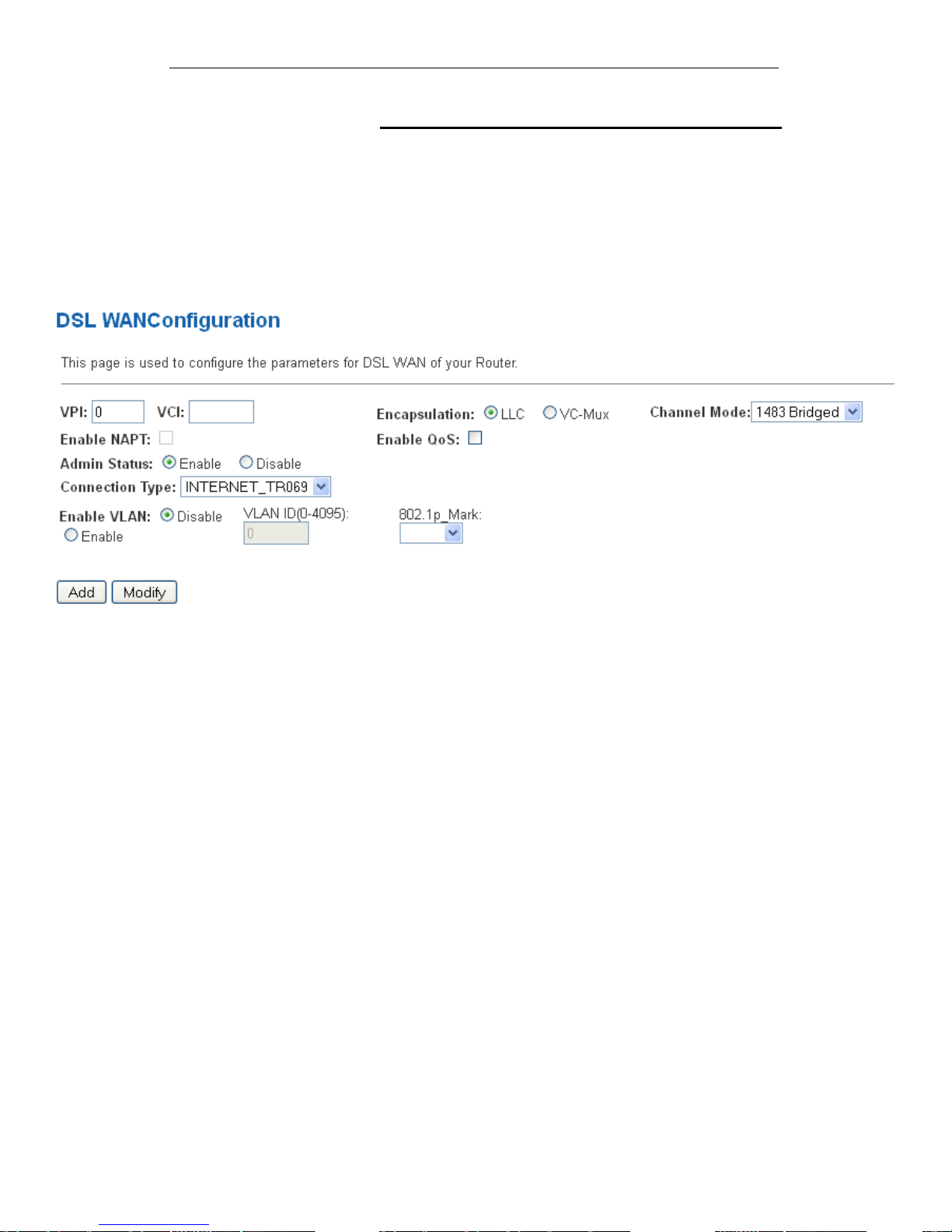

Configuring your Bridged DSL connection ......................... 80

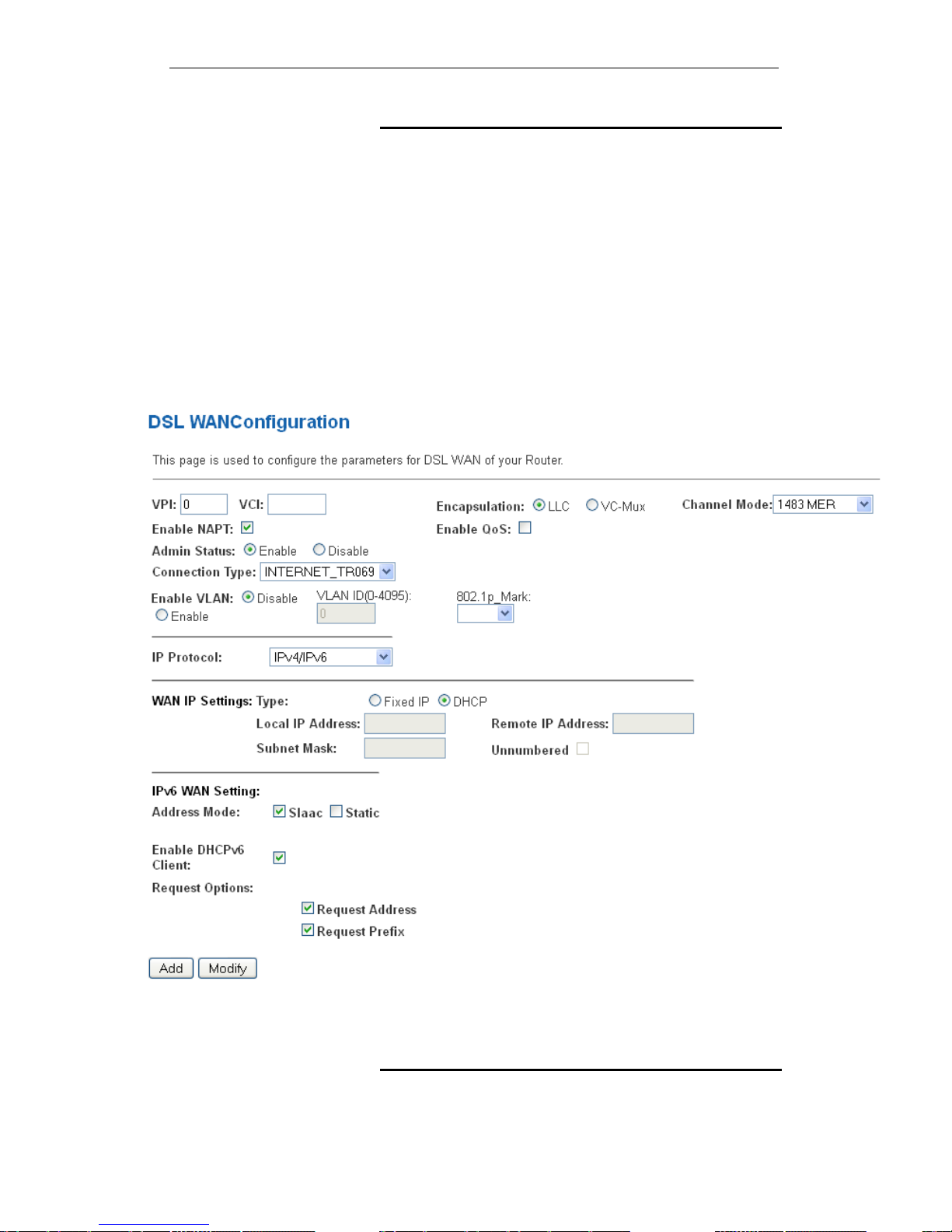

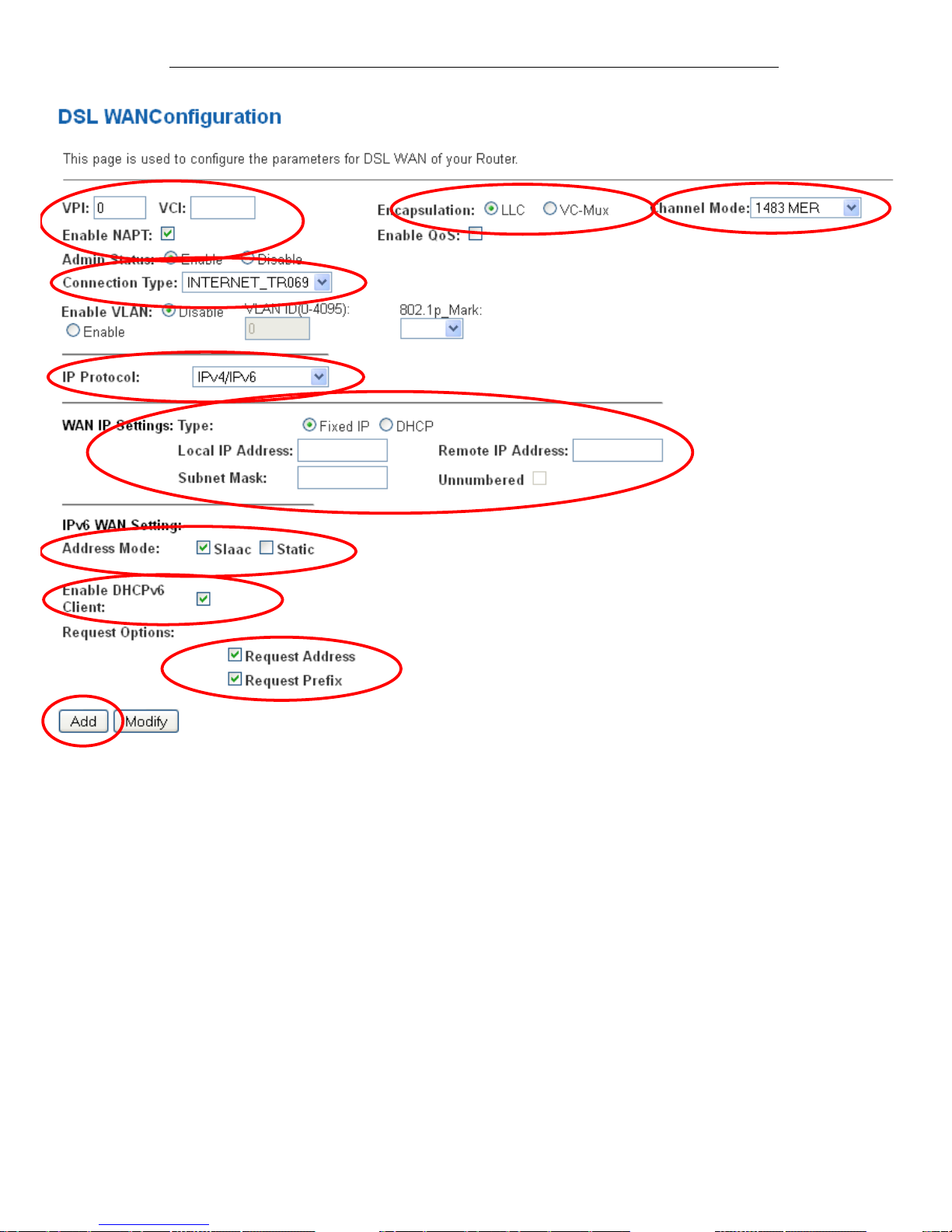

Configuring your 1483 MER by DHCP .............................. 81
Configuring your 1483 MER by Fixed IP ........................... 81

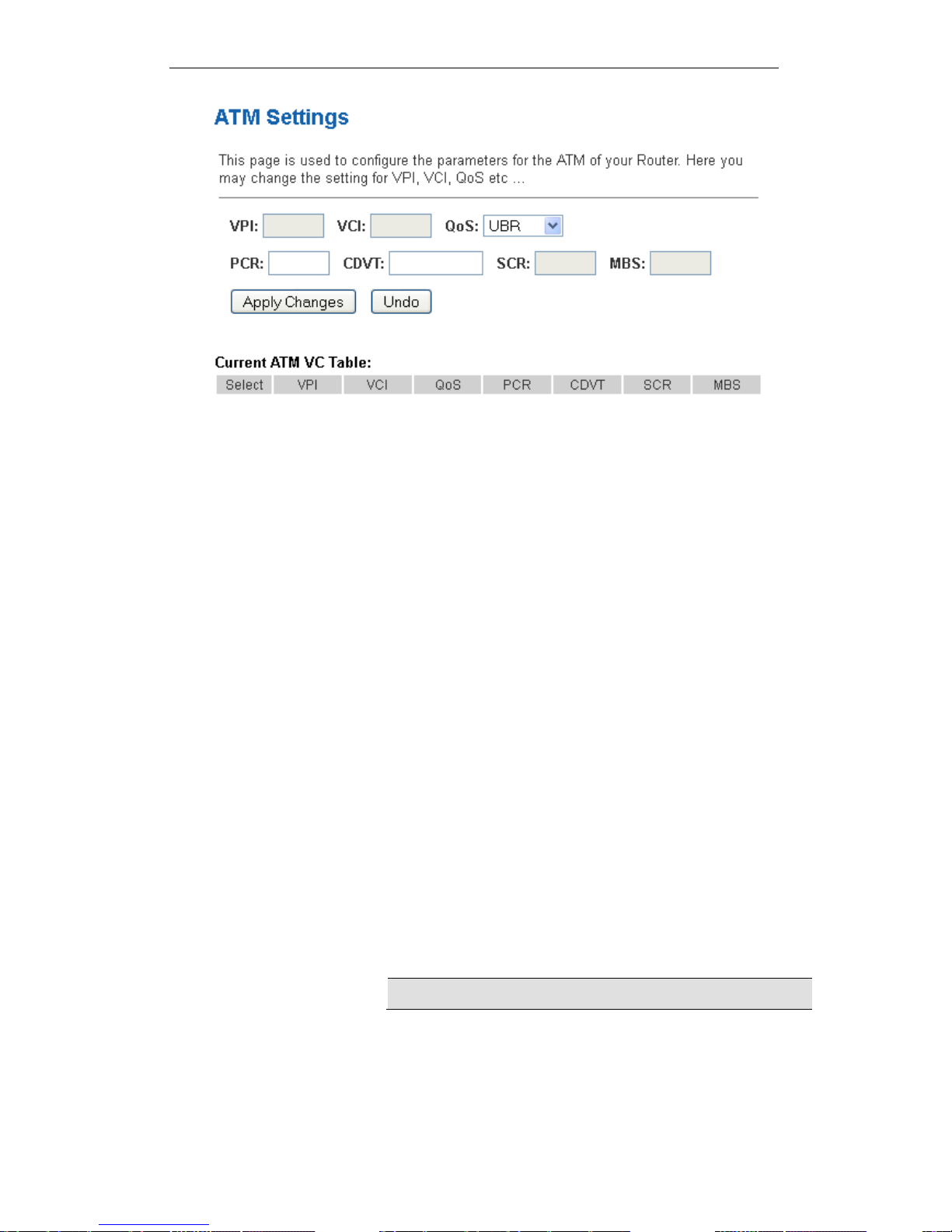

ATM Settings ....................................................................... 83

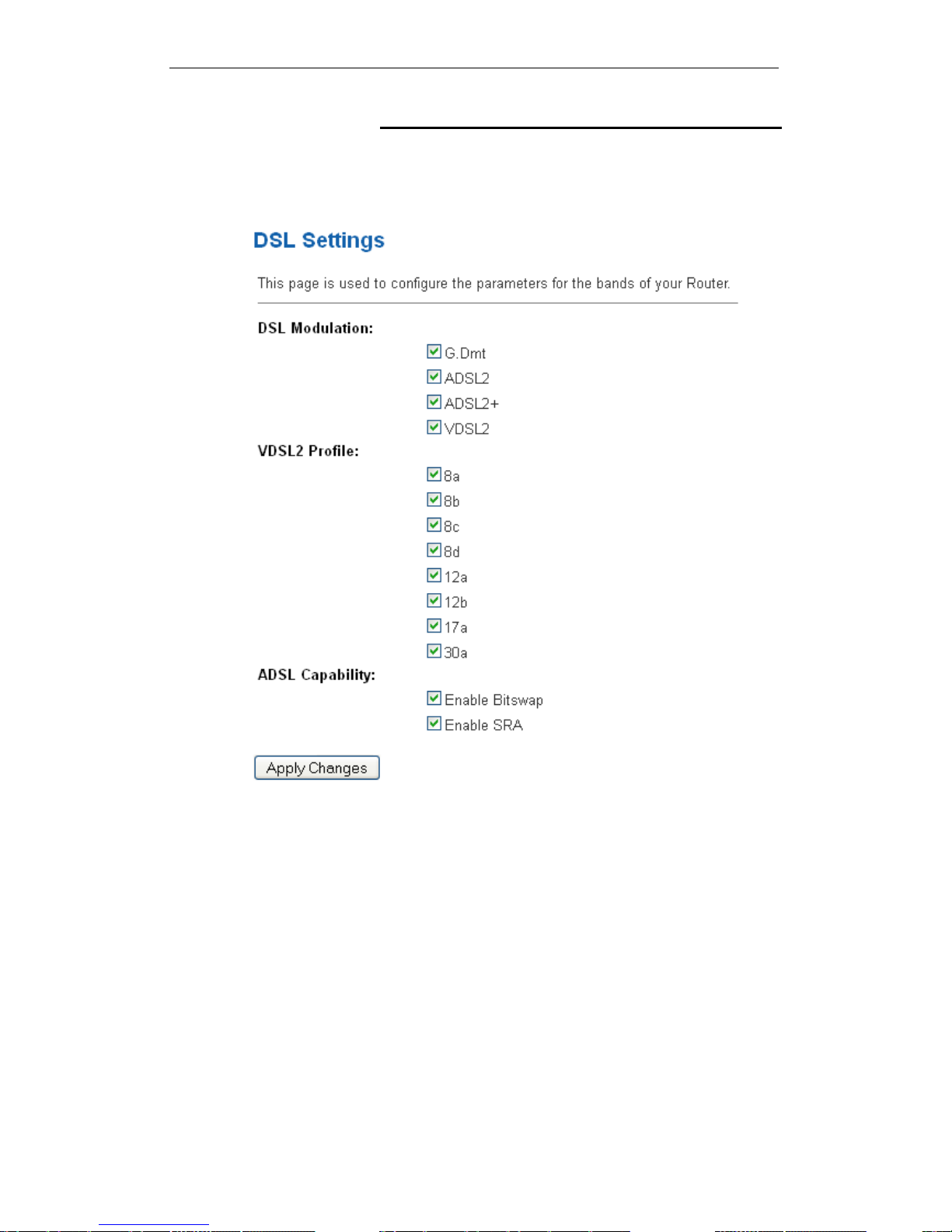

DSL Settings ....................................................................... 86

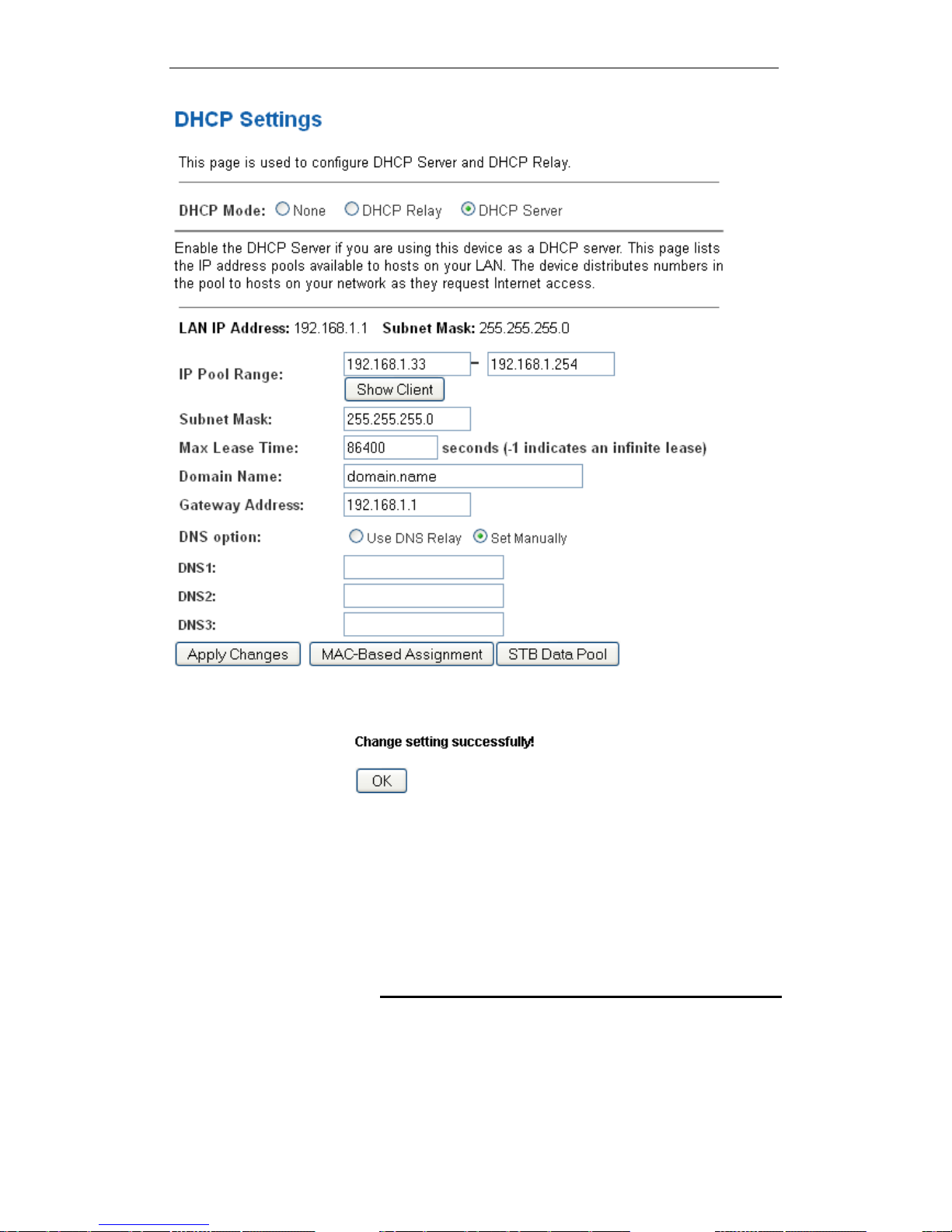

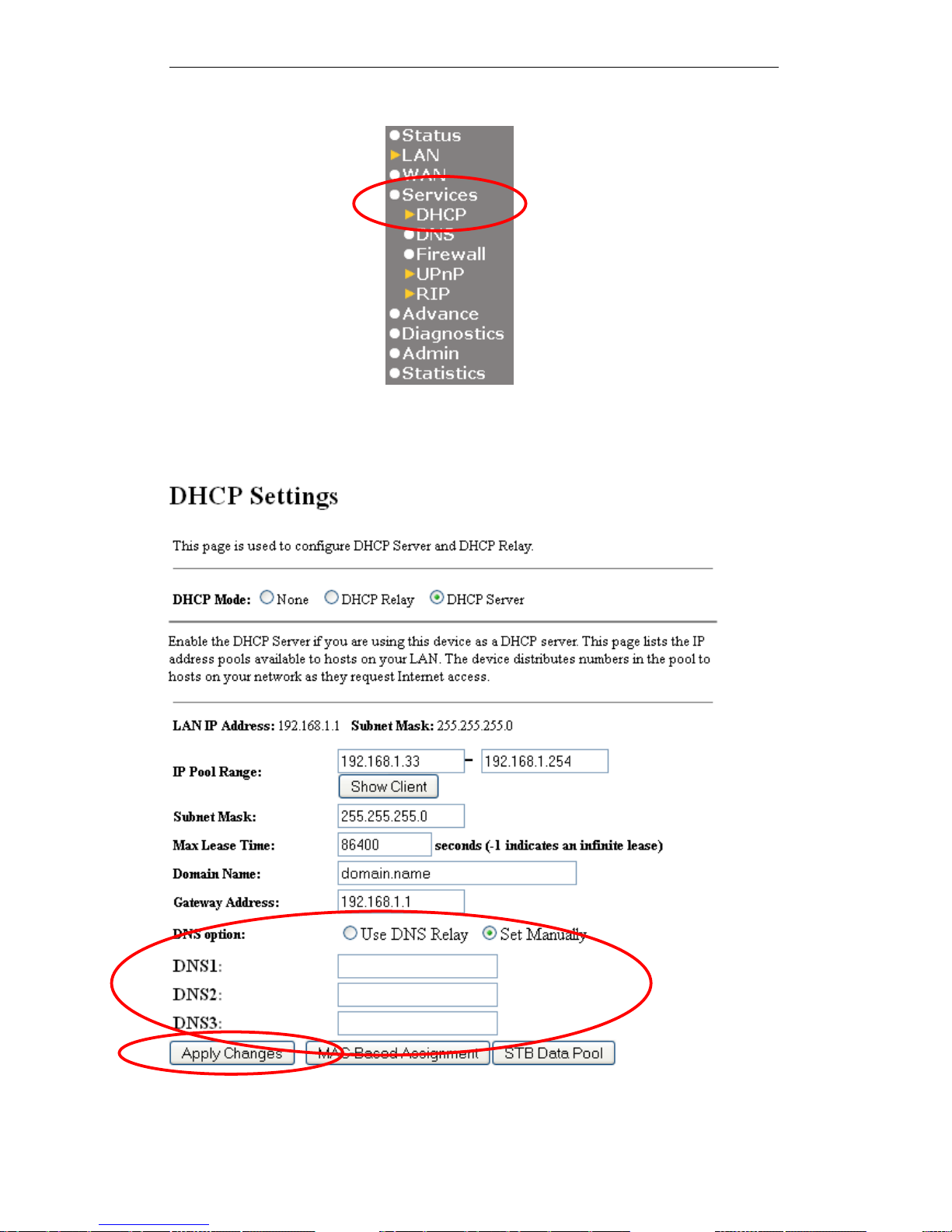

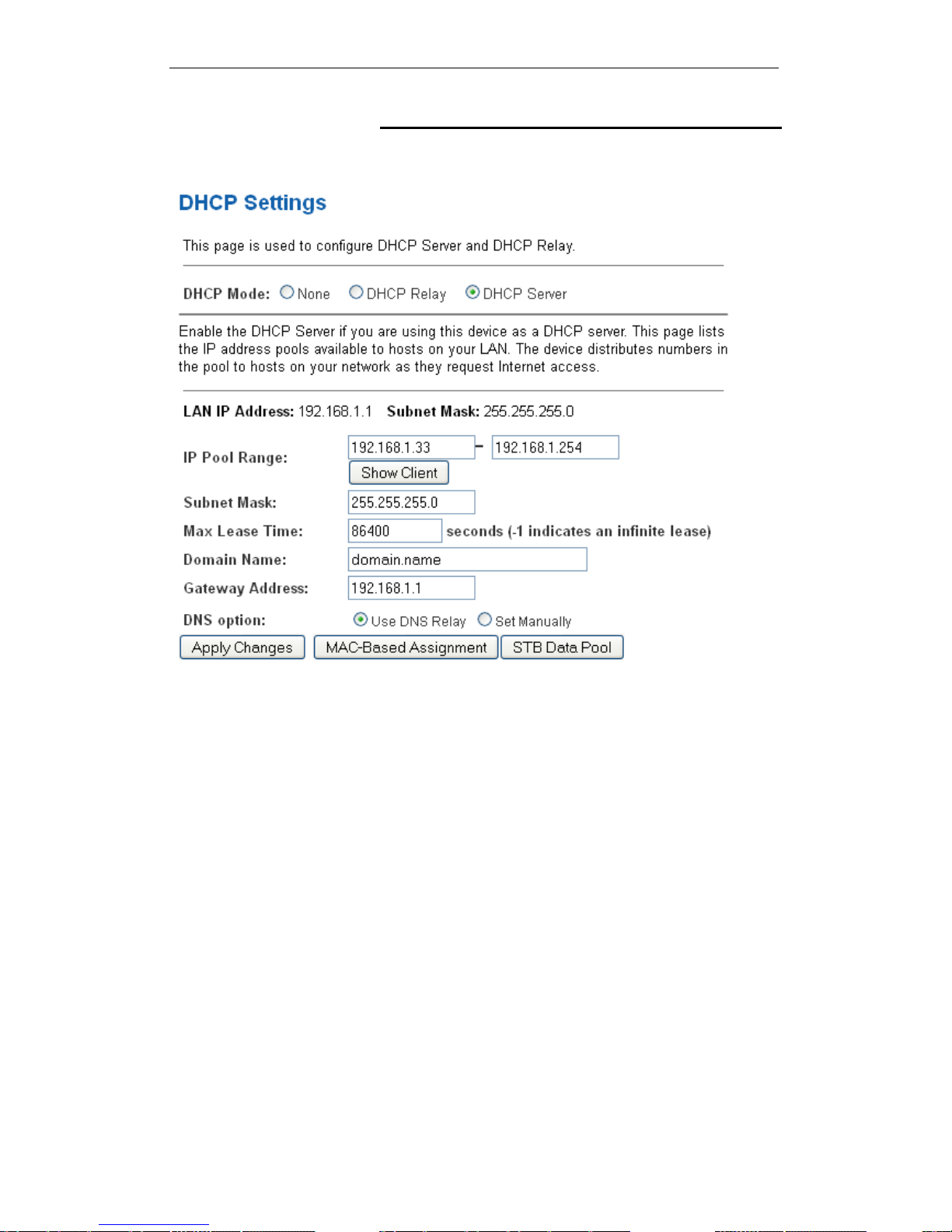

11 DHCP Settings .................................................. 88

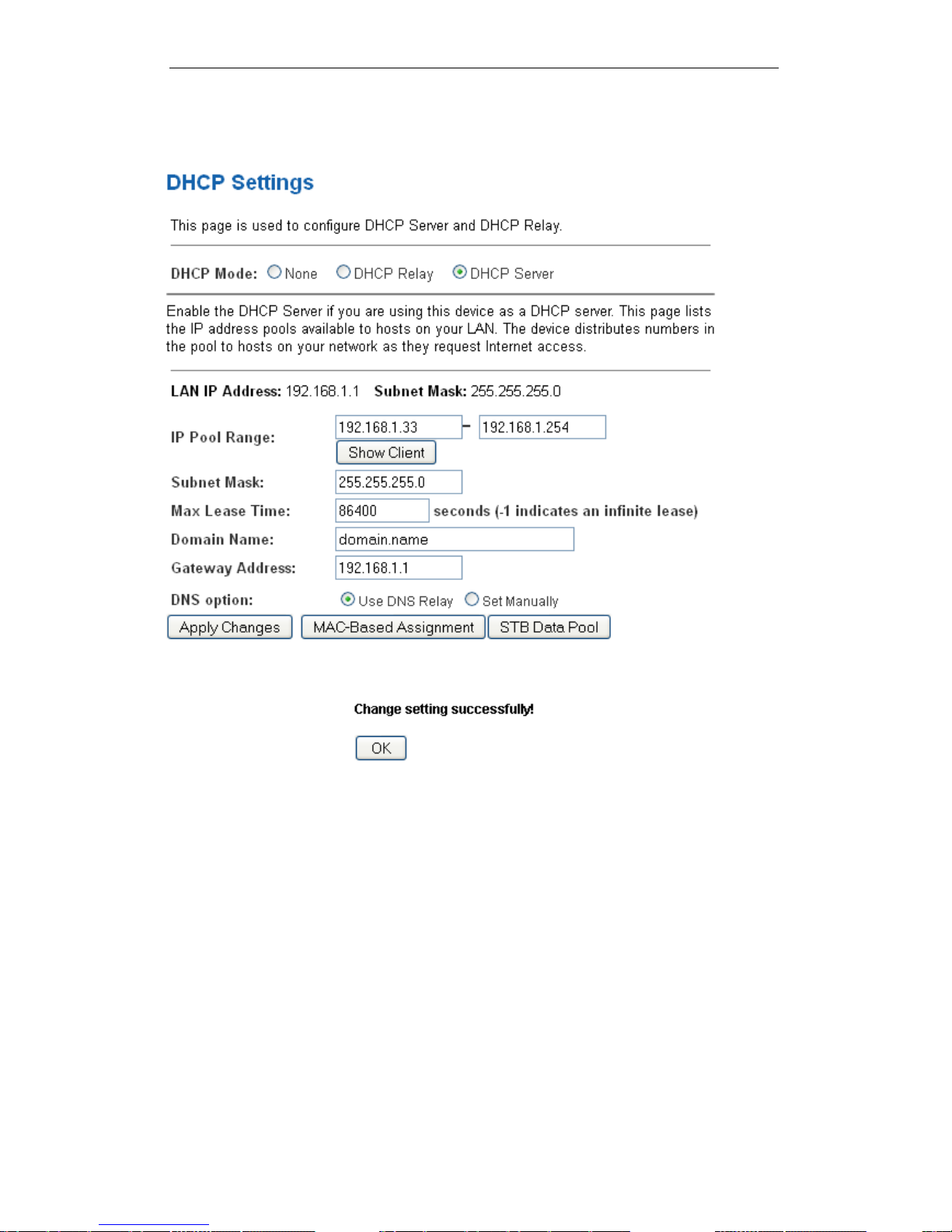

DHCP Server Configuration ............................................... 88
DHCP Relay Configuration ................................................. 90
DHCP None Configuration ................................................. 91
12 DHCPv6 Settings .............................................. 92

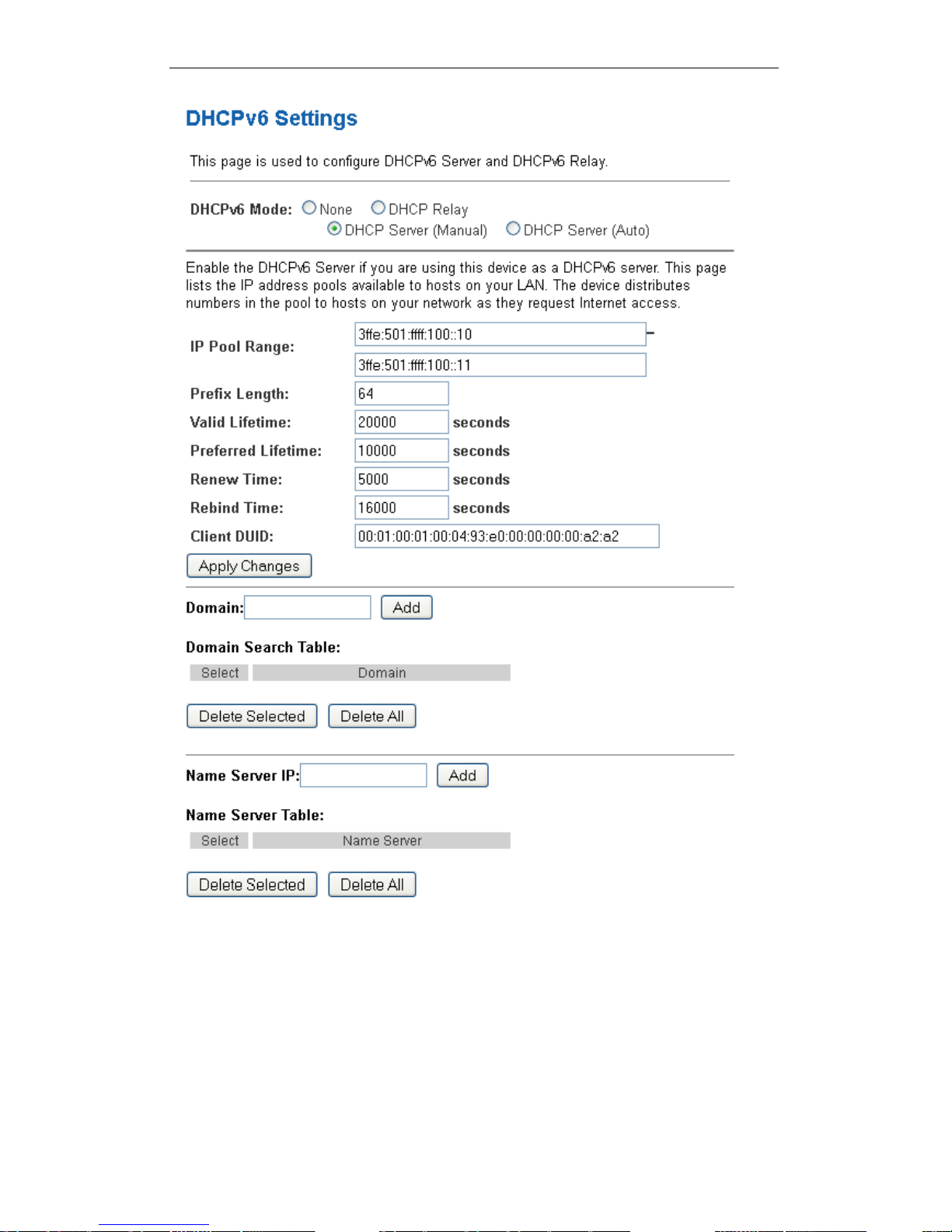

DHCP Server (Manual) Configuration ................................ 92
DHCP Server (Auto) Configuration .................................... 95
DHCP Relay Configuration ................................................. 96
DHCP None Configuration ................................................. 97
13 DNS Configuration ............................................ 98
DHCP Server Configuration - Attain DNS
Automatically ................................................................... 98
DHCP Server Configuration - Set DNS
Manually ........................................................................... 99
14 Dynamic DNS Configuration ...........................101
Overview of Dynamic DNS ............................................... 101
Dynamic DNS Configuration – DynDNS.org ................... 103
Dynamic DNS Configuration – TZO ................................. 104
15 IP/Port Filtering ................................................106
IP/Port Filtering .................................................................. 106
VDSL2 Router User’s Guide
4
16 MAC Filtering ...................................................108
Configuring MAC filtering to Deny for
outgoing access ............................................................. 108
17 Port Forwarding ...............................................110
Port Forwarding for TCP with specified IP ....................... 112
Port Forwarding for UDP with specified IP ....................... 114
18 URL Blocking ...................................................116
Configuring URL Blocking of FQDN ................................. 116
Configuring URL Blocking of Keyword ............................. 118
19 Domain Blocking .............................................120
Configuring Domain Blocking ........................................... 120
20 DMZ .................................................................122
Configuring DMZ ............................................................... 122
21 UPnP ...............................................................124
Configuring UPnP ............................................................. 125
UPnP Control Point Software on Windows
ME .................................................................................. 126
UPnP Control Point Software on Windows
XP with Firewall ............................................................. 126
SSDP requirements ................................................... 127
22 RIP ...................................................................130
23 ARP Table .......................................................132
ARP Table ......................................................................... 132
24 Bridging ...........................................................133
Bridging ............................................................................. 133
25 Routing ............................................................134
Static Route ....................................................................... 134
26 SNMP ..............................................................136
SNMP ................................................................................ 136
27 Remote Access ...............................................138
Remote Access ................................................................. 138
28 Others ..............................................................139
Others ................................................................................ 139
29 IPv6 .................................................................140
IPv6 ................................................................................... 140
RADVD .............................................................................. 140
DHCPv6 ............................................................................ 141
MLD Proxy ........................................................................ 141
MLD Snooping .................................................................. 142
VDSL2 Router User’s Guide
5
IPv6 Routing ...................................................................... 143
IP/Port Filtering .................................................................. 144
30 Diagnostic ........................................................145
Ping ................................................................................... 145
ATM Loopback .................................................................. 146
ADSL Tone Diagnostics ................................................... 147
ADSL Connection Diagnostics ......................................... 148
31 Commit/Reboot ...............................................149

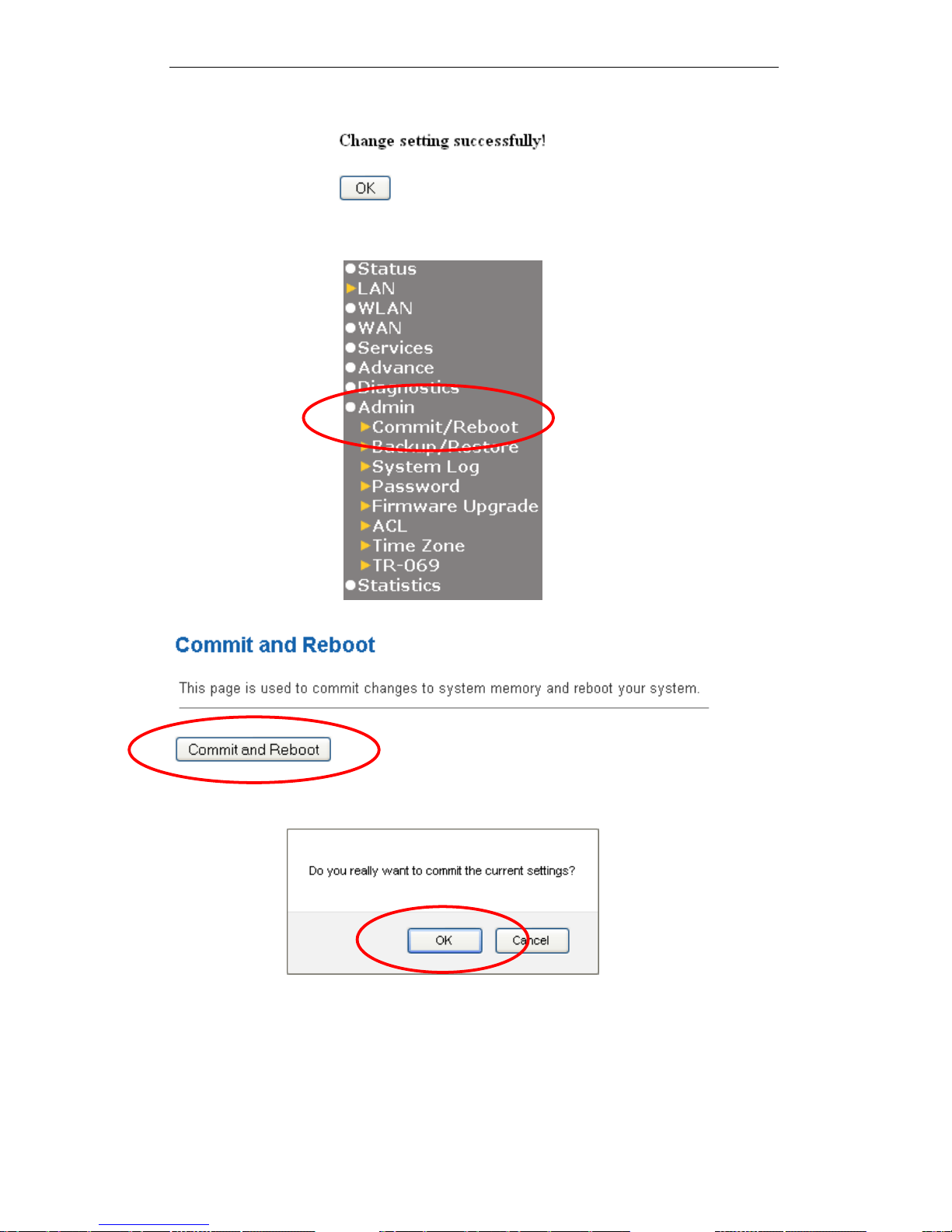

Commit and Reboot .......................................................... 149
32 Backup/Restore ...............................................150
Backup settings ................................................................. 150
Restore settings ................................................................ 151
Resetting to Defaults ......................................................... 151
33 System Log .....................................................153
System Log ....................................................................... 153
34 Password .........................................................155
Setting your username and password ............................. 155
35 Firmware Update .............................................157
About firmware versions ................................................... 157
Manually updating firmware .............................................. 157
36 ACL Configuration ...........................................161
ACL Config ........................................................................ 161
37 Time Zone .......................................................162
SNTP Server and SNTP Client
Configuration settings .................................................... 162
38 TR-069 ............................................................167
TR-069 Configuration ....................................................... 167
39 Statistics ..........................................................169
Statistics - Interface ........................................................... 169
Statistics - ADSL ............................................................... 170
A Configuring your Computers ...........................171
Configuring Ethernet PCs ................................................. 171
Before you begin ........................................................ 171
Windows® XP PCs .................................................... 171
Windows 2000 PCs ................................................... 171
Windows Me PCs ...................................................... 173
Windows 95, 98 PCs ................................................. 173
Windows NT 4.0 workstations ................................... 174
VDSL2 Router User’s Guide
6
Assigning static Internet information to
your PCs ................................................................. 175
B IP Addresses, Network Masks, and
Subnets ........................................................176
IP Addresses ..................................................................... 176
Structure of an IP address ......................................... 176
Network classes ......................................................... 176
Subnet masks ................................................................... 177
C Troubleshooting ...............................................179
Troubleshooting Suggestions ........................................... 179
Diagnosing Problem using IP Utilities .............................. 181
ping ............................................................................. 181
nslookup ..................................................................... 181
D Glossary ..........................................................183
VDSL2 Router User’s Guide
7
1 Introduction
Congratulations on becoming the owner of the VDSL2
Router. You will now be able to access the Internet using
your high-speed DSL connection.
This User Guide will show you how to connect your VDSL2
Router, and how to customize its configuration to get the
most out of your new product.
Features
The list below contains the main features of the device and
may be useful to users with knowledge of networking
protocols. If you are not an experienced user, the chapters
throughout this guide will provide you with enough
information to get the most out of your device.
Features include:
Internal DSL modem for high-speed Internet access
10/100Base-T Ethernet Router to provide Internet
connectivity to all computers on your LAN
Network address translation (NAT) functions to provide
security for your LAN
Network configuration through DHCP Server and DHCP
Client
Services including IP route and DNS configuration, RIP, and
IP and DSL performance monitoring
User-friendly configuration program accessed via a web
browser
User-friendly configuration program accessed via EasySetup
program
Device Requirements
In order to use the VDSL2 Router, you must have the
following:
DSL service up and running on your telephone line
Instructions from your ISP on what type of Internet
access you will be using, and the addresses needed to set
up access
One or more computers each containing an Ethernet
card (10Base-T/100Base-T network interface card (NIC))
For system configuration using the supplied
a. web-based program: a web browser such as Internet
Explorer v4 or later, or Netscape v4 or later. Note that version
4 of each browser is the minimum version requirement – for
optimum display quality, use Internet Explorer v5, or
Netscape v6.1
b. EasySetup program: Graphical User Interface
VDSL2 Router User’s Guide
8
Note
You do not need to use a hub or switch in order to connect more
than one Ethernet PC to your device. Instead, you can connect
up to four Ethernet PCs directl y to your devic e using t he po rts
labeled Ethernet on the rear panel.
Using this Document
Notational conventions
Acronyms are defined the first time they appear in the
text and also in the glossary.
For brevity, the VDSL2 Router is referred to as “the
device”.
The term LAN refers to a group of Ethernet-connected
computers at one site.
Typographical conventions
Italic text is used for items you select from menus and
drop-down lists and the names of displayed web pages.
Bold text is used for text strings that you type when
prompted by the program, and to emphasize important
points.
Special messages
This document uses the following icons to draw your
attention to specific instructions or explanations.
Note
Provides clarifying or non-essential information on the current
topic.
Definition
Explains terms or acronyms that may be unfamiliar to many
readers. These terms are also included in the Glossary.
WARNING
Provides messages of high importance, including messages
relating to personal safety or system integrity.
Getting Support
Supplied by:
Helpdesk Number:
Website:
VDSL2 Router User’s Guide
9
2 Getting to know the device
Computer / System requirements
1. Pentium 200MHZ processor or above
2. Windows 98SE, Windows Me, Windows 2000, Windows
XP, Windows Vista, Windows 7 and Windows 8
3. 64MB of RAM or above
4. 25MB free disk space
Package Contents
For Annex-B VDSL2 Router
1. VDSL2 Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. 1 x Telephone Cable (RJ-11)
5. Ethernet Cable (RJ-45)
6. Power Adaptor
7. Annex-B Splitter (Optional, with an extra RJ-11
Telephone cable)
For Annex-A VDSL2 Router
1. VDSL2 Router
2. CD-ROM (Software & Manual)
3. Quick Installation Guide
4. 1 x Telephone Cable (RJ-11)
5. Ethernet Cable (RJ-45)
6. Power Adaptor
7. Annex-A Splitter (Optional, with an extra RJ-11
Telephone cable)
VDSL2 Router User’s Guide
10
Installation & Setup
Follow each STEP carefully and only go to the next step once you have complete the
previous STEP.
Connection of VDSL2 Router
If you have an ISDN telephone line
connect the modem router as shown below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to VDSL2
Router's LAN Port.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the
“LINE” port of the supplied splitter. Connect another RJ11 telephone cable to the
“MODEM” port of the splitter and connect the other end of this cable to the LINE port of
your VDSL2 Router.
(If there is no option Splitter, please connect the supplied RJ11
telephone cable from your home's telephone jack to the “LINE” port of your VDSL2
Router.)
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other
end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the VDSL2 Router and turn
the “ON/OFF SWITCH” switch of your VDSL2 Router on.
VDSL2 Router User’s Guide
11
If you have a PSTN telephone line (normal analog line) connect the router as shown
below:
1. Connect the supplied RJ45 Ethernet cable from your PC's Ethernet port to VDSL2
Router's LAN Port.
2. Connect the supplied RJ11 telephone cable from your home's telephone jack to the
“LINE” port of the supplied splitter. Connect the other supplied RJ11 telephone cable to
the “DSL” port of the splitter and connect the other end of this cable to the “LINE” port of
your VDSL2 Router. (If there is no option Splitter, please connect the supplied RJ11
telephone cable from your home's telephone jack to the “LINE” port of your VDSL2
Router.)
3. Connect a RJ11 telephone cable to the “PHONE” port of the splitter and connect the other
end to your telephone.
4. Connect the power adapter to the power inlet “POWER” of the VDSL2 Router and turn
the “ON/OFF SWITCH” switch of your VDSL2 Router on.
VDSL2 Router User’s Guide
12
LED meanings & activations
Your VDSL2 Router has indicator lights on the front side.
Please see below for an explanation of the function of each
indicator light.
Power indicator
Internet Active indicator
Ethernet Active indicator
ADSL Link indicator
Table1. LED function
Label Color On Flash Off
Red N/A N/A N/A
Green Ready Waiting for device ready Power Off
Green Ethernet Connected Transmit / Receive Data Ethernet
Disconnected
Green Connect to DSLAM Disconnect to DSLAM N/A
Green The device has a WAN IP
address from ISP
Transmit / Receive Data N/A
Red N/A N/A N/A
The icons appear on the products are for application indication
only.
The trademark or intellectual property is belonging to their
respective owners.
VDSL2 Router User’s Guide
13
Back Panel Connectors
Table 2 shows the function of each connector and switch of the device.
Table 2. Function / Description of Connectors
Connector Description
POWER
Connects to your VDSL2 Router 12Vdc power adaptor
SWITCH
Power Switch
LAN1~4
RJ-45 Jack (Ethernet Cable) connection to your PC, or HUB
LINE
Connects to your VDSL2 line – for VDSL2 Line input
RESET
Reset button. RESET the VDSL2 Router to its default settings.
Press this button for at least 5 full seconds to start to reset it to its default
settings.
Figure1. Rear View of the VDSL2 Router
VDSL2 Router User’s Guide
14
3 Computer configurations under different OS,
to obtain IP address automatically
Before starting the VDSL2 Router configuration, please kindly
configure the PC computer as below, to have automatic IP
address / DNS Server.
For Windows 98SE / ME / 2000 / XP
1. Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel,
double click on “Network Connections” to continue.
2. Single RIGHT click on “Local Area connection”, then click “Properties”.
VDSL2 Router User’s Guide
15
3. Double click on "Internet Protocol (TCP/ IP)".
4. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
5. Click "Show icon in notification area when connected" (see screen
image in 3. above) then Click on "OK" to complete the setup procedures.
VDSL2 Router User’s Guide
16
For Windows Vista-32/64
1. Click on “Start” -> “Control Panel” -> “View network status and tasks”.
2. In the Manage network connections, click on “Manage network
connections” to continue.
VDSL2 Router User’s Guide
17
3. Single RIGHT click on “Local Area connection", then click "Properties".
4. The screen will display the information “User Account Control” and click
“Continue” to continue.
5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
VDSL2 Router User’s Guide
18
6. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
For Windows 7-32/64
1. Click on “Start” -> “Control Panel” (in Category View) -> “View network
status and tasks”.
VDSL2 Router User’s Guide
19
2. In the Control Panel Home, click on “Change adapter settings” to
continue.
3. Single RIGHT click on “Local Area connection", then click "Properties".
VDSL2 Router User’s Guide
20
4. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
VDSL2 Router User’s Guide
21
5. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
VDSL2 Router User’s Guide
22
For Windows 8-32/64
1. Move the mouse or tap to the upper right corner and click on “Settings”.
VDSL2 Router User’s Guide
23
2. Click on “Control Panel”.
VDSL2 Router User’s Guide
24
3. Click on “View network status and tasks”.
4. In the Control Panel Home, click on “Change adapter settings” to
continue.
VDSL2 Router User’s Guide
25
5. Single RIGHT click on “Ethernet", then click "Properties".
6. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
VDSL2 Router User’s Guide
26
7. Check "Obtain an IP address automatically" and “Obtain DNS server
address automatically” then click on "OK" to continue.
VDSL2 Router User’s Guide
27
4 Utility CD execution
Connecting the Hardware
This section describes how to connect the device to the wall
phone port, the power outlet and your computer(s) or network.
1. Before you begin to execute utility CD Installations, please
ensure the VDSL2 Router has been powered on.
2. Please insert the supplied CD into your CD-ROM drive.
3. The CD should auto-start, displaying the window shown in 4.
below. If your CD does not start automatically, go to
Windows Explorer, Select your CD drive and double click
"Autorun.exe".
4. To configure the Internet configuration, please click the "
Advanced Configuration ".
VDSL2 Router User’s Guide
28
5. Please enter the User Name: admin and Password: admin
and then click on OK button.
VDSL WAN Configuration (VDSL Line User)
1. From the left-hand menu, click on WAN -> PTM WAN.
VDSL2 Router User’s Guide
29
Examples
8-1. PPPoE
From the Channel Mode drop-down list, select PPPoE setting.
Enable Enable NAPT
From the Connection Type drop-down list, select
INTERNET_TR069 setting.
From the IP Protocol drop-down list, select the IP Protocol, IPv4,
IPv6 or dual stacks IPv4/IPv6 determined by your ISP.
Enter User Name/Password provided by your ISP. Type them in
the relevant boxes.
Configure IPv6 WAN setting determined by your ISP if any.
If you are happy with your settings, click Apply Changes
VDSL2 Router User’s Guide
30
Loading...
