Eltek Flatpack MCU User Manual

Download

351300.013

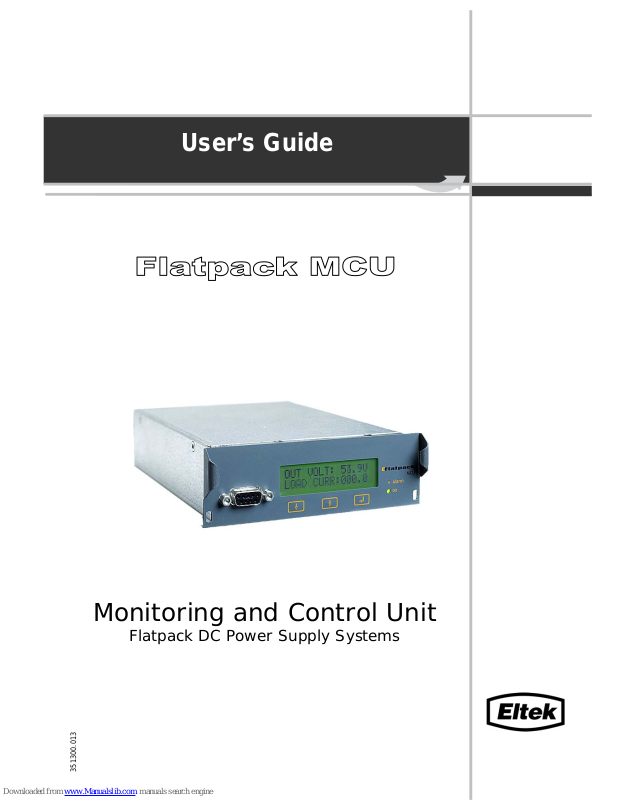

User’s Guide

Monitoring and Control Unit

Flatpack DC Power Supply Systems

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Information in this document is subject to change without notice and does not represent a commitment on the part of Eltek Energy.

No part of this document may be reproduced or transmitted in any form or by any means — electronic or mechanical, including photocopying and recording — for any purpose without the explicit written permission of Eltek Energy.

Certificate no: 900005E

Certificate no: 900005Q

351300.013 Issue 8, 2006 Jul Published 2006-10-10 Mfm

bfc 06/2004

Contents

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Table of Contents

1 INTRODUCTION ....................................................................................................................................................6

1.1.1 Applications................................................................................................................................................6

2 EQUIPMENT FEATURES .....................................................................................................................................7

2.1.1 Alarms.........................................................................................................................................................7

2.1.2 Communication protocols........................................................................................................................... 8

2.1.3 WinPower Silver communication software.................................................................................................8

2.2 F

IRMWARE UPGRADE OF THE

MCU

CONTROLLER

...............................................................................................9

3 LOCAL OPERATION OF THE FLATPACK MCU..........................................................................................10

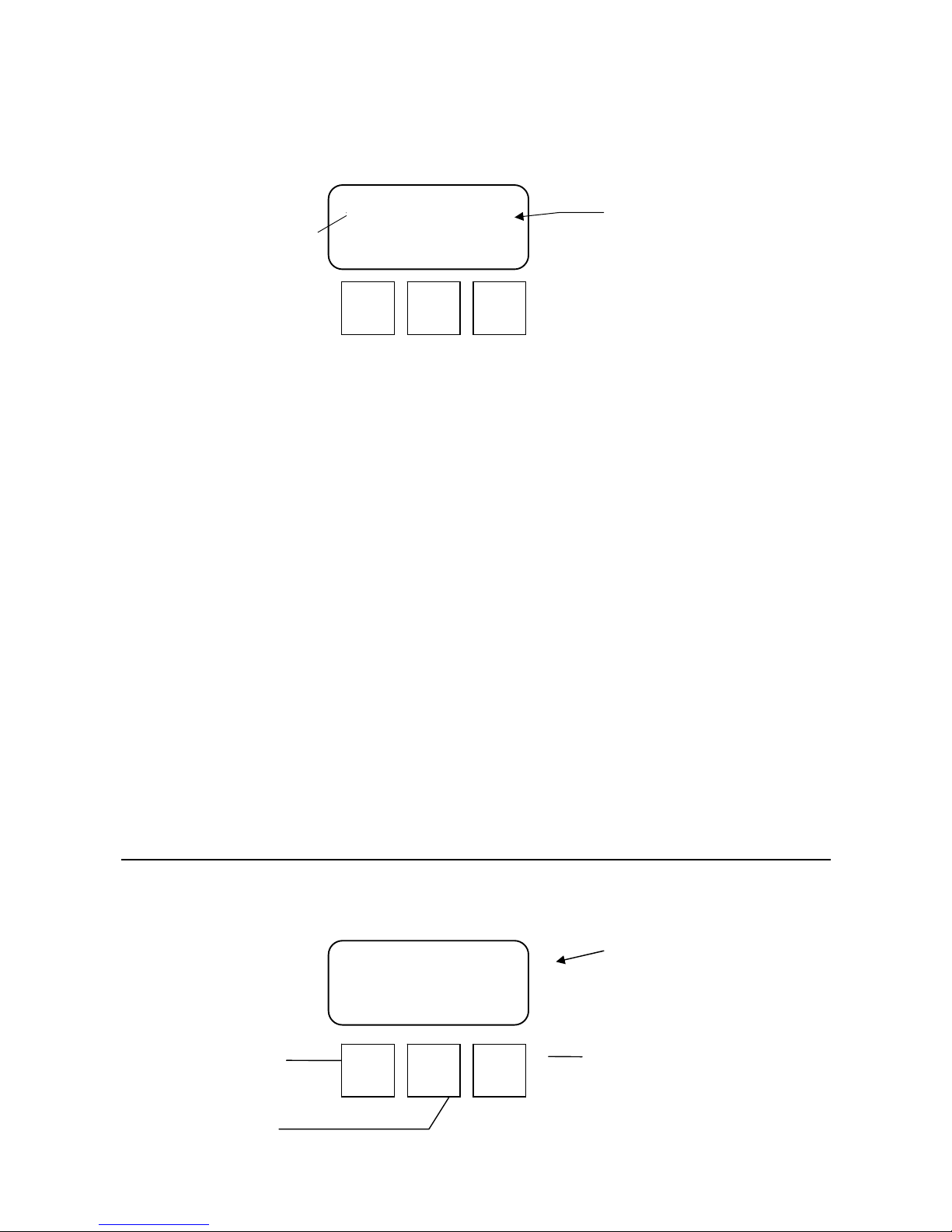

3.1 T

HE FRONT PANEL

............................................................................................................................................10

3.1.1 The front Display......................................................................................................................................11

3.1.2 Status Mode ..............................................................................................................................................11

3.1.3 Menu Mode............................................................................................................................................... 11

3.2 C

ONTROL KEYS

.................................................................................................................................................11

3.2.1 Hierarchy of Menus..................................................................................................................................12

3.2.2 Menu Options............................................................................................................................................13

3.3 U

SER OPTIONS AND SERVICE OPTIONS

..............................................................................................................13

3.3.1 Available User Options.............................................................................................................................13

3.3.2 System

ON / OFF

(System On/Off) ..............................................................................................................13

3.3.3 Resetting Alarms (Alarm Reset)................................................................................................................13

3.3.4 Display Important System Voltages (Voltage Info)...................................................................................14

3.3.5 Display Alarm Messages (Display messages)...........................................................................................14

3.3.6 Display of System’s Software Number (Sw Info).................................................................................. .... 14

3.3.7 Available Service Options......................................................................................................................... 14

3.3.8 Adjustment of Important System Voltages (VoltAdsjustment)................................................................... 15

3.3.9 Output Voltage Calibration (Calibration)................................................................................................ 15

3.3.10 Change of Service Options Password (ChangePassword)....................................................................... 15

3.3.11 Changing Boost-Charging Duration (SetBoostTime)...............................................................................15

3.3.12 Start or Stop Boost Charging (Start/StopBoost).......................................................................................15

3.3.13 Auto boost configuration (Auto Boost Cfg)...............................................................................................16

3.3.14 Battery Test Setup (Batt. Test Setup) ........................................................................................................16

3.3.15 Battery Test Start/Stop (Start/Stop Test)................................................................................................... 16

3.3.16 Battery Charge current limitation (Charge Curr Lim).............................................................................16

3.3.17 Battery Setup (Battery Setup)....................................................................................................................17

3.3.18 Capacity Alarm Configuration (Capacity Al.Cfg.)................................................................................... 17

3.3.19 Selection of Type of Output Voltage Control (OutputControl).................................................................17

3.3.20 Change date and time (Change Date/Time)..............................................................................................18

3.3.21 Test Operation of Alarm Relays (Relay Test) ...........................................................................................18

3.3.22 Available Communication Options........................................................................................................... 18

3.3.23 Adjustment of Communication Protocol (Protocol)..................................................................................18

3.3.24 Baud rate adjustment (Set baud)...............................................................................................................19

3.3.25 Modem Sense Selection (MODEM sense).................................................................................................19

4 OPERATING FROM A PERSONAL COMPUTER..........................................................................................20

4.1 I

NSTALLATION OF WINPOWER SILVER SOFTWARE

..............................................................................................20

4.2 I

NSTALLATION OF THE PC AND THE MODEM

.....................................................................................................20

4.2.1 Local Installation ......................................................................................................................................20

4.2.2 RS232C Cable pin-outs – Local Connection ............................................................................................21

4.2.2.1 Two 9-pin D-sub contacts.....................................................................................................................21

4.2.2.2 9 and 25-pin D-sub plugs......................................................................................................................21

4.2.3 Remote Installation...................................................................................................................................22

4.2.4 RS-232 Cable pinouts – Remote Connection............................................................................................ 23

4.2.4.1 Cable from Flatpack MCU to Modem.................................................................................................. 23

4.2.4.2 Cable from modem to PC .....................................................................................................................23

4.2.5 Modem Configuration............................................................................................................................... 24

4.2.5.1 Setting up the PRS (remote) modem.....................................................................................................24

4.2.5.2 Setting up the PC (local) modem..........................................................................................................24

4.3 L

OGIN TO WINPOWER SILVER

...........................................................................................................................25

Contents

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.4

SING SITE MANAGER

......................................................................................................................................26

4.5 D

ESCRIPTION OF THE SCREEN INTERFACE

.........................................................................................................27

4.6 M

AIN MENU

......................................................................................................................................................28

4.7 O

THER MAIN MENU OPTIONS

............................................................................................................................30

4.7.1 Log Values dialog.....................................................................................................................................30

4.7.2 Symmetry Monitor.....................................................................................................................................31

4.8 A

LARM STATUS SCREEN

...................................................................................................................................32

4.8.1 Alarms Requiring Manual Resetting.........................................................................................................32

4.9 G

ENERAL CONFIGURATION

...............................................................................................................................33

4.9.1 Set Levels - Setting alarm limits................................................................................................................33

4.9.2 Alarm Setup/Display.................................................................................................................................35

4.9.3 Configurable Inputs.................................................................................................................................. 37

4.9.4 Set Time ....................................................................................................................................................39

4.9.5 Site Info.....................................................................................................................................................40

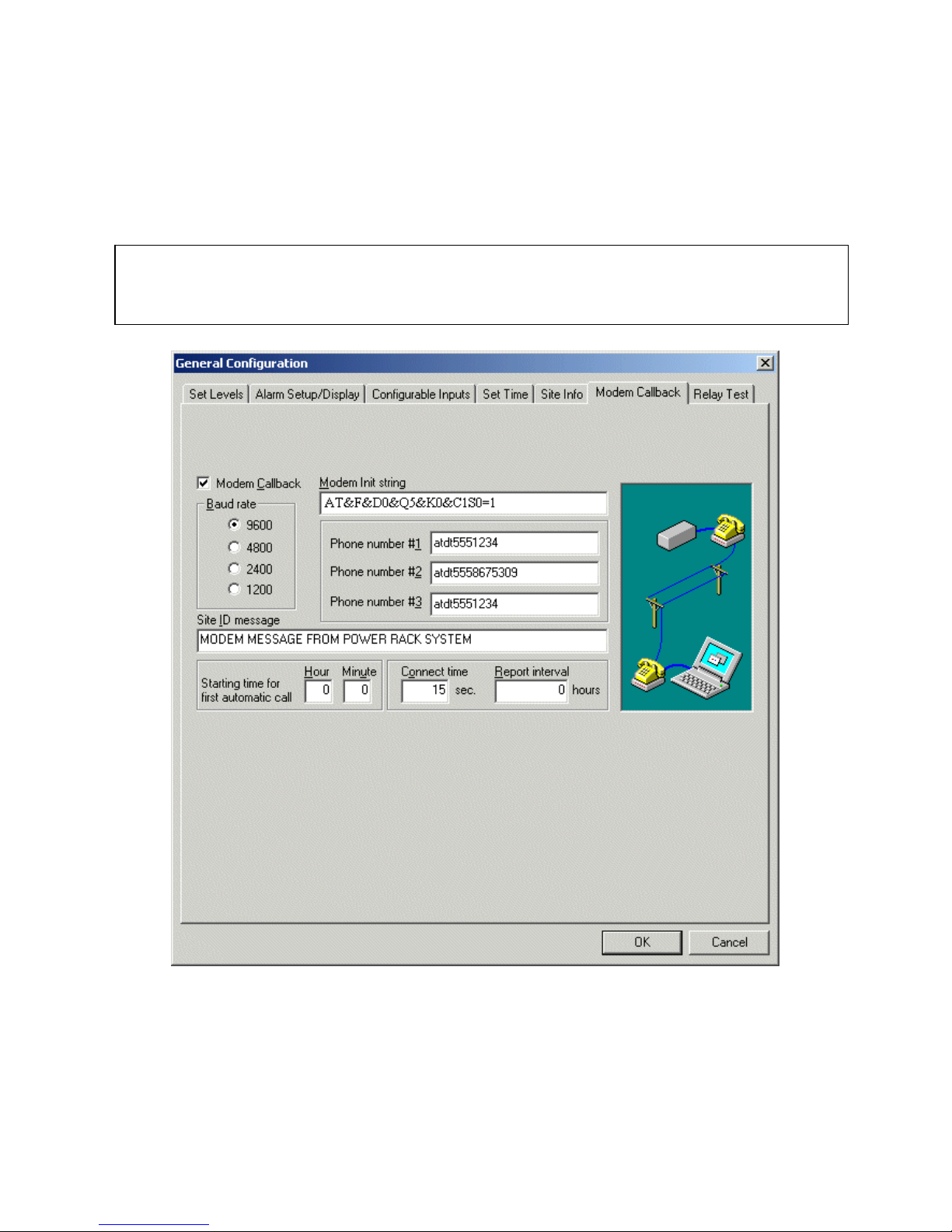

4.9.6 Modem Callback.......................................................................................................................................41

4.9.6.1 Alarm programming..............................................................................................................................42

4.9.6.2 Calling up the DC Rectifier system......................................................................................................42

4.9.6.3 Modem Installation and Configuration.................................................................................................43

4.9.6.4 Using Modem Callback........................................................................................................................44

4.9.6.5 Customising the displayed event colors................................................................................................44

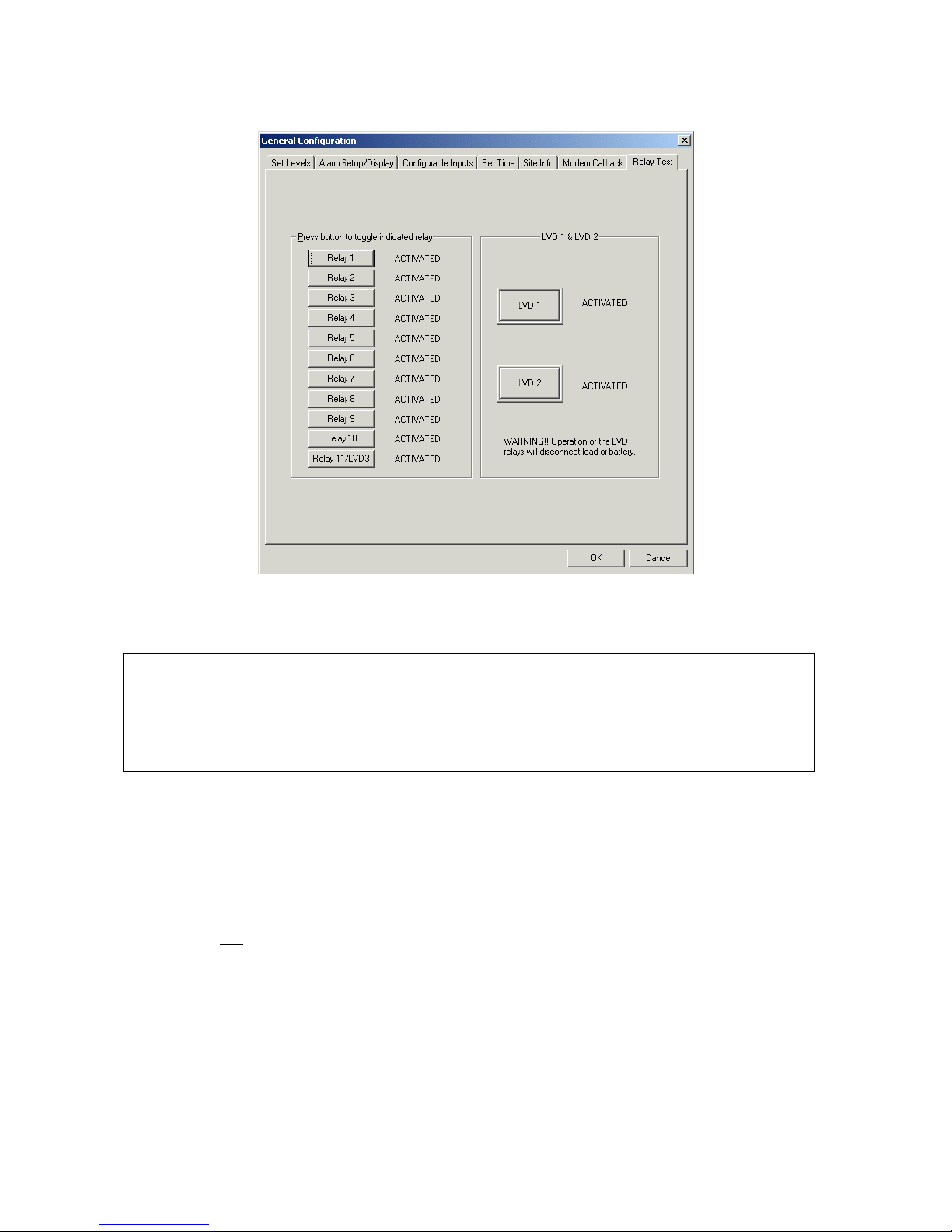

4.9.7 Relay Test..................................................................................................................................................45

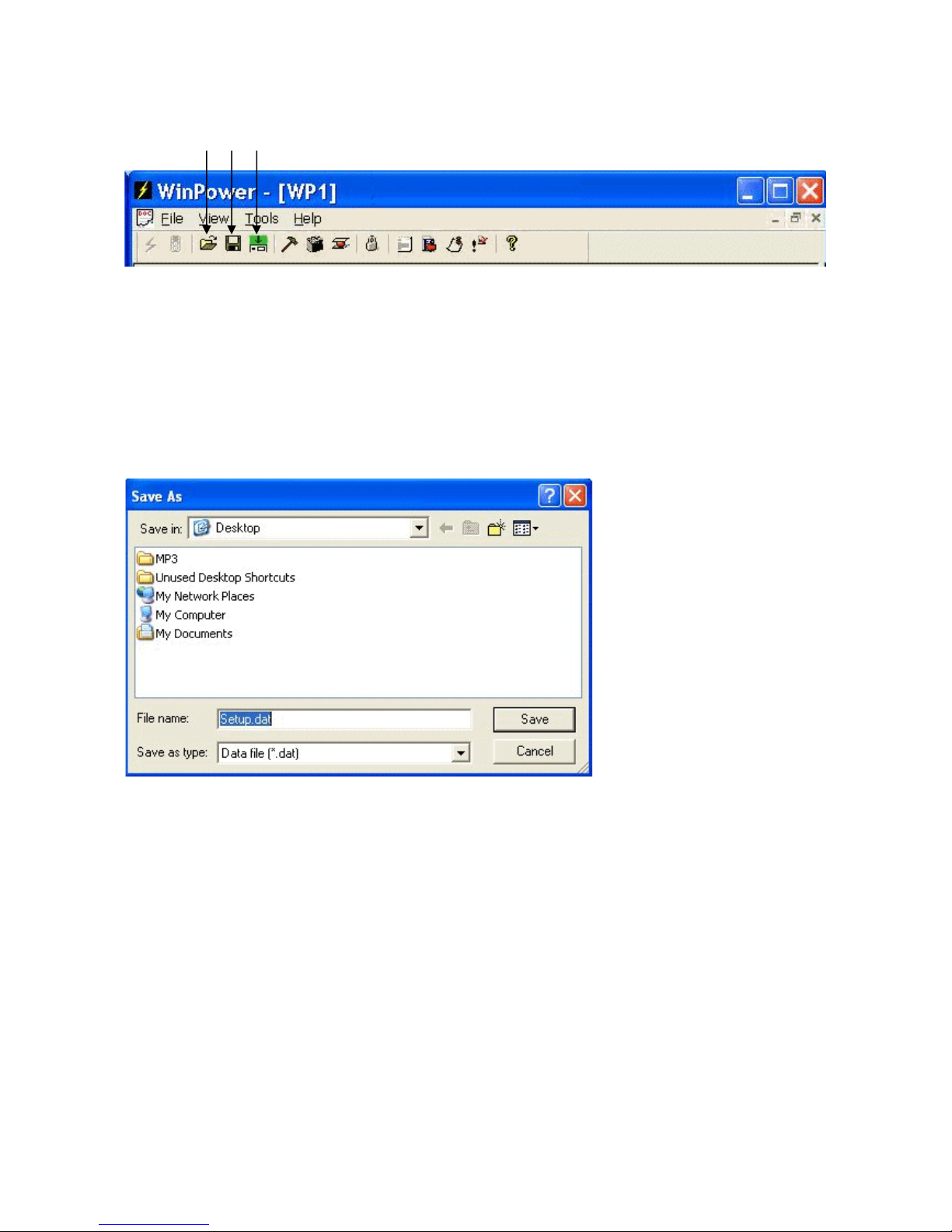

4.9.8 Save- Load- Send Setup ............................................................................................................................46

4.9.8.1 Manner of operation..............................................................................................................................46

4.10 B

ATTERY CONFIGURATION

................................................................................................................................48

4.10.1 Battery Setup.............................................................................................................................................48

4.10.1.1 Battery Name.................................................................................................................................... 49

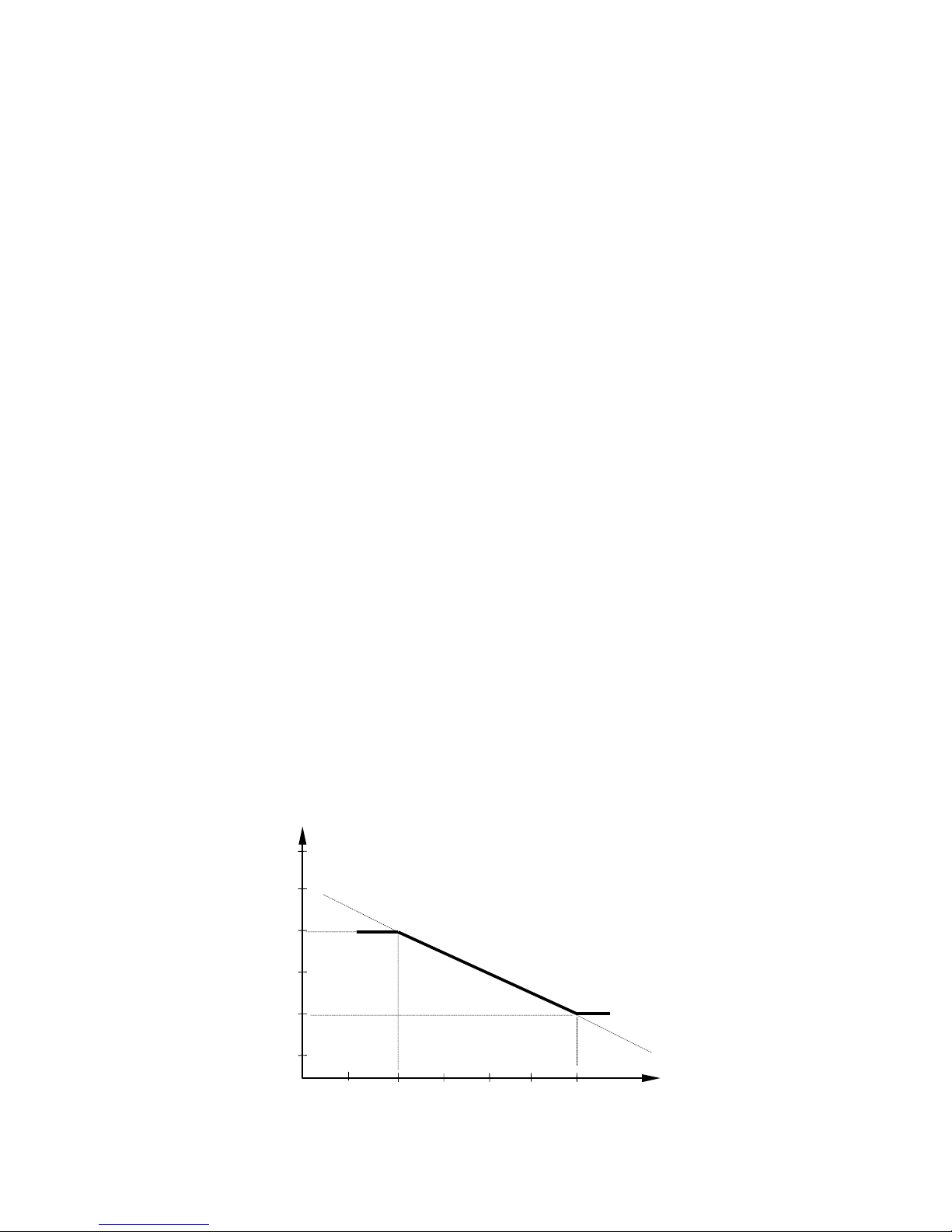

4.10.1.2 Temperature Compensation..............................................................................................................49

4.10.1.3 Battery Setup.....................................................................................................................................50

4.10.1.4 Resync system...................................................................................................................................50

4.10.2 Batt. Test Setup......................................................................................................................................... 50

4.10.2.1 Functional description – Standard Battery Test................................................................................51

4.10.2.2 Standard Test – Termination Criteria................................................................................................52

4.10.2.3 Standard/Simplified test – Start Methods .........................................................................................52

4.10.2.4 Standard/Simplified test – Interval Setup .........................................................................................52

4.10.2.5 Functional description - Simplified Battery Test..............................................................................52

4.10.2.6 Simplified Test – Termination Criteria ............................................................................................. 52

4.10.2.7 Manual Test control..........................................................................................................................52

4.10.3 Battery boost - Automatic boost charging ................................................................................................53

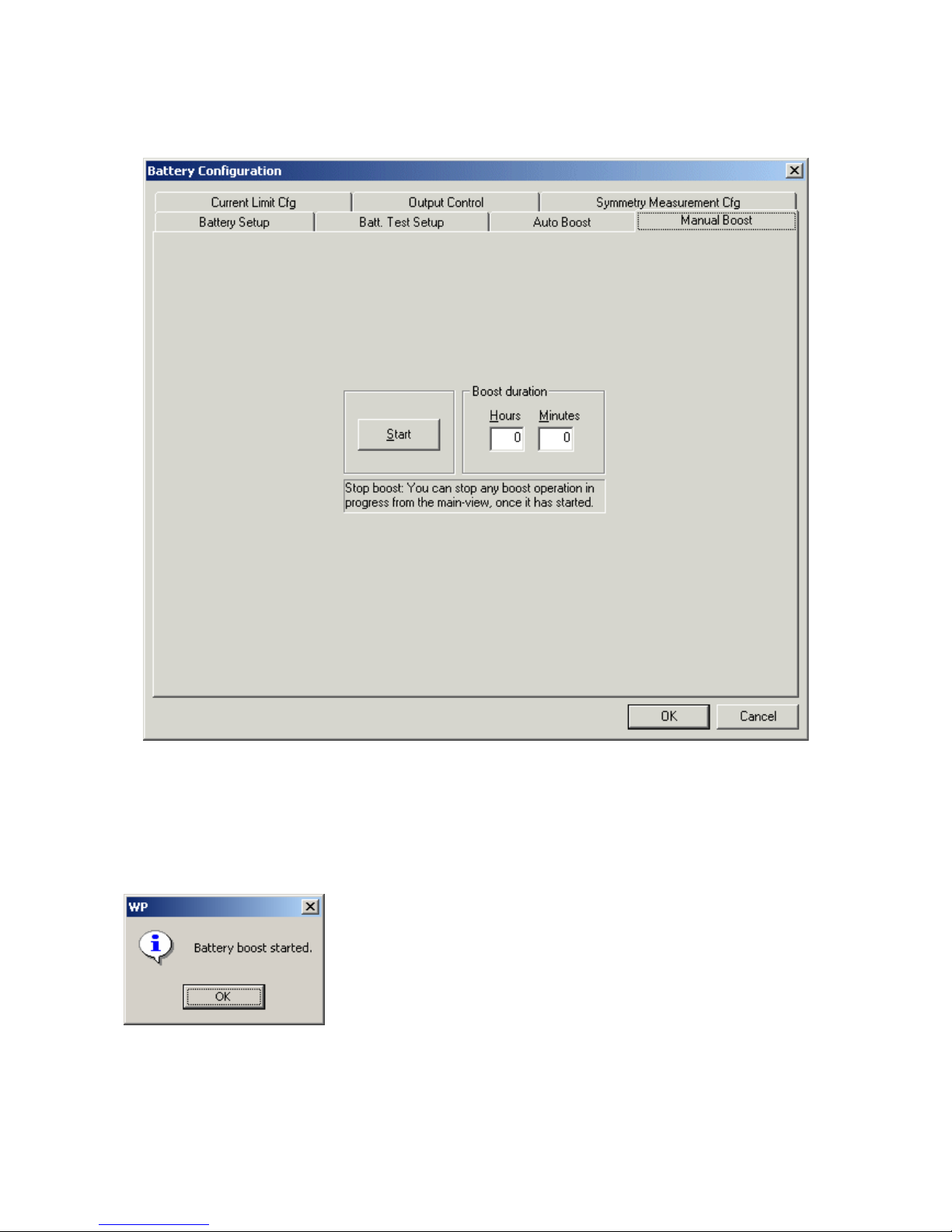

4.10.4 Battery Boost - Manual Boost...................................................................................................................54

4.10.5 Current Limit Cfg......................................................................................................................................56

4.10.6 Output Control.......................................................................................................................................... 57

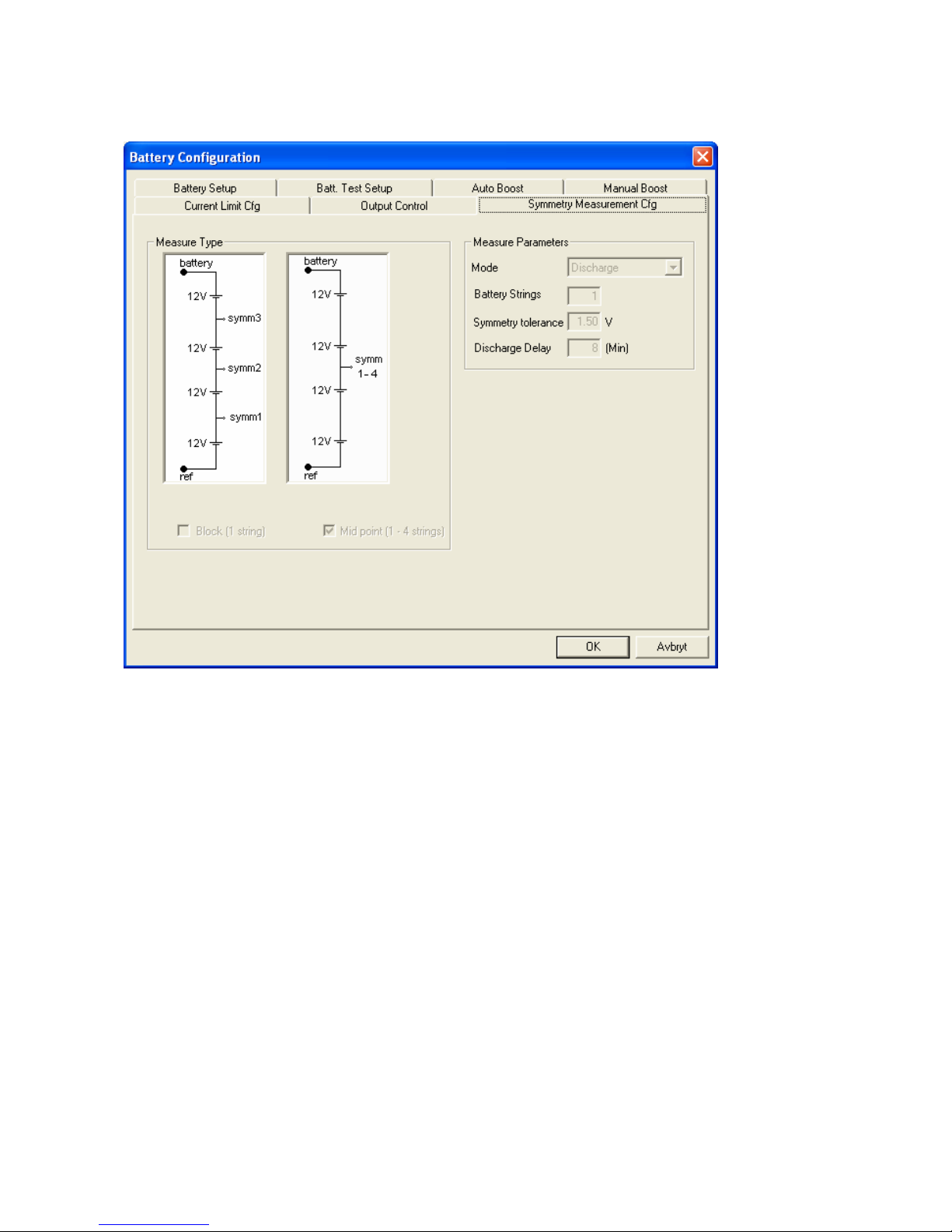

4.10.7 Symmetry Measurement Configuration ....................................................................................................58

4.11 I

NSTALLATION SETTINGS

...................................................................................................................................59

4.11.1 System Configuration................................................................................................................................60

4.11.2 System Calibration....................................................................................................................................61

4.11.2.1 Calibrating the temperature...............................................................................................................62

4.11.2.2 Calibrating the rectifier current.........................................................................................................62

4.11.2.3 Internal System Current and Shunt Calibration Considerations........................................................63

4.11.2.4 Calibrating the output voltage........................................................................................................... 63

4.11.2.5 Calibrating the symmetry voltage.....................................................................................................64

4.11.2.6 Calibrating the battery current..........................................................................................................64

4.11.3 Exit Installation Settings...........................................................................................................................65

4.12 P

ASSWORDS

.......................................................................................................................................................66

4.13 A

LARM LOG

......................................................................................................................................................66

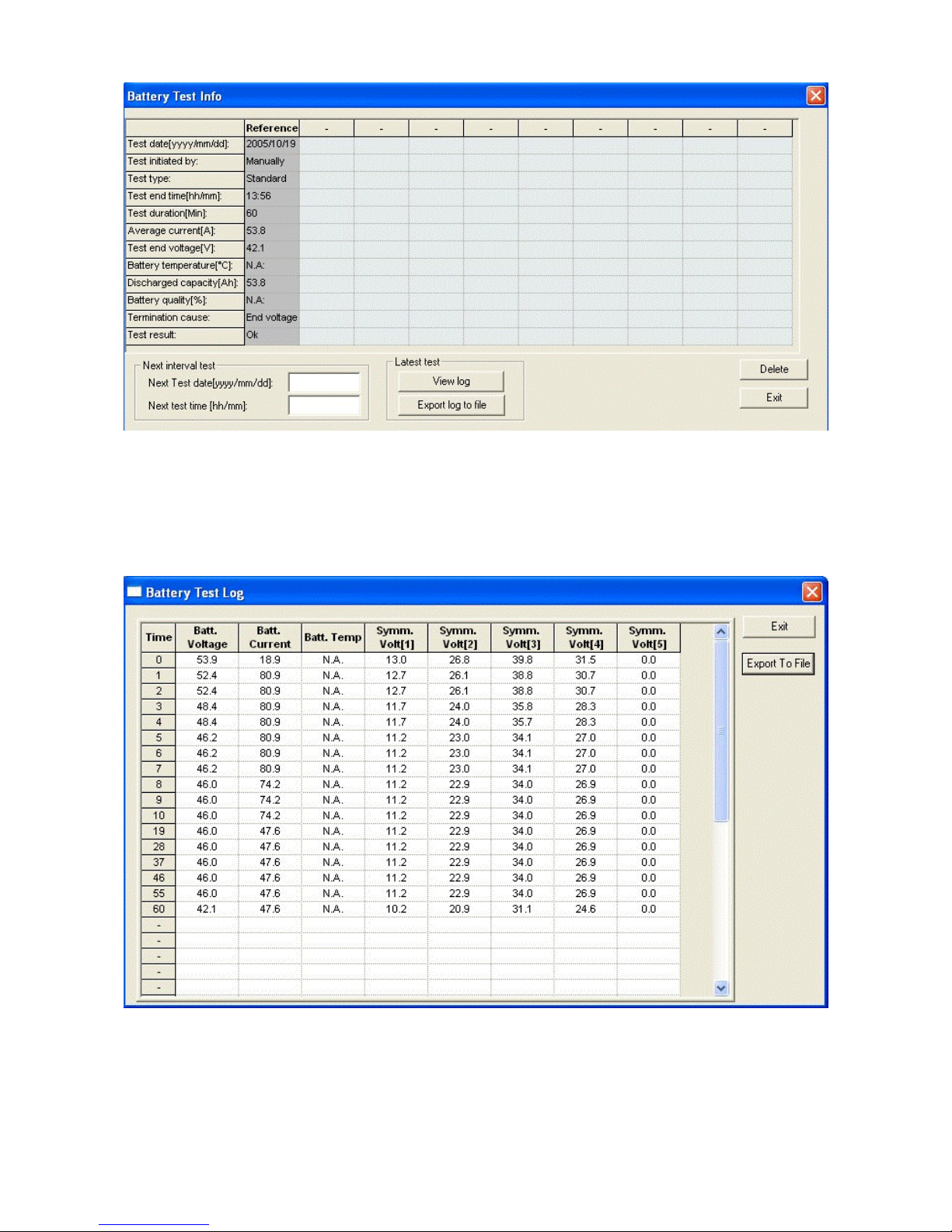

4.14 B

ATTERY TEST INFO

..........................................................................................................................................67

4.14.1 Battery Test Log........................................................................................................................................68

4.15 C

LEAR EVENT LOG

............................................................................................................................................69

4.16 R

ESYNCH SYSTEM

.............................................................................................................................................69

5 RANGE OF SETTINGS AND DEFAULT VALUES.......................................................................................... 69

Contents

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

1 Introduction

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

1 Introduction

Eltek Energy is a world leader in the development of new power supply systems, designed to meet the rapid growth within the field of telecommunication, as well as the increasingly stringent reliability requirements.

With the introduction of microelectronics in electronic equipment, energy distribution and telecommunication and data systems technology require a guaranteed, uninterruptible power supply and to meet this demand, Eltek Energy make indepth investments in all types of scientific research, technical development, and experimental mathematical modelling of thermal characteristics of components and systems.

While securing ultimate reliability, we innovate new technology and topology that will reduce the size of converters and extend the operating range, thereby increasing efficiency and reducing costs. Eltek Energy invests between five and ten per cent of its turnover in research and development. With more than fifty highly qualified engineers and research scientists, working with the most advanced development platforms available, we are able to offer tailor-made solutions - a key factor for penetrating new markets.

A modern power supply system must fulfil various international standards and regulations while, at the same time, meeting market requirements. Increased awareness of Electromagnetic Compatibility (EMC), especially in Europe, has resulted in Eltek’s investment in an EMC test laboratory. This laboratory not only ensures that products co mply with relevant standards, it is also utilised throughout product development. The EMC test laboratory forms part of Eltek’s extensive in-house test facility.

Electronic equipment for data and telecommunications require supply voltages generated from the mains, as well as from battery-assisted DC voltage. Intensive development work has produced power supply systems designed to meet both current and future power requirements, and the development of control and alarm modules make our power supply systems a market leader. Programmed functions monitor operating conditions, load and battery. Should problems be detected, the operator will be notified immediately, either via the telephone network, or via Ethernet. Shutdowns can thus be avoided for critical applications.

Eltek’s software expertise is constantly expanding remote communication capabilities of systems, using standard network protocols. Eltek Energy AS accepts no responsibility for any damage or injury to the system, site or personnel caused by drawings, instructions or procedures not prepared by Eltek Energy.

1.1.1 Applications

Flatpack MCU supports pComm binary master-slave communication, and COMLI - a serial master-slave protocol used to interface Flatpack MCU with a modem or PLC. The user interface is called WinPower Silver and features extended functionality and an environment familiar to Windows users.

The Flatpack MCU comprises advanced features such as:

• Connection to rectifier systems where Flatpack rectifiers are installed.

• The entire rectifier system is controlled by the microprocessor-based MCU with easy and secure monitoring,

remote control and system interconnection.

• Controls, monitors and regulates each rectifier module

• Provides battery / system surveillance to protect and optimise battery lifetime.

• Operation of the rectifier system from the front keypad on the alarm module, or from a PC, using a series of menus

and sub-menus.

• The monitoring of other equipment on site via digital inputs. Each digital input can be given a user defined alarm

name (programmable) and may be set to activate any alarm relay(s). If the input is activated, the relay(s) will activate and the alarm name will appear in the front panel display, and on the PC screen (if WinPower Silver is used).

Also, the alarm module incorporates several other features, as specified in the chapter "Equipment Features”, page 7.

2 Equipment Features

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

2 Equipment Features

The Flatpack MCU alarm module may be connected to rectifier systems where Flatpack rectifiers are installed. With Flatpack MCU installed in the rectifier system, the MCU`s front keypads and display can be used to monitor, interrogate and operate the system. Flatpack MCU provide connectivity for remote monitoring and control, either via WinPower Silver communication software, WebPower web browser interface, or via an SNMP-agent to an NMS.

Flatpack MCU controls and monitors each rectifier module and provides battery / system surveillance to protect and optimise the battery lifetime.

The Flatpack MCU incorporates the following features:

• RS232 serial interface for remote control from a local PC — or via a modem (up to 9600 baud)

• Dot matrix display with background illumination (2 lines x 16 characters)

• Menu-driven operation enables user-friendly system operation via the front keypads and LCD

• Keypad for local operation comprising 3 keys on the front panel of the alarm module

• Central Control of the entire system

• Current and Voltage Output Monitoring

• Up to five configurable digital inputs for monitoring of external equipment (generator, air-

conditioning, etc).

• Voltage level adjustment

• Temperature-compensated charging

• Manual or automatic boost-charging

• Battery testing (automatic and manual) Battery discharge tables are stored in memory

• Battery monitoring

• Three (3) low-voltage load and/or battery disconnects controlled by timer or voltage

• Automatic High Temperature Battery Disconnect (with user defined threshold)

• Storage of alarm messages in non-volatile memory

• Potential-free (dry contact) output relays.

• Test operation of relays. For testing of external alarm circuits (wiring and connections)

• Modem Callback

• Adjustable alarm limits

• Battery backed up Real Time Clock (RTC)

• The MCU main program can be upgraded via the D-sub plug on the modules front, using a PC

and the FWLoader application (Applies only for Part No. 242072.700 and newer)

• Save and load battery tables (for WinPower Silver v5.0 and newer)

• Load, save and send the configuration of the MCU (for WinPower Silver v5.0 and newer)

2.1.1 Alarms

The following are standard alarm trigger events and can be mapped to the available alarm relays.

• High Battery Alarm 1 (50.0 to 58.0 VDC)

• High Battery Alarm 2 (50.0 to 58.0 VDC)

• Low Battery Alarm 1 (32.0 to 54.0 VDC)

• Low Battery Alarm 2 (32.0 to 54.0 VDC)

• LVD 1 (for load or battery disconnect).

• LVD 2 (for load or battery disconnect).

• LVD 3 (for load or battery disconnect).

• Battery Fuse Alarm (battery breaker / fuse open)

• Rectifier Alarm (one rectifier failure)

• Critical Rectifier Alarm (more than one rectifier have failed)

• Mains Failure alarm (AC power to system is lost)

• Battery Test Alarm (Battery Test in progress / has occurred)

• Battery Pre-Alarm (Battery Test capacity result between 75% and 85% rated capacity)

2 Equipment

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

• Battery Fault Alarm (Battery Test capacity result below 75% rated capacity)

• Common Alarm (summation alarm)

• Load Fuse Alarm (load breaker / fuse open)

• Battery Symmetry Alarm (Battery midpoint voltage excursion beyond user-defined limit)

• High Temperature Alarm 1 (5°C to 80°C)

• High Temperature Alarm 2 (5°C to 80°C)

• Digital Input 1 through 5 (the alarm names for these inputs can be programmed)

• On Battery Alarm (>5A for 10s; <5A for 10s = clear alarm)

• Rectifier Capacity Alarm (user-defined threshold is exceeded. 1 to 100% of system capacity.)

• Low Temperature Alarm (-35°C to +20°C)

• Sensor Alarm (detects open / shorted sensors - reading is below –35°C or above +100° C)

• Service Warning

2.1.2 Communication protocols

The Flatpack MCU supports the following protocols:

• pComm binary master-slave communication protocol TE241241.000-B4

• COMLI - a serial master-slave protocol used to interface the Flatpack MCU with a modem or PLC. For

details of the protocol, see TE36862-B4 "COMLI communication protocol implemented in PRS systems".

2.1.3 WinPower Silver communication software

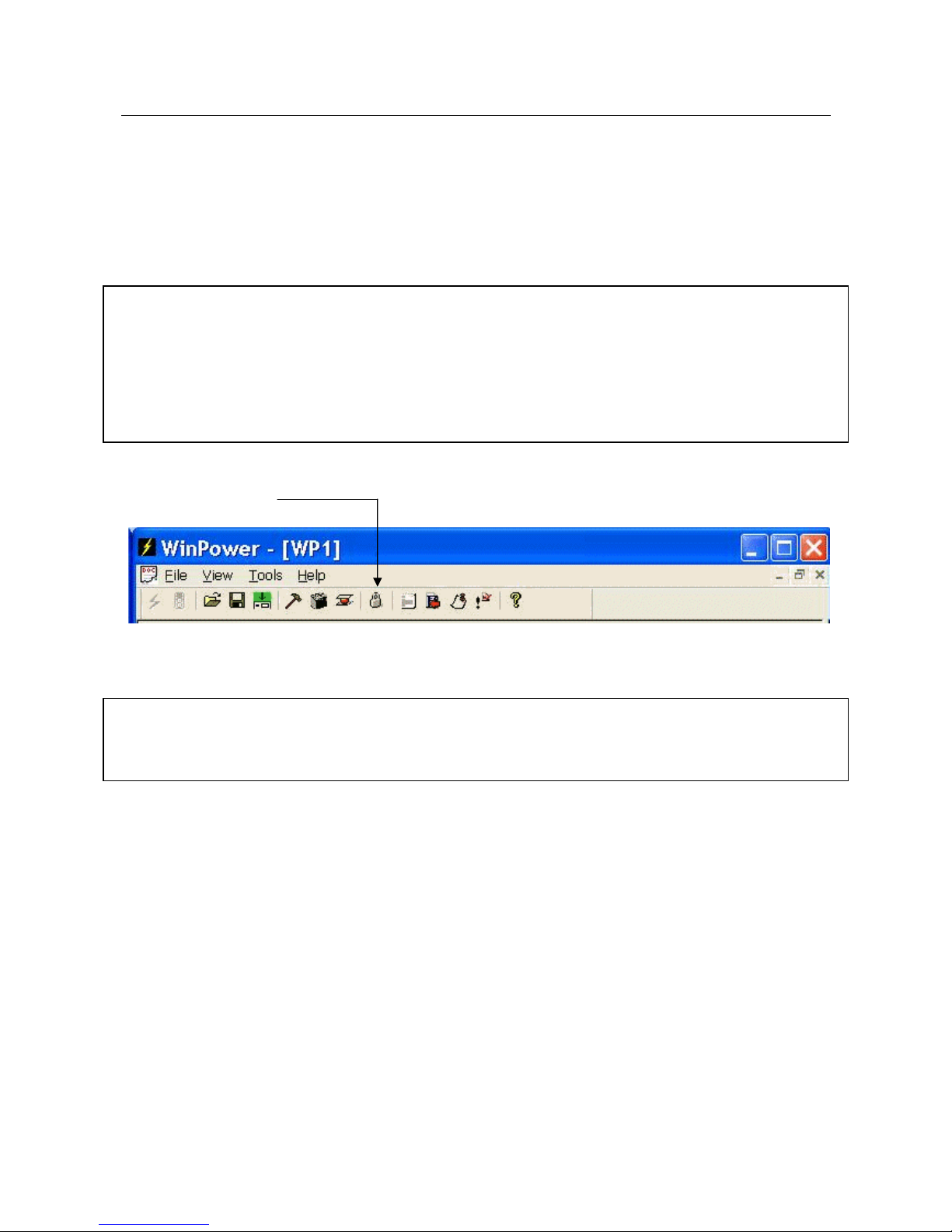

WinPower Silver is the main user interface for the Flatpack MCU, when communicating from a PC. WinPower Silver is a Windows based communication software that provides communication for local or

remote monitoring and control of the power system. Different access levels with individual passwords provide safety against unauthorized access and can be used to allow read-only access, or read/write access to service, maintenance and operating personnel. The WinPower Silver communication program operates on Windows NT, Windows 2000, Windows ME , Windows 98 and Windows XP.

2 Equipment Features

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

2.2 Firmware Upgrade of the MCU controller

You can use the FWLoader program1 running on a PC to upgrade the MCU controller’s firmware. To find your controller’s firmware version, refer to page “Display of System’s Software Number

(Sw Info)

”, page 14. The WinPower Silver program has to be

installed previously on the PC. Do following:

Figure 1 FWLoader dialog box

1. Connect a PC to the MCU

using RS232 cable, Part 100359

2. Start the FWLoader program on the PC;

On the FWLoader dialog box:

3. Select “MCU”, in Target Selection

4. Select “COMx”

in Communication Type. Refer to the WinPower Silver program to find the communication port the PC uses to communicate with the controller.

5. Click on the “Open Source File” button and, Select the file “*.hex”

that contains the firmware to upgrade the controller with

6. Click on the “Write to Target” button,

to load the firmware to the MCU controller

While the firmware is loaded to the MCU controller, the FWLoader program displays a progress bar, and the controller’s display shows “UPGRADING FW, PLEASE WAIT…”

When the firmware is completely loaded, the MCU controller will automatically restarts.

Only version 3.10 or above. You can get a copy of the FWLoader progam by contacting Eltek’s Service Dep.

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3 Local Operation of the Flatpack MCU

3.1 The Front Panel

The Flatpack MCU control panel consists of a three-button keypad, a graphic display, a 9-pin D-Sub female plug, a green LED (indicating that the system is ON) and a red LED (indicating that the system is in the alarm mode).

The rectifier system is controlled from the Flatpack MCU by means of display menus and sub-menus. The keypad on the front panel of the alarm module enables easy operation and retrieval of information. This chapter describes the menus accessed from the front panel of the Flatpack MCU.

Additional menus and service-related information are accessed by connecting a PC to the front panel of the Monitoring & Control Unit. Please Refer to chapter 4 Operating From a Personal Computer

Graphic display for local

system monitoring and

operation

Green LED ON/OFF indication

Keypads for local system operation

9-pin D-Sub female plug for remote

control from a PC o

modem/SNMP-agent connection.

Red LED Alarm indication

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.1.1 The front Display

The Flatpack MCU Alarm Module incorporates a dot matrix display (16x2) with background illumination.

The system display can be in either status mode or menu mode

3.1.2 Status Mode

When the keypad is not in operation, the display is in Status Mode. The following information is then scrolled through the display:

The upper line continuously displays the battery voltage. The lower line continuously scrolls the following information:

• Battery Current

• Load Current

• Active alarms

• Other messages

3.1.3 Menu Mode

When the keypad is in operation, the system display switches to Menu Mode and the following information is scrolled through the display:

• The upper line shows the name of the active menu or sub-menu.

• The lower line indicates which key to press.

If the keypad is not used for 30 seconds, the display will switch from Menu Mode to Status Mode.

3.2 Control Keys

Operation from the Alarm Module’s keypad is based on first using the arrow keys to find and highlight the actual menu option on the display and then selecting the option or parameter by pressing the «

↵

» key.

The upper line shows output voltage or menu names

«Down» arrow key

«Up» arrow key

«↵» key

(«Enter» key)

Display

Outp.Voltage : 52.8V Mains Alarm

↓

↑ ↵

Outp.Voltage : 52.8V Mains Alarm

↓

↑ ↵

The lower line shows information about currents, alarms or keys to press

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Firmware 402080.009 5v1

Service menu <ServiceOption>

Password= 0003

English German Norwegian

Language Polish

French Spanish

Comm

Protocol Trace *

Comli

9600 Set baud 1200

2400 4800

MODEM sense MODEM sense: ON MODEM sense: OFF

* “Trace” is for internal factory use

Level 2 Level 3

3.2.1 Hierarchy of Menus

Most menus in Flatpack MCU can be accessed when the Rectifier system is operated from the keypad of Flatpack MCU. The hierarchy structure described in this chapter gives an overview of these menu options.

MCU firmware 402080.009 version 5.1, as shown in this page, includes the “Language” option, enabling multilanguage menus in the MCU display

The menu options in MCU firmware 402040.003 version

5.1 and 402080.003 version 5.1 (ROSH English) are identical to the menu options shown in this page, except that the “Language” option (in Service menu, Installation password) is not included.

Level 1

Display in Status Mode

UserOption ServiceOption

User menu <UserOption>

System ON/OFF Æ Turn system ON/OF F * Alarm Reset Æ Alarm Reset NomVolt BoostVolt LowBatt1 LowBatt2 VoltageInfo HighBatt1 HighBatt2 LVD 1 LVD 2 LVD 3 DisplayMessages Æ Display messages Sw Info Æ SwInfo

* The ON/OFF function may be disabled in some

systems

Level 2 Level 3

Firmware 402080.009 5v1

Service menu <ServiceOption>

Password= 0000

NomVolt BoostVolt LowBatt1 LowBatt2

oltAdjustment HighBatt1

HighBatt2 LVD 1

LVD 2 LVD 3

Calibration VoltCal

SetDefaultCalib.

ChangePassword Æ Password SetBoostTime Æ BoostTime Start/StopBoost Æ StartBoost/StopBoost

Auto Boost Cfg. Enable/Disable Threshold

IntervalTest Date Time Test End Volt

Batt Test Setup Max Test Duration

Test Interval Test Delay Period

Start/Stop Test Æ Start Test/Stop Test Charge Curr Lim Enable/Disable

Max Charge Cur

Battery Setup Æ Number of banks Number of rectifiers Capacity Al.Cfg. Current pr rectifier Alarm limit

Temp.Comp OutputControl Voltage Control

Presat Rect.Volt

Change Date/Time Date

Time

Relay1 Relays 2…10

Relay Test Relay 11

LVD1 rela

LVD2 rela

LVD3 rela

Level 2 Level 3

Firmware 402080.009 5v1

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.2.2 Menu Options

This chapter gives a short description of the menu options that can be accessed from the front keypad. The description includes an overview of the keys to press to select the actual option.

3.3 User Options and Service Options

By dividing the available menu options into two levels — User Options and Service Options — it is easier to operate the system. Special not so frequently used options—such as calibration and adjustments — are included in the Service Options sub-menus.

While the User Options menus are available to all users, the Service Options sub-menus are passwordprotected and only authorised personnel have access to them.

For Hierarchy of Menus, see page 12

The Service Options password is factory-programmed to «0000» and «0003». We strongly recommend that you change the passwords right after system installation

3.3.1 Available User Options

The following User Options menus are available to all users via the Flatpack MCU front keypad:

• Switch the system ON / OFF (May be disabled)

• Reset alarms

• Display important system voltages

• Display alarm messages

• Display the system’s software and version numbers

3.3.2 System ON / OFF

(System On/Off)

In order to switch the system ON — or OFF— see Hierarchy of Menus, page 12.

3.3.3 Resetting Alarms

(Alarm Reset)

All alarms in the system are — as default— automatically reset, when the cause of the alarm is removed. Nevertheless, Flatpack MCU enables you to reset all active alarms that are configured as manually resettable alarms. Alarms still active after resetting will be reported again; refer to chapter 4.9.2 Alarm Setup/Display.

For Hierarchy of Menus, see page 12

NOTE: In MPSU systems or in systems without batteries, the ON/OFF function may have been disabled

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.3.4 Display Important System Voltages

(Voltage Info)

The User Option “VoltageInfo “ displays the following system voltages:

NomVolt Nominal output voltage BoostVolt Battery boost-charging voltage LowBatt 1 Voltage limit for Low Battery Alarm 1 LowBatt 2 Voltage limit for Low Battery Alarm 2 HighBatt1 Voltage limit for High Battery Alarm 1

HighBatt 2 Voltage limit for High Battery Alarm 2 LVD 1 Voltage limit for Low Voltage Disconnect unit 1 LVD 2 Voltage limit for Low Voltage Disconnect unit 2

LVD 3

Voltage limit for Low Voltage Disconnect unit 3

For Hierarchy of Menus, see page 12

3.3.5 Display Alarm Messages

(Display messages)

The Flatpack MCU stores all system events chronologically in a message buffer. This menu option is used to browse through the buffer’s alarm messages. The messages are presented on the

lower line of the display, one message at a time. The last message will be displayed first. For Hierarchy of Menus, see page 12

3.3.6 Display of System’s Software Number

(Sw Info)

This menu option displays the software number and version installed. The information is presented on the lower line of the display. For Hierarchy of Menus, see page 12

3.3.7 Available Service Options

Infrequently used special options, such as calibration and adjustments are classified under the Service Options submenus (password-protected access).

The following options are available:

• Adjustment of key system voltages

• Voltage calibration

• Change of Service Options password

• Setting of boost function duration

• Start or stop boost function

•

Auto boost configuration

• Battery test setup

• Battery test start/stop

• Battery charge current limitation

• Battery setup

• Capacity Alarm Configuration

• Selection of type of output control

•

Set date and time

•

Test

operation of alarm relays

3 Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.3.8 Adjustment of Important System Voltages

(VoltAdsjustment)

The menu option VoltAdjustment, in Service Options, enables adjustment of the following system voltages: NomVolt

Nominal output voltage

BoostVolt Battery boost-charging voltage

LowBatt 1 Voltage limit for Low Battery Alarm 1

LowBatt 2 Voltage limit for Low Battery Alarm 2

HighBatt 1 Voltage limit for High Battery Alarm 1

HighBatt 2 Voltage limit for High Battery Alarm 2

LVD 1 Voltage limit for disconnect unit 1

LVD 2 Voltage limit for disconnect unit 2

LVD 3

Voltage limit for disconnect unit 3

For Hierarchy of Menus, see page 12

3.3.9 Output Voltage Calibration

(Calibration)

This menu option, in the Service Options menus, enables calibration of the output voltage. To calibrate the output voltage, browse to the Calibration Menu, measure the bus voltage for the system (refer

to the Installation Guide), and key in the calibration value. To reset calibration values to default, browse to the Calibration Menu, and enter the option SetDefaultCalib. For Hierarchy of Menus, see page 12

3.3.10 Change of Service Options Password

(ChangePassword)

The access password to Service Options menus may be changed by using this menu option.

The Service Options password is factory programmed to «0000» and «0003». We strongly advise that this password is changed as soon as the system is installed.

The password must be a four digit format from «0000» to «9999» - otherwise access will be denied. To For Hierarchy of Menus, see page 12

3.3.11 Changing Boost-Charging Duration

(SetBoostTime)

This menu option, in the Service Options menus, enables adjustment of the boost charging time of the batteries.

For Hierarchy of Menus, see page 12

3.3.12 Start or Stop Boost Charging

(Start/StopBoost)

This menu option, in the Service Options menus, enables manual start or stop boost charging of batteries.

3Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Check that boost time and voltage are configured with the correct values.

For Hierarchy of Menus, see page 12

3.3.13 Auto boost configuration

(Auto Boost Cfg)

From auto boost configuration menu the operator can set the following auto boost parameters

Enable/Disable autoboost: Autoboost will only start if this option is enabled

Auto boost threshold: The auto boost will only start if the discharge of the batteries (Ah) during mains failure or

battery test has been larger than this value. The auto boost threshold can be set from 0Ah to 1000 Ah. If the threshold is set to 0, no boost will start.

In the LCD display, the message “AUTO BOOST” will tell the user that auto boost is in progress. For Hierarchy of Menus, see page 12

3.3.14 Battery Test Setup

(Batt. Test Setup)

A battery test can be run to verify the quality of the batteries. In this menu option the criteria for battery test can be configured.

The following options are possible using the Battery Test Setup

Interval test Date/Time:Start time for interval battery test (YYMMDD HHMM) Test end voltage:When the system voltage reaches this level the test will be terminated (V/cell) Max test duration: Maximum duration for the battery test (min) Test interval: The period between interval tests Test delay: Minimum time between a test/mains fail and the next interval test

In the LCD display, the message “Battery test” will tell the user that a battery test is in progress. For Hierarchy of Menus, see page 12

3.3.15 Battery Test Start/Stop

(Start/Stop Test)

Having defined the test parameters in the Battery Test Setup menu the following procedure is used to initiate a test.

The test may be manually stopped at any time For Hierarchy of Menus, see page 12

3.3.16 Battery Charge current limitation

(Charge Curr Lim)

In this menu the following parameters can be set:

Enable/Disable charge current limitation: The battery charge current will be limited if this function is enabled.

Maximum charge current: The output voltage is controlled in order to keep the current below this limit.

Temperature or regulated voltage mode must have been chosen for this function to work For Hierarchy of Menus, see page 12

3Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

NOTE: Other Max. Current per Rectifier values may be used, for example, a lower figure may be appropriate where constant high ambient operating temperature results in rectifier output power derating.

NOTE: Any rectifiers installed as cold or hot standby units do not contribute to the total available current and are not to be included in the total Rectifiers Installed.

NOTE: Be sure to update the Rectifiers Installed field if the system configuration is changed due to an increase or decrease in the number of installed and operational rectifiers.

3.3.17 Battery Setup

(Battery Setup)

This menu option allows the user to define the number of battery modules (battery banks) in the system. For Hierarchy of Menus, see page 12

3.3.18 Capacity Alarm Configuration

(Capacity Al.Cfg.)

This menu option, enables entering the number of Rectifiers Installed, Max Current per Rectifier and Alarm limit.

The Rectifiers Installed and Max Current per Rectifier entries are used by the Capacity Alarm feature and must be accurately defined. The Max Current per Rectifier entry should be set to “49”, “30” and “24” for the 24V, 48V, and 60V Flatpack 1500 rectifiers respectively. Set to “36” for the Flatpack 1800 rectifiers and “14” for the Flatpack 700 rectifiers.

3.3.19 Selection of Type of Output Voltage Control

(OutputControl)

This menu option, in the Service Options menus, enables selection of the type of control on the output voltage. The output voltage can be controlled in three different ways:

Preset Rect.Volt

The output voltage is not controlled by the Flatpack MCU, but by the rectifier module — factory preset (refer to the rectifier manual).

Temp.Comp.

The output voltage is temperature- compensated (as a function of temperature and type of batteries).

Voltage Control

The output voltage is controlled by the alarm module. For Hierarchy of Menus, see page 12

3Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.3.20 Change date and time

(Change Date/Time)

This menu option, in the Service Options menus, allows the date and time in Flatpack MCU to be changed. The Date and time are used for different purposes:

Alarm /Message Log

Indicates when an alarm or event occurred in the system.

Automatic Battery Test

A battery test can be set to automatically start at any given date and time. Further tests can be scheduled in intervals after the first test.

Modem Callback

The system can be set to initiate calls via a modem for remote communication at any given date and time. Further calls can be scheduled in intervals after the first test.

For Hierarchy of Menus, see page 12

3.3.21 Test Operation of Alarm Relays

(Relay Test)

This facility is provided to test external equipment connected to the system’s alarm relay outputs, it is used to operate the alarm relays and, if necessary the Low Voltage Disconnect contactors (LVD1, LVD2, LVD3).

Note that testing the LVD contactor(s) will disconnect either the batteries or the non-priority load(s), depending on the type LVD tested. The rectifiers must be installed and switched ON, in order to operate the LVD contactors.

On exiting the RelayTest menu option, the Flatpack MCU will automatically reset the relays to their normal position.

For Hierarchy of Menus, see page 12

3.3.22 Available Communication Options

The following options are available (Installation password – protected)

3.3.23 Adjustment of Communication Protocol

(Protocol)

Options:

Pcomm: for Winpower Silver, WebPower and modem communication Comli: Comli protocol

Trace: VT-100 protocol for internal hardware testing. For Hierarchy of Menus, see page 12

NOTE: MCU controllers incorporate a

battery-backed real time clock (RTC). Non ROHS compliant controllers with hardware versions lower that 10, have no RTC function implemented, and will not maintain the date and time settings if the controllers loose power.

3Local Operation of the Flatpack MCU

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

3.3.24 Baud rate adjustment

(Set baud)

Options:

1200, 2400, 4800 and 9600 baud

For Hierarchy of Menus, see page 12

3.3.25 Modem Sense Selection

(MODEM sense)

Options:

-Modem Sense ON

-Modem Sense OFF If the Modem Sense is set to OFF, the DTR line will be ignored. This can be chosen when the Flatpack MCU is connected directly to a PC (Winpower Silver/Comli

equipment) To be able to use a modem with the Flatpack MCU the modem sense must be ON

In order to use certain other devices with the Flatpack MCU, modem sense must be OFF (example, Eltek’s WebPower adapter).

If not using a modem with Flatpack MCU, it is recommended that modem sense be set to OFF. For Hierarchy of Menus, see page 12

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4 Operating From a Personal Computer

The rectifier system can either be operated from the Flatpack MCU— by means of the keypad on its front panel— or from a standard personal computer.

Operation from the front keypads enables control of important system functions and parameters; the use of a personal computer allows access to additional menus and service-related information

4.1 Installation of WinPower Silver software

Note that administrative login / permissions may be required when installing software on Windows NT, 2000 and XP.

The WinPower Silver communication program must be installed on your personal computer. WinPower Silver is available on standard CD-ROM media (floppy disk by request). Insert t he CD-ROM in the CD-ROM drive (or installation Disk #1 in the floppy drive) and start “setup.exe”. Note that on PCs with autorun enabled, the setup program will launch upon installation of the CD-ROM in the drive. The installation program will guide you through a complete WinPower Silver installation.

4.2 Installation of the PC and the Modem

The rectifier system can be operated from a personal computer by either using an RS232C serial cable to connect the two— in a local installation setup —, or by using modems and standard telephone lines— in a remote installation setup.

4.2.1 Local Installation

The local installation setup is used when the Rectifier system is located in the vicinity of a PC and they are less than 15m apart. The only link is an RS232C serial cable.

Figure 4-a Local Installation Setup – Rectifier connected to a PC

The Rectifier system can be installed in a technical room, while the PC may be located in the control room. The Rectifier system can then be monitored and controlled from the PC.

NOTE: Administrator login or access is required to install applications on some

erating systems (Windows NT and Windows 2000).

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.2.2 RS232C Cable pin-outs – Local Connection

4.2.2.1 Two 9-pin D-sub contacts

A standard serial cable (without DTR connection) can be used for PC communication, in which case the Flatpack MCU must be suitably configured (ref. chapter 3.3.25).

The serial cable in this figure can be used on PC's with 9-pin D-sub male plugs. The serial cable is connected to the 9-pin D–sub female plug on the Flatpack MCU and to one of the PC's serial ports (COMx).

RS232C serial cable with 9- pin D – sub plug on the PC side

4.2.2.2 9 and 25-pin D-sub plugs

A standard serial cable (without DTR connection) can be used for PC communication, in which case the Flatpack MCU must be suitably configured (ref. chapter 3.3.25).

The serial cable in figure 5-c can be used on PCs with 25-pin D-sub male plugs. The serial cable is connected to the 9pin D-sub female plug on the Flatpack MCU and to one of the PC’s serial ports (COMx).

RS 232C serial cable with 25 pins D – sub plug on the PC side

NOTE: The “TDX” signal (pin 3) from the Flatpack MCU should be connected to the “RDX” signal (pin 2) on the PC or modem.

NOTE: RS232C serial cables can be supplied by Eltek Energy.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.2.3 Remote Installation

The remote installation setup is used when the Rectifier system and the PC are located at a distance from each other, in different buildings or areas.

The communication link is achieved via two modems and the public switched telephone network (PSTN).

The connection between the Rectifier system modem, and the PC modem is accomplished by means of RS232C serial cables.

Typical remote installation setup –A rectifier system connected to a PC, via modems and telephone lines

NOTE: Two compatible HAYES intelligent modems – with MNP5 fault correction and data

compression facilities – a re necessary for communication via the standard telephone network.

NOTE: When using a modem: Access to an AC mains wall outlet supply may be necessary to connect the modem to the PC. The modem connected to the Flatpack MCU is normally fed from the DC-bus. Only true analog modems are supported (switchboard and other digital/PBX connections are not supported):

NOTE: Equipment communicating via an RS232C link must be configured with the same communication parameters:

Baud rate can be “1200”, “2400 ”, “4800” or “9600” baud, as well as an “8” bits word length, parity “none” and “1” stop bit.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.2.4 RS-232 Cable pinouts – Remote Connection

4.2.4.1 Cable from Flatpack MCU to Modem

The serial cable connecting the MCU to the modem may be either a 9 pin connection or 25 pin connection at the modem depending on the modem type.

The serial cable in the drawing below is connected to the 9-pin D-sub male plug on Flatpack MCU and to the 25-pin D-sub male plug on the modem’s port.

RS232C serial cable with 25- pin D – sub plug on the modem side.

Where the modem has 9-pin connection the following drawing applies.

4.2.4.2 Cable from modem to PC

A standard RS232C serial cable is used when connecting a PC to a modem. The cable should have a 25-pin D-sub male plug on the modem side, and a 9 or 25 pins D-sub female plug on the side of the PC.

A standard type RS232C serial cable can be supplied by Eltek Energy

Earth faults on the communication equipment must be rectified prior to connection

Note: the “TDX” signal (pin 3) from the alarm module is connected to the “RDX” signal (pin 2) on the PC or modem

The RS232C serial cable can be supplied by Eltek Energy (6x0.22 mm2, length 200 cm, part.

no. 30615 for 25 pin modem) «Earth» is connected to the cabinet’s chassis

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.2.5 Modem Configuration

Both modems must be configured with specific communication parameters before they can be used. It is recommended that the local modem used for communication with the Flatpack MCU(s) be dedicated to this purpose and not shared for any other purpose.

;

Configuration of the remote modem (connected to the rectifier system’s monitoring/control unit) is different to configuration of the local modem (connected to the PC).

4.2.5.1 Setting up the PRS (remote) modem

In order to configure the remote modem— to be connected to the Flatpack MCU Monitoring & Control Unit— connect the modem to a PC, with the appropriate terminal emulation program, and use the keyboard to enter the following communication parameters:

AT&F

Enter Load Factory settings

AT&D

Enter DTR option 0 (assumed ON and thus ignored)

AT&Q5

Enter The modem will try to negotiate an error-connected link

AT\N3

Enter Selects auto-reliable mode

ATS0=1

Enter Answers after 1st ring

ATQ0

Enter Enables result codes

ATV0

Enter Numerical result codes

ATE0

Enter Disables command echo

AT&W

Enter Stores the current configuration

4.2.5.2 Setting up the PC (local) modem

In order to configure the local modem— to be connected to the PC— connect the modem to a PC, with the appropriate terminal emulation program, and use the keyboard to enter the following communication parameters:

AT&F

Enter Factory settings

AT&S

Enter DSR will remain ON at all times

AT\N3

Enter Selects auto-reliable mode

AT&W

Enter Stores the current configuration

Note that it may be necessary to force the local and remote modems to connect at the same data rate, i.e.

9600. Consult the user manual provided with the modem to determine the correct AT command(s). These commands may also be entered from within WinPower Silver (see Section 4.9.6, Modem Callback) for the remote modem.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.3 Login to Winpower Silver

To login, first establish the communication link between your PC and the Flatpack MCU alarm module. Start WinPower Silver and click on the “lightning bolt” connection icon to open the Site Manager.

Connection Icon --»

The Site Manager will then open, allowing selection of connection type and a method to choose between local system and/or remote sites.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.4 Using Site Manager

The above screen image shows the Site Manager window after the addition of Network and Modem sites. A new Flatpack MCU will not contain site entries under the Network or Modem categories, until the user adds these entries.

Serial is a serial cable connection, which connects the specified PC serial port and the Flatpack MCU in a local installation setup. Site entries are not applicable to direct serial connections. Reference Section 4.2.2

Network is a TCP/IP connection between the PC and Flatpack MCU via an optional serial to Ethernet adapter. Site entries under this category will connect using the network interface in the PC, to the remote sites equipped with an optional serial to Ethernet adapter.

Note that it is not necessary or possible to connect to Eltek’s WebPower adapter via WinPower Silver (the serial to Ethernet Network adapter is a separate solution than WebPower).

Modem refers to a connection to a Flatpack MCU, at a given remote site, to the PC. Reference Section 4.2.3. Site entries under this category will connect using a modem connected to and installed on the PC, to the remote sites equipped with a modem connected to the Flatpack MCU.

Select the appropriate serial port, if connecting directly. In this case it is not necessary to create a “site” entry. If connecting via either remote method (Network or Modem), a site must be created before connecting. To create a site, click the Add Site button and complete the required information fields in the Site Manager window. Select the desired site name from the menu, and then double-click the highlighted name, or click the Connect button. The initial screen interface will then be displayed.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.5 Description of the Screen Interface

After establishing the communication link between your PC and the rectifier system, the Flatpack MCU microprocessor will take control of the PC screen. Operation of the rectifier system from a PC is based on pre-programmed menus accessed from the main menu. The main menu and each function key are described in detail in the chapter 4.6 Main Menu The screen interface includes the following information:

• System Info:

Customer: customer's name Location: customer's location Sw ver: software part no. and version no. Unit's Date: current date yyyy/mm/dd Unit's Time: digital clock Access Level: USER or SERVICE

• Alarm Unit Status shows the system status, in ampere and volts, for the rectifier, batteries and load.

• Comms. status displays green alternating lights when the system is functioning without fault. The lights will stop

flashing when the system malfunctions and the following message will be displayed:

• AlarmStatus shows a red light when an alarm is active. A green light will show when all alarms are inactive.

• System On/Off displays the ON/OFF-status of the system. Access to System On/Off is only possible when in

SERVICE mode and may be disabled in some software versions.

• Event Log - System events are displayed in chronological order. The date, time and a description of each event is

shown. Note that the Event Log is for informational purposes only; while the Alarm Log is provided for alarm recording.

• COM1, at the bottom of the screen, indicates the selected communication port.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.6 Main Menu

The Main Menu has two access levels:

 User  Service

Access Level: USER sub-menus are available to all users, while Access Level: SERVICE sub-menus are password-protected and accessed only by authorized personnel. The menu options are protected by the user access password, required on initial system access.

Access rights to USER level of operation are limited to read-only system data. This level is available to all users, provided they have the USER password.

Access rights to SERVICE level enables editing of information in the General Configuration, Battery Configuration and Calibration Settings menus. This level is only available to authorized personnel.

Access rights to INSTALLATION level enables editing of information in the Installation Settings menu. This level is only available to authorized personnel.

To gain access to SERVICE level:

• Select "Password"

• Enter your password (factory-programmed to «service»)

• Press Enter ↵ or Login

For security reasons, we strongly advise you to change factory-programmed passwords as soon as the system is installed

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Personnel with USER access are only able to monitor the system. Authorized personnel with SERVICE access are able to monitor and control the system. Authorized personnel with INSTALLATI ON access are able to monitor and control the system, as well as setting system specific parameters in the INSTALLATION menu.

• General Configuration

Set Levels Sets alarm and security limits Alarm Setup/Display Configuration of the alarm relays Configurable Inputs Configure digital inputs Set Time Sets date and time Site Info Specific site-related information Modem Callback Configuration of modem callback Relay Test Tests the alarm relays

• Battery Configuration

Batt. Test Setup Manual battery test and test setup Auto Boost Automatic boost charging Manual Boost Manual boost charging Battery Type Type of battery Current limit Cfg Charge current limitation Output Control Select type of output voltage control Batt. Setup User Def. Battery definition and configuration Symmetry measurement Cfg Configure the symmetry measurements

• Installation Settings

System Config. Configuration of system-specific settings

• Password SERVICE password

• Alarm Log Log of alarms and events with date and time

• Battery Test Info. Results from the two latest battery tests and the date for the

next scheduled test

• Clear Event Log Clears the log of events on the screen interface

• Resynch system Updates specific data from MCU to Winpower Silver

• About Shows information about Winpower Silver

General configuration

Battery Configuration

Installation

Password

Alarm log

Battery test info

Clear event log

Resynch system

About

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.7 Other Main Menu options

4.7.1 Log Values dialog

To open the Log Values dialog, select Log Values on the View menu.

The following information will be displayed

• Average current; the average load current over a period of time defined by the Duration.

• Peak Current; the peak load current over the same period of time

• Duration; the logging period.

• Reset; Pressing the reset button will reset the logging values

• Update; Pressing the update button will send a request to the MCU to update the data

Average current

The average load current is updated every minute. Maximum logging period is 30 days. When this limit is reached, the average current calculations will continue. Number of measurements will be fixed at 30 days, shifting out the oldest values as new ones are added.

Peak current

Every minute, the peak value and the load current are compared. If the load current is higher than the peak current the peak current is updated to the latest value of the load current.

Duration

The duration is updated every minute. Duration is presented as days, hours and minutes. Maximum logging period is 30 days. When this limit is reached, the average and peak current calculations will continue, but number of measurements in the calculation will be kept to the last 30 days, shifting out the oldest measuring values as new ones are added.

Update values

When the Log Value dialog is opened, a Log Value request will be sent to the MCU to get the latest values. There is no automatically update of the values when the window has been opened. To update the values again, the user has to press Update.

Reset

Pressing the reset button can reset the logging values. The following dialog will appear:

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

If the user selects “Yes” the values will be reset. The duration will be set to 0, while the averag e and peak current will be set to the value of the load current at the time of the reset. After a Reset has been sent to the MCU, the values will be updated automatically.

4.7.2 Symmetry Monitor

To open the Symmetry Monitor, select Symmetry Monitor on the View menu.

The Symmetry Monitor is an auto-updating window that shows you the current symmetry voltages, Type, Status, Mode and Remaining delay time. (Symmetry is disabled in the picture above)

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.8 Alarm Status Screen

Clicking the Alarm Status button (above the colored indicator on the main screen) will open a window that displays a summary of alarms and their current states. Colored indicators are used to denote alarm states: GREEN for Normal (non-alarm state) and RED for Fault (alarm state). See image below.

Available options are:

OK – Close the Alarm Status window

Reset Alarms – Cycles and resynchronizes the alarm relay states. Active alarm relays are forced to non-alarm condition.

If the alarm still exists, these relays will again enter alarm condition after a short delay. Only “manual reset” alarms are reset when performing an alarm reset.

4.8.1 Alarms Requiring Manual Resetting

These alarms require manual reset in order to preserve the alarm notification, if the alarm state subsequently clears. For example, a Battery Symmetry alarm is triggered when the battery midpoint voltage exceeds a predetermined set point. It is possible that the battery has experienced a momentary internal fault, which has caused this alarm to be reported. In order to notify the site management personnel that this momentary event has occurred, the alarm is latched and requires manual intervention to reset. Note that all alarm events, whether automatically or manually reset, are reported to the Flatpack MCU alarm history log.

• Battery Pre-Alarm

• Battery Fault

• Symmetry 1

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9 General Configuration

4.9.1 Set Levels - Setting alarm limits

This menu option is used to set alarm limits and other system parameters.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

The following parameters can be set/changed:

• High Battery Alarm (volts)

• Low Battery Alarm (volts)

• LVD1 / LVD 2 / LVD3 Disconnect Voltage, (Volts)

Voltage limit for disconnection of load or battery. The disconnect unit (contactor) will open at th is voltage, and may be interdependent on if the mains voltage is present (see Installation Settings)). This output must be hardwired in the system for battery (LVBD) or load (LVLD) disconnect.

• LVD1 / LVD 2 / LVD3 Disconnect Delay Time (minutes)

Default = 0 minutes Application: Disconnection of loads (LVLD) at a predetermined time after the mains voltage is cut off. If the mains

supply voltage is interrupted, an internal timer (minute counter) starts to count do wn from th e p re-set time v alue. W hen the timer reaches zero, the load (or the battery, depending on how the system is configured) will be disconnected. If the mains returns before the timer reaches zero, the LVLD will not disconnect and the timer will count upwards to the preset time. If the mains is lost again while counting upwards and the battery voltage is still above low voltage disconn ect (LVD), the timer will change direction and count downward. If the battery vo ltage falls be low the LVD level b efore the counter = 0, then LVLD will be activated to prevent battery damage due to over-discharge. The Disconnect Delay Timer is deactivated when set to 0.

• Battery Voltage (Volts)

The alarm module will regulate the battery voltage to the specified value, if Output Control is selected (see chapter Output Control) If the resistance of the battery cable is set to zero, the battery and the output voltages will be equal.

• Boost Voltage (Volts)

Voltage level for boost charging. For more information on how to start boost-charging, see chapters Auto Boost and Manual Boost.

• Alarm Delay (seconds)

The operator can define a delay for the mains alarm and low battery voltage alarm. The duration of the alarm delay can be set between 0 and 60 sec. Default setting is 0.

• High Temp. (

Generates an alarm condition in case of high battery temperature. Two levels are provided, which may be configured for relay alarms and also to automatically disconnect the battery contactor, if desired. The alarm levels can be changed between 5 °C and 80 °C. Level 1 must be lower than Level 2. When the temperature exceeds Alarm Level 1, the alarm message "High Temp. Alarm 1" will be displayed. This alarm will automatically be reset when the temperature falls below the pre-set level. If the battery temperature exceeds Alarm Level 2, the alarm message "High Temp. Alarm 2" will be displayed. In order to cause a LVD (battery disconnect) on either temperature alarm, the appropriate LVD must appear in the alarm output configuration in the Alarm Setup/Display menu. Temperature alarms are reset if sensor alarm occurs.

• Low Temp Alarm (°C) Generates an alarm condition in case of low battery temperature. Alarm point is settable between –35°C and +20 °C. Temperature alarms are reset if sensor alarm occurs.

• Rectifier Capacity Alarm (percent of capacity)

This feature allows setting an alarm condition that is based on a percentage of the available rectifier output current. This can be used as a rectifier redundancy alarm or for any other situation where it is necessary to be notified when the system current exceeds a percentage of the charge current capability.

NOTE: If the “Mains Dependant” checkbox is cleared (see Installation Settings), the

Disconnect Dela

is disabled.

NOTE: Hysteresis on High Temperature 1 and Low Temperature alarms is 1°C; hysteresis on High Temperature 2 is 2°C.

NOTE: The temperature alarm-functions are available, and the set points are changeable, only when temperature-compensated charging is activated.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.2 Alarm Setup/Display

This menu option illustrates, by means of a table, how the alarm relays are configured. Each system alarm or event may activate one, two or three relay outputs, an LVD, or affect the modem callback. Several alarms may also activate the same relay output, LVD, or be assigned to modem callback.

The current alarm relay configuration of your system will be displayed. All alarms in the system are, as default, automatically reset when the cause of the alarm is removed. The alarm module enables resetting of all active alarms, any alarms still active after resetting will again be reported. To reset fault alarms from the PC:

• Select Alarm Status on the screen interface

• Reset the alarms from the Alarm Status displayed

NOTE: In the above screen capture, Configurable Input 1 has been renamed “HVAC Fault” and is assigned to a modem. Also, High Temperature 2 is mapped to LVD1 and will disconnect this LVD contactor when the temperature limit is reached.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

TYPE OF ALARM

RESETTING

High Battery1 / High Battery 2

This alarm is reported if the output voltage exceeds the applicable High Voltage Limit

Automatic reset (1 V hysteresis)

Low Battery1 / Low Battery 2

This alarm is reported if the output exceeds the applicable Low Voltage Limit

Automatic reset (1 V hysteresis)

LVD1 / LVD2 / LVD3

This alarm is reported if the load or batteries are disconnected by the MCU. LVD conditions are checked every second.

Automatic reset when contactor is reconnected

Battery Fuse

This alarm is reported if any battery fuse or breaker has opened or tripped

Automatic reset

Rectifier

This alarm is reported if one rectifier malfunctions. Alarm may be masked under Mains Fail condition, depending on Installation Settings.

Automatic reset

Critical Rectifier

This alarm is reported if more than one rectifier malfunctions. Alarm may be masked under Mains Fail condition, depending on Installation Settings.

Automatic reset

Mains

This alarm is reported if the mains supply fails

Automatic reset

Battery Test

Battery test in progress

Manual reset

Battery Pre

This alarm is reported if the result of a battery capacity test is less than 80 % (< 80 %) and higher than 75 % (> 75 %)

Manual reset

Battery Fault

This alarm is reported if the result of a battery capacity test is less than 75 % (< 75 %)

Manual reset

Common

This alarm is reported if one or more alarms are active and is indicated by the Alarm LED on the front panel of Flatpack MCU and by Alarm ON (OFF) on the status lines (except when battery test is in progress)

Automatic reset when no active alarms remain

Load Fuse

This alarm is reported if any load fuse or breaker has opened or tripped

Automatic reset

Symmetry 1

This alarm is reported if there is a symmetry fault in any battery string monitored by the Flatpack MCU’s internal symmetry monitoring circuits

Automatic reset

Symmetry 2

This alarm is reported if there is a fault reported by an external symmetry monitoring PCB.

Automatic reset

High Temp. 1

Only active if temperature compensated charging is active. Gives an alarm if the battery temperature is above temperature alarm level 1

Automatic reset

High Temp. 2

Only active if temperature compensated charging is active. Gives an alarm if the battery temperature is above temperature alarm level 2.

Automatic reset

On Battery

Gives an alarm if the battery current is above 5 amperes for >10 seconds.

Automatic reset

Sensor

Gives an alarm if the temperature sensor reading exceeds the range of –35°C to +100°C, indicating an open or shorted sensor, respectively.

Automatic reset

Low Temp

Only active if temperature compensated charging is active. Gives an alarm if the battery temperature is below the temperature alarm level.

Automatic reset

Rectifier Capacity

Gives an alarm if the rectifier current is above the alarm threshold.

Automatic reset

Conf. Inp. 1 - Conf. Inp. 5

Refers to one of five configurable digital inputs, usable for monitoring external equipment. The name can be changed to reflect the usage of the input, for example “HVAC Fault” or “Open Door”.

Automatic reset

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.3 Configurable Inputs

The Flatpack MCU incorporates 5 digital inputs, providing a means to monitor other on site equipment through the Flatpack MCU and WinPower Silver interface.

In the above setup, two alarm inputs are configured for monitoring a generator set, and a burglar alarm. The texts are freely chosen and must be within 13 characters. These texts will appear both in the front pane l display of the Flatpack MCU, as well as on the local/remote computer (if the system is monitored via SNMP, the default texts “Conf. Input 1 -> Conf. Input 5” will be transferred to the NMS).

Furthermore, the digital inputs can be configured as trigger inputs for other conditions. A drop-down menu selects between DISABLED, ALARM, BATT TEST CONTROL, and GENERATOR INPUT, as shown above.

NOTE: If LVD3 is enabled (see chapter System Configuration.), Config. Input 5 is used for LVD3 feedback. In this case, it will not be possible to enable config. Input 5. The

text “This input is used for LVD3 feedback” will appear.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Input configured as DISABLED: disables the configurable input.

Input is configured as ALARM: The Flatpack MCU will enter alarm condition on either an open or short circuit

condition, depending on the state of the “failsafe” checkbox. When the checkbox is selected (“ticked”), an open circuit on a particular input (to AGND) will cause an alarm condition, and a shorted input (closed contacts) clears the alarm. Each input’s alarm logic can be configured independently of the other inputs, providing a flexible external alarming solution.

Input configured as BATT TEST CONTROL: If the input goes to alarm condition, a “start battery test” event will be sent to the battery test module. This will start a battery test if the system is in idle state (No battery test). The text “Test ext. active.” (meaning that battery test start has been triggered by an external input) will be added to the alarm log in addition to the texts added from the battery module. If the system already is in battery test mode the text “Test alr.started” will be added to the alarm log.

If the input goes out of alarm condition, a “stop battery test” event will be sent to the battery module. Any ongoing battery test will then be aborted (even if the ongoing battery test is an interval test or manual test star ted from Winpower Silver). The text “Test ext.deactiv” (meaning that battery test stop has been trigged by an external input) will be add ed to the alarm log in addition to the texts added from the battery module. If a test is in progress, (all kind) it will be stopped when the output voltage has reached the end voltage or if the max test time has expired, independent on the state of the input. If the system is in idle state (No battery test) when the input goes low, the text “Test alr.stopped” will be added to the alarm log.

Input configured as GENERATOR INPUT: Generator feed functionality is suitable in systems equipped with a generator as backup mains source. Configuring any of the 5 configurable inputs to “Generator Input” enables “slow current walk in” at generator start up. The chosen input will read a signal from the generator to determine whether the generator is running/not runni ng.

If the input enters alarm condition, it is assumed that the generator has started. If charge current limitation is enabled, the value for Generator Feed Current Limitation will be used to limit the battery current. If the system has critical mains fail (Mains alarm and rectifier current below 10A), this transition will prepare the system for “slow current walk in”. If the input goes low, it is assumed that the generator has stopped. If “Charge Current Limitation” is enabled, the general value for “Charge Current Limitation” will be used to limit the battery current. This transition will also stop “slow current walk in”.

The purpose of this function is to give the generator a soft start by slowly stepping up the output voltage. The voltage will be raised in about 0,1V steps. The number of steps and time between steps before the desired voltage is reached will be calculated from the “Slow Current Walk In Rise Time” value in the Charge current configuration.

The level set in “Maximum charge current” for generator feed overrides the stepping of output voltage. In case of a critical mains fail, the system will wait for the generator to start. When the generator starts, the chosen digital input will go high. The system will then prepare for slow current walk in by lowering the pwm output to 1 V below the battery voltage. When the mains reappears (generator running proper ly) the pwm will, after about 1 second, be regulated slowly up towards the Set Voltage. If charge current limitation is enabled, the battery current will con trol the stepping of the pwm. If charge current is disabled, the pwm will be stepped up with a fixed value each time the timer expires. There are several criteria that will make the system leave the Slow Current Walk In state:

• Pwm is equal to or above a defined pwm level corresponding to the desired output voltage.

• Output voltage is equal to or above the desired Set Level.

• Desired Rise Time expires.

• Critical Mains fail

• Generator stops

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.4 Set Time

In order to keep a chronological record of events and other time-dependent functions, the internal clock requires to be set with the correct date and time.

The parameters are entered in the correct format, date: «YYYY-MM-DD», and time: «HH:MM».

Note that the Flatpack MCU prior to Version 10 does not incorporate a real time clock with battery backup – if a preversion 10 MCU is powered down, the correct date and time must be re-entered after restoration of power. The date and time must be set in order for a valid timestamp to appear in the Event and Alarm logs.

Note that “PRS” is an abbreviation for “Power Rack System”.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.5 Site Info

This menu option enables you to adapt the Flatpack MCU to a site specific installation, by registering site-related information such as the name of the customer/owner, location, serial numbers, number of rectifiers installed, battery type, serviced by, software version, battery installation and service dates, and messages.

The software version and Hardware version information is read-only and reflects the state of the Flatpack MCU.

The Rectifiers Installed and Max Current Per Rectifier entries are used by the Capacity Alarm feature and must be accurately defined. The Max Current Per Rectifier entry should be set to “49”, “30” and“24” for the 24V, 48V, and 60V Flatpack 1500 rectifiers respectively. Set to “36” for the Flatpack 1800 rectifiers and “14” for the Flatpack 700 rectifiers.

NOTE: Other Max. Current per Rectifier values may be used, for example, a lower figure may

be appropriate where constant high ambient operating temperature results in rectifier output power derating.

NOTE: Any rectifiers installed as cold or hot standby units do not contribute to the total

available current and are not to be included in the total Rectifiers Installed.

NOTE: Be sure to update the Rectifiers Installed field if the system configuration is changed

due to an increase or decrease in the number of installed and operational rectifiers.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.6 Modem Callback

This menu option initiates the modem callback function. The MCU has “standard callback”, “alarm callback” and “interval/automatic callback” functionality. The Flatpack MCU will initiate a call when:

a) An alarm programmed to activate the modem callback is triggered b) The Rectifier system has been called up from a remote location c) An automatic call is scheduled, if enabled

• Modem callback

Tick here to enable the modem callback. The “Modem Callback” choice is a master enable/disable for any callback functionality.

• Baud rate

Choose the appropriate baud rate between the Flatpack MCU and the modem, preferably as high as possible.

NOTE: When editing the settings in this screen, the previous configuration will be

overwritten.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

• Modem Init. string shows the initiating string for the specific modem in use (max. 40 characters). The Flatpack

MCU automatically places the commands E0, V0 and Q0 in the initialization string. It is essential th at the modem

is set to ignore DTR, and DCD must correspond to the state of the carrier. The initiating string for the Westermo Industrial Modem is the default setup, as shown above.

• Phone number #1 - #3 shows the phone numbers the Flatpack MCU will call, in order of preference (max. 20

characters). It is recommended to fill all the phone number slots. If you just have two different phone nu mbers, the third option should be filled with the most preferable phone number. Number 2 and 3 will only be used if the system has problems with the first number. The modem dialing command (ATDT) must precede the phone number,

e.g. ATDT12345678.

• Site ID message identifies the specific site (max. 40 characters), e.g. «MODEM MESSAGE FROM SYSTEM».

This string will always be attached to any calls from this alarm module.

• Starting time for first automatic call from the Flatpack MCU is indicated by entering the time of the first

automatic call «HH:MM». The message «AUTOMATIC CALL» is displayed in intervals, as specified above.

• Connect time (sec.) is the time before hanging up, after the message has been sent. This is because one

message/alarm is often followed by another message/alarm.

• Report interval (hours)

If you want the Flatpack MCU to generate automatic calls:

• Enter the intervals, in hours, between auto matic calls from the Flatpack MCU. If «0» is entered, the function

will be disabled. The function is intended for surveillance of the communication link. A display showing the connection between the PC and the modem will appear on the right-hand side of the Modem Callback interface.

4.9.6.1 Alarm programming

The alarm is programmed via the alarm setup menu. Configure the outputs and choose «MODEM» for the alarms that activate the modem callback. The Flatpack MCU will initiate a call, if any of the alarms that are set to activate the modem are triggered.

4.9.6.2 Calling up the DC Rectifier system

When you call up the system and the modem callback is enabled, the Flatpack MCU will reply that it will call back. The Flatpack MCU will call the first phone number in the list of three numbers and will attempt to establish a connection three times before trying the next number, and so on.

To configure the alarm module when modem callback is disabled at the MCU, press ALT-P in Winpower Silver’s Site Manager, before pressing the modem Connect button. A password dialog will pop up. Typ e 0 for password and the following information will appear:

During this session, WinPower Silver will communicate with the system like a direct connection. You will then be able to configure your system (enable modem callback, etc.).

If the direct connection fails, the system may have been in the initialization mode and not ready for direct connection. The system will leave this state soon, so if the user waits for about one minute, the system should be ready for an incoming call.

Automatic call

The Flatpack MCU will call at the specified time and interval as stated in the modem setup menu. The message «AUTOMATIC CALL» will be displayed.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

General

If connected directly to a PC, and the modem callback is enabled, the following message will be received in WinPower Silver «THE SYSTEM WILL CALL YOU BACK». Ignore this and enter CR a couple o f times, and you will then be asked for the password.

4.9.6.3 Modem Installation and Configuration

Configuring the local modem

The local modem (on the PC side) can be almost any type of internal or external modem that is correctly installed within the Windows operating system. It is recommended that only true analog / hardware modems be used.

Note: Certain internal 56k “soft modems” (such as Rockwell/Conexant and Lu cent Win modems) do not work properly with WinPower Silver (these low-cost embedded laptop modems use the PC processor to effect functions that are handled by separate DSP circuits in a “true” modem). Use of these modems is not recommended. Use of these modems to receive automatic and periodic alarm reports from the MCU is possible; however, callback will not function when attempting to operate WinPower Silver remotely through the modem dialup link.

To install the modem, open 'My Computer', select the 'Control Panel' and double click the 'Modem' icon. Follow the steps to install your modem. After installation has completed, select ‘Properties’ and set the baud rate to 9600.

In the ‘Advanced’ menu of the ‘Properties’ -setup, the user can add extra initialization commands. If the modem has problems initializing calls (because of internal lines etc.), ATX3 or ATX0 can be added in this field to change the modem response code handling. Other ATX variations may be necessary to permit the correct response codes, depending on specific modem types and line/connection conditions.

The modem cable is a normal “straight through” cable, with all pins connected.

Configuring the remote modem

Eltek Energy offers for sale with our DC power systems appropriate modems for use with the MCU controller. Depending on system configuration and locality, two basic options are available (as of this writing); the Westermo TD32B DIN rail mounted modem, and the Western Telematic FTM-336 19” rack mounted modem. Both of these modems are DC-powered and operate from the power system bus.

It is important that the modem on the alarm module side is configured to let the DCD line follow the state of the carrier, usually by the AT command “AT&C1”.

The Westermo AT command string is the default and is as shown in section 4.9.6:

AT&F&D0&Q5&K0&C1S0=1

In order to use the Western Telematic modem, use the following AT command string:

AT&F&D&Q5&K$MB9600$SB9600S37=9S0=1

Note that the strings “9600” should coincide with the baud rate set in WinPower Silver and configured at the MCU .

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.6.4 Using Modem Callback

In order to use the modem callback alarm reporting functionality, the local PC an d connected modem must remain ON at all times. Also, WinPower Silver must be running and all connections must be closed.

In this state, WinPower Silver will continuously monitor all installed modems for a “RING” indication, and will issue an “ANSWER” command when a remote site / MCU initiates a call.

After receiving a call from a remote MCU, WinPower Silver will display the following screen:

All currently active alarms will be reported along with the associated timestamps, indicating when the alarms occurred. (in the example above, the time had not been set in the MCU).

4.9.6.5 Customising the displayed event colors

Editing the alarm color def file, located in the application folder, allows customizing the colors displayed in this screen. Normally this is C:\Program Files\Eltek\WinPower Silver\VerX.X (where X.X represents the version of WinPower Silver installed, example “Ver4.1”).

A total of twenty six (26) events are defined within this file and can be assigned colors from a standard 8color palette (red, black, yellow, green, blue, magenta, cyan and white). Note that assigning white to an event will render such text invisible.

By default, alarm conditions are displayed in RED. In the screen shown above, the RECT. FAIL color assignment in the alarm color def file has been changed as below:

Default: RECT. FAIL;red Changed to: RECT. FAIL;blue Any text editor (such as Windows Notepad) can be used to make changes to the alarm color def file.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.7 Relay Test

This facility is used to test-operate the alarm relays, the low voltage disconnect contactors (LVD1, LVD2 and LVD3 if enabled, Ref. chapter System Configuration.), in order to test any external monitoring equipment connected to the system's alarm relay outputs.

To test-operate alarm relay number 1, select Relay 1. The contacts on Relay 1 will toggle and the external wiring can be tested and verified. Do the same test for all alarm relays that are used / require testing. The alarm relays have fail-safe functionality. The relay coils are all energized ("ACTIVATED") when there are no alarms. "DEACTIVATED" ⇒ ALARM.

LVD 1,LVD 2 and LVD 3 are programmable outputs that are used to control either a Low Voltage Battery Disconnect unit (LVBD) or a Low Voltage Load Disconnect unit (LVLD) hereby called by a common name “LVD”. Testing

these functions will

disconnect batteries and/or loads.

To test-operate LVD control output 1, select LVD 1. "DEACTIVATED" means that batteries or load are disconnected. To test-operate LVD control output 2, select LVD 2. "DEACTIVATED" means that batteries or load are disconnected. Whether batteries or load are disconnected, depends on the system configuration. To test-operate LVD control output 3, select Relay 11/LVD3.

When the tests have been terminated and the Relay Test menu is exited, the Flatpack MCU will automatically reset the relays and LVD outputs to their normal state.

NOTE: Operating “LVD1” “LVD2” or “LVD3” will disconnect either batteries or load. Only perform tests of “LVD1”, “LVD2” or “LVD3”, when it is acceptable to lose the battery backup

during a test of a Low Voltage Battery Disconnect unit and/or experience shutdown of the load(s) during a test of a Low Voltage Load Disconnect unit.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.9.8 Save- Load- Send Setup

With these three buttons, you can easily save the current setup of the MCU to a file on your computer or load a previous stored file (setup) and send the setup to the MCU.

4.9.8.1 Manner of operation

Save the setup of the MCU:

When communication is established between the MCU and Winpower Silver, you can save the current setup by pushing the “Save” button.

This dialog will appear:

The default name of the file is “Setup.dat”. We recommend that the file is renamed to something that corresponds to your system or site. The .dat extension must be kept.

Load Save Send

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Load a previous saved setup:

When communication is established between the MCU and Winpower, you can load a previous saved setup by pushing the “Load” button.

The dialog on the next page will appear.

Choose the correct setup and push the “Open” button.

You may browse WinPower Silver to have a look or edit values before sending it to the MCU.

Sending the setup to the MCU:

By pushing the “Send” button you will transfer the chosen setu p to the MCU. WinPower Silver will now send a series of commands to the MCU containing the chosen setup and should take approximately 10 to 15 seconds.

This progress bar will appear:

The progress bar will automatically disappear when WinPower Silver is finished sending the setup to the MCU.

NOTE: The chosen setup is NOT transferred to the MCU yet, it is only stored locally in Winpower Silver!

NOTE: This functionality is only valid for Revision 5.0 and above for the MCU embedded software.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10 Battery Configuration

The following options are available under Battery Configuration:

Battery Setup Battery Type definition and configuration Batt. Test Setup Manual battery test and test setup Auto Boost Automatic boost charging Manual Boost Manual boost char gi n g Current Limit Cfg. Charge current limitation (for normal and generator feed conditions) Output Control Select output voltage control mode Symmetry Measurement Cfg. Battery symmetry monitoring setup

4.10.1 Battery Setup

In the “Battery Setup” window it is possible to save and load battery tables.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.1.1 Battery Name

The Flatpack MCU is delivered with three default (pre-defined) battery definition tables and one user-defined table. The Flatpack MCU can be configured to use one of these. The “Get next battery” button will cycle through the available choices. When using a user-specified battery definition table, instead of one of the three pre-defined tables, the following parameters must be defined:

• Battery Name

• Battery test End Voltage (Volts/cell). Minimum end voltage is 1.82 V/cell.

• Enter values, 1 - 10 000, in the Battery table (Minutes / Amps). This is the battery discharge curve data (for a

given end voltage, enter the discharge current that correlates to various discharge times).

• Voltage at 20°C and Slope Temperature Compensation settings (see next section).

4.10.1.2 Temperature Compensation

Due to a battery’s electrochemical characteristics, a fixed charge voltage can provide optimum charging only at a fixed battery temperature. Under actual operating conditions, the battery temperature will vary due to charge and discharge cycles, ambient temperature fluctuations, etc. During low battery temperature conditions, the batteries will nev er reach 100 % capacity with a fixed charge voltage. Likewise, during high temperature con ditions the batteries will b e charged to excess, reducing their lifetime and increasing the risk of a catstrophic thermal runaway event. In order to compensate for these thermal effects, the Flatpack MCU can adjust the charge voltage proportional to the battery temperature.

The charge voltage equation can be represented by a straight line, based on the voltage at 20 ºC and the desired variation of the charge voltage per degree celsius. The following two settings are associated with the stored Battery Types (including the User Defined battery) and loaded along with the other parameters for each battery type.

Voltage at 20°C

Enter the charge voltage as recommended by the battery manufacturer, normalized for 20°C.

Slope

Enter the slope of the equation as the change in millivolts per cell per degree Centigrade.

Maximum and Minimum battery voltage limits can also be set, to restrain the charge voltage compensation range. These limits can be set to protect connected equipment against excessive voltage excursions and are global settings (not dependent upon battery type selection).

Max. Comp. Voltage

Enter the desired upper limit of charge voltage

Min. Comp. Voltage

Enter the desired lower limit of charge voltage

See the following graph for a representation of the charge voltage versus temperature relationship.

Temperature

302010

56,64

Min.Comp. Voltage 53,76

54,72

Max.Comp. Voltage 55,68

52,8

Charging Voltage vs. Temperature

57,6

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.1.3 Battery Setup

Number of battery modules

The Flatpack MCU must be configured with the exact number of battery banks connected in parallel in the power supply system. This information is essential for calculating the battery capacity.

Battery cable resistance (milliohms)

The battery cable resistance must be known when performing calculations during battery tests and battery charging. A battery test is terminated when the battery voltage has dropped to the end voltage (defined in the battery table). If the voltage drop in the battery cables is considerable, the measured battery voltage will be reduced thus, caus ing the battery test to terminate early. The calculated capacity will then be slightly lower than actual. The cable resistance also influences battery charging. In this case, the charging voltage will be too low and the batteries will never reach 100 % capacity. In order to compensate for this effect, the Flatpack MCU may be configured with the total battery cable resistance (both wires + and -), thus enabling a correct calculation of the battery voltage.

4.10.1.4 Resync system

If the settings in the Battery Setup menu have been changed (particularly the USER DEFINED battery name and parameters) the following screen may appear when exiting the menu:

It is recommended to select “Yes” to be sure that all the settings in WinPower Silver are updated.

4.10.2 Batt. Test Setup

The Flatpack MCU incorporates advanced functionality for monitoring and maintaining the system batteries. The batteries may be boost-charged, capacity-tested, and the charging voltage can be actively temperature compensated.

The Flatpack MCU provides two basic types of battery testing; Standard and Simplified. Standard battery test uses a battery table for a given end voltage to calculate the battery quality. The Simplified test does not use the battery table. Both standard and simplified test may be started manually, at intervals defined by the user, or automatically upon mains failure (optional setting)

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.2.1 Functional description – Standard Battery Test

Prerequisites for the test are:

1) The currents to the load and batteries are measured / identified

2) The correct discharge table for the batteries is selected

3) The Max. test duration is set higher than the expected time needed for the batteries to reach the battery End

Voltage.

The first requirement is inherently met by the MCU (the discharge current is accumulated every 20 seconds). The other requirements must be met by correct setup of the battery discharge table and test parameters by the end user. The Flatpack MCU must be configured (in a battery table) to ensure that the Standard battery test works as intended. The Flatpack MCU is pre-programmed with three default battery tables, and one user-defined battery table is available (in Battery Setup). The battery capacity is calculated as the ratio between the actual test time and th e expected test time with an average current, as specified in the discharging table. When the test is completed, the average discharge current per battery bank is calculated and the battery data table is used to interpolate the ”ideal” discharge time for the given current. Battery ”efficiency” is calculated as Test duration/Ideal discharge time for the average current

Test termination criteria are:

• End-voltage – this is the only termination criteria that will calculate a Test result and/or give an alarm.

• Test time – Test result will be overwritten by next test

• Aborted by user - If the test is aborted or interrupted, there will be no alarm, due to an incomplete test. The test

result will then be overwritten by next test.

In order to acquire a valid battery quality result, the test must terminate due to reaching the specified End Voltage , and not be terminated due to an elapsed Duration value.

The battery test sequence is as follows:

1) The Flatpack MCU reduces the DC voltage from the rectifiers to approx. 45 V (The entire lo ad current is thus

supplied by the batteries).

2) The Test start time commences.

3) The Flatpack MCU measures the average current supplied to the load (at a 20 second sampling rate).

4) The test is stopped when the battery voltage has dropped to the battery End Voltage, or the timer has counted

down to Max. test duration time. The test should be aborted and repeated if Max. test duration occurs.

T1 T2 t

T1 = Real Time

T2 = Time supposed to last, as per the discharging table

Discharging Characteristic

Discharging current vs. time, f or a specific end voltage

The Battery Test Alarm Limits, with Capacity in Percent = [T1/T2] *100, are defined as:

Capacity > 80 % ⇒ Battery condition is OK Capacity < 80 % and > 75 % ⇒ Pre-alarm Capacity < 75 % ⇒ Battery Test Alarm

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.2.2 Standard Test – Termination Criteria

End Voltage (Volts per cell) : The battery test is stopped if the battery voltage drops to the specified End Voltage value. This value should not be changed in the Standard Test.

Max. test duration (min.) : The battery test is stopped when the test timer reaches Max. Test Duration. Note: This indicates that the battery test may be incorrect Battery condition will display Aborted.

4.10.2.3 Standard/Simplified test – Start Methods

• Manual - the user starts the Standard test manually

• Interval - automatically starts at a given date and time set by the user. Test interval can be set to 1-1000 days and

Test delay period can be set to 1-1000 days.

• Automatic - starts upon AC mains fail and system is running on battery. Will not start if manual test is already running.

4.10.2.4 Standard/Simplified test – Interval Setup

Test interval (days) : The period of time between two automatic battery tests

Test delay period (days) : The number of days an automatic battery test is delayed from the last time that the mains was

disconnected. This is to avoid a battery test on previously discharged batteries.

Start time, Start Date : Date and time when the initial interval battery test shall start.

4.10.2.5 Functional description - Simplified Battery Test

Simplified battery test does not use a battery table to determine the battery quality and can only be started manually. The Simplified Test differs from the Standard Test in that Battery quality = N/A when performing the Simplified Test, and the termination criteria behaviour is as follows:

4.10.2.6 Simplified Test – Termination Criteria

End Voltage (Volts) : The battery test is stopped if the battery voltage drops to the specified End Voltage value (note that End voltage is set as total battery voltage, rather than a volts-per-cell figure as in the Standard Test). Reports Battery Alarm and test result will be overwritten by next test.

Test duration (min.): The battery test is stopped when the test timer reaches Test Duration. No Battery Alarm is generated (Battery OK).

If the user aborts the test, any test result will be overwritten by next test.

4.10.2.7 Manual Test control

Start Test: Activates the battery test. The chosen test type will be started.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.3 Battery boost - Automatic boost charging

The automatic boost (equalize) charge function is developed to ensure a brief recharging time for the batteries after discharge. Automatic boost must be enabled in the installation menu (see page 59) and the following parameters must be set:

Threshold for boost to start (Ampere hour (discharge))

The auto boost will only start if the discharge of the batteries, in Ah, during mains failure or battery test was greater than the threshold value. The auto boost threshold can be set from 0 to 1000 Ah. The auto boost is deactivated if the threshold is 0 (default).

Max. boost duration (hours)

The maximum boost duration can be set from 0 to 20 hours. Duration set to 0 indicates that no maximum duration limit is set. If the value is greater than 0, the boost will stop when the timer expires. This is independent of recharge level.

Charge in percent of discharge (%)

Batteries can be charged from 100 % to 150 % of discharged Ah.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.4 Battery Boost - Manual Boost

Use the battery boost function, if you need to charge the system batteries faster than normal. The output voltage will then increase until the boost voltage setting is reached, see chapter Set Levels. The following conditions can interrupt boost charging:

• the maximum boost time set in Boost duration is reached

• boost charging is interrupted manually

Click the Start-button to commence manual boost charging of system batteries.

This message will appear. Click OK to confirm

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

The boost charge can be stopped by clicking a dedicated STOP button underneath the system ON indicator in the main screen.

NOTE: Other menu options cannot be used while battery boost is in progress

Note: The Boost Duration parameter is only passed to the MCU from WinPower Silver when a Manual Boost is started from this menu. If the new setting must be saved to the MCU memory, it is necessary to either:

a) Start and Stop the Manual Boost from WinPower Silver b) Change the setting at the MCU using the keypad and LCD display (see section 3.3.12).

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.5 Current Limit Cfg

This function sets the maximum charging current of the batteries, to prevent an excess of available recharge current from overcharging the batteries or tripping the protective battery breaker. This is a concern after a discharge event, during the recharge cycle, before the loads are reconnected and full rectifier system current could be delivered to the battery plant.

When charge current limitation is enabled the Flatpack MCU will maintain a current limited state by regulating the charge voltage. If several battery strings are connected to the same system, the total charge current for all strings must be used. Note that the Charge Current specifically applies to the battery cu rrent as monitored by the MCU, and will no t reduce the load current delivered by the rectifiers with fully charged batteries.

When the system is to be fed from a generator (see section 4.9.3) the charge current limitation allows for a separate maximum charge current value to be set when one of the configurable inputs is configured to “Generator Input” and the generator is running. “Slow Curr. Walk In Rise time” is used durin g generator start up.

Options:

Select Deactivate or Activate under Charge Current Limitation. The enable checkbox is common for both “Mains Feed” and “Generator Feed” Charge Current Limitation.

Mains feed

• Maximum charge current; The maximum charge current in systems without generator. Valid from 0 to 210A.

Default value is 0A.

Generator Feed

• Maximum charge current; The maximum charge current in systems with generator. Valid from 0 to 210A. Default

value is 0A.

• Slow Curr. Walk In Rise Time; The time from which the generator has started to when nominal voltage should be

reached. Valid from 0 to 60 seconds. Default value is 10 seconds.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.6 Output Control

This option enables selection of the control mode to be applied on the rectifier system's output voltage.

The following Control Mode Types are available:

• Temperature Compensation

The output voltage is determined by the temperature and type of batteries used. A temperature sensor must be installed.

• Output Voltage Control

The output voltage is set to the voltage level defined in Flatpack MCU (adjustable level).

• Default Rectifier Voltage (no control)

The output voltage is set to the same value as the rectifier's output voltag e (factory settings). See the rectifier Operation Guide.

Note that in the event of an AC mains alarm, the MCU will read the rectifier current to determine if the AC failure has affected all the rectifiers. If the total rectifier current is below 10 amperes, the rectifier voltage will revert to the front-panel control setting (Default Rectifier Voltage mode) until either the load current exceeds 10 amperes or the AC failure alarm has cleared.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.10.7 Symmetry Measurement Configuration

Symmetry measurement provides a method of automatically detecting unbalanced battery blocks. There are two methods in which this measurement can be made; Block and Mid-point monitoring. Five (5) inputs are available for battery measurements. In either method, the individual measurements are made and the Flatpack MCU software performs calculations based on the measured total battery voltage to determine if an unbalanced co ndition exists, based on a user-defined Symmetry Tolerance value. Any individual measurement that differs from the calculated value by an amount in excess of the tolerance will generate a Symmetry Alarm condition.

Block Measurement. Each 12 Volt block is monitored in a single battery string. This provides the most detailed measurements, however only a single string can be monitored by the Flatpack MCU circuitry.

Mid-point Measurement. Each battery string is measured at its mid-point (or after the 2

battery block for 60V

systems). This method allows additional battery strings (up to four) to be monitored, compared to Block Measurements.

Symmetry measurements may be taken continuously, or only during an actual discharge event. Because it is normal for a battery to vary somewhat from nominal voltage values when unloaded (during recharge), it is recommended that symmetry monitoring be performed under discharge conditions for the most accurate results. Furthermore, it is normal for some unbalance to exist between battery elements during the beginning of a discharge cycle, and for this reason a configurable discharge delay time is provided. This also prevents symmetry alarms during brief AC power outages, when recharge and discharge conditions may exist within a short timeframe.

The following parameters are selectable:

Measurement Type – Block or Mid-point Mode – Continuous or Discharge Battery Strings – the number of monitored battery strings. In Block Measurement, this field is fixed at “1”. Symmetry Tolerance – The symmetry alarm threshold, in volts Discharge Delay – The delay time between when a discharge event begins and alarms are reported

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.11 Installation settings

The installation settings menu is only accessed when the system is set up at the factory, or when major system hardware changes have been done in the field (added or changed hardware). Parameters such as system voltage and hardware configuration are set in this menu. Access rights to edit these settings are only available to authorized personnel. Unauthorized personnel are limited to read-only access. The installation menu is accessed from the initial screen interface.

• Select Installation settings from the Main Screen The Installation settings menu will then be displayed.

To gain access to the installation level:

• Select Change settings

• Enter the password (the INSTALLATION SETTINGS

password is generally only available to factory / system installation personnel - contact Eltek Energy for this password)

• Press Enter ↵ or Login

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.11.1 System Configuration

The system is configured according to the following options:

Nom. Voltage - This parameter specifies the nominal voltage for 24V, 48V or 60V systems. It is essential to check the system voltage before making changes. Entering the wrong system voltage can cause damage to the load equipment,

or cause the rectifiers to go into over-voltage shutdown.

System, Rectifier Type and MaxModules settings are not used in Flatpack systems and are greyed out (disabled).

Enable function

• On/Off

Enables or disables the rectifier On / Off function on the system. When disabled, the rectifiers cannot be switched off from either the front panel of the monitoring unit, or from a local/remote computer.

• Battery Fuse

Enables or disables the battery fuse alarm input.

• Symmetry Alarm 1

Enables symmetry monitoring of battery strings using the internal Flatpack MCU hardware.

• Symmetry Alarm 2

Enables symmetry monitoring of battery string(s) by externally connected hardware.

• Auto Boost

Autoboost can be activated or deactivated. If activated, the autoboost will be a menu choice in the battery menu under Service access level. Autoboost is initiated after mains failure or battery test.

• Front Keyboard

Allows disabling the MCU keypad, to prevent unauthorized use. This feature is enabled (MCU keypad functionality is enabled) by default.

• No Rect. Alarm During Mains Alarm

When enabled, Rectifier Failure and Critical Rectifier Fail alarms are masked during a Mains Fail

condition.

• Auto Battery Test

When enabled, a Battery Test will be initiated upon a mains failure.

• Service Warning

When enabled, a service warning will appear when the service warning date is set. This warning has the same properties as any other alarms and can be linked to any relay output.

LVD 1 / LVD 2 / LVD3

Set up features for Low Voltage Disconnect units (contactors). Contains features that define setup (battery or load) and type of contactor(s) installed.

LVD 1 = LVD control output 1 LVD 2 = LVD control output 2 LVD 3 = LVD control output 3 (Relay 11 output signal from Flatpack MCU microcontroller).

• Load Contactor/Battery Contactor

Defines the set up of the disconnect unit installed and determines the alarm message (battery disconnect or load disconnect) that will appear if the disconnect is activated.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

• No Contactor

No contactor installed on this control output

• Normally Open / Normally Closed

Generally, normally open, NO, and normally closed, NC, relay contacts refer to the position of the contacts when the relay coil is not energized. For example: a normally open, NO, relay contact closes when the relay coil is energized. In systems using the Fail Safe Operation Mode, the relay coils are energized in the system’s normal mode of operation. When the system is in alarm mode, the relay coils are de-energized.

The Eltek factory settings for Load and Battery contactors are:

- Load Contactor = The contacts are closed, NC, and the coil de-energized (must be energized to disconnect the load)

- Battery Contactor = The contacts are open, NO, and the coil de-energized (must be energized to connect the batteries)

• Mains Dependent

When enabled, a Mains Failure alarm must be present AND measured Rectifier Current must be below 10 amperes, in order to operate the low voltage disconnect. This is the recommended setting, as this prevents a disconnect event due to a loss of DC voltage sensing to the MCU.

When disabled, the LVD will be dependent only on the voltage setting; and the disconnect timer value is not applicable.

4.11.2 System Calibration

Calibration of the system is performed in the factory. The factory calibration is done at two different calibration points, 0A and at 50-60% of the systems maximum capacity. The system will normally not require any further calibration, except when the Flatpack MCU has been moved from one system to another system with much less/higher total capacity. The following parameters can be calibrated, if necessary:

• Battery Temperature

• Rectifier current

• Output voltage

• Battery current

• Symmetry Voltage

NOTE: Changing the LVD setup in a live system could cause load or battery

disconnection.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.11.2.1 Calibrating the temperature

When the calibration value is entered, the Flatpack MCU will use this value together with the factory calibrated value at 0°C to calculate the temperature characteristic of the sensor.

Calibration:

It is recommended that this calibration is performed at temperatures above 15 °C.

• Measure the temperature as close to the temperature sensor as possible.

• Enter the measured value (a figure between 15

8C and 60 8C) in “Temp Calibration Point”.

• Select Accept to initiate calibration.

4.11.2.2 Calibrating the rectifier current

The rectifier current is always defined as positive (+). It is difficult to calibrate the rectifier current while charging the batteries, since the current is not constant. During calibration, th e batteries should be at their maximum capacity or (if possible) disconnected. The calibration value should be more than 30 % of the system’s maximum capacity.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

Ensure you have a stable load current of approx. 40-60 % of the rated shunt current Measure the load current with a current probe, or directly by measuring the voltage over the rectifier shunt and then calculating the current:

shunt

= V

shunt/Rshunt

shunt

= 60mV/I

rated

* Note that the shunt voltage drop is dependant on specific shunt type. 60mV shunts are typically used, although 50mV shunts may be used in some cases. If in doubt, inspect the shunt body for the actual rating markings.

Enter the calculated or measured current for the Low CalibrationPoint in Amps Select Accept Ensure that you have a stable load current of approx. 30-60 % of the rated shunt current Measure the voltage over the rectifier shunt and calculate the current Enter the calculated or measured current for the High CalibrationPoint in Amps Select Accept Click OK to exit the calibration menu, if done.

4.11.2.3 Internal System Current and Shunt Calibration Considerations

Perceived calibration errors may exist when no system load is connected, where the Flatpack MCU display indicates some battery discharge current due to the internal power system load current. Awareness of the reasons for this condition should alleviate concerns regarding the perceived discrepan cy, and the intent of these paragraphs is to avoid confusion over the issue.

In LVD contactor-equipped DC power systems where the contactor coils are fed from the battery side of the system distribution bus, it is necessary to consider the effects of the resultant internal power system current drain on the battery. This current consists primarily of the LVD contactor coil power requirements. This current must be considered as part of the battery discharge current when calibrating the current shunts. Typical contactor coil currents are on the order of 500mA per contactor (Example: in a three LVD system, a “phantom” current of approximately 1.5 amperes exists).

Note that attempts to calibrate the battery current shunt to read zero with the internal load current present will resu lt in an offset error in the Total and/or Rectifier current readings due to the mathematical summation of Rectifier and Battery current readings by the Flatpack MCU to arrive at a Total load value.

4.11.2.4 Calibrating the output voltage

Calibration of the output voltage needs only one calibration point (at working voltage). The output voltage should be measured at the load terminals.

• Enter the Output Voltage in Volts, a figure between 10.00 and 75.00.

• Select Accep

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.11.2.5 Calibrating the symmetry voltage

Calibration of the symmetry voltage needs only one calibration point (at working voltage). The symmetry voltage should be measured at the battery terminals. Enter the Symmetry Voltage in Volts, a figure between 10.00 and 75.00. Select Accept

4.11.2.6 Calibrating the battery current

During charging, the battery current is defined as positive (+), during discharge, it is defined as negative (-). In order to obtain an acceptable degree of accuracy of the current measurement, the current must be calibrated at one low level point and one high level point. Since the load supply must be maintained, the low calibration current should be positive, i.e. the current should be measured during float charging while the rectifiers supply b oth the load and the battery. The high calibration point should be measured during discharging, while the rectifiers are turned off (or lowered in voltage). To obtain acceptable accuracy, the high calibration point current should be at least 30 % of the shunt current capacity.

To calibrate the battery current: While the system is in float charge mode, measure the shunt voltage and calculate the current

shunt

= V

shunt/Rshunt

shunt

= 60mV/I

rated

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

It is also acceptable to directly measure the current with a calibrated clamp-on DC ammeter or other device, rather than calculating the current using the shunt resistance and measured voltage drop.

Enter the calculated or measured current for the Low CalibrationPoint in Amps Select Accept Ensure that you have a stable load current of approx. 30-60 % of the rated shunt current and turn the rectifiers off Measure the voltage over the battery shunt and calculate the current Enter the calculated or measured current for the High CalibrationPoint in Amps Select Accept Click OK to exit the calibration menu, if done.

4.11.3 Exit Installation Settings

If the settings in the Installation settings menu have been changed, the following screen will appear when exiting the menu:

In order to permanently retain any new settings in Flatpack MCU memory (after the unit is powered down or removed from the system), this software reset must be executed.

Notes:

A Software Reset causes the contactors to change state, which could cause load supply interruption.

A Software Reset may cause the rectifier output voltage to be reduced for 5-10 seconds, while the MCU reboots. The batteries will supply the load during this time.

If a LVD service switch is present, it should be in the SERVICE position to avoid disconnection before executing software reset.

Turn the service switch back to NORMAL when the output voltage has stabilised.

NOTE: Never perform a software reset on a commissioned system, unless the consequences have been fully analysed

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.12 Passwords

Access to the various menu options is protected by passwords as follows: The USER level is not secured by password, as no changes are possible under this access level. The SERVICE password is alphanumeric (max. 9 characters) and is accessed from the key on the Main Screen indicated by a padlock. This password is set to a default (<<service>>) at the factory and should be changed as soon as the system is installed. The INSTALLATION SETTINGS password is generally only available to factory / system installation personnel.

To change the passwords: Log in under the appropriate access level (using the “lock” toolbar icon) Select Tools Select Options Change the password, as appropriate Select OK

4.13 Alarm Log

The alarm log registers every event in the alarm unit with time, date and event description. The Alarm Log also stores a record when any parameters or configuration changes are made via WinPower Silver. See example:

• Get x Log Items

Select this option and specify the exact number of log items to be listed

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

• Get All Items

Select this option and all alarm module events will be listed in the log

• Erase Log

Select this option and all alarm module events will be erased from the log

• Export log to file

Select this option and the alarm log can be exported to a chosen file. The following window will appear:

4.14 Battery Test Info

This option shows the results of the last ten battery tests, and when the n ext test is scheduled. The first test result is kept as a reference and will not be overwritten (when changing the battery installation date the user will be asked if the battery test results shall be deleted). When the eleventh test occurs, it will overwrite the result of the second test (graphically the results take a “shift left”). This screen is automatically displayed when a battery test is terminated for any reason (automatically or manually).

It is possible to copy and paste the results to a spreadsheet application for trend analysis /graphical presentation.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

• Delete: This will delete all the battery test results data. A warning will be shown.

• View log (latest test): A log for the latest test will be shown.

• Export log to file (latest test): The log for the latest test will be exported to file, together with the battery test

result data.

4.14.1 Battery Test Log

This view shows the log for the latest battery test. The first 10 minutes of the test the values are logged every minute. After this the rest of the test is limited to 30 loggings. In addition the values will be logged when the test is stopped.

4 Operating From a Personal Computer

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

4.15 Clear Event Log

Selecting this option will clear the event log in the main screen interface.

4.16 Resynch System

Selecting this option will reset the communication. It might be necessary to perform such a resynchronisation, if the installation settings in the Flatpack MCU have been changed.

5 Range of Settings and Default Values

The Flatpack MCU alarm and setpoint limit values, and standard / factory default settings, are shown below.

Function

Default

Value

Minimum

Value

Maximum

Value

User

Setting

Notes

Battery Voltage 53.5V 43.0V 60.0V Boost Voltage 56.0V 52.0V 60.0V High Alarm 1 57.0V 50.0V 58.0V High Alarm 2 57.0V 50.0V 58.0V Low Alarm 1 50.0V 32.0V 54.0V Low Alarm 2 50.0V 32.0V 54.0V LVD1 Disconnect Point 43.0V 40.0V 50.0V LVD1 Reconnect Point 47.0V 40.0V 50.0V LVD1 Disconnect Delay 0 min 0 min 7200 min LVD2 Disconnect Point 43.0V 40.0V 50.0V LVD2 Reconnect Point 47.0V 40.0V 50.0V

5 Range of Settings and Default Values

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

LVD2 Disconnect Delay 0 min 0 min 7200 min LVD3 Disconnect Point 43.0V 40.0V 50.0V LVD3 Reconnect Point 47.0V 40.0V 50.0V LVD3 Disconnect Delay 0 min 0 min 7200 min Alarm Delay 0 sec 0 sec 60 sec Low Temp

0°C -35°C 20°C

High Temp 1

30°C 5°C 80°C

High Temp 2

40°C 5°C 80°C

Capacity Alarm 0% 0% 100%

5 Range of Settings and Default Values

Operation Guide Flatpack MCU,

351300.013, v8-2006-07

www.eltekenergy.com

ELTEK Energy

P-O- BOX 2340 StØmsØ

N-3003 DRAMMEN NORWAY

Phone: +47 32203200 Telefax: +47 32203210 Internet: http://www.eltekenergy.com

e-mail:

eltek@eltekenergy.com

Location Company Telephone Fax

Norway Eltek Energy AS +47 32 20 32 00 +47 32 20 32 10 Americas Eltek Energy, LLC +1 815 459 9100 +1 815 459 9118 Asia/Pacific Eltek Energy Pte Ltd. +65 6 7732326 +65 6 7753602 China Eltek Energy Ltd. +769 22651108 Europe Eltek Energy UK Ltd. +44 1442 219355 +44 1442 245894 Middle East Eltek Middle East +971 4 887 1176 +971 4 887 1175

Eltek Flatpack MCU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
