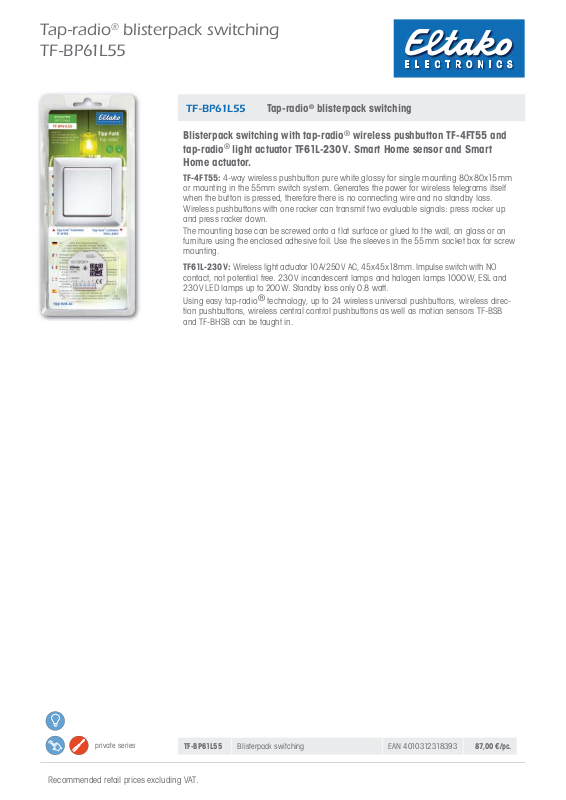

Eltako TF-BP61L55 User Manual
Tap-radio® blisterpack switching
TF-BP61L55
TF-BP61L55 Tap-radio® blisterpack switching
Blisterpack switching with tap-radio® wireless pushbutton TF-4FT55 and
®
tap-radio
light actuator TF61L-230 V. Smart Home sensor and Smart
Home actuator.
TF-4FT55: 4-way wireless pushbutton pure white glossy for single mounting 80x80x15mm
or mounting in the 55mm switch system. Generates the power for wireless telegrams itself
when the button is pressed, therefore there is no connecting wire and no standby loss.
Wireless pushbuttons with one rocker can transmit two evaluable signals: press rocker up
and press rocker down.
The mounting base can be screwed onto a flat surface or glued to the wall, on glass or on
furniture using the enclosed adhesive foil. Use the sleeves in the 55mm socket box for screw
mounting.
TF61L-230V:
contact, not potential free. 230V incandescent lamps and halogen lamps 1000W, ESL and
230V LED lamps up to 200W. Standby loss only 0.8 watt.
Using easy tap-radio® technology, up to 24 wireless universal pushbuttons, wireless direction pushbuttons, wireless central control pushbuttons as well as motion sensors TF-BSB
and TF-BHSB can be taught in.
Wireless light actuator 10A/250 V AC, 45x45x18mm. Impulse switch with NO
private series
Recommended retail prices excluding VAT.
TF-BP61L55
Blisterpack switching
EAN 4010312318393
87,00 €/pc.
