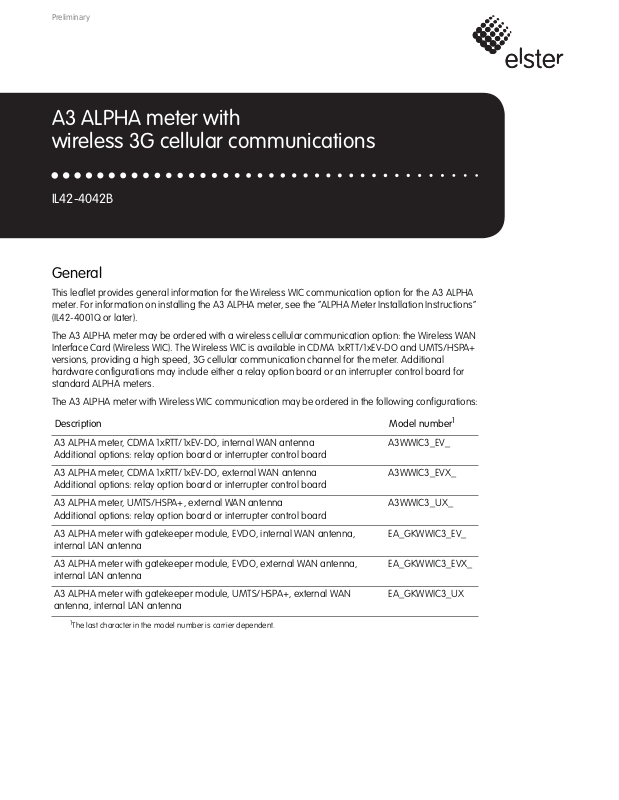

A3 ALPHA meter with
Preliminary
wireless 3G cellular communications
IL42-4042B
General
This leaflet provides general information for the Wireless WIC communication option for the A3 ALPHA
meter. For information on installing the A3 ALPHA meter, see the “ALPHA Meter Installation Instructions”
(IL42-4001Q or later).
The A3 ALPHA meter may be ordered with a wireless cellular communication option: the Wireless WAN
Interface Card (Wireless WIC). The Wireless WIC is available in CDMA 1xRTT/1xEV-DO and UMTS/HSPA+
versions, providing a high speed, 3G cellular communication channel for the meter. Additional
hardware configurations may include either a relay option board or an interrupter control board for
standard ALPHA meters.
The A3 ALPHA meter with Wireless WIC communication may be ordered in the following configurations:
Description Model number
1
A3 ALPHA meter, CDMA 1xRTT/1xEV-DO, internal WAN antenna
Additional options: relay option board or interrupter control board
A3 ALPHA meter, CDMA 1xRTT/1xEV-DO, external WAN antenna
Additional options: relay option board or interrupter control board
A3 ALPHA meter, UMTS/HSPA+, external WAN antenna
Additional options: relay option board or interrupter control board
A3 ALPHA meter with gatekeeper module, EVDO, internal WAN antenna,
internal LAN antenna
A3 ALPHA meter with gatekeeper module, EVDO, external WAN antenna,
internal LAN antenna
A3 ALPHA meter with gatekeeper module, UMTS/HSPA+, external WAN
antenna, internal LAN antenna
1
The last character in the model number is carrier dependent.
A3WWIC3_EV_
A3WWIC3_EVX_
A3WWIC3_UX_
EA_GKWWIC3_EV_
EA_GKWWIC3_EVX_
EA_GKWWIC3_UX
A3 ALPHA meter with wireless 3G cellular communications 2
Preliminary
Use authorized utility procedures to install and service metering equipment. Dangerous voltages are
present. Equipment damage, personal injury, or death can result if safety precautions are not
followed.
Use circuit closing devices on current transformer secondaries (3S, 4S, 5S, 5A, 6S, 6A, 8S, 9S, 10S, 10A,
26S, 29S, 35S, 36S, and 36A meters). Equipment damage, personal injury, or death can result if circuit
closing secondaries are not used.
Location of antennas
See Figure 1 for the location of the Wireless WIC internal antenna.
The Wireless WIC internal antenna is fix-mounted to the periphery of the A3 ALPHA meter’s electronic
housing. The Wireless WIC antenna is not adjustable or removable.
Alternatively, A3 ALPHA meters may be ordered with an external WIC antenna. With this option, the
meter is shipped with an RF “pigtail” output cable which allows connection to a multi-band cellular
antenna external to the meter. This is advantageous in locations with lower cellular signal strength.
Also, certain Wireless WIC configurations (for example, UMTS/HSPA+) are presently only available with
an external WIC antenna.
See Figure 2 for the recommended location of the Wireless WIC external antenna. Elster recommends
mounting the external Wireless WIC cellular antenna on the top of the meter socket box as shown,
centered in the available space on the meter box’s top surface.
• Drill and/or punch the specified antenna mounting hole in the top of the meter socket box and install
the antenna using the antenna manufacturer’s instructions.
• Connect the meter's RF “pigtail” output cable directly to the antenna via its integral N-type connector.
The Wireless WIC antenna output cable may be ordered in two lengths: 19 or 36 inches. Choose the
length based on the distance from the meter to the Wireless WIC external antenna, which is in turn
determined by the size of the meter socket box.
Please note that external cellular antennas must be purchased separately, either from Elster or a third
party, from a list of approved antennas. Please ask your Elster Sales Representative for the current list
of approved external cellular antennas.
Use approved utility safety procedures while installing the external antenna and meter RF output
cable in the meter socket box. Dangerous voltages may be present. Assure that there is sufficient
clearance between any line-energized socket part and the exposed metal of the antenna connectors.
Also assure that the external antenna is electrically bonded to the meter socket box. Failing to follow
approved utility safety procedures, failing to allow sufficient clearance, or failing to electrically bond
the external antenna to the meter socket box may result in equipment damage, personal injury, or
death.
A3 ALPHA meter with wireless 3G cellular communications
Preliminary
Figure 1. Location of internal antennas
3
Wireless WIC
internal antenna
Figure 2. Location of Wireless WIC external antenna
Wireless WIC
external antenna
A3 ALPHA meter
electronic assembly
A3 ALPHA meter with wireless 3G cellular communications 4
Preliminary
Placing the A3 ALPHA meter with Wireless WIC into service
Use authorized utility procedures when placing the standard A3 ALPHA meter into service. Equipment
damage, personal injury, or death can result if authorized utility procedures are not followed.
See IL42-4001Q or later for the A3 ALPHA meter installation instructions. When planning the meter
installation, consider the following additional guidelines:
• Since the Wireless WIC and EA_LAN (if present) are high frequency communication devices, site the
meter so that the front of the meter has the best possible view of the surrounding terrain.
• Do not place metal structures (other than the meter socket and related cabling) within 20 cm of the
meter.
After the Wireless WIC external antenna is installed (if supplied) and the A3 ALPHA meter is installed
and powered as instructed in IL42-4001Q or later, the installation is complete. To verify operation of the
Wireless WIC on-site, the following steps may be taken:
1 After installing and powering the A3 ALPHA meter, wait approximately 5 minutes for the Wireless WIC
to connect to the cellular network and initialize.
2 Using Metercat and an optical probe connection, perform a diagnostic read. For information on
using Metercat and performing diagnostic reads, see the Metercat software documentation or
online Help.
3 Once the diagnostic read is performed, select the Special Option Board section. Several operational
parameters are provided, including the following:
Item Expected status
WAN wireless status
Status “Connected” means that the W-WIC is registered to a wireless network
Received Signal
Strength Indicator
WAN IP address The IP address provided by the cellular network.
The RSSI may vary between 0 and 31, with 31 indicating the best possible signal
strength. An RSSI value of 99 indicates an unknown or non-detectable signal.
A3 ALPHA meter with wireless 3G cellular communications
Preliminary
5
FCC Compliance
Important
The A3 ALPHA meter equipped with the Wireless WIC option complies with Part 15 of the FCC Rules. Changes or
modifications not expressly approved by Elster could void the user's authority to operate the equipment.
FCC & IC Information
For CDMA 1xRTT/1xEV-DO versions of the A3 ALPHA meter with EA_Gatekeeper module and the Wireless WIC option:
• FCC ID: QZCWWIC3EV
• IC: 4557A-WWIC3EV
For UMTS/HSPA+ versions of the A3 ALPHA meter with EA_Gatekeeper module and the Wireless WIC option:
• FCC ID: QZCWWIC3U
• IC: 4557A-WWIC3U
For CDMA 1xRTT/1xEV-DO versions of the standard A3 ALPHA meter with the Wireless WIC option:
• FCC ID: RI7DE910-DUAL
• IC: 5131A-DE910DUAL
For UMTS/HSPA+ versions of the standard A3 ALPHA meter with the Wireless WIC option:
• FCC ID: RI7HE910NA
• IC: 5131A-HE910NA
Compliance Statement
This device complies with Part 15 of the FCC Rules and Class B digital apparatus requirements for ICES-003. Operation is
subject to the following two conditions: (1) This d evice may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.
Énoncé de conformité
Cet appareil est conforme à la Partie 15 des règles de la FCC et aux exigences relatives aux appareils numériques de classe B
conformément à l'avis sur la compatibilité électromagnétique ACEM-3. L'utilisation de cet appareil est soumise aux deux
conditions suivantes : (1) Cet appareil ne doit pas provoquer d'interférences nocives et (2) cet appareil doit accepter toutes les
interférences reçues notamment celles pouvant provoquer un fonctionnement intempestif de l'appareil.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules and ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• reorient or relocate the receiving antenna
• increase the separation between the equipment and the receiver
• connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• consult the dealer or an experienced radio/TV technician for help
If you experience trouble with this equipment, please use the Return Material Authorization (RMA) feature available from the
customer support section of www.elstersolutions.com. Do not attempt to repair this equipment yourself.
Caution
The antennas used for these transmitters must be installed to provide a separation of at least 20 cm from all persons and must
not be collocated or operated in conjunction with any other antenna or transmitter except as documented in the FCC application.
Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying
RF exposure compliance.
