Operating instructions
Communications module ACM WAVE SYSTEM RF for gas meters with Absolute ENCODER AE2 with and without smart valve
Translation from the German
© 2008 – 2010 Elster GmbH
Contents
Communications module ACM WAVE
SYSTEM RF for gas meters with Absolute
ENCODER AE2 with and without smart valve 1
Contents ..............................1
Safety.................................1
Checking the usage .....................2
Type code .............................2
Part designations ........................2
Installation ............................2
Attaching the RECEIVER base plate..........2
Wiring the RECEIVER.....................3
Installing the gas meter ...................3
Attaching the TRANSMITTER...............3
Commissioning.........................4
Installing the TRANSMITTER/RECEIVER ......4
Synchronizing the TRANSMITTER/RECEIVER
failed .................................4
Installing the REPEATER ..................4
Synchronizing the REPEATER with the
RECEIVER .............................4
Synchronizing the REPEATER with the
TRANSMITTER..........................4
Synchronizing the REPEATER failed .........4
Finishing installation ......................4
Closing and sealing the REPEATER ..........4
Replacement...........................5
Maintenance ...........................5
Assistance in the event of malfunction .....5
Technical data .........................6
Declaration of conformity ................6
Contact ...............................6
carefully before installing or operating. Following the
Please read through these instructions
installation, pass the instructions on to the operator. This unit must be installed and commissioned
in accordance with the regulations and standards
in force. These instructions can also be found at
www.docuthek.com.
Explanation of symbols
• , 1 , 2 , ... = Action
▷ = Instruction
Liability
We will not be held liable for damages resulting
from non-observance of the instructions and noncompliant use.
Safety instructions
Information that is relevant for safety is indicated in
the instructions as follows:
DANGER
Indicates potentially fatal situations.
WARNING
Indicates possible danger to life and limb.
CAUTION
Indicates possible material damage.
All interventions may only be carried out by qualified
gas technicians. Electrical interventions may only be
carried out by qualified electricians.
Conversion, spare parts
All technical changes are prohibited. Only use OEM
spare parts.
Transport
On receipt of the product, check that the delivery is
complete (see Part designations). Report any transport damage immediately.
Storage
Store the product in a dry place. Ambient temperature: see Technical data.
Disposal
Components, particularly batteries, are to be disposed of separately.
On request, old units may be returned carriage paid
to Elster GmbH in accordance with the relevant waste
legislation requirements (for Germany: KrW-/AbfG
[Act for Promoting Closed Substance Cycle Waste
Management and Ensuring Environmentally Compatible Waste Disposal]).
GB
GB-1
Page 2
F
NL
I
E

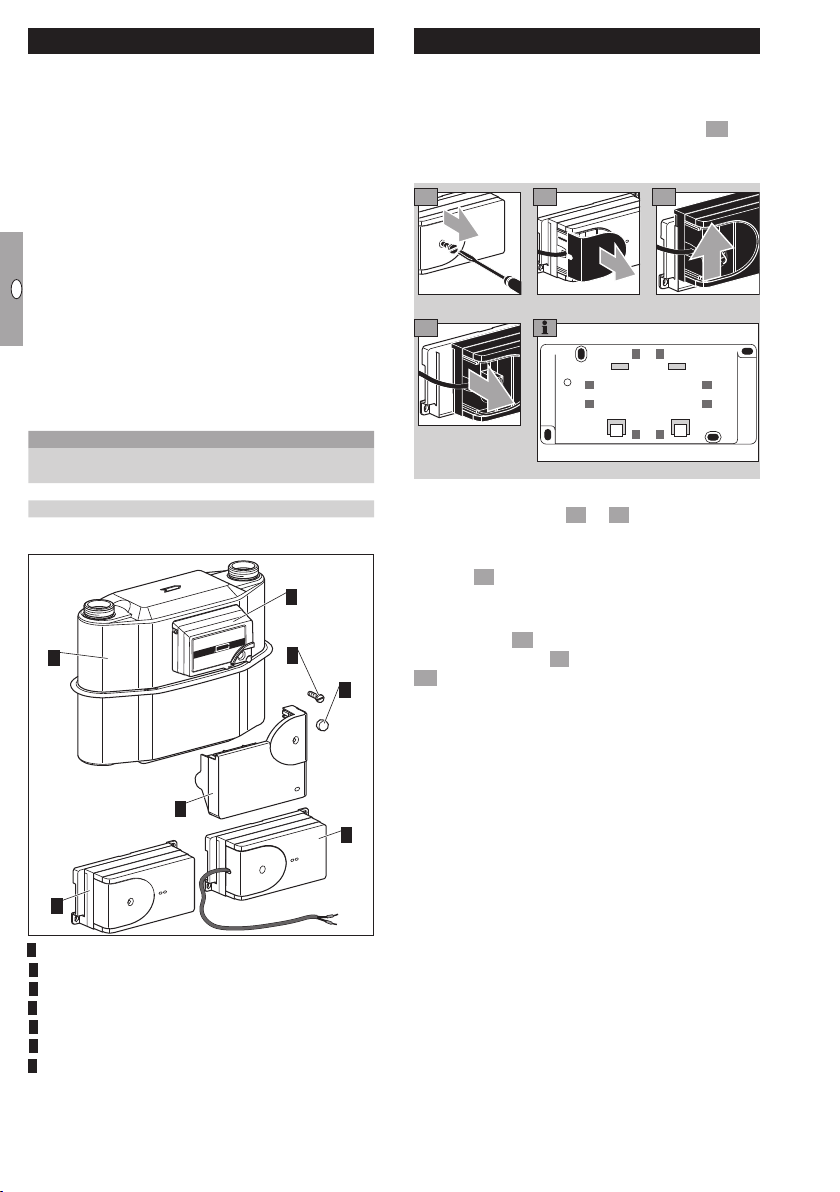

Checking the usage
3
1
2
Communications module ACM WAVE
SYSTEM RF for gas meters with Absolute
ENCODER AE2
ACM WAVE SYSTEM RF for recording and forwarding
absolute meter readings.
The “V-Drive” option allows additional activation and
status messaging of the valve incorporated in the gas
meter. The valve is designed for the remote connection and disconnection of the gas supply.
The ACM WAVE SYSTEM RF comprises the TRANS-
MITTER and the RECEIVER. The TRANSMITTER is
directly connected to the index. The RECEIVER is
GB
connected to the receiving unit.
As an option for supporting the wireless link, a
REPEATER can be additionally connected.
This function is only guaranteed when used within the
specified limits – see page 6 (Technical data). Any
other use is considered as non-compliant.
Type code
Code Description
ACM
WAVE SYSTEM RF Radio system
V-Drive Smart valve control
Part designations
1
Absolute ENCODER
communications module
2
6
7
Installation
Attaching the RECEIVER base plate
▷
The RECEIVER RF/REPEATER RF base plate
offers a wide range of mounting options.
▷
To attach, excepting the oblong holes A , the
open upper housing must be removed from the
base plate.
4
B
E E
A
Fitting the base plate to a wall
▷ Use oblong holes A or B for 3 mm diameter
screws.
Fitting the base plate to a DIN rail
▷ Use C to snap onto a DIN rail.
Fitting the base plate to a pipe
▷
For attaching to a vertical pipe with cable ties,
use holes D , and for attaching to a horizontal
pipe, use holes E .
5 Push the upper housing back onto the base
plate.
D
C
C C
D
C
B
A
3
5
1 Gas meter
2 Absolute ENCODER AE2
ACM WAVE TRANSMITTER RF
4 ACM WAVE RECEIVER RF with base plate
5 ACM WAVE REPEATER RF with base plate
6 Retaining screw
7 Calibration seal
4
GB-2
Page 3
F
NL
I
E

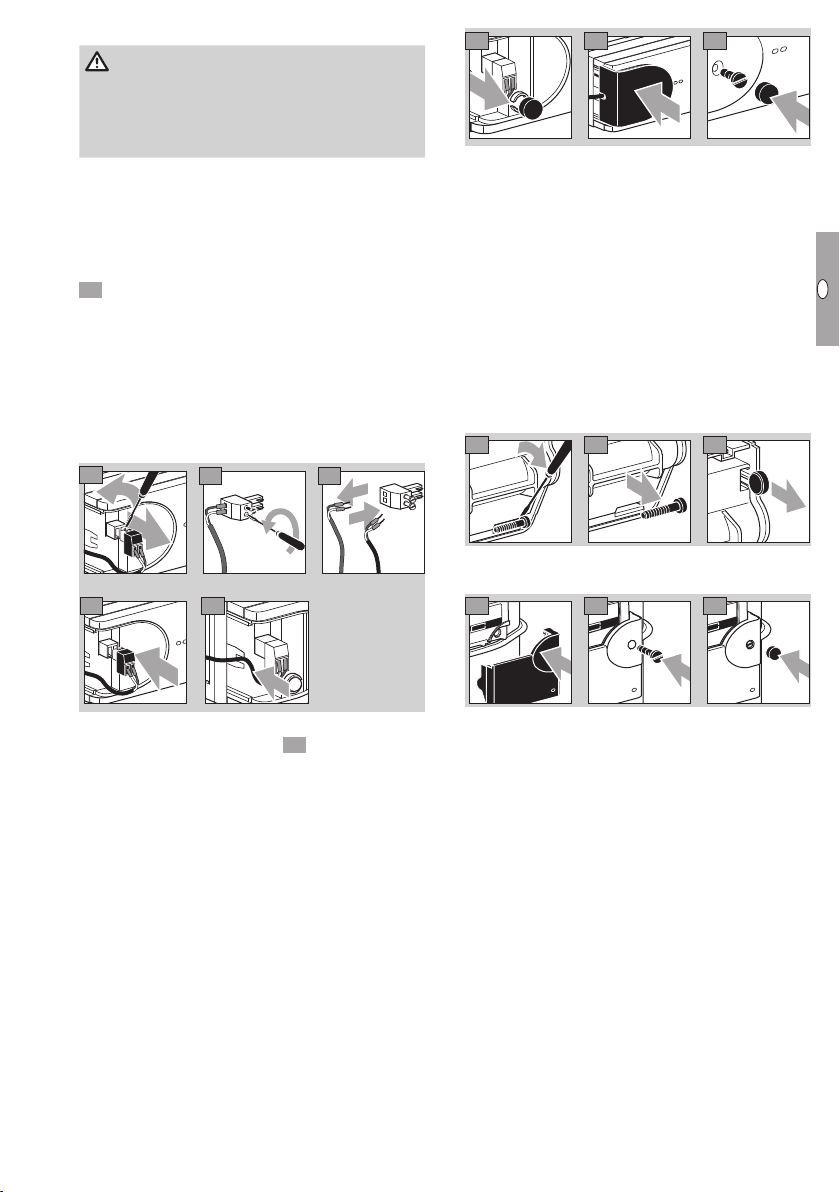

Wiring the RECEIVER
1
2
3
1
2
3
64 5
WARNING
Electric shocks can be fatal! Before working on
possible live components ensure the unit is disconnected from the power supply.
▷
For the electrical connection between the
RECEIVER and the receiving unit, polarity is
inconsequential.
▷ The RECEIVER is delivered with a prefabricated
connection cable. The RECEIVER may optionally
be delivered without a connection cable.
1 Wire the RECEIVER to the receiving unit.
▷
If a connection cable is already routed to the
receiving unit at the installation location, the prefabricated connection cable on the RECEIVER
may be removed, as described below.
Removing the prefabricated connection cable
▷
Use the connection plug from the RECEIVER
for further wiring with the already routed connection cable.
1
4 5
2
3
Installing the gas meter
▷
For installing the gas meter in the pipework, refer
to the operating instructions for diaphragm meters BK-G1.6 to BK-G25T, see www.docuthek.
com → Elster-Instromet → Products → Gas
measuring devices → Diaphragm meters →
Diaphragm meters BK-G1.6 to BK-G25T operating instructions.
Attaching the TRANSMITTER
▷
The TRANSMITTER is connected to the Absolute
ENCODER AE2 index after the gas meter has
been installed in the pipework.
▷ The retaining screw and the calibration seal are
found at the rear of the TRANSMITTER housing.
▷
When connecting the TRANSMITTER to the
index, avoid bending the contacts.
GB
▷
Feed the new connection cable into the strain
relief facility, see figure 5 . Otherwise, the
RECEIVER cannot be closed.
▷ The red LED on the TRANSMITTER blinks.
▷
If the red LED does not blink, see page 5
(Assistance in the event of malfunction).
Wiring completed
▷
Once wiring is completed, the RECEIVER requires a charging time of < 5 min. During this
time, there is no communication with the other
units of the ACM WAVE SYSTEM.
▷ At the end of the charging time, the green LED
on the RECEIVER blinks every 10 s and the red
LED blinks at a rate of 1 Hertz.
▷
The charging time can be used for further in-
stallation work, see page 3 (Closing and
sealing the RECEIVER) and 3 (Installing the
gas meter).
Closing and sealing the RECEIVER
▷ Secure the RECEIVER against external access
with the seal.
GB-3
Page 4
F
NL
I
E

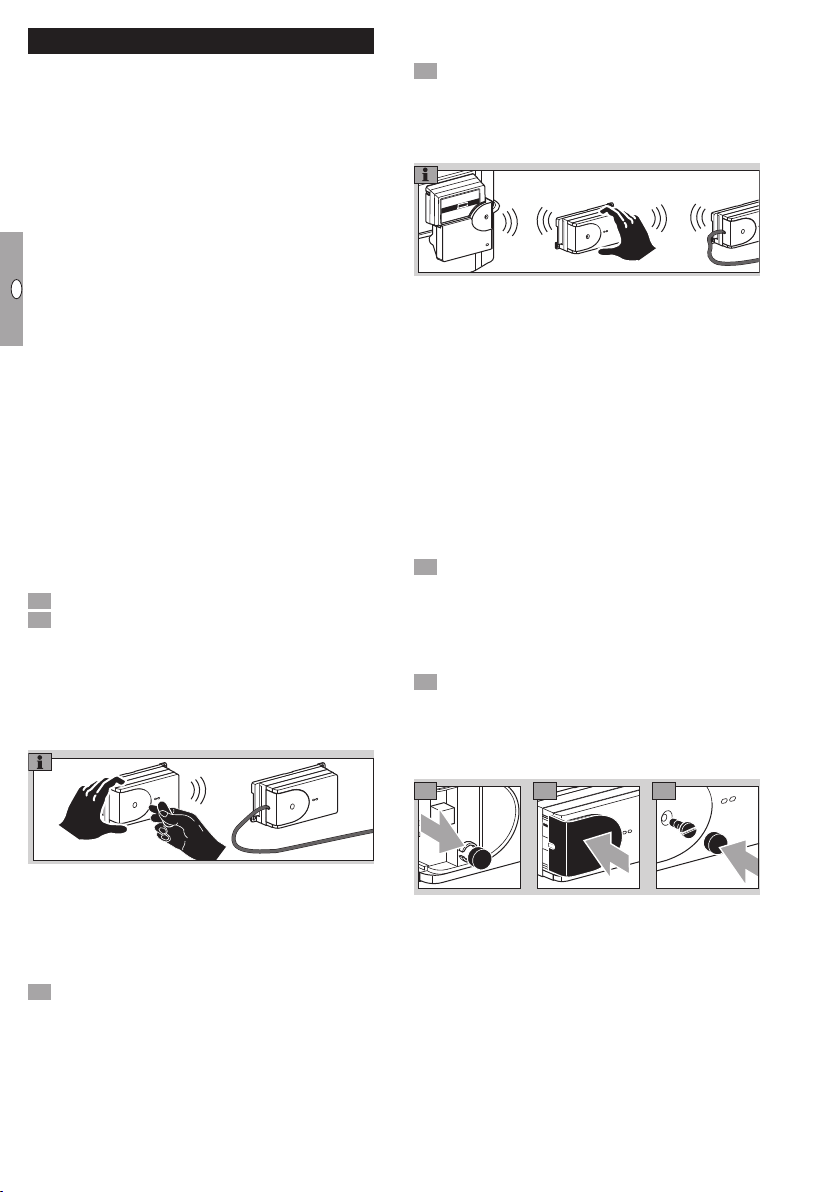

Commissioning
1 2
3
Installing the TRANSMITTER/RECEIVER
▷
The ACM WAVE SYSTEM RF units are delivered
fully programmed.
▷
Once the RECEIVER has been wired and the
TRANSMITTER has been connected to the in-
dex, the units and the connected receiving unit
are synchronized automatically. The RECEIVER
and the TRANSMITTER are in installation mode.
▷ When the units have “found” each other, all the
LEDs go out after a maximum of 20 s. The red
LED on the RECEIVER now blinks once every
20s.
GB
▷
The LEDs do not go out? See page 4 (Syn-
chronizing the TRANSMITTER/RECEIVER failed).
Synchronizing the TRANSMITTER/RECEIVER failed
▷ If the distance between the RECEIVER and the
TRANSMITTER is too large, the units will not
“find” a sufficient signal. This can be identified
by the continued blinking of the LEDs on the
RECEIVER and the TRANSMITTER.
▷
To support the wireless link, a REPEATER can be
connected. Up to 3 REPEATERS can be used.
See page 4 (Installing the REPEATER).
Installing the REPEATER
Synchronizing the REPEATER with the
RECEIVER
1 Hold the REPEATER close to the RECEIVER.
2 Activate the REPEATER. To do this, place a per-
manent magnet in close proximity to the two
LEDS for approx. 10s. A magnetic flux density
of B ≥40mT directly on the housing surface is
needed for identification purposes.
▷ The REPEATER is activated when the red LED
blinks every 2 s.
Synchronizing the REPEATER with the
TRANSMITTER
4 Move the REPEATER in the direction of the de-
sired installation location and the TRANSMITTER.
▷
When doing this, the signal between the
REPEATER and RECEIVER must not be “lost”.
The green LED must continue to blink.
▷ When the green LED on the REPEATER blinks
twice within 10 s, it means that the REPEATER
and the TRANSMITTER have found each other.
Synchronizing the REPEATER failed
▷
If the REPEATER is too far away from the
RECEIVER, the green LED goes out. The signal from the RECEIVER is “lost”. Move the REPEATER back in the direction of the RECEIVER
until the green LED blinks again.
▷ It is not possible to position the REPEATER so
that the green LED on the REPEATER blinks
twice within 10 s? See page 5 (Assistance
in the event of malfunction).
Finishing installation
5 Confirm installation. To do this, hold the perma-
nent magnet on the LEDs on the REPEATER for
approx. 10 s.
▷
The red LED on the REPEATER briefly blinks
more quickly. Afterwards, all the LEDs on the RECEIVER, REPEATER and TRANSMITTER go out.
6 Secure the REPEATER, see page 2 (Attach-
ing the RECEIVER base plate).
Closing and sealing the REPEATER
▷ Secure the REPEATER against external access
with the seal.
▷
When the green LEDs on the REPEATER and
the RECEIVER blink simultaneously every 10 s,
it means that the units have found each other.
▷
The green LEDs do not blink simultaneously?
See page 5 (Assistance in the event of malfunction).
Confirm that both units have been synchronized.
To do this, hold the permanent magnet on the
LEDs on the REPEATER for approx. 10 s.
▷
The green LEDs on the REPEATER and the
RECEIVER no longer blink simultaneously.
▷ The red LED on the REPEATER now blinks at a
rate of 1 Hertz.
▷
The REPEATER now “seeks” the TRANSMITTER.
GB-4
Page 5
F
NL
I
E

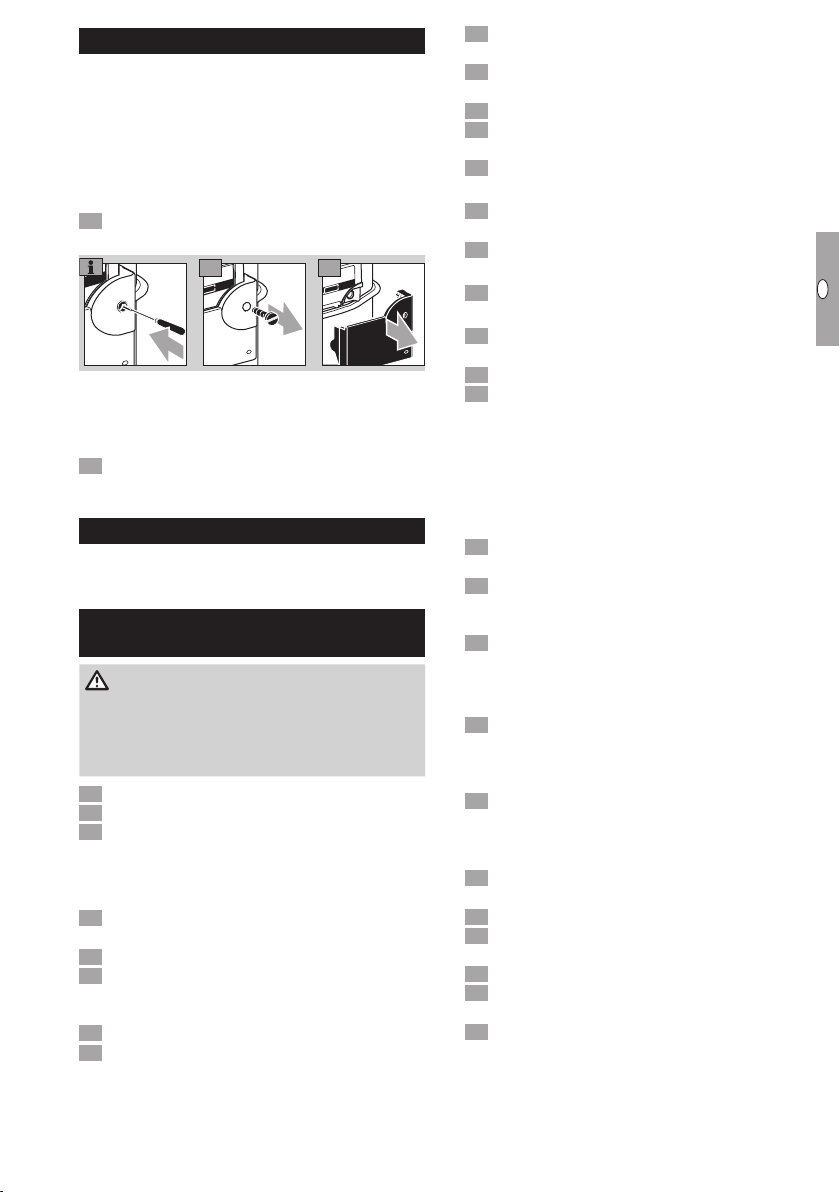

Replacement
▷
The ACM WAVE SYSTEM RF units are matched
together in pairs. This means that once the battery life has expired, the complete ACM WAVE
SYSTEM RF must be replaced.
▷
The units can be replaced without further pro-
gramming effort.
▷
The relevant calibrated part of the meter remains
unaffected.
1 For removing the TRANSMITTER, the seal must
be pierced and broken with a screwdriver.
32
▷
If the RECEIVER/REPEATER needs to be opened
for removing the base plate, the seals on the
units must also be pierced and broken with a
screwdriver.
4 Install the new ACM WAVE SYSTEM RF accord-
ing to the enclosed operating instructions.
Maintenance
The ACM WAVE SYSTEM RF for gas meters with
Absolute ENCODER AE2 requires little servicing.
Assistance in the event of malfunction
WARNING
Electric shocks can be fatal! Before working on
possible live components ensure the unit is disconnected from the power supply.
? Fault
! Cause
• Remedy
Possible faults and suggested solutions
? The red LED does not blink after connecting
the TRANSMITTER.
! The contacts on the index are bent.
• Remove the TRANSMITTER from the index and
straighten the contacts. Re-attach the TRANSMITTER.
! The TRANSMITTER has been incorrectly fitted.
• Fit the TRANSMITTER according to the enclosed
operating instructions.
? M-Bus communication with the RECEIVER
is disturbed.
! The connection plug in the RECEIVER is not
plugged in.
• Check the connection plug and plug in.
! The connection cable on the RECEIVER is incor-
rectly connected.
• Check the connection cable, see page 2 ().
? The green LEDs on the REPEATER and the
RECEIVER do not blink simultaneously.
! The REPEATER has found a “foreign” RECEIVER,
e.g. in a neighbouring room.
• Hold the REPEATER closer to the RECEIVER.
? If the REPEATER is too far away from the
RECEIVER, the green LED goes out.
! The wireless link is too large.
• To support the wireless link, use an additional
REPEATER. Position the first REPEATER where it
will receive a sure signal from the RECEIVER. The
second REPEATER must now be synchronized
with the first REPEATER. To do this, follow the
instructions on page 4 (Synchronizing the
REPEATER with the RECEIVER).
? The network operator cannot receive any
data, despite successful installation?
! The wireless link has subsequently been inter-
rupted, e.g. by a door being closed that was
open during installation.
• To support the wireless link, use a REPEATER.
To install, the RECEIVER and the TRANSMITTER
must be set back to installation mode.
Activating installation mode
1 Loosen the flat head screw on the TRANSMIT-
TER and pull the TRANSMITTER off the index.
▷
The dismantled TRANSMITTER will return to
installation mode after one hour.
2 Now reconnect the TRANSMITTER to the index.
▷
When connecting the TRANSMITTER to the
index, avoid bending the contacts.
▷ The red LED on the TRANSMITTER blinks.
Loosen the housing cover on the RECEIVER and
pull it off.
4 Place a jumper on both pins.
5 Wait until the red LED blinks.
▷
The RECEIVER is once again in installation mode.
6 Pull the jumpers off the pins.
7 Place the housing cover on the RECEIVER and
tighten the screws.
8 Now synchronize the REPEATER first with the
RECEIVER and then with the TRANSMITTER,
see page 4 (Installing the REPEATER).
GB
GB-5
Page 6
F
NL
I
E
Technical data
Enclosure: IP 54.
Ambient temperature: -25 to +55°C.
M-BUS transfer of status and error messages in
accordance with EN13757.
ACM WAVE RECEIVER RF
Power supply via M-BUS: 6 mA (4 M-Bus loads).
Connection cable design: 2 m (other dimensions
on request), flexible, two-core cable LiYY, fireproof
pursuant to IEC 60332-1, Ø = 0.25 mm
The free cable end has 2 wire end ferrules.
Energy accumulator charging time:
ACM WAVE RECEIVER RF: < 5 min.
GB
ACM WAVE TRANSMITTER RF,
ACM WAVE REPEATER RF
Battery power supply,
battery service life: 15 years.
The TRANSMITTER is designed for max. 4 control
commands per hour.
Smart valve
Diaphragm meter BK-G4
Ambient temperature: -10 to +40°C.
Opening time from closed to open/released state:
≤ 4 s,
closing time: ≤ 0.5 s.
Min. inlet pressure: 17.5 mbar.
Allowed leakage flow in the customers’ piping:
valve released:
max. 13 l/h at 35 mbar ∆p,
valve closed: 5 l/h.
2
.
Declaration of conformity
We, the manufacturer, hereby declare that the accordingly labelled products Absolute ENCODER AE2
with communications module ACM WAVE SYSTEM
RF, ACM WAVE SYSTEM RF V-Drive and ACM WAVE
REPEATER RF for gas meters BK-G comply with the
requirements of the listed Directives and Standards:
Directives:
– 2004/108/EC, 1999/5/EC.
Standards:
– EN 61000-4-2, EN 61000-4-3, EN 301489-3,
EN60950-1, EN 300220-2.
The production is subject to the stated Quality System
pursuant to DIN EN ISO 9001, TÜV NORD CERT.
Elster GmbH
Scan of the Declaration of conformity (D, GB) – see
www.docuthek.com
Contact
Elster GmbH
Postfach 129, D-55248 Mainz-Kastel
Steinern Straße 19-21, D-55252 Mainz-Kastel
T +49 6134 605-0
F +49 6134 605-390
www.elster-instromet.com
Elster Metering Ltd.
Tollgate Business Park
Beaconside
Stafford, Staffordshire ST16 3HS
T +44 1785 275200
F +44 1785 275305
jeavons.info@gb.elster.com
GB-6
in the interests of progress.
We reserve the right to make technical modifications
Loading...
