Page 1
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
1
I3HGP
I5HGP
User’s Manual
Version 1.2
All rights reserved by ELSKY
www.miniboard.cn
Page 2
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
2
Content 目录
Gratitude
Chapter.1 About the product
1. Accessories
2. Picture of the motherboard
3. Features
Chapter.2 Hardware installation
1. Layout of motherboard
2. Installing memory
3. Install expansion slot card
4. Motherboard jumper setting
5. Rear panel interface
Gratitude
They all Support DDR3_1333M Dual-channel memory on-board HD-AUDIO sound
card and gigabit LAN. Support HDMI display output.
Any question about the product, please send e-mail to our support center.
Headquarter: [email protected]
Chapter1 About the product(产品介绍)
1. Accessories (清点附件)
Your series Motherboard consists of the following accessories. If any of them is
damaged or missing, please contact your local distributor as soon as possible.
Item No.
Accessory’s name
Quantity
1
Motherboard/ I/O baffle
1 piece/1 piece
2
SATA hard-disk cable
1 pieces
3
Harddisk power supply cable
1 pieces
4
Driver’s disk
1 piece
Page 3
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
3

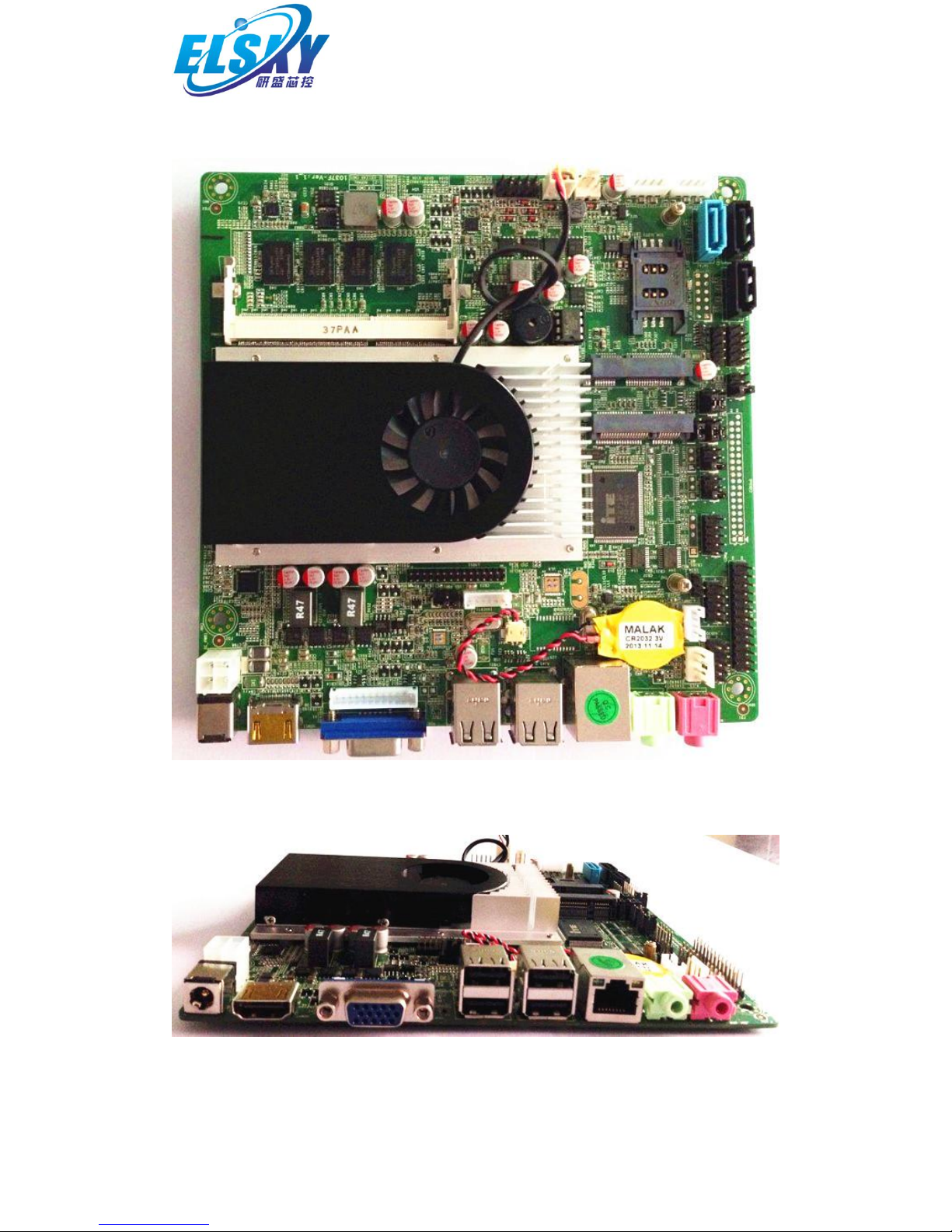

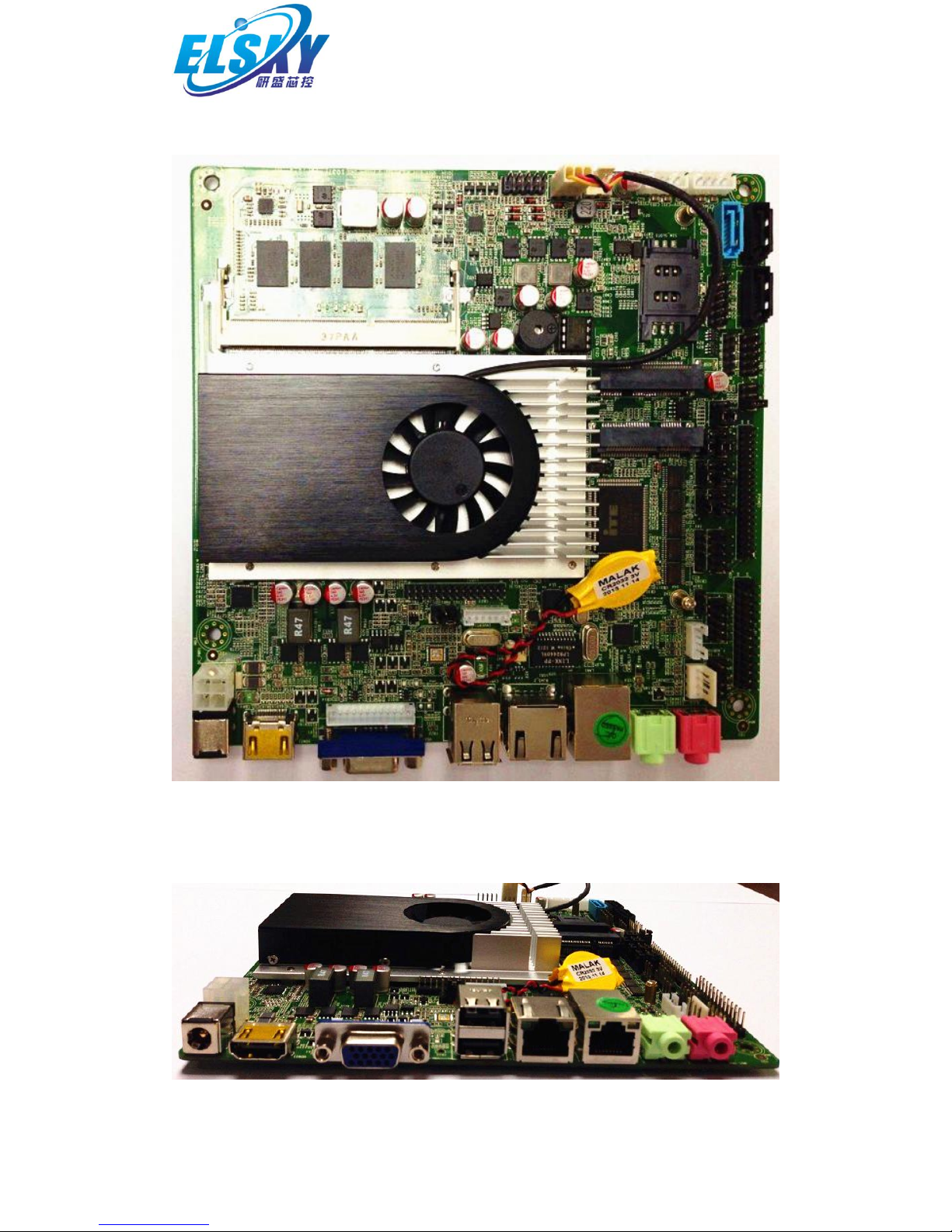

2. Picture of the motherboard(主板实物图)
Page 4
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
4
Page 5
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
5
3. Features（主机板的主要特性）
1. It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE
Lan developed by ELSKY.
2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to
support Wifi/GPS/3G/MSATA
3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage
modes.
4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel
24bit LVDS.
Motherboard Type
170x170mm,Mini-ITX
Processor
Intel Core I3 3217U,Dual core 1.8G processor
System Memory
1 SODIMM slot ,Supports up to 8GB
Chipset
I3 3217U/ I5 3317U+HM76/HM77
Ethernet
2*Realtel 8111E,GBE RJ45
BIOS
8M AMI BIOS
Wake-on-LAN
yes
Watchdog
Trigger a system reset when the timer overflows
H/W Status
Monitoring
Monitor the state of voltage, temperature and rotational
speed of the fan
Expansion Interface
2xMini-PCIE,1xSim Slot.support Wifi/GPS/3G
Battery
Lithium battery
Power Supply
DC 12V Single power supply
Temperature
-10℃ - 60℃
Storage Temperature
(-40℃) ~ 80℃
Humidity
0%~90% (non-condensation)
Controller
HD Graphics integrated with Intel Celeron 1037U
Video Memory
HD Graphic dynamic sharing with system memory, support
up to 512MB
Resolution
CRT supports up to 2048x1536x32 bpp@85 Hz
HDMI support up to 1920×1080×32bpp@60 Hz
CRT
1xVGA
LCD
1x LVDS(Dual Channel 24 bit),UP to1920x1080
Multi-Display
VGA+HDMI/LVDS
Storage
2xSATAⅡ
Serial Port
5xRS232,1xRS232/422/485 Option
Parallel Port
1xParallel Header
USB
6 x USB
Keyboard & Mouse
USB KB/MS
Audio
Realtek ALC662 supporting MIC-in, LINE-out,S_pdif
5W Audio Amplifier onboard
Page 6
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
6

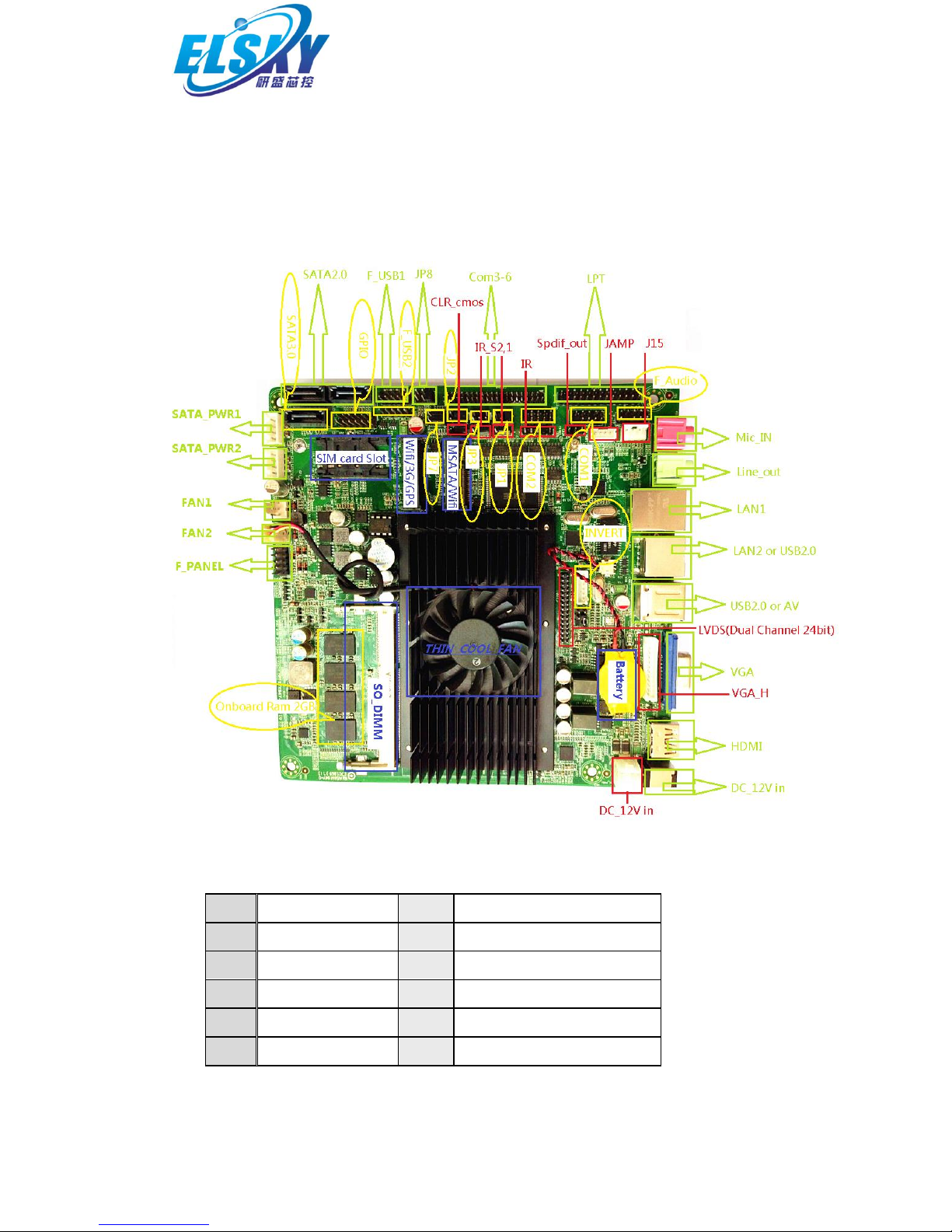

4. Motherboard jumper setting 主机板跳线及插件设定
Note:
The user should notice that all sockets are marked with PIN1. The mark “#”
indicates the ex-factory default values.
4.1 F_AUDIO
Pin#
Signal
Pin#
Signal
1
MIC2_L
2
AGND
3
MIC2_R
4
-ACZ_DET_F
5
LINE2_R
6
Mic2-JD
7
FAUDIO_JD
8 9
LINE2_L
10
Line2-JD
Page 7
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
7

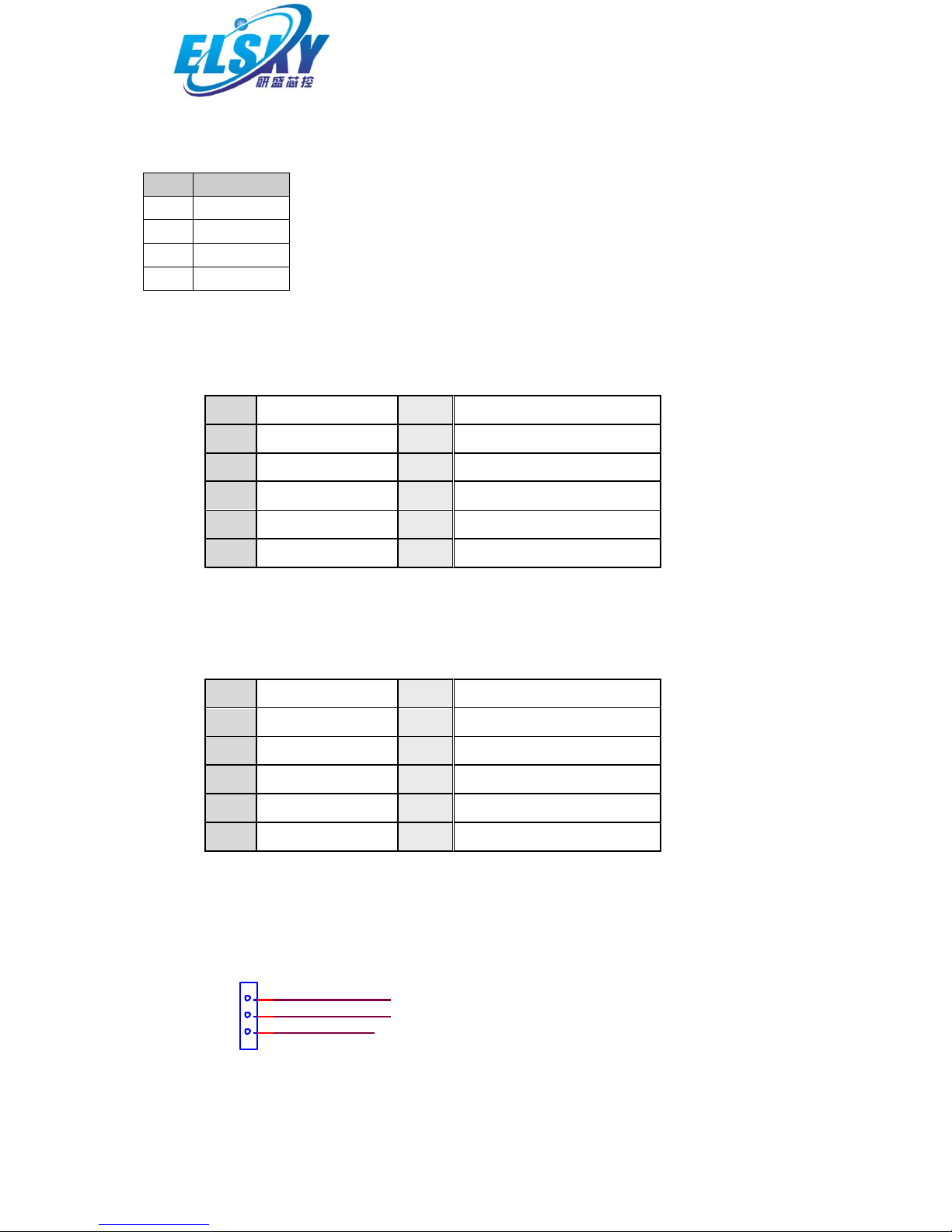

4.2 JAMP
4.3 F_USB1_2
Pin#
Signal
Pin#
Signal
1
VCC
2
VCC
3
D- 4 D- 5 D+ 6 D+ 7 GND
8
GND
9
NC
10
NC
4.4 F_PANEL
Pin#
Signal
Pin#
Signal
1
+HDLED（VCC）
2
+PLED(VCC)
3
GND
4
GND
5
RST_SW
6
PW_BN
7
GND
8
GND
9
NC
10
4.5 Clear CMOS:CLR_CMOS
RTC RESET
GND
2-3 清CMOS
1-2
正常
CLR_CMOS
1
3
2
RTC VCC
PIN
Signal
1
SPK-R-
2
SPK-R+
3
SPK-L-
4
SPK-L+
Page 8
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
8
4.6 COM1,2
Pin#
Signal
Pin#
Signal
1
DCD1_R
2
RXD1_R
3
TXD_R
4
DTR1_R
5
GND
6
DSR1_R
7
RTS1_R
8
CTS1_R
9
RI1_R
10
4.7 SATA power supply interface: Sata_PWR1,2
Pin#
Signal
1
5V 2 GND
3
GND
4
12V
4.8 FAN1,2
4.9 LVDS power supply interface :INVERT
Pin#
Signal
1
VCC
2
VCC
3
LCD_BKL_ON
4
5V(NC)
5
GND
6
GND
(第四脚不接)
4.10 LVDS interface :JLVDS
PIN
Signal
1
GND
2
+12V
3
DET
Page 9
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
9
PIN
Signal
PIN
Signal
1
LCDVDD
2
LCDVDD
3
NC 4 NC 5 GND 6 GND 7 A-DATA0-
8
A-DATA0+
9
A-DATA1-
10
A-DATA1+
11
A-DATA2-
12
A-DATA2+
13
GND
14
GND
15
CLKA-
16
CLKA+
17
A-DATA3-
18
A-DATA3+
19
B-DATA0-
20
B-DATA0+
21
B-DATA1-
22
B-DATA1+
23
B-DATA2-
24
B-DATA2+
25
GND
26
GND
27
CLKB-
28
CLKB+
29
B-DATA3-
30
B-DATA3+
LVDS_PWR（通过跳帽调整驱屏电压）：
Pin#
Signal
1-3
5V（15 寸-22 寸中屏）
3-5
3.3V（12寸以下小屏）
注意:电压不要跳错，否则可能烧主板或者烧屏。
4.11 VGA-out interface:VGA_H
Pin#
Signal
1
GND
2
CRT_VSYNC
3
CRT_HSYNC
4
GND
5
CRT_RED_CN
6
GND
7
CRT_GREEN_CN
8
GND
9
CRT_BLUE_CN
10
GND
11
CRT_DDC_DATA
12
CRT_DDC_CLK
Page 10
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
10
4.12 S/PDIFinterface: SPDIF
Pin#
Signal
1
5V 2 SPDIF_OUT
3
GND
4.13 COM3_6
4.14 LPT
PIN
Signal
PIN
S 1 COM3_DCD
2
COM3_RXD
3
COM3_TXD
4
COM3_DTR
5
GND 6 COM3_DSR
7
COM3_RTS
8
COM3_CTS
9
COM3-RI
10
NC
11
COM4_DCD
12
COM4_RXD
13
COM4_TXD
14
COM4_DTR
15
GND
16
COM4_DSR
17
COM4_RTS
18
COM4_CTS
19
COM4-RI
20
NC
21
COM5_DCD
22
COM5_RXD
23
COM5_TXD
24
COM5_DTR
25
GND
26
COM5_DSR
27
COM5_RTS
28
COM5_CTS
29
COM5-RI
30
NC
31
COM6_DCD
32
COM6_RXD
33
COM6_TXD
34
COM6_DTR
35
GND
36
COM6_DSR
37
COM6_RTS
38
COM6_CTS
39
COM6-RI
40
NC
PIN
Signal
PIN
Signal
1
R_STB
2
R_AFD-
3
R_PD0
4
R_ERR-
5
R_PD1
6
R_INIT-
7
R_PD2
8
R_SLIN-
9
R_PD3
10
GND
11
R_PD4
12
GND
13
R_PD5
14
GND
15
R_PD6
16
GND
Page 11
SHENZHEN ELSKY Technology Co,.LTD.
www.miniboard.cn
11

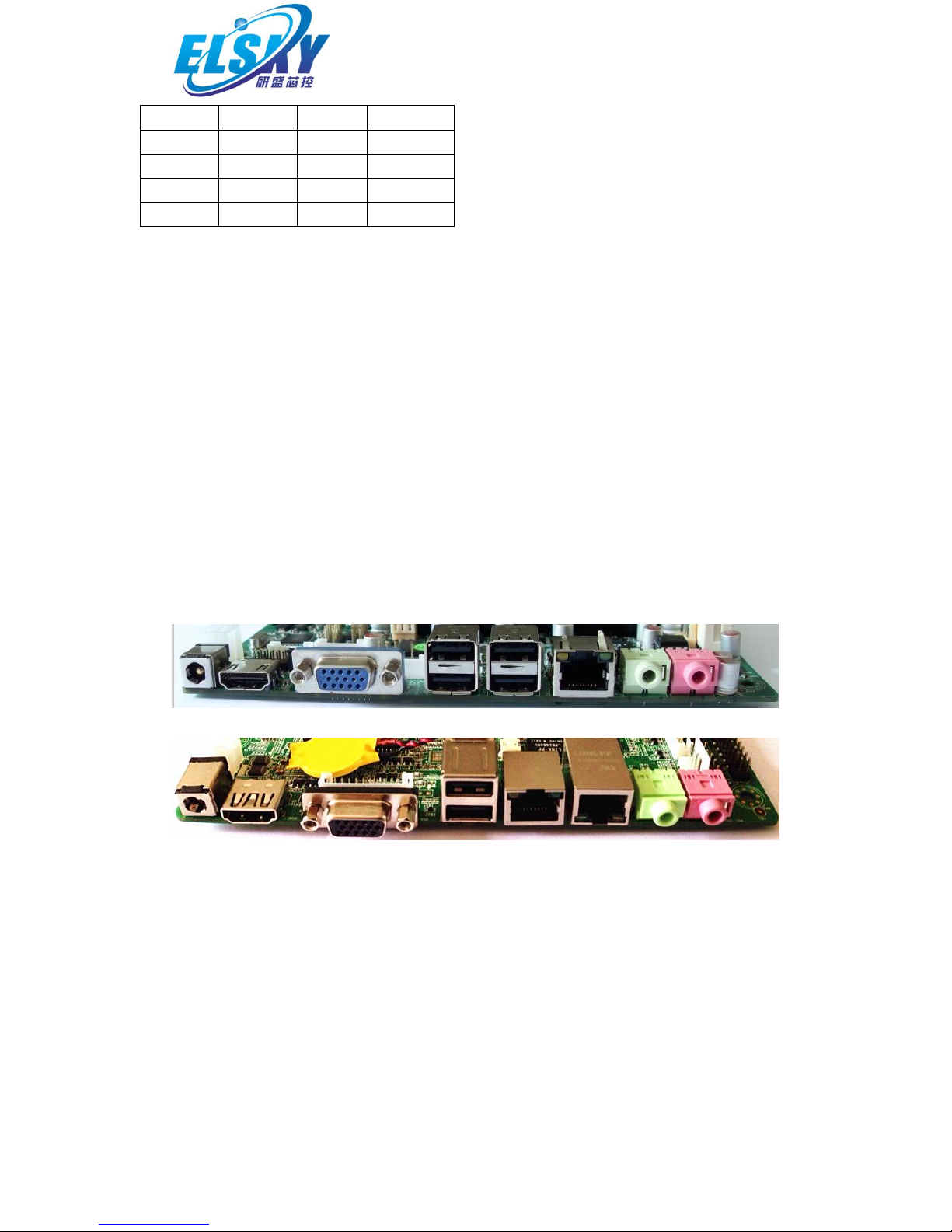

5. Rear panel interface(主机板背板接口)
NOTE:
Please use the standard DC 12V power adapter. We are not responsible for
problems caused by use other DC power adapter.
17
R_PD7
18
GND
19
R_ACK
20
GND
21
R_BUSY
22
GND
23
R_PE
24
GND
25
R_SLCT
26
NC
