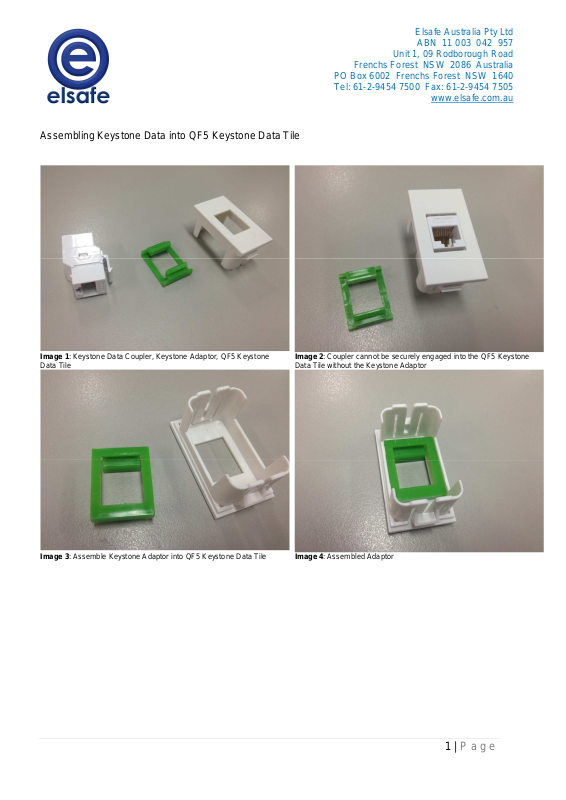

Assembling Keystone Data into QF5 Keystone Data Tile
Elsafe Australia Pty Ltd
ABN 11 003 042 957
Unit 1, 09 Rodborough Road
Frenchs Forest NSW 2086 Australia
PO Box 6002 Frenchs Forest NSW 1640
Tel: 61-2-9454 7500 Fax: 61-2-9454 7505
www.elsafe.com.au
: Keystone Data Coupler, Keystone Adaptor, QF5 Keystone
Data Tile
: Assemble Keystone Adaptor into QF5 Keystone Data Tile
: Coupler cannot be securely engaged into the QF5 Keystone
Data Tile without the Keystone Adaptor
: Assembled Adaptor
P a g e
1 |
Page 2
5
6
7
8
Elsafe Australia Pty Ltd
ABN 11 003 042 957
Unit 1, 09 Rodborough Road
Frenchs Forest NSW 2086 Australia
PO Box 6002 Frenchs Forest NSW 1640
Tel: 61-2-9454 7500 Fax: 61-2-9454 7505
www.elsafe.com.au
: Ensure Adaptor wings are fully engaged into the cut out in the
QF5 Keystone Data tile
: Assembled Coupler into the adaptor
: Align Data Coupler with Keystone Adaptor.
Note: The orientation of the clip on the top of the Coupler must align with
the Step in the Adaptor
: Pivot the Coupler forward till the clip on the Coupler engages
Image 9: Coupler fully engaged
