Introduction

1

Introduction

This manual tells you how to connect, adjust and care for your monitor. This manual also
provides technical specifications and instructions for troubleshooting problems you may
experience with your monitor.

Monitor features

The Diamond monitor is an intelligent, microprocessor-based monitor compatible with

®

most analog RGB (red, green, blue) display standards, including PS/V
Macintosh®, Centris, Quadra, Macintosh II and Power Macintosh products.

It provides crisp text and vivid color graphics with VGA, SVGA, XGA (non-interlaced), and
most Macintosh compatible color graphics boards.

, PS/2®, Apple

®

The monitor’s wide auto-scanning compatibility range makes it possible to upgrade

쮿

graphics boards or software without needing to purchase a new monitor.
Digitally controlled auto-scanning is done using an internal microprocessor, for

쮿

horizontal scan frequencies between 30kHz and 121kHz, and vertical scan frequen­cies between 50Hz and 160Hz. The microprocessor-based intelligence allows the
monitor to operate in each frequency mode with the precision of a fixed frequency
monitor.

The monitor contains resident memory for pre-programmed screen display stan-

쮿

dards and is also capable of storing additional user adjustment parameters.
The monitor is capable of producing a non-interlaced maximum addressable resolu-

쮿

tion format of 1800 dots x 1440 lines. This display is well suited for windowing envi­ronments.

Because of the analog signal inputs, the monitor can display an unlimited palette of

쮿

colors that can be manually adjusted to suit your specific needs.

TM

The monitor has a power management function according to VESA

쮿

dard. To save energy, the monitor must be connected to a system compliant with
this standard. (Refer to your computer and/or graphics board instructions for proper
operation.)

-DPMSTM stan-

To ensure the easy installation and operation of this monitor, an on-screen display

쮿

(OSD) presents all of the functions for setup and adjustment.
The monitor complies with the safety standards UL 1950, CSA C22.2 No.950 and

쮿

EN60950; FCC Class-B, VCCI Class-B and EN55022 Class-B for EMI; MPR-II; and with

ELSA ECOMO 22H99

Introduction

2

the ergonomics standards ISO 9241-3, ISO9241-7 and ISO9241-8. The monitor also
complies with TCO’99 guideline for environmentally friendly use.

Digital chassis design for lighter, more compact housing and improved display per-

쮿

formance.
The world standard DIAMONDTRON tube upgraded with improved focus and con-

쮿

vergence for supersharp and pure picture images.
The monitor complies with Video Electronics Standards Association (VESA

쮿

TM

DDC
function, the setup takes place automatically.

USB self-powered hub with 2 upstream ports and 3 downstream ports.

쮿

1/2B(EDID) specification. If your computer provides DDCTM1/2B(EDID)

TM

Package contents

Please ensure that the delivery is complete. When opening the package, please check
that the following components are included:

)

Installation Guide

쮿

User Manual

쮿

Monitor

쮿

VGA connector cable and USB upstream cable

쮿

Power cord

쮿

ELSA CD with INF files

쮿

Ferrous core

쮿

Please contact your dealer if any part is missing or damaged.
ELSA reserves the right to make changes to the package contents without prior notice.

Installation notice

The installation of the
particular interest is the USB port. The supplied USB cable establishes an additional con­nection between monitor and computer. Please note that the computer and the operating
system feature USB functions. (➞page 9).

ECOMO 22H99

is described in the enclosed Installation Guide. Of

ELSA ECOMO 22H99

Introduction

3

CE conformity and FCC radiation standard

CE

This equipment has been tested and found to comply with the limits of the European
Council Directive on the approximation of the laws of the member states relating to elec­tromagnetic compatibility (89/336/EEC) according to EN 55022 class B.

FCC

This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the Federal Communications Commission (FCC) Rules.

CE and FCC

These limits are designed to provide reasonable protection against radio frequency inter­ference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy. It may interfere with to radio communications if not installed and
used in accordance with the instructions. However, there is no guarantee that interfe­rence will not occur in a particular installation. If this equipment does cause interference
to radio or television reception (this can be determined by turning this equipment off and
on), the user is encouraged to try to correct the interference by one or more of the follo­wing measures:

Reorient or relocate the receiving antenna.

쮿

Increase the distance between this equipment and the receiver.

쮿

Connect the equipment to an outlet on a circuit other than that to which the receiver

쮿

is connected.
Consult your dealer or an experienced radio/TV technician.

쮿

Caution: To comply with the limits for an FCC Class B computing device, always use

쮿

a shielded signal cable.

Caution to the user: The Federal Communications Commission warns the user that chan­ges or modifications to the unit not expressly approved by the party responsible for com­pliance could void the user's authority to operate the equipment.

ELSA ECOMO 22H99

Introduction

4

ELSA ECOMO 22H99

Aspects of your monitor

쐆

5

Aspects of your monitor

The front control panel

The lower front of the monitor features a row of switches and buttons which allow you
to tune the picture settings precisely.

쐃

SCROLL

쐋

Function

쐃

Downstream ports

To connect to USB equipped peripherals, e. g., USB camera, keyboard and printer, etc.

쐇

Input connector select key (BNC/D-SUB)

Press the BNC or D-SUB key to select the signal input connector.

쐋

Scroll key

Press this key to select the group icon in the main menu.

쐏

Enter key

Press this key to fix or to unfix the item icon.

쐄

Function adjust keys

Press the adjust keys to select the item icons and to adjust the image on the screen.

쐂

ENTERBNC/D-SUB

왗

/ – – /

쐏쐄

왘

쐂쐇

쐆

Power-On indicator

This indicator lights up green when the monitor power is on. It shows amber when the
monitor is in the power management modes.

ELSA ECOMO 22H99

Aspects of your monitor

6

Rear connectors panel

쐃

Function
AC power connector

쐃

Plug the power cord in here.

Downstream ports

쐇

To connect to USB equipped peripherals, e.g. USB camera, keyboard, printer,
etc.

Upstream ports

쐋

To connect to USB equipped computers, please use the enclosed USB cable.

Signal input 1 connector (HD15, D-SUB)

쐏

Plug the cable carrying the signal from the graphics board to the monitor into
this socket.

Signal input 2 connector 2 (BNC)

쐄

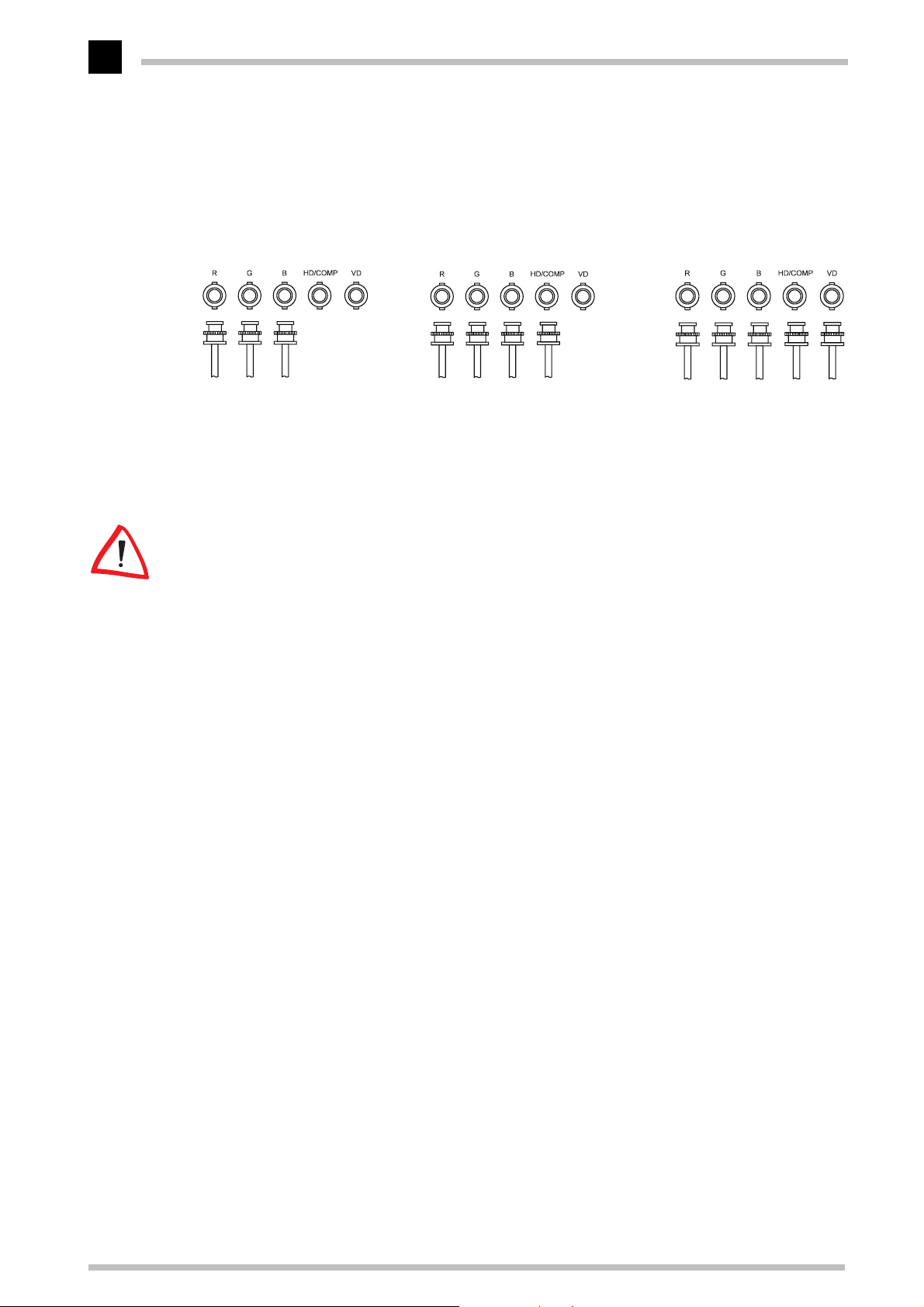

A special BNC cable must be connected to these five sockets to connect the
monitor to the graphics board signal.

쐇쐋

쐏쐄

Only graphics input 1 is DDC-compatible. This connection must be used for data about
the ECOMO 22H99 to be transferred.

ELSA ECOMO 22H99

Monitor installation

7

Monitor installation

The

ECOMO 22H99

you will learn more about USB and how to install the monitor under your operating sys­tem.

The USB function under Windows

What does USB stand for?

USB stands for “Universal Serial Bus“ and defines a new interface standard which is
clearly more convenient for the PC user. This increased convenience concerns the con­nection and configuration of peripheral devices. Up to 127 peripherals such as keyboard,
mouse, modem removable drives and digital cameras for videoconferencing can be con­nected to a USB system. With USB, each peripheral device is configured automatically.

supports USB and is provided with special software. In this chapter

The USB standard defines an uniform connector type, making special cables, proprietary
connectors and interfaces and special installation software unnecessary. This eliminates
the all-too-familiar cable spaghetti that can result and the risk of hardware damage due
to an incorrect connection. The fact that all the devices can be connected to each
other—similar to a network—is also a great advantage. It means a high degree of flex­ibility when planning the layout of the devices: Not all peripheral devices have to be con­nected centrally to the computer.

Who can use USB?

The USB function is available to you if your hardware and operating system support USB.
In this case, it is the Windows system that checks the hardware, sets up the USB and
controls the attached devices.

USB support is already integrated in Windows 98. This may be different with older ver­sions of Windows 95, as not all versions support USB.

ELSA ECOMO 22H99

Monitor installation

8

Checking for USB support

Open up the Control Panel by selecting

Start

왘

Settings

Manager, view the list of devices available in the system.

The Windows system Device Man­ager shows you whether the USB
controller is installed or not.

왘

System

. In the Device

For further information on USB please refer to www.usb.org.

ELSA ECOMO 22H99

Monitor installation

9

The USB connection

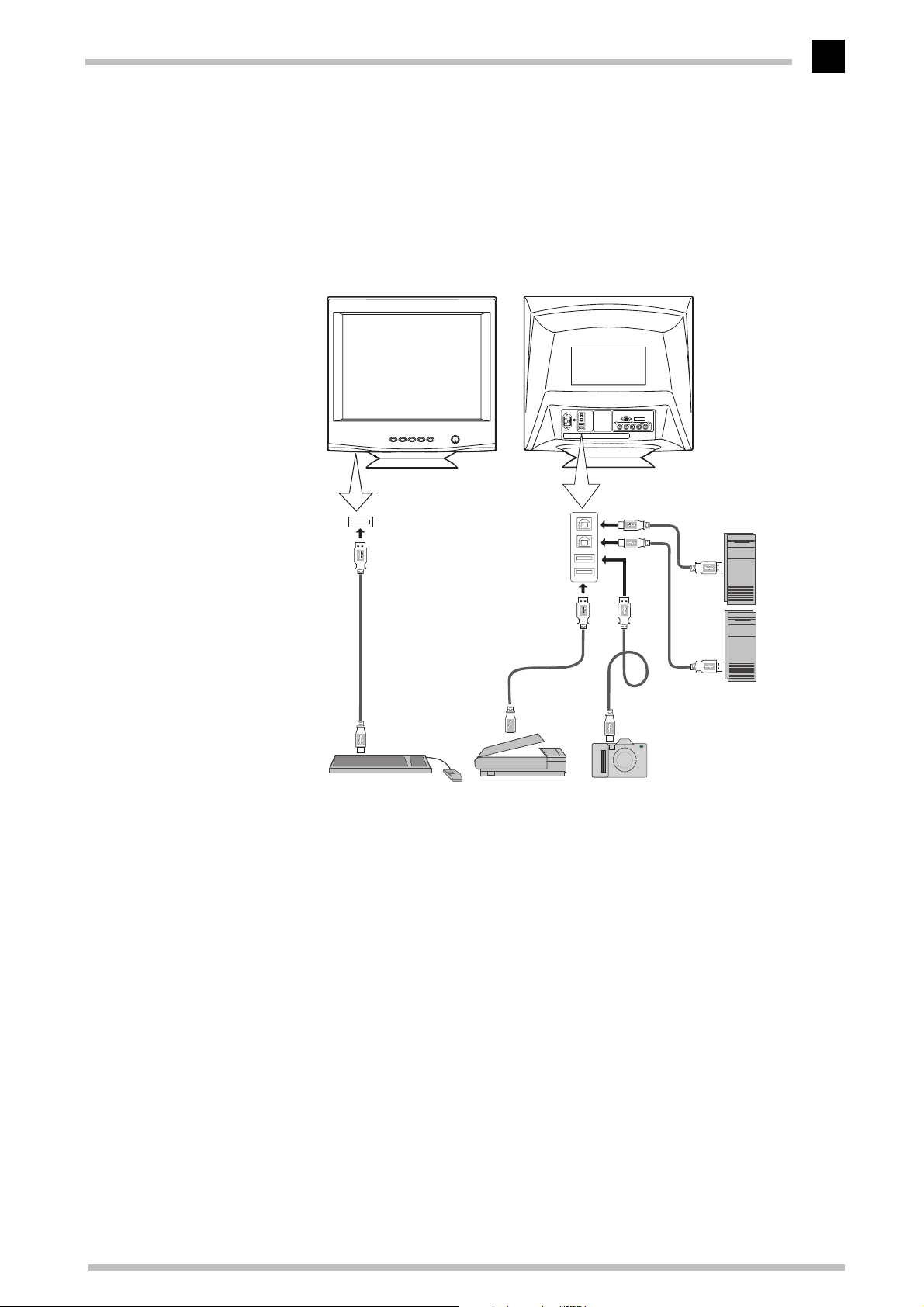

A USB cable for connecting your monitor to your computer is supplied. The following dia­gram shows the various options possible within a USB system:

Downstream port

Keyboard Scanner Digital camera

Upstream ports

Downstream ports

Computer

If you use the supplied USB cable to connect your computer and ELSA monitor, it is rec­ommended that you place the accompanying ferrous core around the cable. This core
reduces the electromagnetic interference from the monitor which would otherwise det­rimentally effect the signal transmission.

Place the ferrous core around the cable. Make sure that the separation between the

햲

core and the monitor’s USB socket is at least 3 cm.
Squeeze the core closed until it snaps shut.

햳

ELSA ECOMO 22H99

Monitor installation

10

All under control

Among other things it is possible to configure the monitor conveniently via software. A
program with which you can configure the main display settings directly is included with
your ELSA monitor.

USB monitor installation

When you insert the supplied CD, the ELSA setup program usually starts up automati­cally. After you have specified the monitor type, you can select the component to be
installed in the list and click on

If the program does not automatically start after the CD is inserted, you should run it man­ually. Select the CD drive in Explorer and start the CDSETUP.EXE program in the root
directory of the CD.

Install

.

Configuring the display with a USB monitor

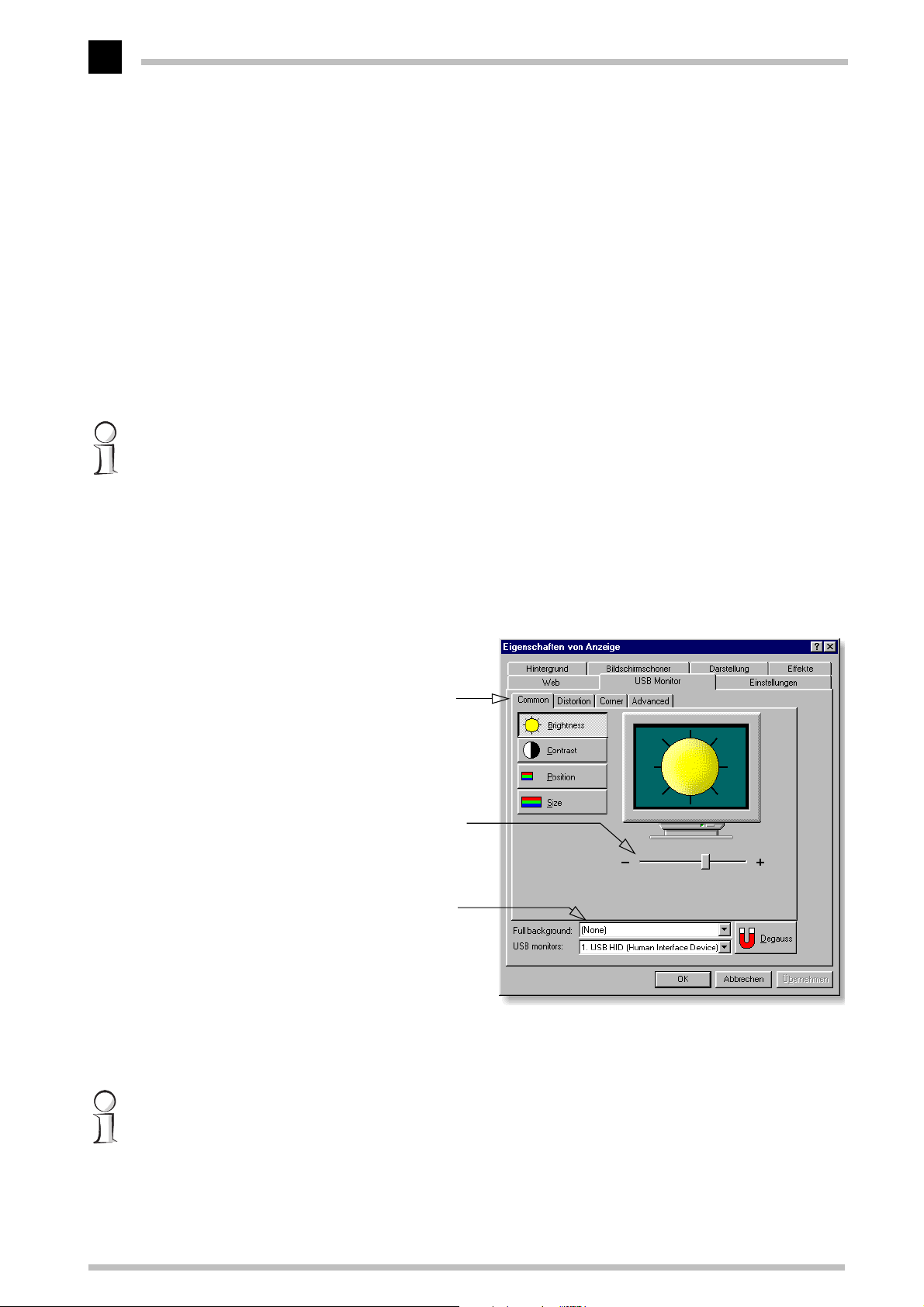

After the installation you will find the USB monitor in the Control Panel under Display
Properties. Select
In the 'Display Properties' dialog box you will find the 'ECOMO 22H99 USB Monitor' tab.

Increased clarity with tabs for each
individual display setting

Values are easy to set with sliders

arious test patterns and colors facilitate

onitor setup

Start

Settings

왘

Control Panel

왘

and start the

Display

program.

Configuration using sliders is easy and intuitive. The resulting effects are displayed
immediately.

If you want to make display corrections in small increments you can use the arrow keys
(a) instead of the mouse to change the values gradually.

Feel free to experiment and try out the different possibilities. The settings are only saved
when you confirm them by pressing

ELSA ECOMO 22H99

Apply

or OK.

An overview of the possible settings

Brightness

쮿

Contrast

쮿

Position and size

쮿

Display geometry and distortions

쮿

– Parallelogram effect
–Trapeze effect
– Rotation (Tilt)
– Pincushion Balance

Monitor installation

11

Press the

Degauss

button to remove magnetic distortions from the display.

ELSA ECOMO 22H99

Monitor installation

12

ELSA ECOMO 22H99

The on-screen display

13

The on-screen display

The on-screen menu (OSD) makes light work of fine tuning the picture on your monitor.
The range of settings includes the simple brightness adjustment to the detailed correc­tion of pin-cushion curvature or distortion. The on-screen display appears as soon the
'Menu' button on the control panel is pressed. Once in the on-screen display, you can
use the buttons to access the various pages of the menu.

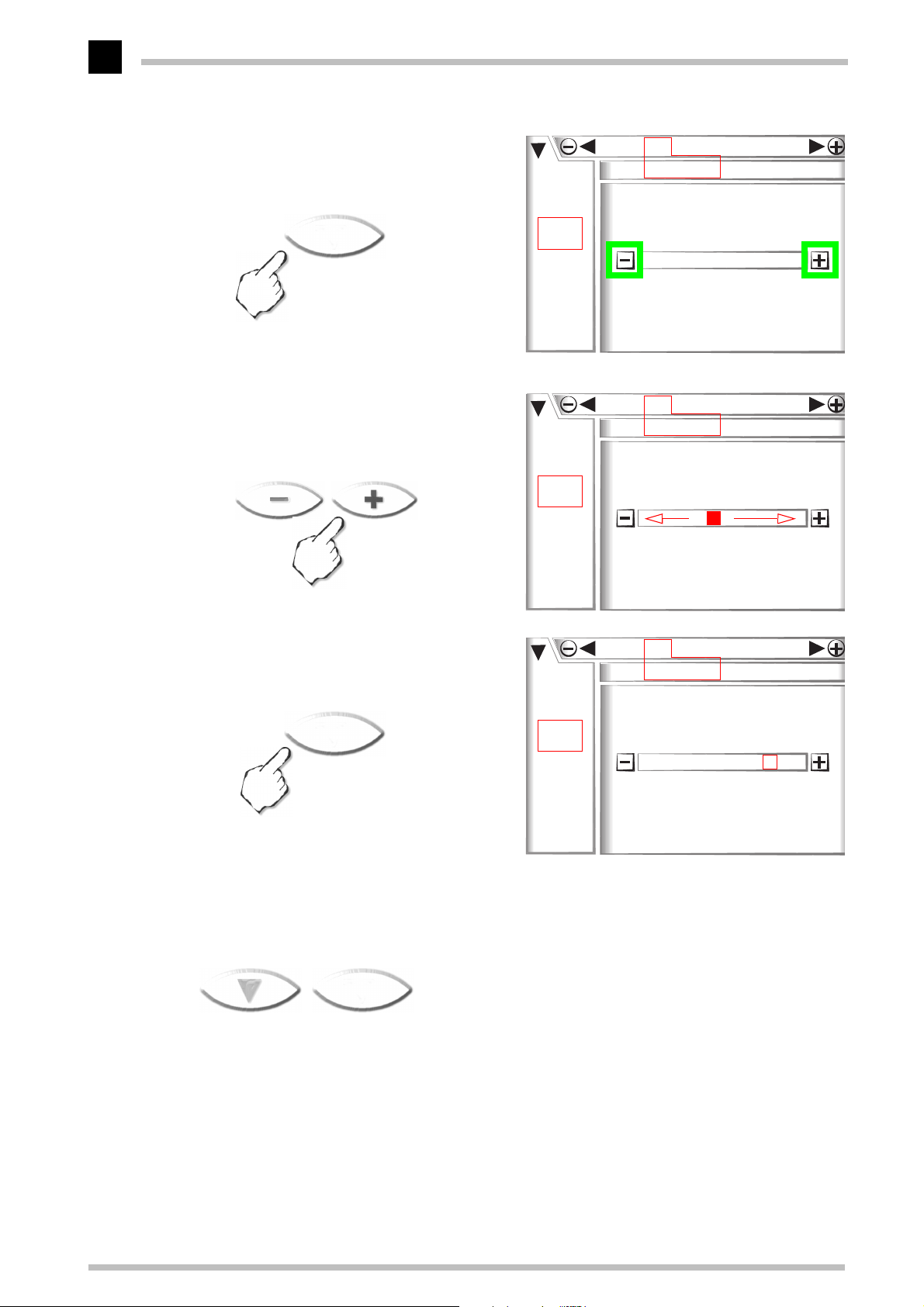

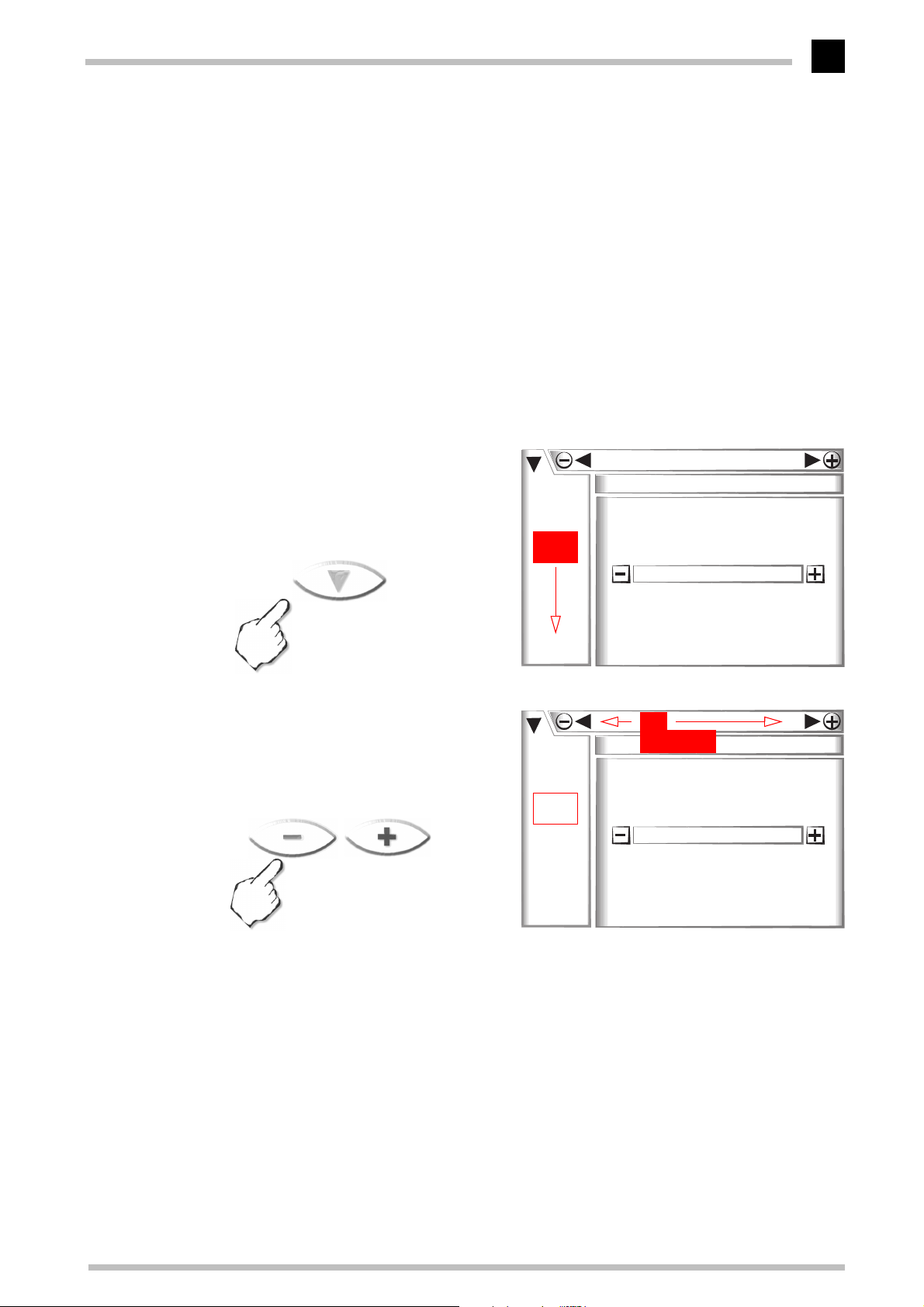

How to navigate the OSD

Press any button to display the OSD screen.

햲

Select the group icon within the

햳

main menu by pressing this but­ton.

SCROLL

Select the item within the sub

햴

menu by pressing the +/- but­tons.

왗

/ – – /

왘

ELSA ECOMO 22H99

The on-screen display

14

햵

햶

Select the highlighted option by
pressing the ENTER button.

ENTER

Adjust values and functions by
pressing the +/- buttons.

왗

/ – – /

Confirm your selection by press-

햷

왘

ing the ENTER button.

ENTER

After ten seconds of inactivity, the OSD screen automatically disappears. Press the fol­lowing button combination to switch the OSD off immediately.

SCROLL

ELSA ECOMO 22H99

ENTER

Monitor settings

왘

왔

15

Monitor settings

The monitor settings can be fine tuned according to your preferences. Don’t be afraid to
experiment with the monitor and try out all of the options for adjustment. If the picture
has gone completely astray, just press the RESET “emergency button” to restore the fac­tory settings.

After switching on

Plug&Play

Modern graphics boards and the
play Data Channel). The
and, in turn, the graphics board ensures that the monitor operates at the highest possible
refresh rate for the resolution selected. This means that you will immediately get a pic­ture that requires only minor adjustment. Check the fine tuning of the picture and make
adjustments for the relative light levels within your working environment.

You will now find out what settings are possible and how to solve any problems.

ECOMO 22H99

ECOMO 22H99

can send its parameters to the graphics board

can communicate using the DDC (Dis-

Language

The

ECOMO 22H99

menus in a variety of languages. To change the
language used for the on-screen menu, simply
call up the menu page illustrated here and
select the language you want.

can display its on-screen

ELSA ECOMO 22H99

Monitor settings

16

Adjustment functions

Function Available A B C D

CONTRAST Adjusts the contrast level.
BRIGHT Adjusts the black level of the screen.
COLOR NO Select the preferable color from Color 1, Color 2 and

Color 3
R-GAIN Provides the red-color balances for the display.
G-GAIN Provides the green-color balances for the display.
B-GAIN Provides the blue-color balances for the display.
COLOR TEMPERATURE Adjusts the color temperature
COLOR RESET Restores each color gain and color temperature to the

factory settings.
H-SIZE Adjusts the horizontal size.
H-PHASE Adjusts the horizontal position.
H-POSITION Adjusts the horizontal position of the screen.
V-SIZE Adjusts the vertical size.
V-POSITION Adjusts the vertical position.
PCC-AMP Straightens the left and right sides.
PCC-PHASE Adjusts the parallelism of the left and right sides.

✓✓✓
✓✓✓

✓

✓✓✓
✓✓✓
✓✓✓
✓✓

–

✓✓✓
✓✓✓

✓
✓✓✓
✓✓✓
✓✓✓
✓✓✓

PCC-CENTER Adjusts the pincushioning near the vertical center of

the screen.

TOP-PCC Adjusts the pincushioning at the top corners of the

screen.

BOTTOM-PCC Adjusts the pincushioning at the bottom corners of

the screen.
PIN-BALANCE Adjusts the curvature of the left and right sides.
KEY-BALANCE Adjusts the vertical slant or tilt.
CORNER-BALANCE Adjusts the curvature of the left and right sides of the

image at the corners of the screen.
PCC-CENTER-BALANCE Adjusts the curvature of the both sides of the image

at the center of the screen.
V-LIN-BALANCE Centers the linearity of the vertical axis of the screen.
V-LIN Adjusts the linearity of the vertical axis of the screen.
ROTATION Adjusts the rotation.
ZOOM Zooms the screen to all sides.
GEOMETRY RESET Restores to the factory preset level. –
TEXT MODE To get a preferrable image for your work.

✓✓✓

✓✓✓

✓✓✓

✓✓✓
✓✓✓
✓✓✓

✓✓✓

✓✓✓
✓✓✓

✓✓✓

✓✓✓

✓

H-CONVERGENCE Adjusts the horizontal alignment of the red, green

ELSA ECOMO 22H99

✓✓✓

and blue beams.

Monitor settings

Function Available A B C D

17

V-CONVERGENCE Adjusts the vertical alignment of the red, green and

blue beams
V-CONVERGENCE-TOP Adjusts the upper vertical alignment of the red, green

and blue beams.
V-CONVERGENCE-BOTTOM Adjusts the bottom vertical alignment of the red,

green and blue beams.
H-CONVERGENCE-RIGHT Adjusts the horizonta alignment of the red, green and

blue beams on the right part of the screen.
H-CONVERGENCE-LEFT Adjusts the horizontal alignment of the red, green

and blue beams on the left part of the screen.
MOIRE CANCEL When setting to ON, the moire level on the screen

can be decreased by the MOIRE CANCEL LEVEL
MOIRE CANCEL LEVEL Adjusts the moire level on the screen.
CORNER PURITY TL Adjusts the purity of the top-left corners of the

screen.
CORNER PURITY TR Adjusts the purity of the top-right corners of the

screen.
CORNER PURITY BL Adjusts the purity of the bottom-left corners of the

screen.
CORNER PURITY BR Adjusts the purity of the bottom-right corners of the

screen.

✓✓✓

✓✓✓

✓✓✓

✓✓✓

✓✓✓

✓✓✓

✓✓
✓✓✓

✓✓✓

✓✓✓

✓✓✓

CLAMP PULSE POSITION Selects the position of the clamp pulse.
VIDEO LEVEL Selects video level 1.0V or 0.7V.
DEGAUSS Eliminates possible color shading or impurity. –
POWER-SAVE Activates the power save mode.
OSD CONTROL LOCK Locks the OSD function to keep the OSD screen you

desired.
OSD POSITION Moves the OSD screen position.
ALL RESET Restores all items to the factory preset level. –
GTF AUTO ADJUST Adjusts the screen size and distortion automatically. –
DIAGNOSIS Indicates the current scanning frequency, user preset

timing number.
LANGUAGE Selects the language used on OSD screen.

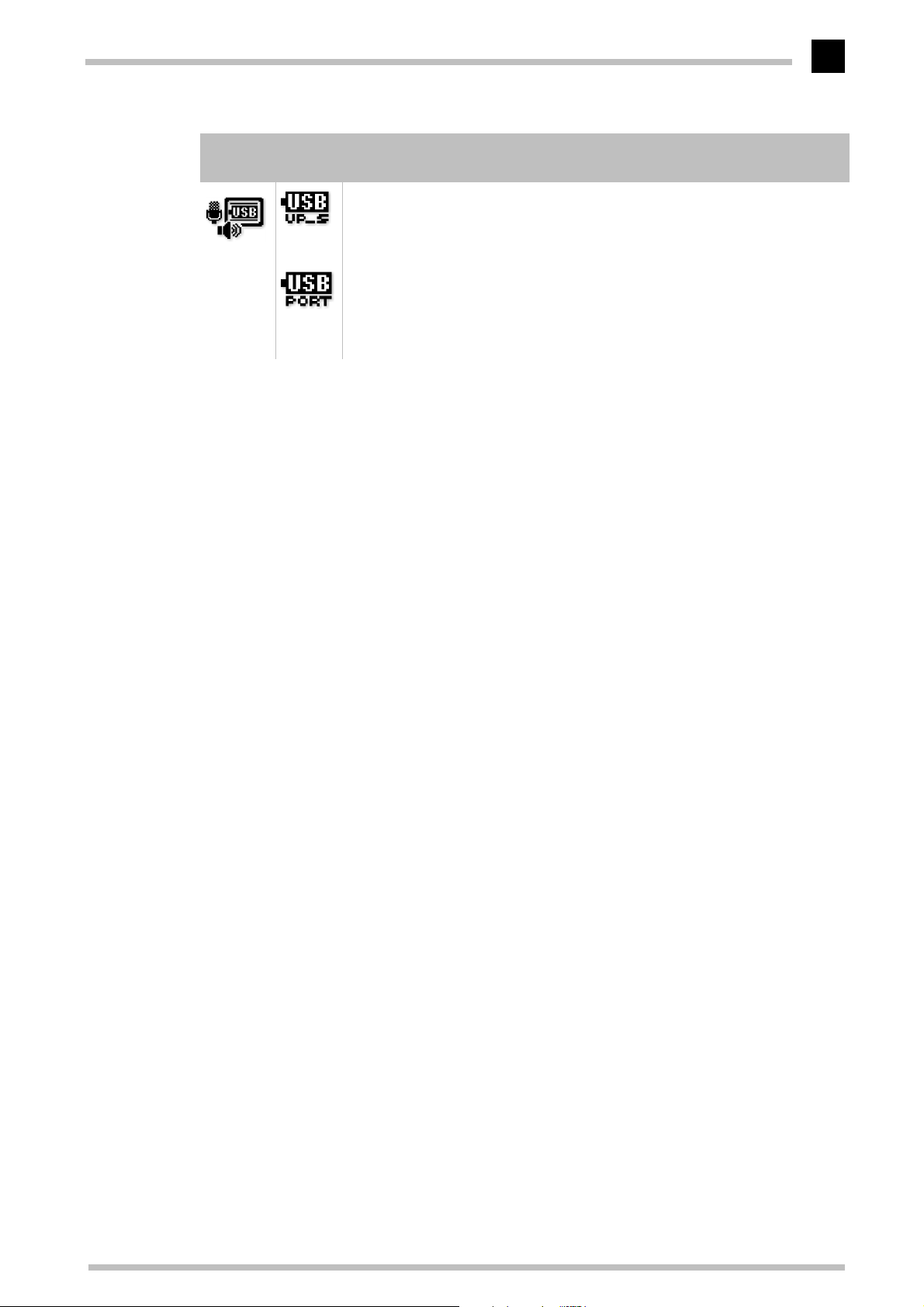

USB UP-STREAM Selects the upstream port which you want to use.
USB PORT COMBINATION. Selects the combination of the upstream port and sig-

nal input connector.

A.

Press "GEOMETRY RESET" to restore to the factory preset level.

✓
✓

✓✓

✓

✓✓

–

✓
✓✓
✓✓

B.

Press the plus and minus buttons together to restore to the factory preset level.

C.

Press "ALL RESET" to restore to the factory preset level.

D.

This data set is independent of changes to the signal timing.

ELSA ECOMO 22H99

Monitor settings

18

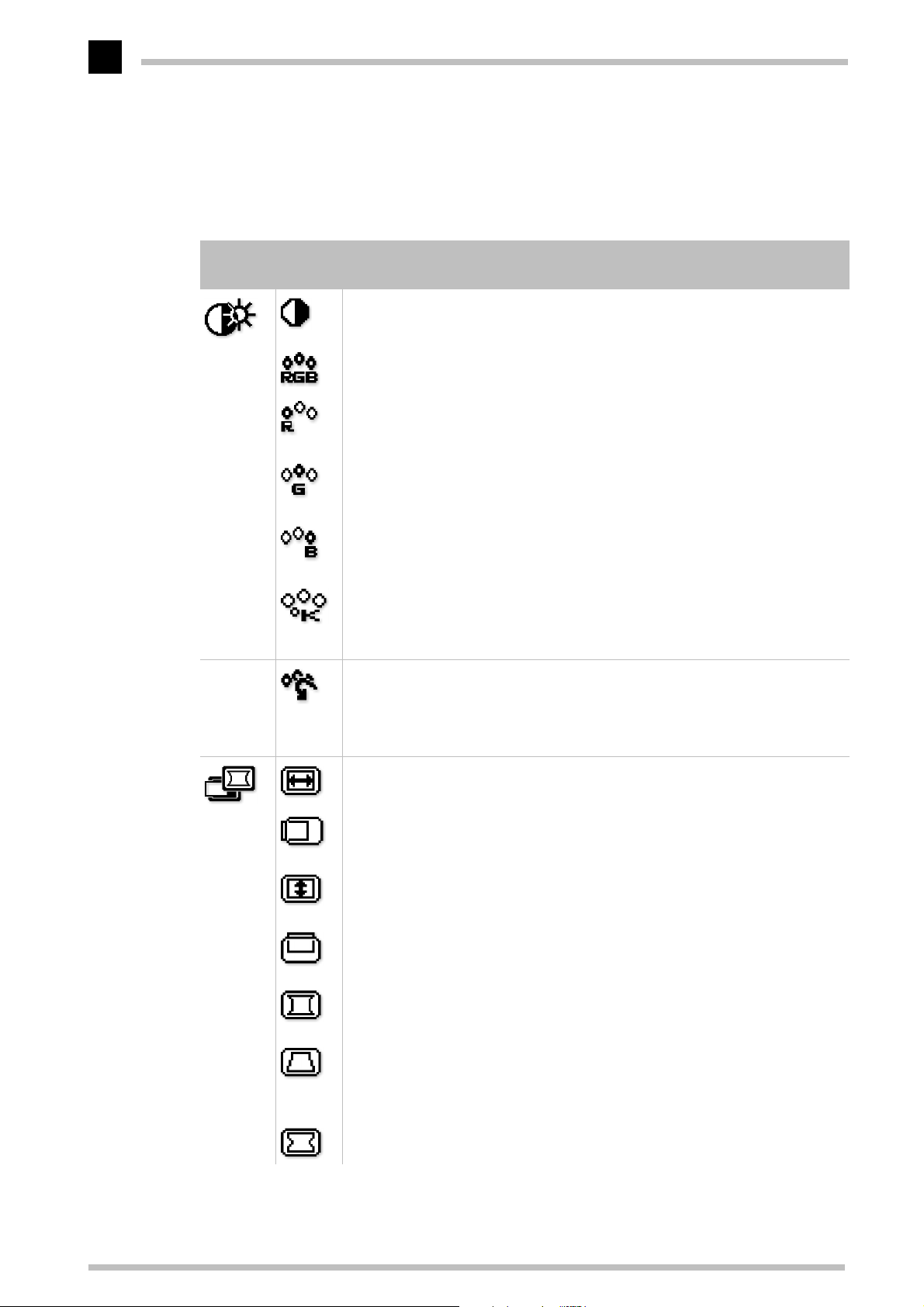

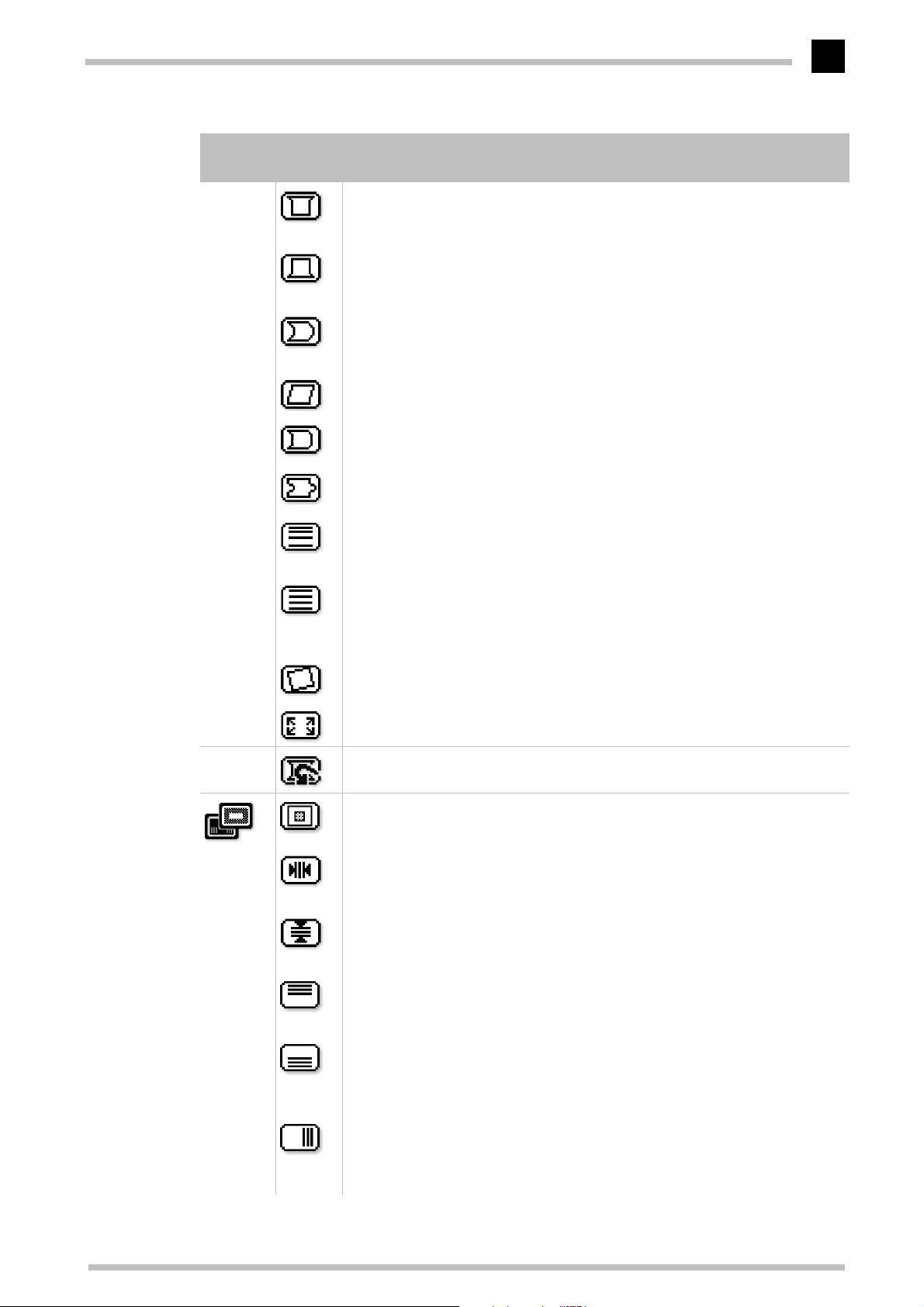

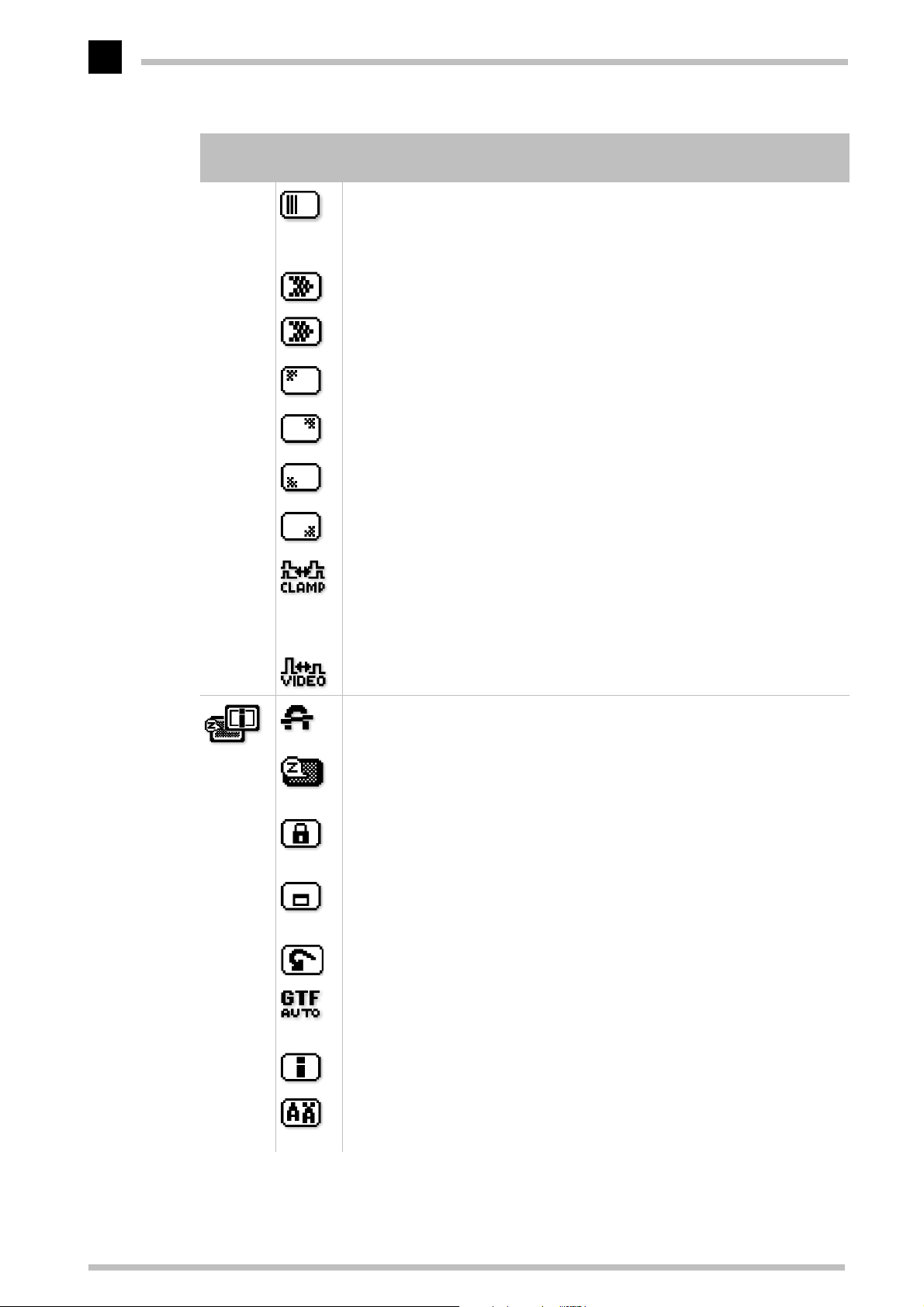

Overview of all pages

The following overview has been drawn up to help you navigate your way through the
nine menu pages and their contents.

Group
Icon

Symbol Function Key '–' Key '+'

CONTRAST

COLOR NO

R-Gain

G-Gain

B-Gain

COLOR
TEMPERATURE

COLOR RESET

To decrease the contrast. To increase the contrast.

To select color 1, color 2, color 3.

To decrease red color
level of the color mode
selected by "COLOR NO".

To decrease green color
level of the color mode
selected by "COLOR NO.

To decrease blue color
level of the color mode
selected by "COLOR NO.

To decrease the color tem­perature of the color
mode selected by "COLOR
NO.

– To restore the color-gain

To increase red color level
of the color mode selected
by "COLOR NO".

To increase green color
level of the color mode sel­ected by "COLOR NO.

To increase blue color level
of the color mode selected
by "COLOR NO.

To increase the color tem­perature of the color mode
selected by "COLOR NO.

and color temperature of
the color mode selected by
"COLOR NO to the factory
preset.

H-SIZE

H-PHASE

H-POSITION

V-POSITION

PCC-AMP

PCC-PHASE

PCC-CENTER

To narrow the width of the
image on the screen.

To move the image on the
screen to the left.

To move the image to the
left.

To move the image down. To move the image up.

To collapse the center of
the image.

To decrease the width at
the top of the screen
image and to increase the
width at the bottom.

To narrow the center of
the image horizontally.

To expand the width of the
image on the screen.

To move the image on the
screen to the right.

To move the image to the
right.

To expand the center of the
image.

To increase the width at
the top of the screen
image and to decrease the
width at the bottom.

To expand the center of the
image horizontally.

ELSA ECOMO 22H99

Monitor settings

19

Group
Icon

Symbol Function Key '–' Key '+'

TOP-PCC

BOTTOM-PCC

PIN-BALANCE

KEY-BALANCE

CORNER­BALANCE

PCC-CENTER­BALANCE

V-LIN-BALANCE

V-LIN

To expand the width of
the screen image near the
corners of top.

To expand the width of
the screen image near the
corners of bottom.

To move the top and bot­tom of the screen image
to the right.

To make the screen slant
to the left.

To move the corners of the
screen image to the right.

To move the center of the
image to the left.

To vertically expand the
bottom of the screen and
compress the top.

To vertically compress the
center of the screen and
expand the top and bot­tom.

To narrow the width of the
screen image near the cor­ners of top.

To narrow the width of the
screen image near the cor­ners of bottom.

To move the top and bot­tom of the screen image to
the left.

To make the screen slant
to the right.

To move the corners of the
screen image to the left.

To move the center of the
image to the right.

To vertically compress the
bottom of the screen and
compress the top.

To vertically expand the
center of the screen and
compress the top and bot­tom.

ROTATION

ZOOM

GEOMETRY RESET

TEXT MODE

H-CONVERGENCE

V-CONVERGENCE

V-CONVERGENCE­TOP

V-CONVERGENCE­BOTTOM

To rotate the image coun­terclockwise.

To narrow the screen to
all sides.

– To restore to factory preset

To select "SHARP" mode. To select "SMOOTH"

To move the red to the left
and the blue to the right.

To move the red to the
lower and the blue to the
upper.

To move the red to the
lower and the blue to the
upper of top screen.

To move the red to the
upper and the blue to the
lower on the bottom
screen.

To rotate the image clock­wise.

To expand the screen to all
sides.

level.

mode.

To move the red to the
right and the blue to the
left.

To move the red to the
upper and the blue to the
lower.

To move the red to the
upper and the blue to the
lower of top screen.

To move the red to the
lower and the blue to the
upper on the bottom
screen.

H-CONVERGENCE­RIGHT

To move the red to the
right and the blue to the
left on the right part of
screen.

To move the red to the left
and the blue to the right on
the right part of screen.

ELSA ECOMO 22H99

Monitor settings

20

Group
Icon

Symbol Function Key '–' Key '+'

H-CONVERGENCE­LEFT

MOIRE CANCEL

MOIRE CANCEL
LEVEL

CORNER PURITY
(TL)

CORNER PURITY
(TR)

CORNER PURITY
(BL)

CORNER PURITY
(BR)

CLAMP PULSE
POSITION

To move the red to the left
and the blue to the right
on the left part of screen.

To select the Moire Can­cel mode off.

To decrease the level of
the moire-clear wave.

To adjust the purity condition on the top-left corner.

To adjust the purity condition on the top-right corner.

To adjust the purity condition on the bottom-left corner.

To adjust the purity condition on the bottom-right cor­ner.

To clamp the video signal
at the front of the H-Sync
pulse.

To move the red to the
right and the blue to the
left on the left part of
screen.

To select the Moire Cancel
mode on.

To increase the level of the
moire-clear wave.

To clamp the video signal
at the back of the H-Sync
pulse. If you connect to
Macintosh, press plus
buton.

쐃

VIDEO LEVEL

DEGAUSS

POWER SAVE

CONTROL LOCK

OSD POSITION

ALL RESET

GTF AUTO ADJUST

DIAGNOSIS

LANGUAGE

To select 1.0V of video
input.

– To eliminate possible color

To select the constant
power consumption
mode.

To unlock the OSD
function.

To move the OSD screen
position in a counter
clockwise direction.

– To restore all items to the

– To adjust screen size, posi-

It shows the current scanning frequency, Preset No.,
and signal input connection.

To choose the language used on OSD.

ENG......English, FRA......French,ESP......Spanish,

ITA......Italian,GER......German,JPN......Japanese

To select 0.7V of video
input.

shading or impurity.

To select the power-save
mode.

To lock the OSD function
except for "BRIGHTNESS"
and "CONTRAST".

To move the OSD screen
position in a clockwise
direction.

factory preset.

tion and distortions auto­matically.

ELSA ECOMO 22H99

Monitor settings

21

쐃

쐇

Group
Icon

This locks the OSD function to prevent changes being made to your settings.
Press the plus button to lock the OSD function. You can adjust only "BRIGHTNESS" and "CONTRAST" in

this state. Press minus button to unlock the OSD.
The active upstream port is colored blue in the OSD.

In case that either the upstream port ROOT-A or ROOT-B is chosen by this function, the auto-change of
the upstream port is not available.

It may take about 15 seconds until the USB devices have been recognized by the computer after the upst­ream port is changed.

Symbol Function Key '–' Key '+'

쐇

쐋

USB UP-STREAM

USB PORT
COMBINATION

THE USB functions of the
computer connected to
Upstream port ROOT-A
become active.

The Upstream port ROOT­A is assigned to signal
input connector D-SUB
and ROOT-B is assigned to
BNC.

THE USB functions of the
computer connected to
Upstream port ROOT-B
become active.

The Upstream port ROOT­A is assigned to signal
input connector BNC and
ROOT-B is assigned to D­SUB.

쐋

Ensure the operation of the devices connected to the downstream ports before changing USB upstream
ports. It may take approximately 15 seconds until the devices have been recognized by the computer and
start to operate after the upstream ports are changed.

Do not change the upstream ports during recognition to prevent errors of the operation of devices or
application software.

Close all Windows programs before changing upstream ports.

ELSA ECOMO 22H99

Monitor settings

22

ELSA ECOMO 22H99

An optimized working environment

23

An optimized working environment

You have already taken a significant step towards this goal: you have acquired a monitor
with technology guaranteeing optimized ergonomics and a minimum of stress at your
place of work. Equally important is the overall arrangement of your working environment,
which includes some basic rules about working with a monitor.

The ELSA ECOMO 22H99 complies with the latest EU ergonomics guidelines (90/270/
EEC) for work places with monitors, which came into effect on the 1.1.97.

Monitor picture quality

The screen must display a stable picture. How can you check this? Simply focus on a
fixed point next to your screen. If you can see a perceptible flickering of the picture, you
can try and adjust the brightness and contrast to stabilize the picture. If this does not
help, then try to increase the display refresh rate with your graphics card driver.

Tips for an ergonomic working environment

Lighting in your working environment

The lighting in your place of work should not perceptibly flicker. Avoid placing monitors
directly next to windows and be sure that there is the possibility to reduce the intrusion
of strong sunlight such as with a blind. When arranging desks, make sure that the direc­tion of view is parallel with the lighting. The direction of view to the monitor should be
parallel to the windows. Glare and reflections can be reduced by an anti-reflective layer
(Lambda/4 anti-reflection) on the screen.

You can check whether or not your place of work meets these basic rules:

Are you facing a window when looking at your monitor?

쮿

Does your monitor screen show any reflections from windows or lighting?

쮿

ELSA ECOMO 22H99

An optimized working environment

24

The work desk

The top of the work desk should be at a height of 72cm. The desk top should be around
80 cm deep and of sufficient length. There should be a suitable separation between the
operator and the monitor which, for a 17" monitor, is recommended to be at least 45cm
and for a 21“ monitor, should be about 80cm.

The seating position

The seating position is most important for work in comfort and without problems. A rule
of thumb is: sit with a straight back and ensure that your arms and legs are bent at appro­ximately 90°. Your feet should also rest flat on the floor.

It is important that you frequently shift your seating position – to practice the so-called
"dynamic sitting" – and that you stand up once in a while.

The monitor position

The

ECOMO 22H99

that you can set up the monitor position to your
liking.

When swiveling or tilting, please support the
monitor with both hands

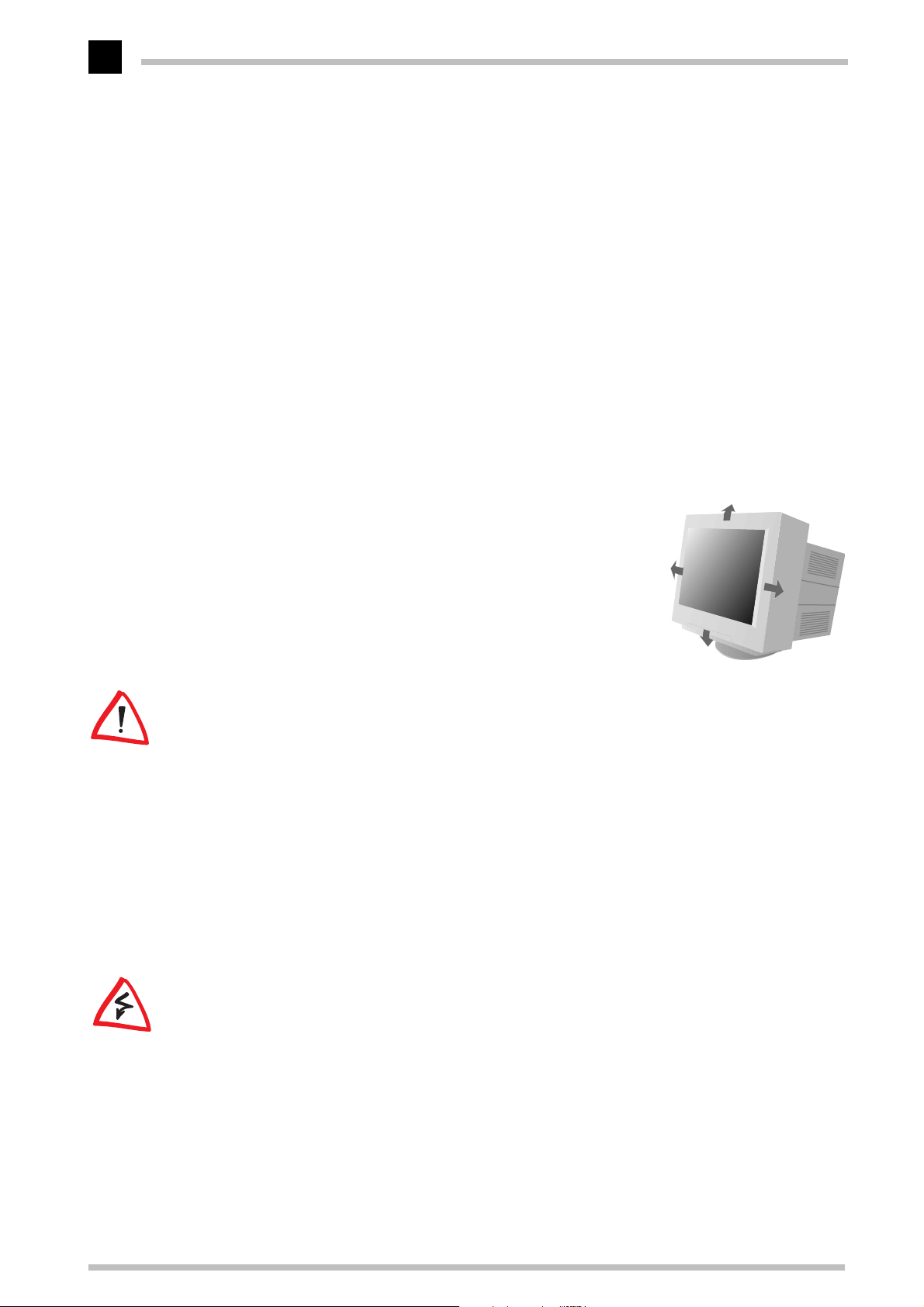

When selecting the monitor position, be sure not to place it directly on the computer hou­sing.

can be tilted and swiveled so

Cleaning your monitor

When cleaning the monitor, please follow these guidelines:

Always unplug the monitor before cleaning

쮿

Wipe the screen and cabinet front and sides with a soft cloth

쮿

If the screen requires more than dusting, apply household window cleaner to a soft

쮿

cloth to clean the monitor screen

Do not use benzene, thinner or any volatile substances to clean the unit as the finish may
be permanently marked. Never leave the monitor in contact with rubber or vinyl for an
extended period.

ELSA ECOMO 22H99

Technical data

Technical data

25

CRT

Input signal

Interface

USB

Frequency range
Resolution
Warm-up time
Brightness

Blanking time

Viewable display

Color temperature
Power supply

Operating
environment
Housing
Weight
Tilt/
swivel base
Approvals/
certifications

Diagonal 55cm / 22",

viewable display size 51cm, 20"
Gun In-line
Deflection angle 90 °
Phosphors Red, green, blue

(P22, medium short persistence)
Phosphor color
coordinates

Slot mask 0.25 - 0.27mm
Face plate anti-glare, anti-reflective, anti-static coating
Focusing method Dynamic beam forming
Video 0.7V RGB analog
Synchronization Synchronization signals on green or separate horizontal/

Input connector DB9-15P and 5-pin BNC
Input impedance 75Ω (video) 1kΩ (sync)
Function Self powered HUB complying with Universal Serial Bus

Interface 2 Upstream ports / 12Mbps.

Horizontal: 30 - 121kHz, vertical: 50 - 160Hz
Horizontal: up to 1800 pixels, vertical: up to 1440 lines at 80Hz
30min. to reach optimum performance temperature

100cd/m2, standard full white video
Horizontal
Vertical
393 x 295mm
9300K 6500K 5000K Gamma value (γ) = 2.5

X = 0.283 ± 0.02 X = 0.313 ± 0.02 X = 0.346 ± 0.02
Y = 0.298 ± 0.02 Y = 0.329 ± 0.02 Y = 0.359 ± 0.02

9300K-5000K
AC 100-120 V/220-240 V; ±10 %, 50-60 Hz, 155 W (typical)

170W (typ.) with USB operation
Temperature

Humidity
500 x 500 x 482mm (W x H x D)

33kg approx.
Tilt angle
Swivel angle

Safety (CE) EN 60950
EMC (CE/FCC) EN 55022 Class B, EN 50082-1, EN 60555-2
X-radiation German X-ray regulations dated 1987-01-08
Others TCO ’99

RedGreenBlue

X = 0.625 X = 0.29 X = 0.150

Y = 0.34 Y = 0.605 Y = 0.07

vertical synchronization or composite synchronization

Specification Rev.1.0

USB Monitor Control to adjust the image on screen by

USB commands from the computer.

3 Upstream ports / 12Mbps, 1.5Mbps, possible to supply

500mA max. per each Downstream port.

2.3µs

욷

450µs

욷

5° - 35 °C

10 - 90% relative air humidity

-5° - +15°

± 90°

VESA DPMS

EPA Energy Star

MPR-II

ISO 9241-3 (certified by TÜV Ergonomie)

ZHI/618

NUTEK Spec. 803299/94

ELSA ECOMO 22H99

Technical data

26

Power management function

The

ECOMO 22H99

with the stringent standards of NUTEK. The
power consumption in three stages if the monitor is connected to a graphics board com­plying with VESA DPMS. You can set the delay time before the monitor enters the power
saving mode using the on-screen menu.

The following table gives you an overview.

complies with the guidelines set by VESA and Energy Star together

ECOMO 22H99

will automatically reduce

Mode Synchronization Signal Power Con-

Horizontal Vertical

Stand-by mode no yes
Suspend mode yes no
Active-off mode no no

sumption

울

15W approx. 3sec orange

울

15W approx. 3sec orange

울

5W approx. 10sec orange

Recovery

Time

Power Indicator

Factory settings

To minimize the need for adjustment, the factory has preset popular display standards
into the monitor. Picture size and centering are automatically adjusted if any of these dis­play standards is detected. All the factory presets may be overwritten by adjusting the
user controls. The monitor is capable of automatically storing up to 12 additional display
standards. The new display information must differ from any of the existing display stan­dards by at least 1kHz for the horizontal scan frequency or 5 Hz for the vertical scan fre­quency or the sync signal polarities must be different.

Polarity

Preset timing Fh (kHz) Fv (Hz)

H V

640x480 N.I. 31,5 60,0 – –
640x480 N.I. 37,5 75,0 – –

800x600 N.I. 46,9 75,0 + +
1024x768 N.I. 60,0 75,0 + +
1152x870 N.I. 68,7 75,1 – –

1280x1024 N.I. 80,0 75,0 + +
1280x1024 N.I. 91,1 85,0 + +
1600x1200 N.I. 93,7 75,0 + +

ELSA ECOMO 22H99

Technical data

27

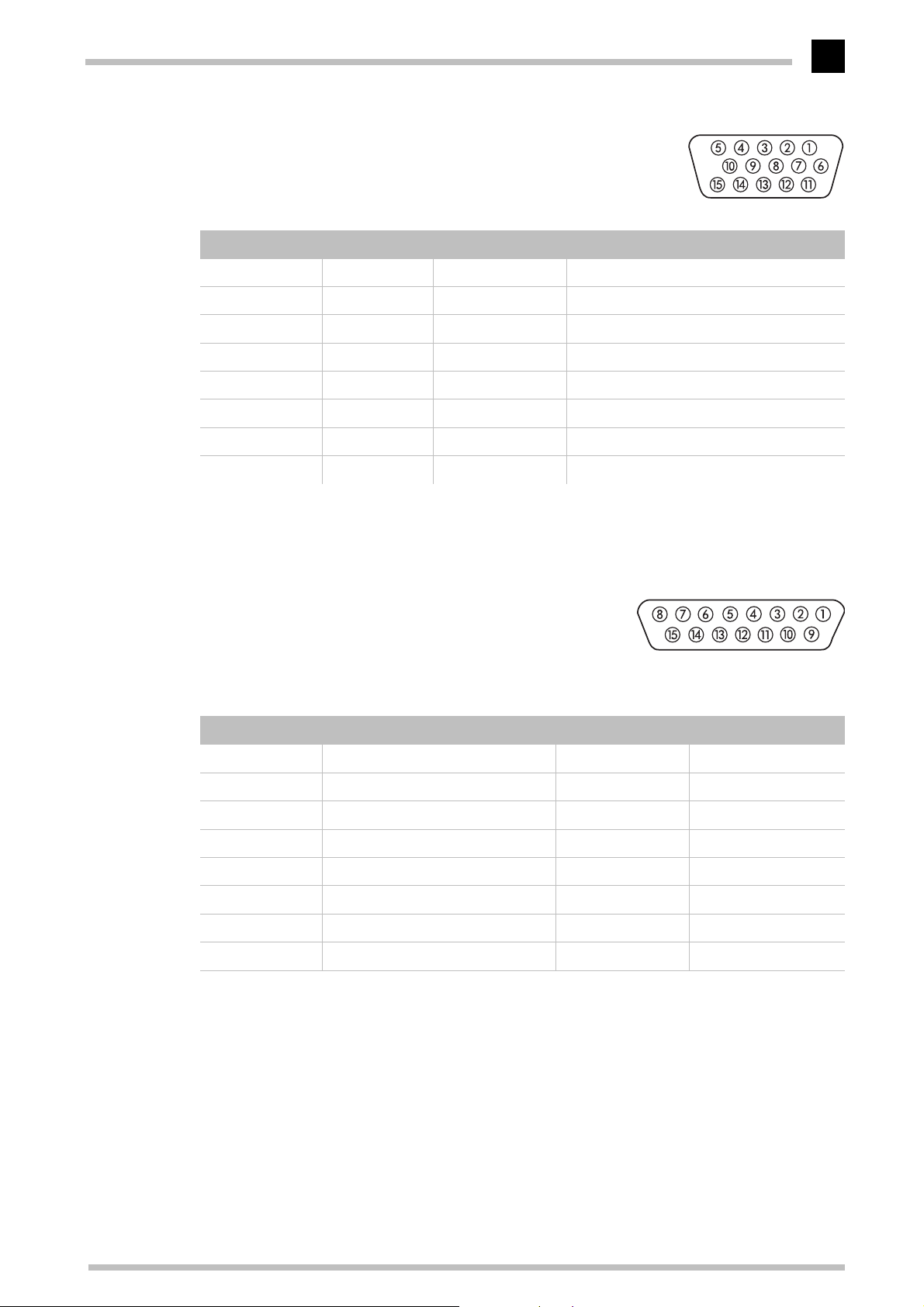

The VGA D-shell socket

Pin assignment

Connection Signal Connection Signal

1Red 9 +5 V
2 Green 10 Sync ground
3 Blue 11 Monitor ID2
4 Monitor ID0 12 Bidirectional data (SDA, DDC1/2B)
5 DDC ground 13 Horizontal synchronization
6 Red ground 14 Vertical synchronization
7 Green ground 15 Data timing (SCL, DDC2B)
8 Blue ground

The

ECOMO 22H99

issues analog signals in accordance with the requirements of Guide-

line RS-170. The synchronization information is sent separately.

Video input connection to an
Apple-Macintosh computer

Pin assignment

Pin Signal Pin Signal

1 Red ground 9 BLUE Video
2 RED video 10 Sense 2
3 C-sync 11 C & V sync Ground
4Sense 0 12V-sync
5 GREEN video (mono video) 13 Blue ground
6 Green ground 14 H-sync Ground
7Sense 1 15H-sync
8 Not used

H-sync = scan frequency, V-sync = Refresh rate

Tabelle 1:

ELSA ECOMO 22H99

Technical data

28

BNC connectors

The second input for the video signal ist the BNC connection with five sockets. The con­nection cable betwenn the monitor

쐃쐇 쐋

Connecting the BNC cables when using a composite green signal with sync.



Connecting the BNC cables when using an externally composed sync.



Connecting the BNC cables when using a separate horizontal and vertical sync.



The BNC connection does not support the DDC functions.

ELSA ECOMO 22H99

Troubleshooting

Problem solving

Problem What you can do

Troubleshooting

29

No
pic­ture

The following message appears
ATTE NT ION
NO SIGNAL

The following message appears
ATTE NT ION
SIGNAL FREQUENCY IS OUT OF RANGE

LED On?
(Green)

LED Off Is the monitor switched on?

LED On?
(Amber)

Check, if AC power chord is disconnected or monitor
switched of.

Is the AC power chord properly connected?
Signal cable disconnected?

BNC cables are misconnected or the green cable is discon­nected

Computer power switch
Power Management function is activ
Signal cable disconnected.
BNC cables are misconnected or the green cable is discon-

nected.
Computer power switch.
Power management function is active.
Input signal frequency range is disagreement

CGA Mode is not available.
MDA Mode is not available.
EGA Mode is not available.

Display is missing, center shifts, or too
small or too large of a display size

Display is dark or too bright "VIDEO LEVEL" is not at the appropriate position for your

No operation of the USB devices [Generic USB HUB] is not listed in [Device Manager].

Do "GEOMETRY-RESET" or "ALL RESET" for a standard sig­nal.

Adjust H-SIZE, V-SIZE, H-PHASE, and V-POSITION with non­standard signals.

Monitor may not be able to get full-screen image depend on
signal. In this case, please select other resolution, or other
vertical refresh timing.

Make sure you wait a few seconds after adjusting the size
of the image before changing or disconnecting the signal.

graphics adapter output.(0.7V or 1.0Vp-p)

On the OSD screen, the Upstream port to which the USB
device you want to use is connected is not colored by blue.

ELSA ECOMO 22H99

Troubleshooting

Restraining Wires

30

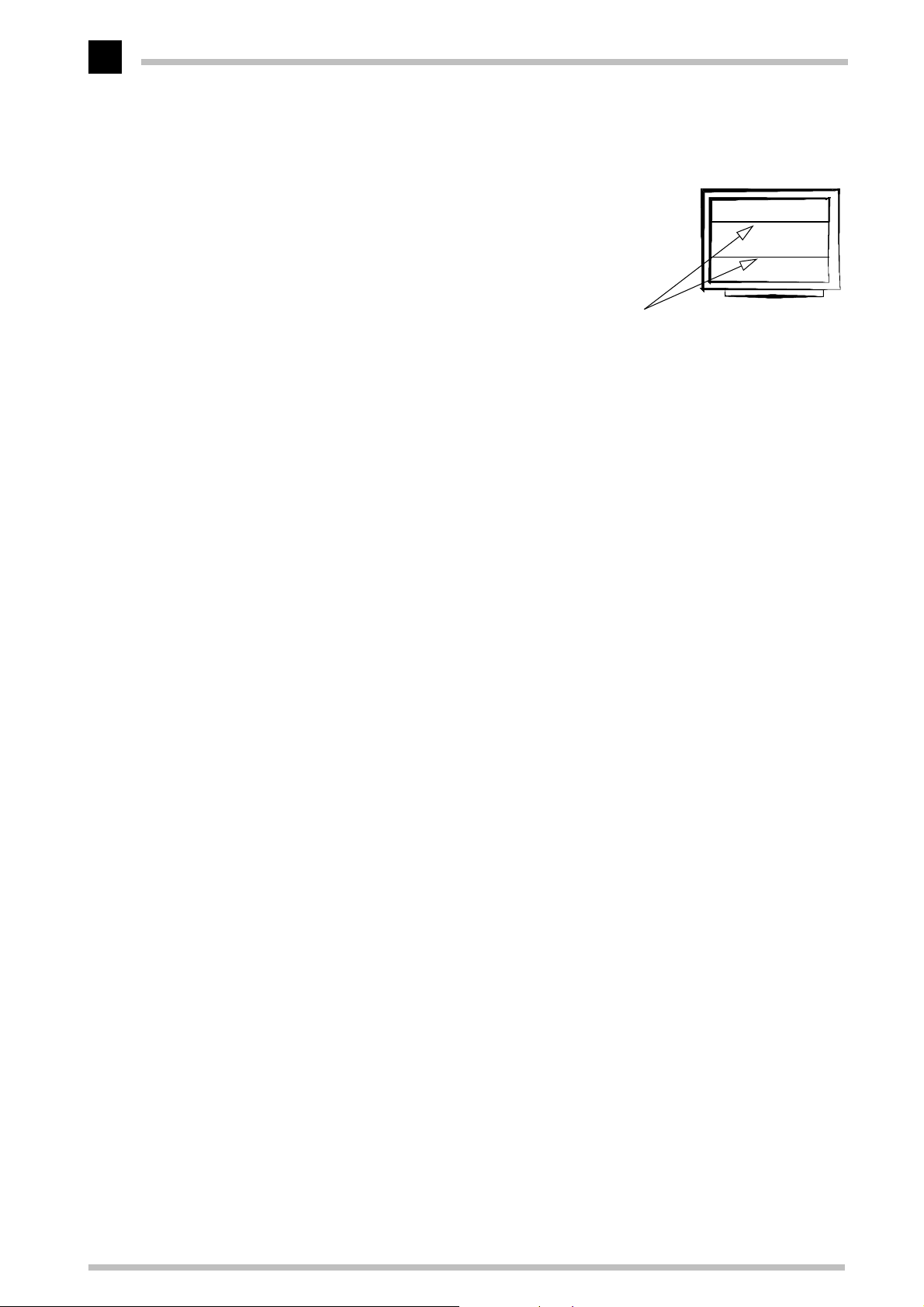

Restraining wires

You may notice two thin, horizontal lines in the
picture. This is not a defect, but a phenomenon
common to monitors which use the aperture
grille CRT technology.

These lines are shadows produced by the
restraining wires which reduce the aperture
grille’s sensitivity to vibration .

ELSA ECOMO 22H99

31

Appendix

TCO '99

Congratulations! You have just purchased a TCO'99 approved and labelled product! Your
choice has provided you with a product developed for professional use. Your purchase
has also contributed to reducing the burden on the environment and also to the further
development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for
encouraging the adaptation of goods and services to the environment. The main problem,
as far as computers and other electronics equipment are concerned, is that environmen­tally harmful substances are used both in the products and during their manufacture.
Since it is not so far possible to satisfactorily recycle the majority of electronics equip­ment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels,
that are important from the viewpoints of both the work (internal) and natural (external)
environments. Since all methods of electricity generation have a negative effect on the
environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital
to save energy. Electronics equipment in offices is often left running continuously and
thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for interna­tional and environmental labelling of personal computers. The labelling scheme was
developed as a joint effort by the TCO (The Swedish Confederation of Professional
Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conserva­tion) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability,
emission of electric and magnetic fields, energy consumption and electrical and fire
safety.

The environmental demands impose restrictions on the presence and use of heavy met­als, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents,
among other things. The product must be prepared for recycling and the manufacturer is
obliged to have an environmental policy which must be adhered to in each country where
the company implements its operational policy.

ELSA ECOMO 22H99

32

The energy requirements include a demand that the computer and/or display, after a cer­tain period of inactivity, shall reduce its power consumption to a lower level in one or
more stages. The length of time to reactivate the computer shall be reasonable for the
user.

Labelled products must meet strict environmental demands, for example, in respect of
the reduction of electric and magnetic fields, physical and visual ergonomics and good
usability.

Below you will find a brief summary of the environmental requirements met by this prod­uct. The complete environmental criteria document may be ordered from:

TCO Development

쮿

SE-114 94 Stockholm, Sweden
Fax: [phone]
Email (Internet): [email protected]

Current information regarding TCO'99 approved and labelled products may also be
obtained via the Internet, using the address:

http://www.tco-info.com/

쮿

Environmental requirements
Flame retardants

casings and housings. Their purpose is to prevent, or at least to delay the spread of fire.
Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
Most flame retardants contain bromine or chloride, and those flame retardants are chem­ically related to another group of environmental toxins, PCBs. Both the flame retardants
containing bromine or chloride and the PCBs are suspected of giving rise to severe health
effects, including reproductive damage in fish-eating birds and mammals, due to the bio­accumulative* processes. Flame retardants have been found in human blood and
researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25
grams must not contain flame retardants with organically bound bromine or chlorine.
Flame retardants are allowed in the printed circuit boards since no substitutes are avail­able.

Cadmium* *

layers of certain computer displays. Cadmium damages the nervous system and is toxic
in high doses. The relevant TCO'99 requirement states that batteries, the color-generat­ing layers of display screens and the electrical or electronics components must not con­tain any cadmium.

Flame retardants are present in printed circuit boards, cables, wires,

Cadmium is present in rechargeable batteries and in the color-generating

Mercury* *

the nervous system and is toxic in high doses. The relevant TCO'99 requirement states

ELSA ECOMO 22H99

Mercury is sometimes found in batteries, relays and switches. It damages

33

that batteries may not contain any mercury. It also demands that mercury is not present
in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may
be used during the manufacture and assembly of the product. CFCs (freons) are some­times used for washing printed circuit boards. CFCs break down ozone and thereby dam­age the ozone layer in the stratosphere, causing increased reception on earth of
ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a con­sequence.

Lead* *

Lead can be found in picture tubes, display screens, solders and capacitors.
Lead damages the nervous system and in higher doses, causes lead poisoning. The rele­vant TCO´99 requirement permits the inclusion of lead since no replacement has yet been
developed.

* Bio-accumulative is defined as substances which accumulate within living organisms
** Lead, cadmium and mercury are heavy metals which are bio-accumulative.

ELSA ECOMO 22H99

34

Advice and help

If you encounter any problems during the installation or operation of your ELSA product,
please consult this manual first.

If you have further questions, you can contact our Support team. Ensure that you can pro­vide the following information.

Exact model name of your ELSA monitor.

쮿

The type of graphics board and the BIOS version (displayed when starting the com-

쮿

puter).
Operating systemand hardware environment.

쮿

Software updates

The latest versions of the ELSA software are always available for download from our
Internet WWW site www.elsa.de and direct via FTP from ftp.elsa.com. You will also find
a wealth of information and answers to frequently asked questions (FAQs). Before you
contact the ELSA Support team, please make sure that you are using the latest ELSA soft­ware (driver, firmware or INF file) versions.

Who to contact?

First you should contact the dealer where you bought your ELSA product. If there are still
questions remaining, contact one of the following:

ELSA on the Internet

쮿

ELSA WWW site www.elsa.de

ELSA by Mail

쮿

Or write to ELSA ELSA AG

If you are not sure whether your product is defective or if the problem is just a driver
which is incorrectly installed, please cal^ql the ELSA Support hotline before you send the
board for repair.

ELSA support hotline [phone]

쮿

Computergrafik Support
Sonnenweg 11

52070 Aachen
Germany

Mondays to Fridays from 9.00 am until 5.00 pm (CET)

If you have any questions about the ELSA ServiceDirect program or the progress of your
repair, please call.

ELSA ECOMO 22H99

ELSA service hotline [phone]

쮿

ELSA world wide

쮿

You can contact the ELSA subsidiaries:
ELSA, Inc.

35

2231 Calle De Luna
Santa Clara, CA 95054
USA

ELSA Asia, Inc.

7F-11, No. 188, Sec. 5
Nanking East Road
Taipei 105
Taiwan, R.O.C.

Japan, Inc.

ELSA

Mita Suzuki Building 3F
5-20-14 Shiba, Minato-ku
Tokyo 108-0014
Japan

Phone:

Fax:

Phone:
Fax:

Phone:
Fax:

[phone]
+1-800-272-ELSA
[phone]

[phone]
[phone]

[phone]
[phone]

57

08

30
73

ELSA ECOMO 22H99

36

ELSA-ServiceDirect for

ELSA ECOMO

3-Year Warranty Including ELSA-Onsite

™

Monitors

As of the purchase date 01.01.1998, ELSA grants a three-year warranty on

1)

ECOMO

monitors including ELSA-ServiceDirect. ELSA strives to offer its customers top

ELSA

product quality with its extensive quality assurance measures. If, however, the customer
makes a complaint, this service program guarantees perfect support and repair proce­dures to minimize any inconvenience. As well as repairs carried out free of charge, the
following ServiceDirect services are offered within the extended scope of the warranty.

ELSA-Onsite: 3 years of onsite service for ELSA monitors—free of charge

You can avail of the numerous advantages of our onsite services for

2)

itors throughout Europe

. If you discover a fault with your monitor, you first contact our

ELSA ECOMO

mon-

support team. If your monitor requires repairs within the warranty period of three years,

3)

you are provided with a replacement unit within 24 hours

which we deliver to your
workplace. Your repaired monitor will be returned to you as soon as possible. The advan­tage of this offer is that you have no downtime or transport expenses. ELSA's customer
service ensures that all transporting procedures are dealt with in the correct manner.

Your direct contact partner at ELSA-ServiceDirect

As an ELSA customer, you will receive support and advice from ELSA's customer service
at all stages of the warranty services being carried out.

The ELSA support hotline is the first number to dial if you discover a
malfunction or fault on your monitor.

If you have general questions on ServiceDirect, on the progress of
repair work, contact the ELSA service hotline.

1) Applies to all

ELSA ECOMO 21H97

2) For

3) Provided that the complete documentation reaches the ELSA support team by 11.00 a.m. by mail or directly via the computer graphics faxline— Tel.:
[phone]. Please note that warranty services are only granted for faults which are covered within the framework of our General Terms of
Warranty, valid for the Federal Republic of Germany (refer to our Internet site: www.elsa.com).

If the ELSA service cannot find fault with the unit claimed to be defective, we will invoice you for DM 200 plus V.A.T. to cover inspection costs and
replacement of the unit.

ELSA ECOMO

, a 4 week DoA warranty is granted outside of Germany instead.

monitors purchased after January 1, 1998.

ELSA Monitor Support Hotline

[phone]

ELSA Service Hotline

[phone]

ELSA ECOMO 22H99

37

Warranty conditions

The ELSA AG warranty, valid as of June 01, 1998, is given to purchasers of ELSA products in addition to
the warranty conditions provided by law and in accordance with the following conditions:

1 Warranty coverage

a) The warranty covers the equipment delivered and all its parts. Parts will, at our sole discretion, be

replaced or repaired free of charge if, despite proven proper handling and adherence to the operat­ing instructions, these parts became defective due to fabrication and/or material defects. Also we
reserve the right to replace the defective product by a successor product or repay the original pur­chase price to the buyer in exchange to the defective product. Operating manuals and possibly sup­plied software are excluded from the warranty.

b) Material and service charges shall be covered by us, but not shipping and handling costs involved

in transport from the buyer to the service station and/or to us.
c) Replaced parts become property of ELSA.
d) ELSA are authorized to carry out technical changes (e.g. firmware updates) beyond repair and re-

placement of defective parts in order to bring the equipment up to the current technical state. This

does not result in any additional charge for the customer. A legal claim to this service does not ex-

ist.

2 Warranty period

The warranty period for ELSA products is six years. Excepted from this warranty period are ELSA color
monitors and ELSA videoconferencing systems with a warranty period of 3 years. This period begins at
the day of delivery from the ELSA dealer. Warranty services do not result in an extension of the warranty
period nor do they initiate a new warranty period. The warranty period for installed replacement parts
ends with the warranty period of the device as a whole.

3 Warranty procedure

a) If defects appear during the warranty period, the warranty claims must be made immediately, at

the latest within a period of 7 days.
b) In the case of any externally visible damage arising from transport (e.g. damage to the housing), the

transport company representative and ELSA should be informed immediately. On discovery of dam-

age which is not externally visible, the transport company and ELSA are to be immediately informed

in writing, at the latest within 7 days of delivery.
c) Transport to and from the location where the warranty claim is accepted and/or the repaired device

is exchanged, is at the purchaser's own risk and cost.
d) Warranty claims are only valid if the original purchase receipt is returned with the device.

4 Suspension of the warranty

All warranty claims will be deemed invalid

a) if the device is damaged or destroyed as a result of acts of nature or by environmental influences

(moisture, electric shock, dust, etc.),
b) if the device was stored or operated under conditions not in compliance with the technical specifi-

cations,

ELSA ECOMO 22H99

38

c) if the damage occurred due to incorrect handling, especially to non-observance of the system de-

scription and the operating instructions,
d) if the device was opened, repaired or modified by persons not authorized by ELSA,
e) if the device shows any kind of mechanical damage,
f) if in the case of an ELSA Monitor, damage to the cathode ray tube (CRT) has been caused especially

by mechanical load (e.g. from shock to the pitch mask assembly or damage to the glass tube), by

strong magnetic fields near the CRT (colored dots on the screen), or through the permanent display

of an unchanging image (phosphor burnt),
g) if, and in as far as, the luminance of the TFT panel backlighting gradually decreases with time, or
h) if the warranty claim has not been reported in accordance with 3a) or 3b).

5 Operating mistakes

If it becomes apparent that the reported malfunction of the device has been caused by unsuitable soft­ware, hardware, installation or operation, ELSA reserves the right to charge the purchaser for the result­ing testing costs.

6 Additional regulations

a) The above conditions define the complete scope of ELSA’s legal liability.
b) The warranty gives no entitlement to additional claims, such as any refund in full or in part. Com-

pensation claims, regardless of the legal basis, are excluded. This does not apply if e.g. injury to

persons or damage to private property are specifically covered by the product liability law, or in cas-

es of intentional act or culpable negligence.
c) Claims for compensation of lost profits, indirect or consequential detriments, are excluded.
d) ELSA is not liable for lost data or retrieval of lost data in cases of slight and ordinary negligence.
e) In the case that the intentional or culpable negligence of ELSA employees has caused a loss of data,

ELSA will be liable for those costs typical to the recovery of data where periodic security data back-

ups have been made.
f) The warranty is valid only for the first purchaser and is not transferable.
g) The court of jurisdiction is located in Aachen, Germany in the case that the purchaser is a merchant.

If the purchaser does not have a court of jurisdiction in the Federal Republic of Germany or if he

moves his domicile out of Germany after conclusion of the contract, ELSA’s court of jurisdiction ap-

plies. This is also applicable if the purchaser's domicile is not known at the time of institution of

proceedings.
h) The law of the Federal Republic of Germany is applicable. The UN commercial law does not apply

to dealings between ELSA and the purchaser.

ELSA ECOMO 22H99
