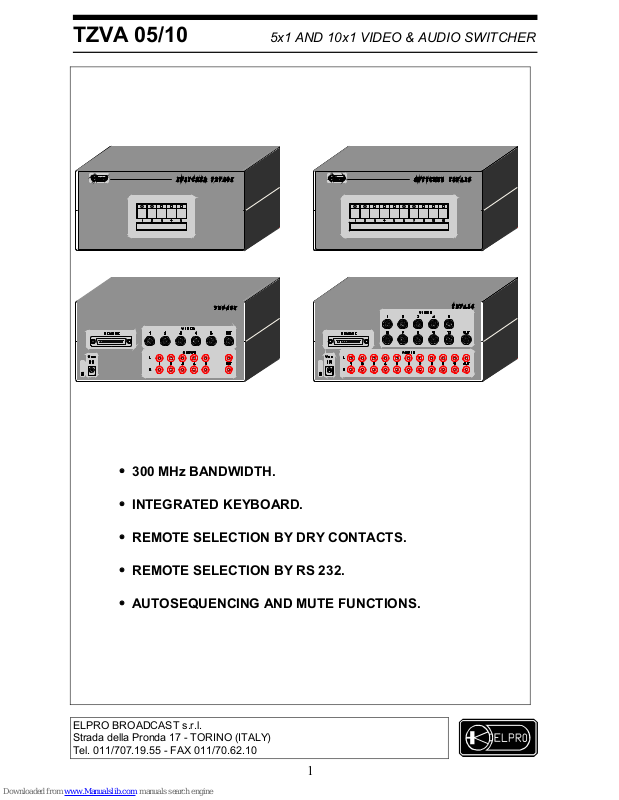

ELPRO TZVA 05, TZVA 10 Instuctions For Use

1

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

• 300 MHz BANDWIDTH.

• INTEGRATED KEYBOARD.

• REMOTE SELECTION BY DRY CONTACTS.

• REMOTE SELECTION BY RS 232.

• AUTOSEQUENCING AND MUTE FUNCTIONS.

TZVA 05/10 INSTUCTIONS FOR USE MANUAL

INDEX

1.0 Overview

2.0 Power

3.0 Settings

4.0 Installation

5.0 Local command

6.0 Command by dry contacts and tally

7.0 Auxiliary functions

8.0 Host control

9.0 Technical data

10.0 Notes

You are kindly requested to read the present manual

before installing the TZVA 05/10.

Manufacturer does not assume any liability for damages

due to the use, even correct, of its products.

Data and specifications may change without notice.

9.0

Main input

10.0 NOTES

paid.

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

2

ELPRO BROADCAST s.r.l.

Strada della Pronda 17 - TORINO (ITALY)

Tel. [phone] - FAX [phone]

1.0 OVERVIEW

Thanks for purchasing this product. Please check the contents of the packing.
It contains:

3

TZVA 05/10 is a mechanical video and audio switcher with 5 and 10 inputs.
Reliable and versatile it's suited for professional and multimedial use.

The unit is bi-directional and may be useful where one source may be routed
alternatively towards 5 or 10 destinations.

− The TZVA…… unit

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

− The present user manual

− The AC adapter code ADM 001

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

4

ELPRO BROADCAST s.r.l.

Strada della Pronda 17 - TORINO (ITALY)

Tel. [phone] - FAX [phone]

Fig. 1 CONNECTIONS OF TZVA 05 4 SOURCE 1 DESTINATION

2.0 POWER

TZVA 05/10 is powered only by the AC adapter code ADM 001 equipped with
the unit.

Servicing must be made by

qualified personnel

The adapter must be fitted in a 220-240 Vac /50 Hz socket

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

3.0 SETTINGS

The unit has inside the setting (JP1) for the autosequencing time
(seechapter 7.1):

TZVA 05/10 5x1AND 10x1 VIDEO & AUDIO SWITCHER

6

ELPRO BROADCAST s.r.l.

Strada della Pronda 17 - TORINO (ITALY)

Tel. [phone] - FAX [phone]

4.0 INSTALLATION

a) Be sure that all the units to be installed are in OFF state.
b) Connect the sources and destination video and audio as illustrated:

ATTENTION

ONLY one destination must be

connected to the output

c) Power the unit as described in chapter 2.0 and check that the led in the
pushbutton 1 lights up.

5.0 LOCAL COMMAND

The switcher TZVA 05/10 may be controlled
by the five (ten) pushbuttons on the front
panel.
The lighting up of the led indicates which
source is routed on the output.
At the power-on the source 1 is automatically
activated.

TZVA 05/10 5x1AND 10x1 VIDEO & AUDIO SWITCHER

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

7

AUDIO

INPUTS

AUDIO

OUTPUT

VIDEO

INPUTS

VIDEO

OUTPUT

VIDEO

INPUTS

VIDEO

OUTPUT

AUDIO

INPUTS

AUDIO

OUTPUT

6.0 COMMAND BY DRY CONTACTS AND TALLY

By five (ten) external dry contacts connected to connector DB25p.f. REMOTE
it's possible to route the five (ten) inputs.

The relative tally signals are provided for lighting-up the external leds as
indicated below.

2.0 POWER

TZVA 05/10 is powered only by the AC adapter code ADM 001 equipped with
the unit.

The adapter must be fitted in a 220-240 Vac /50 Hz socket

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

ELPRO BROADCAST s.r.l.

Strada della Pronda 17 - TORINO (ITALY)

Tel. [phone] - FAX [phone]

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

8

1 TALLY 1 14 INPUT 1
2 TALLY 2 15 INPUT 2
3 TALLY 3 16 INPUT 3
4 TALLY 4 17 INPUT 4
5 TALLY 5 18 INPUT 5
6 TALLY 6 19 INPUT 6
7 TALLY 7 20 INPUT 7
8 TALLY 8 21 INPUT 8

9 TALLY 9 22 INPUT 8

10 TALLY 10 23 INPUT 10

11

AUTOSEQ

24 +5 VDC

12

RS232RX

25 GND

13

MUTE

- -

TZVA 10 ONLY

CONNECTIONS

ATTENTION

For the best results use

high efficiency leds.

7.0 AUXILIARY FUNCTIONS

TZVA 05/10 has two auxiliary functions which can be activated by two dry
contacts connected to connector DB25p. f. REMOTE.

Function stays active until the relative pin is connected to GND (pin 25).

7.1 AUTOSEQUENCING

The five (ten) inputs are routed alternatively with a period of 4 or 10 seconds.
The period is defined by the position of the jumper inside the unit.
(See chapter 3.0)

7.2 MUTE

The output is left open.

ATTENTION

AUTOSEQUENCING and MUTE are mutually
exclusive. Priority is:

MUTE
AUTOSEQUENCING

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

9

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

1 TALLY 1 14 INPUT 1

2 TALLY 2 15 INPUT 2

3 TALLY 3 16 INPUT 3

4 TALLY 4 17 INPUT 4

5 TALLY 5 18 INPUT 5

6 TALLY 6 19 INPUT 6

7 TALLY 7 20 INPUT 7

8 TALLY 8 21 INPUT 8

9 TALLY 9 22 INPUT 8

10 TALLY 10 23 INPUT 10

11 AUTOSEQ

24 +5 VDC

12 RS232RX

25 GND

13 MUTE - -

8.0 HOST CONTROL

TZVA 05/10 may be controlled in all its functions by host computer sending an
exadecimal character.

Transmission is RS 232, 8 bits,
1 stop bit, no parity.
Baud rate is 2400.

Character must be sent to pin #12 of
connector DB25 p.f. REMOTE.
GND is pin #25.

In the table below are shown the codes sent by host and the relative function
on the TZVA 05/10.

AUTOSEQUENCING and MUTE
are removed repeating the
command or sending the code of
another command.

AUTOSEQUENCING and MUTE
are removed pressing a
pushbutton on front panel.
In this case will be routed the
input relative to the pushbutton
pressed.

It contains:

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

10

ELPRO BROADCAST s.r.l.

Strada della Pronda 17 - TORINO (ITALY)

Tel. [phone] - FAX [phone]

Pin # 12
sub - D

FUNCTION

31h

INPUT 1

32h

INPUT 2

33h

INPUT 3

34h

INPUT 4

35h

INPUT 5

36h

INPUT 6

37h

INPUT 7

38h

INPUT 8

39h

INPUT 9

3Ah

INPUT 10

3Bh

-

3Ch

-

3Dh

-

52h

AUTOSEQ

53h

-

54h

MUTE

− The

−

−

9.0 TECHNICAL DATA

Video inputs : 5 with BNC 75Ω term.
10 with BNC 75Ω term.

Video Output : 1 with BNC

Switching mode :dry contact, break-before-make

Audio inputs/out :stereo with RCA socket

Main input
(with AC adapter ADM 001) : 230 Vac 50 Hz
Power consumption :5 VA
Size (WXDXH) :220X105X120 mm
Weight :1Kg.
Operating temp.range :0÷45°C
Safety :according to EN 60065
EMC :according to EN 555013 and 55020

Mark

10.0 NOTES

The product is guaranteed for two years from date of purchase.

TZVA 05/10 INSTUCTIONS FOR USE MANUAL

Warranty falls off if defect is due to negligence in use or

intervention of unauthorized personnel.

In the course of warranty ELPRO will repair free the faulty units.
Faulty units must arrive to ELPRO free of charge and with return
transportation pre-paid.

Out of warranty ELPRO will repair faulty units with cost charged to customer.
Units must arrive to ELPRO free of charge and with return transportation pre­paid.

For any need during installation of TZVA 05/10 and

for any other information call hot line ELPRO [phone]

or E-mail [e-mail]

.

TZVA 05/10 5x1 AND 10x1 VIDEO & AUDIO SWITCHER

ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. [phone] - FAX [phone]

11

INDEX OF ACCESSORIES INFOVIDEO LINE

Cod. ELPRO Description

− ADC 101 Cable HDD 15 p. m./f. 1,5 mt.

− ADC 105 Cable HDD 15 p. m./f. 5,0 mt.

− ADC 110 Cable HDD 15 p. m./f. 10,0 mt.

− ADC 120 Cable HDD 15 p. m./f. 20,0 mt.

− ADC 130 Cable HDD 15 p. m./f. 30,0 mt.

− ADC 201 Adapter cable HHD 15 p. m./5 BNC

− ADC 301 MAC Adapter cable DB 15 p. f./HHD 15 p. m.

− ADC 401 SUN Adapter cable 13W3 f./HHD 15 p. m.

− ADC 402 SUN Adapter cable 13W3 m./HHD 15 p. f.

− ADC 501 SGI Adapter cable 13W3 f./HHD 15 p. m.

− ADC 502 SGI Adapter cable 13W3 m./HHD 15 p. f.

− ADC 610 RG 59B/U cable BNC/BNC 10mt.

− ADC 630 RG 59B/U cable BNC/BNC 30mt.

− ADC 665 RG 59B/U cable BNC/BNC 65mt.

− ADC 710 Cable for TCR 03 DB 15 p. m./f. 10mt.

− ADM 001 AC Adapter

− ADP 010 Connector DB 15 p. m. with cover

− ADP 302 MAC Adapter plug DB 15 p. m./HHD 15 p. f.

− ADR 2U Rack adapter 2U

− ADR 3U Rack adapter 3U

− ADR 2U BLK Blank panel 2U

− ADR 3U BLK Blank panel 3U
