ELPRO tz09 User Manual
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210

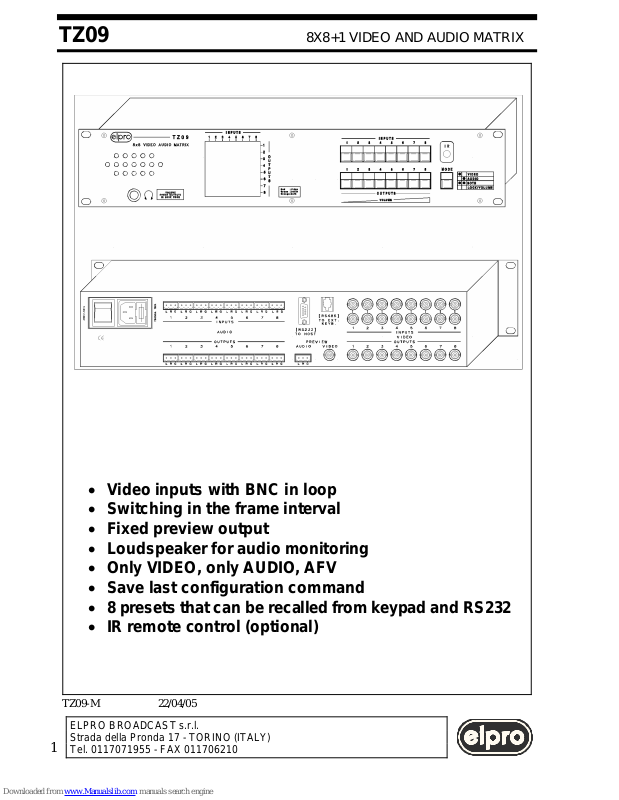

TZ09 8X8+1 VIDEO AND AUDIO MATRIX
1
TZ09-M 22/04/05
• Video inputs with BNC in loop
• Switching in the frame interval
• Fixed preview output
• Loudspeaker for audio monitoring
• Only VIDEO, only AUDIO, AFV
• Save last configuration command
• 8 presets that can be recalled from keypad and RS232
• IR remote control (optional)
INDEX
1.0 Overview
2.0 Power supply
3.0 Settings
4.0 Installation
5.0 Local control
6.0 IR remote control
7.0 Computer control via RS232
8.0 Computer control via RS485
9.0 Technical data
10.0 Notes
When installing the TZ09 unit, please read this handbook carefully.
The manufacturer shall not be held responsible for any damage or injury
caused by use, even correct, of its products.
The data and characteristics of the product may be modified without prior notice
According to the protocol used, the messages exchanged between the host and TZ09
are amongst the following control characters:
- command from host to TZ09:
STX ADDR command ETX
- reply of the TZ09 to the host:
STX ADDR reply ETX
The character STX corresponds to 02 hex,
the character ETX corresponds to 03 hex,
the ADDR field is the address of the TZ09: from 30 hex to 37 hex (or from 0 to 7 in ASCII)
The contents of the command and reply fields are the same as the commands indicated
above for the RS232 protocol except for the CR character (hex 0D) which is omitted in this
case.
8.1 Commands managed
The commands that can be sent via RS485 are all those envisaged for RS232 except for
the "Set RS485 communication parameters" command:
- video and audio switching command
- video switching command
- audio switching command
- status request
- creation of a preset
- recall of a preset
- firmware release identification request.
- global status request
- video preview
- audio preview
- video + audio preview
- audio preview volume level
- mute audio
Example: in this case the format of the video switching command will be as follows:
STX ADDR VXXYY ETX where: V is the character Hex 56
XX is the output (from 01 to 08)
YY is the video input (from 01 to 08)
The TZ09 matrix replies:
STX ADDR ACK ETX where: ACK is the character Hex 06
if the command has been performed correctly
STX ADDR NACK ETX where NAK is the character Hex 15
if transmission errors have been detected or incorrect parameters.
Therefore, the switching command of video input 5 to bus 4 for the TZ09 with address 2
will be as follows:
STX 2 V 04 05 ETX (in Hex code: 02 32 56 30 34 30 35 03)
the matrix will reply with:
STX 2 ACK ETX (in Hex code: 02 32 06 03) or with:
STX 2 NACK ETX (in Hex code: 02 32 15 03)
2
INSTALLATION AND USE OF THE TZ09
TZ09 8X8+1 VIDEO AND AUDIO MATRIX TZ09 8X8+1 VIDEO AND AUDIO MATRIX
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
19
1.0 OVERVIEW
Thank you for buying this product.
Check the contents of the packaging carefully. It contains:
3
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
The TZ09 is an 8X8 video and audio stereo matrix with fixed preview outputs.
A built-in loudspeaker permits immediate local audio monitoring.
A headphones output is also provided.
The characteristics of this unit such as the loop type video inputs, the
breakaway and the possibility of control using a computer via RS232 make it
suitable for a range of both broadcasting and multi-media applications.
The ninth fixed preview output permits use of the matrix also as broadcasting
unit for TV studios.
The possibility of saving and recalling 8 configurations, via RS232, makes the
TZ09 highly versatile for presentations.
− The TZ09 unit
- This handbook - The mains cable - The remote control
(optional)
2.0 POWER SUPPLY
The TZ09 must be powered at 230 Vac 50Hz using the cable provided.
The cable must be terminated in the related panel plug on the left at the back of
the unit.
The panel plug is complete with fuse-holder for 5X20 fuses.
If the fuse blows, replace with a fuse with the same rating as specified on the
back of the unit (T 500mA).
WARNING
All operations must be carried out by qualified personnel only
who must be informed of the risks of electric shock.
In some countries, the power plug must be adapted to local standards.
The wires are identified according to the following coding:
- Brown PHASE (Identified with the letter L, may be red)
- Blue NEUTRAL (Identified with the letter N, may be black)
- Yellow/Green GROUND (Identified with the letter E, may be green)
WARNING
A ground connection is mandatory.
7.15 Set RS485 communication parameters
The host must send the following sequence:
CASR followed by CR where: C is the character Hex 43
A is the address of the matrix (from 0 to 7)
S is the TX/Rx speed (1 or 2)
1 = 2400 bit/sec
2 = 9600 bit/sec
R is the reply time (from 1 to 7) in multiples of 16 msec.
1 = 16 msec
2 = 32 msec
3 = 48 msec
4 = 64 msec
5 = 80 msec
6 = 96 msec
7 = 112 msec
The TZ09 matrix replies:
ACK (Hex 06) if the command has been performed correctly
NACK (Hex 15) if transmission errors have been detected
Example: to program the TZ09 connected as unit with address 4, Tx speed of 2400
bit/sec and a reply time of 80 milliseconds, the following characters must be sent on line:
43 34 31 35 0D

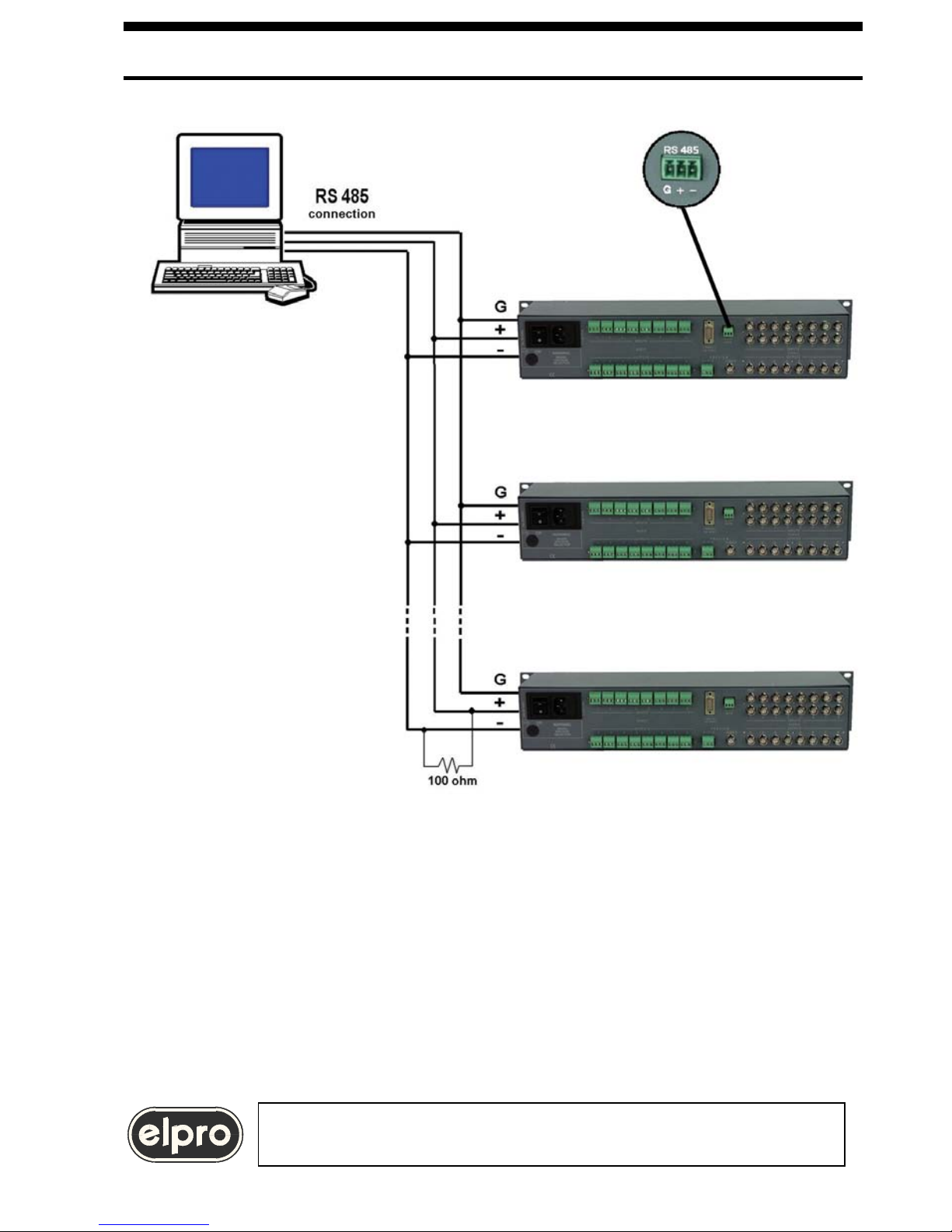

8.0 CONTROL USING COMPUTER via RS485
On its site www.elprovideolabs.com
Windows suitable for controlling the TZ09 via RS232 or RS485. If the user intends to
develop personalized software, the protocols to be implemented both RS232 and RS485
are available on the same site. All functions of the TZ09 can be controlled through
transmission/reception by a computer of strings of hexadecimal and ASCII characters.
The transmission protocol is of the master/slave multi-point type where the TZ09 are the
slaves while the host that controls these is the master. Up to 8 TZ09, identified by
addresses form 0 to 7 can be connected on the 485 bus.

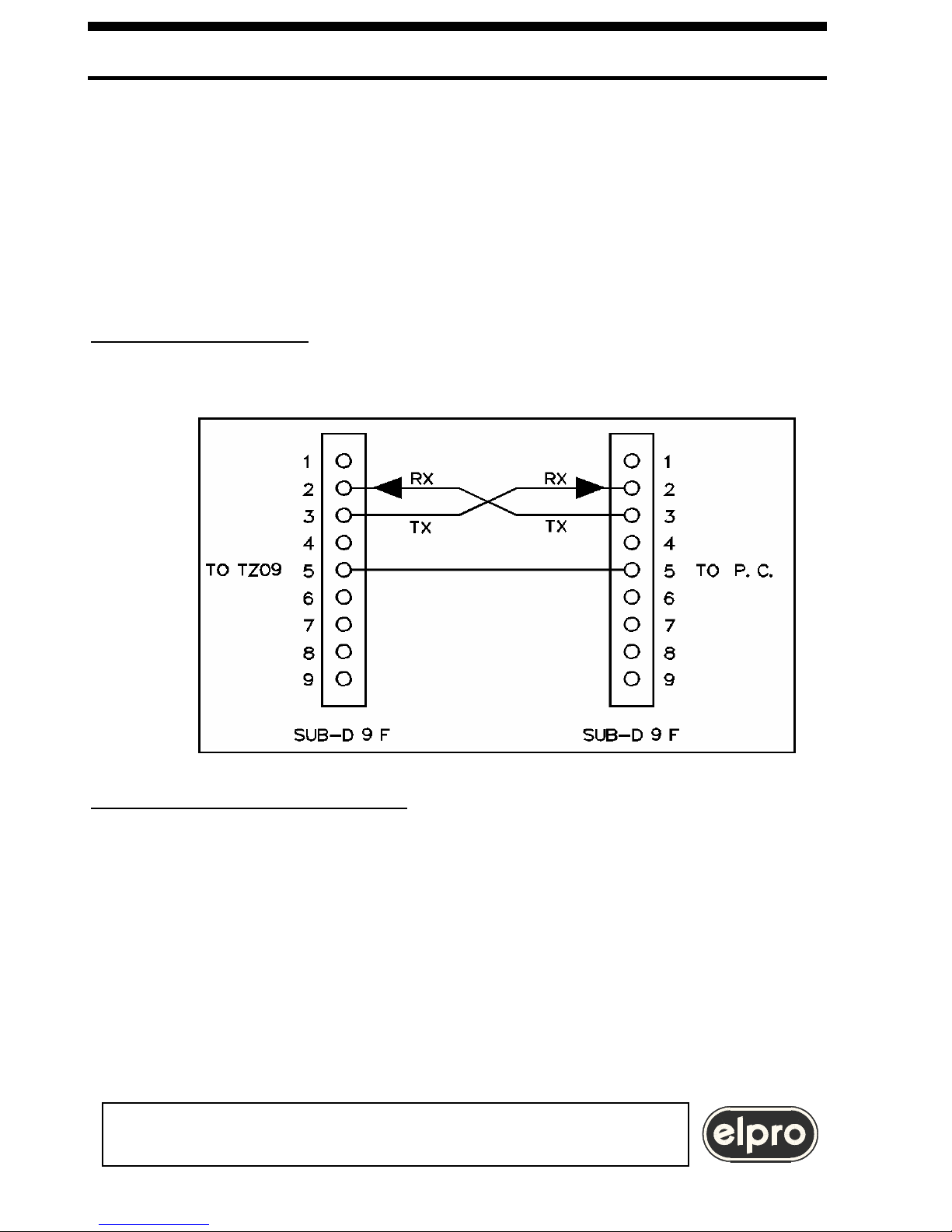

The characteristics of the serial connection are:
The transmission speed, the address of the unit and the reply time can be set with a
suitable command from RS232. The reply time of the TZ09 is the time that must pass
between end of reception of the command and the start of transmission of the reply. This
time allows the host to release the 485 bus and to prepare to receive without casing
conflicts.
The default parameters are as follows:
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
4
17
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
3.0 SETTINGS
The unit has two types of internal settings:
3.1 Insertion or removing of the 75Ω internal termination on the inputs
To perform this operation:
a) Unplug the mains cable from the unit
b) Remove the cover of the unit
c) Position jumpers W1÷W8 on the rear circuit board to the ON or OFF position
for each input to be terminated at 75Ω.
WARNING
W1 corresponds to input 1, W2 corresponds to input 2,
and so on for the other inputs
d) Replace the cover of the unit
e) Reconnect the mains cable.
WARNING
The 75Ω must be left inserted internally (jumper ON) when
the loop is not used and there are no external BNC terminations
For use of the loop in input or of external BNC terminations
it’s necessary to set the jumpers in OFF position.
The unit is factory set with jumpers W1÷W8 in the ON position
(75Ω termination inserted)
5
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
3.2 Enabling of "Free running" operation
When the specific j umper W1 is closed in the ON position, the operating mode
of the keypad is "Free running", i.e. the matrix is switched selecting either first
of all the source or destination in the sequence: INPU TS-OU TPU TS or
OU TPU TS-INPU TS.
To activate this function:
a) U nplug the mains cable from the unit
b) Remove the cover of the unit
c) Position jumper W1 on the front circuit board to the ON position
d) Replace the cover of the unit
e) Reconnect the mains cable.
The unit is factory set with jumper W1 in the OFF position for standard use of
the keypad (mandatory sequence INPU TS-OU TPU TS, see paragraph 5.1
Switching of the signals).
7.10 Set Preview video
TZ09 connects the selected video input to the video preview output.
The host must send the following sequence: vXX followed by CR where:
Example: to set input 4 video to preview output the following characters must be sent on
The TZ09 matrix replies:
ACK (Hex 06) if the command has been performed correctly
NACK (Hex 15) if transmission errors have been detected
7.11 Set Preview audio
TZ09 connects the selected audio input to the video preview output.
The host must send the following sequence: aXX followed by CR where:
Example: to set input 2 audio to preview output the following characters must be sent on
The TZ09 matrix replies:
ACK (Hex 06) if the command has been performed correctly
NACK (Hex 15) if transmission errors have been detected
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
15
TZ09 8X8+1 VIDEO AND AUDIO MATRIX
6
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
ELPRO BROADCAST s.r.l.
Strada della Pronda 17 - TORINO (ITALY)
Tel. 0117071955 - FAX 011706210
