ELPRO sd124 User Manual

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

1

SD124-M 08/07/2005

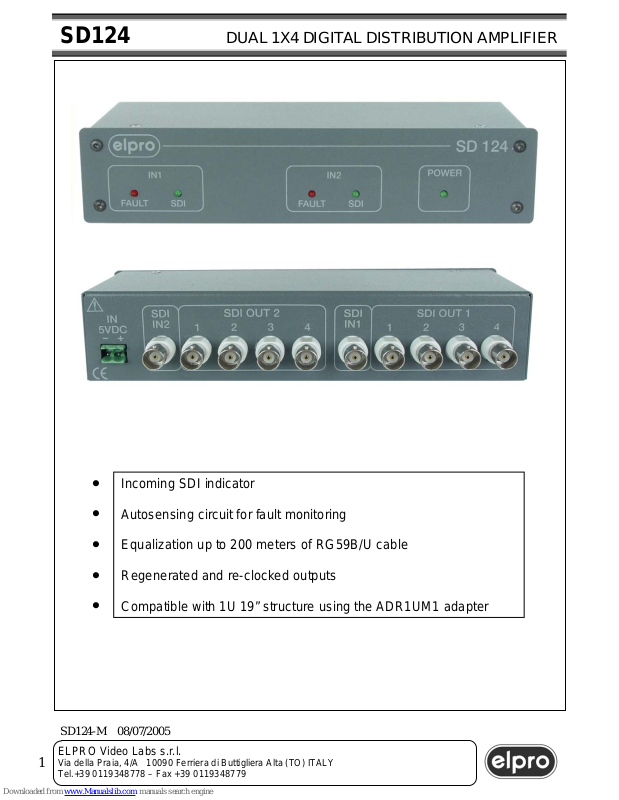

• Segnalazione presenza SDI in ingresso

• Circuito autosensing per segnalazione avaria

• Compensazione fino a 200mt di cavo RG59B/U

• Uscite rigenerate e ricloccate

• Compatibile 19” con l’adattatore ADR1UM1

Incoming SDI indicator
Autosensing circuit for fault monitoring
Equalization up to 200 meters of RG59B/U cable
Regenerated and re-clocked outputs
Compatible with 1U 19” structure using the ADR1UM1 adapter

INSTALLATION AND USE OF THE SD124

CONTENTS

1.0 Overview

2.0 Indicators

3.0 Installation

4.0 Technical data

5.0 Notes

Please read this handbook carefully before installing the SD124.
The manufacturer accepts no responsibility for damage arising from the use of its

products, including the correct use thereof.
Product data and specifications may be subject to change without notice.

1.0 OVERVIEW
Thank you for choosing this product. Please check the contents of the packaging

carefully. It contains:

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

2

−

the external adapter

and mains cable

− This handbook and the
EC declaration of
conformity

− The SD124 unit

The SD124 is a high-performance SDI signal distributor.
An SDI signal is a signal according to the ITU-R 601 standard.
The unit has two separate inputs each of which has four 75 Ω outputs.
The distributor contains all the equalizing and re-clocking circuits needed to regenerate
SDI signals from coax cable sections of up to 200 meters.
The SD124 comes in a 1U case that can be inserted into a 19” structure using the
ADR1UM1 adapter.
The adapter can hold one or two units placed side by side.
There are no internal settings or pre-settings for the SD124.

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

3

2.0 INDICATORS

The following indicators are located on the front of the unit:

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

4

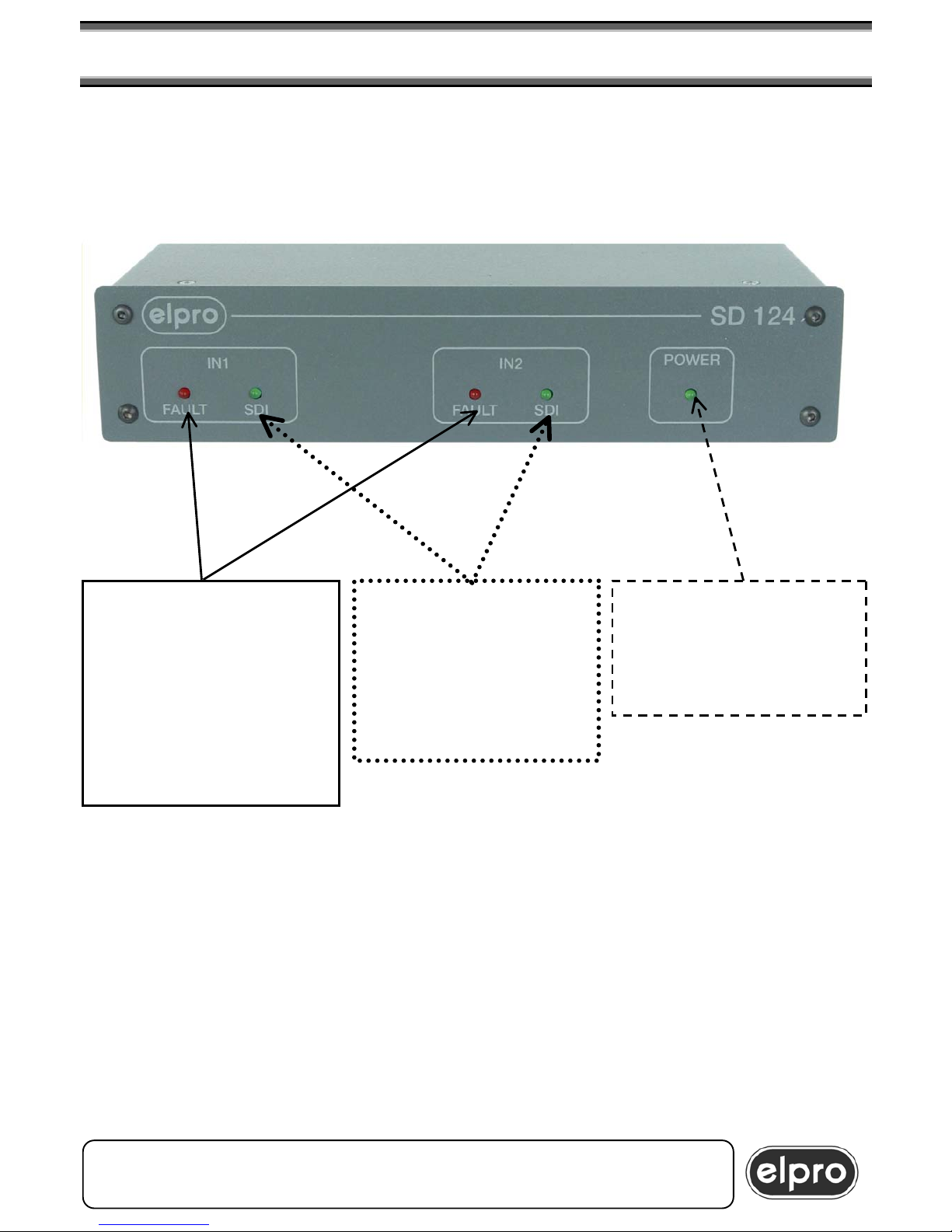

-Green POWER LED.
When on it indicates that
the unit is connected to
the correct mains
voltage.

-2 green SDI LEDs.
When on they indicate
the presence of an SDI­compliant signal on the
SDI IN1 and SDI IN2
inputs.

-2 red FAULT LEDs.
When on they indicate a
fault in the respective
internal circuits and
subsequent malfunction
in one or both sections o

f

the distributor.

3.0 INSTALLATION

Connect the unit to the power supply using the ADM030 mains adapter supplied.
This adapter has a universal 90 to 240 VAC 50/60 Hz input.

1) For low voltage levels (5V DC) the adapter is equipped with a two-pole terminal that
must be plugged into the corresponding IN 5VDC

- + port on the back of the SD124.

2) Connect the ADM030 adapter to the mains using the cable supplied.

The green POWER LED must come on.

In some countries, regardless of the mains voltage, the plug on the mains cable must be
replaced in order to comply with local standards. Cable coding is as follows:

-Brown PHASE (Marked with the letter L, may be red)

-Blue NEUTRAL (Marked with the letter N, may be black)

-Yellow/Green EARTH (Marked with the letter E, may be green)

WARNING

The unit must be earthed

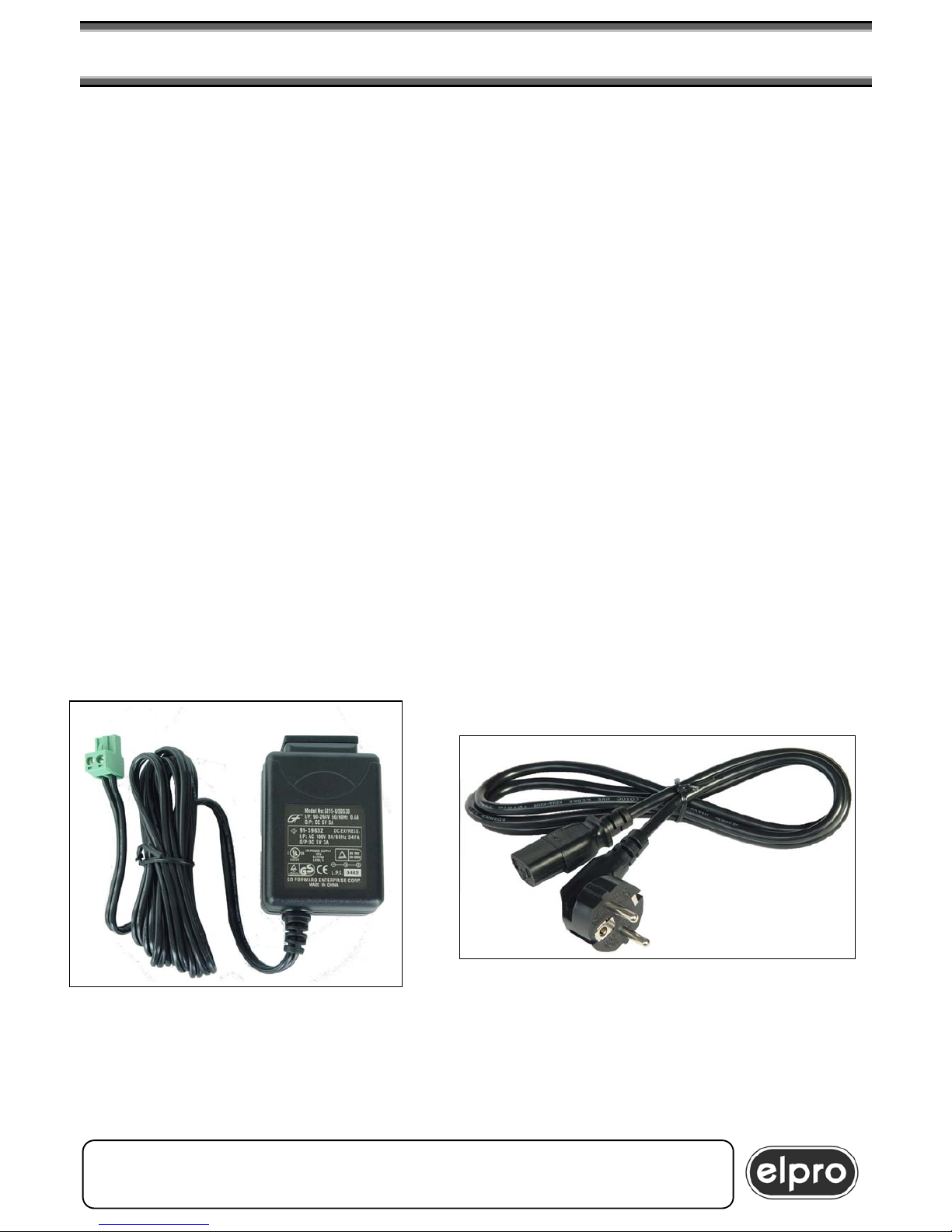

ADM030 adapter and mains cable for use with the SD124

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

5

3) For connecting the SDI signals we refer to the screen-printed markings for the SDI IN1
input. Follow the same procedure for the signal entering the SDI IN2 input.

3.1 Connect the SDI source to the BNC connector marked SDI IN1 using an RG59B/U
coax cable or equivalent up to a maximum of 150 meters in length.

The green IN1 SDI LED must light up

(The red FAULT LED can stay on during the first minuts of functionning.

This is due to the stabilization time of the output drivers)

3.2 Use a suitable VFM601i Tektronix-type device to test the signal from the BNC
connectors marked SDI OUT 1÷4 and check that the characteristics of the eye pattern,
jitter, amplitude and signal rise and fall times are ITU-R 601-compliant, i.e.:

a) Eye pattern : clearly defined
b) Jitter : less than 500 psec
c) Amplitude : 800mV ± 10%
d) rise and fall times: : between 0.75 and 1.5 ns

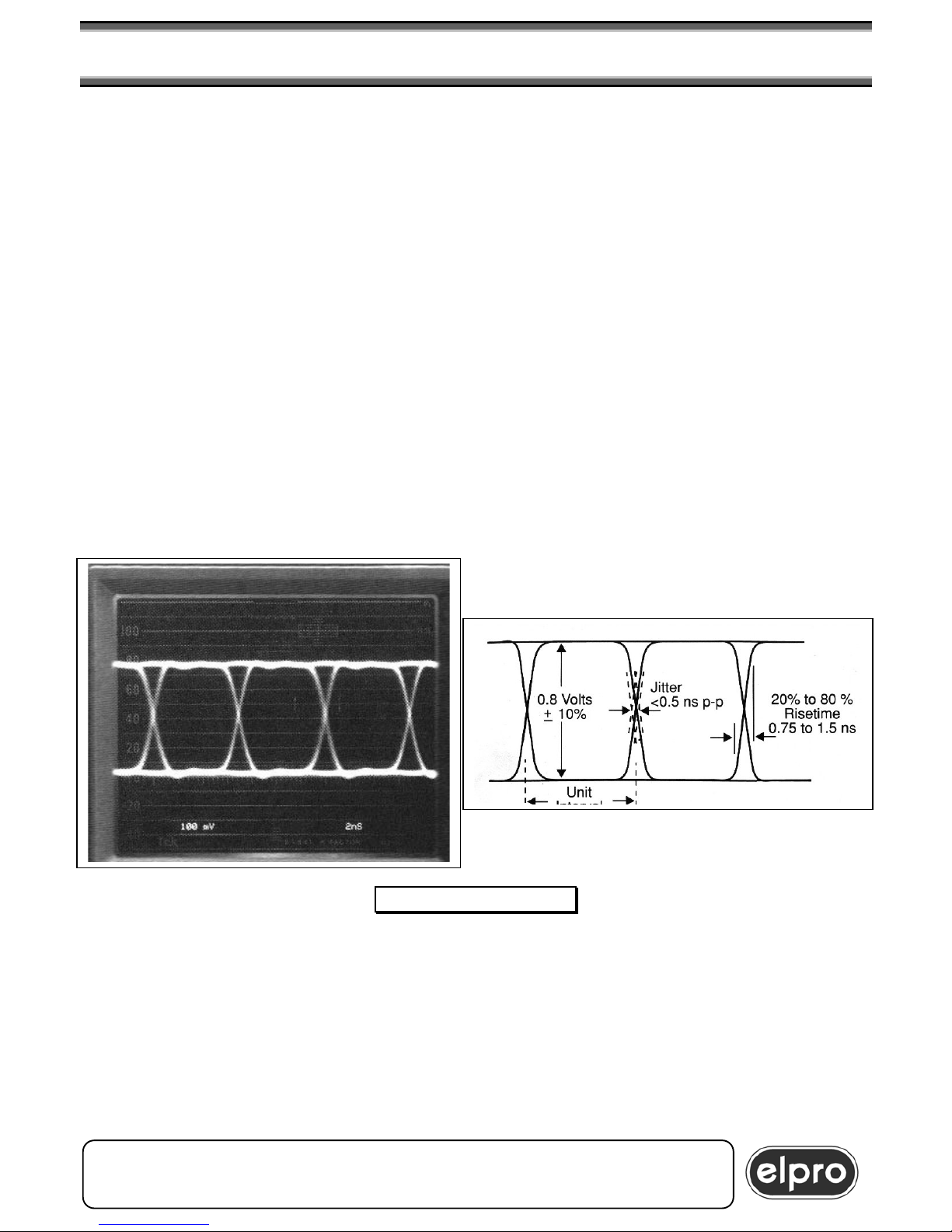

Typical SDI waveform

CAUTION

If the eye pattern is not clearly defined or jitter is >500 psec check that:

- The source has a standard SDI signal

- If the coax cable is not an RG59B/U cable, it has the same characteristics

- That the input cable is not more than 200 meters long.

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

6

4.0 TECHNICAL DATA

Inputs :2, separated, SDI
Input type :AC coupled
Automatic compensation :up to 200 m RG59B/U cable
Outputs :4 each input
Out amplitude :800 mV pp
Jitter :better than 150 psec
Out rise/fall time :780 psec at 270Mbit/sec
(measured from 20% to 80%)
Main input :5 VDC (with AC adapter ADM030)
Power consumption :max 5VA
Operating temp. range :0÷45°
Safety :according to EN60065
EMC :according to EN55103-1 and 55103-2

CE Mark

SD124 DUAL 1X4 DIGITAL DISTRIBUTION AMPLIFIER

ELPRO Video Labs s.r.l.

Via della Praia, 4/A 10090 Ferriera di Buttigliera Alta (TO) ITALY
Tel.[phone] – Fax [phone]

7

5.0 Notes

This product is guaranteed for 2 years from the date of purchase.

The guarantee does not cover defects caused by incorrect use or

repairs or modifications carried out by third parties.

During the period covered by the guarantee, Elpro will repair defective units free of
charge.

Defective units should be sent CARRIAGE FREE to Elpro’s works in Turin, together with
the relative freight bill.

Elpro will return the repaired units CARRIAGE FORWARD to the addressee.
After the period covered by the guarantee, Elpro will repair defective units on an EX­WORKS basis at its premises in Turin, and the customer will be liable for the entire cost
of repairs.

If you require any assistance while installing the SD124

please call the Elpro hotline on [phone]

or send an e-mail to: [email protected]
