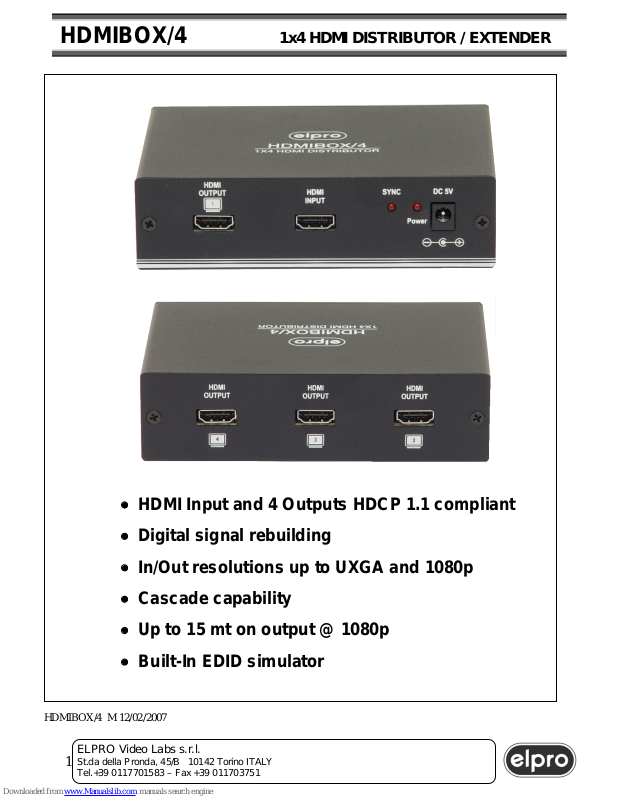

ELPRO HDMIBOX/4 User Manual

HDMIBOX/4 M 12/02/2007

HDMIBOX/4 1x4 HDMI DISTRIBUTOR / EXTENDER

• HDMI Input and 4 Outputs HDCP 1.1 compliant

• Digital signal rebuilding

• In/Out resolutions up to UXGA and 1080p

• Cascade capability

• Up to 15 mt on output @ 1080p

• Built-In EDID simulator

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

1

OVERVIEW
Thank you for buying this product. Carefully check the contents of the packaging.

It contains:

HDMIBOX/4 1x4 HDMI DISTRIBUTOR / EXTENDER

HDMIBOX/4 is a signal distributor/repeater suited for the standard HDMI digital
interface. The unit regenerates the incoming HDMI signal by decoding and re­encoding it to a new standard HDMI signal so it can extend the transmission range
without degradation. It extends 1080p/UXGA up to 15 meters transmission distance
(lower resolution signal can be transmitted longer). Besides, it is possible to use more
then one device, in order to obtain an overall distance even longer. It is possibile to
connect DVI sources and destinations through adapter.
A built-in EDID simulator and HDCP keyset allows each output to work independently
although the HDMI destination is connected or not. A Sync led detects the signal
presence on input. The unit is HDCP 1.1 compliant: so HDMIBOX/4 can be used in all
HD systems.

NOTE: Different HDMI/DVI cable quality may affect the maximum resolution and
transmission distance.

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

2

- The mains adapter code
ADM050

- This user manual and the

conformity certificate

- The HDMIBOX/4 unit

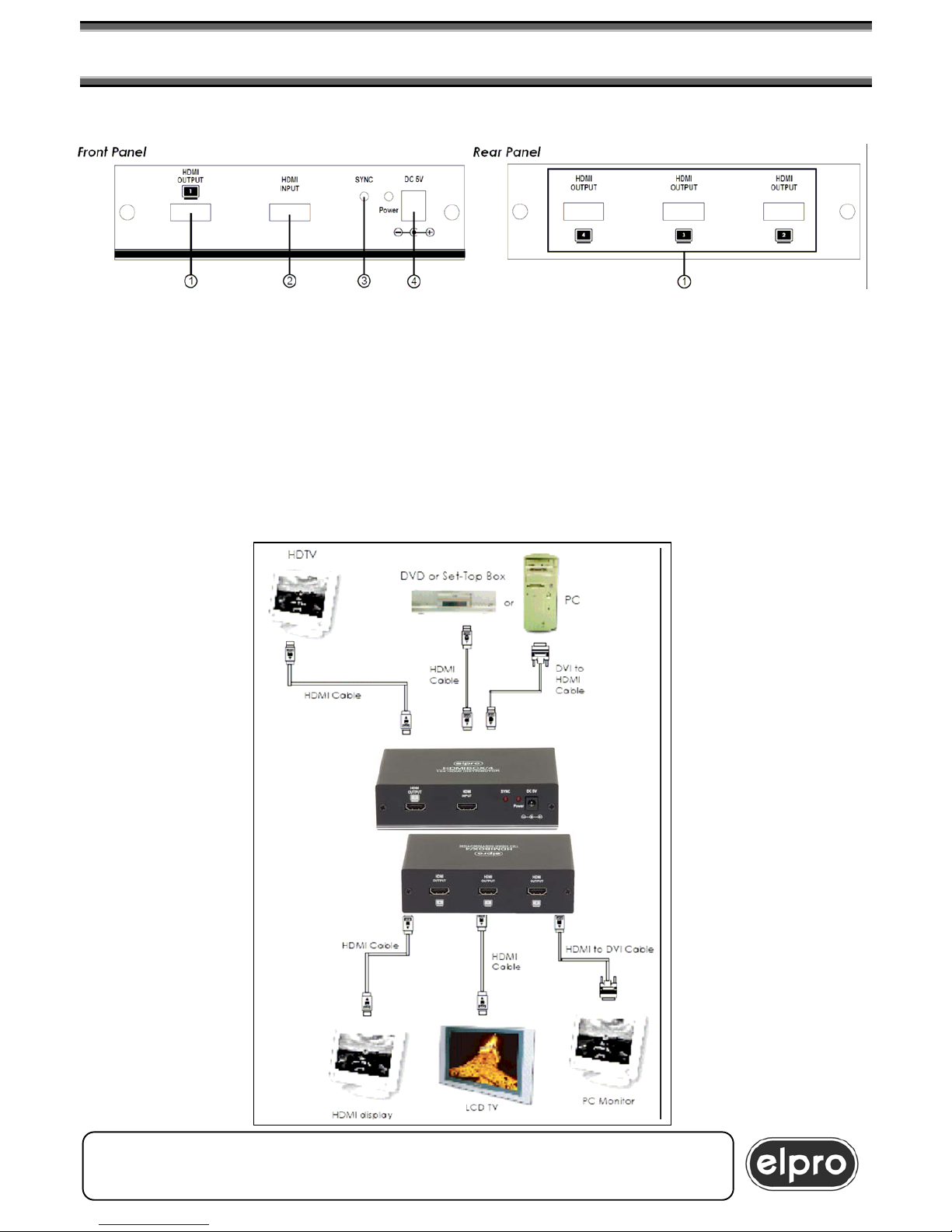

CONTROLS AND FUNCTIONS

1. HDMI Outputs: connect each of these output ports to the HDMI input of a HDMI
display such as plasma TV, projector o LCD monitor.

2. HDMI Input: connect to the HDMI or DVI output of your source equipment such as
DVD player or Set-Top-Box.

3. Sync Led: the LED will illuminate when the HDMI source signal is connected to the
input and is detected bu the unit.

4. Power Input: connect the ADM052 power supply. The LED will illuminate when
connected.

CONNECTING APPLICATION DIAGRAM

HDMIBOX/4 1x4 HDMI DISTRIBUTOR / EXTENDER

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

3

TECHNICAL DATA

Inputs :1 HDMI on HDMI connector
Ouputs :4 HDMI on HDMI connector

HDMI format: :compliant HDCP 1.1
Internal hardware :EDID simulator and HDCP Keyset
Operation frequency :up to 165MHz
Input/Output resolutions :PC: from VGA@60Hz to UXGA@60Hz
HD: from 480i@60Hz to 1080p@60Hz
Extend capability :up to 15mt in output @ 1080p
Cascade capability :more units
DVI compatibility :with adapter

Main input :5Vdc w i t h u n iversa l adapter 90÷240 Vac 50-60Hz (ADM052)
Power consumption :max 5VA
Size (WXDXH) :141 x 94 x 38mm
Weight :0.4Kg

Operating temp.range :0÷45°
Safety :according to EN60065
EMC :according to EN55103-1 and EN55103-2

Mark

NOTE

This product is guaranteed for 2 years from the date of purchase.

If the fault in the product is due to improper use or operations

carried out by third parties, the warranty is forfeited.

During the warranty period, Elpro will repair the faulty units free of charge.
The faulty units must be sent CARRIAGE FREE to the Elpro offices in Turin with a regular
accompanying note.
The units repaired will be returned CARRIAGE FORWARD to the addressee.
Outside the warranty period, Elpro will repair the faulty units EX its Turin offices, charging
the cost of the repair to the customer.

For any problems during installation of the HDMIBOX/4 or

for any other information, call the Elpro hot-line [phone]

or E-mail: [email protected]

HDMIBOX/4 1x4 HDMI DISTRIBUTOR / EXTENDER

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]
