ELPRO EL-EX-H02P, EL-EX-H02PT, EL-EX-H02PR User Manual

1

HDMI (HDBaseT) CAT5 Extender Series

Elpro Video Labs Ed. 1 April 2014

ITEM NO.:

EL-EX-H02P

HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH

The HDMI HDbaseT transceiver provides full 3D (all formats), resolutions up to 4Kx2K (4 times the
1080p) with multi-channel audio, IR and RS-232 extension over a single CAT5e/6 cable. It’s fully
compliant with HDCP, EDID and CEC controls. The EL-EX-H02P also extends Ethernet to permit the on
line access to TVs, DVD Players and other network devices such as 100Base-T routers, hubs and
computers. IR channel is bi-directional, therefore in the same time you can control the destination
device from the location of the source and A/V sources from the location of the destination. HDMI,
RS232, IR and Ethernet signal can be transmitted simultaneously without affecting each other. With the
support of PoH (Power over HDBaseT) feature, the receiver is powered through the CAT5E/6 cable
eliminating the need of the power supply.

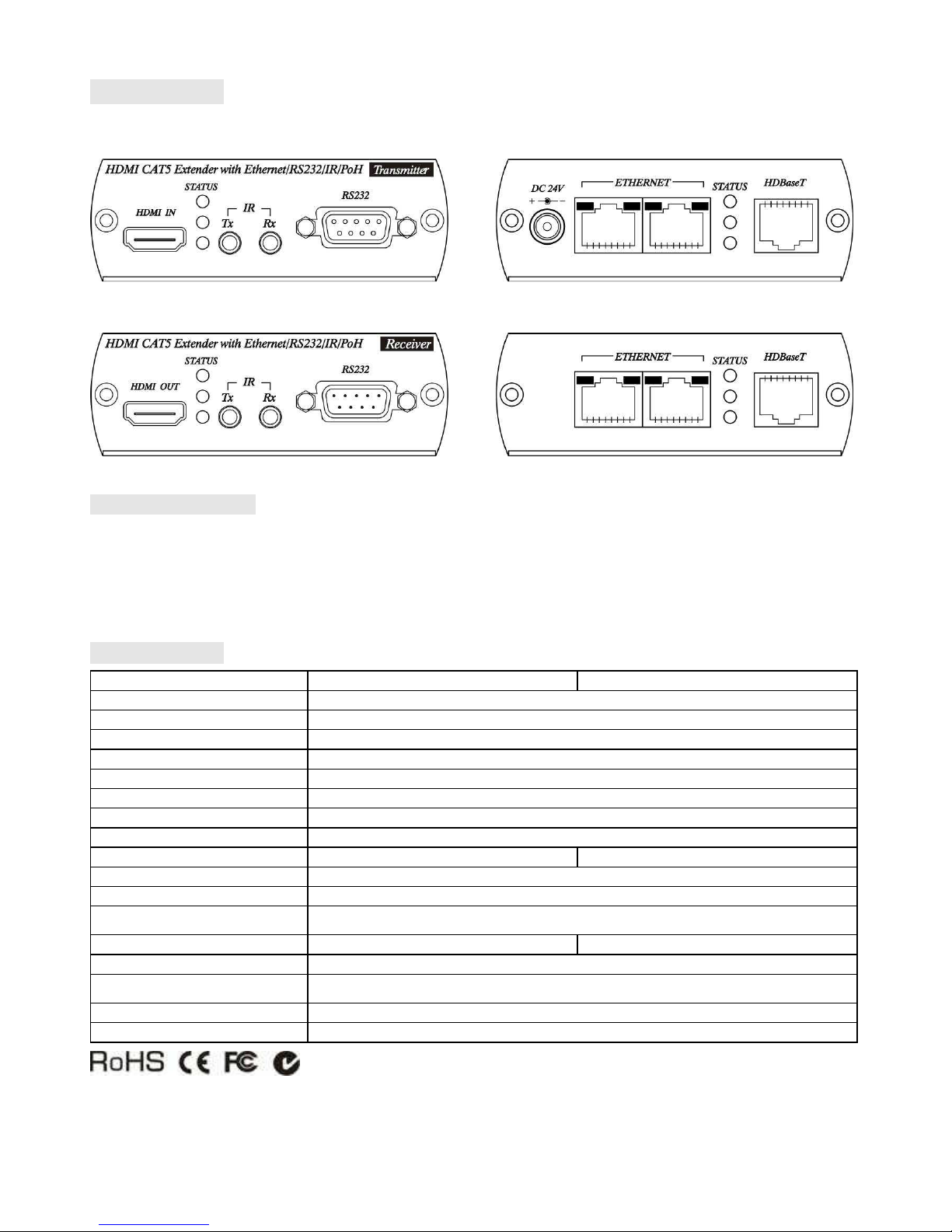

EL-EX-H02P

HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH

 Extends HDMI, RS232 and IR signals with Ethernet over one CAT5e/6 cable.
 Uncompressed high definition video up to 1080p 60Hz 16 bits.
 HDMI 1.4 with 3D, 4k x 2k support, HDCP and DVI Compliant.
 Max. Data Rate 10.2Gbps.
 Audio supports up to LPCM 7.1 192KHz, Dolby TrueHD, DTS-HD MA
 Transmission range up to 100 meters at 1080p resolution.
 Bi-directional IR, support 30÷60kHz.
 Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing

status requests and control of the destination unit.

 Support two port 10/100Mbps network, allowing to connect the network TV or internet devices.
 Support PoH (Power over HDBaseT), no external power required at receiver.
 External power supply included for the Transmitter only.

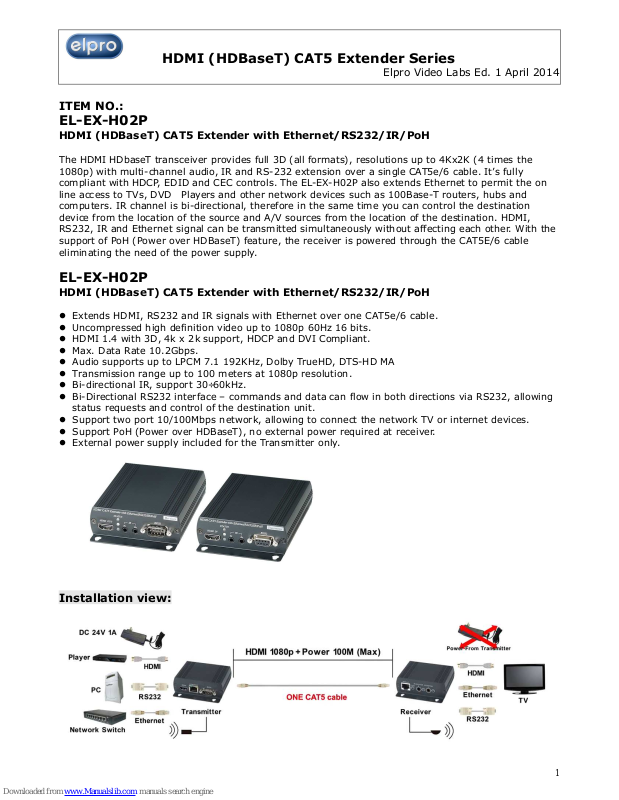

Installation view:

2

Connection Diagram:

PLAYER Transmitter Receiver TV / PROJECTOR
┌ ─ ─ ─ ─ ┐ HDMI CABLE ┌ ─ ─ ─ ─ ─ ─ ┐ ┌ ─ ─ ─ ─ ─ ─ ┐ HDMI CABLE ┌ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┐
│ HDMI │ ─ ─ ─ ─ ─ ─ ─ ─ ─ →│ HDMI │ │ HDMI│ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ →│ HDMI │
└ ─ ─ ─ ─ ┘ │ │ │ │ │ ETHERNET│
│ │ ├ ─ ─ MAX 100M ─ ─ ┤ │ │ └ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┘
│ │ Link Cable │ │ ↑
┌ ─ ─ ─ ─ ┐ │ HDBaseT│ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ │ HDBaseT │ │
│ ETHERNET│ ←─ ─ ─ ─ ─ ─ ─ ─ →│ ETHERNET │ Cat.5e / Cat.6 │ ETHERNET│ ←─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┘
└ ─ ─ ─ ─ ┘ │ │ │ │
┌ ─ ─ ─ ─ ┐ │ │ │ │ ┌ ─ ─ ─ ─ ┐
│ IR CABLE│ ←─ ─ ─ ─ ─ ─ ─ ─ →│ IR │ │ IR│ ←─ ─ ─ ─ ─ ─ ─ ─ ─ →│ IR CABLE│
└ ─ ─ ─ ─ ┘ │ │ │ │ └ ─ ─ ─ ─ ┘
┌ ─ ─ ─ ─ ┐ │ │ │ │ ┌ ─ ─ ─ ─ ┐
│ RS-232 │ ←─ ─ ─ ─ ─ ─ ─ ─ →│ RS-232 DC│ ←┐ │ RS-232│ ←─ ─ ─ ─ ─ ─ ─ ─ ─ →│ RS-232 │
└ ─ ─ ─ ─ ┘ RS-232 CABLE └ ─ ─ ─ ─ ─ ─ ┘ │ └ ─ ─ ─ ─ ─ ─ ┘ RS-232 CABLE └ ─ ─ ─ ─ ┘
┌ ─ ─ ─ ─ ─ ┐
│ DC 24V/1A│
└ ─ ─ ─ ─ ─ ┘

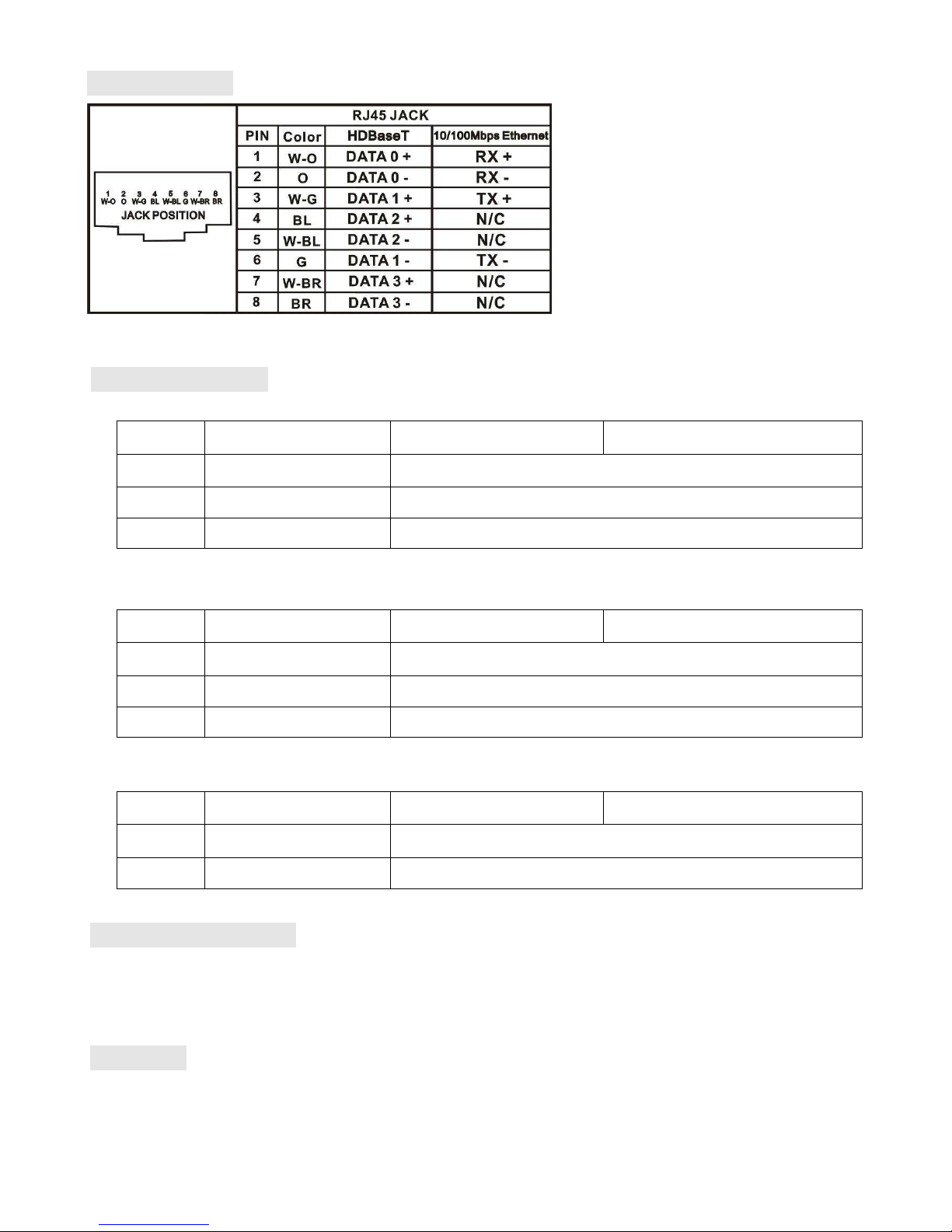

Cable:

Link cable recommend use high quality Cat.5e, Cat.6, Cat.6a, Cat.7 UTP / STP or FTP
cable. Poor quality cable or network connection or improper construction will cause
unstable connection, video or sound disruptions, picture noise appears.

Transmission Distance:

The maximum transmission distance is up to 100 meters at 1080p, lower resolution won’t
extend longer distance

HDBaseT Distance chart by different cable:

Cable Type Range Pixel Clock Rate Video Data Rate Supported Video

100m <=225Mhz

<=5.3Gbps
(HD Video)

Up to

1080p 60Hz 12 bpp

CAT5e / CAT6

70m

CAT6a / CAT7 100m

>225Mhz

>5.3Gbps

(Ultra HD Video)

1080p 60Hz 16 bpp,

1080p 60Hz 3D,

4K x 2K 30Hz

If connection through the wall socket, the cable length must less 5 meters between HDMI
extender and wall jack, as below drawing:

10/100Mbps network connection using general CAT5e cable and working distance up to 100M.

Transmitter

Wall Jack

Wall Jack

Receiver

MAX 100M

< 5M

< 5M
