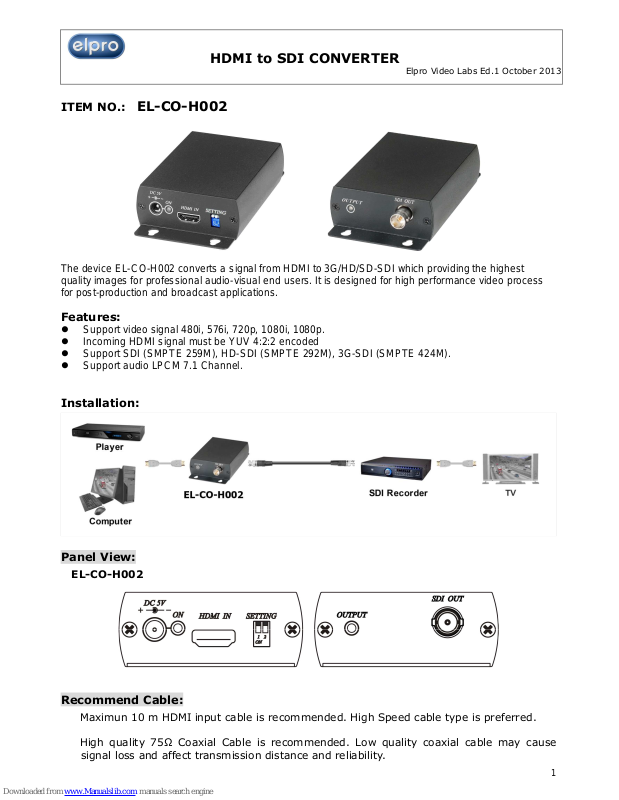

ELPRO EL-CO-H002 User Manual

1

HDMI to SDI CONVERTER

Elpro Video Labs Ed.1 October 2013

ITEM NO.:

EL-CO-H002

The device EL-CO-H002 converts a signal from HDMI to 3G/HD/SD-SDI which providing the highest
quality images for professional audio-visual end users. It is designed for high performance video process
for post-production and broadcast applications.

Features:

 Support video signal 480i, 576i, 720p, 1080i, 1080p.
 Incoming HDMI signal must be YUV 4:2:2 encoded
 Support SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M).
 Support audio LPCM 7.1 Channel.

Installation:

Panel View:

EL-CO-H002

Recommend Cable:

Maximun 10 m HDMI input cable is recommended. High Speed cable type is preferred.

High quality 75Ω Coaxial Cable is recommended. Low quality coaxial cable may cause

signal loss and affect transmission distance and reliability.

2

Working Distance output cable:

Note 1: The distances above mentioned depend on the quality of the input circuitry of the SDI destination.
Therefore, some devices could not permit these cable length despite of the use of 1694A Belden cable.

LED Indication:

GREEN Power & Signal

ON Power on

FLASH Not support HDMI input format

BLUE SDI signal

ON SDI signal output
OFF SDI signal output not present

Switch Instruction:

1 ↑ Video Support 480i, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz.
↓ Video Support 480i, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz,

1080p@23.98/24/29.97/30/50/59.94/60Hz.

2 ↑ Audio Support LPCM 2 Channels.
↓ Audio Support LPCM 8 Channels.

Trouble Shooting:

1. SDI signal not support HDMI 480p and 576p resolution.

2. SDI output resolution and frequency is same as HDMI input. If your SDI monitor not support HDMI
input resolution and frequency, then it won’t have picture at the monitor.

Specification:

ITEM NO. EL-CO-H002
SDI Standard / Protocol SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M)

Resolution

NTSC (480i), PAL (576i),

720p@50/59.94/60Hz,

1080i@50/59.94/60Hz,

1080p@23.98/24/29.97/30/50/59.94/60Hz
Audio LPCM 8 Channels, 48Khz, 16 / 20 / 24Bit
HDMI Output Connector HDMI Type A
SDI Output Connector BNC 75Ω
Power Consumption 850mA (Max)
Power Supply Switching DC5V 2AMP
Temperature

Operation: 0 to 55°, Storage: -20 to 85°, Humidity: up to 95%
Dimensions 67 x 110 x 27 (mm)
Weight 200 g

Max. distance via high quality 75Ω Coaxial Cable ( Belden 1694A Testing)

SD (480i, 576i) (270Mbps) 300 m (Note 1)

HD (720p, 1080i, 1080p 24/25/30Hz) (1.45Gbps) 200 m (Note 1)

Full HD (1080p 50/59.94 Hz) resolution (2.97Gbps) 100 m (Note 1)
