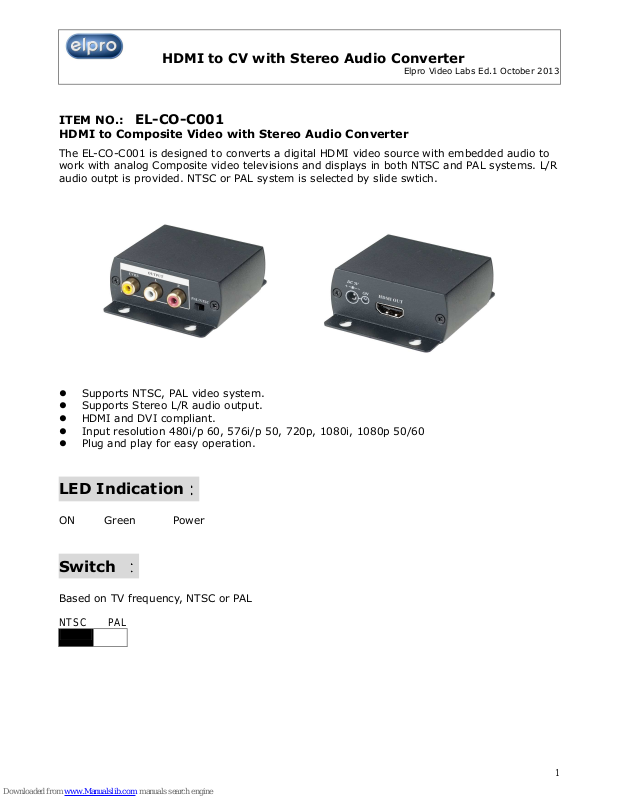

ELPRO EL-CO-C001 User Manual

1

HDMI to CV with Stereo Audio Converter

Elpro Video Labs Ed.1 October 2013

ITEM NO.:

EL-CO-C001

HDMI to Composite Video with Stereo Audio Converter

The EL-CO-C001 is designed to converts a digital HDMI video source with embedded audio to
work with analog Composite video televisions and displays in both NTSC and PAL systems. L/R
audio outpt is provided. NTSC or PAL system is selected by slide swtich.

 Supports NTSC, PAL video system.
 Supports Stereo L/R audio output.
 HDMI and DVI compliant.
 Input resolution 480i/p 60, 576i/p 50, 720p, 1080i, 1080p 50/60
 Plug and play for easy operation.

LED Indication：：：：

ON Green Power

Switch ：：：：

Based on TV frequency, NTSC or PAL

NTSC PAL

2

View of Connection and Installation:

Specification:

ITEM NO. EL-CO-C001

HDMI Input Max. Resolution

1920 x 1080p@60Hz
Composite Video Output NTSC, PAL
Video Input Interface HDMI x 1

Video Output Interface

RCA x 1 (1Vp-p．75Ω)

Stereo Audio Output
Interface

RCA x 2 (1Vp-p Max．10KΩ load)

Video Output Switch Slide Switch x 1
Power Consumption 1Amp
Power Supply DC 5V 2A
Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

Dimension mm 60 x 110 x 27
Weight g

140

Rev. A
