ELPRO CONVI103RR User Manual

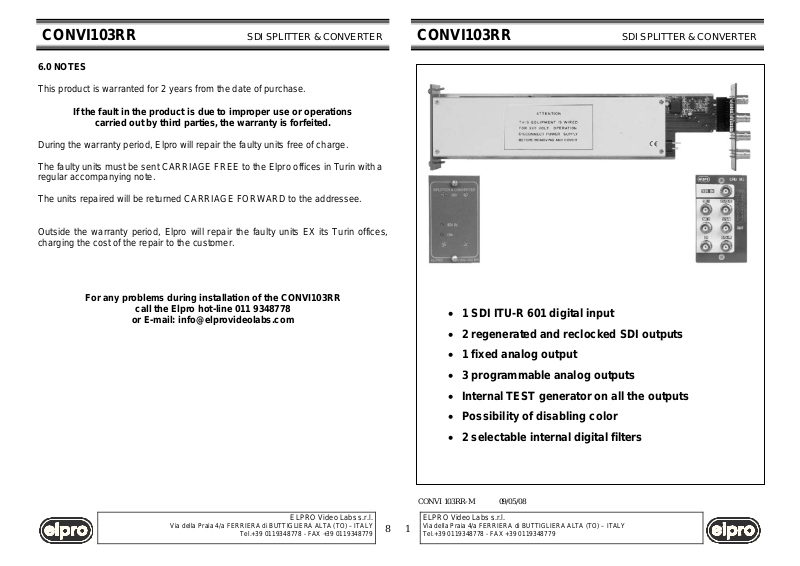

CONVI103RR SDI SPLITTER & CONVERTER CONVI103RR SDI SPLITTER & CONVERTER
• 1 SDI ITU-R 601 digital input
• 2 regenerated and reclocked SDI outputs
• 1 fixed analog output
• 3 programmable analog outputs
• Internal TEST generator on all the outputs
• Possibility of disabling color
• 2 selectable internal digital filters
CONVI 103RR-M 09/05/08
ELPRO Video Labs s.r.l.
Via della Praia 4/a FERRIERA di BUTTIGLIERA ALTA (TO) – ITALY
1
Tel.+39 0119348778 - FAX +39 0119348779
1.0 OVERVIEW
The CONVI103RR is a splitter and video signal converter from SDI to analog.
The incoming SDI format must comply with the ITU-R 601 standard at 270Mbit/sec.
There are 4 output analog signals, of which one fixed composite type and the other
3 programmable.
The analog outputs can be PAL or NTSC.
Together with the analog outputs, the converter also features 2 equalized,
reclocked digital outputs.
The CONVI103RR consists of a plug-in and of a separate rear part called CRB103
with the connectors for connections with the external world.
The plug-in and the rear part must be inserted in the ELPRO 19" 2RU standard
frame, code DVR-MV/RK.
Via della Praia 4/a FERRIERA di BUTTIGLIERA ALTA (TO) – ITALY
ELPRO Video Labs s.r.l.
Tel.+39 0119348778 - FAX +39 0119348779
CONVI103RR SDI SPLITTER & CONVERTER CONVI103RR SDI SPLITTER & CONVERTER
2.0 SETTINGS
An 8-position dip-switch permits a number of settings of the unit. To access the
dip-switch, remove the plug-in from the rack. Setting of the dip-switches according
to the user's requirements is guided by a key screen-printed on the circuit board.
Remember to cut off the power to the DVR-MV/RK rack
before extracting the plug-in from the rack
A list of settings is provided below:
2.1 Selection of the analog outputs. Dip-switches 1 and 2.
Four analog outputs are available. One of these, identified as CV, is always
characterized by a PAL or NTSC composite output according to the format
selected (dip-switch 8).
ELPRO Video Labs s.r.l.
Via della Praia 4/a FERRIERA di BUTTIGLIERA ALTA (TO) – ITALY
3
Tel.+39 0119348778 - FAX +39 0119348779
