ELPRO CONVI 1001 User Manual

CONVI1001 M 12/02/2007

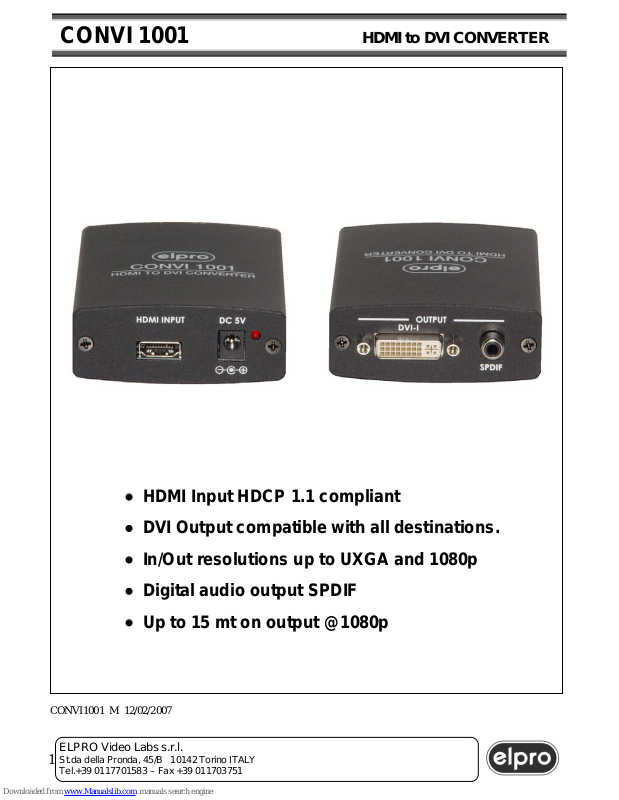

CONVI 1001 HDMI to DVI CONVERTER

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

1

• HDMI Input HDCP 1.1 compliant

• DVI Output compatible with all destinations.

• In/Out resolutions up to UXGA and 1080p

• Digital audio output SPDIF

• Up to 15 mt on output @1080p

OVERVIEW
Thank you for buying this product. Carefully check the contents of the packaging.

It contains:

CONVI 1001 HDMI to DVI CONVERTER

The CONVI1001 is a converter that accepts in input a digital signal HDMI, HDCP
compliant, and converts this in DVI digital video signal and SPDIF digital audio signal.
The unit runs input and output resolutions up to UXGA and 1080p. The unit
regenerates the incoming HDMI signal by decoding and re-encoding it to a new
standard DVI signal so it can extend the transmission range without degradation.
The conversion properties let to watch HDMI source signal on DVI digital display and
enjoy high quality digital audio at the same time on SPDIF receiver.
The HDMI input is HDCP 1.1 compliant so CONVI1001 can be used in all HD
systems.

NOTE: Different HDMI/DVI cable quality may affect the maximum resolution and
transmission distance.

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

2

- The mains adapter
code ADM050

- This user manual and the
conformity certificate

- The CONVI1001 unit

CONTROLS AND FUNCTIONS

1. Power Input: power socket for ADM050 power supply. Plug the supplied 5VDC
power supply into the unit and the LED will illuminate when the power is connected.

2. HDMI Input: connects to HDMI output connector of your source equipment.

3. Digital Audio (SPDIF) Output: connects to the audio input of your digital receiver.

4. DVI Output: connects to the DVI input connector of your DVI display such us
monitor or projector. It outputs only DVI-D signal via a DVI-I connector.

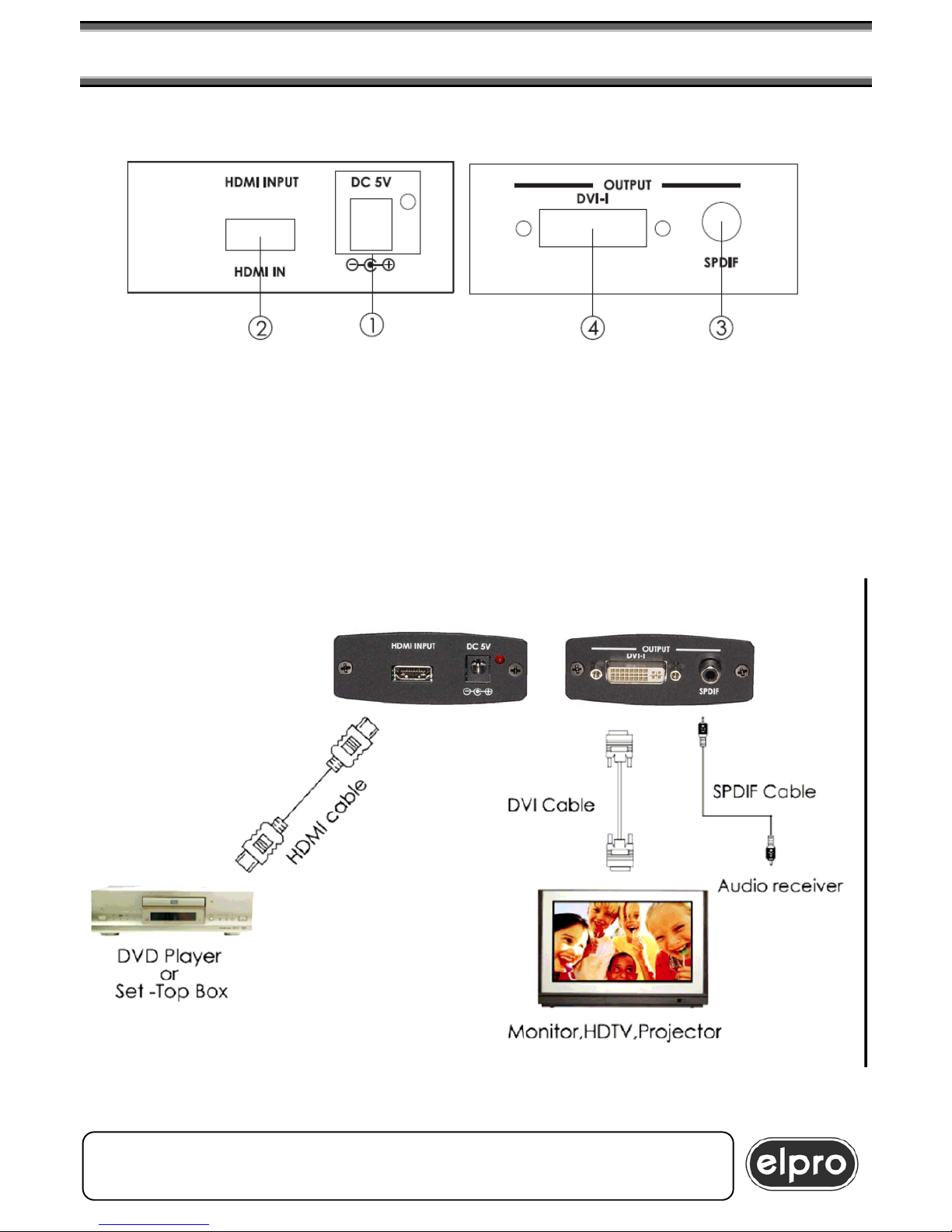

CONNECTING APPLICATION DIAGRAM

CONVI 1001 HDMI to DVI CONVERTER

ELPRO Video Labs s.r.l.

St.da della Pronda, 45/B 10142 Torino ITALY
Tel.[phone] – Fax [phone]

3

TECHNICAL DATA

Inputs :1 HDMI on HDMI connector
Ouputs Video :1 DVI-D on DVI-I 29p.f connector
Output Audio :1 digital SPDIF on RCA connector

HDMI format :compliant HDCP 1.1
Operation frequency :up to 165MHz
Input/Output resolutions :PC: from VGA@60Hz to UXGA@60Hz
HD: from 480i@60Hz to 1080p@60Hz
Extend capability :up to 15mt with DVI cable @1080p

Main input :5Vdc w i t h u n iversal adapter 90÷240 Vac 50-60Hz (ADM050)
Power consumption :max 5VA
Size (WXDXH) :76 x 96 x 30mm
Weight :0.25Kg

Operating temp.range :0÷45°
Safety :according to EN60065
EMC :according to EN55103-1 and EN55103-2

Mark

NOTE

This product is guaranteed for 2 years from the date of purchase.

If the fault in the product is due to improper use or operations

carried out by third parties, the warranty is forfeited.

During the warranty period, Elpro will repair the faulty units free of charge.
The faulty units must be sent CARRIAGE FREE to the Elpro offices in Turin with a regular
accompanying note.
The units repaired will be returned CARRIAGE FORWARD to the addressee.
Outside the warranty period, Elpro will repair the faulty units EX its Turin offices, charging
the cost of the repair to the customer.

For any problems during installation of the CONVI1001 or

for any other information, call the Elpro hot-line [phone]

or E-mail: [email protected]
