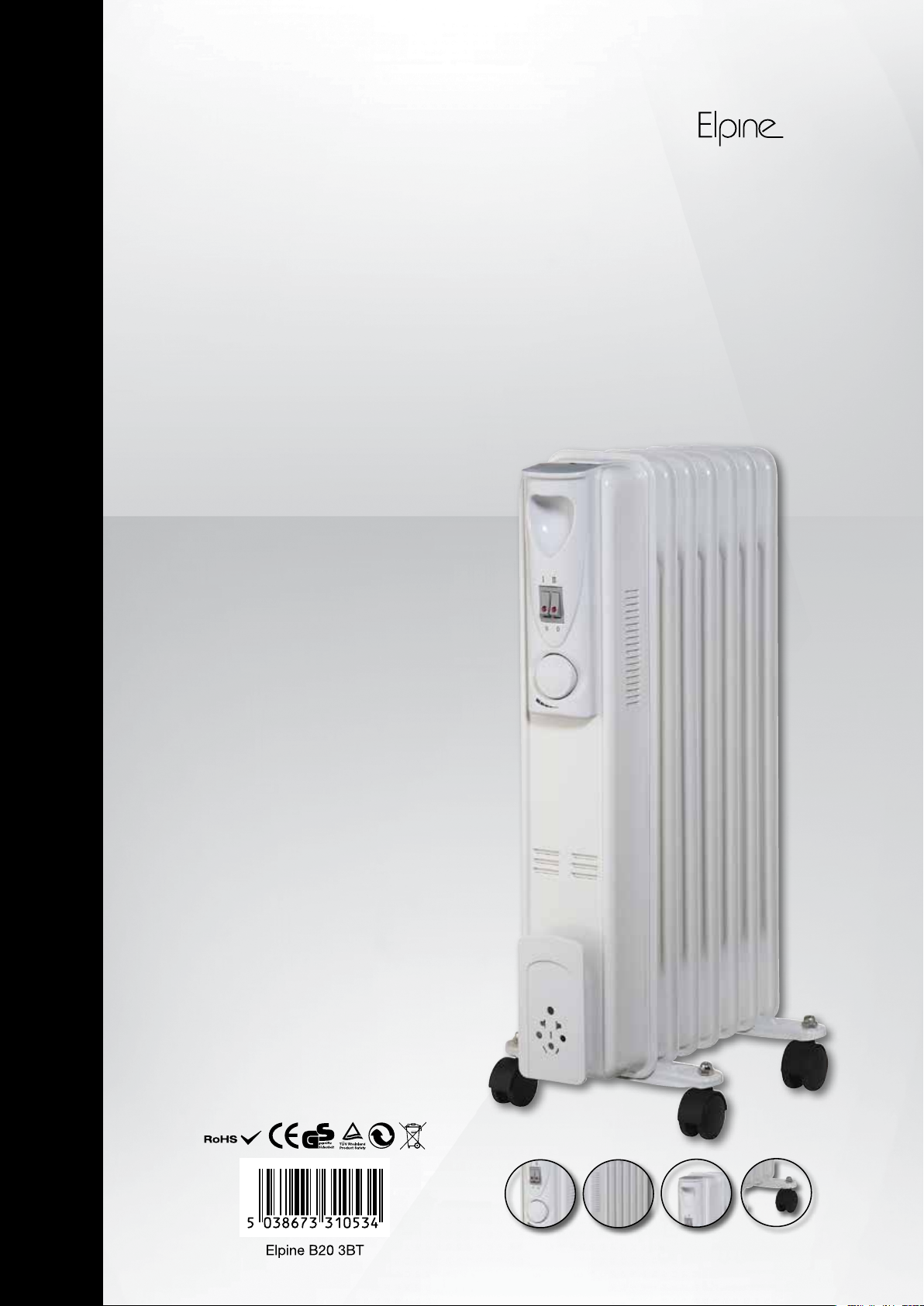

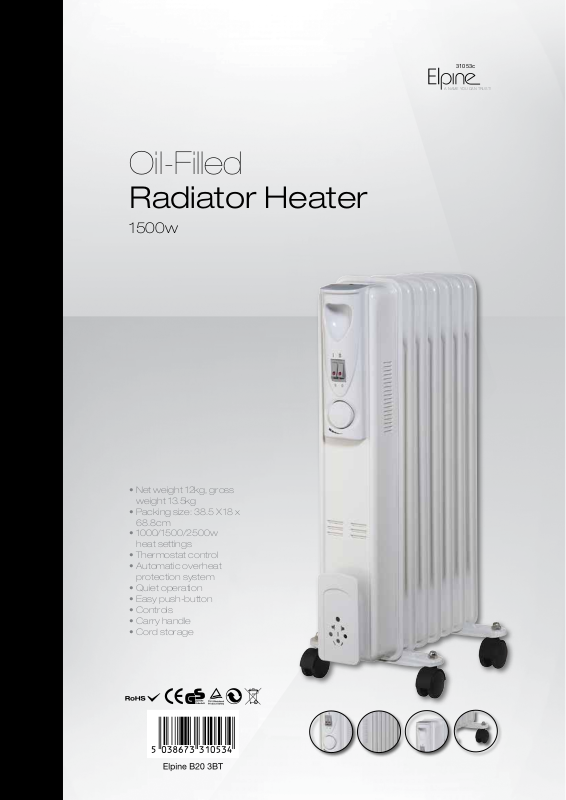

Page 1
Oil-Filled
Radiator Heater
1500w
31053c
a name you can trust!
• Net weight 12kg, gross
weight 13.5kg
• Packing size: 38.5 X 18 x
68.8cm
• 1000/1500/2500w
heat settings
• Thermostat control
• Automatic overheat
protection system
• Quiet operation
• Easy push-button
• Controls
• Carry handle
• Cord storage
Page 2
PRODUCT USE, CARE AND SERVICE
WARRANTY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
DO NOT TURN RADIATORS UPSIDE-DOWN DURING
OPERATION
INTRODUCTION
Thank you for purchasing our Oil-filled Heater. Each unit has been manufactured to
ensure safety and reliability. Before first use. Please read the instructions carefully and
keep them for further reference.
Assembly
1. Turn the heater upside down.
2. Position the wheel base assembles between the end fins.
3. Attach them to the heater using the U-bolls and wing nuts supplied.
4. Tighten the wing nuts.
5. Turn the heater the right way up.
PARTS DESCRLPTION
1. Power setting switch
2. Thermostat control
3. Handle
4. Oil filled fins
5. Castors
6. Cord storage
OPERATING YOUR OIL-FILLED HEATER
Place the heater on the floor at least 90cm away from the wall and any other objects such
as furniture, Curtains or plants.
(Make sure the power supply used corresponds to the one on the rating label)
With the thermostat control switch in the“O” position and the power setting switches in
the “OFF” Position; plug the heater into the main power supply.
Page 3
OPERATION
1. Room temperature can be adjusted using the thermostat. Simply turn the thermostat
knob clockwise, to increase the heat, and anti-clockwise to decrease the temperature,
until you reach the desired temperature.
2. Switch the heater to one of the following power settings.
07fins: Push switch one (I) for 600W
Push switch two (II) for 900W
Push switch one & two (I&II) for 1500W.
3. The power switch lights up when activated.
4. Turning the thermostat control clockwise will increase the “set” temperature.
5. Turning the thermostat anti-clockwise will decrease the “set” temperature.
6. Do not cover the heater at any time during operation. There is a risk of fire if the heater
is covered.
7. Once you have finished using your heater.,turn the power switches off, and the
thermostat control switch to the “0”positions.,and unplug from the mains supply.
CLEANING YOUR OIL-FILLED HEATER
1. Always disconnect the heater from the mains supply before cleaning.
2. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
3. DO NOT use waxes or polishes as these may react with the heater and cause
discoloration.
STORING YOUR OIL-FILLED HEATER
1. Save the box for off season storage.
2. Clean the heater following the cleaning instructions above.
3. Remove the wheel base assemblies.
4. Place the heater, and wheel assemblies in the original box, and store in a cool and dry
place.
5. If you choose to store your heater fully assembled be sure to cover it to protect it from
dust.
IMPORTANT SAFEGUARDS
1. Read the instructions carefully before use and save them for future reference.
2. Always disconnect the heater from the main supply when not in use and when
cleaning.
3. Do not leave the heater“ON”unattended.
Page 4
4. Never cover the heater as this may lead to risk of fire.
5. Keep the heater a distance of at least 90cm from any combustible material, such as
furniture, curtains, bedding clothes or papers.
6. Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause
electric shock, fire or damage the heater.
7. Close supervision is required when any appliance is used near children.
8. Never allow the cord to touch wet or hot surfaces, become twisted or be within the
reach of children.
9. Do not use outdoors.
10. Do not place on or near a hot gas or electric burner.
11. Never use the appliance with a damaged cord or plug or after the appliance has
malfunctioned or been damaged in any way.
12. Never attempt to open any part or dismantle the controls. Responsibility for failure
cannot be accepted if these instructions have been ignored.
13. Do not use the appliance for anything other than its intended use.
14. This appliance is intended for household use only.
15. Regulations concerning the disposal of the oil when scraping the appliance have to be
followed.
16. Any repairs that need to be done to the heater must be referred to an authorized
service agent only.
17. The appliance is not intended for use by young children or infirm persons without
supervision.
19. If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. The heater must not be located immediately below a socket-outlet.
21. Not suitable for use in bathrooms.
22. This heater is filled with a precise quantity of special oil. Repairs requiring opening of
the oil container are only to be made by the manufacturer or his service agent who
should be contacted if there is an oil leakage. Regulations concerning the disposal of
the oil when scrapping the appliance has to be followed.
31053c
a name you can trust!
1500w Oil-Filled Radiator Heater
