ELPIDA EBE10RD4AEFA DATA SHEET

查询EBE10RD4AEFA供应商查询EBE10RD4AEFA供应商

1GB Registered DDR2 SDRAM DIMM

EBE10RD4AEFA (128M words × 72 bits, 1 Rank)

DATA SHEET

Description

The EBE10RD4AEFA is a 128M words × 72 bits, 1
rank DDR2 SDRAM Module, mounting 18 pieces of
DDR2 SDRAM sealed in FBGA (µBGA
Read and write operations are performed at the cross
points of the CK and the /CK. This high-speed data
transfer is realized by the 4bits prefetch-pipelined
architecture. Data strobe (DQS and /DQS) both for
read and write are available for high spe ed and rel iable
data bus design. By setting extended mode register,
the on-chip Delay Locked Loop (DLL) can be set
enable or disable. This module prov ides high density
mounting without utilizing surface mount technology.
Decoupling capacitors are mounted beside each FBGA
(µBGA) on the module board.

Note: Do not push the components or drop the

modules in order to avoid mechanical defects,
which may result in electrical defects.



) package.

Features

• 240-pin socket type dual in line memory module
(DIMM)

 PCB height: 30.0mm
 Lead pitch: 1.0mm
 Lead-free

• Power supply: VDD, VDDQ = 1.8V ± 0.1V

• Data rate: 533Mbps/400Mbps (max.)

• SSTL_18 compatible I/O

• Double-data-rate architecture: two data transfers per

clock cycle

• Bi-directional, data strobe (DQS and /DQS) is
transmitted /received with data, to be used in
capturing data at the receiver

• DQS is edge aligned with data for READs; center
aligned with data for WRITEs

• Differential clock inputs (CK and /CK)

• DLL aligns DQ and DQS transitions with CK

transitions

• Commands entered on each positive CK edge; data
referenced to both edges of DQS

• Four internal banks for concurrent operation
(components)

• Burst length: 4, 8

• /CAS latency (CL): 3, 4, 5

• Auto precharge option for each burst access

• Auto refresh and self refresh modes

• Average refresh period

 7.8µs at 0°C ≤ TC ≤ +85°C
 3.9µs at +85°C < TC ≤ +95°C

• Posted CAS by programmable additive latency for

better command and data bus efficiency

• Off-Chip-Driver Impedance Adjustment and On-Die­Termination for better signal quality

• /DQS can be disabled for single-ended Data Strobe
operation

• 1 piece of PLL clock driver, 2 pieces of register driver
and 1 piece of serial EEPROM (2k bits EEPROM) for
Presence Detect (PD)

Document No. E0644E30 (Ver. 3.0)
Date Published April 2005 (K) Japan
Printed in Japan
URL: http://www.elpida.com

Elpida Memory, Inc. 2005

EBE10RD4AEFA

Ordering Information

Component

Part number
EBE10RD4AEFA-5C-E 533 DDR2-533 (4-4-4) EDE5104AESK-5C-E

EBE10RD4AEFA-4A-E 400 DDR2-400 (3-3-3)

Data rate
Mbps (max.)

JEDEC speed bin*
(CL-tRCD-tRP)

Note: 1. Module /CAS latency = component CL + 1

Pin Configurations

Front side

1 pin

121 pin 184 pin 185 pin 240 pin

Back side

Pin No. Pin name Pin No. Pin name Pin No. Pin name Pin No. Pin name
1 VREF 61 A4 121 VSS 181 VDD
2 VSS 62 VDD 122 DQ4 182 A3
3 DQ0 63 A2 123 DQ5 183 A1
4 DQ1 64 VDD 124 VSS 184 VDD
5 VSS 65 VSS 125 DQS9 185 CK0
6 /DQS0 66 VSS 126 /DQS9 186 /CK0
7 DQS0 67 VDD 127 VSS 187 VDD
8 VSS 68 NC 128 DQ6 188 A0
9 DQ2 69 VDD 129 DQ7 189 VDD
10 DQ3 70 A10 130 VSS 190 BA1
11 VSS 71 BA0 131 DQ12 191 VDD
12 DQ8 72 VDD 132 DQ13 192 /RAS
13 DQ9 73 /WE 133 VSS 193 /CS0
14 VSS 74 /CAS 134 DQS10 194 VDD
15 /DQS1 75 VDD 135 /DQS10 195 ODT0
16 DQS1 76 NC 136 VSS 196 A13
17 VSS 77 NC 137 NC 197 VDD
18 /RESET 78 VDD 138 NC 198 VSS
19 NC 79 VSS 139 VSS 199 DQ36
20 VSS 80 DQ32 140 DQ14 200 DQ37
21 DQ10 81 DQ33 141 DQ15 201 VSS
22 DQ11 82 VSS 142 VSS 202 DQS13
23 VSS 83 /DQS4 143 DQ20 203 /DQS13
24 DQ16 84 DQS4 144 DQ21 204 VSS
25 DQ17 85 VSS 145 VSS 205 DQ38
26 VSS 86 DQ34 146 DQS11 206 DQ39
27 /DQS2 87 DQ35 147 /DQS11 207 VSS
28 DQS2 88 VSS 148 VSS 208 DQ44

1

Package
240-pin DIMM

(lead-free)

64 pin65 pin 120 pin

Contact
pad

Gold

Mounted devices

EDE5104AESK-5C-E
EDE5104AESK-4A-E

Data Sheet E0644E30 (Ver. 3.0)

2

EBE10RD4AEFA

Pin No. Pin name Pin No. Pin name Pin No. Pin name Pin No. Pin name
29 VSS 89 DQ40 149 DQ22 209 DQ45
30 DQ18 90 DQ41 150 DQ23 210 VSS
31 DQ19 91 VSS 151 VSS 211 DQS14
32 VSS 92 /DQS5 152 DQ28 212 /DQS14
33 DQ24 93 DQS5 153 DQ29 213 VSS
34 DQ25 94 VSS 154 VSS 214 DQ46
35 VSS 95 DQ42 155 DQS12 215 DQ47
36 /DQS3 96 DQ43 156 /DQS12 216 VSS
37 DQS3 97 VSS 157 VSS 217 DQ52
38 VSS 98 DQ48 158 DQ30 218 DQ53
39 DQ26 99 DQ49 159 DQ31 219 VSS
40 DQ27 100 VSS 160 VSS 220 NC
41 VSS 101 SA2 161 CB4 221 NC
42 CB0 102 NC 162 CB5 222 VSS
43 CB1 103 VSS 163 VSS 223 DQS15
44 VSS 104 /DQS6 164 DQS17 224 /DQS15
45 /DQS8 105 DQS6 165 /DQS17 225 VSS
46 DQS8 106 VSS 166 VSS 226 DQ54
47 VSS 107 DQ50 167 CB6 227 DQ55
48 CB2 108 DQ51 168 CB7 228 VSS
49 CB3 109 VSS 169 VSS 229 DQ60
50 VSS 110 DQ56 170 VDD 230 DQ61
51 VDD 111 DQ57 171 NC 231 VSS
52 CKE0 112 VSS 172 VDD 232 DQS16
53 VDD 113 /DQS7 173 NC 233 /DQS16
54 NC 114 DQS7 174 NC 234 VSS
55 NC 115 VSS 175 VDD 235 DQ62
56 VDD 116 DQ58 176 A12 236 DQ63
57 A11 117 DQ59 177 A9 237 VSS
58 A7 118 VSS 178 VDD 238 VDDSPD
59 VDD 119 SDA 179 A8 239 SA0
60 A5 120 SCL 180 A6 240 SA1

Data Sheet E0644E30 (Ver. 3.0)

3

EBE10RD4AEFA

Pin Description

Pin name Function

Address input

A0 to A13

A10 (AP) Auto precharge
BA0, BA1 Bank select address
DQ0 to DQ63 Data input/output
CB0 to CB7 Check bit (Data input/output)
/RAS Row address strobe command
/CAS Column address strobe command
/WE Write enable
/CS0 Chip select
CKE0 Clock enable
CK0 Clock input
/CK0 Differential clock input
DQS0 to DQS17, /DQS0 to /DQS17 Input and output data strobe
SCL Clock input for serial PD
SDA Data input/output for serial PD
SA0 to SA2 Serial address input
VDD Power for internal circuit
VDDSPD Power for serial EEPROM
VREF Input reference voltage
VSS Ground
ODT0 ODT control
/RESET Reset pin (forces register and PLL inputs low) *1
NC No connection

Note: 1. Reset pin is connected to both OE of PLL and reset to reg ister.

Row address A0 to A13
Column address A0 to A9, A11

Data Sheet E0644E30 (Ver. 3.0)

4

EBE10RD4AEFA

Serial PD Matrix*

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments
0

1
2 Memory type 0 0 0 0 1 0 0 0 08H DDR2 SDRAM

3 Number of row address 0 0 0 0 1 1 1 0 0EH 14
4 Number of column address 0 0 0 0 1 0 1 1 0BH 11
5 Number of DIMM ranks 0 1 1 0 0 0 0 0 60H 1
6 Module data width 0 1 0 0 1 0 0 0 48H 72
7 Module data width continuation 0 0 0 0 0 0 0 0 00H 0
8 Voltage interface level of this assembly 0 0 0 0 0 1 0 1 05H SSTL 1.8V

9

-4A 0 1 0 1 0 0 0 0 50H 5.0ns*1
10

-4A 0 1 1 0 0 0 0 0 60H 0.6ns*1
11 DIMM configuration type 0 0 0 0 0 0 1 0 02H ECC
12 Refresh rate/type 1 0 0 0 0 0 1 0 82H 7.8µs
13 Primary SDRAM width 0 0 0 0 0 1 0 0 04H × 4
14 Error checking SDRAM width 0 0 0 0 0 1 0 0 04H × 4
15 Reserved 0 0 0 0 0 0 0 0 00H 0

16

17

18
19 Reserved 0 0 0 0 0 0 0 0 00H 0

20 DIMM type information 0 0 0 0 0 0 0 1 01H Registered
21 SDRAM module attributes 0 0 0 0 0 0 0 0 00H Normal
22 SDRAM device attributes: General 0 0 0 0 0 0 0 1 01H Weak Driver

23

-4A 0 1 0 1 0 0 0 0 50H 5.0ns*1

24

-4A 0 1 1 0 0 0 0 0 60H 0.6ns*1
25

26

Number of bytes utilized by module
manufacturer

Total number of bytes in serial PD
device

DDR SDRAM cycle time, CL = 5

-5C

SDRAM access from clock (tAC)

-5C

SDRAM device attributes:
Burst length supported

SDRAM device attributes: Number of
banks on SDRAM device

SDRAM device attributes:
/CAS latency

Minimum clock cycle time at CL = 4

-5C

Maximum data access time (tAC) from
clock at CL = 4

-5C

Minimum clock cycle time at CL = 3

-5C, -4A
Maximum data access time (tAC) from

clock at CL = 3

-5C, -4A

1

1 0 0 0 0 0 0 0 80H 128 bytes

0 0 0 0 1 0 0 0 08H 256 bytes

0 0 1 1 1 1 0 1 3DH 3.75ns*1

0 1 0 1 0 0 0 0 50H 0.5ns*

0 0 0 0 1 1 0 0 0CH 4,8

0 0 0 0 0 1 0 0 04H 4

0 0 1 1 1 0 0 0 38H 3, 4, 5

0 0 1 1 1 1 0 1 3DH 3.75ns*1

0 1 0 1 0 0 0 0 50H 0.5ns*1

0 1 0 1 0 0 0 0 50H 5.0ns*

0 1 1 0 0 0 0 0 60H 0.6ns*1

1

1

Data Sheet E0644E30 (Ver. 3.0)

5

EBE10RD4AEFA

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments
27

28

29

30

-4A 0 0 1 0 1 0 0 0 28H 40ns
31 Module rank density 0 0 0 0 0 0 0 1 01H 1GB

32

-4A 0 0 1 1 0 1 0 1 35H 0.35ns*1

33

-4A 0 1 0 0 1 0 0 0 48H 0.48ns*1

34

-4A 0 0 0 1 0 1 0 1 15H 0.15ns*1
35

-4A 0 0 1 0 1 0 0 0 28H 0.28ns*1
36 Write recovery time (tWR) 0 0 1 1 1 1 0 0 3CH 15ns*1

37

-4A 0 0 1 0 1 0 0 0 28H 10ns*1
38
39 Memory analysis probe characteristics 0 0 0 0 0 0 0 0 00H TBD

40 Extension of Byte 41 and 42 0 0 0 0 0 0 0 0 00H Undefined
41

-4A 0 0 1 1 0 1 1 1 37H 55ns*1
42
43 SDRAM tCK cycle max. (tCK max.) 1 0 0 0 0 0 0 0 80H 8ns*1
44

-4A 0 0 1 0 0 0 1 1 23H 0.35ns*1
45

-4A 0 0 1 0 1 1 0 1 2DH 0.45ns*1
46 PLL relock time 0 0 0 0 1 1 1 1 0FH 15µs
47 to 61 0 0 0 0 0 0 0 0 00H

Minimum row precharge time (tRP)

-5C, -4A
Minimum row active to row active delay

(tRRD)
Minimum /RAS to /CAS delay (tRCD)

-5C, -4A
Minimum active to precharge time

(tRAS)

-5C

Address and command setup time
before clock (tIS)

-5C

Address and command hold time after
clock (tIH)

-5C

Data input setup time before clock
(tDS)

-5C

Data input hold time after clock (tDH)

-5C

Internal write to read command delay
(tWTR)

-5C

Internal read to precharge command
delay (tRTP)

Active command period (tRC)

-5C

Auto refresh to active/
Auto refresh command cycle (tRFC)

Dout to DQS skew

-5C

Data hold skew (tQHS)

-5C

0 0 1 1 1 1 0 0 3CH 15ns

0 0 0 1 1 1 1 0 1EH 7.5ns

0 0 1 1 1 1 0 0 3CH 15ns

0 0 1 0 1 1 0 1 2DH 45ns

0 0 1 0 0 1 0 1 25H 0.25ns*1

0 0 1 1 1 0 0 0 38H 0.38ns*

1

0 0 0 1 0 0 0 0 10H 0.10ns*1

0 0 1 0 0 0 1 1 23H 0.23ns*1

0 0 0 1 1 1 1 0 1EH 7.5ns*1

0 0 0 1 1 1 1 0 1EH 7.5ns*

1

0 0 1 1 1 1 0 0 3CH 60ns*1

0 1 1 0 1 0 0 1 69H 105ns*

1

0 0 0 1 1 1 1 0 1EH 0.30ns*1

0 0 1 0 1 0 0 0 28H 0.40ns*1

Data Sheet E0644E30 (Ver. 3.0)

6

EBE10RD4AEFA

Byte No. Function described Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Hex value Comments
62 SPD Revision 0 0 0 1 0 0 0 0 10H Rev. 1.0

63

-4A 1 1 0 0 0 1 1 0 C6H
64 to 65 Manufacturer’s JEDEC ID code 0 1 1 1 1 1 1 1 7FH
66 Manufacturer’s JEDEC ID code 1 1 1 1 1 1 1 0 FEH Elpida Memory

67 to 71 Manufacturer’s JEDEC ID code 0 0 0 0 0 0 0 0 00H
72 Manufacturing location × × × × × × × × ××
73 Module part number 0 1 0 0 0 1 0 1 45H E

74 Module part number 0 1 0 0 0 0 1 0 42H B
75 Module part number 0 1 0 0 0 1 0 1 45H E
76 Module part number 0 0 1 1 0 0 0 1 31H 1
77 Module part number 0 0 1 1 0 0 0 0 30H 0
78 Module part number 0 1 0 1 0 0 1 0 52H R
79 Module part number 0 1 0 0 0 1 0 0 44H D
80 Module part number 0 0 1 1 0 1 0 0 34H 4
81 Module part number 0 1 0 0 0 0 0 1 41H A
82 Module part number 0 1 0 0 0 1 0 1 45H E
83 Module part number 0 1 0 0 0 1 1 0 46H F
84 Module part number 0 1 0 0 0 0 0 1 41H A
85 Module part number 0 0 1 0 1 1 0 1 2DH —

86

-4A 0 0 1 1 0 1 0 0 34H 4
87

-5C 0 1 0 0 0 0 1 1 43H C
88 Module part number 0 0 1 0 1 1 0 1 2DH —
89 Module part number 0 1 0 0 0 1 0 1 45H E
90 Module part number 0 0 1 0 0 0 0 0 20H (Space)
91 Revision code 0 0 1 1 0 0 0 0 30H Initial
92 Revision code 0 0 1 0 0 0 0 0 20H (Space)

93 Manufacturing date × × × × × × × × ××

94 Manufacturing date × × × × × × × × ××
95 to 98 Module serial number

99 to 127 Manufacture specific data

Checksum for bytes 0 to 62

-5C

Module part number

-5C

Module part number

-4A

Note: 1. These specifications are defined based on component specification, not module.

0 1 0 0 1 1 0 0 4CH

Continuation
code

(ASCII-8bit
code)

0 0 1 1 0 1 0 1 35H 5

0 1 0 0 0 0 0 1 41H A

Year code
(BCD)

Week code
(BCD)

Data Sheet E0644E30 (Ver. 3.0)

7

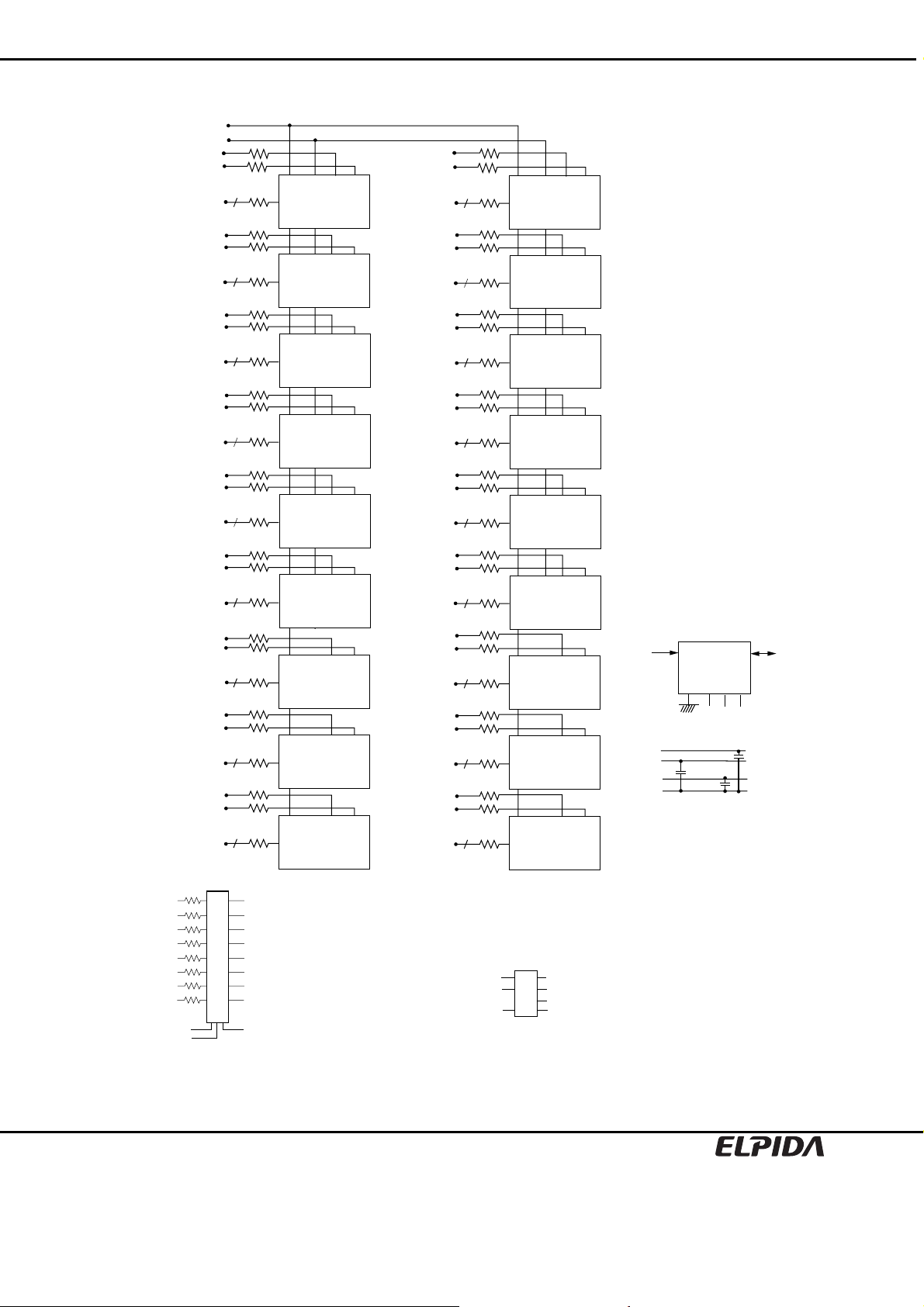

Block Diagram

/RCS0

DQS0

/DQS0

DQ0 to DQ3

DQS1

/DQS1

DQ8 to DQ11

DQS2

/DQS2

DQ16 to DQ19

DQS3

/DQS3

DQ24 to DQ27

DQS4

/DQS4

DQ32 to DQ35

DQS5

/DQS5

DQ40 to DQ43

DQS6

/DQS6

DQ48 to DQ51

DQS7

/DQS7

DQ56 to DQ59

DQS8

/DQS8

CB0 to CB3

VSS

EBE10RD4AEFA

R

S

R

S

/CS

DQSDM

/CS

/CS

/CS

/CS

/CS

/CS

/CS

/CS

D0

D1

D2

D3

D4

D5

D6

D7

D8

DQSDM

DQSDM

DQS

DQSDM

DQSDM

DQS

DQSDM

DQSDM

/DQS

DQ4 to /DQ7

/DQS

DQ12 to DQ15

/DQS

DQ20 to DQ23

/DQS

DQ28 to DQ31

/DQS

DQ36 to DQ39

/DQS

DQ44 to DQ47

/DQS

DQ52 to DQ55

/DQS

DQ60 to DQ63

/DQS

CB4 to CB7

R

S

4

R

4

4

4

4

4

4

4

4

DQ0
to DQ3

S

R

S

R

S

DQ0
to DQ3

R

S

R

S

R

S

DQ0
to DQ3

R

S

R

S

DM

R

S

DQ0
to DQ3

R

S

R

S

R

S

DQ0
to DQ3

R

S

R

S

R

S

DQ0
to DQ3

R

S

R

S

DM

R

S

DQ0
to DQ3

R

S

R

S

R

S

DQ0
to DQ3

R

S

R

S

R

S

DQ0
to DQ3

DQS9

/DQS9

DQS10

/DQS10

DQS11

/DQS11

DQS12

/DQS12

DQS13

/DQS13

DQS14

/DQS14

DQS15

/DQS15

DQS16

/DQS16

DQS17

/DQS17

R

S

R

S

/CS

DQSDM

/CS

/CS

/CS

/CS

/CS

/CS

/CS

/CS

D9

D10

D11

D12

D13

D14

D15

D16

D17

DQSDM

DQSDM

DQS

DQSDM

DQSDM

DQS

DQSDM

DQSDM

/DQS

/DQS

/DQS

/DQS

/DQS

/DQS

/DQS

/DQS

/DQS

Serial PD

SCL

SCL

U0

A0

WP

SA0SA1

VDDSPD

VDD

VREF

VSS

D0 to D17: 512M bits DDR2 SDRAM

U0: 2k bits EEPROM
R

: 22Ω

S

PLL: CU877
Register: SSTU32864

SDA

A1

SDA

A2

SA2

Serial PD
D0 to D17

D0 to D17
D0 to D17

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

R

S

DM

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

R

S

DM

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

R

S

R

4

S

DQ0
to DQ3

R

S

/CS*

BA0 to BA1

A0 to A13

/RAS
/CAS

CKE0

/WE

ODT0

/RESET*

PCK7

2

R

S

R

S

R

S

R

S

R

S

R

S

R

S

3

3

*

/RCS0 -> /CS: SDRAMs D0 to D17

R

RBA0 to RBA1 -> BA0 to BA1: SDRAMs D0 to D17

E
G

RA0 to RA13 -> A0 to A13: SDRAMs D0 to D17

I

/RRAS -> /RAS: SDRAMs D0 to D17

S
T

/RCAS -> /CAS: SDRAMs D0 to D17

E

RCKE0 -> CKE: SDRAMs D0 to D17

R

/RWE -> /WE: SDRAMs D0 to D17
RODT0 -> ODT0: SDRAMs D0 to D17

/RST

/PCK7

3

*

Notes:

1. DQ wring may be changed within a nibble.

2.

/CS connects to D/CS of register and /CSR of register2.

/CSR of register1 and D/CS of register2 connects to VDD.

3.

/RESET, PCK7 and /PCK7 connect to both registers.

Other signals to one of two registers.

P

CK0
/CK0

/RESET

PCK0 to PCK6, PCK8, PCK9 -> CK: SDRAMs D0 to D17

L

/PCK0 to /PCK6, /PCK8, /PCK9 -> /CK: SDRAMs D0 to D17

L

OE

PCK7 -> CK:
/PCK7 -> /CK:

register

register

Data Sheet E0644E30 (Ver. 3.0)

8

Differential Clock Net Wiring (CK0, /CK0)

0ns (nominal)

EBE10RD4AEFA

PLL

OUT1

CK0

/CK0

Notes: 1. The clock delay from the input of the PLL clock to the input of any SDRAM or register willl

be set to 0ns (nominal).

2. Input, output and feedback clock lines are terminated from line to line as shown, and not
from line to ground.

3. Only one PLL output is shown per output type. Any additional PLL outputs will be wired
in a similar manner.

4. Termination resistors for the PLL feedback path clocks are located as close to the

input pin of the PLL as possible.

120Ω

IN

120Ω

C

Feedback in

OUT'N'

Feedback out

SDRAM

SDRAM

Register 1

Register 2

120Ω

C

120Ω

Data Sheet E0644E30 (Ver. 3.0)

9

EBE10RD4AEFA

Electrical Specifications

• All voltages are referenced to VSS (GND).

Absolute Maximum Ratings

Parameter Symbol Value Unit Note
Voltage on any pin relative to VSS VT –0.5 to +2.3 V 1
Supply voltage relative to VSS VDD –0.5 to +2.3 V
Short circuit output current IOS 50 mA 1
Power dissipation PD 18 W
Operating case temperature TC 0 to +95 °C 1, 2
Storage temperature Tstg –55 to +100 °C 1

Note: 1. DDR2 SDRAM component specification.

2. Supporting 0°C to +85°C and being able to extend to +95°C with doubling auto-refresh commands in
frequency to a 32ms period (tREFI = 3.9µs) and hi gher temperature self-refresh entry via the control of
EMRS (2) bit A7 is required.

Caution

Exposing the device to stress above those listed in Absolute Maximum Ratings could cause
permanent damage. The device is not meant to be operated under conditions outside the limits
described in the operational section of this specification. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

DC Operating Conditions (TC = 0°C to +85°C) (DDR2 SDRAM Component Specification)

Parameter Symbol min. typ. max. Unit Notes
Supply voltage VDD, VDDQ 1.7 1.8 1.9 V 4
VSS 0 0 0 V
VDDSPD 1.7 — 3.6 V
Input reference voltage VREF 0.49 × VDDQ 0.50 × VDDQ 0.51 × VDDQ V 1, 2
Termination voltage VTT VREF − 0.04 VREF VREF + 0.04 V 3
DC input logic high VIH (DC) VREF + 0.125  VDDQ + 0.3V V
DC input low VIL (DC) −0.3  VREF – 0.125 V
AC input logic high VIH (AC) VREF + 0.250   V
AC input low VIL (AC)   VREF − 0.250 V

Notes: 1. The value of VREF may be selected by the user to provide optimum noise margin in the system. Typically

the value of VREF is expected to be about 0.5 × VDDQ of the transmitting devic e and V R EF are e xpecte d
to track variations in VDDQ.

2. Peak to peak AC noise on VREF may not exceed ±2% VREF (DC).

3. VTT of transmitting device must track VREF of receiving device.

4. VDDQ must be equal to VDD.

Data Sheet E0644E30 (Ver. 3.0)

10

EBE10RD4AEFA

DC Characteristics 1 (TC = 0°C to +85°C, VDD = 1.8V ± 0.1V, VSS = 0V)

Parameter Symbol Grade max. Unit Test condition

one bank; tCK = tCK (IDD), tRC = tRC (IDD),
tRAS = tRAS min.(IDD);
CKE is H, /CS is H between valid commands;
Address bus inputs are SWITCHING;
Data bus inputs are SWITCHING

one bank; IOUT = 0mA;
BL = 4, CL = CL(IDD), AL = 0;
tCK = tCK (IDD), tRC = tRC (IDD),
tRAS = tRAS min.(IDD); tRCD = tRCD (IDD);
CKE is H, /CS is H between valid commands;
Address bus inputs are SWITCHING;
Data pattern is same as IDD4W

all banks idle;
tCK = tCK (IDD);
CKE is L;
Other control and address bus inputs are STABLE;
Data bus inputs are FLOATING

all banks idle;
tCK = tCK (IDD);
CKE is H, /CS is H;
Other control and address bus inputs are STABLE;
Data bus inputs are FLOATING

all banks idle;
tCK = tCK (IDD);
CKE is H, /CS is H;
Other control and address bus inputs are
SWITCHING;
Data bus inputs are SWITCHING

all banks open;
tCK = tCK (IDD);
CKE is L;
Other control and
address bus inputs are
STABLE;
Data bus inputs are
FLOATING

all banks open;
tCK = tCK (IDD), tRAS = tRAS max.(IDD),
tRP = tRP (IDD);
CKE is H, /CS is H between valid commands;
Other control and address bus inputs are
SWITCHING;
Data bus inputs are SWITCHING

all banks open, continuous burst reads, IOUT = 0mA;
BL = 4, CL = CL(IDD), AL = 0;
tCK = tCK (IDD), tRAS = tRAS max.(IDD), tRP = tRP
(IDD);
CKE is H, /CS is H between valid commands;
Address bus inputs are SWITCHING;
Data pattern is same as IDD4W

all banks open, continuous burst writes;
BL = 4, CL = CL(IDD), AL = 0;
tCK = tCK (IDD), tRAS = tRAS max.(IDD),
tRP = tRP (IDD);
CKE is H, /CS is H between valid commands;
Address bus inputs are SWITCHING;
Data bus inputs are SWITCHING

Fast PDN Exit
MRS(12) = 0

Slow PDN Exit
MRS(12) = 1

Operating current
(ACT-PRE)

Operating current
(ACT-READ-PRE)

Precharge power-down
standby current

Precharge quiet standby
current

Idle standby current IDD2N

Active power-down standby
current

Active standby current IDD3N

Operating current
(Burst read operating)

Operating current
(Burst write operating)

IDD0

IDD1

IDD2P

IDD2Q

IDD3P-F

IDD3P-S

IDD4R

IDD4W

-5C 2440

-4A 2120

-5C 2760

-4A 2430

-5C 700

-4A 620

-5C 970

-4A 840

-5C 1060

-4A 930

-5C 1240

-4A 1110

-5C 970

-4A 840

-5C 1720

-4A 1580

-5C 3660

-4A 3060

-5C 3660

-4A 3060

mA

mA

mA

mA

mA

mA

mA

mA

mA

mA

Data Sheet E0644E30 (Ver. 3.0)

11

EBE10RD4AEFA

Parameter Symbol Grade max. Unit Test condition

-5C 5030

Auto-refresh current IDD5

-4A 4630

Self-refresh current IDD6 150 mA

-5C 6250

Operating current
(Bank interleaving)

IDD7

-4A 5770

mA

mA

Notes: 1. IDD specifications are tested after the device is properly init ialized.

2. Input slew rate is specified by AC Input Test Condition.

3. IDD parameters are specified with ODT disabled.

4. Data bus consists of DQ, DM, DQS, /DQS, RDQS, /RDQS, LDQS, /LDQS, UDQS, and /UDQS. IDD
values must be met with all combinations of EMRS bits 10 and 11.

5. Definitions for IDD

L is defined as VIN ≤ VIL (AC) (max.)
H is defined as VIN ≥ VIH (AC) (min.)
STABLE is defined as inputs stable at an H or L level
FLOATING is defined as inputs at VREF = VDDQ/2
SWITCHING is defined as:
inputs changing between H and L every other clock cycle (once per t wo clocks) for address and control

signals, and inputs changing between H and L ev ery other data transfer (once per cloc k) for DQ signals
not including masks or strobes.

6. Refer to AC Timing for IDD Test Conditions.

tCK = tCK (IDD);
Refresh command at every tRFC (IDD) interval;
CKE is H, /CS is H between valid commands;
Other control and address bus inputs are SWITCHING;
Data bus inputs are SWITCHING

Self Refresh Mode;
CK and /CK at 0V;
CKE ≤ 0.2V;
Other control and address bus inputs are FLOATING;
Data bus inputs are FLOATING

all bank interleaving reads, IOUT = 0mA;
BL = 4, CL = CL(IDD), AL = tRCD (IDD) −1
tCK = tCK (IDD), tRC = tRC (IDD), tRRD = tRRD(IDD),
tRCD = 1
CKE is H, CS is H between valid commands;
Address bus inputs are STABLE during DESELECTs;
Data pattern is same as IDD4W;

× tCK (IDD);

× tCK (IDD);

AC Timing for IDD Test Conditions

For purposes of IDD testing, the following parameters are to be utilized.

Parameter 4-4-4 3-3-3 Unit
CL(IDD) 4 3 tCK
tRCD(IDD) 15 15 ns
tRC(IDD) 60 55 ns
tRRD(IDD) 7.5 7.5 ns
tCK(IDD) 3.75 5 ns
tRAS(min.)(IDD) 45 40 ns
tRAS(max.)(IDD) 70000 70000 ns
tRP(IDD) 15 15 ns
tRFC(IDD) 105 105 ns

Data Sheet E0644E30 (Ver. 3.0)

DDR2-533 DDR2-400

12

EBE10RD4AEFA

DC Characteristics 2 (TC = 0°C to +85°C, VDD, VDDQ = 1.8V ± 0.1V)
(DDR2 SDRAM Component Specification)

Parameter Symbol Value Unit Notes
Input leakage current ILI 2 µA VDD ≥ VIN ≥ VSS
Output leakage current ILO 5 µA VDDQ ≥ VOUT ≥ VSS

Minimum required output pull-up under AC
test load

Maximum required output pull-down under
AC test load

Output timing measurement reference level VOTR 0.5 × VDDQ V 1
Output minimum sink DC current IOL +13.4 mA 3, 4, 5
Output minimum source DC current IOH −13.4 mA 2, 4, 5

Notes: 1. The VDDQ of the device under test is referenced.

2. VDDQ = 1.7V; VOUT = 1.42V.

3. VDDQ = 1.7V; VOUT = 0.28V.

4. The DC value of VREF applied to the receiving device is expected to be set to VTT.

5. After OCD calibration to 18Ω at TC = 25°C, VDD = VDDQ = 1.8V.

DC Characteristics 3 (TC = 0°C to +85°C, VDD, VDDQ = 1.8V ± 0.1V)
(DDR2 SDRAM Component Specification)

VOH VTT + 0.603 V 5

VOL VTT − 0.603 V 5

Parameter Symbol min. max. Unit Notes
AC differential input voltage VID (AC) 0.5 VDDQ + 0.6 V 1, 2
AC differential cross point voltage VIX (AC) 0.5 × VDDQ − 0.175 0.5 × VDDQ + 0.175 V 2
AC differential cross point voltage VOX (AC) 0.5 × VDDQ − 0.125 0.5 × VDDQ + 0.125 V 3

Notes: 1. VID(AC) spec ifies the input differential voltage |VTR -VCP| requ ired for switching, where VTR is the true

input signal (such as CK, DQS, LDQS or UDQS) and VCP is the complementary input signal (such as
/CK, /DQS, /LDQS or /UDQS). The minimum value is equal to VIH(AC) − VIL(AC).

2. The typical v alue of VIX(AC) is expected to be about 0.5 × VDDQ of the transmittin g device and VIX(A C)
is expected to track variations in VDDQ . VIX(AC) indicates the voltage at which differential input signals
must cross.

3. The typical value of VOX(AC) is expected to be about 0.5 × VDDQ of the transmitting device and
VOX(AC) is expected to track variations in VDDQ . VOX(AC) indicates the voltage at which differential
output signals must cross.

VDDQ

VTR

VID

VCP

VSSQ

Differential Signal Levels*

Crossing point

VIX or VOX

1, 2

Data Sheet E0644E30 (Ver. 3.0)

13

EBE10RD4AEFA

ODT DC Electrical Characteristics (TC = 0°C to +85°C, VDD, VDDQ = 1.8V ± 0.1V)
(DDR2 SDRAM Component Specification)

Parameter Symbol min. typ. max. Unit Note
Rtt effective impedance value for EMRS (A6, A2) = 0, 1; 75 Ω Rtt1(eff) 60 75 90 Ω 1
Rtt effective impedance value for EMRS (A6, A2) = 1, 0; 150 Ω Rtt2(eff) 120 150 180 Ω 1
Rtt effective impedance value for EMRS (A6, A2) = 1, 1; 50 Ω Rtt3(eff) 40 50 60 Ω 1
Deviation of VM with respect to VDDQ/2 ∆VM −6  +6 % 1

Note: 1. Test condition for Rtt measurements.

Measurement Definition for Rtt(eff)

Apply VIH (AC) and VIL (AC) to test pin separately, then measure current I(VIH(AC)) and I(VIL(AC)) respectively.
VIH(AC), and VDDQ values defined in SSTL_18.

VIH(AC) − VIL(AC)

Rtt(eff) =

I(VIH(AC)) − I(VIL(AC))

Measurement Definition for VM

Measure voltage (VM) at test pin (midpoint) with no load.

2 × VM

∆VM =

VDDQ

− 1

× 100%

OCD Default Characteristics (TC = 0°C to +85°C, VDD, VDDQ = 1.8V ± 0.1V)
(DDR2 SDRAM Component Specification)

Parameter min typ. max. Unit Notes
Output impedance 12.6 18 23.4 Ω 1
Pull-up and pull-down mismatch 0  4 Ω 1, 2
Output slew rate 1.5  5 V/ns 3, 4

Notes: 1. Impedance measurement condition for output source DC current: VDDQ = 1.7V; VOUT = 1420mV;

(VOUT−VDDQ)/IOH must be less than 23.4Ω for values of VOUT between VDDQ and VDDQ −280mV.
Impedance measurement condition for output sink DC current: VDDQ = 1.7V; VOUT = 280mV;
VOUT/IOL must be less than 23.4Ω for values of VOUT between 0V and 280mV.

2. Mismatch is absolute value b etween pull up and pull do wn, both are measured at same temperatur e and
voltage.

3. Slew rate measured from VIL(AC) to VIH(AC).

4. The absolute v alue of the slew rate as measured from DC to DC is equal to or gr eater than the slew rate
as measured from AC to AC. This is guaranteed by design and characterization.

Pin Capacitance (TA = 25°C, VDD = 1.8V ± 0.1V)

Parameter Symbol Pins min. max. Unit Notes
Input capacitance CI1
Input capacitance CI2 CK, /CK 2 3 pF 2

Data and DQS input/output
capacitance

CO DQ, DQS, /DQS, CB 2.5 4 pF 3

Address, /RAS, /CAS,
/WE, /CS, CKE, ODT

2.5 3.5 pF 1

Notes: 1. Register component specification.

2. PLL component specification.

3. DDR2 SDRAM component specification.

Data Sheet E0644E30 (Ver. 3.0)

14

EBE10RD4AEFA

AC Characteristics (TC = 0°C to +85°C, VDD, VDDQ = 1.8V ± 0.1V, VSS = 0V)
(DDR2 SDRAM Component Specification)

-5C -4A

Frequency (Mbps) 533 400
Parameter Symbol min. max. min. max. Unit Notes
/CAS latency CL 4 5 3 5 tCK

Active to read or write command delay tRCD 15  15  ns
Precharge command period tRP 15  15  ns
Active to active/auto refresh command time tRC 60  55  ns
DQ output access time from CK, /CK tAC −500 +500 −600 +600 ps
DQS output access time from CK, /CK tDQSCK −450 +450 −500 +500 ps
CK high-level width tCH 0.45 0.55 0.45 0.55 tCK
CK low-level width tCL 0.45 0.55 0.45 0.55 tCK

CK half period tHP
Clock cycle time tCK 3750 8000 5000 8000 ps

DQ and DM input hold time tDH 225  275  ps 5
DQ and DM input setup time tDS 100  150  ps 4

Control and Address input pulse width for
each input

DQ and DM input pulse width for each input tDIPW 0.35  0.35  tCK
Data-out high-impedance time from CK,/CK tHZ  tAC max.  tAC max. ps
Data-out low-impedance time from CK,/CK tLZ tAC min. tAC max. tAC min. tAC max. ps

DQS-DQ skew for DQS and associated DQ
signals

DQ hold skew factor tQHS  400  450 ps
DQ/DQS output hold time from DQS tQH tHP – tQHS  tHP – tQHS  ps

Write command to first DQS latching
transition

DQS input high pulse width tDQSH 0.35  0.35  tCK
DQS input low pulse width tDQSL 0.35  0.35  tCK
DQS falling edge to CK setup time tDSS 0.2  0.2  tCK
DQS falling edge hold time from CK tDSH 0.2  0.2  tCK
Mode register set command cycle time tMRD 2  2  tCK
Write postamble tWPST 0.4 0.6 0.4 0.6 tCK
Write preamble tWPRE 0.35  0.35  tCK
Address and control input hold time tIH 375  475  ps 5
Address and control input setup time tIS 250  350  ps 4
Read preamble tRPRE 0.9 1.1 0.9 1.1 tCK
Read postamble tRPST 0.4 0.6 0.4 0.6 tCK
Active to precharge command tRAS 45 70000 40 70000 ns
Active to auto-precharge delay tRAP tRCD min.  tRCD min.  ns

tIPW 0.6  0.6  tCK

tDQSQ  300  350 ps

tDQSS WL − 0.25 WL + 0.25 WL − 0.25 WL + 0.25 tCK

min.
(tCL, tCH)



min.
(tCL, tCH)

 ps

Data Sheet E0644E30 (Ver. 3.0)

15

EBE10RD4AEFA

-5C -4A

Frequency (Mbps) 533 400
Parameter Symbol min. max. min. max. Unit Notes

Active bank A to active bank B command
period

Write recovery time tWR 15  15  ns
Auto precharge write recovery + precharge

time
Internal write to read command delay tWTR 7.5  10  ns

Internal read to precharge command delay tRTP 7.5  7.5  ns
Exit self refresh to a non-read command tXSNR tRFC + 10  tRFC + 10  ns
Exit self refresh to a read command tXSRD 200  200  tCK

Exit precharge power down to any non-read
command

Exit active power down to read command tXARD 2  2  tCK 3
Exit active power down to read command

(slow exit/low power mode)
CKE minimum pulse width (high and low

pulse width)
Output impedance test driver delay tOIT 0 12 0 12 ns
Auto refresh to active/auto refresh command

time
Average periodic refresh interval

(0°C ≤ TC ≤ +85°C)
(+85°C < TC ≤ +95°C) tREFI  3.9  3.9 µs
Minimum time clocks remains ON after CKE

asynchronously drops low

Notes: 1. For each of the terms above, if not already an integer, round to the next higher integer.

2. AL: Additive Latency.

3. MRS A12 bit defines which active power down exit timing to be applied.

4. The figures of Input Waveform Timing 1 and 2 are referenced from the input signal crossing at the
VIH(AC) level for a rising signal and VIL(AC) for a falling signal applied to the device under test.

5. The figures of Input Waveform Timing 1 and 2 are referenced from the input signal crossing at the
VIH(DC) level for a rising signal and VIL(DC) for a falling signal applied to the device under test.

DQS

/DQS

tRRD 7.5  7.5  ns

tDAL

(tWR/tCK)+
(tRP/tCK)



(tWR/tCK)+
(tRP/tCK)

 tCK 1

tXP 2  2  tCK

tXARDS 6 − AL  6 − AL  tCK 2, 3

tCKE 3  3  tCK

tRFC 105  105  ns

tREFI  7.8  7.8 µs

tDELAY

tIS + tCK +
tIH

CK

/CK



tIS + tCK +
tIH

 ns

tDS tDH

tDS tDH

VDDQ
VIH (AC)(min.)
VIH (DC)(min.)
VREF
VIL (DC)(max.)
VIL (AC)(max.)
VSS

tIS tIH

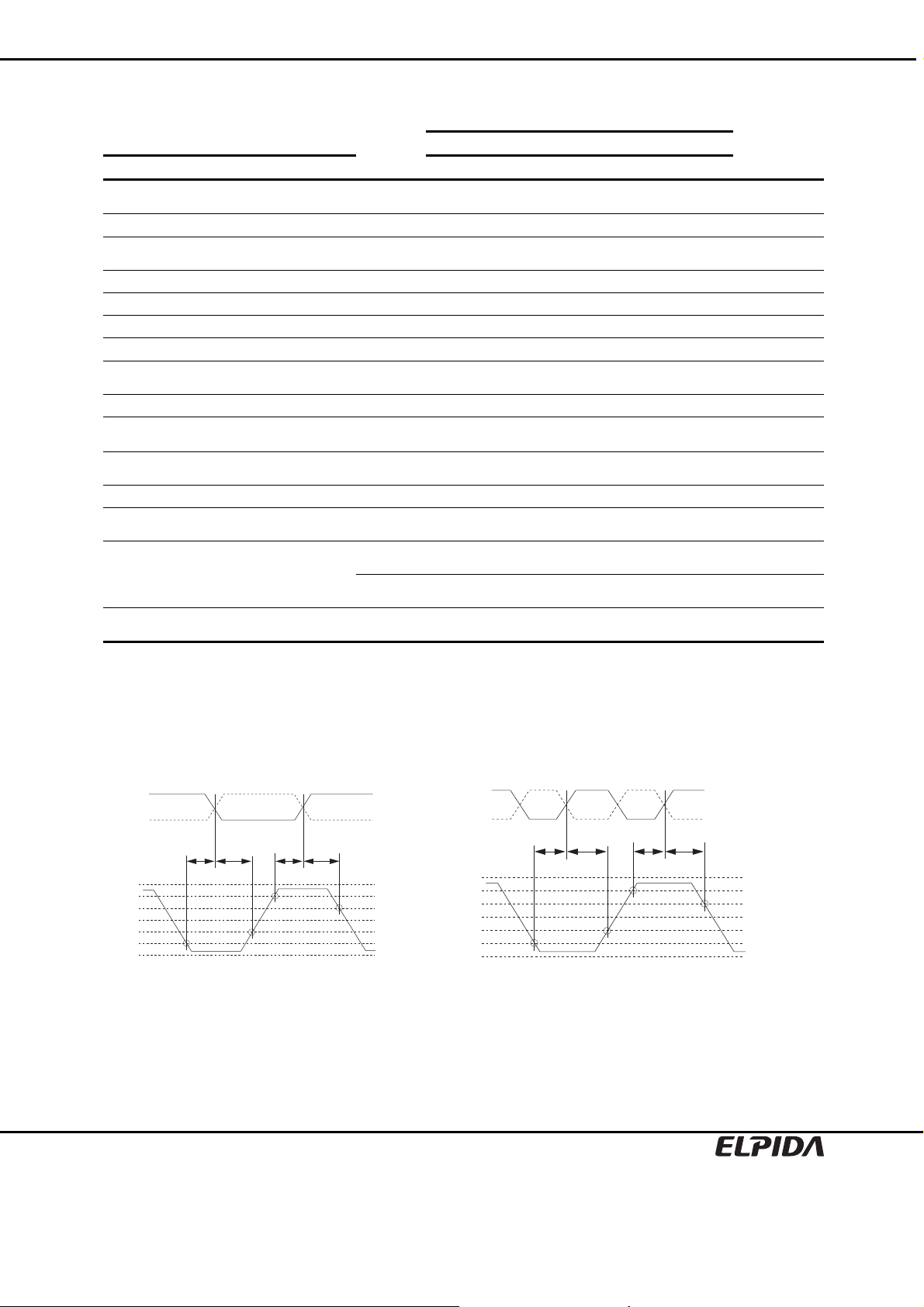

Input Waveform Timing 1 (tDS, tDH) Input Waveform Timing 2 (tIS, tIH)

Data Sheet E0644E30 (Ver. 3.0)

tIS tIH

VDDQ
VIH (AC)(min.)
VIH (DC)(min.)
VREF
VIL (DC)(max.)
VIL (AC)(max.)
VSS

16

EBE10RD4AEFA

ODT AC Electrical Characteristics (DDR2 SDRAM Component Specification)

Parameter Symbol min. max. Unit Notes
ODT turn-on delay tAOND 2 2 tCK
ODT turn-on tAON tAC(min) tAC(max) + 1000 ps 1
ODT turn-on (power down mode) tAONPD tAC(min) + 2000 2tCK + tAC(max) + 1000 ps
ODT turn-off delay tAOFD 2.5 2.5 tCK
ODT turn-off tAOF tAC(min) tAC(max) + 600 ps 2
ODT turn-off (power down mode) tAOFPD tAC(min) + 2000 2.5tCK + tAC(max) + 1000 ps
ODT to power down entry latency tANPD 3 3 tCK
ODT power down exit latency tAXPD 8 8 tCK

Notes: 1. ODT turn on time min is when the device leaves high impe dance and ODT resistance begins to turn on.
ODT turn on time max is when the ODT resistance is fully on. Both are measured from tAOND.

2. ODT turn off time min is when the device starts to turn off ODT resistance.

ODT turn off time max is when the bus is in high impedance. Both are measured from tAOFD.

AC Input Test Conditions

Parameter Symbol Value Unit Notes
Input reference voltage VREF 0.5 × VDDQ V 1
Input signal maximum peak to peak swing VSWING(max.) 1.0 V 1
Input signal maximum slew rate SLEW 1.0 V/ns 2, 3

Notes: 1. Input waveform timing is referenced to th e input signal crossing through the VREF level applied to the

device under test.

2. The input signal minimum sle w rate is to be maintained over the range from VIL(DC) (max.) to VIH(AC)
(min.) for rising edges and the range from VIH(DC) (min.) t o VIL(AC) (max.) for falling edges as sho wn in
the below figure.

3. AC timings are referenced with input waveforms switching from VIL(AC) to VIH(AC) on the positive
transitions and VIH(AC) to VIL(AC) on the negative transitions.

Start of falling edge input timing

VSWING(max.)

Start of rising edge input timing

VDDQ
VIH (AC)(min.)

VIH (DC)(min.)
VREF

VIL (DC)(max.)
VIL (AC)(max.)

VSS

∆TR

Falling slew =

∆TF

VIH (DC)(min.)

−

VIL (AC)(max.)

∆TF

∆TR

Rising slew =

VIH (AC) min. − VIL (DC)(max.)

AC Input Test Signal Wave forms

Measurement point

DQ

RT =25 Ω

VTT

Output Load

Data Sheet E0644E30 (Ver. 3.0)

17

EBE10RD4AEFA

Pin Functions

CK, /CK (input pin)

The CK and the /CK are the master clock inputs. All inputs except DMs, DQSs and D Qs are referred to the cross
point of the CK rising edge and the VREF level. When a read operation, DQSs and DQs are referred to the cross
point of the CK and the /CK. When a write operation, DQs are referred to the cross point of the DQS and the VREF
level. DQSs for write operation are referred to the cross point of the CK and the /CK.

/CS (input pin)

When /CS is low, commands and data can be input. When /CS is high, all inputs are ignor ed. However, internal
operations (bank active, burst operations, etc.) are held.

/RAS, /CAS, and /WE (input pins)

These pins define operating commands (read, write, etc.) depen ding on the combinations of their voltage levels.
See “Command operation”.

A0 to A13 (input pins)

Row address (AX0 to AX13) is determined by the A0 to the A13 level at the cross p oint of the CK rising edge and the
VREF level in a bank active command cycle. Column address (AY0 to AY9, AY11) is loaded via the A0 to the A9
and A11 at the cross point of the CK rising edge and the VREF level in a read or a write command cycle. This
column address becomes the starting address of a burst operation.

A10 (AP) (input pin)

A10 defines the precharge mode when a precharge command, a read co mmand or a write command is issued. If
A10 = high when a precharge command is issued, all banks are precharged. If A10 = low when a precharge
command is issued, only the bank that is selected by BA1, BA0 is precharged. If A10 = high when read or write
command, auto-precharge function is enabled. While A10 = low, auto-precharge function is disabled.

BA0, BA1 (input pin)

BA0, BA1 are bank select signals (BA). The memory array is divided into bank 0, bank 1, bank 2 and bank 3. (See
Bank Select Signal Table)

[Bank Select Signal Table]

BA0 BA1
Bank 0 L L

Bank 1 H L
Bank 2 L H
Bank 3 H H

Remark: H: VIH. L: VIL.

CKE (input pin)

CKE controls power down and self-refresh. The power down and the self-refresh commands are entered when the
CKE is driven low and exited when it resumes to high.

The CKE level must be kept for 1 CK cycle at least, that is, if CKE cha nges at the cross point of the CK rising e dge
and the VREF level with proper setup time tIS, at the next CK rising edge CKE level must be kept with proper hold
time tIH.

DQ, CB (input and output pins)

Data are input to and output from these pins.

DQS (input and output pin)

DQS and /DQS provide the read data strobes (as output) and the write data strobes (as input).

Data Sheet E0644E30 (Ver. 3.0)

18

EBE10RD4AEFA

VDD (power supply pins)

1.8V is applied. (VDD is for the internal circuit.)

VDDSPD (power supply pin)

1.8V is applied (For serial EEPROM).

VSS (power supply pin)

Ground is connected.

/RESET(input pin)

LVCMOS reset input. When /RESET is Low, all registers are reset.

Detailed Operation Part and Timing Waveforms

Refer to the EDE5104AESK, EDE5108AESK datasheet (E0562E). DM pins of component device fixed to VSS level
on the module board. DIMM /CAS latency = component CL + 1 for registered type.

Data Sheet E0644E30 (Ver. 3.0)

19

Physical Outline

EBE10RD4AEFA

Unit: mm

(DATUM -A-)

Component area

(Front)

1 120

AB

63.00 55.00

133.35

121

Component area

(Back)

4.00

FULL R

3.00

240

4.00 max

4.00 min

1.27 ± 0.10

10.00

17.80

0.5 min

30.00

Detail A

1.00

2.50 ± 0.20

0.80 ± 0.05

Detail B

0.20 ± 0.15

3.80

4.00

2.50

(DATUM -A-)

FULL R

5.00

1.50 ± 0.10

ECA-TS2-0093-01

Data Sheet E0644E30 (Ver. 3.0)

20

EBE10RD4AEFA

CAUTION FOR HANDLING MEMORY MODULES

When handling or inserting memory modules, be sure not to touch any components on the modules, such as
the memory ICs, chip capacitors and chip resistors. It is necessary to avoid undue mechanical stress on
these components to prevent damaging them.
In particular, do not push module cover or drop the modules in order to protect from mechanical defects,
which would be electrical defects.

When re-packing memory modules, be sure the modules are not touching each other.
Modules in contact with other modules may cause excessive mechanical stress, which may damage the
modules.

NOTES FOR CMOS DEVICES

1 PRECAUTION AGAINST ESD FOR MOS DEVICES

Exposing the MOS devices to a strong electric field can cause destruction of the gate
oxide and ultimately degrade the MOS devices operation. Steps must be taken to stop
generation of static electricity as much as possible, and quickly dissipate it, when once
it has occurred. Environmental control must be adequate. When it is dry, humidifier
should be used. It is recommended to avoid using insulators that easily build static
electricity. MOS devices must be stored and transported in an anti-static container,
static shielding bag or conductive material. All test and measurement tools including
work bench and floor should be grounded. The operator should be grounded using
wrist strap. MOS devices must not be touched with bare hands. Similar precautions
need to be taken for PW boards with semiconductor MOS devices on it.

2 HANDLING OF UNUSED INPUT PINS FOR CMOS DEVICES

No connection for CMOS devices input pins can be a cause of malfunction. If no
connection is provided to the input pins, it is possible that an internal input level may be
generated due to noise, etc., hence causing malfunction. CMOS devices behave
differently than Bipolar or NMOS devices. Input levels of CMOS devices must be fixed
high or low by using a pull-up or pull-down circuitry. Each unused pin should be connected
to V

DD

or GND with a resistor, if it is considered to have a possibility of being an output

pin. The unused pins must be handled in accordance with the related specifications.

MDE0202

3 STATUS BEFORE INITIALIZATION OF MOS DEVICES

Power-on does not necessarily define initial status of MOS devices. Production process
of MOS does not define the initial operation status of the device. Immediately after the
power source is turned ON, the MOS devices with reset function have not yet been
initialized. Hence, power-on does not guarantee output pin levels, I/O settings or
contents of registers. MOS devices are not initialized until the reset signal is received.
Reset operation must be executed immediately after power-on for MOS devices having
reset function.

CME0107

Data Sheet E0644E30 (Ver. 3.0)

21

EBE10RD4AEFA

µBGA is a registered trademark of Tessera, Inc.
All other trademarks are the intellectual property of their respective owners.

The information in this document is subject to change without notice. Before using this document, confirm that this is the latest version.

No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of Elpida Memory, Inc.

Elpida Memory, Inc. does not assume any liability for infringement of any intellectual property rights
(including but not limited to patents, copyrights, and circuit layout licenses) of Elpida Memory, Inc. or
third parties by or arising from the use of the products or information listed in this document. No license,
express, implied or otherwise, is granted under any patents, copyrights or other intellectual property
rights of Elpida Memory, Inc. or others.

Descriptions of circuits, software and other related information in this document are provided for
illustrative purposes in semiconductor product operation and application examples. The incorporation of
these circuits, software and information in the design of the customer's equipment shall be done under
the full responsibility of the customer. Elpida Memory, Inc. assumes no responsibility for any losses
incurred by customers or third parties arising from the use of these circuits, software and information.

[Product applications]

Elpida Memory, Inc. makes every attempt to ensure that its products are of high quality and reliability.
However, users are instructed to contact Elpida Memory's sales office before using the product in
aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment,
medical equipment for life support, or other such application in which especially high quality and
reliability is demanded or where its failure or malfunction may directly threaten human life or cause risk
of bodily injury.

[Product usage]

Design your application so that the product is used within the ranges and conditions guaranteed by
Elpida Memory, Inc., including the maximum ratings, operating supply voltage range, heat radiation
characteristics, installation conditions and other related characteristics. Elpida Memory, Inc. bears no
responsibility for failure or damage when the product is used beyond the guaranteed ranges and
conditions. Even within the guaranteed ranges and conditions, consider normally foreseeable failure
rates or failure modes in semiconductor devices and employ systemic measures such as fail-safes, so
that the equipment incorporating Elpida Memory, Inc. products does not cause bodily injury, fire or other
consequential damage due to the operation of the Elpida Memory, Inc. product.

[Usage environment]

This product is not designed to be resistant to electromagnetic waves or radiation. This product must be
used in a non-condensing environment.

If you export the products or technology described in this document that are controlled by the Foreign
Exchange and Foreign Trade Law of Japan, you must follow the necessary procedures in accordance
with the relevant laws and regulations of Japan. Also, if you export products/technology controlled by
U.S. export control regulations, or another country's export control laws or regulations, you must follow
the necessary procedures in accordance with such laws or regulations.

If these products/technology are sold, leased, or transferred to a third party, or a third party is granted
license to use these products, that third party must be made aware that they are responsible for
compliance with the relevant laws and regulations.

M01E0107

Data Sheet E0644E30 (Ver. 3.0)

22
