Elo TouchSystems JH 19T02, JH 23T02, JH 15T05, JH 10T08 User Manual
U S E R M A N U A L
Maritime Multi Computer Models
JH 10T08 MMC - 10,4 inch Maritime Multi Computer
JH 15T05 MMC - 15,0 inch Maritime Multi Computer
JH 19T02 MMC - 19,0 inch Maritime Multi Computer
JH 23T02 MMC - 23,1 inch Maritime Multi Computer
User Manual MMC (ETX)
Updated: 09 Mar 2007 Doc Id: INB100014-1 (Rev 19)
For models (including different options):
-A1, -A2, -C1, -C2
Slim
User Manual
Jakob Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 5276 3700 - Fax: (+47) 5276 5444 - e-mail: jhd-no@hatteland.com
Copyright © 2007 Jakob Hatteland Display AS
Aamsosen
N-5578 Nedre Vats, Norway
Information in this manual is copyrighted to the respective owners. All rights are reserved by Jakob
Hatteland Display AS. This information may not, in whole or in part, be copied, photocopied, reproduced,
translated or reduced to any electronic medium or machine-readable form without the prior written consent
of Jakob Hatteland Display AS.
The products described, or referenced, herein are copyrighted to the respective owners.
The products may not be copied or duplicated in any way. This documentation contains proprietary
information that is not to be disclosed to persons outside the user’s company without prior written consent
of Jakob Hatteland Display AS.
The copyright notice appearing above is included to provide statutory protection in the event of
unauthorized or unintentional public disclosure.
All other product names or trademarks are properties of their respective owners !
Contents
Contents .................................................................................... 3
Contents of package ..........................................................................5
General ...................................................................................... 7
Introduction to Jakob Hatteland Display AS .......................................8
About this manual ...............................................................................9
Basic Construction - Maritime Multi Computers ............................... 10
Product Labels (Example) ................................................................ 11
Serial Number Label ....................................................................11
Warranty Label ............................................................................. 11
Touchscreen products ...................................................................... 12
Location of Touchscreen label ......................................................13
Installation ............................................................................... 15
Installation and mounting .................................................................16
Brightness knob precaution ..............................................................16
Ergonomics ......................................................................................17
Cables ..............................................................................................18
Cable Entries & Connectors (Marked area) - Illustration only ......18
Maximum Cable Length ...............................................................19
Standard Bracket ..............................................................................19
Operation ................................................................................. 21
Physical Overview - MMC ETX ........................................................ 22
Specications ......................................................................... 25
Specications - JH 10T08 MMC .......................................................26
Specications - JH 15T05 MMC .......................................................27
Specications - JH 19T02 MMC .......................................................28
Specications - JH 23T02 MMC .......................................................29
3
IND100206-9
INB100014-1 (Rev 19)
Contents
Technical Drawings ................................................................ 31
Technical Drawings - JH 10T08 MMC ..............................................32
Standard Version ..........................................................................32
Technical Drawings - JH 15T05 MMC ..............................................33
Standard Version ..........................................................................33
Technical Drawings - JH 19T02 MMC ..............................................34
Standard Version ..........................................................................34
Bracket Version ............................................................................35
Technical Drawings - JH 23T02 MMC ..............................................36
Standard Version ..........................................................................36
Bracket Version ............................................................................37
Technical Drawings - Accessories ........................................ 39
MMC ETX Bracket ............................................................................40
Appendixes ............................................................................. 41
Pin Assignments - Common Connectors ..........................................42
Basic Trouble-shooting .....................................................................45
Declaration of Conformity .................................................................46
Return Of Goods Information ........................................................... 47
Terms ................................................................................................48
Notes ................................................................................................ 51
General Notes: (For all products) .................................................51
Note for ECDIS Systems ..............................................................51
Note for Documentation CD-ROM ...............................................51
Important BIOS Reset / No picture information ............................52
Revision History ...............................................................................53
Contact Information ............................................................... 54
4
IND100206-9
INB100014-1 (Rev 19)
Contents of package
This product is shipped with:
Item Description Illustration
Documentation/Drivers/Software CD(s) for factory installed
components like mainboard, IDE, network etc.
1 pcs of Standard Power Cable.
(European Type F “Schuko” or US Type B standard plug)
Length 1.8m
Note: Power cable not included in the DC version.
1 pcs of User Manual (Slim version)
Note: The separate documentation for third party
components may be available on attached CD. The printed
manual only covers specific information for Hatteland
products, and not third party components.
1 pcs of configuration, test report and checklist sheets.
Optional accessories for Panel Computers:
Item Description Illustration
Bracket mounting kit: (Delivered only with optional bracket)
4 pcs of RenCol Tristar Knob Male - M6X10 mm
4 pcs of MicroPlastic - 6 mm Nylon washer.
4 pcs of Bolt with shoulder washer - M6X1X20
4 pcs of Flat washer
Suspension Bracket
IND100207-1
5
INB100014-1 (Rev 19)
6
INB100014-1 (Rev 19)
General
7
INB100014-1 (Rev 19)
Jakob Hatteland Display AS
Introduction to Jakob Hatteland Display AS
Founded in 1987, Jakob Hatteland Display (JHD) offers the widest range of type approved marine monitors, panel
computers and type approved marine computers for the worldwide commercial, naval, yacht and cruise market.
Today the group develops and manufactures a complete range of IEC 60945 tested marine monitors, panel
computers and IEC 60945 tested marine computers.
“Design meets Functionality” - Series 2
ATTRACTION is more then just to show a nice picture on a screen. The new IEC60945 tested man-machine
interfaces, offered by Jakob Hatteland Display AS, will fulfill the customers wish for outstanding design combined
with the reliability of approved maritime Panel-Computers and Displays.
These IP rated products are meant to be usable in all maritime applications. By the proven optical bonding
technology, the Panel Computers and Displays show drastically reduced reflection and enhanced optical
performance. This truly allows inside or outside use of these products.
Cool is not only the design, but also the product by intelligent heat dissipation and reduced heating storage. Using
state-of-the-art components such as LCD-TFT Modules and ETX-PC bases industrial computers, long-term
availability and serviceability is secured.
Flexibility in application and service friendliness is achieved by a unique backpack solution, whereas the detachable
backpack contains the “intelligence” of the product.
The extreme small form factor used on this product line with a general depth of only 75mm (!) and for example for
the 19in with 416 (W) x 372 (H) mm, allows new-builds and retrofit installation almost everywhere.
The flush mounted glass front shows only what is necessary: the content of the picture. The frameless design can
smoothly be integrated into a console or it can be used as table mounted device (bracket version). A console version
are also available for installment on flybridges with IP66 rating.
This new HATTELAND® Series 2 Panel Computers MMC2 and Displays MMD2 will be available from Q2 2006
onwards in 12in., 15in. and 19in. sizes. The concept allows easy scaling in sizes from small LCD screens up to large
sizes of more than 32in LCD wide-screens. This outstanding and affordable product range offers a wide choice for
different needs.
Approved Marine Displays (MMD/STD) - Series 1
Hatteland Display’s marine monitors are based on high quality and state-of-the-art components with the highest
specifications, and meet all requirements for harsh maritime use. The displays are easily integrated into your system,
due to standardized products and features.
The MMD (Maritime Multi Display) series consists of sizes ranging from 10in to 23in.
Specifically designed for navigation and automation systems on ships, these certified LCD monitors comply to IP66
described in IEC 60925, are tested according to IEC 60945 and are approved by major classification societies such
as ABS, BV, ClassNK, DNV, GL and LR. Further to this marine standard, the 19in MMD, the 20in MMD and the 23in
MMD marine monitors are also available as ECDIS and ARPA radar-compliant units.
General
IND100077-1
8
INB100014-1 (Rev 19)
Jakob Hatteland Display AS
Approved Marine Panel Computers (MMC) - Series 1
The combination of the reliable design of the marine TFT-LCD modules, together with industrial computer boards,
allows Hatteland Display to offer a product range for customer applications where space is critical and full function
is desired in a single unit. In particular, the standardized ETX-board form factor allows full flexibility when it comes to
processor choice. Because of multiple useful standard components we can offer a highly attractive commercial
package
The MMC (Maritime Multi Computer) series consist of sizes ranging from 10in to 23in.
These products have also been designed for typical marine applications in navigation, automation and other
systems. Following Hatteland’s philosophy, these marine panel computers are fully tested according to IEC 60945
and are designed for type approval.
Approved stand-alone and rack-mounted marine computers
Two concepts are followed to offer variation in size, function and expansion slots for customers: approved black-box
computers for limited space and approved computers for standard 19in racks, which offer a high degree of
expansion. Configurations according to customer wishes are implicit, such as the operating system, CD-burner,
RAM, graphic card, HD, add-on cards, factory installed software and many, many more.
The approved computers are tested according to IEC 60945 and IACS E10 and meet the requirements for
IEC 61174 (ECDIS). Several approvals by major classification societies such as ABS, BV, ClassNK, DNV, GL and
LR are available or pending.
Flexible display solutions and night vision facilities
All JHD Type Approved displays, panel computers and marine computers provide maximum flexibility for customer
applications. JHD offers all products with AC or DC power supply, and marine displays and marine panel computers
have a fully linear dimmable function for night vision.
Upon customer request, specific color, mechanical and electrical function designs can be implemented. Many more
options are also available such as, sun visors, mounting brackets, different Windows or Linux operating systems
and touch screens. All products are designed and manufactured by JHD in Nedre Vats, Norway. The production and
conguration of all products takes place within Hatteland’s high capacity production plant#1 (opened in September
2003) in Nedre Vats, Norway.
Hatteland’s production facilities are designed for future expansion, which has enabled the creation of plant#2, our
Optical Technology facility, opened in October 2006. The chosen materials for the production of our products are
high grade industrial components able to full form, t and function requests.
About this manual
The manual contains electrical, mechanical and input/output signal specications. All specications in this manual,
due to manufacturing, new revisions and approvals, are subject to change without notice. However, the last update
and revision of this manual are shown both on the frontpage and also in the “Revision History” chapter. Please use
that as a reference.
Furthermore, for third party datasheet and user manuals, please see dedicated interactive CD (where included)
delivered with the product or contact our sales personnel for support. Please see the Contents Of Package chapter
in the beginning of this manual to determine if a dedicated manual CD are included.
IND100077-1
General
9
INB100014-1 (Rev 19)
Basic Construction - Maritime Multi Computers
Basic Construction
Maritime Multi Computers
Centerbox & component mounting platform
Glass (or touchscreen option)
Front frame controller hatch
General
Front frame
10
Backcover/chassis
TFT Display
Illustration
INB100014-1 (Rev 19)
IND100077-19
Product Labels (Example)
Serial Number Label
TOUCH SCREEN
This product is equipped with a Resistive Touch Screen:
Manufacturer : ELO TouchSystems
Touch Controller : 2210 Serial Controller P/N 055165-000
Driver Download : www.elotouch.com
VSD100564-2210
Product Information
Manufacture: Product: Product type: #
Jakob Hatteland Display 19 Inch JH 19T01MMD-A1-831
NORWAY TFT
Serial Number
115VAC/50-60Hz
100W
230VAC/50-60Hz
Manufacturer & Country
Product Information
Manufacture: Product: Product type: #
Jakob Hatteland Display 19 Inch JH 19T01MMD-A1-831
NORWAY TFT
Serial Number
Description
100W
115VAC/50-60Hz
230VAC/50-60Hz
Power rating
Product Type and Serial Number
JH XXAXX AAA-AX-XXX NOMENCLATURE
JH 19T01 MMD-A1-831 Example
Serial Number
Sub Version (AC-Odd / DC-Even number)
Version (Number & Product Name)
TFT (Thin Film Transistor)
Display Size (inch)
Jakob Hatteland (manufacturer)
Product & Serial Number
Input Volt
Warranty Label
If you are to perform service on a unit still under warranty, any warranty will
be void if this label is attempted removed/re-glued or removed completely.
This label is usually located on the back of the product and near the serial
number label. This is to help our service department to better determine if there
has been any unauthorized service on a product still under warranty.
General
IND100077-23
11
INB100014-1 (Rev 19)
Touchscreen products
Introduction to Jakob Hatteland Display products with touchscreen
We use both Resistive and Capacitive touchscreen solutions for our products. Please visit our
website to nd your exact type number and then determine if it uses Resistive or Capacitive.
If you have a customized or tailored product, please check the specications in this manual or
third-party specications from your supplier.
Capacitive Touchscreen
Capacitive touchscreens operate using oscillator circuits that are located in each corner of the
glass overlay and measure the capacitance of the area to be “touched”. Depending on where the
user touches the overlay, the oscillators will vary in frequency. A touchscreen controller then
measures the frequency variations to ascertain the coordinates of the person’s touch. This glass
overlay has a coating that stores the charge deposited over its surface electrically. It will not
operate with either a gloved hand or with a mechanical stylus.
CAPACITIVE - Brief Specications
Subject Details
Construction Top: ClearTek protective overcoat protects the sensors and increase durability.
Positional Accurancy Reported touch coordinates are within 1.0% of true position. (Based on viewing area dimensions)
Touch Contact Requirements 3 ms for nger input.
Enduarance Tested More than 225 million touches in one location without noticable degradation to the surface.
Cleaning Water, isopropyl, alcohol, and similar non-abrasive cleaners.
Liquid Resistance Liquids on screen does not impede touchscreen performance.
Light Transmission Up to 88% at 550 nm; dependant on specic surface nish chosen.
Inside: Electrode X/Y grid pattern and conductive coating.
Bottom: Glass and conductive coating.
Small amount of voltage is applied to the four corners for measuring X and Y coordinates of the touch point.
Resistive Touchscreen
It generally uses a display overlay composed of layers, each with a conductive coating on the
interior surface. Special separator “dots” are distributed evenly across the active area and
separate the conductive interior layers. The pressure from using either a mechanical stylus or
nger produces an internal electrical contact at the “action point” which supplies the controller with
vertical and horizontal analog voltages for data input. The resistive touchscreens are anti-glare to
reduce reective shine intensity, which will slightly diffuse the light output throughout the screen.
Resistive technology activation can be initiated by; a gloved hand, ngernail, mechanical stylus
or an ungloved nger.
RESISTIVE - Brief Specications
Subject Details
Construction Top: Polyester with outside hard-surface coating with clear or anti-glare nish.
Positional Accurancy Standard deviation of error is less than +- 0.080-inch (2mm).
Touch Activation Force Typically 57 to 133 g
Expected Life Performance More than 35 million touches in one location without failure, using a stylus similar to a nger.
Chemical Resistance
(Exposed for one hour)
Light Transmission Typically 75% over visible light spectrum.
Inside: Transparent conductive coating.
Bottom: Glass substrate with uniform conductive coating.
Top and bottom layers separated by separator dots.
Acetone, Ammonia-based glass cleaners, Common food and beverages,
Hexane, Isopropyl alcohol, Methylene chloride, Methyl ethyl ketone,
Mineral spirits, Turpentine
IND100110-1
Touchscreen
12
INB100014-1 (Rev 19)
Touchscreen products
Location of Touchscreen label
Information about the factory mounted touchscreen and what driver to use, are indicated
on the dedicated label. The location is shown in this illustration together with label example.
(This label is attached on products produced after September 2006)
TOUCH SCREEN
This product is equipped with a Resistive Touch Screen:
Manufacturer : ELO TouchSystems
Touch Controller : 2210 Serial Controller P/N 055165-000
Driver Download : www.elotouch.com
VSD100564-2210
Product Information
Manufacture: Product: Product type: #
Jakob Hatteland Display 19 Inch JH 19T01MMD-A1-831
NORWAY TFT
Serial Number
115VAC/50-60Hz
100W
230VAC/50-60Hz
This product is equipped with a Resistive Touch Screen:
TOUCH SCREEN
Manufacturer : ELO TouchSystems
Touch Controller : 2210 Serial Controller P/N 055165-000
Driver Download : www.elotouch.com
VSD100564-2210
Example label only
Up-2-date touchscreen drivers and documentation:
Please visit the 3rd party website as indicated on the label. You can also visit our website www.hatteland.com
to view the full list of our models with touchscreen. Before using the touchscreen, it should be calibrated for
your system. Please install the 3rd party software and use the Calibrate function from there.
IND100110-3
Touchscreen
13
INB100014-1 (Rev 19)
14
INB100014-1 (Rev 19)
Installation
15
INB100014-1 (Rev 19)
General Installation Recommendations
Installation and mounting
1. Most of our products are intended for various methods of installation or mounting

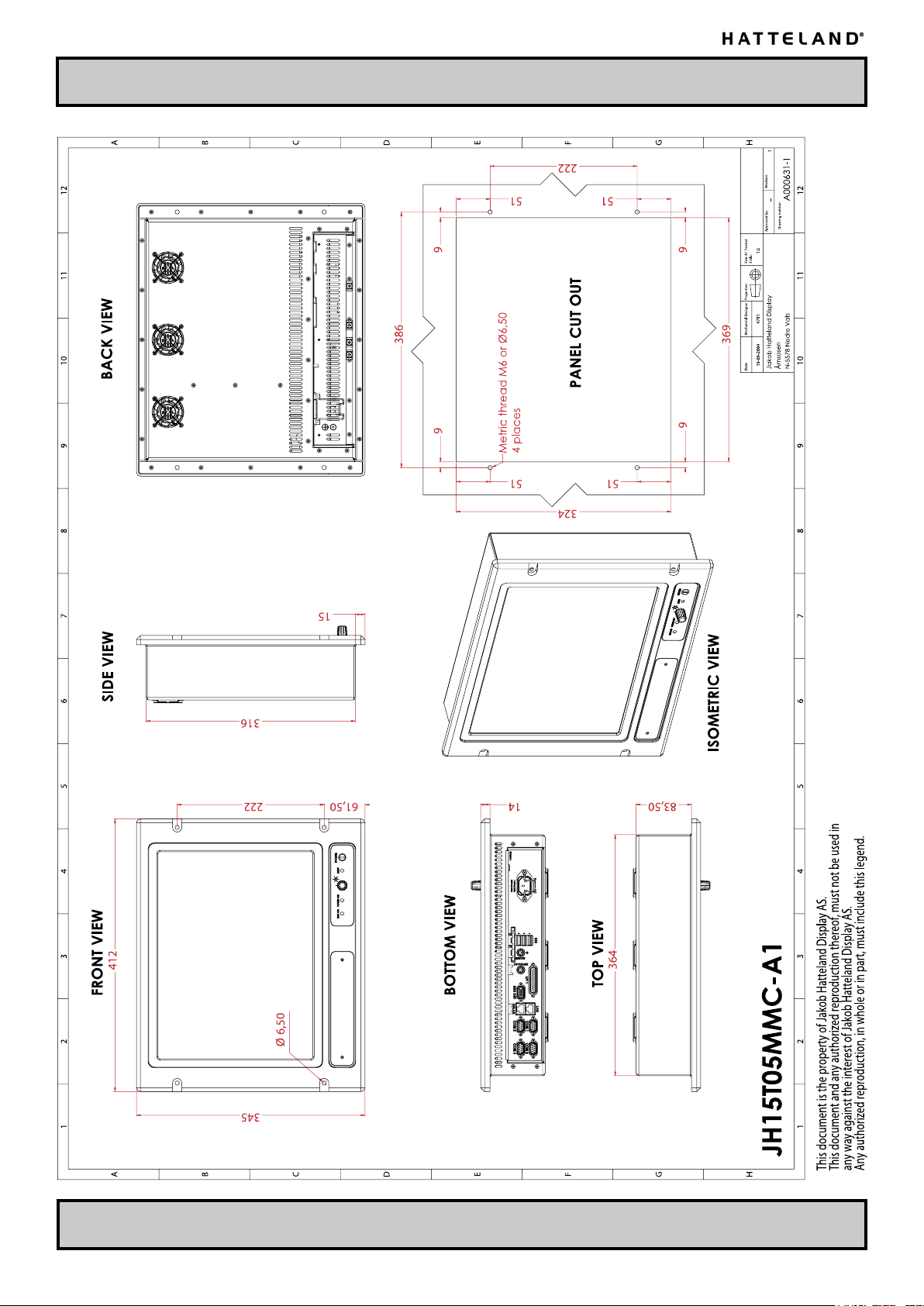

(panel mounting, bracket mounting, ceiling/wall mounting etc.); for details, please see the relevant
mechanical drawings.
2. Adequate ventilation is a necessary prerequisite for the life of the product. The air inlet and outlet
openings must denitely be kept clear; coverings which restrict ventilation are not permissible.
3. Do not install the unit in a horizontal position (laying down), as this will cause heat to build up
inside the display which will damage the LCD Panel. To prevent this problem we recommend
installing the unit in a vertical position (±30 degrees) to improve the airow through the unit.
4. Exposure to direct sunlight can cause a considerable increase in the temperature of the unit, and
might under certain circumstances lead to overtemperature. This point should already be taken
into consideration when the bridge equipment is being planned (sun shades, distance from the
windows, ventilation, etc.)
5. Space necessary for ventilation, for cable inlets, for the operating procedures and for
maintenance, must be provided.
6. To further improve the cooling of the unit we recommend installing Cooling Fans underneath
blowing upwards into the unit air inlet. This may be required in high temperature applications
and also when there is reason to expect temperature problems due to non-optimal way of
mounting(Ref.2-5).
7. If the push buttons of the product are not illuminated, an external, dimmable illumination
(IEC 60945, 6.5.c, e.g. Goose neck light is required for navigational use.
8. Information about necessary pull-relievers for cables is given in the installation drawings.
Attention must be paid to this information so that cable breaks will not occur, e.g. during service
work.
Brightness knob precaution
Please be aware of the risk of breaking or bending the brightness knob. The brightness knob
should be free of any obstruction.
IND100078-10
Installation
16
INB100014-1 (Rev 19)
General Installation Recommendations
Ergonomics
1. Adjust the unit height so that the top of the screen is at or below eye level. Your eyes should
look slightly downwards when viewing the middle of the screen.
2. Adjust screen inclination to remain gaze angle to the centre of the screen approximately
perpendicular to the line of gaze.
3. When products are to be operated both from a sitting position and from a standing position, a
screen inclination of about 30° to 40° (from a vertical plane) has turned out to be favourable.
4. The brightness of displays is limited. Sunlight passing directly through the bridge windows - or its
reection - which falls upon the screen workplaces must be reduced by suitable means
(negatively inclined window surfaces, Venetian blinds, distance from the windows, dark colouring
of the deckhead)
5. Units in the bridge wing area must be installed or mounted by suitable alignment or
bulkhead/ deckhead mounting in such a way that reections of light from the front pane of the
display are not directed into the observer’s viewing direction.
6. The use of ordinary commercial lter plates or lter lms is not permitted for items of equipment
that require approval (by optical effects, “aids” of that kind can suppress small radar targets, for
example).
General mounting instructions
- The useful life of the components of all Electronics Units generally decreases with increasing
ambient temperature; it is therefore advisable to install such units in air-conditioned rooms. If there
are no such facilities these rooms must at least be dry, adequately ventilated and kept at a suitable
temperature in order to prevent the formation of condensation inside the display unit.
- With most Electronic Units, cooling takes place via the surface of the casing. The cooling must not
be impaired by partial covering of the unit or by installation of the unit in a conned cabinet.
- In the area of the wheel house, the distance of each electronics unit from the magnetic standard
compass or the magnetic steering compass must not be less than the permitted magnetic
protection distance.
This distance is measured from the centre of the magnetic system of the compass to the nearest
point on the corresponding unit concerned.
- Units which are to be used on the bridge wing must be installed inside the “wing control console”
protected against the weather. In order to avoid misting of the viewing screen, a 25 ... 50 W
console-heating (power depending on the volume) is recommended.
- When selecting the site of a display unit, the maximum cable lengths have to be considered.
Installation
IND100078-10
17
INB100014-1 (Rev 19)
Loading...
