Elo TouchSystems E761200 User Manual
Optional accessories for the Elo® Tablet
Tablet Docking Station - P/N E518363
Accessory Battery - P/N E840851
VESA Bracket - P/N E624438
Stylus - P/N E761200
Elo Touch Solutions Technical Support
Online self-help: www.elotouch.com/go/websupport
Technical Support contats in your region:
www.elotouch.com/go/contactsupport
NFC
Antenna

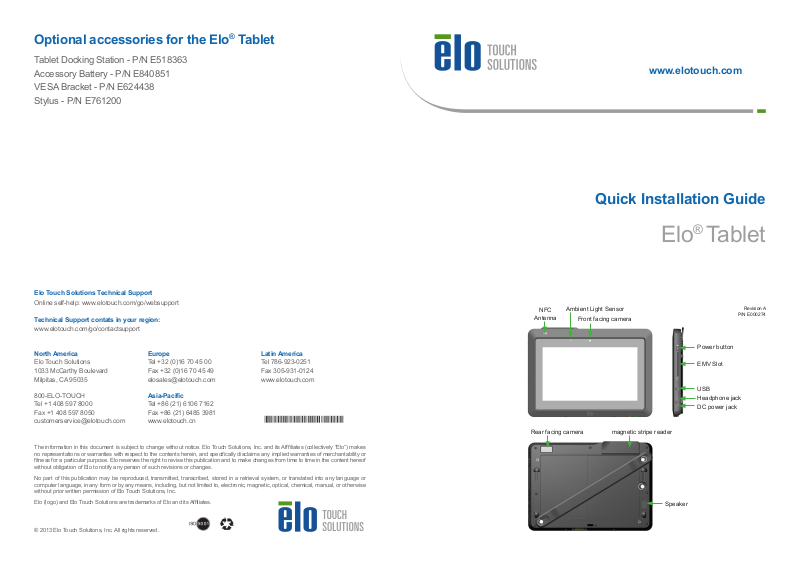

Quick Installation Guide
Ambient Light Sensor
Front facing camera
www.elotouch.com
Elo® Tablet
Revision A
P/N E000274
North America
Elo Touch Solutions
1033 McCarthy Boulevard
Milpitas, CA 95035
800-ELO-TOUCH
Tel +1 408 597 8000
Fax +1 408 597 8050
customerservice@elotouch.com
The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affliates (collectively “Elo”) makes
no representations or warranties with respect to the contents herein, and specically disclaims any implied warranties of merchantability or
tness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof
without obligation of Elo to notify any person of such revisions or changes.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise
without prior written permission of Elo Touch Solutions, Inc.
Elo (logo) and Elo Touch Solutions are trademarks of Elo and its Afliates.
© 2013 Elo Touch Solutions, Inc. All rights reserved.
Europe
Tel +32 (0)16 70 45 00
Fax +32 (0)16 70 45 49
elosales@elotouch.com
Asia-Pacic
Tel +86 (21) 6106 7162
Fax +86 (21) 6485 3981
www.elotouch.cn
Latin America
Tel 786-923-0251
Fax 305-931-0124
www.elotouch.com
Power button
EMV Slot
USB
Headphone jack
DC power jack
Rear facing camera magnetic stripe reader
Speaker
Installation
Please go to www.elotouch.com\support to verify you have the latest drivers before installing
this device.
Install the battery
1
Lock the battery in place with the thumbscrew
2
Install hand strap making sure the slotted end of the strap is fastened to the
3
top side of the tablet. The strap can be installed for right or left handed use.
Slot
Connect the DC power cable to charge the battery.
4
The charge indicator LED will ash while the battery is
charging.
Power button
Charge Indicator LED
