This chapter discusses how to set up and test your touchcomputer. For information
on peripheral options, refer to Chapter 3, “Options and Upgrades.”
Unpacking Your Touchcomputer
C H A P T E R
1
SETUP
Check that the following items are present and in good condition:
C-S
ERIES TOUCHCOMPUTER USER GUIDE 1
Adjusting the Display
The display screen can be adjusted from 0 to 70 degrees, as shown below.
CAUTION: To prevent tipping or dropping, be su re to hold the base when adjusting
the display.
Setting Up the Operating System
If configured with an operating system, the initial setup of the operating system
takes approximately 5-10 minutes. Additional time may be needed depending on
touchcomputer hardware configurations and connected devices.
To set up the Microsoft® Windows® Operating System for the touchcomputer, turn
on the touchcomputer by pressing the power button, and then follow the
instructions on the screen.
Selecting the Language (For POSReady 2009 Only)
Microsoft Windows® uses English as the default language in menus and dialog
boxes. You can change this language to suit your preferences at the screen below.
Note: If you choose to change the language after initial setup, you can follow steps
1-2 to arrive at the same screen below:
C-S
ERIES TOUCHCOMPUTER USER GUIDE 2
1. From the desktop, click Start > Control Panel
2. In the Control Panel screen, select Regional and Language Options.
3. Click Customize. The Regional and Language Options window appears.
Select the Languages tab.
4. If required, check the boxes for “Install files for complex script and right-to-left
languages” and “Install files for East Asian languages.”
5. Select the Regional Options tab.
6. Select your preferred language from the drop-down list in the Standards and
formats pane.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 3
7. Click Apply.
8. Select your location from the drop-down list in the Locations pane.
9. Click OK.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 4
Selecting the Time Zone (POSReady 2009 Only)
When the following window appears, you can change the time zone, date, and time
of the touchcomputer.
After making any changes, click Next to finish. Windows Setup completes the
installation of the touchcomputer.
Injecting the Languages (For Windows 7 Only)
Windows 7 Professional only allows the use of one language at one time. But you
can use the Elo TouchSystems language injection tool to update your language
preference. English is set as the default language, but you can change this
language to suit your preferences.
1. After the TE logo shows up, press F8 (frequently) to enter Advanced Boot
Options.
2. Select Repair your computer.
3. Click Next OK (Shall not have password) Click Elo Touch System Tool.
4. The following UI shall be presented.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 5
5. Click Inject, and the following window will pop out.
6. Click the drop-down list and select the preference language.
7. Click Inject Selected Language
8. The following window shall be presented.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 6
9. After the language package is installed correctly, press any key to exit this
window.
10. Click Exit Exit Restart
Selecting the Region (For Windows 7 Only)
When the following window appears, you can change the country, time and
currency, and keyboard layout of the touchcomputer.
After making any changes, click Next to continue.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 7
Choosing the Computer Name (For Windows 7 Only)
When the following window appears, you can choose a computer name of the
touchcomputer.
After making any changes, click Next to continue.
Selecting the Update Options (For Windows 7 Only)
When the following window appears, you can select one of the update options of
the touchcomputer. In general, you can choose Use recommended settings as
your default option.
After making any changes, click Next to continue.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 8
Reviewing the Time and Date Settings (For Windows 7 Only)
When the following window appears, you can set up the time and date of the
touchcomputer.
After making any changes, click Next to finish. Windows Setup completes the
installation of the touchcomputer.
Calibrating the Touchscreen
The touchscreen is pre-calibrated for accurate touch response.
If for any reason the touchscreen needs to be recalibrated, right-click the Elo icon
in the Taskbar and then click “Properties.” The following window opens.
NOTE: Calibration is not applicable on APR touchscreen models.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 9
Click the Align button. This launches the calibration program. The window shown
below opens. Follow the instructions to calibrate the touchscreen.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 10
Securing the Base
Use the four pretapped holes to secure the touchcomputer from below the
mounting surface. The holes are designed to work with ISO metric M4 screws.
Mounting screws are not included with the product but should be readily available
at any hardware store. Refer to the figure below for the location of the holes. All
dimensions are in millimeters.
1)
Mounting Diagram
C-S
ERIES TOUCHCOMPUTER USER GUIDE 11
C H A P T E R
2
OPERATION
This chapter describes how to control the On-Screen Display (OSD), power
buttons, and I/O panel.
All adjustments made to the OSD and power controls are automatically saved.
User settings remain unchanged after powering off/on or in the case of a power
failure.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 12
On-Screen Display (OSD)
OSD Menu

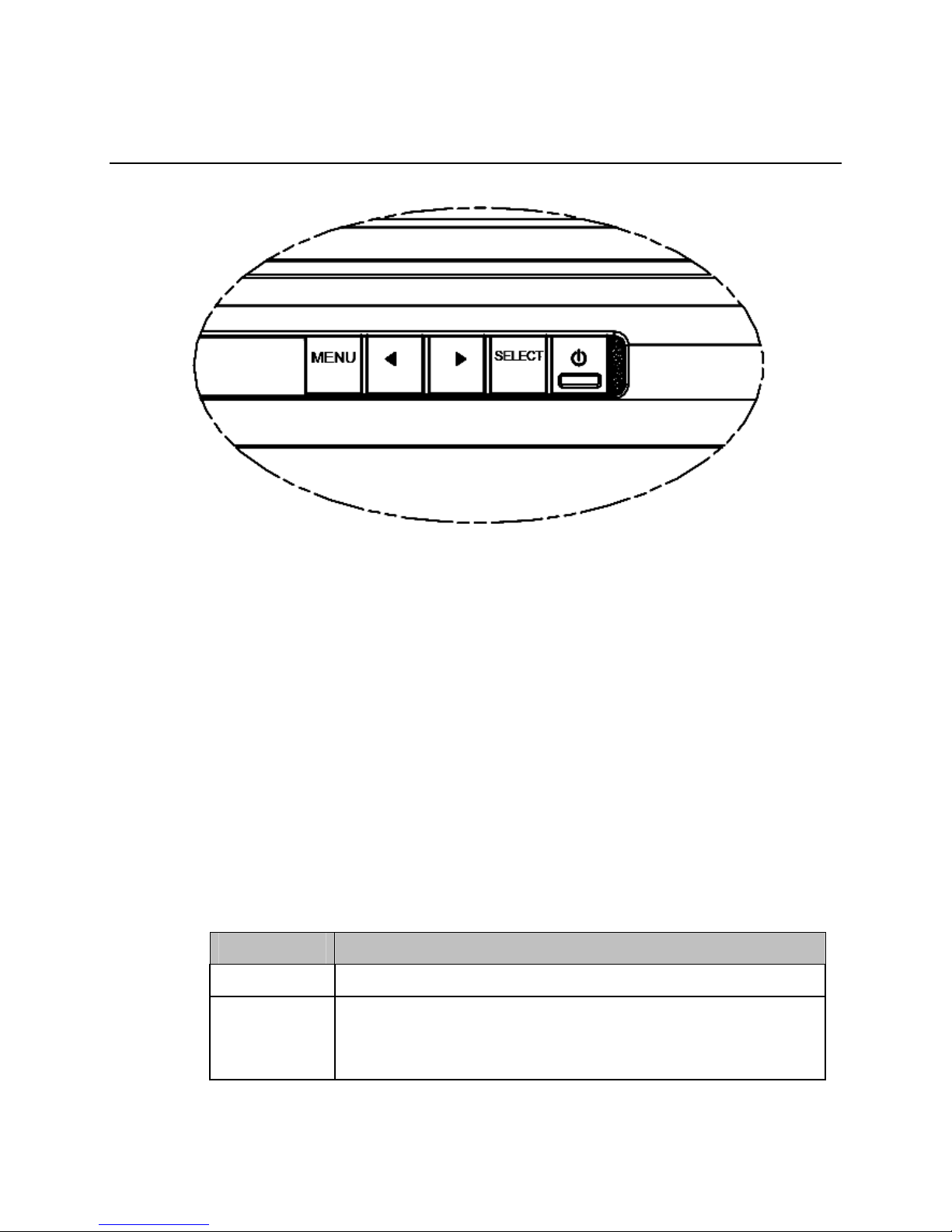

1. To display the OSD Menu, press the Menu button.
Press the RIGHT button or LEFT button to toggle and the SELECT button to
select from the different OSD sub-menus and functions.
2. When the function you want to change is shown, press the SELECT button.
3. To adjust the value of the function:
4. Pressing the RIGHT button increases the value of the selected OSD control
option.
5. Pressing the LEFT button decreases the value of the selected OSD control
option.
The OSD provides the following settings.
Feature Description
Auto adjust Automatically adjusts system clock.
Brightness Adjust brightness and contrast.
C-S
Brightness: Adjusts the backlight of the monitor.
Contrast: Adjusts the maximum luminance level of the monitor.
ERIES TOUCHCOMPUTER USER GUIDE 13
Feature Description
Image setting Adjusts H position, V position, clock, and phase.
H position: Moves the screen horizontally right and left (1 pixel
pitch increment).
V position: Moves the screen vertically up and down (1 line
increment).
Clock: Adjusts the ratio of dividing frequency of the dot clock.
Phase: Adjusts the phase of the dot clock.
Color Sets color temperature (9300K, 7500K, 6500K, 5500K, or User
Preset).
OSD Adjusts H position, V position, and OSD timeout.
H position: Adjusts the OSD menu screen position left or right.
V position: Adjusts the OSD menu screen position up or down.
Timeout: Adjusts the amount of time that the OSD menu is
displayed.
Language Changes language to English, French, Italian, German, Spanish,
Japanese, Simplified Chinese, or Traditional Chinese.
Recall Sets color recall and recall defaults. Restores original factory settings.
Miscellaneous Adjusts sharpness, enables/disables DDC/CI function.
Exit Exits the OSD.
OSD and Power Button Control
The OSD menu and power button are enabled by default.
To enable or disable the OSD function:
6. Simultaneously press Menu/Exit and the Left (<
window appears displaying OSD ENABLE or OSD DISABLE.
7. When the OSD is disabled, the OSD menu is not visible.
To enable or disable the power button (PWR) lock function:
8. Simultaneously press Menu/Exit and the Right (->) key for two seconds.
window appears displaying PWR ENABLE or PWR DISABLE.
-) key for two seconds. A
A
9. When the power button lock feature is activated, the power button is disabled.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 14
L.E.D. Functionality
The C-Series base has a LED indicating the state of the touchcomputer. The table
below shows LED state and corresponding color.
LED Color to Observer State
Off No input power — Off mode
Red Input power present – Off mode or hibernation
Orange Input power present — Standby
Green Input power present — Power On
C-S
ERIES TOUCHCOMPUTER USER GUIDE 15
Using the Input/Output Panel
To access the input/output (I/O) ports, remove the cable cover at the bottom of the
unit. A security screw is included and may be used to secure the cable cover to the

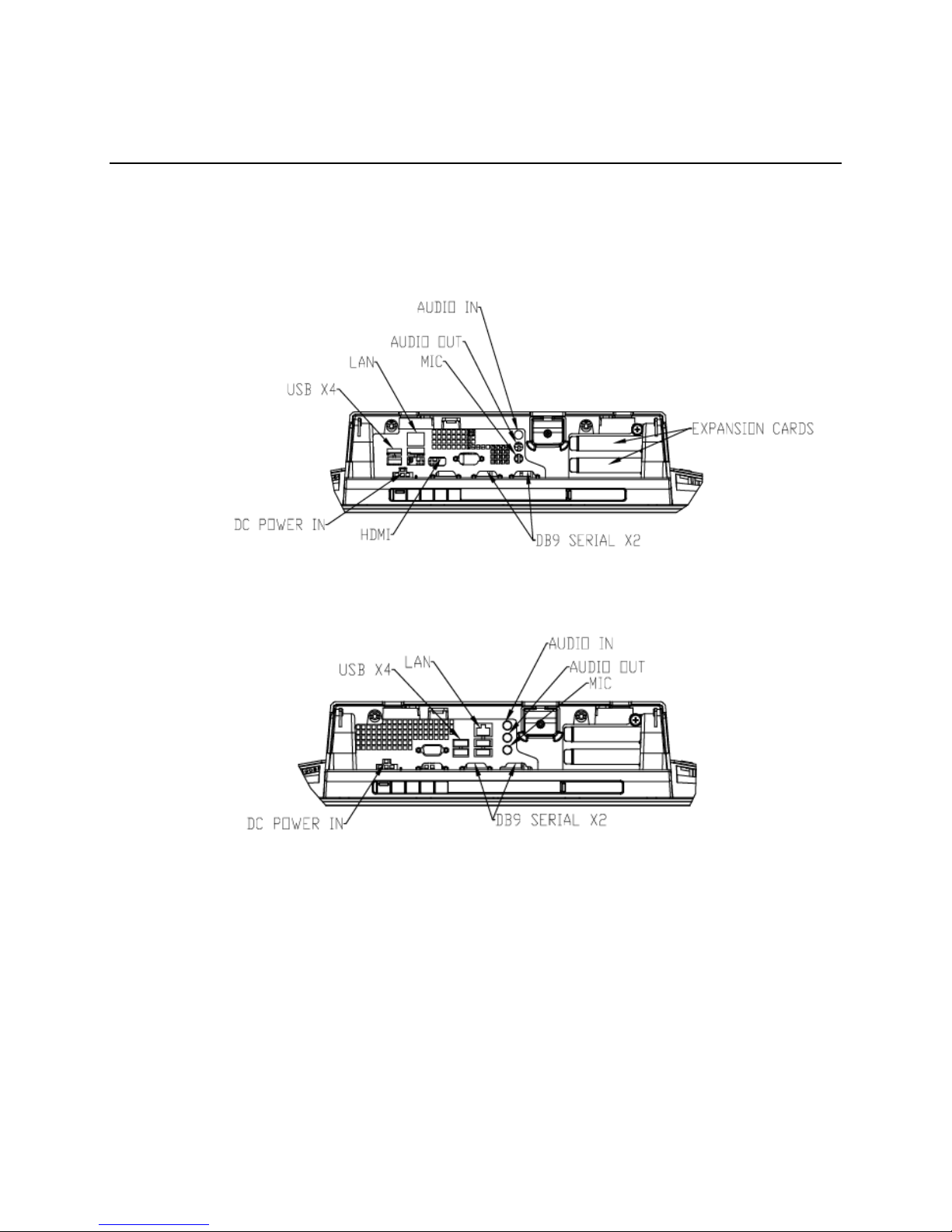

touchcomputer. Below are the I/O descriptions by model:
C1 and C3 models
C2 models
Note: The DB9 Serial (COM) ports are defaulted (from left to right) COM5 and COM6
Note: As a safety precaution, always leave the cable cover door attached when the
system is powered on.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 16
Adding Optional Peripherals
When adding a peripheral, complete installation and setup instructions are
provided with the field-installable kits. The following peripherals are available for
purchase separately as field-installable kits:
C H A P T E R
3
OPTIONS AND UPGRADES
Magnetic stripe reader (MSR)*
Customer display*
Fingerprint reader (FPR )*
Wireless adapter
Cash Drawer Port Expansion Card
Second VGA port expansion card**
Second hard disk drive (HDD)
Solid State Drive (SSD)
RAID PCI-E***
Modem PCI-E***
Parallel Port PCI-E***
Webcam Kit
* External Elo Peripheral ** Elo Expansion Card *** Elo PCI-E Expansion Card
Note: Software drivers and applications for all peripherals are located in the C:\EloTouchSystems
directory of the touchcomputer.
Note: May install up to two (2) Elo Expansion Cards OR one (1) Elo Expansion Card + one (1)
PCI-E Expansion Card
C-S
ERIES TOUCHCOMPUTER USER GUIDE 17
Magnetic Stripe Reader (MSR)
You can add a magnetic stripe reader (MSR) to the C-Series touchcomputer to any
of the 4 mounting locations located on the display head top, bottom, left, and right.
Software application and drivers can be found in the following directory or on
www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
The MSR is a USB 2.0 device that reads all three data stripes on standard credit
cards or driver’s licenses conforming to ISO/ANSI standards. The MSR has foreign
language capability. The credit card is read by sliding the credit card forward or
backward through the MSR, stripe side toward the display. The MSR is powered
from the USB port; no external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bi-directional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-KB and USB-HID
Fully supports USB 2.0
Part number: E545781
Testing the MSR
Testing in USB MSR Keyboard (KB) Emulation Mode
10. Open the Notepad application (click Start > Accessories > Notepad).
11. Slide the card through the MSR and verify that the data is displayed in the
application window.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 18
Testing in USB MSR Human Interface Device (HID) Mode
12. Double-click the MagSwipe HID De
mo icon to start the test application.
13. Slide a card through the MSR and verify that the data is displayed in the
application window.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 19
14. If the card ID appears in the Reader Output window, the reader is functioning.
Customer Display
You can optionally add a customer display to the C-Series touchcomputer to any of
the four mounting locations located on the display head top, bottom, left, and right
of the touchcomputer. Software application and drivers can be found on
www.elotouch.com
Feature Description
Display type Vacuum fluorescent display
Display color Green
Display pattern 5 x 7 dot matrix
Brightness 350-600 cd/m2
Characters available 95 alphanumeric & 32 international characters
Dot size (X x Y) 0.86 x 1.2 mm
Font size 5.5(W) x 10.5(H)
Character number 20 characters by 2 lines, for a 5 x 7 dot matrix font
Interface USB
Part number E879762
C-S
ERIES TOUCHCOMPUTER USER GUIDE 20
Fingerprint Reader (FPR)
You can add a fingerprint reader to the C-Series touchcomputer to any of the four
mounting locations located on the display head top, bottom, left, and right.
Software application and drivers can be found in the following directory or on
www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
The fingerprint reader is powered by the USB bus. The reader optically scans the
fingerprint when the user touches the glowing window. Optical technology gives
the highest quality fingerprint scans and reliability.
Fingerprint reader specifications are shown in the table below.
Feature Specification
Fingerprint reader DigitalPersona U.are.U
Power supply 5.0VDC +/- 0.25V
Current draw – scanning mode 190 mA (typical)
Current draw – idle mode 140 mA (typical)
Current draw – suspend mode 1.5 mA (typical)
Image resolution 512 dpi
Image color 8-bit gray level
Scan capture size 14.6mm (nominal width) x 18.1mm (nominal length)
Image capture speed 100 ms
USB type 1.0, 1.1, or 2.0
Operating temperature 0 to 40°C
Electrostatic discharge (ESD) Up to 15kV mounted in case
Part number E375206
Testing the FPR

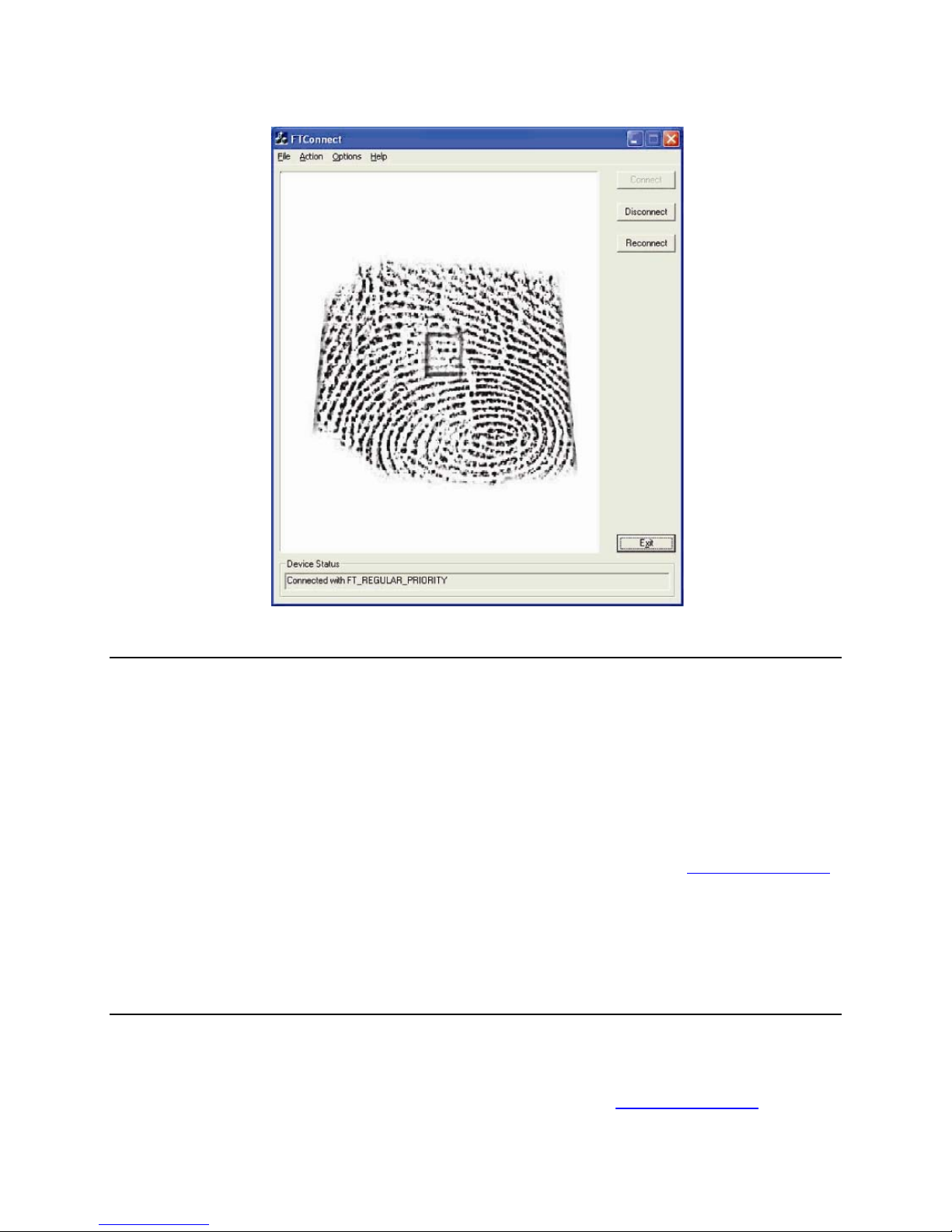

15. Double-click the Fingerprint Reader Test icon to start the test application.
16. Place your finger on the fingerprint reader sensor and verify that the image of
your fingerprint is displayed on the application window.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 21
Cash Drawer Port Card
A Cash Drawer Port Card can be installed in any available expansion slot. This
card provides:
2 x 12V Powered USB ports
1 x 12V or 24V selectable cash drawer RJ11 port. The voltage setting can
be set via jumper on the card prior to installing into the touchcomputer.
Test applications can be found in the following directory or on www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
Part number: E318237
Second VGA Port Card
:
A second VGA video card can be added to any available expansion slot. This card
provides a VGA port to drive another VGA display. Software application and
drivers can be found in the following directory or on www.elotouch.com
C-S
ERIES TOUCHCOMPUTER USER GUIDE 22
C:\EloTouchSystems\SetupFiles\Peripherals
Part number: E017487
Wireless Card
A wireless adapter can be installed as an option in the C-Series touchcomputer in
the I/O area under the cable cover.
Typical specifications for the wireless card are:
USB module
Compliant to USB 2.0 industry standards
IEEE 802.11b/g/n compliant
RoHS compliant
Part number: E249774
Testing the Wireless Card
To test the wireless card:
1. From the desktop, click Start > Control Panel > Network Connections
2. Double-click the Wireless Network Connections icon to display available
networks and verify that the wireless network is detected.
NOTE: If a wireless network needs to be initialized, please see your system
administrator.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 23
Second Hard Disk Drive
A second hard disk drive can be added via the second hard drive mounting kit. This
addition provides extra data storage or can be used in conjunction with the RAID
controller card for RAID functionality. This option occupies a single expansion slot.
Part number: E596876
Solid State Drive
A solid state drive can be added to (or used to replace) the original hard disk drive.
This addition provides additional performance and more mechanically reliability in
harsh environments.
Part number: E112963
Modem Card
A modem card can be added to any expansion slot. This provides modem/fax
functionality. Software drivers can be found in the following directory or on
www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
Part number: E763313
Note: To use this option ALSO requires the purchase and installation of the Elo
PCI-E Expansion Card Option Kit, part number E827958.
Parallel Port Card
A parallel port card can be added to any Expansion slot. This option provides a
parallel port for printer interfaces only. Software drivers can be found in the
following directory or on www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
:
:
Part number: E368899
Note: To use this option ALSO requires the purchase and installation of the Elo
PCI-E Expansion Card Option Kit, part number E827958.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 24
RAID Controller Card
A RAID controller card can be added when used in conjunction with a second HDD
kit to provide RAID 0 and 1 functionality. Software drivers can be found in the
following directory or on www.elotouch.com
C:\EloTouchSystems\SetupFiles\Peripherals
Part number: E383216
Note: To use this option ALSO requires the purchase and installation of the Elo
PCI-E Expansion Card Option Kit, part number E827958.
Webcam Kit
An integrated webcam kit with a built-in microphone is available for the C-Series
touchcomputer. The Webcam module is a USB-powered device that includes a 2.0
megapixel camera, with stereo microphones built in. This webcam is capable of
2.0MP video at 5fps. This webcam can run on the drivers that are already preset in
Windows Vista and Windows 7, and POSReady 2009. The built-in digital
microphone for this webcam module is compliant with USB Audio Class 1.0.
Webcam module specifications are shown in the table below:
:
Feature Description
2.0MP Webcam w/2 x Digital
Microphone MIT-AA20DA1
USB Type 1.0, 1.1 or 2.0
1600x1200, 1280x1024, 640x480, 352x388,
Video Resolution
Auto Frame Rate
Field Of View (FOV) 66°
Focus Range 40cm ~ Infinity
Input Voltage 5.0VDC ± 0.25V
Operation Current Under 150mA
Standby Mode 40mA ± 5mA
Operating Temperature 0 to 40°C
320x240, 176x144, 160x120
5fps max @ 2.0 megapixels (1600x1200);
24fps max @ VGA mode (640x480)
C-S
ERIES TOUCHCOMPUTER USER GUIDE 25
rted Operating
Suppo
Systems
Part Number E682058
Elo POS Demo Software
POS demo software created by Elo TouchSystems is located on the desktop in the
Demos folder.
Windows XP, Windows 7, Windows Vista, POSReady
2009
C-S
ERIES TOUCHCOMPUTER USER GUIDE 26
C H A P T E R
4
SAFETY AND MAINTENANCE
Safety
Important information regarding the proper setup and maintenance of your touchcomputer:
To reduce the risk of electric shock, follow all safety notices and never open the
touchcomputer case.
Turn off the product before cleaning (refer to “Care and Handling” on page 30 for
proper cleaning methods).
Your touchcomputer is equipped with a 3-wire, grounding power cord. The power cord
plug only fits into a grounded outlet. Do not attempt to fit the plug into an outlet that has
not been configured for this purpose. Do not use a damaged power cord. Only use the
power cord that comes with your Elo TouchSystems touchcomputer. Use of an
unauthorized power cord might invalidate your warranty.
The slots located on the sides and top of the touchcomputer case are for ventilation.
Do not block or insert anything inside the ventilation slots.
It is important that your touchcomputer remains dry. Do not pour liquid into or onto your
touchcomputer. If your touchcomputer becomes wet, do not attempt to repair it
yourself. Contact Elo Customer Service for instructions.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 27

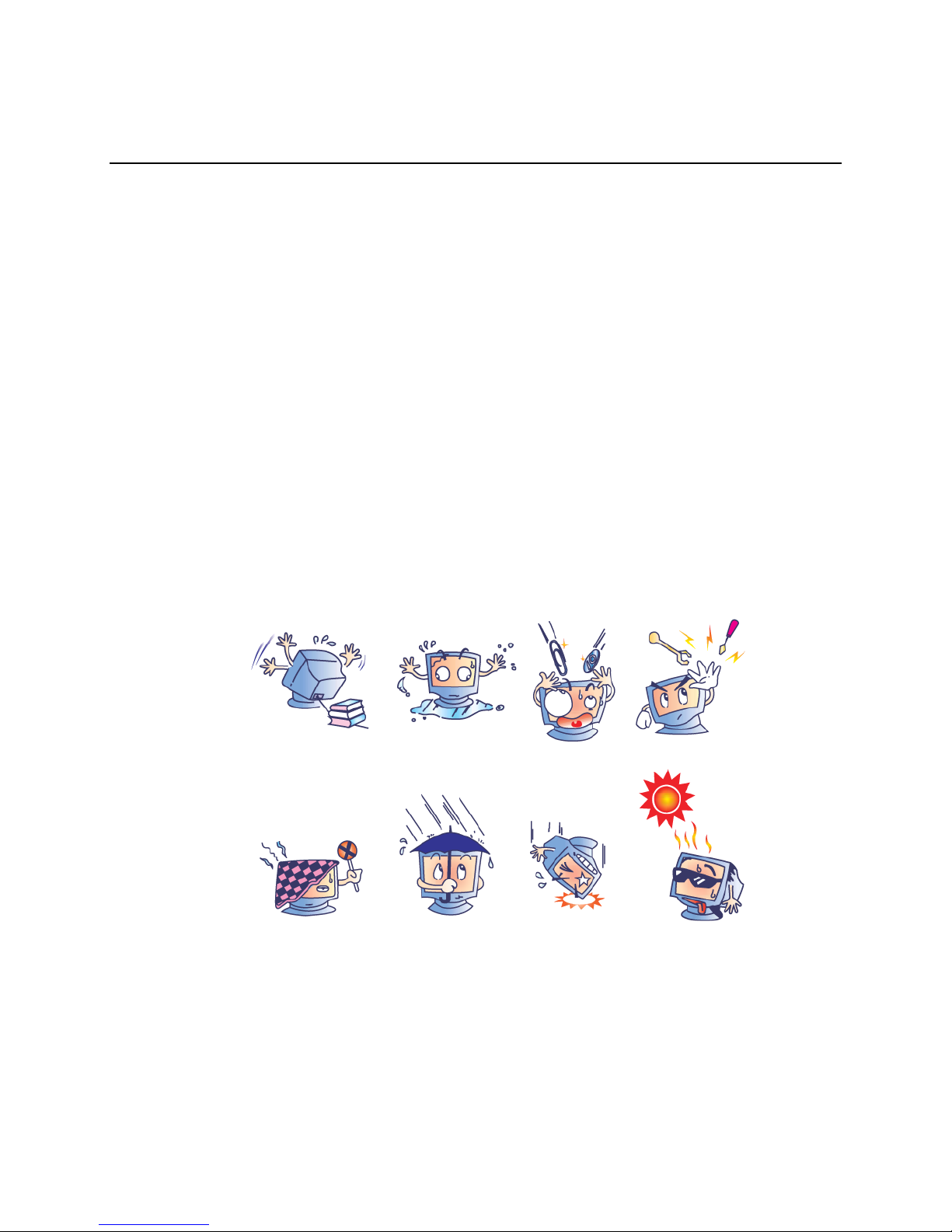

Care and Handling
The following tips help keep your touchcomputer functioning at the optimal level.
To avoid risk of electric shock, do not disassemble the power adapter or display
unit cabinet. The unit is not user serviceable. Remember to unplug the display unit
from the power outlet before cleaning.
Do not use alcohol (methyl, ethyl, or isopropyl) or any strong solvent. Do not use
thinner or benzene, abrasive cleaners, or compressed air.
To clean the display unit cabinet, use a cloth lightly dampened with a mild
detergent.
Avoid getting liquids inside your touchcomputer. If liquid does get inside, have a
qualified service technician check it before you power it on again.
Do not wipe the screen with a cloth or sponge that could scratch the surface.
Warning
To clean the touchscreen, use window or glass cleaner. Put the cleaner on the rag
and wipe the touchscreen. Never apply the cleaner directly on the touchscreen.
This product consists of devices that might contain mercury, which must be
recycled or
disposed of in accordance with local, state, or federal laws. (Within th is
system, the backlight lamps in the monitor display contain mercury.)
C-S
ERIES TOUCHCOMPUTER USER GUIDE 28
WEEE Directive
In the European Union, the Waste Electrical and Electronic Equipment (WEEE)
directive label shown to the left indicates that this product should not be disposed
of with household waste. It should be deposited at an appropriate facility for
recovery and recycling.
Recovering the Operating System
If for any reason the touchcomputer’s operating system and software need to be
recovered, there are two ways you can recover your system:
i. For POSReady 2009: Use the included image to recover the
touchcomputer.
1. After the TE logo shows up, press DOWN (frequently) to enter
Windows Boot Manager.

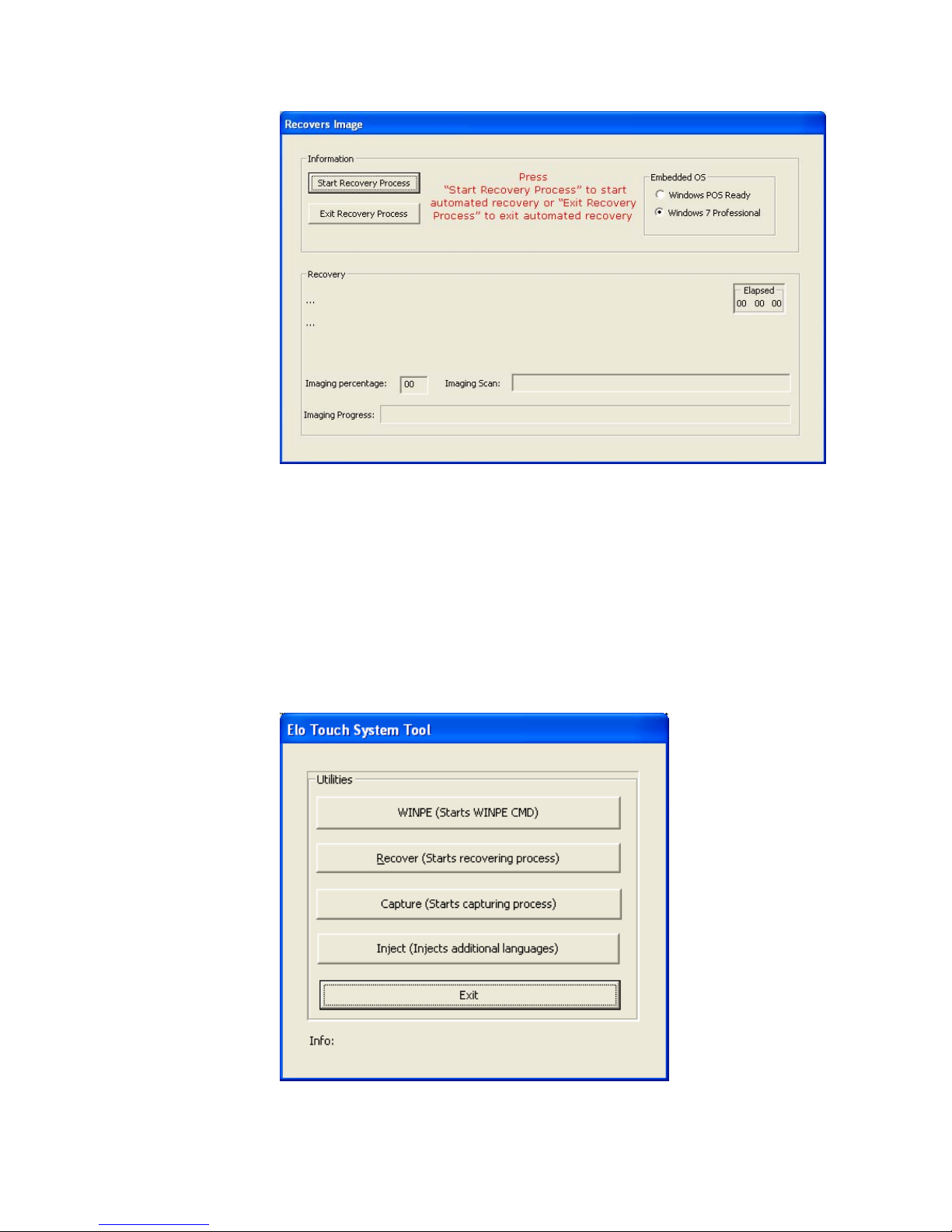

2. Select OS Recovery
3. The following UI shall be presented
4. Click Recover Start Recovery Process
C-S
ERIES TOUCHCOMPUTER USER GUIDE 29
5. After finished, click Exit Exit System will restart automatically
ii. For Windows 7: Use the included image to recover the touchcomputer.
1. After the TE logo shows up, press F8 (frequently) to enter Advanced
Boot Options.
2. Select Repair your computer
3. Click Next OK (Shall not have password) Elo Touch System
Tool
4. The following UI shall be presented
5. Click Recover Start Recovery Process
C-S
ERIES TOUCHCOMPUTER USER GUIDE 30
6. After finished, click Exit Exit Restart
iii. Use the recovery DVD to recover the touchcomputer. Recovery DVD’s can
be ordered if necessary from TE Touch Solutions customer service.
1. Connect the USB DVD drive to the touchcomputer.
2. Place the recovery DVD in the DVD drive.
3. Press “F11” to enter Device Boot Menu and boot touchcomputer from
DVD.
4. After entering the Elo Touch System Tool, click “WINPE” button.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 31
5. Once you see the “Command Prompt” window, type “win7” to start
recovery process for Windows 7 and type “pos9” for Windows
POSReady 2009.
6. Follow the on-screen instruction to complete recovery.
NOTE: All data is deleted during the recovery process. The user must back up
files when necessary. TE Touch Solutions does not accept liability for
lost data or software.
NOTE: If using POSReady 2009 or Windows 7 and your hard disk is corrupted,
you can request a Recovery DVD from TE Touch Solutions customer
service.
NOTE: The end user must adhere to Microsoft's Licensing Agreement.
NOTE: After you recovered your touchcomputer by using the included image,
the operating system might reassign your USB Serial Ports during the
first bootup. You can follow the instructions below to reassign it
manually.
InstructionstoreassigntheUSBSerialPort
1. ForPOSReady2009,rightclickthe“Computer”Click“Properties”
“Hardware”“DeviceManager”.
ForWindows7,rightclickthe“Computer”Click“Properties”
“DeviceManager”.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 32
2. Doubleclickthe“Ports(COM&LPT)”andcheckallofthese“USBSerial
Port”settingsmustbeIDENTICALasthefollowingtable.
Description Location
C-S
ERIES TOUCHCOMPUTER USER GUIDE 33
USBSerialPort(COM3) OnUSBSerialConverterA
USBSerialPort(COM4) OnUSBSerialConverterB

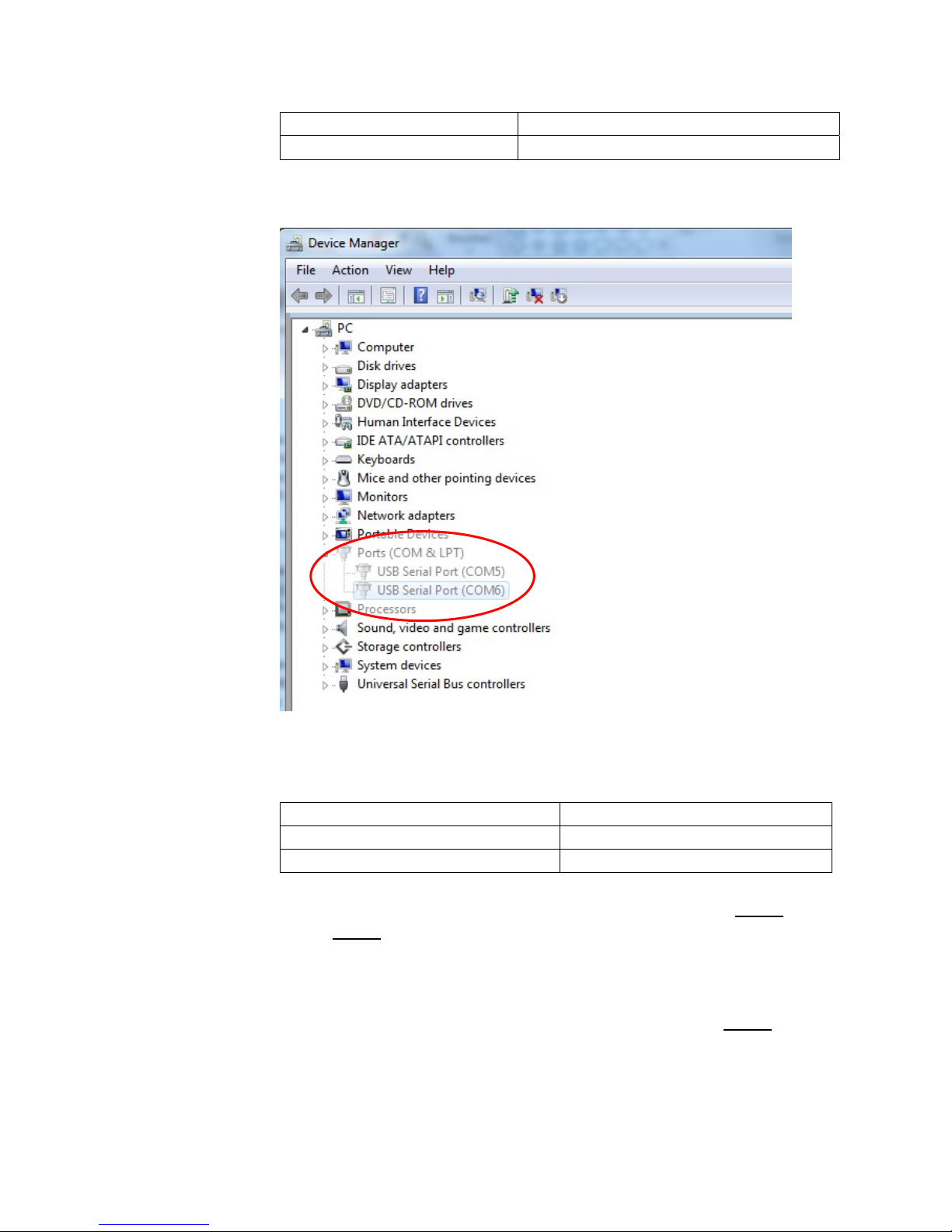

3. Ifyouseeasituationasbelow,itshowstheoperatingsystemhas
reassignedtheseserialports.Youneedtocorrectitmanually.
Inusual,eveniftheoperatingsystemreassignstheseserialports,they
arestillinorder.Inthiscase,youshouldchangeitasthefollowingtable.
Originalone Changeto
USBSerialPort(COM5) USBSerialPort(COM3)
USBSerialPort(COM6) USBSerialPort(COM4)
Thus,thesettingsfortheseUSBSerialPortsshouldbeginatCOM3and
endatCOM4inorder.

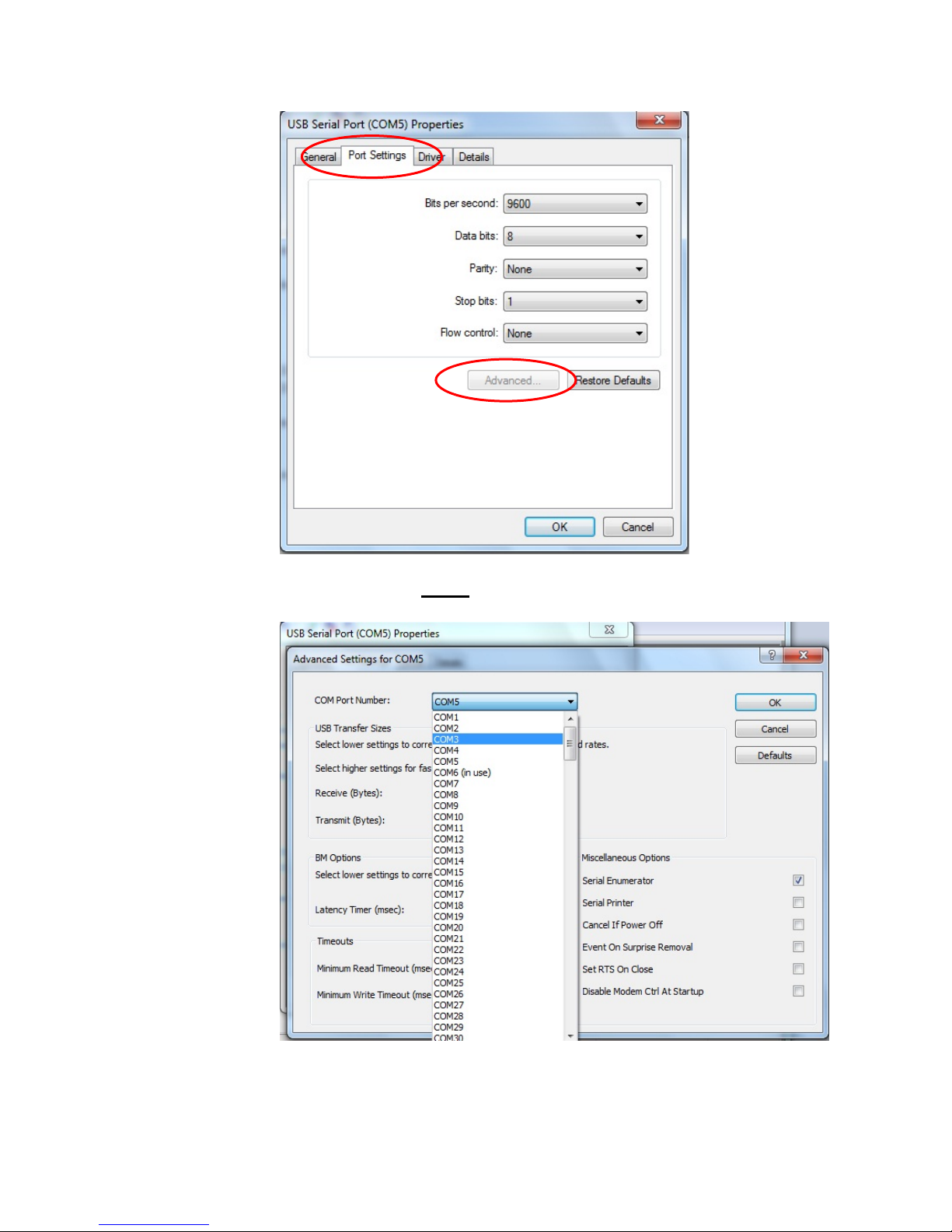

4. Tocorrectit,pleasefollowtheinstructionsbelow:

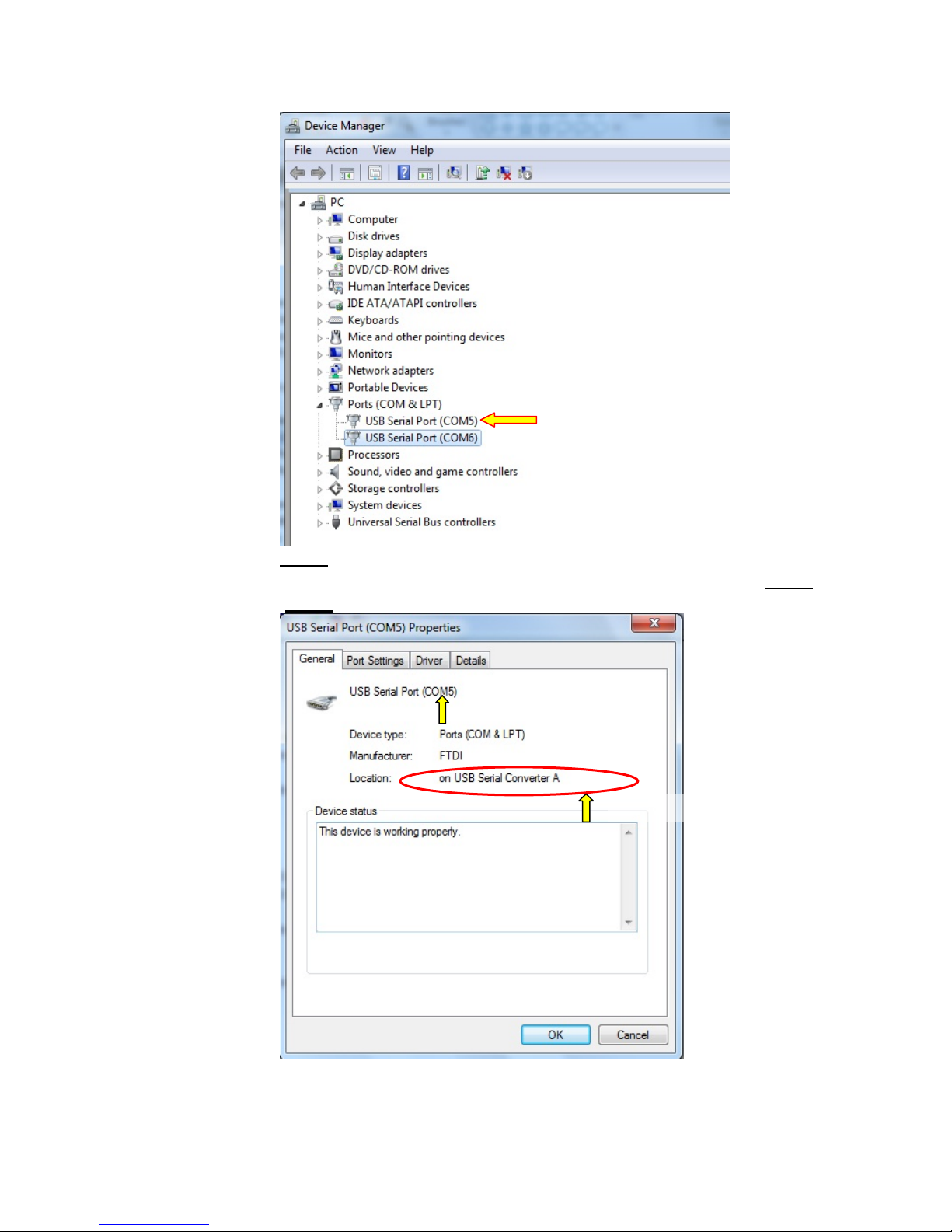

Doubleclicktheportyouneedtochange.Inthiscase,itisCOM5
.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 34
COM5isthe1stportoftheseUSBserialportssothe“Location:”should
be“onUSBSerialConverterA”.PleaseassignthisserialporttoCOM3.
(COM4fortheUSBSerialConverterB).
ChangetoCOM3
LocationInformation
Select“PortSettings”Click“Advanced…”
C-S
ERIES TOUCHCOMPUTER USER GUIDE 35
Inthiscase,selectCOM3fromthedrop‐downmenuclickOKOK
backtotheDeviceManager.
Followthesamestepstoaccomplishthesesettingsforotherports.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 36
Afterfinished,rightclickon“Ports(COM&LPT)”andclickScanfor
hardwarechanges.
5. Theoutcomeshouldbeidenticalasthefollowingdiagram.
C-S
COM3location:USBSerialConverterA
COM4location:USBSerialConverterB
ERIES TOUCHCOMPUTER USER GUIDE 37
Touchcomputer Specifications
NOTE: Not all operating systems or options are supported in all regions. Please
contact your local Elo TouchSystems representative for details.
C H A P T E R
5
TECHNICAL SPECIFICATIONS
Feature
Case/Bezel color
Screen Size
Processor
Chipset
Video
Memory (RAM)
800 MHz min
BIOS
C2 models C3 models
Dark Grey or White
19” / 22” 19” / 22”
Intel 1.66GHz Atom Dual-Core
D510
1MB L2 Cache 6MB L2 Cache
533MHz System Bus 1333MHz System Bus
Intel NM10 Express Intel G41 Express
Intel GMA 3150 Intel GMA X4500
AMI AMI
2GB DDR2 DIMM on 1 of 2 slots
(Expandable to 4GB maximum
on 2 slots)
1
Maximum memory using 2 slots.
Expandable up to 4GB maximum,
DIMM DDR2-800 (PC2-6400,
dual channel).
Intel 3.0GHz Core 2 Duo E8400
2GB DDR2 DIMM on 1 of 1 slot
1
(Replaceable with 4GB
maximum
2
Maximum memory us i ng 1
available slot; replacement for
single, pre-installed memory
module. Replaceable up to 4GB
maximum, DIMM DDR2-800
(PC2-6400, dual channel).
2
on 1 slot)
160GB 2.5” SATA HDD3
Hard Disk Drive
3
Accessible capacity may be less.
C-S
GB equals one billion bytes when referring to storage capacity.
ERIES TOUCHCOMPUTER USER GUIDE 38
USB Ports
Serial Ports
Parallel Port
PS/2 Ports
Ethernet Port
Wireless
Cash Drawer Port
Additional Ports
Additional Video Out
Audio Ports
Speakers
Operating System
Options
6 x USB 2.0 (4 on I/O, 2 x
USB Front Access)
Additional internal ports available for optional Elo peripherals.
2 x USB-to-Serial RS-232 (standard)
Optional parallel port card kit available
N/A
1 x LAN RJ45 (Gigabit)
Optional USB wireless kit availabile (802.11b/g/n)
Optional cash drawer kit available (12V/24V default; selectable via
jumper)
See “Expansions & Upgrades” tab
Optional 2nd VGA port expansion
card
Standard HDMI out
Optional 2nd VGA port
expansion card
1 x 3.5mm line in
1 x 3.5mm line out
1 x 3.5mm mic in
Two 2W internal speakers
No Operating System
Microsoft Windows POSReady 2009
Microsoft Windows 7 Professional (32-bit only)
Languages
Display
Aspect Ratio
Useful Screen Area
(H x V)
Native (optimal)
Resolution
Colors
Brightness (typical)
Response Time (typical)
Viewing Angle (typical)
Windows POSReady 2009 - 32 Language groups;
Windows 7 - 35 Language groups
19" models: 18.5" diagonal, active matrix TFT LCD
22" models: 21.5" diagonal, active matrix TFT LED LCD
19" models: 16:9 (standard)
22" models: 16:9 (standard)
19" models: 16.1" x 9.1" (409.8mm x 230.4mm)
22" models: 18.8" x 10.6"(476.6mm x 268.1mm)
19" models: 1366 x 768 @ 60Hz
22" models: 1920 x 1080 @ 60Hz
16.7 million
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch Plus: 225 nits
iTouch: 225 nits
19" models: Total: 5 msec
22" models: Total: 5 msec
19" models:
Horizontal: ± 85° or 170° total
Vertical: ±80° or 160° total
22" models:
Horizontal: ± 85° or 170° total
C-S
ERIES TOUCHCOMPUTER USER GUIDE 39
Contrast Ratio (typical)
On-Screen Display
(OSD)
Available Touch
Technologies
Power Supply
Maximum
Touchcomputer
Dimensions
(W x H x D)
Maximum
Touchcomputer
Dimensions With Stand
(Display at 0° tilt, W x H x
D)
Maximum
Touchcomputer
Dimensions Without
Stand
(W x H x D)
Vertical: ±80°
or 160° total
19" models: 1000:1
22" models: 1000:1
Controls (bottom): menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position,
V-position, clock, sharpness, RG B , OSD H-position, OSD V-position,
OSD time, OSD language, recall, power button
Languages: English, French, Italian, German, Spanish, Japanese,
Traditional Chinese, Simplified Chinese
Lockouts: user controls
AccuTouch (Zero-bezel Resistive)
IntelliTouch Plus (Multi-touch Surface Acoustic Wave)
iTouch (Zero-bezel Surface Acoustic Wave)
External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 240W (Max draw: 270W)
19" models: 18.7" x 14.2" x 12.4" (475mm x 360mm x 316mm)
22" models: 21.2" x 14.3" x 12.7" (540mm x 364mm x 323mm)
19" models: 18.7" x 14.9" x 8.9" (475mm x 380mm x 226mm)
22" models: 21.2" x 15.3" x 8.9" (540mm x 389mm x 226mm)
19" models: 18.7" x 11.9" x 3.8" (475mm x 302mm x 98mm)
22" models: 21.2" x 13.1" x 3.8" (540mm x 333mm x 98mm)
Shipping Box
19" models: 23.2" x 19.5" x 14.2" (590mm x 495mm x 360mm)
Dimensions
(W x H x D)
Weight (with stand)
22" models: 26" x 14.2" x 20.3" (660mm x 360mm x 516mm)
19" models: 19.5lbs (8.8kg) 19" models: 20.2lbs (9.2kg)
22" models: 21.8lbs (9.9kg) 22" models: 21.8lbs (9.9 kg)
19" models: 13.7lbs (6.2kg) 19" models: 16.3lbs (7.4kg)
Weight (without stand)
22" models: 17.9lbs (8.1kg) 22" models: 17.9lbs (8.1 kg)
19" models: 30.3lbs (13.8kg) 19" models: 31.2lbs (14.2kg)
Shipping Weight
22" models: 33.4lbs (15.2kg) 22" models: 33.4lbs (15.2kg)
Temperature
Operating: 0°C to 35°C (32°F to 95°F)
Storage: -30°C to 60°C (-22°F to 140°F)
Humidity
(non-condensing)
Operating: 20% to 80%
Storage: 5% to 95%
C-S
ERIES TOUCHCOMPUTER USER GUIDE 40
Form Factor
Mounting Options
Enclosure Color
Real-Time Clock
Backlight Lamp Life
MTBF
Sealing
Other Features
Power Cables
Desktop
100mm VESA mount or secure base to tabletop/desktop
Dark grey (*Medical/Japan versions are white)
Replaceable lithium-ion battery for clock
Minimum 50,000 hours to half brightness
50,000 hours demonstrated
Touchscreen sealed to bezel (IntelliTouch Plus)
Touchscreen sealed to sub-bezel (AccuTouch, iTouch)
Touchscreen sealed to LCD (all)
Serviceable internal components
Removable base with 100mm VESA mounting
Threaded holes on bottom of base for mounting
Kensington security lock
North American and European power cables included
Wireless Adapter (USB, 802.11b/g/n)
Cash Drawer Port (12V/24V) Elo expansion card
Second VGA Port Elo expansion card
RAID PCI-E Card1
Expansion Options
Upgrade Options
Accessories
Modem PCI-E Card1
Parallel Port PCI-E Card1
1
Elo PCI-E Expansion Card
Notes:
(a) May install up to two (2) Elo expansion cards OR one (1) Elo
expansion card plus one (1) PCI-E expansion card.
(b) Use of PCI-E option cards requires purchasing of PCI-E
Expansion Card Option Kit E827958.
Second 160GB Hard Disk Drive (HDD)
64GB Solid State Drive (SSD)
2GB DDR2 Memory DIMM Kit
4GB DDR2 Memory DIMM Kit
Power Cables: North American and European power cables
included.
Replacement DC Power Brick: 12V DC power brick, part number
E409391, is available at additional cost.
IntelliTouch/iTouch Stylus Pen: Stylus pen with rubber tip,
designed specifically for use with IntelliTouch or iTouch surface wave
touch technology. Part number D82064-000, available at additional
cost.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 41
Optional Peripherals
Warranty
Optional Product
Coverage
MTBF
Agency Approvals
Magneti
Customer Display (2x20 VFD)
Biometric Fingerprint Reader (FPR)
Webcam Kit (2.0 MP)
3 years
Advance Unit Replacement program (North America only)
Extended Warranty (North America and EMEA only)
MTBF 50,000 hours demonstrated
UL/cUL
FCC
TUV
CE
NOM COC
AR
GOST-R
C-Tick
VCCI
CB
c Stripe Reader (MSR)
C-S
ERIES TOUCHCOMPUTER USER GUIDE 42
Technical Assistance
There are three methods to obtain contact information for technical assistance on
the touchcomputer:
C H A P T E R
6
TECHNICAL SUPPORT
The touchcomputer
The web
The phone
Using the Touchcomputer
You can access support information in System Properties by clicking the Support
Information button. You can get to System Properties by either of the following
methods:
Right-click My Computer and choose Properties.
OR
Click the Start button, select Control Panel, and double-click the System icon.
Using the Web
For online self-help, go to www.elotouch.com/go/websupport.
For technical support, go to www.elotouch.com/go/contactsupport
.
For current Elo news, product updates, and announcements, or to register to
receive our Touchcomputer newsletter, go to www.elotouch.com/go/news
Using the Phone
Call toll-free 1-800-ELO-TOUCH (1-800-356-8682).
C-S
.
ERIES TOUCHCOMPUTER USER GUIDE 43
REGULATORY INFORMATION
I. Electrical Safety Information
A) Compliance is required with respect to the voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified herein may result in improper operation,
damage to the equipment, invalidation of warranty, or a fire hazard if the
requirements are not followed.
B) There are no operator-serviceable parts inside this equipment. There are
hazardous voltages generated by this equipment which constitute a safety hazard.
Service should be provided only by a qualified service technician.
C) This equipment is provided with a detachable power cord which has an integral
safety ground wire intended for connection to a grounded safety outlet.
1) Do not substitute the cord with other than the provided approved type. Under
no circumstances use an adapter plug to connect to a 2-wire outlet as this
defeats the continuity of the grounding wire.
2) The equipment requires the use of the ground wire as a part of the safety
certification. Modification or misuse can provide a shock hazard that can result
in serious injury or death.
3) Contact a qualified electrician or the manufacturer if there are questions
about the installation prior to connecting the equipment to main power.
II. Emissions and Immunity Information
A) Notice to Users in the United States: This equipment has been tested and found
to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential or commercial installation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
B) Notice to Users in Canada: This equipment complies with the Class A limits for
radio noise emissions from digital apparatus as established by the Radio
Interference Regulations of Industry Canada.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 44
C) Notice to Users in the European Union: Use only the provided power cords and
interconnecting cabling provided with the equipment. Substitution of provided
cords and cabling may compromise electrical safety or CE Mark Certification for
emissions or immunity as required by the following standards: This Information
Technology Equipment (ITE) is required to have a CE Mark on the manufacturer’s
label which means that the equipment has been tested to the following Directives
and Standards:
This equipment has been tested to the requirements for the CE Mark as required
by EMC Directive 2004/108/EC indicated in European Standard EN 55022 Class A
and the Low Voltage Directive 2006/95/EC as indicated in European Standard EN
60950-1.
D) General Information to all Users: This equipment generates, uses, and can
radiate radio frequency energy. If not installed and used according to this manual,
the equipment may cause interference with radio and television communications.
There is, however, no guarantee that interference will not occur in any particular
installation due to site-specific factors.
1) In order to meet emission and immunity requirements, the user must
observe the following:
a) Use only the provided I/O cables to connect this digital device with any
computer.
b) To ensure compliance, use only the provided manufacturer’s approved
power cord.
c) The user is cautioned that changes or modifications to the equipment not
expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
2) If this equipment appears to cause interference with radio or television
reception, or any other device:
a) Verify as an emission source by turning the equipment off and on.
b) If you determine that this equipment is causing the interference, try to
correct the interference by using one or more of the following measures:
i) Move the digital device away from the affected receiver.
ii) Reposition (turn) the digital device with respect to the affected
receiver.
iii) Reorient the affected receiver’s antenna.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 45
iv) Plug the digital device into a different AC outlet so the digital device
and the receiver are on different branch circuits.
v) Disconnect and remove any I/O cables that the digital device does
not use. (Unterminated I/O cables are a potential source of high RF
emission levels.)
vi) Plug the digital device into only a grounded outlet receptacle. Do not
use AC adapter plugs. (Removing or cutting the line cord ground may
increase RF emission levels and may also present a lethal shock
hazard to the user.)
vii) If you need additional help, consult your dealer, manufacturer, or an
experienced radio or television technician.
III. Agency Certifications
The following certifications have been issued for the monitor:
Argentina S-Mark FCC Russia PCT
Australia C-Tick IMERC WEEE
CE Japan VCCI UL
China CCC Mexico NOM cUL
China RoHS TUV
C-S
ERIES TOUCHCOMPUTER USER GUIDE 46
WARRANTY
Except as otherwise stated herein or in an order acknowledgment delivered to
Buyer, Seller warrants to Buyer that the Product shall be free of defects in
materials and workmanship. With the exception of the negotiated warranty
periods; the warranty for the touchcomputer and components of the product is 3
years.
Seller makes no warranty regarding the model life of components. Seller’s
suppliers may at any time and from time to time make changes in the components
delivered as Products or components. Buyer shall notify Seller in writing promptly
(and in no case later than thirty (30) days after discovery) of the failure of any
Product to conform to the warranty set forth above; shall describe in commercially
reasonable detail in such notice the symptoms associated with such failure; and
shall provide to Seller the opportunity to inspect such Products as installed, if
possible. The notice must be received by Seller during the Warranty Period for
such product, unless otherwise directed in writing by the Seller. Within thirty (30)
days after submitting such notice, Buyer shall package the allegedly defective
Product in its original shipping carton(s) or a functional equivalent and shall ship to
Seller at Buyer’s expense and risk.
Within a reasonable time after receipt of the allegedly defective Product and
verification by Seller that the Product fails to meet the warranty set forth above,
Seller shall correct such failure by, at Seller’s options, either (i) modifying or
repairing the Product or (ii) replacing the Product. Such modification, repair, or
replacement and the return shipment of the Product with minimum insurance to
Buyer shall be at Seller’s expense. Buyer shall bear the risk of loss or damage in
transit, and may insure the Product. Buyer shall reimburse Seller for transportation
cost incurred for Product returned but not found by Seller to be defective.
Modification or repair, of Products may, at Seller’s option, take place either at
Seller’s facilities or at Buyer’s premises. If Seller is unable to modify, repair, or
replace a Product to conform to the warranty set forth above, then Seller shall, at
Seller’s option, either refund to Buyer or credit to Buyer’s account the purchase
price of the Product less depreciation calculated on a straight-line basis over
Seller’s stated Warranty Period.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 47
THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR
BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET
FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR
IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS,
THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR
MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE. NO
EMPLOYEE OF SELLER OR ANY OTHER PARTY IS AUTHORIZED TO MAKE
ANY WARRANTY FOR THE GOODS OTHER THAN THE WARRANTY SET
FORTH HEREIN. SELLER’S LIABILITY UNDER THE WARRANTY SHALL BE
LIMITED TO A REFUND OF THE PURCHASE PRICE OF THE PRODUCT. IN NO
EVENT SHALL SELLER BE LIABLE FOR THE COST OF PROCUREMENT OR
INSTALLATION OF SUBSTITUTE GOODS BY BUYER OR FOR ANY SPECIAL,
CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES.
Buyer assumes the risk and agrees to indemnify Seller against and hold Seller
harmless from all liability relating to (i) assessing the suitability for Buyer’s intended
use of the Products and of any system design or drawing and (ii) determining the
compliance of Buyer’s use of the Products with applicable laws, regulations, codes,
and standards. Buyer retains and accepts full responsibility for all warranty and
other claims relating to or arising from Buyer’s products, which include or
incorporate Products or components manufactured or supplied by Seller. Buyer is
solely responsible for any and all representations and warranties regarding the
Products made or authorized by Buyer. Buyer will indemnify Seller and hold Seller
harmless from any liability, claims, loss, cost, or expenses (including reasonable
attorney’s fees) attributable to Buyer’s products or representations or warranties
concerning same.
C-S
ERIES TOUCHCOMPUTER USER GUIDE 48
INDEX
address, Elo TouchSystems, 51
base power status, 15
base, securing, 11
box contents, 1
cables
included, 1
calibration, 9
certifications, 46
contact information, 43
controls, location diagram, 12
customer display
overview, 20
specifications, 20
customer support, 43
display screen
adjusting, 2
email, Elo TouchSystems, 51
enabling or disabling power, 14
fingerprint reader (FPR)
overview, 21
specifications, 21
testing, 21
input/output (I/O) panel
accessing, 16
language selection, 2, 5
LCD
adjusting, 2
LEDs
base, 15
location diagram, 12
magnetic stripe reader (MSR)
overview, 18
specifications, 18
testing, 18
maintenance
care and handling, 27
software, 29
mounting options, 11
on-screen display (OSD)
enabling or disabling menu, 14
menu settings, 13
operating system
recovering, 29
setting up, 2
operation, 12
options, adding, 17
peripherals
adding, 17
phone number, Elo TouchSystems, 43, 51
ports
accessing, 16
power
base, 15
enabling or disabling button lock, 14
regulatory information, 44
safety, 27
setup
display screen, 2
language selection, 2, 5
mounting options, 11
operating system, 2
time zone selection, 5, 7, 8, 9
touchscreen calibration, 9
unpacking, 1
software
demo, 26
recovery, 29
specifications
customer display, 20
49
fingerprint reader, 21
magnetic stripe reader", 18
technical, 38
wireless card, 23
technical specifications, 38
technical support, 43
time zone selection, 5, 7, 8, 9
touchscreen
calibrating, 9
care and handling, 28
upgrades, adding, 17
warranty, 47
website, Elo TouchSystems, 43, 51
WEEE directive, 29
wireless card
overview, 23
specifications, 23
testing, 23
www.elotouch.com
Get the latest...
Product information
Specifications
News on upcoming events
Press release
Software drivers
Touch Monitor Newsletter
50
Getting in Touch with Elo
To find out more about Elo’s extensive range of touch solutions, visit our Website at www.elotouch.com or
simply call the office nearest you:
North America
Elo TouchSystems
301 Constitution Drive
Menlo Park, CA 94025
USA
(800) ELO-TOUCH
(800) 356-8682
Tel 650-361-4800
Fax 650-361-4747
customerservice@elotouch.com
Europe
Tyco Electronics Raychem
B.V.B.A.
(Elo TouchSystems Division)
Diestsesteenweg 692
B-3010 Kessel-Lo
Belgium
Tel +32(0)(16)35 21 00
Fax +32(0)(16)35 21 01
elosales@elotouch.com
Asia-Pacific
Sun Hamada Bldg. 2F
1-19-20 ShinYokohama
Kanagawa 222-0033
Japan
Tel +81(45)478-2161
Fax +81(45)478-2180
www.tps.co.jp
© 2010 Tyco Electronics Printed in USA
51
Loading...
