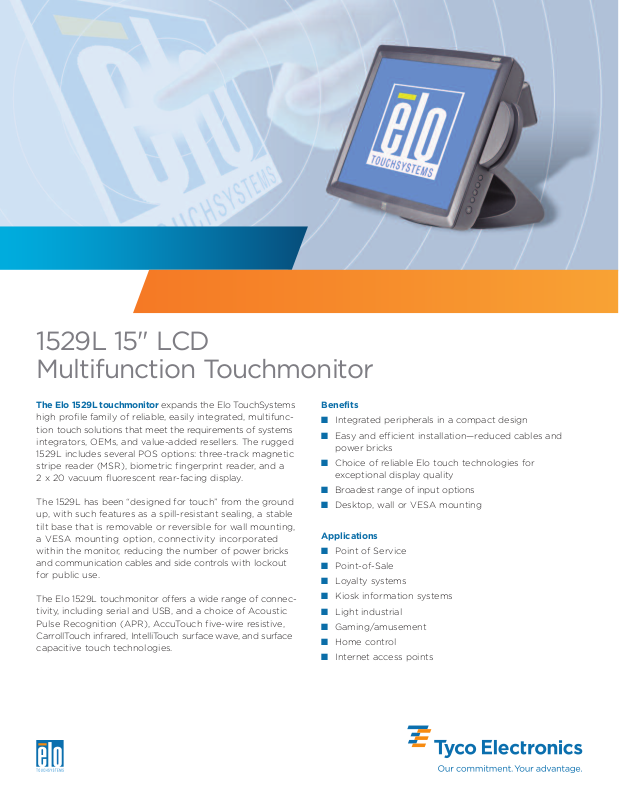

1529L 15" LCD
Multifunction Touchmonitor

The Elo 1529L touchmonitor expands the Elo TouchSystems

high profile family of reliable, easily integrated, multifunc­tion touch solutions that meet the requirements of systems
integrators, OEMs, and value-added resellers. The rugged
1529L includes several POS options: three-track magnetic
stripe reader (MSR), biometric fingerprint reader, and a
2 x 20 vacuum fluorescent rear-facing display.

The 1529L has been “designed for touch” from the ground
up, with such features as a spill-resistant sealing, a stable
tilt base that is removable or reversible for wall mounting,
a VESA mounting option, connectivity incorporated
within the monitor, reducing the number of power bricks
and communication cables and side controls with lockout
for public use.

The Elo 1529L touchmonitor offers a wide range of connec­tivity, including serial and USB, and a choice of Acoustic
Pulse Recognition (APR), AccuTouch five-wire resistive,
CarrollTouch infrared, IntelliTouch surface wave, and surface
capacitive touch technologies.

Benefits

■ Integrated peripherals in a compact design

■ Easy and efficient installation—reduced cables and

power bricks

■ Choice of reliable Elo touch technologies for

exceptional display quality

■ Broadest range of input options

■ Desktop, wall or VESA mounting

Applications

■ Point of Service

■ Point-of-Sale

■ Loyalty systems

■ Kiosk information systems

■ Light industrial

■ Gaming/amusement

■ Home control

■ Internet access points

1529L 15” LCD Multifunction Touchmonitor Specifications

TOUCHMONITOR

Case/bezel color Dark gray or beige (optional on some configurations)
Base Short, tall or no stand
Display Size 15" diagonal
Type Active matrix TFT LCD
Aspect ratio 4 x 3
Useful screen area Horizontal 11.98" (304 mm); Vertical 8.98" (228 mm)

ptional rear-facing

O

acuum fluorescent

v

isplay

d

ptional fingerprint read-

O

r (top), and MSR (right),

e

ith short stand

w

Monitor dimensions Width 13.99" (355 mm)
(max. with short stand) Height 11.27" (286 mm)

Depth 10.44" (265 mm)

Dimensions vary with stand position and options selected
Optimal (native) resolution 1024 x 768
Other supported resolutions 1024 x 768 at 60, 65, 70, 75 Hz; 832 x 624 at 75 Hz; 800 x 600 at 56, 60, 72, 75 Hz;

720 x 400 at 70 Hz; 720 x 350 at 70 Hz; 640 x 480 at 60, 66 (Mac), 72, 75 Hz
Colors 16.2 million colors, 6 bit with dithering
Brightness LCD panel: 350 cd/m
LCD panel with touchscreen AccuTouch: 287 cd/m2; APR/IntelliTouch 322 cd/m2; CarrollTouch 322 cd/m2;

surface capacitive 294 cd/m

2

2

Response time 12 msec (typical)
Viewing angle (from center) Horizontal (left/right): 150° total; Vertical (up/down): 75°/50° or 125° total
Contrast ratio 400:1
Power dissipation 20 W max (typical)
Input video format RGB Analog; DVI-D
Input video signal connector Mini D-Sub 15-Pin VGA type; DVI-D connector
Input frequency Horizontal 31–60 kHz; Vertical 56–75 Hz
Power supply Type: AC/DC input internal; AC input (line) voltage: 90-265 VAC, 50/60 Hz;

DC input: 12V ± 0.75V
Temperature Operating: 0° C to 40° C; Storage: –20° C to 60° C
Humidity Operating: 20% to 80%; Storage: 5% to 95%; noncondensing
Weight Actual: 14.44 lb (6.55 kg); Shipping: 21.16 lb (9.6 kg) (approx. with touch, short stand only)
Warranty monitor 3 years
Backlight lamp life Minimum 40,000 hours to half brightness
Agency approvals UL/cUL (*recognized component), FCC-A, TÜV-GS, CE, VCCI, C-Tick
Speakers Two watt/channel speakers located in display head
On-screen display (OSD) Side-mounted with lockout function for public use
User’s controls OSD control menu: power, up, down, menu; OSD controls: contrast, brightness,

V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position,

OSD V-position, OSD Time, auto adjust, OSD language (English, French, Dutch,

Spanish, Japanese), input select; OSD disable/enable: power, OSD menu
Mounting options 75 mm VESA mount; removable base
Other features Energy save mode (less than 2 watts); 2 stage DPMS; VESA DDC Plug & Play;

security lock receptacle

OPTIONAL REAR FACING CUSTOMER DISPLAY 20 x 2 VACUUM FLUORESCENT

Type Vacuum Fluorescent Display (VFD), 2 rows, 20 characters/row
Characters 5 x 7 dot-matrix configuration, 9.5 mm height, 6.2 mm width
Format/color ASCII/blue-green

OPTIONAL MAGNETIC STRIPE READER

Tracks 3
Message format ASCII
Card speed 3 to 50 inch/sec (7.6 to 127 cm/sec)

OPTIONAL FINGERPRINT READER

Type Optical
Verifying time <1 sec
Sensing prism hardness 7 Mohs
Resolution 356 x 292 pixels
Image speed Capture: 600 ms/frame; Transfer: 500 bytes/ms
Image capture error rate <0.1%
