Elo Touch Solutions E351600 Schematic

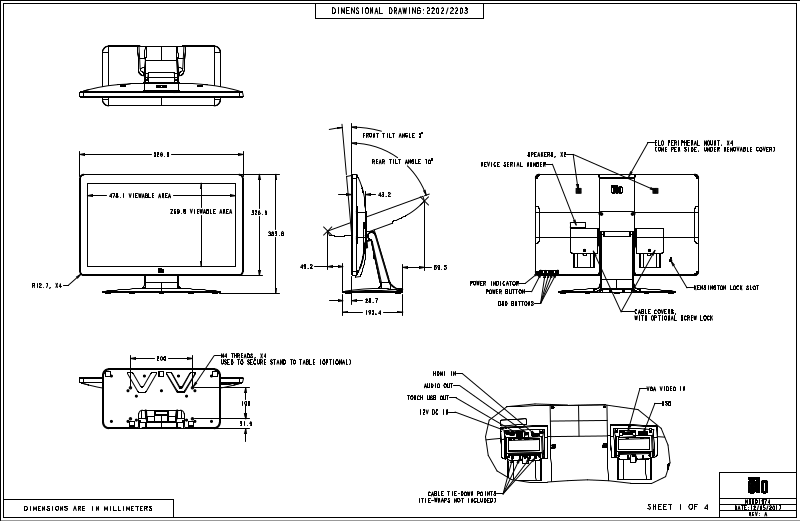

DIMENSIONAL DRAWING: 2202/2203
526.9
478.1 VIEWABLE AREA
269.8 VIEWABLE AREA
326.9
383.8
FRONT TILT ANGLE 5$
REAR TILT ANGLE 70$
43.2
ELO PERIPHERAL MOUNT, X4
(ONE PER SIDE, UNDER REMOVABLE COVER)
SPEAKERS, X2
DEVICE SERIAL NUMBER
R , X412.7
200
49.2
M4 THREADS, X4
USED TO SECURE STAND TO TABLE (OPTIONAL)
28.7
193.4
69.5
POWER INDICATOR
KENSINGTON LOCK SLOT
POWER BUTTON
OSD BUTTONS
CABLE COVERS,
WITH OPTIONAL SCREW LOCK
100
31.9
HDMI IN
AUDIO OUT
VGA VIDEO IN
TOUCH USB OUT
USB
12V DC IN
DIMENSIONS ARE IN MILLIMETERS
CABLE TIE-DOWN POINTS
(TIE-WRAPS NOT INCLUDED)
MS601974
SHEET 1 OF 4
DATE: 12/05/2017
REV: A
DIMENSIONAL DRAWING: 2202/2203
VESA MOUNTING
VESA MIS-D, 100, C
REMOVE STAND TO ACCESS VESA MOUNTING INTERFACE
100
M4 THREADS, X4
MAX THREAD DEPTH = 10MM
65
100
DIMENSIONS ARE IN MILLIMETERS
MS601974
SHEET 2 OF 4
DATE: 12/05/2017
REV: A
