Elo Touch Solutions 2702L Schematic

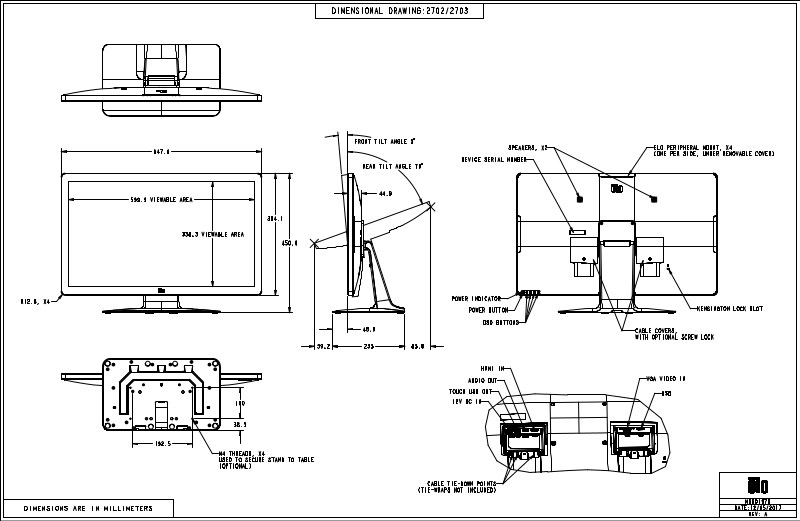

DIMENSIONAL DRAWING: 2702/2703
647.6
599.9 VIEWABLE AREA
338.3 VIEWABLE AREA
394.1
450.9
FRONT TILT ANGLE 5$
REAR TILT ANGLE 70$
44.9
SPEAKERS, X2
DEVICE SERIAL NUMBER
ELO PERIPHERAL MOUNT, X4
(ONE PER SIDE, UNDER REMOVABLE COVER)
R , X412.8
100
48.9
233
POWER INDICATOR
POWER BUTTON
OSD BUTTONS
CABLE COVERS,
WITH OPTIONAL SCREW LOCK
83.859.2
HDMI IN
AUDIO OUT
TOUCH USB OUT
12V DC IN
VGA VIDEO IN
USB
KENSINGTON LOCK SLOT
DIMENSIONS ARE IN MILLIMETERS
38.5
192.5
M4 THREADS, X4
USED TO SECURE STAND TO TABLE
(OPTIONAL)
CABLE TIE-DOWN POINTS
(TIE-WRAPS NOT INCLUDED)
MS601976
DATE: 12/05/2017
REV: A
DIMENSIONAL DRAWING: 2702/2703
VESA MOUNTING
VESA MIS-D, 100, C
REMOVE STAND TO ACCESS VESA MOUNTING INTERFACE
100
M4 THREADS, X4
MAX THREAD DEPTH = 10MM
65
100
DIMENSIONS ARE IN MILLIMETERS
MS601976
DATE: 12/05/2017
REV: A
