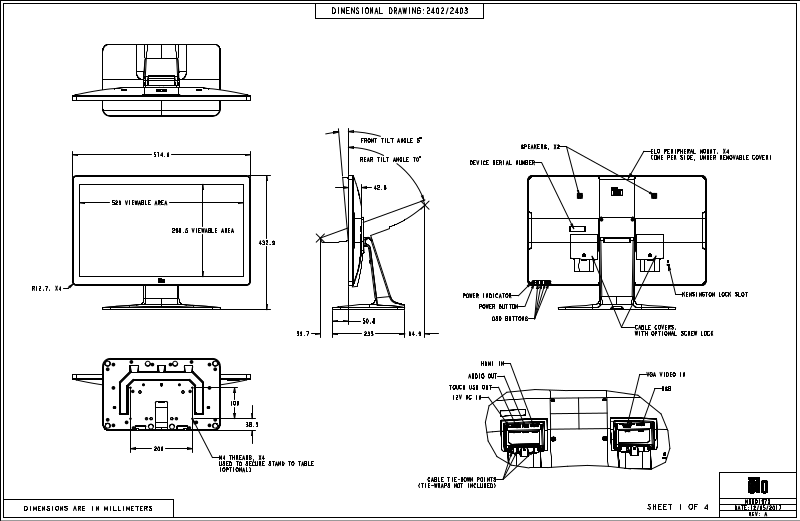

DIMENSIONAL DRAWING: 2402/2403
574.6
529 VIEWABLE AREA
298.5 VIEWABLE AREA
432.9
FRONT TILT ANGLE 5$
REAR TILT ANGLE 70$
42.8
SPEAKERS, X2
ELO PERIPHERAL MOUNT, X4
(ONE PER SIDE, UNDER REMOVABLE COVER)
DEVICE SERIAL NUMBER
R , X412.7
50.8
233
POWER INDICATOR
POWER BUTTON
OSD BUTTONS
CABLE COVERS,
64.939.7
HDMI IN
AUDIO OUT
TOUCH USB OUT
WITH OPTIONAL SCREW LOCK
VGA VIDEO IN
USB
KENSINGTON LOCK SLOT
DIMENSIONS ARE IN MILLIMETERS
200
100
38.5
M4 THREADS, X4
USED TO SECURE STAND TO TABLE
(OPTIONAL)
12V DC IN
CABLE TIE-DOWN POINTS
(TIE-WRAPS NOT INCLUDED)
MS601975
SHEET 1 OF 4
DATE: 12/05/2017
REV: A
Page 2
DIMENSIONAL DRAWING: 2402/2403
VESA MOUNTING
VESA MIS-D, 100, C
REMOVE STAND TO ACCESS VESA MOUNTING INTERFACE
100
M4 THREADS, X4
MAX THREAD DEPTH = 10MM
65
100
DIMENSIONS ARE IN MILLIMETERS
MS601975
SHEET 2 OF 4
DATE: 12/05/2017
REV: A
Page 3
DIMENSIONAL DRAWING: 2402/2403
HANDLE KIT P/N E352196
ORDERED SEPARATELY, CUSTOMER ASSEMBLED
2 HANDLES WITH MOUNTING SCREWS INCLUDED IN KIT
HANDLES CAN BE ASSEMBLED ON ANY OF THE FOUR SIDES
HANDLES ARE INTENDED TO ADJUST TILT OF DISPLAY.
DO NOT CARRY TOUCHMONITOR USING HANDLES.
658.2
41.8
119.4
236.8
DIMENSIONS ARE IN MILLIMETERS
MS601975
SHEET 3 OF 4
DATE: 12/05/2017
REV: A
Page 4
DIMENSIONAL DRAWING: 2402/2403
ELO PERIPHERAL MOUNTING INTERFACE
ONE MOUNTING LOCATION ON EACH SIDE (4 TOTAL)
102
MICRO-USB
M3 THREADS, X2
TOP MOUNTING LOCATION
5.9
5.9
14.2
TOUCHSCREEN TO
PERIPHERAL MOUNTING SURFACE
SIDE MOUNTING LOCATION
102
SIDE MOUNTING LOCATION
BOTTOM MOUNTING LOCATION
STAND NOT SHOWN FOR CLARITY
DIMENSIONS ARE IN MILLIMETERS
MS601975
SHEET 4 OF 4
DATE: 12/05/2017
REV: A
