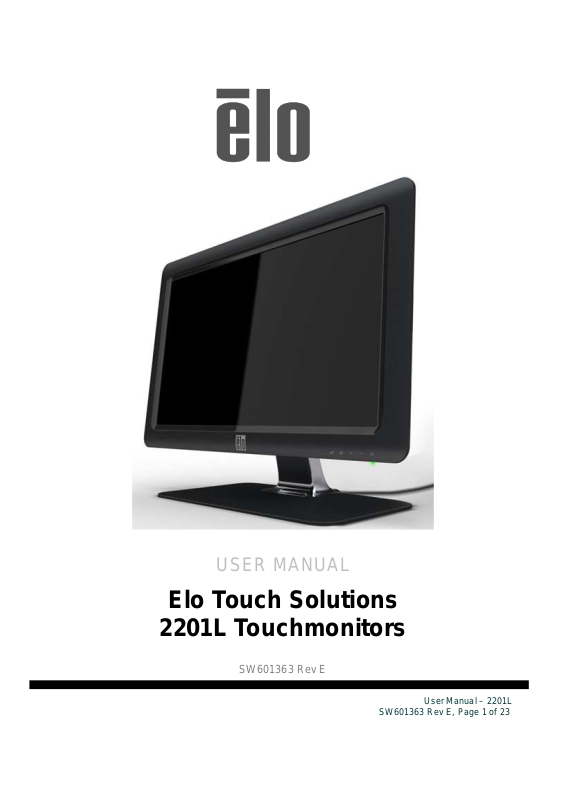

Elo Touch 2201L User Manual

USER MANUAL

Elo Touch Solutions

2201L Touchmonitors

SW601363 Rev E

User Manual – 2201L

SW601363 Rev E, Page 1 of 23

Copyright © 2015 ELO Touch Solutions. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical,
chemical, manual, or otherwise without prior written permission of ELO Touch Solutions.

Disclaimer

The information in this document is subject to change without notice. ELO Touch Solutions makes no representations or
warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or
fitness for a particular purpose. ELO Touch Solutions reserves the right to revise this publication and to make changes from
time to time in the content hereof without obligation of ELO Touch Solutions to notify any person of such revisions or
changes.

Trademark Acknowledgments

ELO Touch Solutions, IntelliTouch, iTouch, are trademarks of ELO Touch Solutions group of companies and its licensors.
Windows is a trademark of the Microsoft group of companies. Other product names mentioned herein may be trademarks
or registered trademarks of their respective companies. ELO Touch Solutions claims no interest in trademarks other than
its own.

User Manual – 2201L

SW601363 Rev E, Page 2 of 23

Table of Contents

Chapter 1 - Introduction
Chapter 2 – Installation
Chapter 3 – Mounting
Chapter 4 – Operation

........................................................................... 4

............................................................................. 5

................................................................................ 9

............................................................................... 10

Chapter 5 – Technical Support
Chapter 6 – Safety & Maintenance
Chapter 7 – Regulatory Information
Chapter 8 – Warranty Information

............................................................... 14

........................................................ 15

..................................................... 16

......................................................... 19

User Manual – 2201L

SW601363 Rev E, Page 3 of 23

Product Description

Your new touchmonitor combines ELO Touch Solutions reliable performance with the latest
developments in touch technology and display design. This combination of features creates a
natural flow of information between a user and the touchmonitor.

This touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to
provide high quality display performance. Its Full HD resolution of 1920x1080 is suitable for
displaying graphics and images. Its LED backlight significantly reduces power consumption and
eliminates mercury (compared to CCFL-backlit panels). Other features that enhance this LCD
monitor’s performance are Plug & Play compatibility, built-in speakers and headphone output
capability, on-screen display (OSD) controls, and a family of peripherals including webcam and
magnetic stripe reader.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to
maximize the life of your unit and prevent risks to user safety. See the Safety & Maintenance
chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the
unit. Before setting up and powering on your new touchmonitor, read through this manual,
especially the Installation, Mounting, and Operation chapters.

Chapter 1 - Introduction

User Manual – 2201L

SW601363 Rev E, Page 4 of 23

Chapter 2 –Installation

Unpacking the Touchmonitor

Open the carton and verify the following items are present:

• Touchmonitor with protective sheet for its face

• ELO TouchTools CD

• Quick Install Guide

• Japanese language regulatory information pamphlet

• DVI cable

• VGA cable

• USB cable

• Audio cable

• AC-DC power adapter

• North America, Europe power cables

• An approved power cord greater or equal to H05VV-F(For EUT weight > 3kg), 2G or 3G,

0.75mm² must be used

Connector Panel & Interfaces

Remove the cable cover on the back of the unit to access the touchmonitor’s connector panel.

User Manual – 2201L

SW601363 Rev E, Page 5 of 23

Touchmonitor Connections

1. Connect the DVI or VGA video cables between the monitor’s DVI/VGA input connectors and
your DVI/VGA video source, respectively. Tighten the video cable’s screws for best
performance.

2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB
port.

3. Connect the audio cable between the monitor’s Audio In jack and your audio source.

4. Select the correct power cable for your region. Connect the cable between the AC power
source and the power adapter’s input connector. Connect the power adapter’s DC output
connector to the monitor’s input power jack.

5. Replace the cable cover, if desired. Cables can be routed inside the stand – remove and
replace the stand cable cover for access and routing.

6. The touchmonitor ships in an OFF state. Press the power button to turn it on.

User Manual – 2201L

SW601363 Rev E, Page 6 of 23

Installing the Touch Technology Software Drivers

Some software installation is required for your iTouch Plus touchmonitor to work with your
computer. No additional drivers are required for your projected-capacitive touchmonitor with
Windows 7 and 8 operating systems, it uses Windows HID drivers.

To download latest touch drivers

1. Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

2. Select the operating system from “Operating System” dropdown menu.

3. Select the technology from “Technologies” dropdown menu.

4. Click on the driver version required for your touchmonitor.

5. Click “Accept” once you are directed to the “Driver License Agreement” page.

6. Enter you email address, Click on “Next Step”. Your driver download will start automatically.

7. If you are a new user, fill in the required information and Click on “Register”. Your driver download
will start automatically.
