Spare part list
Combi Steamer
MB Genius-T
12-21 20-21 06
Version UL
208 V
Page 2
Page 3
Table of contents
Assembly Mounting parts 2
Assembly door 4
Assembly control unit Genius 6
Assembly control unit MB 8
Assembly mounting plate control unit 10
Assembly motor heating 12
Assembly electric sheets 12-21 14
Assembly electric sheets 20-21 16
Assembly connecting terminal 18
Assembly electric 20
Assembly supply air 22
Assembly downspout 24
Assembly housing tube roller 26
Assembly valve support 28
Assembly autoclean 30
Assembly gas 32
Assembly electric sheets 12-21 20-21 Gas 34
Assembly electric sheets 20-21 Gas 36
Assembly trolley 38
Cable harness, wiring diagram, support 40
-1-
Page 4
MB Genius-T 12-21 20-21
Assembly mounting parts
26
15
16
17
18
20
19
2
1
1
2
21
22
23
24
25
4
30
30
3
1
7
8
27
9
28
6
29
5
14
31
30
1
10
13
32
32
2
1
11
32
2
12
-2-
Page 5
MB Genius-T 12-21 20-21
Assembly mounting parts
1 014125
746630 Side panel 1221
2
746940 Side panel 2021
3 374407 Sealing profile
747807 Side panel left d2k 1221
4
747793 Side panel left d2k 2021
751782 Filter Lüftungsschacht d2k 1011 1221 2021
5
742392 Door sealing, silicon d2k 1221
6
742406 Door sealing, silicon d2k 2021
781681 Filter cap d2k 1221 2021
7
500517 Case long
8
000752 Hexagon nut low DIN 439 M6 V2A
9
746908 Air conducting sheet d2k 1221
10
500628 Air conducting sheet 2021 FU
11 779539
12 500521
755338 Protective grid
13
760757 Fat filter d2k 1221
14
760749 Fat filter 611 1011 2011 2021 06
762253 Rubber sheet for lighting
15
570478 Halogen lamp 12V 20W
16
742236 Reflector sheet
17
003980 Washer DIN 125 A5,3 V2A
18
304816 Lock washer DIN 6797 J5,3 V2A
19
553727 Hexagon nut DIN 934 M5 brass
20
747521 Cover lamp
21
577294 Halogen lamp holder
22
050822 Lock washer DIN 6797 J3,2 V2A
23
24 003913 Lens head screw DIN 7985 M3x5 V2A
658235 Clamp 15 A 2pin
25
26 872849 Silicone Novasil S 25 80 ml
27 500402 Tube silicone 100ml
953296 Lock nut PG 36 UL
28
953288 Connection PG 36 UL
29
30 976210
30.1
30.2 974358 Plug 100 A
32.1
32.2 500625 Plug 3 poles
776653 Connection cable AWG 4
580465 Connection PG 16
31
32 500629
763004 Connection cable 3x1,5 qmm L=500
Countersunk srew DIN 965 M4X20 V2A
Screws M6 SW 19
Hexagon nut M6 SW 19
Connection cable 06 1011 1221 UL
Connection cable 06 Gas UL 5000mm
-3-
Page 6
MB Genius-T 12-21 20-21
Assembly door
8
5
1
2
6
1
6
6
2
3
6
4
9
10
3
4
6
11
12
13
14
16
1
7
6
5
6
6
16
20
1
15
20
21
20
2
17
17
16
2
16
3
1
15
2
16
4
16
16
10
16
9
8
16
5
16
6
16
7
9
8
18
19
15
15
3
15
4
15
4
15
4
15
5
15
15
7
6
15
15
8
9
-4-
Page 7
MB Genius-T 12-21 20-21
Assembly door
740829 Rotary emergency handle
1
743712 Gasket Emergency-opening
2
743771 Retaining ring DIN 471 6X0,7 V2A
3
740659 Profile emergency
4
614432 Gasket door handle d2k 1221 2021
5
749540 Locking unit
6
6.1 014141
6.2 780537 Cap door handle d2k 1221 2021
6.3 614459 Spring door handle
6.4 614440 Bolt door handle
6.5 658030 Washer
014117 Countersunk srew DIN 965 M4X16 V2A
6.6
014311 Countersunk srew DIN 965 M6X25 V2A
7
549304 Hexagon head srew DIN 933 M8X30 V2A
8
892920 Lock washer DIN 6797 J8,4 V2A
9
745995 Support sheet d2k 1221
10
885118 Hinge plate d2k 2011 1221 2021
11
209791 Countersunk srew DIN 7991 M8X20 V2A
12
758868 Lock washer
13
741434
14
15 749575 Door handle mounted d2k 1221 2021
15.1
15.2
15.3
15.4
15.5
15.6
15.7
15.8
15.9
16.1 752061 Flange sleeve
16.2 746851 Fastening angle d2k 1221 2021
16.3 746878 Support plate for gasket d2k 1221 2021
16.4 549207 Gasket across the door d2k 1221 2021
16.5
16.6
16.7 014125
16.8
16.9
16.10
20.1 897531 Spiral spring
20.2
748013 Door bolt d2k 1221 2021
758280 Double door bolt d2k 1221 2021 Autoclean
760978 Spring washer DIN 6888
766240
760951 Shim ring DIN 988 10x16x0,5 V2A
760943 Shim ring DIN 988 10x16x1 V2A
584339 Shim ring DIN 988 14x20x0,5 V2A
748005 Handle door lock blue d2k 1221 2021
012602 Washer DIN 125 A10,5 V2A
349771 Serrated lock washer DIN 6798 A10 V2A
012319 Hexagon nut DIN 934 M10 V2A
748048 Cap silver D=46mm
746290 Door d2k 1221
16
746932 Door d2k 2021
004014 Washer DIN 125 A6,4 V2A
273651 Hexagon head srew DIN 933 M6X20 V4A
372994 Magnet 20x10 red cap
001007 Washer DIN 125 A4,3 V2A
003905 Hexagon nut DIN 934 M4 V2A
875023 Rest disk
17
875589 Hinge plate incl. foot d2k 1221
18
875597 Hinge plate incl. foot d2k 2021
563072 Adjustable foot
19
748056 Lock door side d2k 1221 2021
20
010332 Countersunk srew DIN 965 M4X12 V2A
039411
21
Countersunk srew DIN 965 M5X10 V2A
Eccentric tappet
Grooved ball bearing
Countersunk srew DIN 965 M4X20 V2A
Rounded countersunk head screw DIN 966 M4x12 V2A
-5-
Page 8
Genius-T 12-21 20-21
Assembly control unit
2
11
1
3
1
3
2
3
24
4
23
10
5
12
6
7
8
9
17
16
15
13
14
1
13
2
25
13
13
3
6
13
5
13
4
13
8
17
16
15
13
13
7
18
21
19
22
20
-6-
Page 9
Genius-T 12-21 20-21
Assembly control unit
749842 Lock nut M3
1
2 500704 Cable Main bord display 06
742457 Display Genius d2k
3
3.1 899917 Lens head screw Backligth display
3.2 899887 Backlight Display
4 500534 Dust seal Display
5 500712 Cable Main bord inversor 06
892807 Lock nut DIN 985 M2,5 V2A
6
749923 Inverter
7
8 899135
9 500887 Cover panel inverter
189405
10
742325 Gasket operating panel d2k 1221
11
742333 Gasket operating panel d2k 2021
12 762423 Operating panel 1221 Genius-T 06
954977 Operating panel 2021 Genius-T 06 UL
13 500496 Grip recess blue
13.1
13.2 500763 Axle
13.3
13.4 500755 Flap interface blue
13.5 500771 Spring for cover interface
13.6 500798 Brace stirrup grip recess
13.7 500739 Grip recess blue
13.8 898511 Data line PC HACCP
976512 Cable connection HACCP RSFBK 9-pol 1100mm
786055
553182
14
001007 Washer DIN 125 A4,3 V2A
15
050849 Lock washer DIN 6797 J4,3 V2A
16
003905 Hexagon nut DIN 934 M4 V2A
17
329525 Half clip
18
581038 Magnetic switch
19
208094
20
758582 Bracket speaker
21
22 749877
785040
23
24 762865 Spacer dispaly
25 503703 Mains switch 2021
Spacer inverter
Lens head screw DIN 7985 M5x10 V2A
Srew 2.5x10 mm
Label grounding M4
Cable support sleeve
Speaker
Ferrite case
-7-
Page 10
MB 12-21 20-21
Assembly control unit
5
4
1
6
2
13
3
7
8
17
16
15
14
13
1
13
2
9
10
13
3
6
13
5
13
4
13
8
21
13
13
17
16
15
7
18
11
19
12
-8-
20
Page 11
MB 12-21 20-21
Assembly control unit
742465 Ensemble of indicators MA-KT MB
1
749842 Lock nut M3
2
527556 Spacer 7 mm
3
525316 Cup screw M 4x8 VA
4
742325 Gasket door d2k 1221
5
742333 Gasket door d2k 2021
6 762237 Operating panel 1221 MB 06
762318 Operating panel 1221 MB Gas 06
500396 Operating panel 2021 MB RA 06 UL
500397 Operating panel 2021 MB Gas RA 06 UL
503932 O-Ring 6x1
7
743690 Rotary knob d2k MA MB blue
8
765651 Hexagon nut M9X0,76
9
748781 Cap silver D=37mm
10
758582 Bracket speaker
11
12 749877
13 500496 Grip recess blue
13.1
13.2 500763 Axle
13.3
13.4 500755 Flap interface blue
13.5 500771 Spring for cover interface
13.6 500798 Brace stirrup grip recess
13.7 500739 Grip recess blue
13.8 898511 Data line PC HACCP
781428 Cable connection HACCP RSFBK 9-POL1700mm
786055
553182
14
001007 Washer DIN 125 A4,3 V2A
15
050849 Lock washer DIN 6797 J4,3 V2A
16
003905 Hexagon nut DIN 934 M4 V2A
17
329525 Half clip
18
581038 Magnetic switch
19
208094
20
21 503703 Mains switch 2021
Speaker
Srew 2.5x10 mm
Label grounding M4
Cable support sleeve
-9-
Page 12
MB Genius-T 12-21 20-21
Assembly mounting plate control unit
2
25
24
12
22
23
15
14
15
1
16
17
3
4
5
14
1
6
7
19
8
14
1
18
3
20
4
5
4
3
5
4
13
21
1
21
9
11
10
21
2
21
5
21
21
3
4
-10-
Page 13
MB Genius-T 12-21 20-21
Assembly mounting plate control unit
748064 Mounting plate control unit 06 1221
1
748099 Mounting plate control unit 06 2021
2 006637 Hexagon nut low DIN 439 M4 V2A
003905 Hexagon nut DIN 934 M4 V2A
3
050849 Lock washer DIN 6797 J4,3 V2A
4
001007 Washer DIN 125 A4,3 V2A
5
553182
6
740446 Edge protection
7
388017
8
758590 Edge protection
9
232963 Spout DG 16
10
587281 Edge protection
11
761346 Transformer 2X13.5V UL
12
037311
13
791407 Main bord 06 Genius-T
14
791458 Main bord 06 MB
14.1
21.1 898821 Plug 3 poles
21.2
21.3 953113
21.4
21.5 958816 Serving
779601 Fine fuse 8 A slow
749869 Plug 20 poles
15
749850 Plug 12 poles
16
17 898813 Plug 12 poles
18 898805 Plug 16 poles
603228 Distance bolt M4X10 nickel-plated
19
749834 Spacer for control board
20
958883 Cable harness controls 611-2021 UL
21
785040
958026 Fine fuse 2 A fast
895555 Z-Diode 13V 1,3 W Gas
22
553549 Clamp grey 2 conductors
23
571075 Clamp grey 4 conductors
24
570907 End plate
25
Label grounding M4
Lacing cord
Lens head screw DIN 7985 M4x16 V2A
Ferrite case
Fuse holder
-11-
Page 14
MB Genius-T 12-21 20-21
Assembly motor-heating
1
6
1
5
1
2
1
1
1
27
1
4
1
3
8
2
3
4
9
10
13
5
6
7
11
12
18
19
20
21
22
14
23
24
25
26
15
16
17
-12-
Page 15
MB Genius-T 12-21
Assembly motor-heating
776556 Motor 1221 2021
1
782939 Sensor rotational speed
1.1
899577 Clamp rotational speed
1.2
1.3 899992 Cooling wheel for motor
895415 Threaded pin DIN 914 M4x8 V2A
1.4
1.5 749281
1.6 895660 Coupling
254177 Hexagon nut DIN 934 M8 V2A
2
012564 Serrated lock washer DIN 6798 A8,4 V2A
3
001325 Washer DIN 125 A8,4 V2A
4
5 788287
570826 ket 8x14x1
6
749389 Hexagon head srew DIN 933 M8X50 V2A
7
747815 Motor isolating sheet 1221 2021
8
399442 Shaft sealing ring 1221 2021
9
10 751448 Mounting plate for seal
050849 Lock washer DIN 6797 J4,3 V2A
11
873470 Hexagon head srew DIN 933 M4X12 V2A
12
776521 Fan wheel 1221 2021
13
382477 Dispersal casing 1221 2021
14
012602 Washer DIN 125 A10,5 V2A
15
349771 Serrated lock washer DIN 6798 A10 V2A
16
749397 Hexagon head srew DIN 933 M10X25 V2A
17
586811 Disk nut M6 V2A
18
757993 Counter flange heating element 1221 2021
19
749451 Gasket heating element 1221 2021
20
252867 Hexagon nut DIN 934 M5 V2A
21
304816 Lock washer DIN 6797 J5,3 V2A
22
003980 Washer DIN 125 A5,3 V2A
23
758523 Heating element 24.6 kW d2k 1221 2021 UL
24
261769 Cap nut DIN 1587 M5 V2A
25
26 e524001 Puller
27 500550 Rotational speed
Plug 3 poles
Motor spacer 1221 2021 FU
-13-
Page 16
MB Genius-T 12-21
Assembly electric sheets
2
5
6
45
4
15
16
14
17
7
46
51
48
49
8
9
10
10
50
11
12
13
1
21
18
19
22
14
1
23
24
25
23
22
21
30
20
31
32
52
21
29
27
47
46
48
21
33
49
3
10
50
34
26
35
36
38
34
-14-
36
37
39
40
41
42
43
28
43
41
44
42
Page 17
MB Genius-T 12-21
BG Elektromontageplatte -Assembly electric sheets
746614 Mounting plate electricity d2k 1221
1
504602 Safety temperature limiter
2
338419 Anti-interference capacitor
3
586811 Disk nut M6 V2A
4
5 895644 Plug 3 poles
6 895652 Plug 4 poles
232963 Spout DG 16
7
570532 Bridge rectifier
8
001007 Washer DIN 125 A4,3 V2A
9
050849 Lock washer DIN 6797 J4,3 V2A
10
003905 Hexagon nut DIN 934 M4 V2A
11
12
897035
756091 Hexagon nut low DIN 439 M10X1 V2A
13
14 779393 Frequency converter
953377 Axial fan
14.1
051373
15
892912 Lock washer DIN 6797 J6,4 V2A
16
17 889695 Support frequency converter
050849 Lock washer DIN 6797 J4,3 V2A
18
010537
19
20 974153 Automatic circuit breaker 10 A
337676 End clamp 10mm
21
570966 End plate 4 qmm
22
572055 Clamp 4 qmm grey
23
594997 Clamp 4 qmm grye
24
571067 Clamp 4 qmm blue
25
26 974269 Automatic circuit breaker 60 A
751944 Contactor 100 A typ 50 A
27
752207 Auxiliary switch "close"
28
752452 End plate
29
742813 Auxiliary relay 230 V
30
326941 Fuse clamp 35 DIN
31
570737 Label "6,3 A"
32
33 116831
570907 End plate
34
513997 Clamp 4 conductors blue
35
36 571393
553549 Clamp grey 2 conductors
37
761338 Transformer
38
39 292907
231657 Hexagon head srew DIN 933 M5X16 V2A
40
304816 Lock washer DIN 6797 J5,3 V2A
41
252867 Hexagon nut DIN 934 M5 V2A
42
082155 Washer DIN 9021 5,3 V2A
43
759988 Transformer STU 500/2X115
44
503169 Anti-interference capacitor
45
46 976504 Adapter top hat rail
47 500508 Adapter plates 4-fold
48 010383 Lens head screw DIN 7985 M3X8 V2A
050822 Lock washer DIN 6797 J3,2 V2A
49
001015
50
51 500506 Adapter plates 2-fold
327514 End plate 4 qmm grey
52
Lock washer DIN 6797 A10,5 V2A
Lens head screw DIN 7985 M6x10 V2A
Lens head screw DIN 7985 M4x12
Fine fuse 6,3 A slow
Clamp 4 qmm grey with flange
Hexagon head srew DIN 933 M6x50 V2A
Lens head screw DIN 7985 M4x8 V2A
-15-
Page 18
MB Genius-T 20-21
Assembly electric sheets
5
49
44
3
45
1
3
46
47
45
46
47
2
6
51
52
50
17
4
18
16
13
54
53
19
22
22
16
1
7
20
21
25
30
23
32
31
29
28
27
26
24
23
9
10
16
47
46
44
44
48
15
45
11
38
12
39
40
13
41
14
41
50
23
39
13
40
54
37
51
51
34
33
52
53
33
42
43
44
47
23
36
34
8
35
-16-
35
Page 19
MB Genius-T 20-21
BG Elektromontageplatte - Asembly electric sheets
500507 Mounting plate electricity 06 2021 UL
1
2 570729
504602 Safety temperature limiter
3
586811 Disk nut M6 V2A
4
5 895644 Plug 3 poles
6 895652 Plug 4 poles
232963 Spout DG 16
7
338419 Anti-interference capacitor
8
897035
9
756091 Hexagon nut low DIN 439 M10X1 V2A
10
570532 Bridge rectifier
11
001007 Washer DIN 125 A4,3 V2A
12
050849 Lock washer DIN 6797 J4,3 V2A
13
003905 Hexagon nut DIN 934 M4 V2A
14
037311
15
16 779393 Frequency converter
953377 Axial fan
16.1
051373
17
892912 Lock washer DIN 6797 J6,4 V2A
18
19 889695 Support frequency converter
050849 Lock washer DIN 6797 J4,3 V2A
20
010537
21
22 974153 Automatic circuit breaker 10 A
337676 End clamp 10mm
23
326941 Fuse clamp 35 DIN
24
570737 Label "6,3 A"
25
768006 Fine fuse 6,3 A UL
26
327514 End plate 4 qmm grey
27
752452 End plate
28
742813 Auxiliary relay 230 V
29
572055 Clamp 4 qmm grey
30
303089 Bridge 4qmm
31
570966 End plate 4 qmm
32
33 974269 Automatic circuit breaker 60 A
751944 Contactor 100 A typ 50 A
34
752207 Auxiliary switch "close"
35
752177 Auxiliary contactor 4 S
36
759988 Transformer STU 500/2X115
37
231657 Hexagon head srew DIN 933 M5X16 V2A
38
304816 Lock washer DIN 6797 J5,3 V2A
39
252867 Hexagon nut DIN 934 M5 V2A
40
082155 Washer DIN 9021 5,3 V2A
41
761338 Transformer 230V/12V
42
43 292907
570907 End plate
44
948039 Clamp GN/YE 4 conductors
45
513997 Clamp blue 4 conductors
46
571075 Clamp grey 4 conductors
47
553549 Clamp grey 2 conductors
48
503169 Anti-interference capacitor
49
50 976504 Adapter top hat rail
51 500508 Adapter plates automatic circuit 4-fold
52 010383 Lens head screw DIN 7985 M3X8 V2A
050822 Lock washer DIN 6797 J3,2 V2A
53
001015
54
Spout DG 48
Lock washer DIN 6797 A10,5 V2A
Lens head screw DIN 7985 M4x16 V2A
Lens head screw DIN 7985 M6x10 V2A
Lens head screw DIN 7985 M4x12
Hexagon head srew DIN 933 M6x50 V2A
Lens head screw DIN 7985 M4x8 V2A
-17-
Page 20
MB Genius-T 12-21 20-21
Assembly connecting terminal
4
3
2
1
17
15
2
3
9
12
18
4
9
10
19
20
14
8
6
2021
5
6
7
21
22
13
11
16
6
1221
23
-18-
Page 21
MB Genius-T 12-21 20-21
BG Anschlussklemme - Assembly connecting terminal
747262 Electric connection plate d2k 1221 2021
1
000582 Washer DIN 9021 6,4 V2A
2
892912 Lock washer DIN 6797 J6,4 V2A
3
251887 Hexagon nut DIN 934 M6 V2A
4
658227 Clamp 35 qmm grye
5
543144 Label "L1-PE"
6
763845
7
761834 Clamp 70 qmm grey
8
326941 Fuse clamp 35 DIN
9
568155 Label "10 A"
10
578975 Fine fuse 10 A slow
11
580511 Label "2 A"
12
190756 Fine fuse 2 A slow
13
327514 End plate 4 qmm grey
14
337676 End clamp 10mm
15
16 974153 Automatic circuit breaker 10 A
17 976504 Adapter top hat rail
18 500506 Adapter plates 2-fold
19 010383 Lens head screw DIN 7985 M3X8 V2A
050822 Lock washer DIN 6797 J3,2 V2A
20
050849 Lock washer DIN 6797 J4,3 V2A
21
001015
22
767700 Clamp 35 qmm grey
23
Cover panel terminal 70 qmm
Lens head screw DIN 7985 M4x8 V2A
-19-
Page 22
MB Genius-T 12-21 20-21
Assembly electric
5
4
3
2
8
7
6
38
14
13
1
10
11
12
M6
18
17
16
9
36
37
22
15
16
17
18
19
16
28
31
20
21
23
24
25
26
27
-20-
17
18
29
30
33
32
35
34
Page 23
MB Genius-T 12-21 20-21
Assembly electric
336394 Protection grid
1
658111 Protection temperatur sensor
2
582247 Gasket 13x19x1
3
885541 Lock washer DIN 6798 I14,5 V2A
4
035637 Hexagon nut R 1/4 SW 19X6
5
336211 Inset teflon
6
277665 Hose clip D 14
7
570621 NiCrNi sensor
8
745464 Protection temperatur sensor with hook
9
252867 Hexagon nut DIN 934 M5 V2A
10
304816 Lock washer DIN 6797 J5,3 V2A
11
287695 Support STB
12
504602 Safety temperature limiter
13
373079 Centric bush
14
752541
15
004014 Washer DIN 125 A6,4 V2A
16
892912 Lock washer DIN 6797 J6,4 V2A
17
251887 Hexagon nut DIN 934 M6 V2A
18
223697 Support bridge M6
19
010332 Countersunk srew DIN 965 M4X12 V2A
20
743348 Support core temperature 1
21
752363 Core temperature sensor l=3000mm
22
013455 O-Ring 3,68x1,78
23
743356 Support core temperature 2
24
743585 O-Ring 29,87x1,78
25
26 758574
035637 Hexagon nut R 1/4 SW 19X6
27
763446 Cross flow fan UL
28
001015
29
050849 Lock washer DIN 6797 J4,3 V2A
30
593486 Lock nut M6 V2A
31
32 558427 Motor tower
026999 Washer DIN 9021 4,3 V2A
33
050849 Lock washer DIN 6797 J4,3 V2A
34
003905 Hexagon nut DIN 934 M4 V2A
35
752630 Support plate core temperatur
36
525316 Cup screw M 4x8 VA
37
38 974366 Glas fiber hose
Label grounding M6
Lock washer DIN 6797 A12,5 V2A
Lens head screw DIN 7985 M4x8 V2A
-21-
Page 24
MB Genius-T 12-21 20-21
Assembly supply air
1
2
9
3
4
5
4
7
8
6
7
12
11
10
13
3
14
15
7
16
8
17
19
7
22
20
21
18
21
20
20
24
23
-22-
25
Page 25
MB Genius-T 12-21 20-21
Assembly supply air
575895 Cap supply air d2k 611 1011 1221
1
751987 Cap supply air double d2k 2011 2021
000582 Scheibe DIN 9021 6,4 V2A
2
013455 O-Ring 3,68x1,79
3
553395 Scheibenmutter M4 V2A
4
757217 Support platet d2k 2011 2021
5
766313 Air supply 06 2011 2021 UL
6
580791 Hose clamp 40-60 mm
7
580430 Silicon sleeve d=50x5 d2k 611 2021
8
753084 Silicon sleeve d=50x5 d2k 1221 2011
575941 Air supply pipe 110 mm d2k 611 2011 2021
9
575852 Air supply pipe 205 mm d2k 1011 1221
575933 Air supply
10
752746 Disk nut M5 V2A
11
757071 Gasket supply air D68XD50X3
12
000396 Hexagon nut DIN 934 M3 V2A
13
578886 Flap supply air
14
509191 Gasket air inlet tube
15
579173 Lifting rod air supply
16
566594
17
585319 Support plate lifting rod
18
001007 Washer DIN 125 A4,3 V2A
19
050849 Lock washer DIN 6797 J4,3 V2A
20
003905 Hexagon nut DIN 934 M4 V2A
21
776076 Lever stroke magnet air supply
22
760013 Support plate stroke magnet d2k UL
23
068217 Hexagon head srew DIN 933 M4X10 V2A
24
761362 Stroke magnet UL
25
Bellows
-23-
Page 26
MB Genius-T 12-21 20-21
Assembly downspout
1
14
2
16
3
4
5
15
6
4
5
12
10
9
8
7
8
9
10
4
5
17
18
19
20
11
7
10
9
13
-24-
Page 27
MB Genius-T 12-21 20-21
Assembly downspout
570621 NiCrNi sensor
1
759864 Fitting
2
268666 Gasket - thermostat probe 3x1,5x6
3
593303 Silicon hose D9X3
4
276634 Hose clip D 19
5
747327 Heat exchanger d2k 1221
6
745979 Heat exchanger d2k 2011 2021
558125 Gasket DN 70 silicon
7
251887 Hexagon nut DIN 934 M6 V2A
8
892912 Lock washer DIN 6797 J6,4 V2A
9
000582 Washer DIN 9021 6,4 V2A
10
743496 Siphon d2k 1221 2021
11
578274 Sheet angle siphon
12
273651 Hexagon head srew DIN 933 M6X20 V4A
13
14 584096 Gasket drain
771228 Heat exchanger d2k 1221 Gas
15
771260 Heat exchanger d2k 2011 2021 Gas
16 899933 Flow safeguard 2011 1221 2021
748498 Water pipe d2k 1221 2021
17
026999 Washer DIN 9021 4,3 V2A
18
050849 Lock washer DIN 6797 J4,3 V2A
19
068217 Hexagon head srew DIN 933 M4X10 V2A
20
-25-
Page 28
MB Genius-T 12-21 20-21
Assembly housing tube roller
10
3
2
8
7
6
9
1
12
11
13
14
21
22
7
8
6
2
1
9
2
2
2
3
2
4
2
5
3
4
5
2
6
15
2
6
23
20
19
24
16
25
17
6
7
18
-26-
8
6
7
Page 29
MB Genius-T 12-21 20-21
Assembly housing tube roller
744808 Housing tube roller d2k 1221 2021
1
770094 Tube roller 1221 2021
2
2.1 899909 Spiral spring
895563 Gasket shower head
2.2
2.3 780022 Stop buffer
893102 Rebound valve
2.4
783404 Tube roller head
2.5
585424 O-Ring tube roller head
2.6
003980 Washer DIN 125 A5,3 V2A
3
304816 Lock washer DIN 6797 J5,3 V2A
4
252867 Hexagon nut DIN 934 M5 V2A
5
001007 Washer DIN 125 A4,3 V2A
6
050849 Lock washer DIN 6797 J4,3 V2A
7
003905 Hexagon nut DIN 934 M4 V2A
8
752525 Axial fan
9
231657 Hexagon head srew DIN 933 M5X16 V2A
10
039691
11
785857
12
785865
13
014184 Countersunk srew DIN 965 M6X16 V2A
14
744735 Air chute d2k 1221
15
747491 Air chute d2k 2021
771716
16
006777 Serrated lock washer DIN 6798 A6,4 V2A
17
004014 Washer DIN 125 A6,4 V2A
18
752657 Cooling element d2k 1221 2021
19
752665 Solid state relay 90 A
20
553395 Disk nut M4 V2A
21
22 744875 Cover panel
23 899097
001015
24
251887 Hexagon nut DIN 934 M6 V2A
25
Insulating tube D9
Plastic pipe PA
Elbow-fitting
Cover panel cooling element 1221 2021
Cover panel state relay
Lens head screw DIN 7985 M4x8 V2A
-27-
Page 30
MB Genius-T 12-21 20-21
Assembly valve support
5
25
1
3
2
4
6
7
8
13
14
9
1
10
15
2
11
17
1
16
2
12
18
17
23
15
15
24
19
1
21
20
17
16
16
2
15
11
29
22
18
30
26
27
15
19
-28-
28
Page 31
MB Genius-T 12-21 20-21
Assembly valve support
593303 Silicon hose D9X3
1
276634 Hose clip D 19
2
261769 Cap nut DIN 1587 M5 V2A
3
740624 Water pipe d2k 1221 2021
4
338532 Anti-interference capacitor
5
753734 Tube 10x5 blue
6
572160 Hose clip NS 22
7
763454 Solenoid valve UL
8
784028 Pressure switch
9
10 889555
399280 Locking screw 1/8"
11
12 747580 Screwed angle fitting swivelling 06
785857
13
039691
14
754447 Double nipple
15
954535 Solenoid valve 230 V
16
582166 Hose connector
17
18 889520 Spring clip
249688 Filter
19
20 897264 Flowmeter
774286 Valve support
21
22 769975
577316 Pressure-reducing valve
23
24 593567 Loctite 511 sealing material
761397 Solenoid valve UL
25
789798
26
500509
27
977535 Fitting 3/4"x1/2"
28
29 577324 One quarter tubing
30 570451 Reducer 1/8-3/8
Valve support 06
Plastic pipe PA
Insulating tube D9
Valve support 06
Elbow-fitting
Elbow-fitting 90° 1/2" innen R 1/2"
-29-
Page 32
MB Genius-T 12-21 20-21

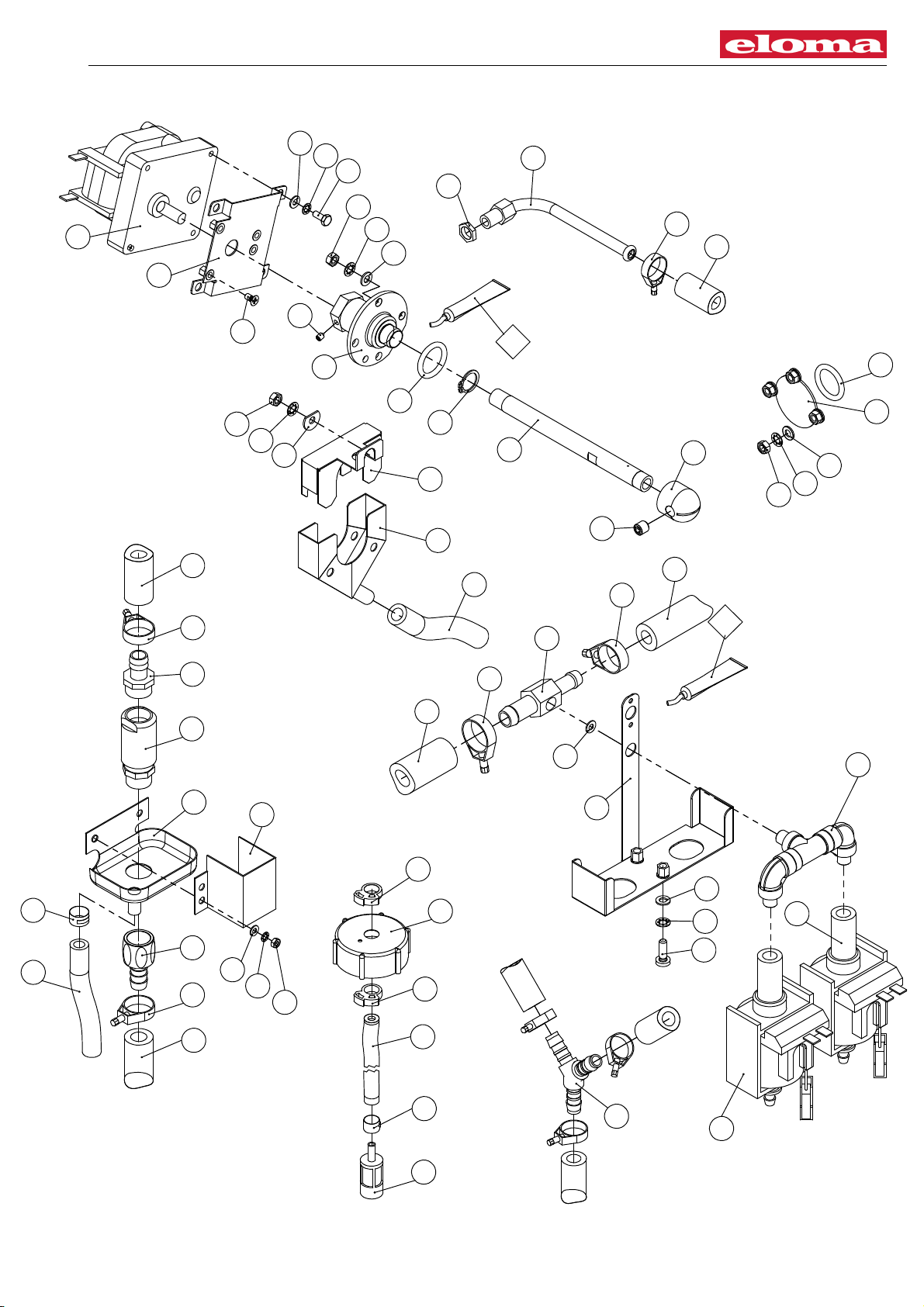

Assembly autoclean
1
8
9
2
10
11
3
18
4
17
5
6
7
19
20
32
49
25
26
37
38
39
12
22
23
13
14
16
15
6
5
5
6
21
31
7
20
24
19
35
27
26
25
42
28
29
34
40
24
41
26
25
44
7
45
6
36
33
2
3
44
43
46
47
30
36
48
-30-
Page 33
MB Genius-T
Assembly autoclean
774588 Gear motor Autoclean 230 V UL
1
001007 Washer DIN 125 A4,3 V2A
2
050849 Lock washer DIN 6797 J4,3 V2A
3
4 946745
252867 Hexagon nut DIN 934 M5 V2A
5
304816 Lock washer DIN 6797 J5,3 V2A
6
003980 Washer DIN 125 A5,3 V2A
7
784141 UL adapter housing Autoclean
8
9 043621
558512 Threaded pin DIN 914 M4x10
10
775185 VBG axle hub Autoclean UL
11
753742 O-Ring 23,4x3,53 Viton
12
581011 Retaining ring DIN 471 14X1 V24
13
755893 Nozzle pipe d2k 1221 2021
14
772690 Nozzle Autoclean
15
753785 Threaded pin DIN 913 M8x8 V2A
16
035637 Hexagon nut R 1/4 SW 19X6
17
509868 Water supply Autoclean
18
572160 Hose clip NS 22
19
753734 Tube 10x5 blue
20
889490 Washer Autoclean
21
889512 Cover cpl Autoclean
22
783757 Drip catch Autoclean
23
593303 Silicon hose D9X3
24
753661 Tube 13x5 blue
25
885207 Hose clip NS 23
26
753890 Connecting piece
27
001007 Washer DIN 125 A4,3 V2A
28
503193 Support piston pump
29
756024 Y-shaped tube connecting
30
747025 Cover Autoclean
31
32 872849 Silicon adhesives Novasil S25 cartridge 80ml
003743 Hexagon head srew DIN 933 M5X10 V2A
33
503185 Piping piston pump Autoclean
34
35 371327 Loctite 542 sealing material
772550 Piston pump Autoclean 230 V
36
753432 Hose clip 12mm-1/2"
37
753416 Retunr flow inhibitor R1/2"1/2"
38
753424 Collecting pan Autoclean
39
276634 Hose clip D 19
40
778095 Hose connector 1/2 X 1/2
41
753440 Splash guard Autoclean
42
003905 Hexagon nut DIN 934 M4 V2A
43
766747 Snap clamp 12,3
44
756334 Canister cap DN 50 blue
45
756075 Canister cap DN 50 red
175781 Hose D6X3mm PVC
46
276634 Hose clip D 19
47
079197 Suction filter autoclean
48
49 399434 O-Ring 29,82X2,62
Hexagon head srew DIN 933 10-32x5/8"
Countersunk srew DIN 965 M4X12 V2A
-31-

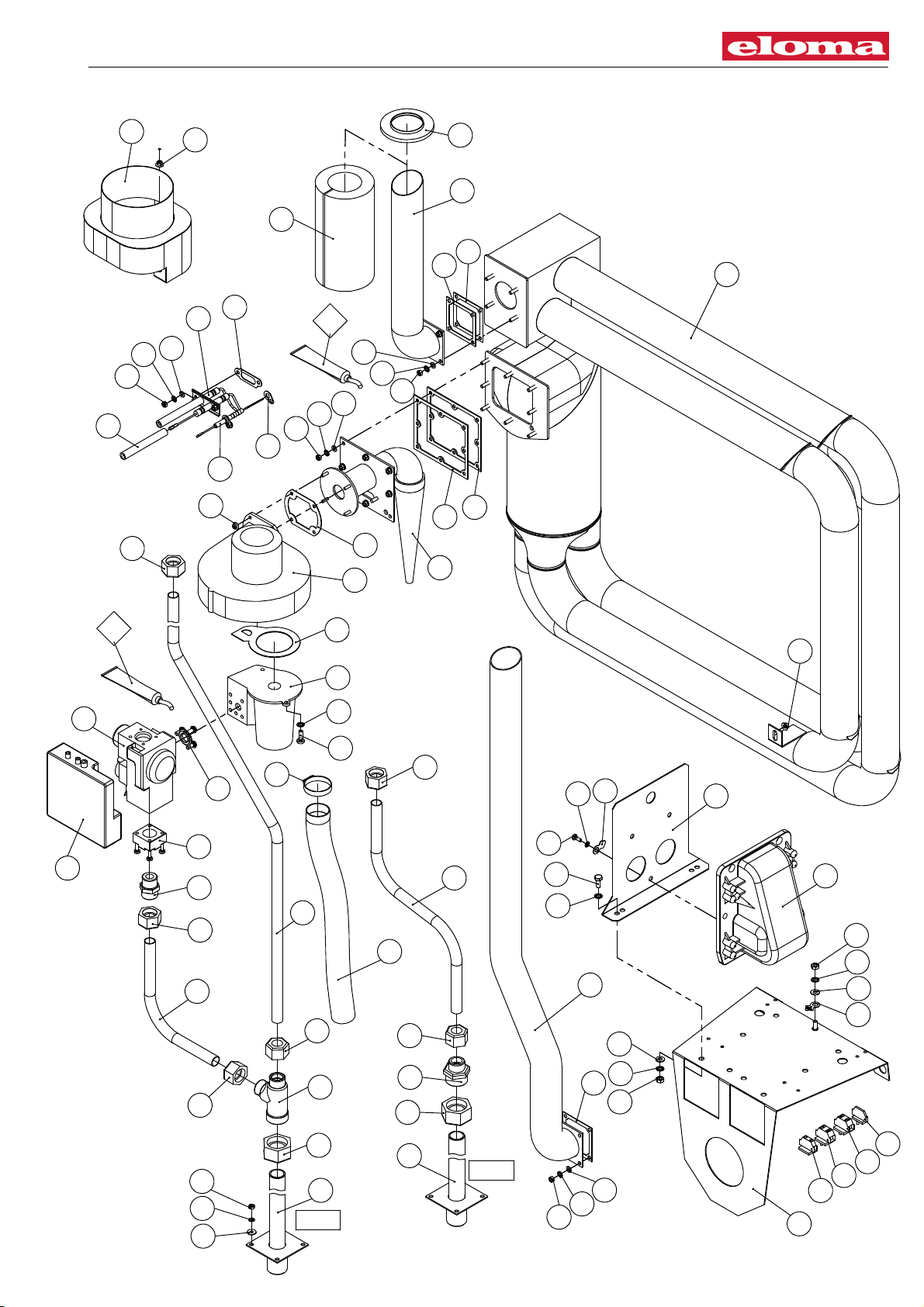

Page 34
MB Genius-T 12-21 20-21 Gas
Assembly gas
11
10
5
30
16
17
7
6
2
2
16
1
9
8
13
12
3
4
15
14
19
54
5
4
3
4
5
20
3
18
27
26
55
28
29
30
31
30
25
56
32
30
34
21
22
23
24
57
30
37
35
30
33
42
53
39
43
41
2
44
9
45
46
38
39
47
44
47
39
38
38
39
40
35
36
2021
36
1221
-32-
51
50
3
4
5
49
48
52
Page 35
MB Genius-T 12-21 20-21
BG Gas - Assembly gas
874779 Gas heat exchanger 1221 2021
1
874868
2
003980 Washer DIN 125 A5,3 V2A
3
893765 Serrated lock washer DIN 6798 A5,3 V2A
4
252867 Hexagon nut DIN 934 M5 V2A
5
771600
6
771120
786586
7
785784
8
752746 Disk nut M5 V2A
9
771538
10
039764
11
874795
12
874833
13
874914
14
874922
15
874884
16
874825
17
874841
18
553395 Disk nut M4 V2A
19
893625 Radial fan d2k 1221 2021 gas
20
744085
21
773174 Venturi 001 d2k 1221 2021
22
893765 Serrated lock washer DIN 6798 A5,3 V2A
23
010685
24
743941
25
744050
26
501085
27
770914 Straight flange 1/2 "
28
773883
29
773832
30
789836
31
789844
32
789828
33
773867
34
773840
35
771694
36
773859
37
003905 Hexagon nut DIN 934 M4 V2A
38
050849 Lock washer DIN 6797 J4,3 V2A
39
026999 Washer DIN 9021 4,3 V2A
40
771139
41
42 010383 Lens head screw DIN 7985 M3X8 V2A
050822 Lock washer DIN 6797 J3,2 V2A
43
553182
44
780049 Angle automatic ignition controler
45
790850
46
001007 Washer DIN 125 A4,3 V2A
47
553549 Clamp grey 2 conductors
48
513997 Clamp blue 4 conductors
49
50 571393
570907 End plate
51
783722 Support plate gas control unit d2k 611 1011 2011
52
068217 Hexagon head srew DIN 933 M4X10 V2A
53
54 899143 Copper paste
55 371327 Loctite 542 sealing material
56 893803 Set of seals 2+13+15+16+18+21
580791 Hose clamp 40-60 mm
56
766291 Air hose DN 51
57
Gasket exhaust flange
Exhaust pipe gas upper 2011 1221
Exhaust pipe gas upper 2021
Seal d2k gas
Tube insulation 800 ALU Rockwool D54X20mm
Flow safeguard d2k 2011 1221 2021
Silicon hose D 8X2
Ignition electrode d2k 1221 2021
Gasket ignition
Ionisation electrode d2k 1221 2021
Gasket ionisation
Gasket burning chamber d2k 1221 2021
Gas Burner d2k 1221 2021
Gasket radial fan
Gasket venturi d2k
Lens head screw DIN 7985 M5x16 V2A
Gasket gas valve
Gas regulating valve
Automatic ignition controler
Gas fitting D 15/R1/2"
Thread nut with cutting ring D 15
Gas pipe upper chamber 2021 UL
Gas pipe lower chamber 2021 UL
Gas pipe 1221
T-reducing-fitting D 22/15/15
Thread nut with cutting ring D 22
Gas support d2k 2011 1221 2021
Pipe fitting D 22/15
Exhaust pipe gas lower 2021
Label grounding M4
Ignition Transformer 230 V
Clamp 4 qmm grey with flange
-33-
Page 36
MB Genius-T 12-21 Gas
Assembly electric sheets
2
1
4
7
8
9
10
11
12
13
3
34
14
29
14
15
18
16
18
17
18
19
20
21
44
19
22
45
24
23
46
25
44
26
46
27
47
28
40
29
39
30
35
1
35
31
28
27
19
32
37
33
24
5
6
36
42
41
43
-34-
Page 37
MB Genius-T 12-21 Gas
Assembly electric sheets
746614 Mounting plate electricity d2k 1221
1
504602 Safety temperature liconer
2
338419 Anti-interference capacitor
3
586811 Disk nut M6 V2A
4
5 895644 Plug 3 poles
6 895652 Plug 4 poles
232963 Spout DG 16
7
570532 Bridge rectifier
8
001007 Washer DIN 125 A4,3 V2A
9
050849 Lock washer DIN 6797 J4,3 V2A
10
003905 Hexagon nut DIN 934 M4 V2A
11
12
897035
756091 Hexagon nut low DIN 439 M10X1 V2A
13
337676 End clamp 10mm
14
572985 Clamp 10 qmm green/yellow
15
572977 Clamp 10 qmm blue
16
572969 Clamp 10 qmm grey
17
543144 Label "L1-PE"
18
761206 Safety-element
19
568155 Label "10 A"
20
761214 Fine fuse 10 A UL
21
580511 Label "2 A"
22
761222 Fine fuse 2 A UL
23
327514 End plate 4 qmm grey
24
594997 Clamp 4 qmm grye
25
571067 Clamp 4 qmm blue
26
572055 Clamp 4 qmm grey
27
570966 End plate 4 qmm
28
752452 End plate
29
742813 Auxiliary relay 230 V
30
523909 Contactor A 9-30-10
31
570737 Label "6,3 A"
32
768006 Fine fuse 6,3 A UL
33
764116 Auxiliary relay 12 V
34
35 779393 Frequency converter Gas UL
953377 Axialgebläse Frequenzumrichter
35.1
788376
36
050849 Lock washer DIN 6797 J4,3 V2A
37
553549 Clamp grey 2 conductors
38
050849 Lock washer DIN 6797 J4,3 V2A
39
010537
40
503169 Anti-interference capacitor
41
761338 Transformer UL
42
43 292907
570907 End plate
44
513997 Clamp blue 4 conductors BU
45
46 571393
Lock washer DIN 6797 A10,5 V2A
Lens head screw DIN 7985 M4x50 V2A
Lens head screw DIN 7985 M4x12
Hexagon head srew DIN 933 M6x50 V2A
Clamp 4 qmm grey with flange
-35-
Page 38
MB Genius-T 20-21 Gas
Assembly electric sheets
2
16
17
18
19
29
5
6
4
20
18
17
21
22
1
7
28
8
27
23
1
23
30
3
25
3
24
9
40
41
43
10
15
36
11
12
13
14
55
35
36
40
39
38
37
37
45
42
41
47
46
44
34
56
30
31
48
44
47
30
49
52
23
50
52
-36-
51
52
31
53
54
31
32
33
34
38
39
40
41
30
26
Page 39
MB Genius-T 20-21 Gas
Assembly electric sheets
500507 Mounting plate electricity 06 2021 UL
1
2 570729
504602 Safety temperature limiter
3
586811 Disk nut M6 V2A
4
5 895644 Plug 3 poles
6 895652 Plug 4 poles
232963 Spout DG 16
7
338419 Anti-interference capacitor
8
897035
9
756091 Hexagon nut low DIN 439 M10X1 V2A
10
570532 Bridge rectifier
11
001007 Washer DIN 125 A4,3 V2A
12
050849 Lock washer DIN 6797 J4,3 V2A
13
003905 Hexagon nut DIN 934 M4 V2A
14
037311
15
003905 Hexagon nut DIN 934 M4 V2A
16
050849 Lock washer DIN 6797 J4,3 V2A
17
001007 Washer DIN 125 A4,3 V2A
18
763624 Sheet safety device 15 A
19
763411 Fuse holder UL
20
010502
21
761818 Fuse 15 A UL
22
23 779393 Frequency converter
953377 Axial fan
23.1
788376
24
050849 Lock washer DIN 6797 J4,3 V2A
25
752177 Auxiliary contactor 4 S
26
050849 Lock washer DIN 6797 J4,3 V2A
27
010537
28
503169 Anti-interference capacitor
29
337676 End clamp 10mm
30
761206 Safety-element
31
568155 Label "10 A"
32
761214 Fine fuse 10 A UL
33
327514 End plate 4 qmm grey
34
742813 Auxiliary relay 230 V
35
752452 End plate
36
523909 Contactor A 9-30-10
37
594997 Clamp 4 qmm grye
38
571067 Clamp 4 qmm blue
39
572055 Clamp 4 qmm grey
40
570966 End plate 4 qmm
41
764116 Auxiliary relay 12 V
42
303089 Bridge 4qmm
43
570907 End plate
44
761338 Transformer UL
45
513997 Clamp blue 4 conductors
46
571075 Clamp grey 4 conductors
47
48 292907
572985 Clamp 10 qmm green/yellow
49
572977 Clamp 10 qmm blue
50
572969 Clamp 10 qmm grey
51
543144 Label "L1-PE"
52
580511 Label "2 A"
53
761222 Fine fuse 2 A UL
54
570737 Label "6,3 A"
55
768006 Fine fuse 6,3 A UL
56
Spout DG 48
Lock washer DIN 6797 A10,5 V2A
Lens head screw DIN 7985 M4x16 V2A
Lens head screw DIN 7985 M4x10 V2A
Lens head screw DIN 7985 M4x50 V2A
Lens head screw DIN 7985 M4x12
Hexagon head srew DIN 933 M6x50 V2A
-37-
Page 40
MB Genius-T 12-21 20-21
Assembly trolley
1
1
1
1
2
1
4
1
5
1
6
1
3
-38-
Page 41
MB Genius-T 12-21 20-21
Assembly trolley
755826 Rack trolley d2k 1221
1
749257 Rack trolley d2k 2021
863335 Handle trolley d2k 1221 2021
1.1
146021 Backblech GN 2/1 20 mm Edelstahl
1.2
870331 Container rack trolley 1221 2021
1.3
859818 Castor with brake
1.4
859826 Castor without brake
349771 Serrated lock washer DIN 6798 A10 V2A
1.5
786683 Hexagon head srew DIN 933 M10X35 V2A
1.6
-39-
Page 42
MB Genius-T 12-21 20-21
Assembly mounting parts
763004 Connection cable 3x1,5 qmm L=500
763349 Cable harness lightning d2k 1221 MB Genius UL
763187 Cable harness lightning d2k 2021 MB Genius UL
976326 Cable harness heating element 06 1221 MB Genius-T UL
974552 Cable harness heating element 06 2021 MB Genius-T UL
753920 Cable harness low voltage d2k 1221
763047 Cable harness low voltage d2k 1221 Gas
763020 Cable harness low voltage d2k 2021 Gas
974544 Cable harness low voltage 06 2021 UL
753971 Cable harness Sensor d2k 2021
976318 Cable harness controls 06 1221
974447 Cable harness controls 06 2021
763101 Cable harness controls 06 1221 Gas
763128 Cable harness controls 06 2021 Gas
958883 Cable harness controls d2k 1221 MB Genius UL
973548 Cable harness extension motor d2k 1221 MB Genius UL
872849 Silicon adhesives Novasil S25 cartridge 80ml
872482 Heat-conducting paste
593567 Loctite 511 sealing material
371327 Loctite 542 sealing material
899143 Copper paste
180882 Insulation 1x1m
746606 Insulation 1221
747122 Insulation 2021
278513 ISO Clip
e910184 Wiring diagram MA-KT MB Genius-T 06 1221
e910186 Wiring diagram MA-KT MB Genius-T 06 2021
e910191 Wiring diagram MA-KT MB Genius-T 06 1221 Gas
e910192 Wiring diagram MA-KT MB Genius-T 06 2021 Gas
-40-
Page 43
Page 44
791237 24.04.2007 pl
Vers. 1.1 29.06.07 Technische Änderungen vorbehalten !
Loading...
