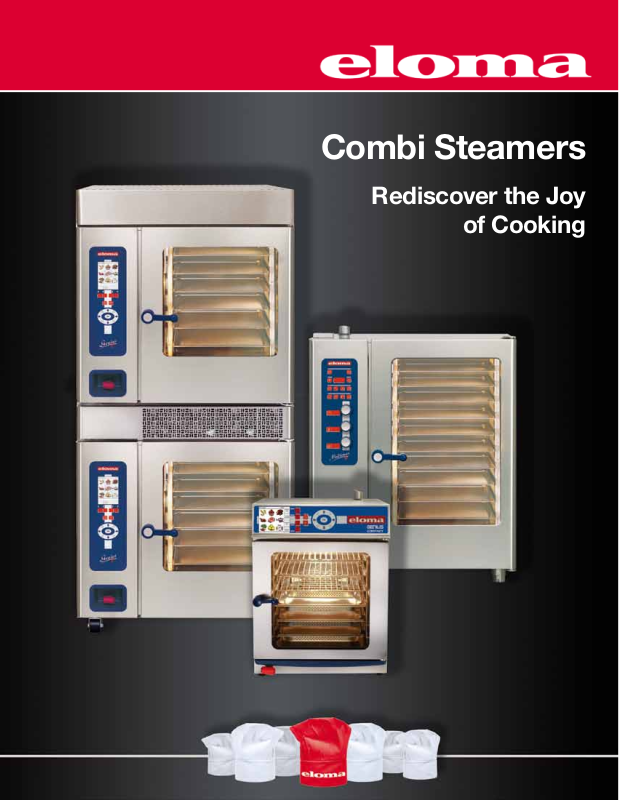

Page 1
Combi Steamers
Rediscover the Joy
of Cooking
Page 2
6 Shelves up to 50 meals
The Genius Compact is home anywhere and everywhere- Restaurants, Train‘s,
Submarines,Yacht‘s, Roof top dining, Pool bars, Room service, Airport lounges,
Coffee shops. In the daily business the small one scores with endless application possibilties.
Eloma Genius Compact
Equipped with technology usually reserved for larger appliances, the
Genius Compact is a compact all-round solution that fits in anywhere.
Quality that has been proved a thousand times over.
… did you know?
Within its 9 modes of operation the Genius Compact also has an
extra baking program.
9 Menu groups
9 Cooking methods
The Genius Compact is also available with left-hinged door
The Genius Compact can also be stacked on another Genius
Compact.
Easy maintenance as the control elements are located
behind the panel on the front.
The fully automatic cleaning system guarantees efficient
cleaning in scarcely no time at all and is standard in each Eloma.
FlexiFry HotSpot ChickenGridTray size 2/3 steam pan size
2 3
Page 3
6 Shelves up to 120 meals
6 shelves or more - all Genius and Multimax are very flexible.
According to the user‘s needs their large cooking chambers can be charged with
full size sheet pans or steam pans.
Genius - the clever solution
Immediatly at first sight, the Genius is convincing because of its
unique operating concept with 5 start-up screens. Depending on the
requirements in the kitchen, there is always a suitable solution
– fully automatic, semi-automatic or manual.
… did you know?
Offering different start screens, the control system can be
optimally adapted to its user´s needs.
All sizes of Genius and Multimax are available as
electric or gas models.
The fully automatic cleaning system guarantees efficient
cleaning in scarcely no time at all and is standard in each Eloma.
All cooking processes are automatically recorded thanks to
the HACCP function.
Gas Models 06-11
Electric Models 06-11
Multimax - the practical one
Classic operation controls combined with high-quality finish and
superb cooking performance make the Multimax an applicance that
leaves nothing to be desired.
… did you know?
All Eloma combi steamers are fitted with the boilerless
original Live Steam System.
Gas models offer the best efficiency with their
high-performance triple pipe heat exchanger.
The electric table top models can be supplied with the door
hinged to the right or left, depending on site conditions.
ProConnect allows you to write your cooking programs
easily on a PC and store them in clearly organised files.
4 5
Page 4
10 Shelves up to 200 meals
Clima Active guarantees perfect results for 10 sheves, due to active moisture control in the
cooking chamber.
Eloma - Multi-Eco-System
The award winning Multi-Eco-System helps you to save resources
with every Genius or Multimax (except Genius Compact).
Your benefits:
The high-performance heat recovery is saving up to 42% water
and up to 16% energy.
… did you know?
Multimax 10-11
Genius 10-11
The Genius control is extremely simple and
self-explanatory.
The high-resolution TFT screen of Genius is easy to
read - even if you are not standing right in front of the unit.
The Multimax unites tradition and the highest level of
individuality.
The Genius is multi-lingual. All symbols on Genius and
Multimax are easy to understand.
The Genius provides up to 300 programs and the Multimax
99 programs.
6 7
Page 5
12 Shelves up to 360 meals
A Genius or Multimax with 12 shelves and space for 12 sheet pans or 24 steam pans can
be amended with a banquet system including a thermal insulation hood - similar to the
units with 20 shelves.
Eloma - Live Steam System
Live steam is boilerless on demand in the cooking chamber. Energy efficiency
and perfect steam saturation simultaneously - ideal for delicate products, such
as broccoli, dumplings, vegetables or fish.
Gas Model 12-21
… did you know?
A multi-point core temperature probe is standard in all
Eloma combis.
Superbly even results due to an auto reverse fan wheel are
what Eloma is famous for.
Roll-in-trolleys facilitate the loading of high volumes in
models with 12 or 20 shelves.
The Eloma Steam Protection System automatically
extracts steam from the Genius cooking chamber at the
Electric Model 12-21 Electric Model 12-21
end of the cooking process.
8 9
Page 6
20 Shelves up to 600 meals
The largest Genius or Multimax can accommodate 20 sheet pans or 40
steam pans for highest capacities.
Eloma - autoclean
The patented autoclean
integrated cool down. With closed door, the cleaning starts immediately.
No additional labor or contact with the cleaning agent is necessary.
®
guarantees 100% cleaning satisfaction due to an
®
Multimax 20-21
… did you know?
The ventilated doors include tempered door glass with
hinged double panes for easy cleaning.
The Active-Temp function preheats and cools down
automatically with closed door and utilization of residual
heat in combination with the Multi-Eco-System.
Hygienic cooking chambers seamlessly welded with
curved stainless steel corners facilitates easy cleaning.
Special accessories - like the HotSpot grilling plate - are
available to extend application possibilities.
For manual cleaning all combi steamers are equipped with
Genius 20-21
a hand shower with automatic rewind.
10 11
Page 7
Multi-Eco-Hood, the process-controlled condensation hood.
A highly efficient condensation hood designed to significantly reduce steam with more than 80 % condensation at minimum operating costs - also for stacked units.
Technical Data
1) KH 1
Multi-Eco-Hood for Combisteamers
TYP KH 1 KH 2/ KH 2 Mix
Execution for (only electric) Genius Compact Genius T, Multimax
Dimension of hood
Width inch 20.47 36.50
Depth inch 25.00 31.69
Hight inch 5.91 6.69
Weight lbs 39.68 70.55
Sound level (Step 2) 42 dB (A) 55 dB (A)
Ventilation steps 2 2
Forced air circulation 660 m³/h 1300 m³/h
2) KH 2
3) KH 2 MIX
… did you know?
process-controlled fully automatic
system
no water consumption
minimal energy consumption
powerful performance
condenses steam
reduces odors
small kitchen foot print
75,20 inch
a
b
a
c
d
86.61 inch
64,17 inch
b
a
b
d
a = 6.69 inch
b = 29.13 inch
c = 40.16 inch
d = 3.94 inch -> available with -> casters or adjustable feet
75.59 inch
12 13
Page 8
Heavy duty accessories for large quantities
Roll-in rack trolleys are perfect accessories for large quantities. Up to 440 lbs total load cover even highest demands.
Banquet preparation becomes effortless with Eloma roll-in plate trolleys. Food can be arranged cold on the plates offpeak and regenerated just in time. Serve up to 360 plates with one Genius or Multimax 20-21.
Eloma - ProConnect
The crystal-clear user interface combines the standard operating methods of Combi steamers with useful PC
functions and facilitates your work flow. ProConnect allows you to write your cooking programs easily and
quickly on a PC and manage them in clearly organized lists that are tailored to your individual
preferences. HACCP documentation, approved & secure Cooking processes and operating data can be easily
stored on your PC and retrieved at any time for later evaluation.
Data transfer made easy. At the click of a mouse: Just send your centrally stored cooking programs
from your PC to your Eloma combi steamer and vice versa – ideal when you are working with several units.
Thermal Insulation hood
Electric Models
Sizes GENIUS COMPACT 6-11 10-11 12-21 20-21
6 x 2/3 Steam Pans 6 Steam Pans 10 Steam Pans 24 Steam Pans 40 Steam Pans
or or or or
6 Full Size Pans 10 Full Size Pans 12 Full Size Pans 20 Full Size Pans
Width/ inch 20.47 36.42 36.42 51.67 51.67
Depth/ inch 24.21 31.69 31.69 42.76 42.76
Hight/ inch 26.38 33.07 44.09 58.66 136.42
Gross Weight/ lbs 132.28 286.60 368.17 771.29 1091.29
Power Supply/ kW 5 kW 9 kW 19 kW 22 kW 42 kW
Frequency 208 V 3AC (60 Hz) 208 V (480 V) 3AC / 60 Hz 208 V (480 V) 3AC / 60 Hz 208 V (480 V) 3AC / 60 Hz 208 V (480 V) 3AC / 60 Hz
Protection 3 x 15 A 3 x 30 A 3 x 60 A 3 x 70 A 3 x 125 A
Temperature °F 86° - 572° F 86° - 572° F 86° - 572° F 86° - 572° F 86° - 572° F
Water Connection (2 connections) 3/4 ´´ female / GHT 3/4 ´´ female / GHT 3/4 ´´ female / GHT 3/4 ´´ female / GHT 3/4 ´´ female / GHT
Door /hinged left or right left or right left or right right right
autoclean GENIUS COMPACT GENIUS & MULTIMAX GENIUS & MULTIMAX GENIUS & MULTIMAX GENIUS & MULTIMAX
Scout: One-handed touch operation GENIUS COMPACT GENIUS GENIUS GENIUS GENIUS
Panel with practical rotating knobs - MULTIMAX MULTIMAX MULTIMAX MULTIMAX
Gas Models
Width/ inch - 36.42 36.42 51.67 51.67
Depth/ inch - 31.69 31.69 42.76 42.76
Hight/ inch - 33.07 44.09 58.66 136.42
Gross Weight/ lbs - 308.65 390.22 804.69 1168.45
Power Supply/ kW Gas/ kW Electric - 11 kW/ 1 kW 20 kW/ 1 kW 33 kW/1 kW 66 kW/ 2 kW
Frequency - 120 V 1AC 120 V 1AC 120 V 1AC 120 V 1AC
Protection - 1 x 15 A 1 x 15 A 1 x 15 A 1 x 20 A
Temperature °F - 86° - 572° F 86° - 572° F 86° - 572° F 86° - 572° F
Water Connection (2 connections) - 3/4 ´´ female / GHT 3/4 ´´ female / GHT 3/4 ´´ female / GHT 3/4 ´´ female / GHT
Door /hinged - right right right right
autoclean - GENIUS & MULTIMAX GENIUS & MULTIMAX GENIUS & MULTIMAX GENIUS & MULTIMAX
Scout: One-handed touch operation - GENIUS GENIUS GENIUS GENIUS
Panel with practical knobs - MULTIMAX MULTIMAX MULTIMAX MULTIMAX
Support Stands
Support stand open/ hight inch - 22.44 22.44 - Mobile tray rack/ number trays - - - 12 20
Plate Rack 20-21
Mobile plate rack/ number plates - - - 77 120
14 15
Specific ations are subject to change without notice - Eloma GmbH-Germany-D- 82216 Maisach/2010-4-2,500pcs
Page 9
Combi steaming Grilling with Eloma HotSpot Steaming
Cooking with core temperature Braising Grilling with core temperature
Regenerating
Dry heating
Poaching
Sweet baking Variable steaming Baking
Eloma North America • 3765 Champion Blvd. • Winston-Salem • NC 27105 / USA • Phone: 800-551-8795 • [email protected] • www.elomausa.com
